1. WE ARE PROFESSIONAL GRADE.
®
GMC Sierra: Segment-leading1
fuel economy, Heavy-duty capability. A combination of mechanical, aerodynamic and mass-
reducing enhancements boost fuel economy and increase trailering ratings2
on XFE (Xtra Fuel Economy) models, so this
full-size pickup can continue to do what it does best — work. That’s technology that happens when you never say never.
STRONG WORK ETHIC. IMPRESSIVE CAPABILITIES.
2009 GMC SIERRA 1500 SELECT SPECIFICATIONS KEY: S = STANDARD O = OPTIONAL – = NOT AVAILABLE Learn more or build your own at gmc.com
MODELS (AVAILABLE IN 2WD OR 4WD)
1500 Regular Cab Standard Box and Long Box
1500 Extended Cab Short Box, Standard Box and Long Box
1500 Crew Cab Short Box
EPA ESTIMATED FUEL ECONOMY IN MPG (CITY/HIGHWAY)
4.3L
V6
4.8L
V8
5.3L V8
(GAS)
5.3L V8
(E85)3
6.0L
V8
6.2L V8
(GAS)
6.2L V8
(E85)3
1500 2WD 15/20 14/19 14/20 11/15 14/19 13/19 10/14
1500 4WD 14/18 14/18 14/19 10/14 13/18 12/19 9/14
1500 XFE 2WD – – 15/21 11/16 – – –
MAXIMUM CAPACITIES 1500
Cargo volume (cu. ft.)4
(Short Box/Standard Box/Long Box) 53.2/60.7/75.5
Payload (lbs.)5
1,373–1,909
Fuel tank (gal. approx.) 26/34
Seating (Regular Cab/Extended Cab/Crew Cab) 3/5/6
Trailering (lbs.)2
10,700
GVWR (lbs.)6
6,400–7,300
EXTERIOR FEATURES WT SL7
SLE SLT8
Cargo management system9
O O O O
Rearview camera system10
– – O O
Ultrasonic Rear Parking Assist11
– – O O
ENGINES/CHASSIS FEATURES
Engine: Vortec 4.3L V6 with 195 hp S – – –
Engine: Vortec 4.8L V8 with 295 hp O S S12
–
Engine: Vortec 5.3L V8 with 315 hp and Active Fuel Management O – O S
Engine: Vortec 5.3L V8 FlexFuel3
with 315 hp and Active Fuel Management O – O O
Engine: Vortec 6.0L V8 with 367 hp and Active Fuel Management – – O O
Engine: Vortec 6.2L V8 FlexFuel3
with 403 hp – – – O
Z71 Off-Road Package: Off-Road Suspension Package, Skid Plate Package
and high-capacity air cleaner – – O13
O
Trailering equipment, heavy-duty: trailer hitch platform and two-inch
receiver, seven-wire harness, external transmission oil cooler and
automatic locking rear differential O14
O O S
Transmission: four-speed automatic S S S S
SAFETY AND SECURITY FEATURES
Air bags:15
driver and right-front passenger, frontal,
with Passenger Sensing System S S S S
Air bags:15
head-curtain side-impact, front and rear
outboard seating positions with rollover sensor – – O O
SAFETY AND SECURITY FEATURES (CONTINUED) WT SL7
SLE SLT8
OnStar:16
one-year Safe & Sound Plan S S S S
StabiliTrak Electronic Stability Control System O17
S S S
Tire Pressure Monitor (excludes spare tire) S S S S
INTERIOR FEATURES
Bluetooth® wireless technology for select compatible phones18
O O O19
S
Remote vehicle starter system: includes Remote Keyless Entry O O O19
S
SEATING
Seating surfaces: cloth O S S –
Seating surfaces: Ultrasoft, leather-appointed – – O S
Front bench: 40/20/40-split, three-passenger, driver and front
passenger manual reclining with outboard head restraints S S – –
Front bench: 40/20/40 split, with recliners, center armrest
with storage and lockable underseat storage – – S –
Front buckets: 10-way power, two-way power lumbar control, heated
cushions and seatbacks, two-position driver memory, adjustable
outboard head restraints, floor console and storage pockets – – – S
SOUND SYSTEMS
AM/FM stereo with MP3-compatible CD player and Radio Data System (RDS)20
S S S S
AM/FM stereo with MP3-compatible CD/DVD player and RDS20
– – O21,22
O21,22
AM/FM stereo, MP3/CD/DVD player, DVD-based navigation23
with voice prompts, and RDS20
– – O21,22
O21,22
AM/FM stereo, MP3/CD player, DVD-based navigation23
with voice prompts, and RDS20
– – O24
O24
Entertainment Package:rear-seat DVD player, AM/FM stereo with MP3-compatible
CD/DVD player, Bose® speaker system and rear audio controls – – O25
O25
XM Radio:26
with three trial months S S S S
XM NavTraffic27
– – O O
WHEELS
17-inch steel, painted with painted center caps S – – –
17-inch chrome styled-steel, includes chrome center caps O S S –
18-inch chrome-clad aluminum – – – S
18-inch chrome-aluminum – – O28
O28
20-inch chrome-clad aluminum29,30
– – O O
AVAILABLE DEALER-INSTALLED GMC ACCESSORIES31
20-Inch and 22-Inch Chrome Wheels32
Premium All-Weather Floor Mats
Chrome Mesh Grille Six-Inch Chrome Tubular Assist Steps
DVD Rear-Seat Entertainment System Two-Way Advanced Remote Start
Carbon Black Metallic33
(extra-cost option)
Onyx BlackSonoma Red Metallic Stealth Gray Metallic Steel Gray Metallic Summit White Silver Birch Metallic Dark Crimson Metallic33
Midnight Blue Metallic33
Fire Red33
AVAILABLE EXTERIOR COLORS
1 At time of printing. 2 Maximum trailer weight ratings are calculated assuming a properly equipped base vehicle. See your GMC dealer for additional details. 3 E85 is a combination of 85% ethanol and 15% gasoline. Go to gm.com/biofuels to see if there is an E85 fuel station
near you. 4 Cargo and load capacity limited by weight and distribution. 5 Maximum payload capacity includes weight of driver, passengers, optional equipment and cargo. 6 Gross Vehicle Weight Rating. When properly equipped; includes weight of vehicle, driver, passengers, cargo
and optional equipment. 7 Not available on Regular Cab or Extended Cab models. 8 Not available on Regular Cab models. 9 Additional cargo management accessories may be purchased through GM Accessories. 10 Requires Extended or Crew Cab models with available SLE
Preferred Package or available SLT Convenience Package. Not available with power sunroof. 11 Requires available Extended or Crew Cab models with Convenience Package or available SLT Convenience Package. 12 Not available in Extended Cab Long Box models. 13 Requires
available Power Pack Plus Package. 14 Not available with Vortec 4.3L V6 MFI engine or Solid Smooth Ride Suspension Package. 15 Always use safety belts and the correct restraint for your child’s age and size. Even in vehicles equipped with the Passenger Sensing System,
children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with a passenger air bag. See the Owner’s Manual and child safety seat instructions for more
safety information. 16 Call 1-888-4ONSTAR (1-888-466-7827) or visit onstar.com for details and system limitations. 17 Not available with Vortec 4.3L V6 MFI engine. 18 Go to gm.com/bluetooth to find out which Bluetooth phones are compatible with the vehicle. 19 Requires
available SLE Preferred Package. 20 RDS functions only where stations broadcast RDS information. 21 Requires available Entertainment Package. 22 Requires Crew Cab models. 23 Map coverage not available in Puerto Rico, the Virgin Islands and portions of Canada. 24 Not
available with Entertainment Package. 25 Includes XM Radio with XM NavTraffic. 26 XM Radio requires a subscription, sold separately after the first 90 days. Not available in Alaska or Hawaii. For more information, visit gm.xmradio.com. 27 Required XM Radio and NavTraffic
monthly subscriptions sold separately after trial period. XM NavTraffic only available in select markets. All fees and programming subject to change. Subscriptions subject to customer agreement available at gm.xmradio.com. XM service only available in the 48 contiguous United
States. 28 Requires available All-Terrain Package. 29 Use only GM-approved tire and wheel combinations. For important tire and wheel information, go to gmaccessorieszone.com or see your dealer for details. 30 Not available with Z71 Off-Road Package or on Regular Cab Long
Box or Extended Cab Long Box models. 31 Some accessories may not be available on all models. See dealer for details. 32 Use only GM-approved tire and wheel combinations. Unapproved combinations may change the vehicle’s performance characteristics. For important tire and wheel
information, go to gmaccessorieszone.com or see your dealer for details. 33 Not available with All-Terrain Package.
GM, the GM Logo, GMC, the GMC Logo, and the slogans, emblems, vehicle model names, vehicle body designs and other marks appearing in this document are the trademarks and/or service marks of General Motors, its subsidiaries, affiliates or licensors. Bose is a registered trademark
of the Bose Corp. The Bluetooth word mark is a registered trademark owned by Bluetooth SIG, Inc., and any use of such mark by GMC is under license. The XM name and XM NavTraffic are registered trademarks of XM Satellite Radio Inc. OnStar and Safe & Sound are registered service
marks of OnStar Corp. ©2009 General Motors. All rights reserved. GM reserves the right to make changes at any time and without notice in prices, colors, materials, equipment, specifications, models and availability.
09GMCSIESPE02

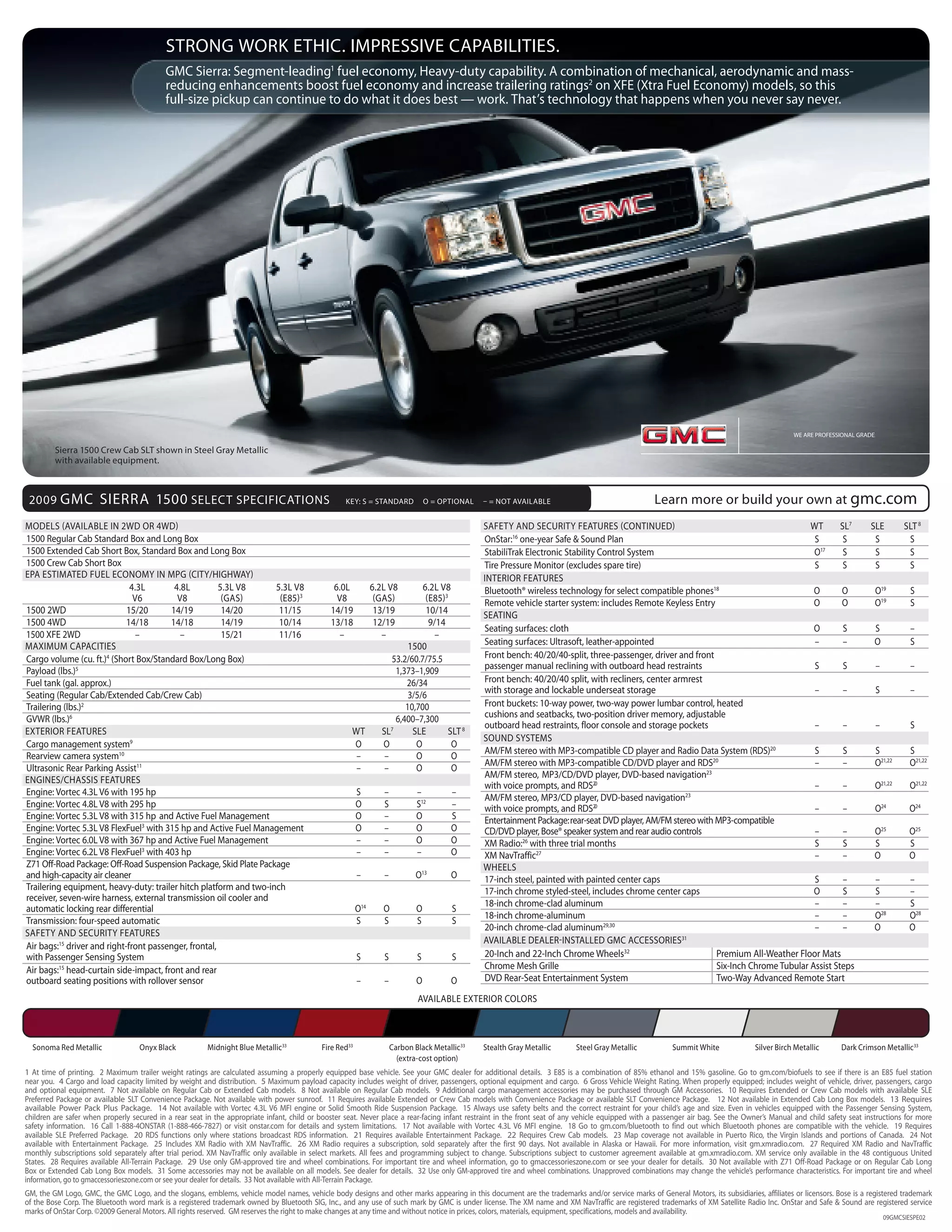

Sierra 1500 Crew Cab SLT shown in Steel Gray Metallic
with available equipment.
