UNIVERSAL PROPERTY
LOGIC GATES

UNIVERSAL GATE
• A universal gate is a logic gate which can
implement any Boolean function without the
need to use any other type of logic gate. The
NOR gate and NAND gate are universal gates.
This means that you can create any logical
Boolean expression using only NOR gates or
only NAND gates.
• In practice, this is advantageous since NOR
and NAND gates are economical and easier to
fabricate than other logic gates. So much so
that an AND gate is typically implemented as a
NAND gate followed by an inverter (not the
other way around)! Similarly, an OR gate is
typically realised as a NOR gate followed by an
inverter.

NAND Gate As NOT Gate

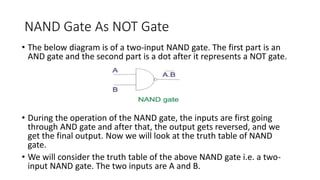

• The below diagram is of a two-input NAND gate. The first part is an
AND gate and the second part is a dot after it represents a NOT gate.
• During the operation of the NAND gate, the inputs are first going
through AND gate and after that, the output gets reversed, and we
get the final output. Now we will look at the truth table of NAND
gate.
• We will consider the truth table of the above NAND gate i.e. a two-
input NAND gate. The two inputs are A and B.

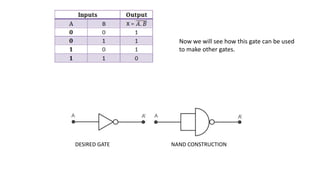

Now we will see how this gate can be used
to make other gates.
DESIRED GATE NAND CONSTRUCTION

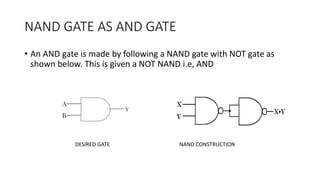

NAND GATE AS AND GATE
• An AND gate is made by following a NAND gate with NOT gate as
shown below. This is given a NOT NAND i.e, AND

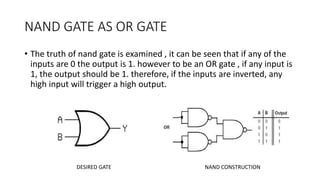

NAND GATE AS OR GATE
• The truth of nand gate is examined , it can be seen that if any of the
inputs are 0 the output is 1. however to be an OR gate , if any input is
1, the output should be 1. therefore, if the inputs are inverted, any
high input will trigger a high output.

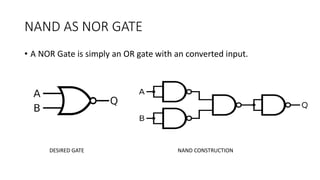

NAND AS NOR GATE
• A NOR Gate is simply an OR gate with an converted input.

NAND AS X-OR GATE
• An XOR gate is made by connecting four NAND gates as shown below. This construction entails a propagation delay
three times that of a single NAND gate. , noting from de Morgan's Law that a NAND gate is an inverted-input OR gate.
This construction uses five gates instead of four.
• Boolean Expression Y = A.B' + 'A.B = (A ⊕ B)
• "If inputs having an odd number of ones, then Y is true"

NAND AS X-NOR GATE
• NAND gate operation is same as that of AND gate followed by an
inverter. That's why the NAND gate symbol is represented like that.
Ex-NOR GATE - The Exclusive-NOR Gate, also written as “Ex-NOR” or
“XNOR”, function is achieved by combining standard gates together to
form more complex gate functions.

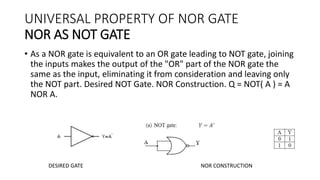

UNIVERSAL PROPERTY OF NOR GATE
NOR AS NOT GATE
• As a NOR gate is equivalent to an OR gate leading to NOT gate, joining
the inputs makes the output of the "OR" part of the NOR gate the
same as the input, eliminating it from consideration and leaving only
the NOT part. Desired NOT Gate. NOR Construction. Q = NOT( A ) = A
NOR A.
DESIRED GATE NOR CONSTRUCTION

NOR GATE AS OR GATE
• The OR gate is simply a NOR Gate followed by NOT gate

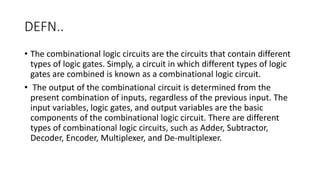

DEFN..
• The combinational logic circuits are the circuits that contain different
types of logic gates. Simply, a circuit in which different types of logic
gates are combined is known as a combinational logic circuit.
• The output of the combinational circuit is determined from the
present combination of inputs, regardless of the previous input. The
input variables, logic gates, and output variables are the basic
components of the combinational logic circuit. There are different
types of combinational logic circuits, such as Adder, Subtractor,
Decoder, Encoder, Multiplexer, and De-multiplexer.

There are the following characteristics of the combinational logic circuit:
At any instant of time, the output of the combinational circuits depends only on the present
input terminals.
The combinational circuit doesn't have any backup or previous memory. The present state of
the circuit is not affected by the previous state of the input.
The n number of inputs and m number of outputs are possible in combinational logic
circuits.
The 'n' input variable comes from the
external source while the 'm' output
variable goes to the external
destination. In many applications, the
source or destinations are storage
registers.

COMBINATIONAL CIRCUITS

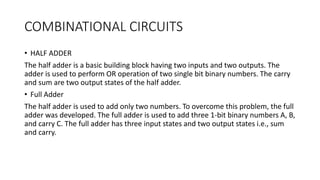

• HALF ADDER
The half adder is a basic building block having two inputs and two outputs. The
adder is used to perform OR operation of two single bit binary numbers. The carry
and sum are two output states of the half adder.
• Full Adder
The half adder is used to add only two numbers. To overcome this problem, the full
adder was developed. The full adder is used to add three 1-bit binary numbers A, B,
and carry C. The full adder has three input states and two output states i.e., sum
and carry.

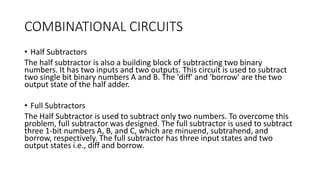

• Half Subtractors
The half subtractor is also a building block of subtracting two binary
numbers. It has two inputs and two outputs. This circuit is used to subtract
two single bit binary numbers A and B. The 'diff' and 'borrow' are the two
output state of the half adder.
• Full Subtractors
The Half Subtractor is used to subtract only two numbers. To overcome this
problem, full subtractor was designed. The full subtractor is used to subtract
three 1-bit numbers A, B, and C, which are minuend, subtrahend, and
borrow, respectively. The full subtractor has three input states and two
output states i.e., diff and borrow.

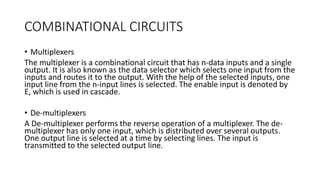

• Multiplexers
The multiplexer is a combinational circuit that has n-data inputs and a single
output. It is also known as the data selector which selects one input from the
inputs and routes it to the output. With the help of the selected inputs, one
input line from the n-input lines is selected. The enable input is denoted by
E, which is used in cascade.
• De-multiplexers
A De-multiplexer performs the reverse operation of a multiplexer. The de-
multiplexer has only one input, which is distributed over several outputs.
One output line is selected at a time by selecting lines. The input is
transmitted to the selected output line.

• Decoder
• A decoder is a combinational circuit having n inputs and to a maximum of
m = 2n outputs. The decoder is the same as the de-multiplexer. The only
difference between de-multiplexer and decoder is that in the decoder,
there is no data input. The decoder performs an operation that is
completely opposite of an encoder.
• Encoder
• The encoder is used to perform the reverse operation of the decoder. An
encoder having n number of inputs and m number of outputs is used to
produce m-bit binary code which is related to the digital input number. The
encoder takes the digital word and converts it into another digital word.

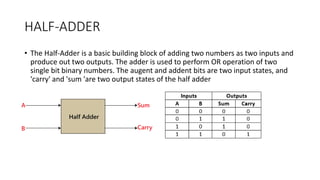

HALF-ADDER
• The Half-Adder is a basic building block of adding two numbers as two inputs and
produce out two outputs. The adder is used to perform OR operation of two
single bit binary numbers. The augent and addent bits are two input states, and
'carry' and 'sum 'are two output states of the half adder

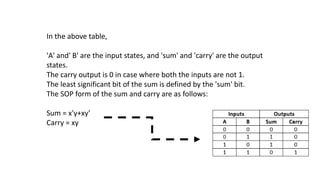

In the above table,
'A' and' B' are the input states, and 'sum' and 'carry' are the output
states.
The carry output is 0 in case where both the inputs are not 1.
The least significant bit of the sum is defined by the 'sum' bit.

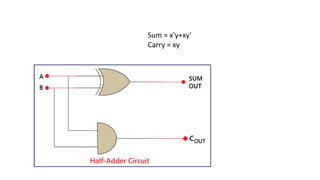

The SOP form of the sum and carry are as follows:
Sum = x'y+xy'
Carry = xy

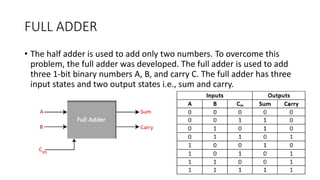

FULL ADDER
• The half adder is used to add only two numbers. To overcome this
problem, the full adder was developed. The full adder is used to add
three 1-bit binary numbers A, B, and carry C. The full adder has three
input states and two output states i.e., sum and carry.

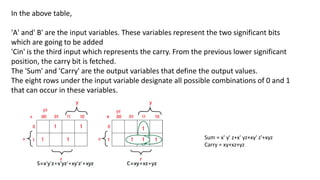

In the above table,
'A' and' B' are the input variables. These variables represent the two significant bits
which are going to be added
'Cin' is the third input which represents the carry. From the previous lower significant
position, the carry bit is fetched.
The 'Sum' and 'Carry' are the output variables that define the output values.
The eight rows under the input variable designate all possible combinations of 0 and 1
that can occur in these variables.

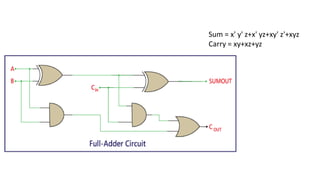

Sum = x' y' z+x' yz+xy' z'+xyz
Carry = xy+xz+yz

Sum = x' y' z+x' yz+xy' z'+xyz
Carry = xy+xz+yz
