1. Unit-2
Computer Software

2. Software & Hardware?
• Computer Instructions or data, anything that can be stored
electronically is Software.
• Hardware is one that is tangible. The storage devices (Hard
disk, CD’s etc.,), mouse, keyboard CPU and display devices
(Monitor) are Hardware.

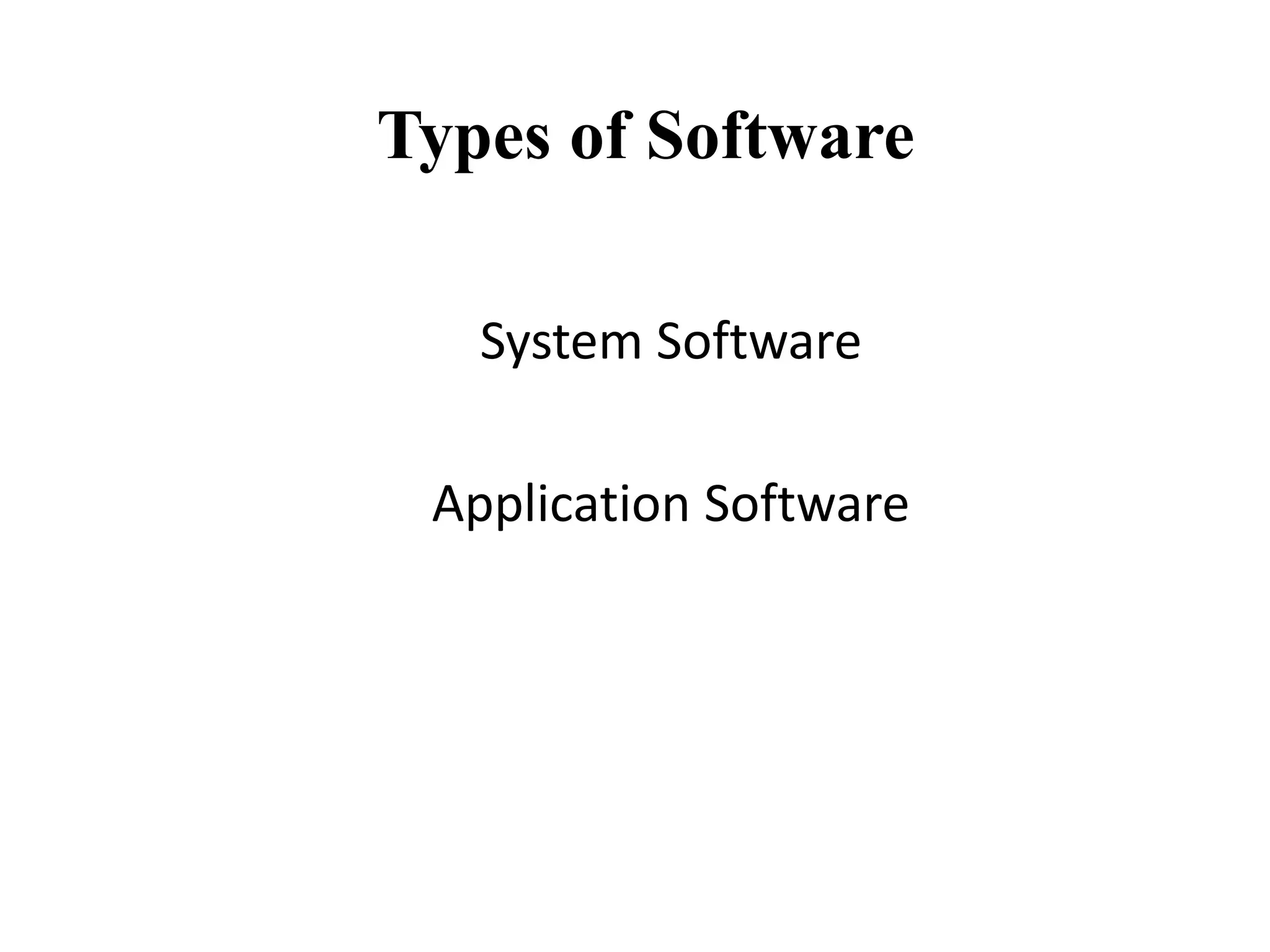

3. Types of Software
System Software
Application Software

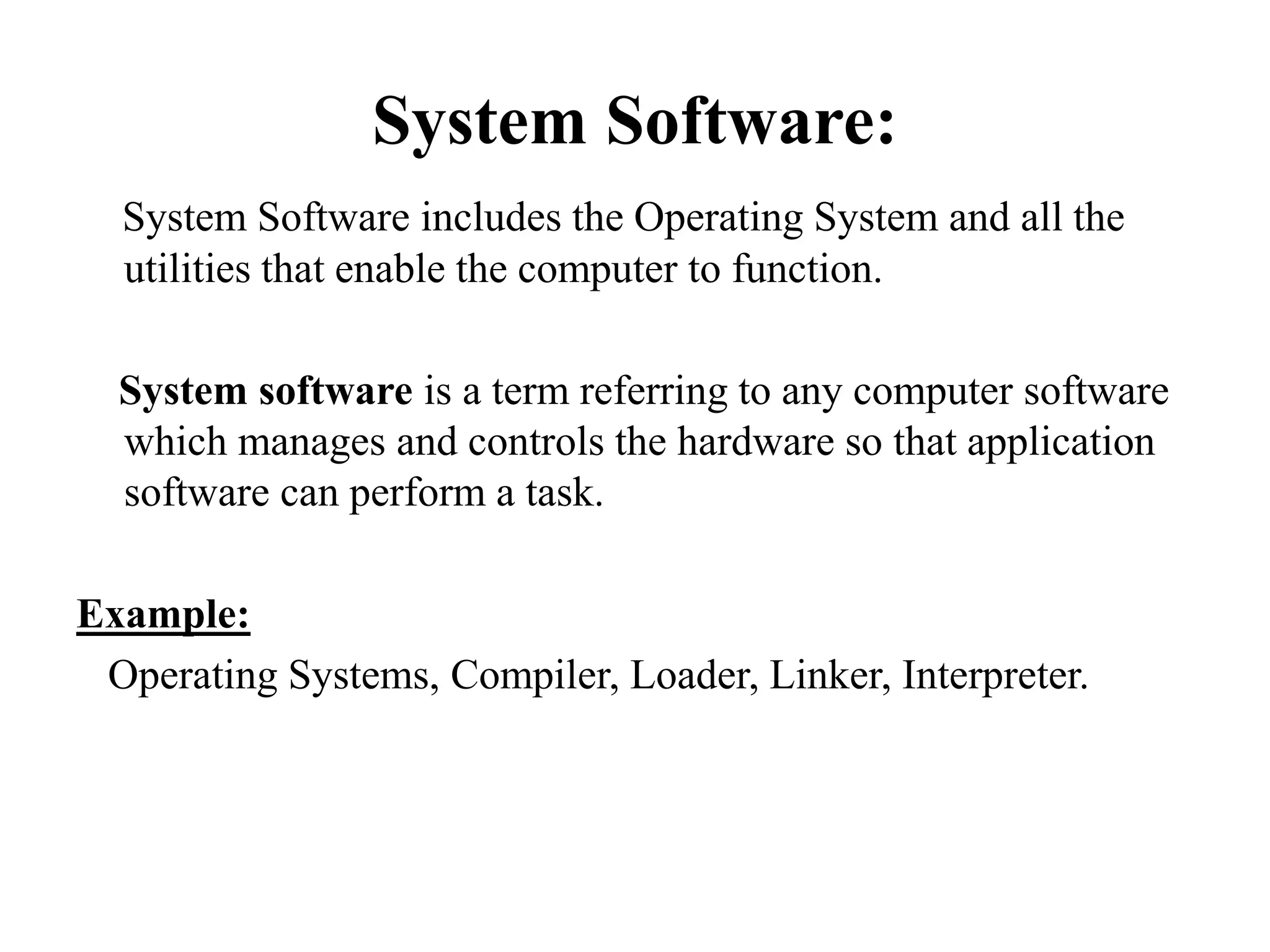

4. System Software:
System Software includes the Operating System and all the
utilities that enable the computer to function.
System software is a term referring to any computer software
which manages and controls the hardware so that application
software can perform a task.
Example:
Operating Systems, Compiler, Loader, Linker, Interpreter.

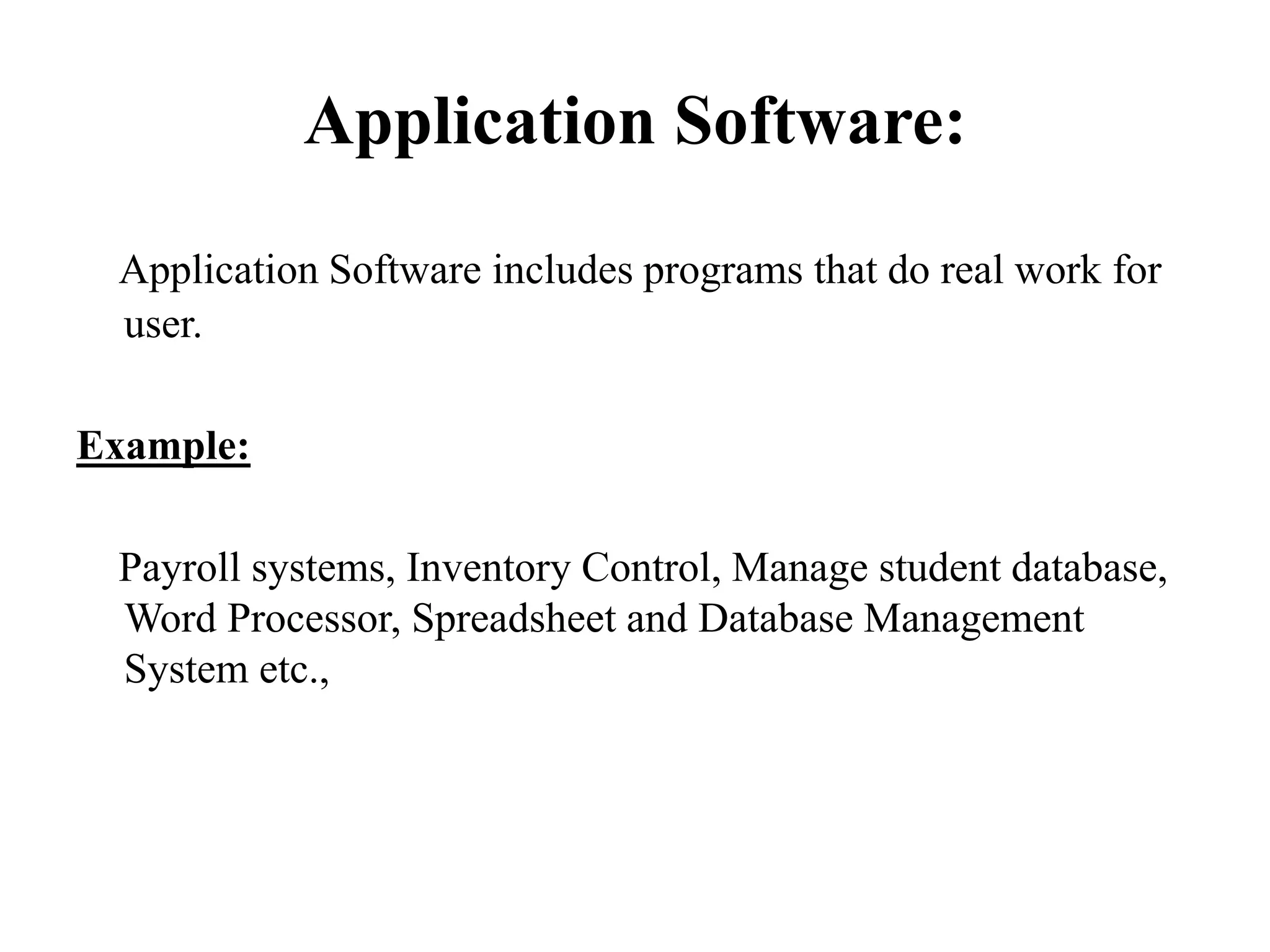

5. Application Software:
Application Software includes programs that do real work for
user.
Example:
Payroll systems, Inventory Control, Manage student database,
Word Processor, Spreadsheet and Database Management
System etc.,

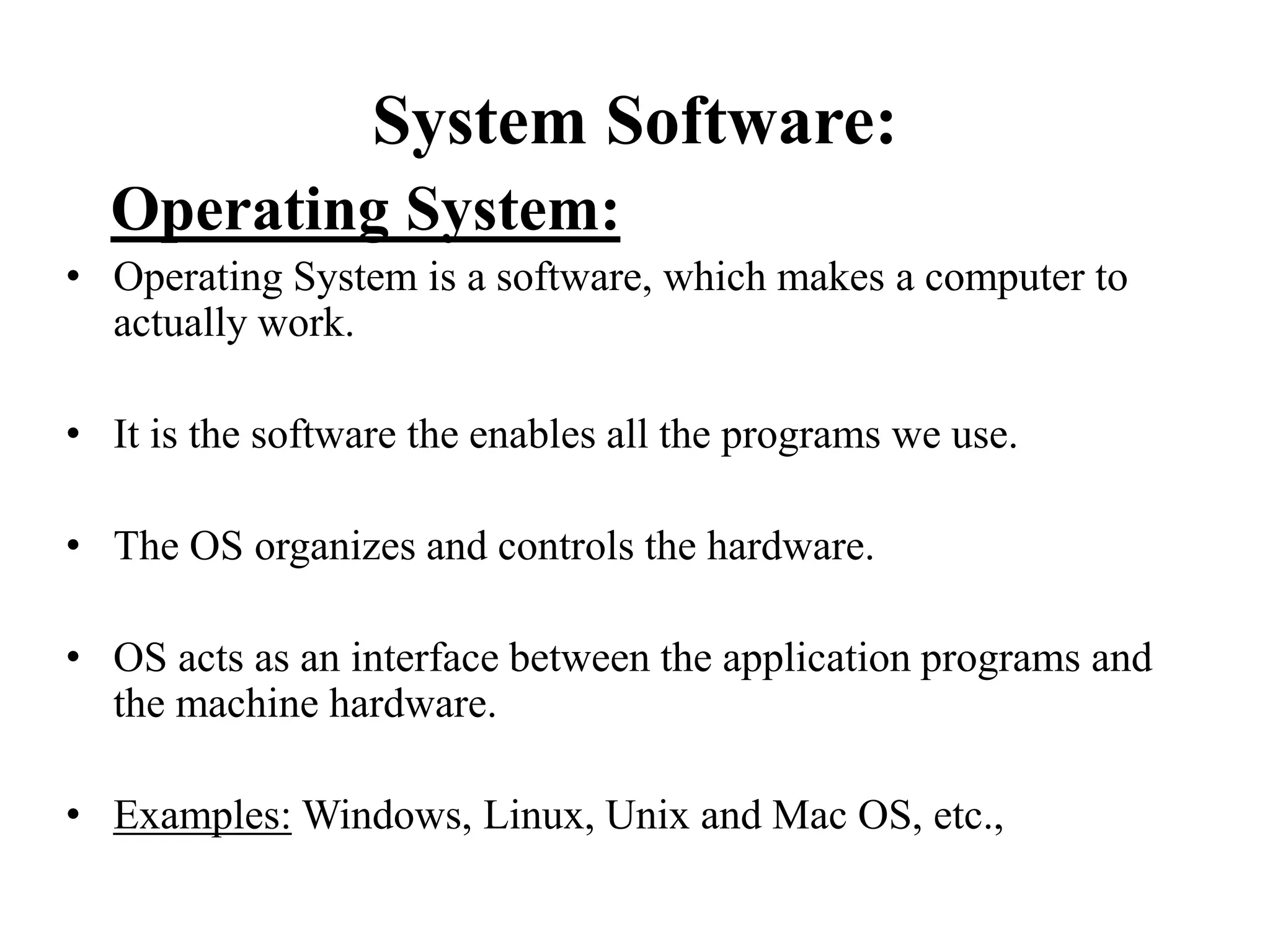

6. System Software:
Operating System:
• Operating System is a software, which makes a computer to
actually work.
• It is the software the enables all the programs we use.
• The OS organizes and controls the hardware.
• OS acts as an interface between the application programs and
the machine hardware.
• Examples: Windows, Linux, Unix and Mac OS, etc.,

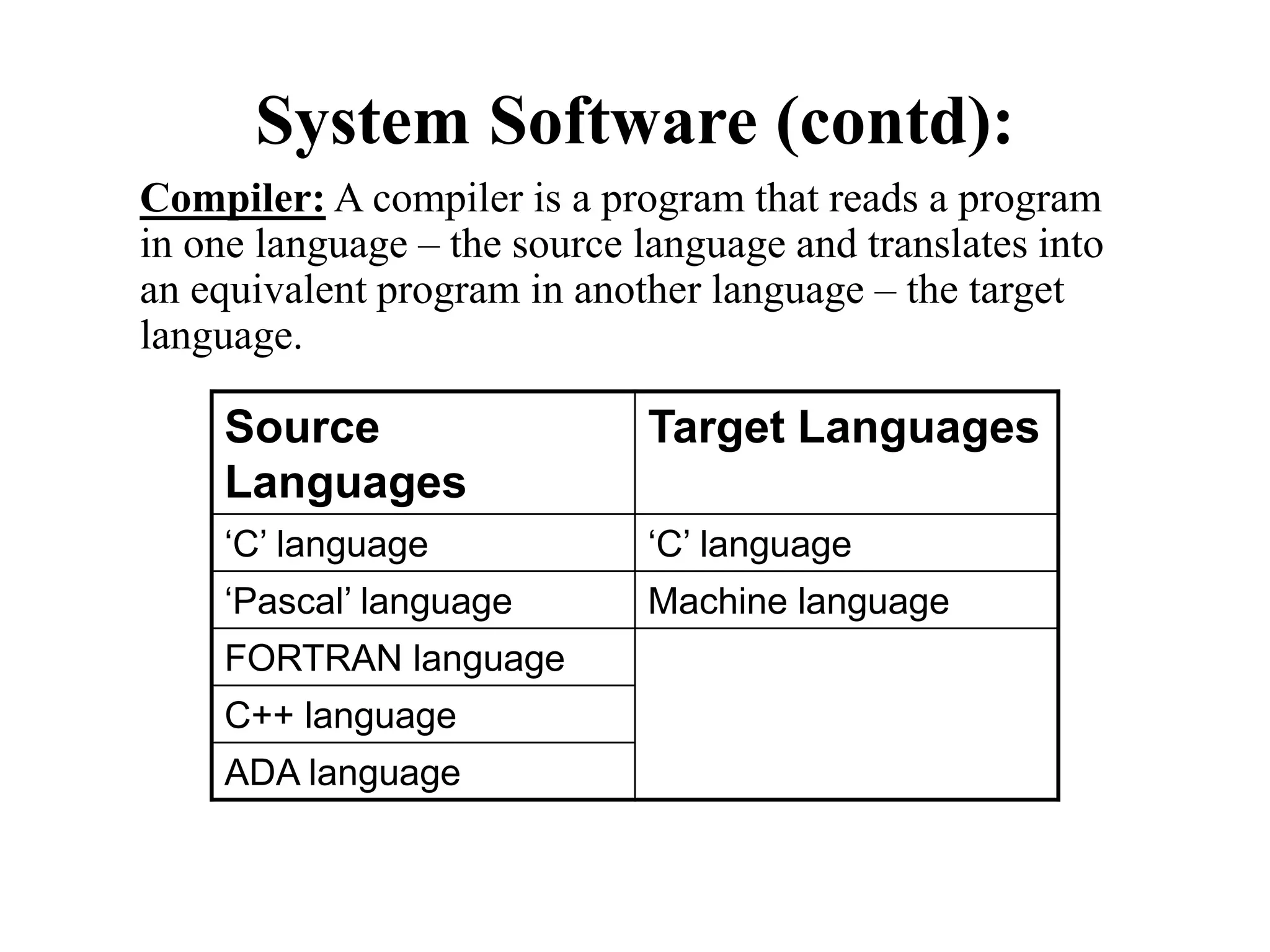

7. System Software (contd):
Source
Languages
Target Languages
‘C’ language ‘C’ language
‘Pascal’ language Machine language
FORTRAN language
C++ language
ADA language
Compiler: A compiler is a program that reads a program
in one language – the source language and translates into
an equivalent program in another language – the target
language.

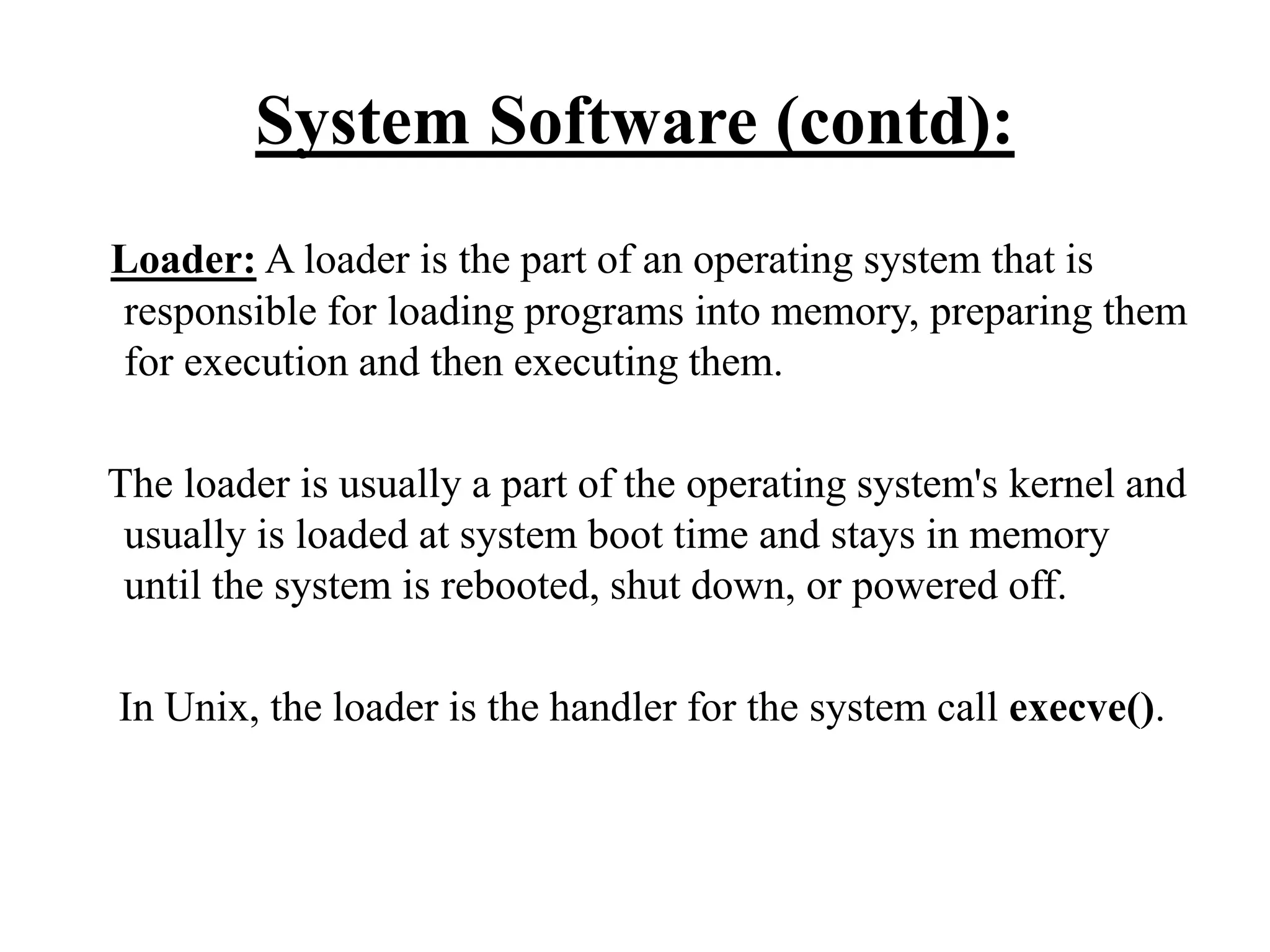

8. System Software (contd):
Loader: A loader is the part of an operating system that is
responsible for loading programs into memory, preparing them
for execution and then executing them.
The loader is usually a part of the operating system's kernel and
usually is loaded at system boot time and stays in memory
until the system is rebooted, shut down, or powered off.
In Unix, the loader is the handler for the system call execve().

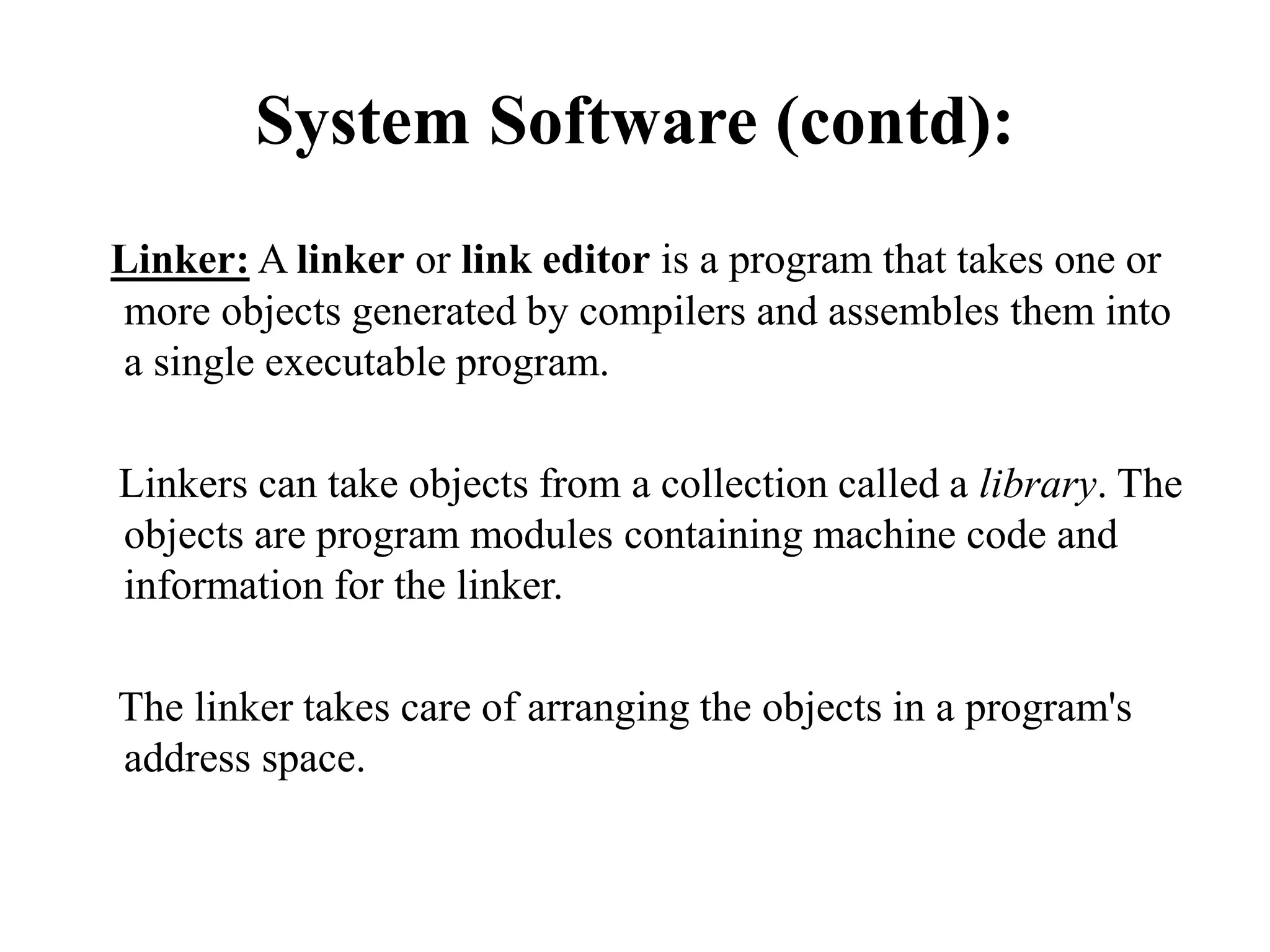

9. System Software (contd):
Linker: A linker or link editor is a program that takes one or
more objects generated by compilers and assembles them into
a single executable program.
Linkers can take objects from a collection called a library. The
objects are program modules containing machine code and
information for the linker.
The linker takes care of arranging the objects in a program's
address space.

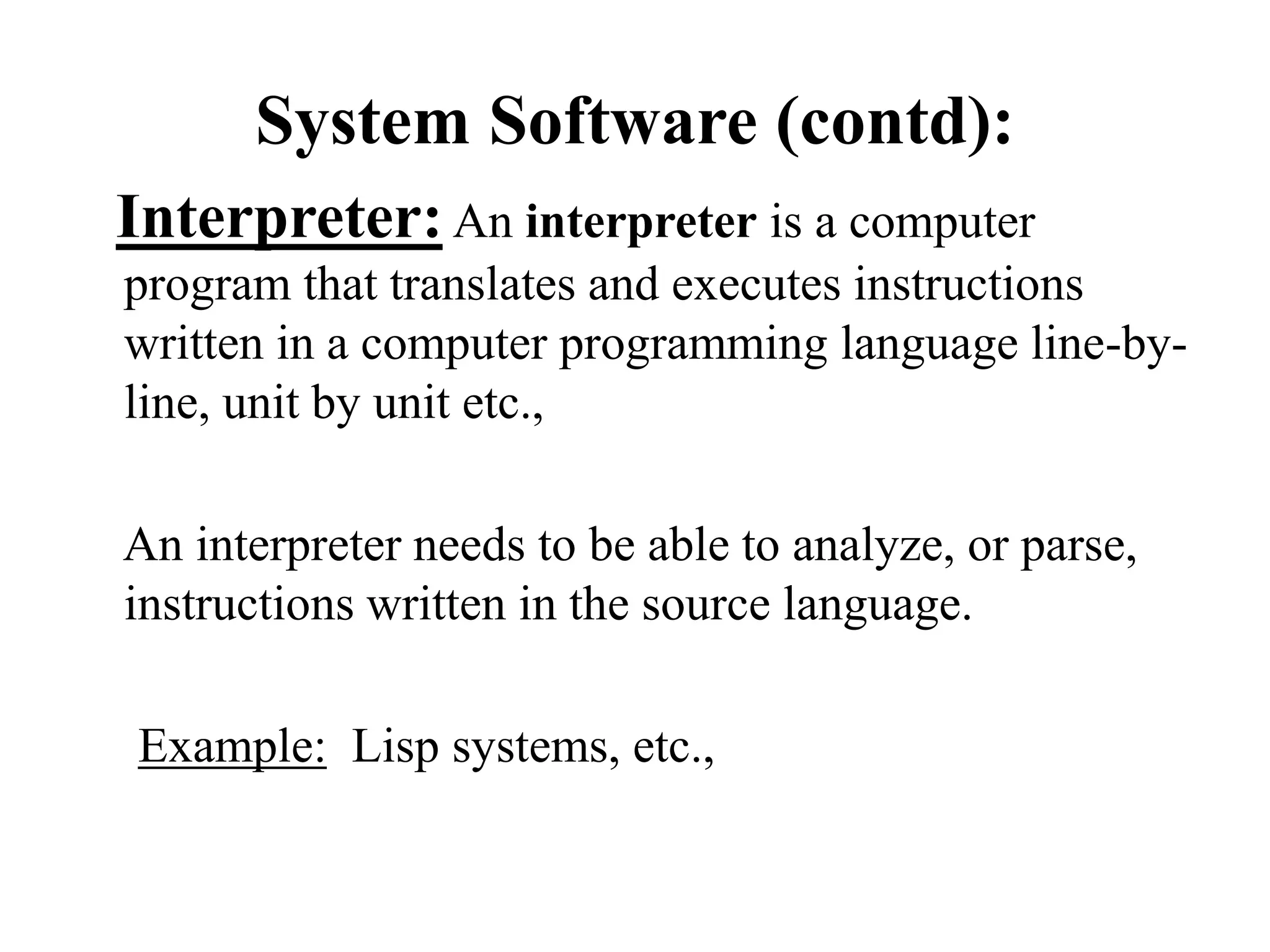

10. System Software (contd):
Interpreter: An interpreter is a computer
program that translates and executes instructions
written in a computer programming language line-by-
line, unit by unit etc.,
An interpreter needs to be able to analyze, or parse,
instructions written in the source language.
Example: Lisp systems, etc.,

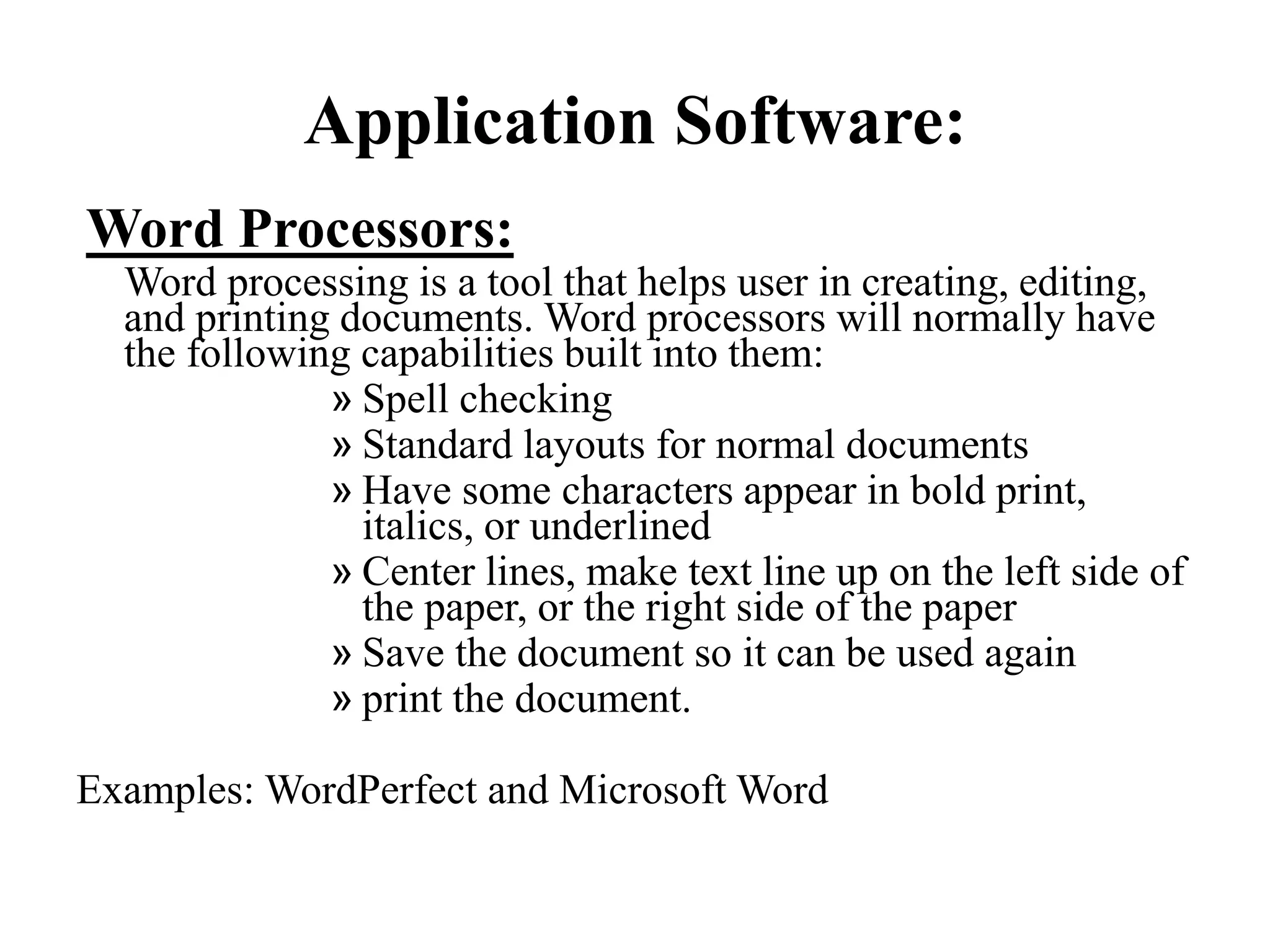

11. Application Software:
Word Processors:
Word processing is a tool that helps user in creating, editing,
and printing documents. Word processors will normally have
the following capabilities built into them:
» Spell checking
» Standard layouts for normal documents
» Have some characters appear in bold print,
italics, or underlined
» Center lines, make text line up on the left side of
the paper, or the right side of the paper
» Save the document so it can be used again
» print the document.
Examples: WordPerfect and Microsoft Word

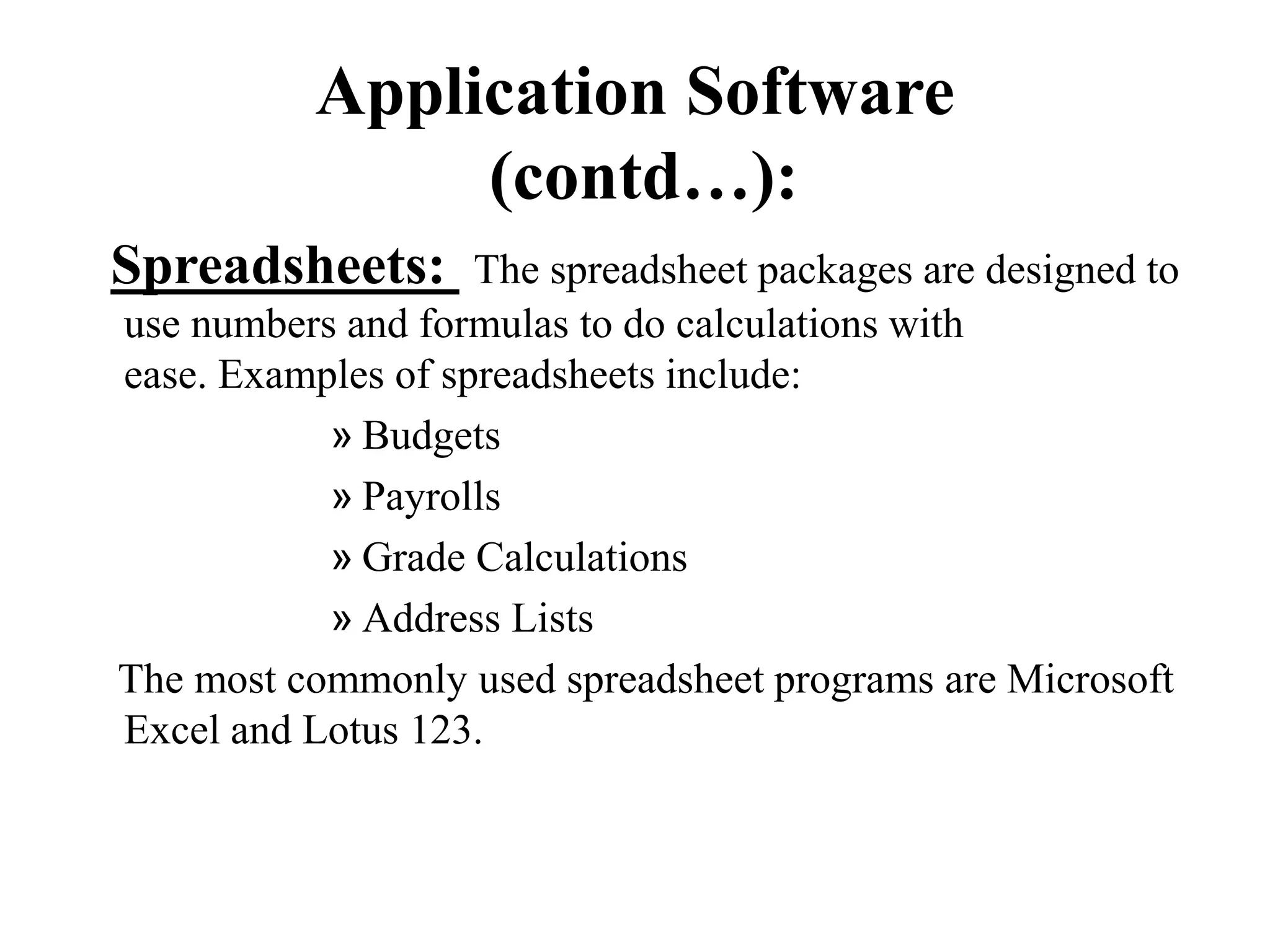

12. Application Software
(contd…):
Spreadsheets: The spreadsheet packages are designed to
use numbers and formulas to do calculations with
ease. Examples of spreadsheets include:
» Budgets
» Payrolls
» Grade Calculations
» Address Lists
The most commonly used spreadsheet programs are Microsoft
Excel and Lotus 123.

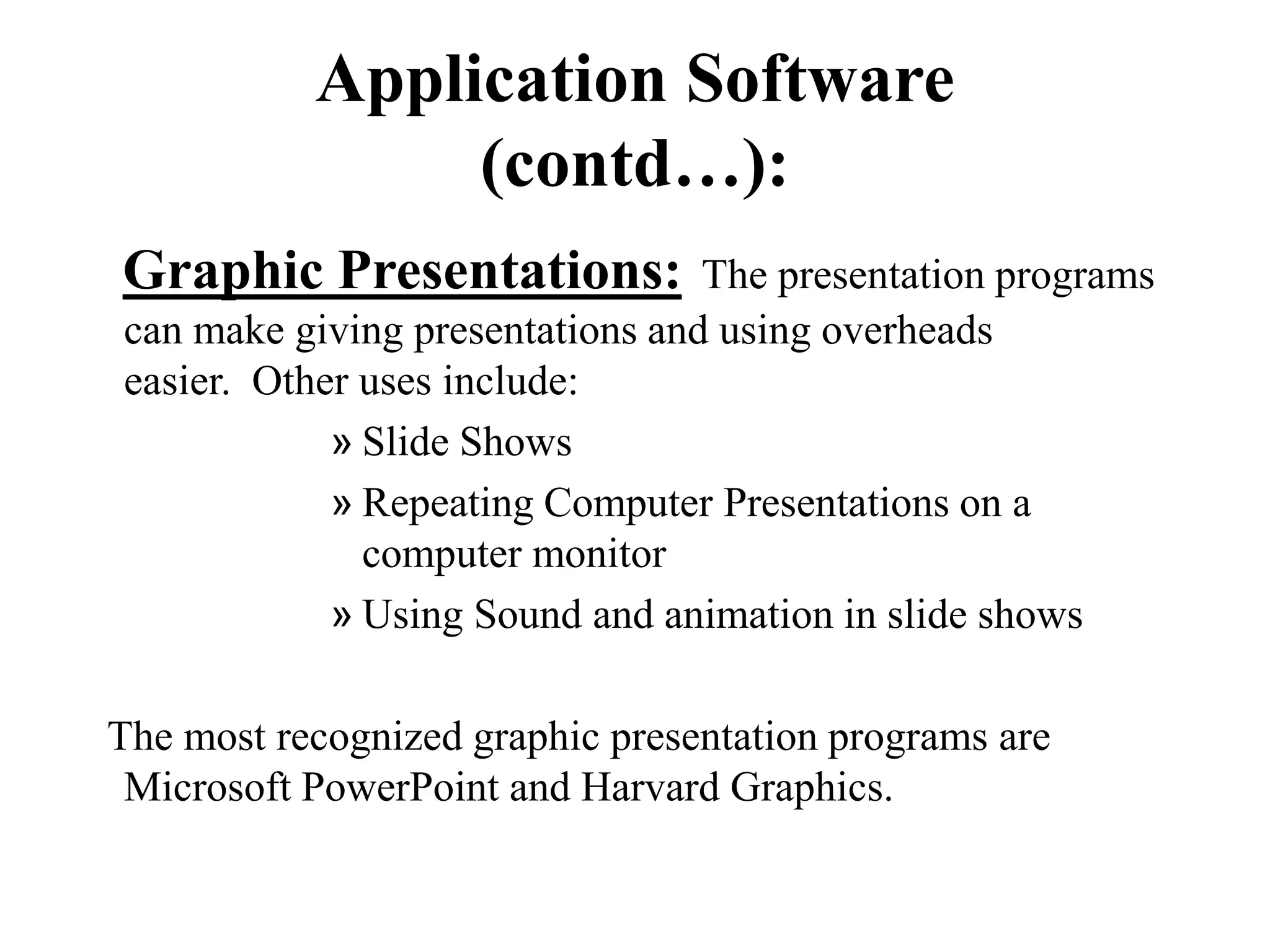

13. Application Software
(contd…):
Graphic Presentations: The presentation programs
can make giving presentations and using overheads
easier. Other uses include:
» Slide Shows
» Repeating Computer Presentations on a
computer monitor
» Using Sound and animation in slide shows
The most recognized graphic presentation programs are
Microsoft PowerPoint and Harvard Graphics.

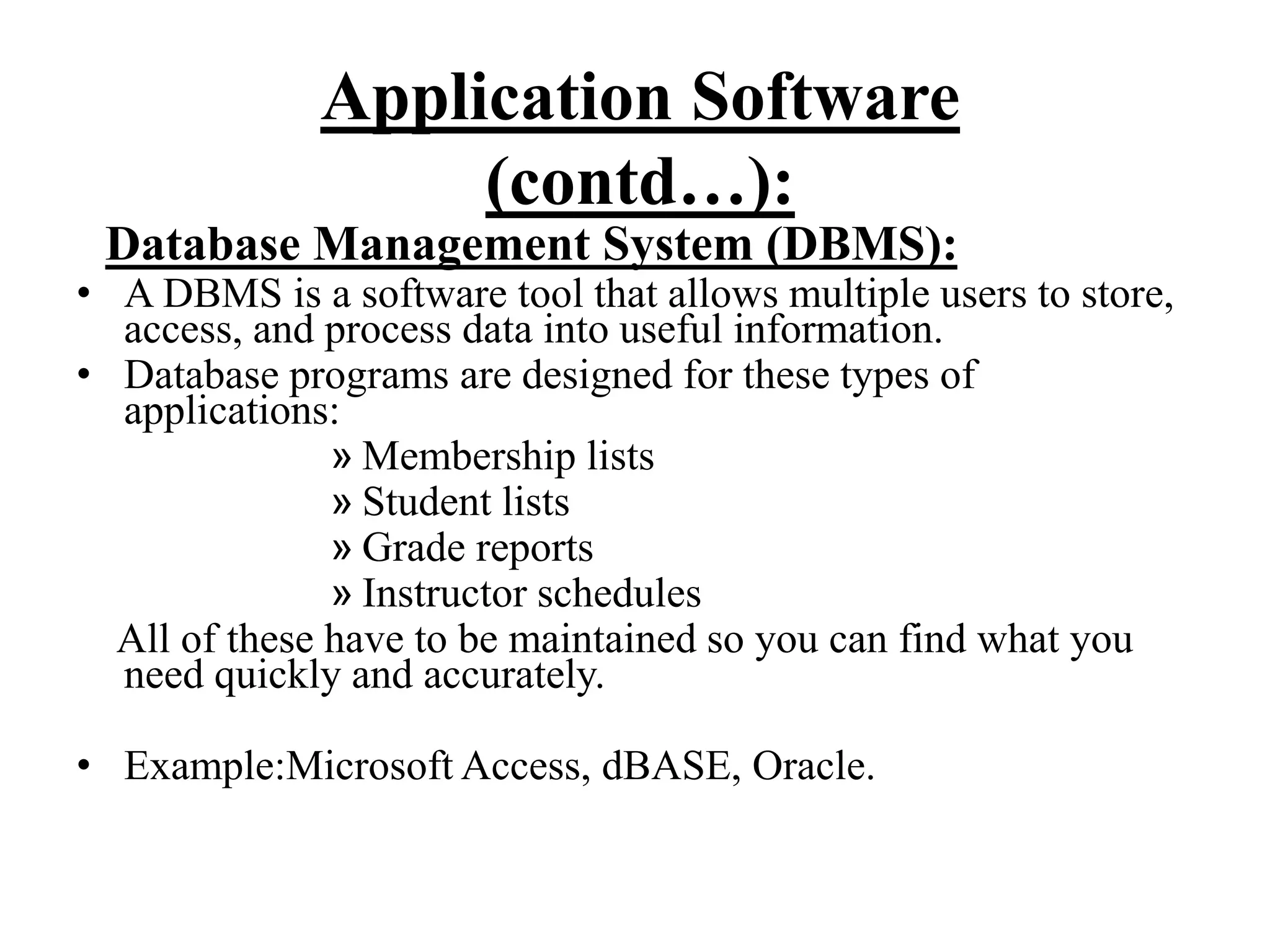

14. Application Software
(contd…):
Database Management System (DBMS):
• A DBMS is a software tool that allows multiple users to store,
access, and process data into useful information.
• Database programs are designed for these types of
applications:
» Membership lists
» Student lists
» Grade reports
» Instructor schedules
All of these have to be maintained so you can find what you
need quickly and accurately.
• Example:Microsoft Access, dBASE, Oracle.

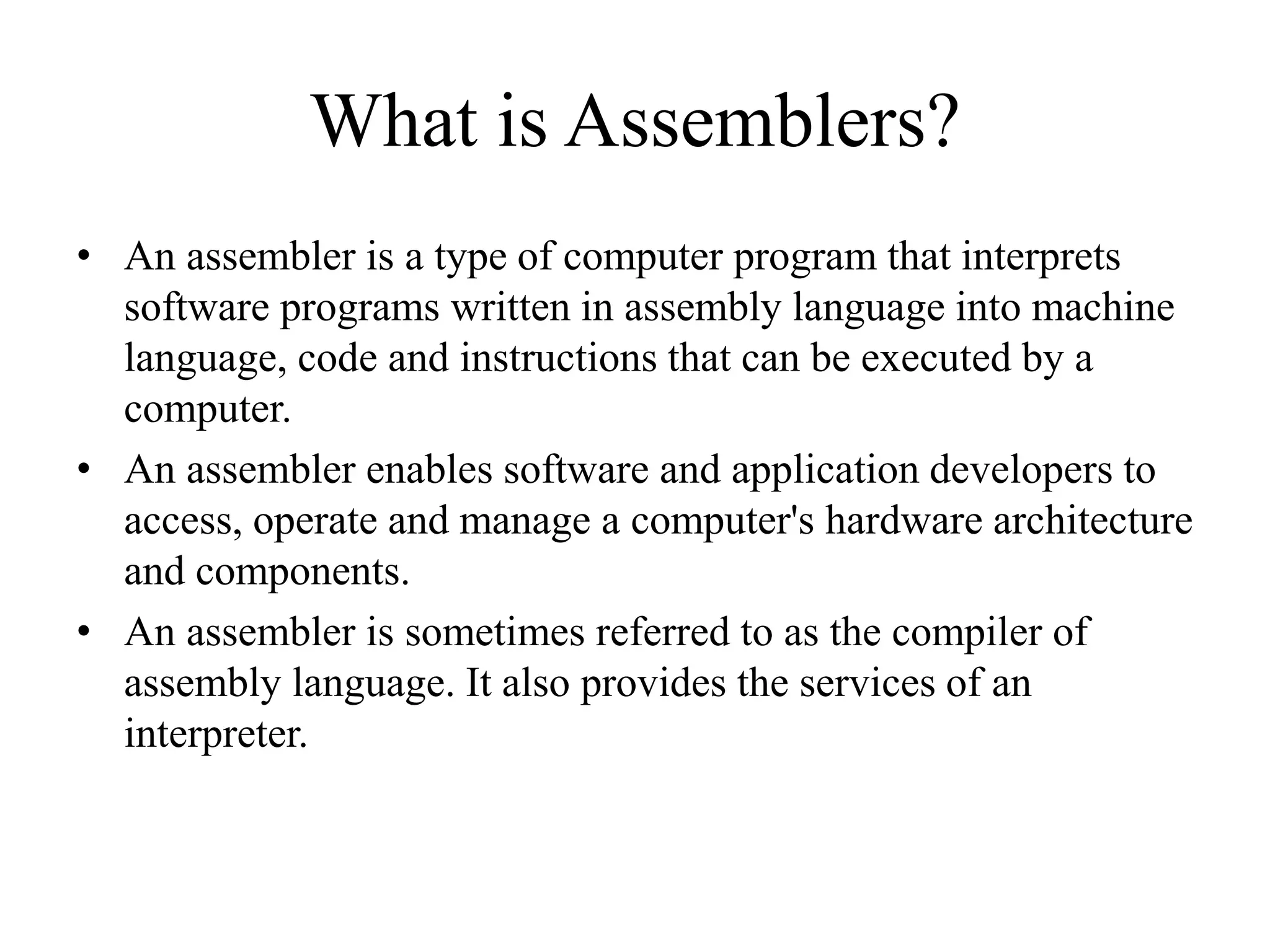

15. What is Assemblers?
• An assembler is a type of computer program that interprets
software programs written in assembly language into machine
language, code and instructions that can be executed by a
computer.
• An assembler enables software and application developers to
access, operate and manage a computer's hardware architecture
and components.
• An assembler is sometimes referred to as the compiler of
assembly language. It also provides the services of an
interpreter.

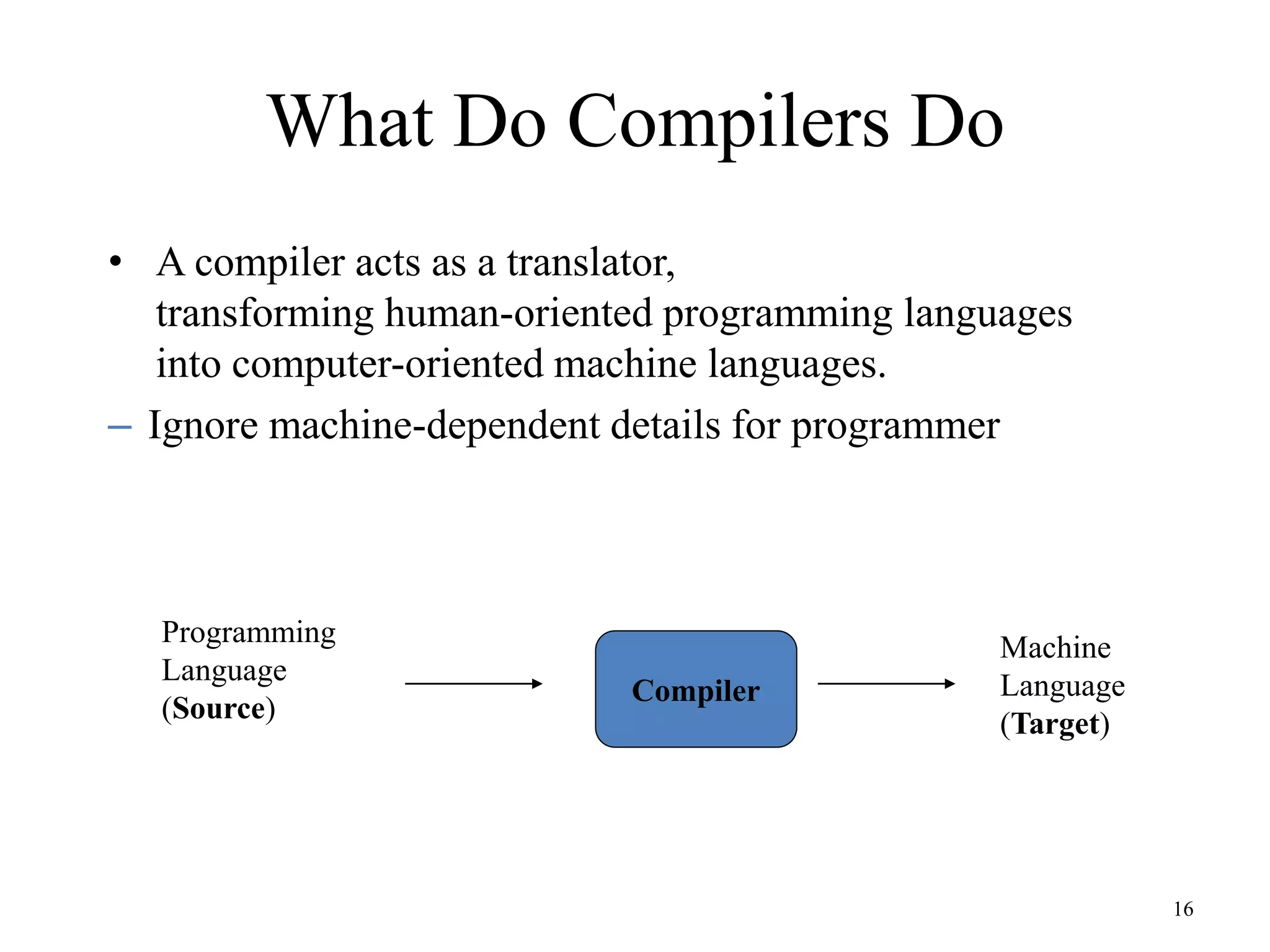

16. What Do Compilers Do
• A compiler acts as a translator,
transforming human-oriented programming languages
into computer-oriented machine languages.
– Ignore machine-dependent details for programmer
16
Programming
Language
(Source)
Compiler
Machine
Language
(Target)

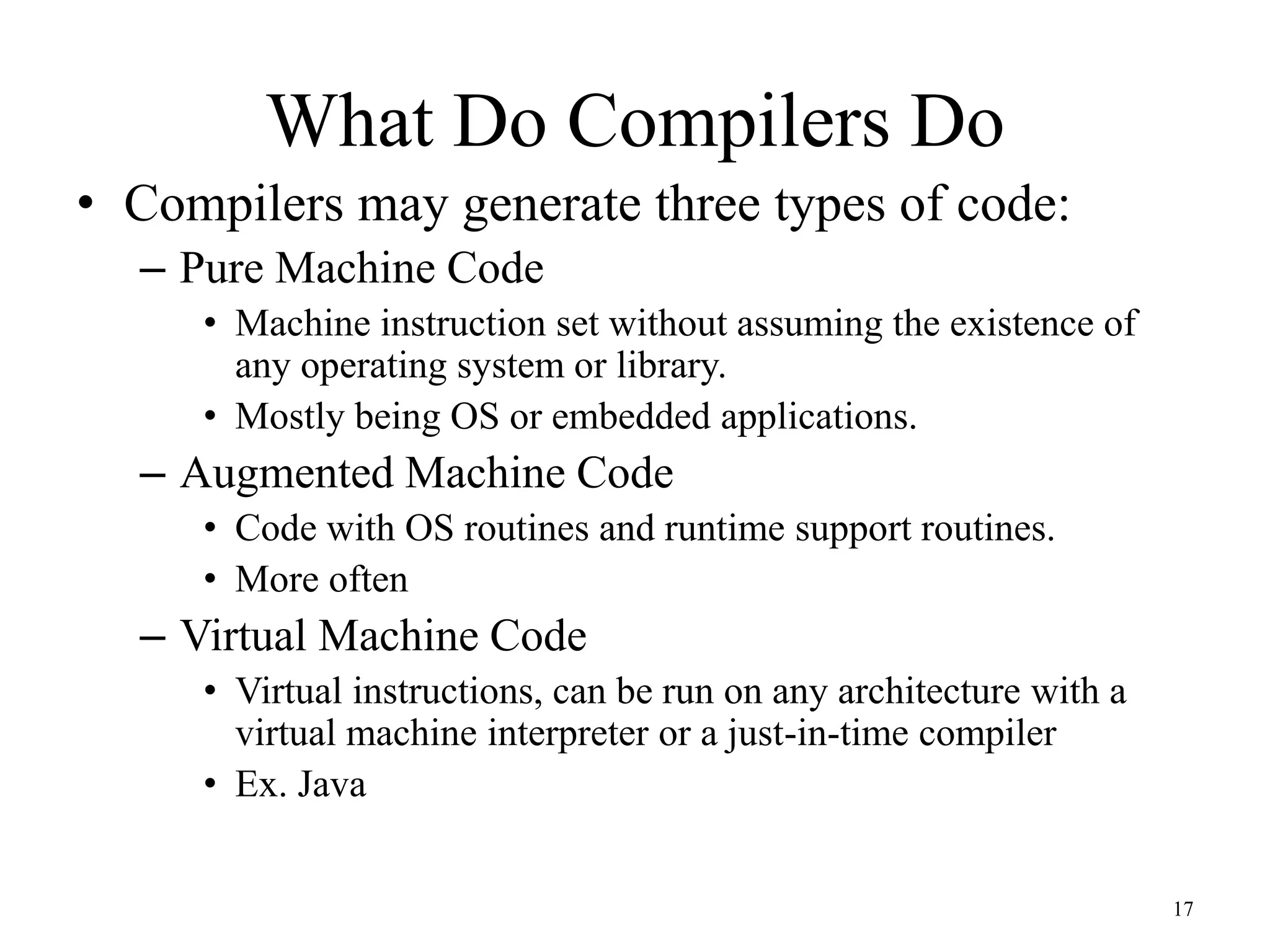

17. What Do Compilers Do
• Compilers may generate three types of code:
– Pure Machine Code
• Machine instruction set without assuming the existence of
any operating system or library.
• Mostly being OS or embedded applications.
– Augmented Machine Code
• Code with OS routines and runtime support routines.
• More often
– Virtual Machine Code
• Virtual instructions, can be run on any architecture with a
virtual machine interpreter or a just-in-time compiler
• Ex. Java
17

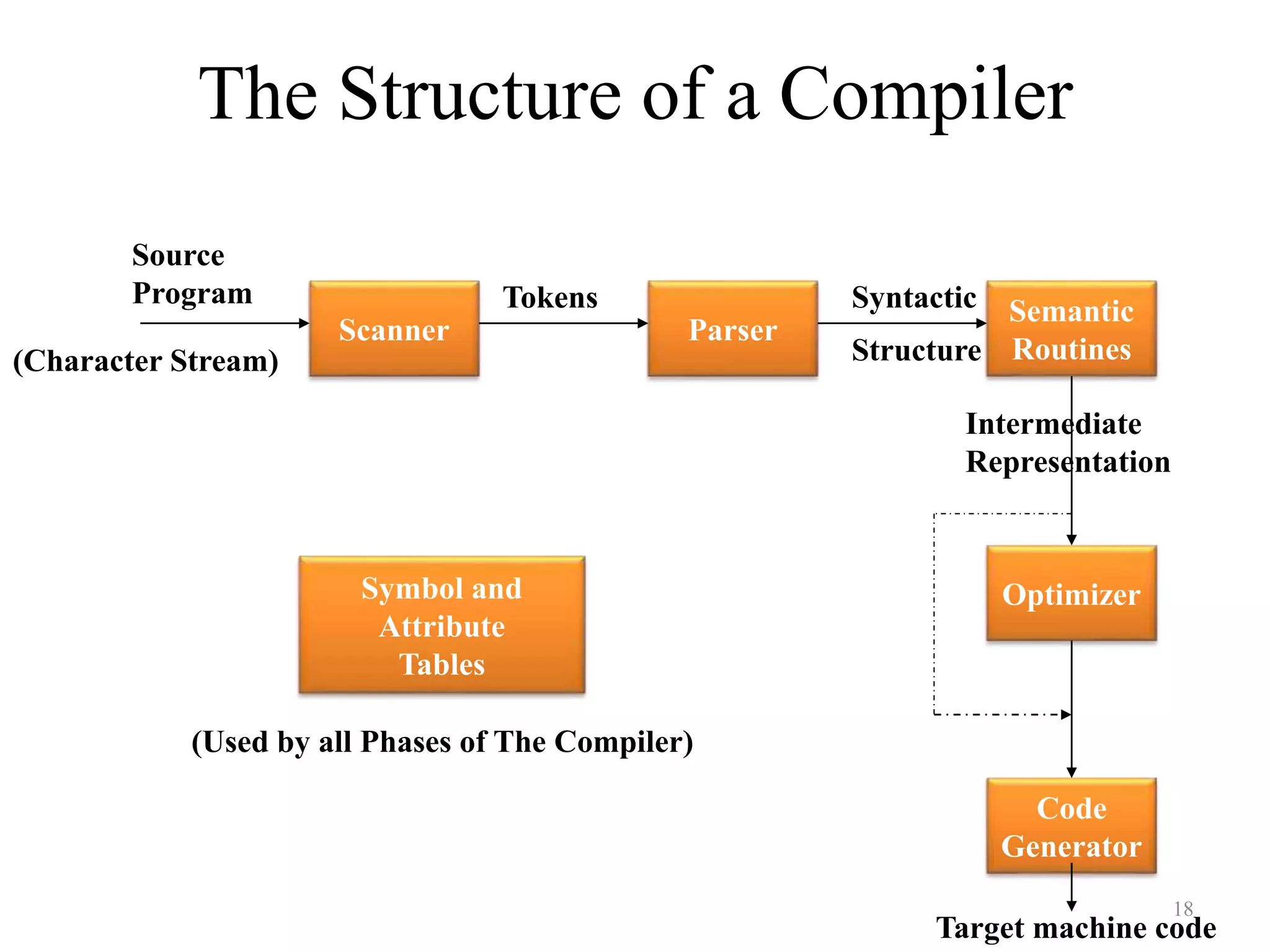

18. The Structure of a Compiler
18
Scanner Parser
Semantic
Routines
Code
Generator
Optimizer
Source
Program Tokens Syntactic
Structure
Symbol and
Attribute
Tables
(Used by all Phases of The Compiler)
(Character Stream)
Intermediate
Representation
Target machine code

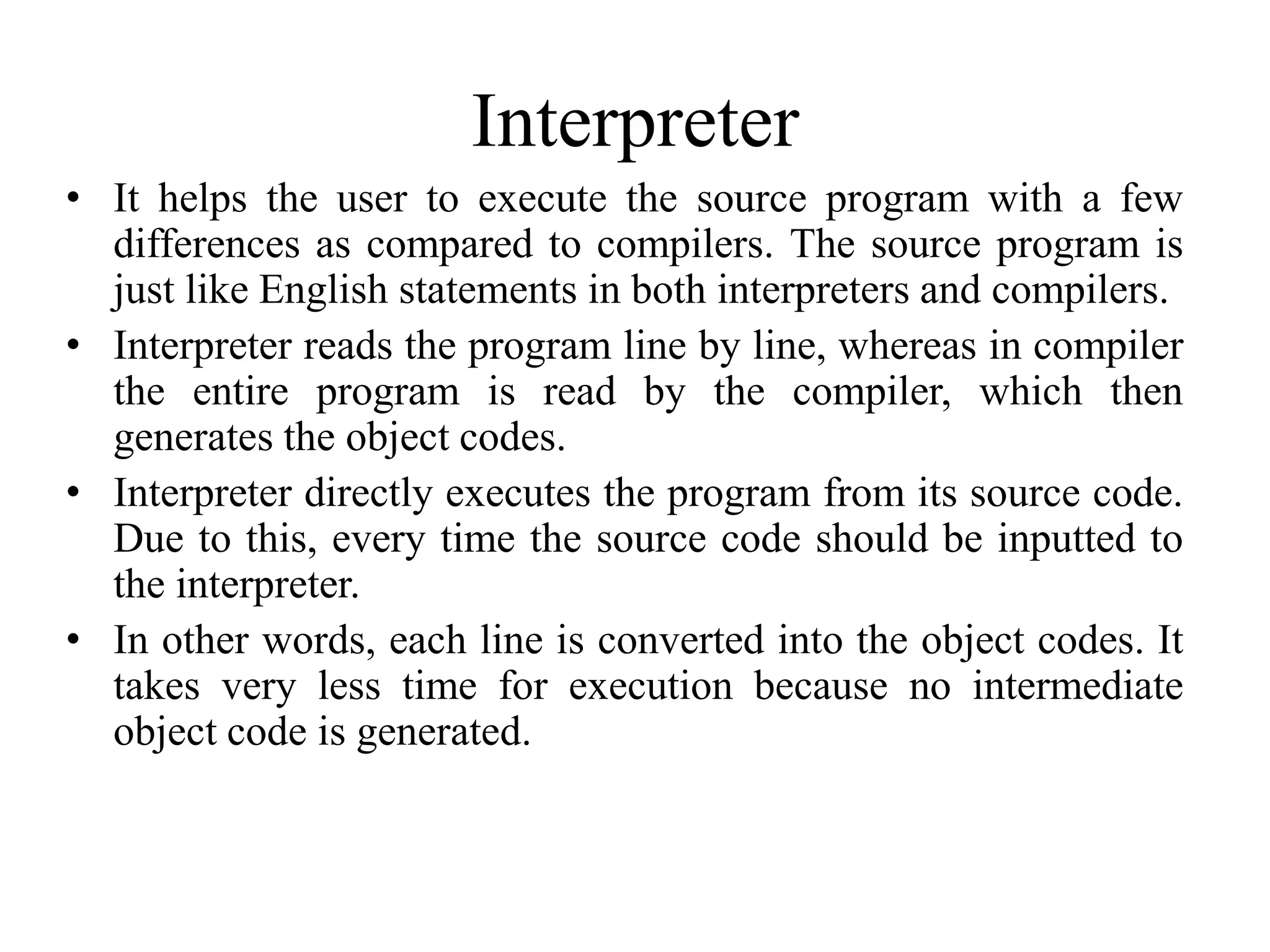

19. Interpreter
• It helps the user to execute the source program with a few
differences as compared to compilers. The source program is
just like English statements in both interpreters and compilers.
• Interpreter reads the program line by line, whereas in compiler
the entire program is read by the compiler, which then
generates the object codes.
• Interpreter directly executes the program from its source code.
Due to this, every time the source code should be inputted to
the interpreter.
• In other words, each line is converted into the object codes. It
takes very less time for execution because no intermediate
object code is generated.

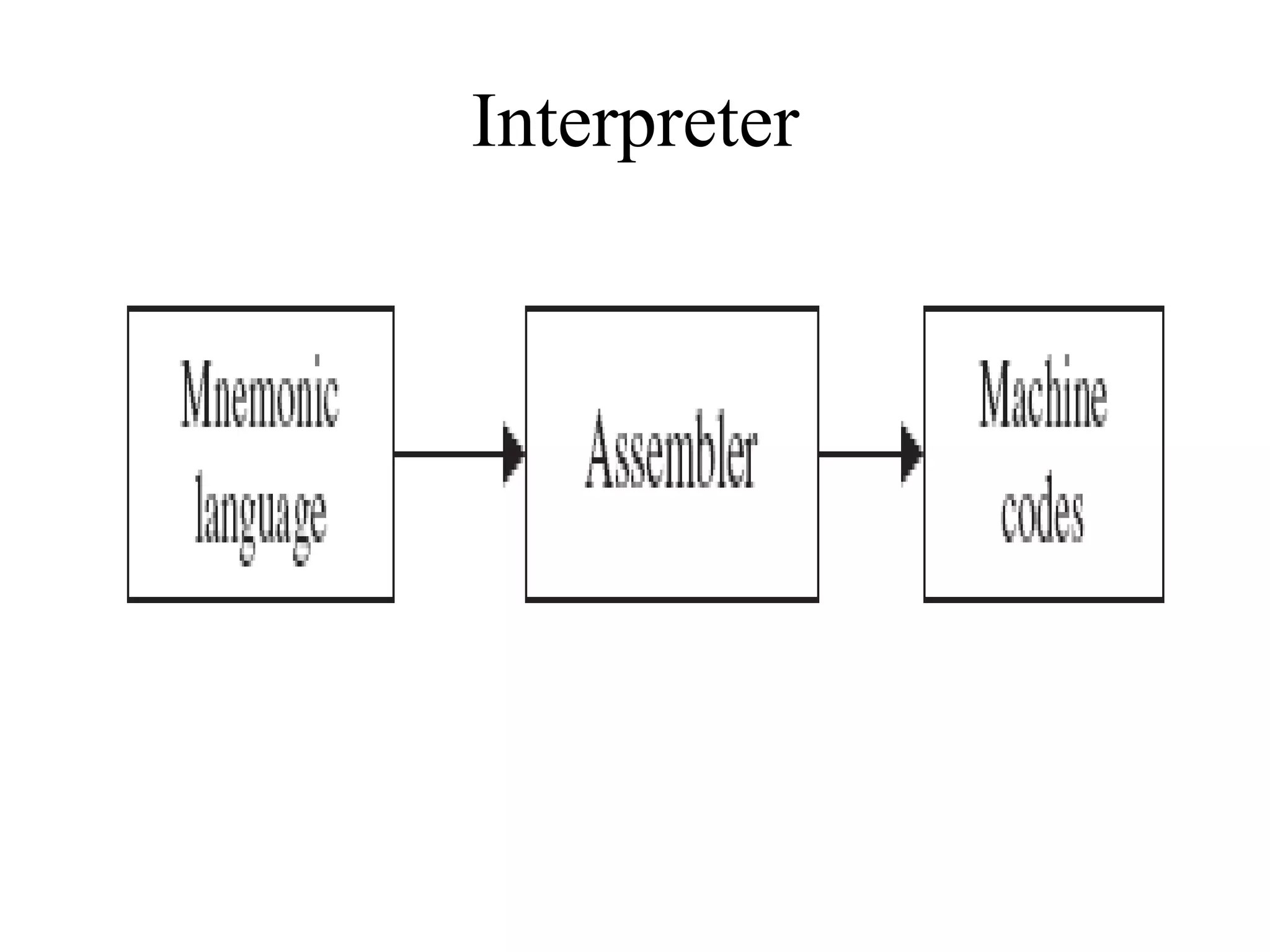

20. Interpreter

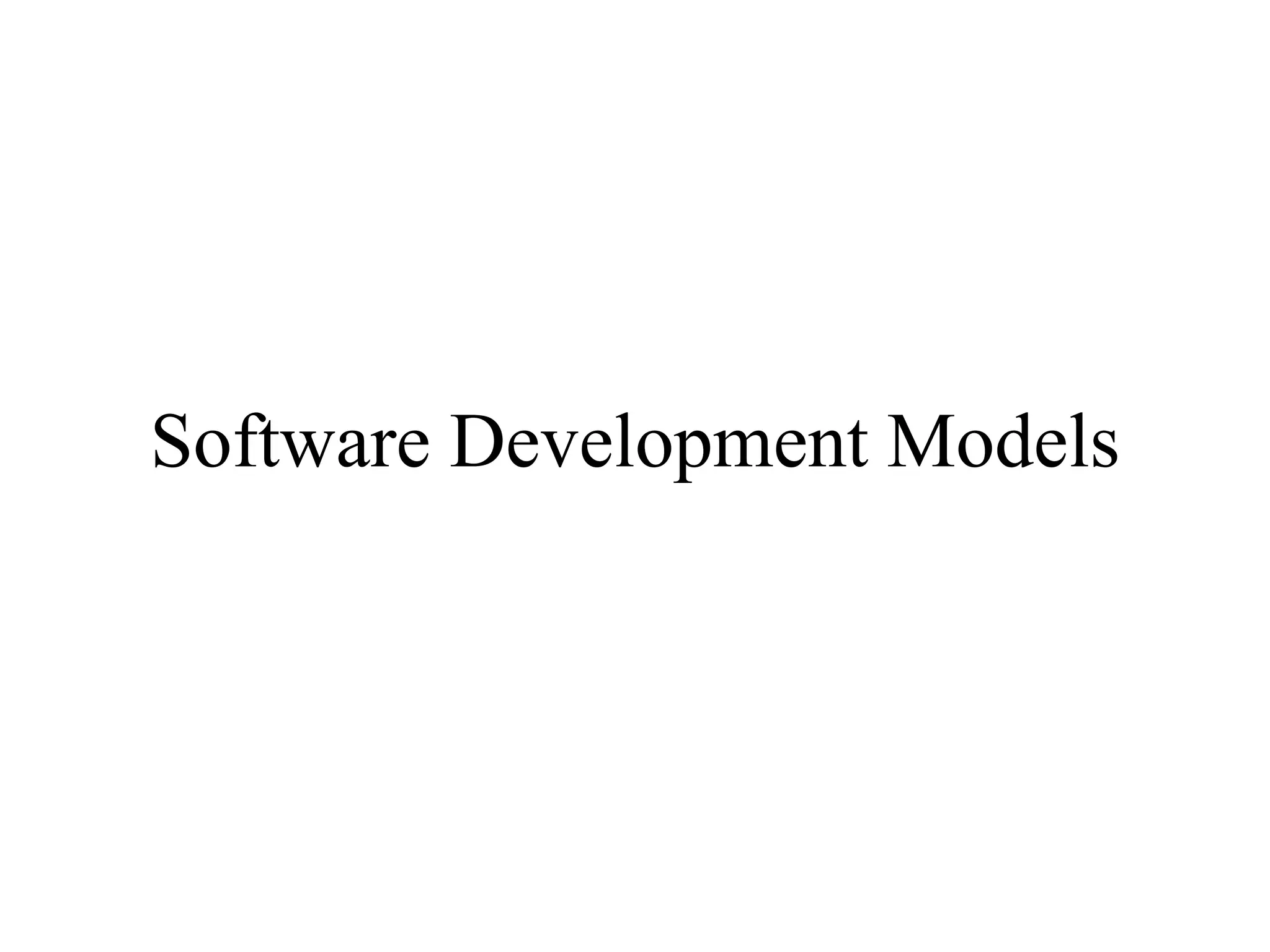

21. Software Development Models

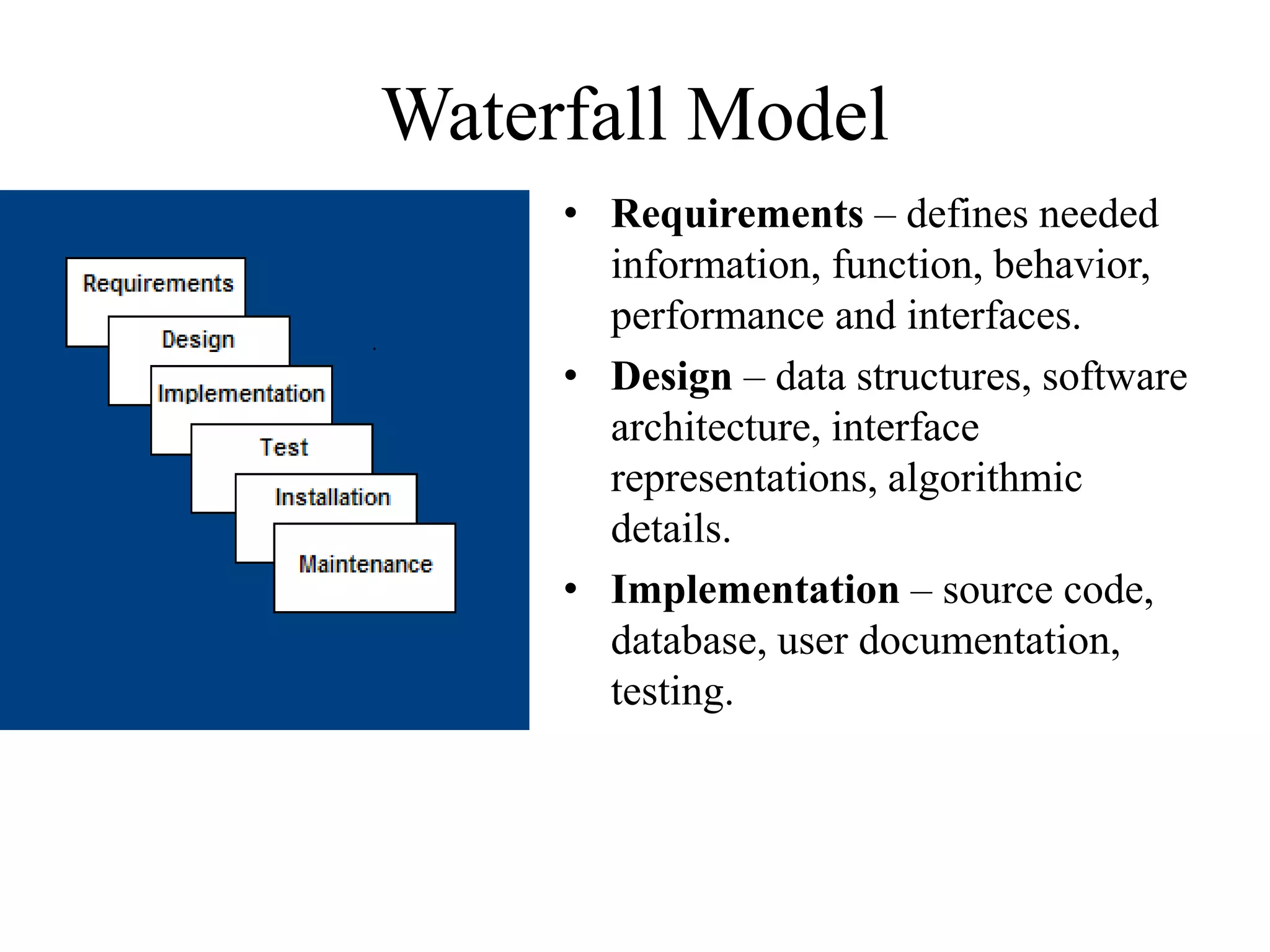

22. Waterfall Model
• Requirements – defines needed
information, function, behavior,
performance and interfaces.
• Design – data structures, software
architecture, interface
representations, algorithmic
details.
• Implementation – source code,
database, user documentation,
testing.

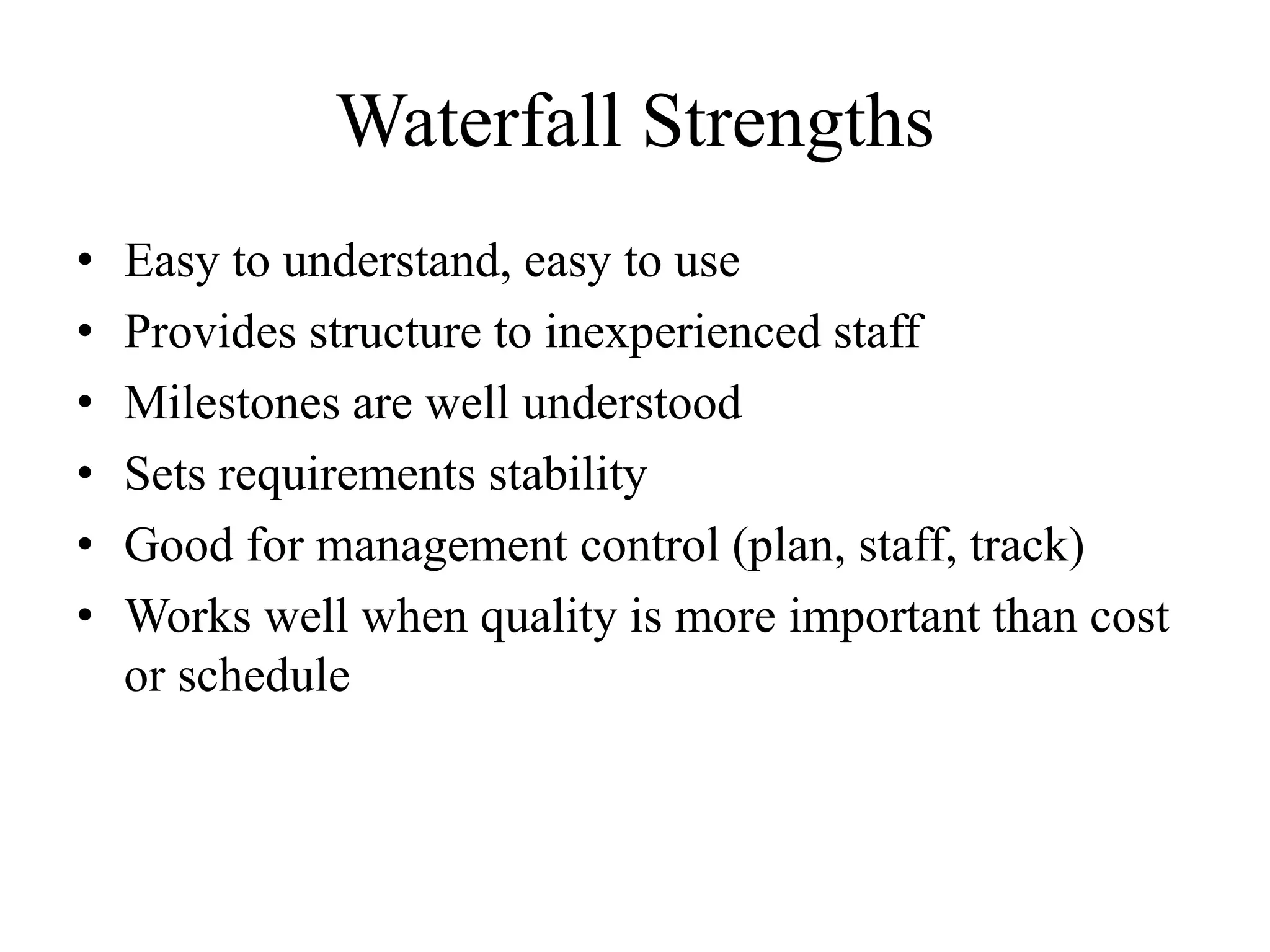

23. Waterfall Strengths
• Easy to understand, easy to use
• Provides structure to inexperienced staff
• Milestones are well understood
• Sets requirements stability
• Good for management control (plan, staff, track)
• Works well when quality is more important than cost
or schedule

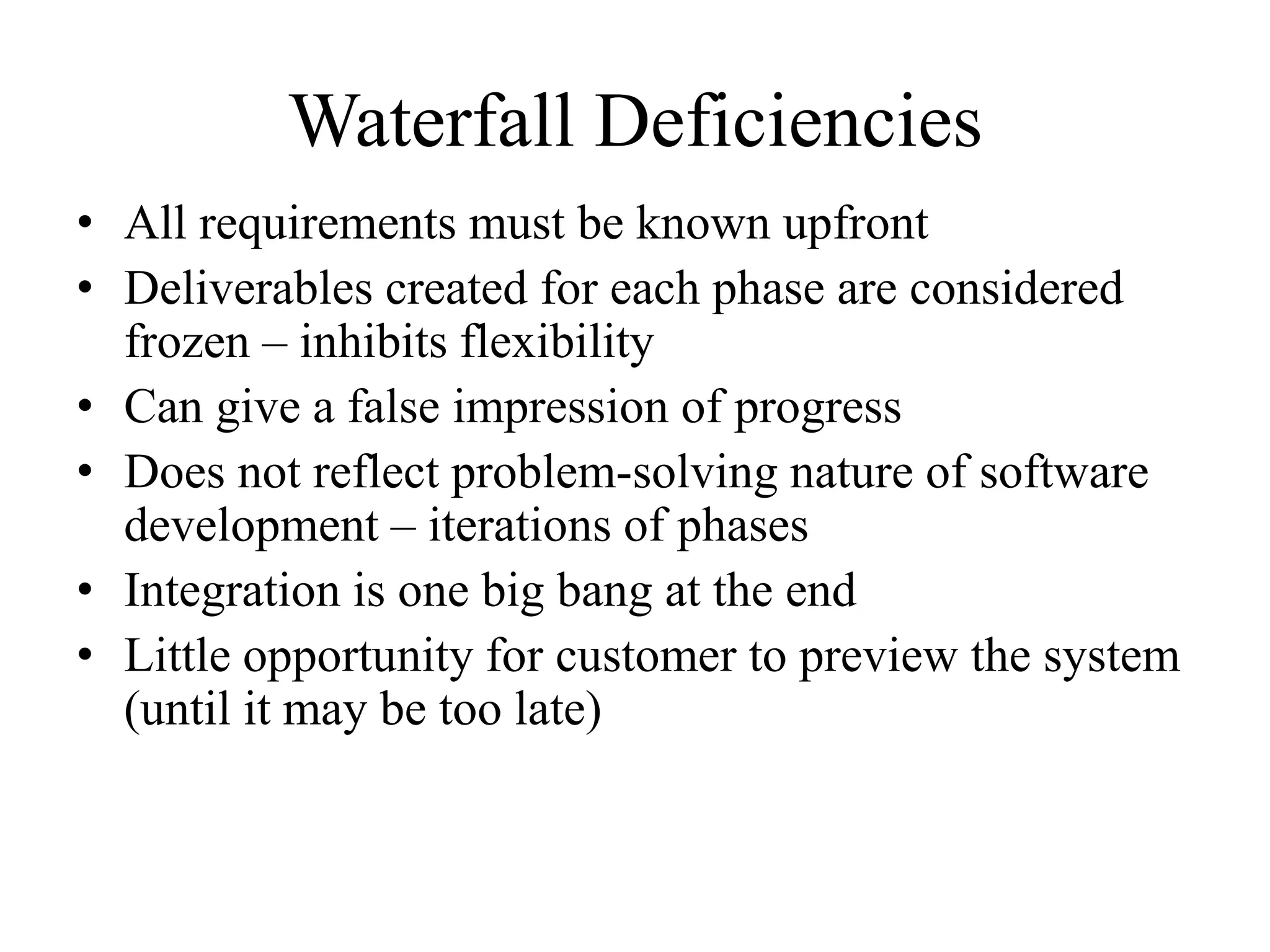

24. Waterfall Deficiencies
• All requirements must be known upfront
• Deliverables created for each phase are considered
frozen – inhibits flexibility
• Can give a false impression of progress
• Does not reflect problem-solving nature of software
development – iterations of phases
• Integration is one big bang at the end
• Little opportunity for customer to preview the system
(until it may be too late)

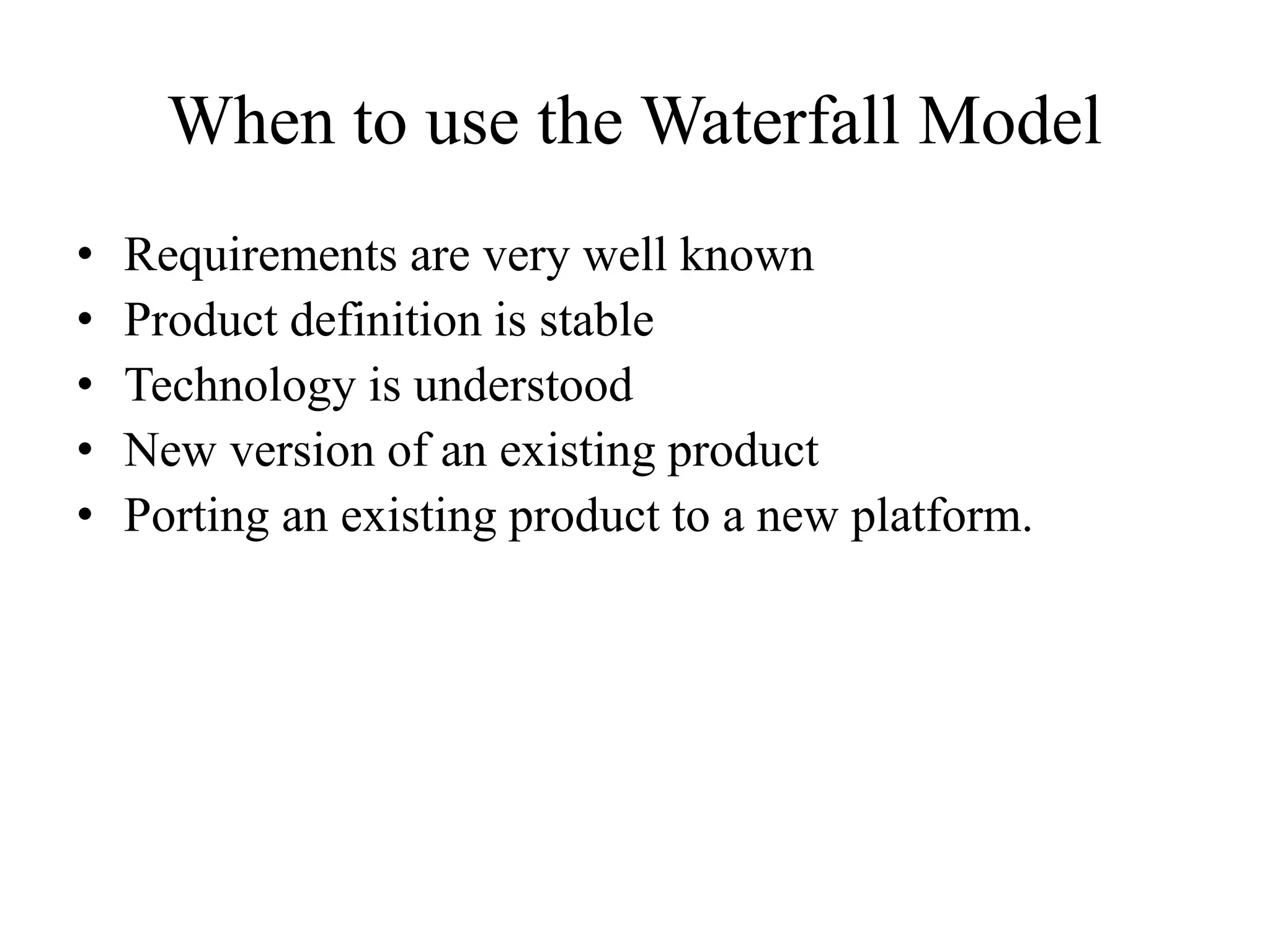

25. When to use the Waterfall Model
• Requirements are very well known
• Product definition is stable
• Technology is understood
• New version of an existing product
• Porting an existing product to a new platform.

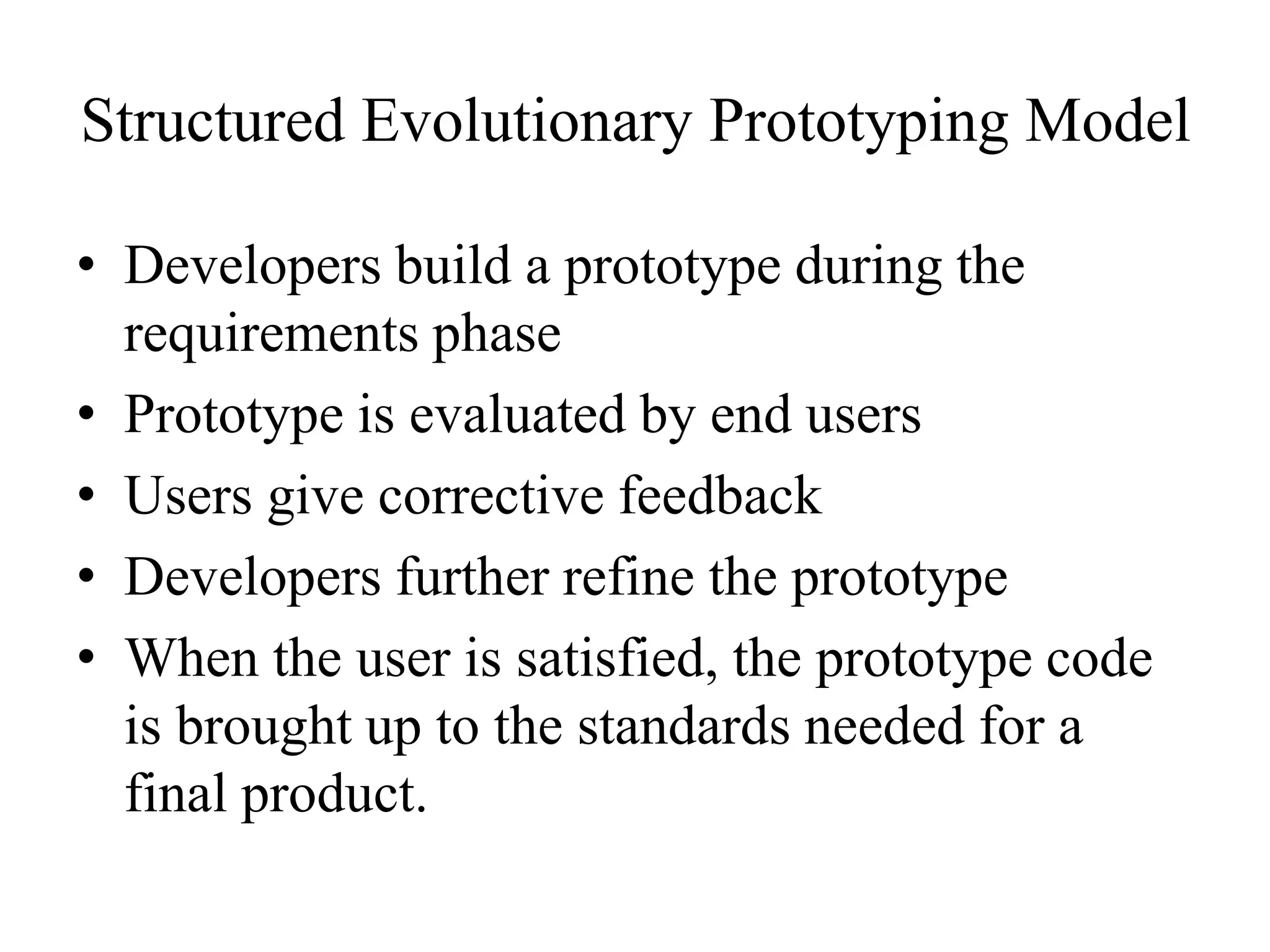

26. Structured Evolutionary Prototyping Model
• Developers build a prototype during the
requirements phase
• Prototype is evaluated by end users
• Users give corrective feedback
• Developers further refine the prototype
• When the user is satisfied, the prototype code
is brought up to the standards needed for a
final product.

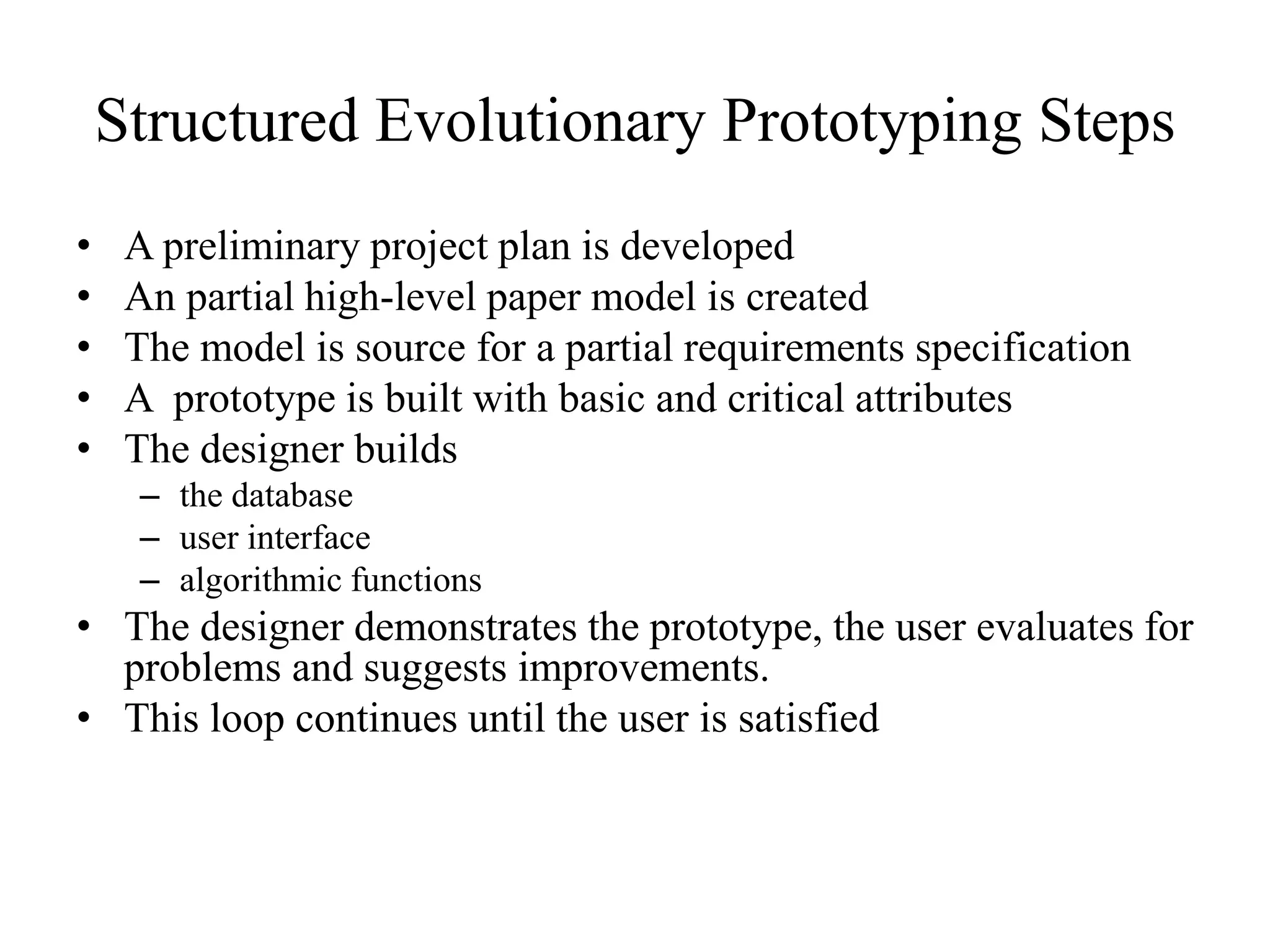

27. Structured Evolutionary Prototyping Steps
• A preliminary project plan is developed
• An partial high-level paper model is created
• The model is source for a partial requirements specification
• A prototype is built with basic and critical attributes
• The designer builds
– the database
– user interface
– algorithmic functions
• The designer demonstrates the prototype, the user evaluates for
problems and suggests improvements.
• This loop continues until the user is satisfied

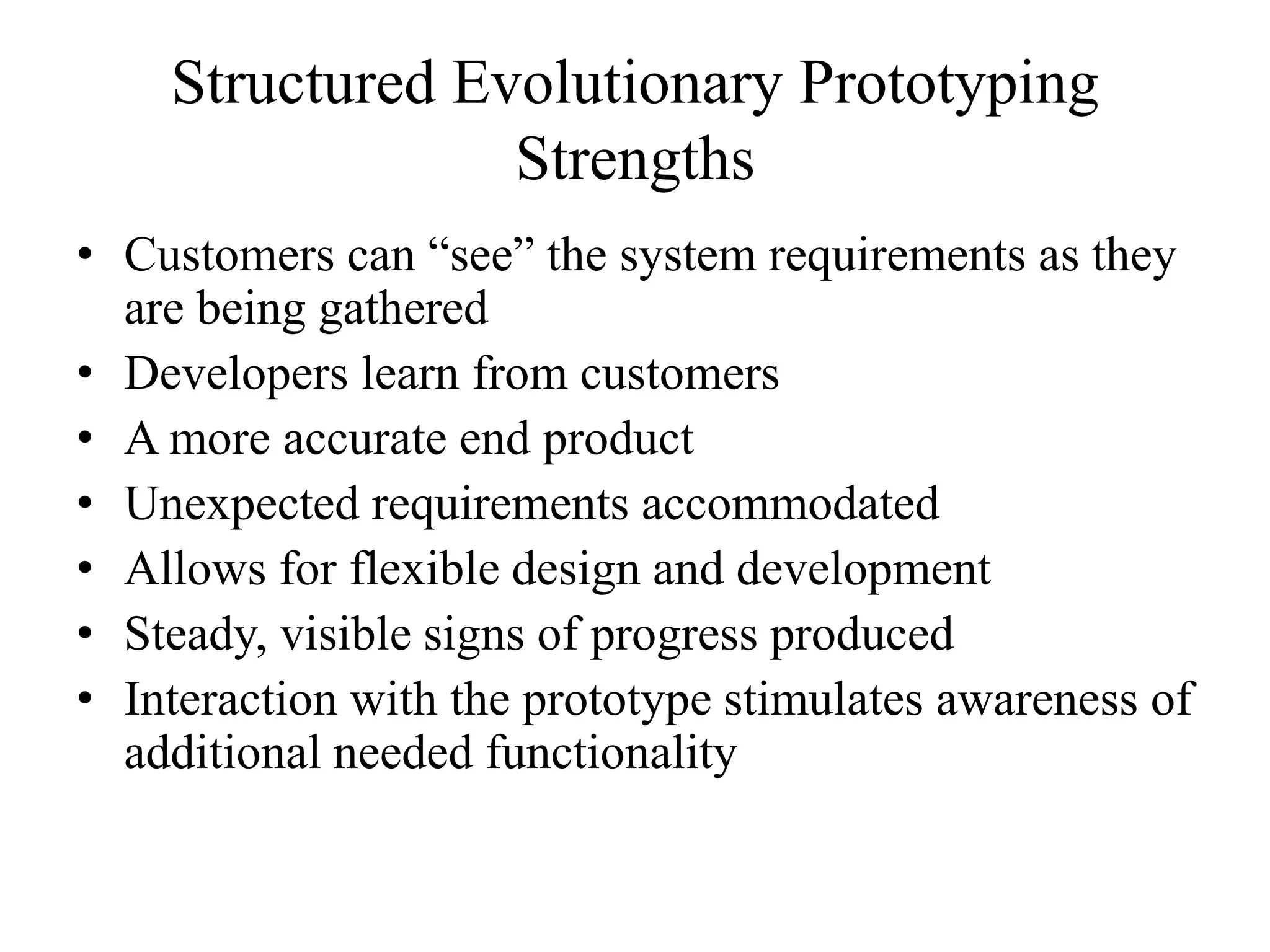

28. Structured Evolutionary Prototyping
Strengths
• Customers can “see” the system requirements as they
are being gathered
• Developers learn from customers
• A more accurate end product
• Unexpected requirements accommodated
• Allows for flexible design and development
• Steady, visible signs of progress produced
• Interaction with the prototype stimulates awareness of
additional needed functionality

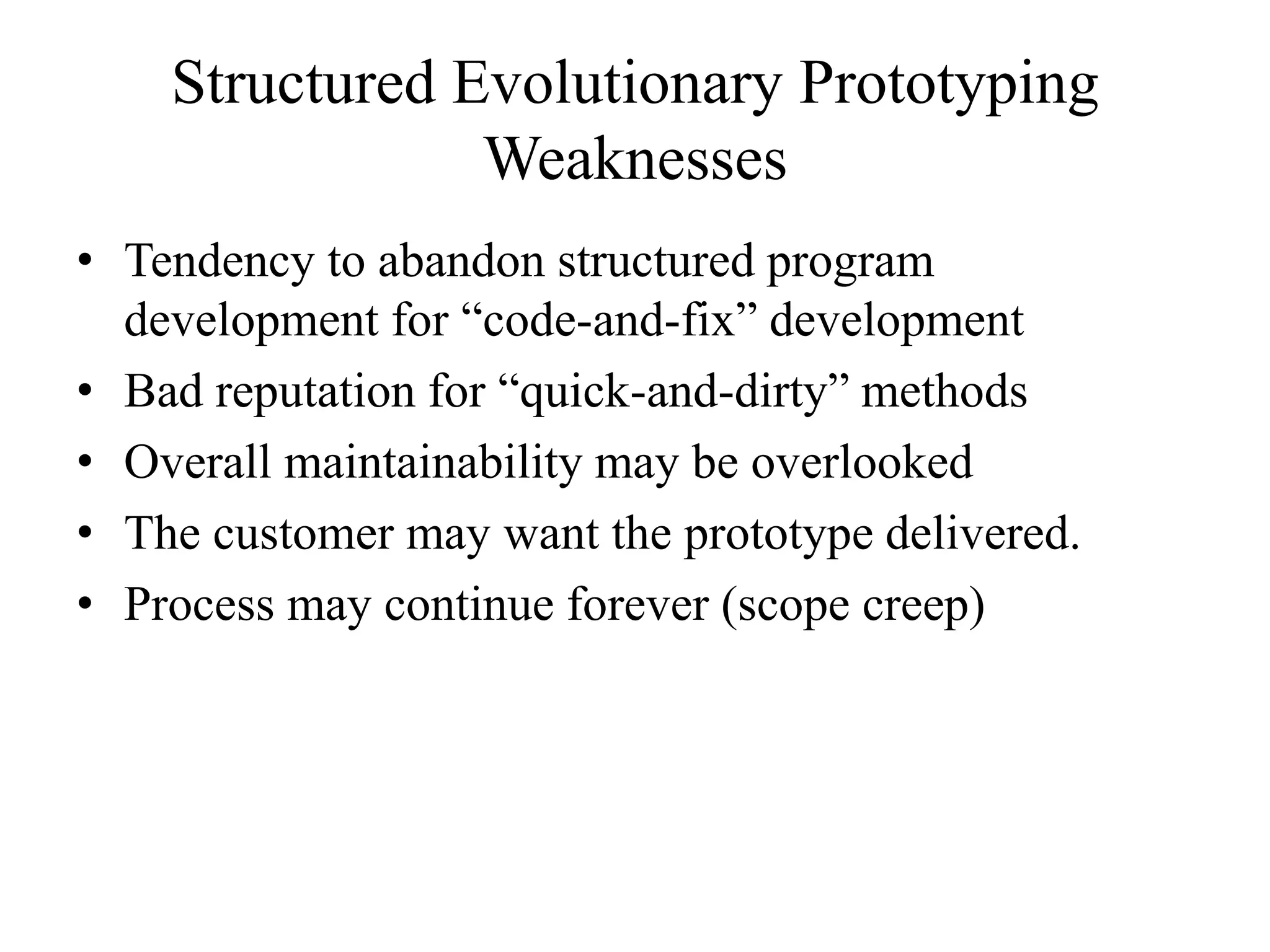

29. Structured Evolutionary Prototyping
Weaknesses
• Tendency to abandon structured program
development for “code-and-fix” development
• Bad reputation for “quick-and-dirty” methods
• Overall maintainability may be overlooked
• The customer may want the prototype delivered.
• Process may continue forever (scope creep)

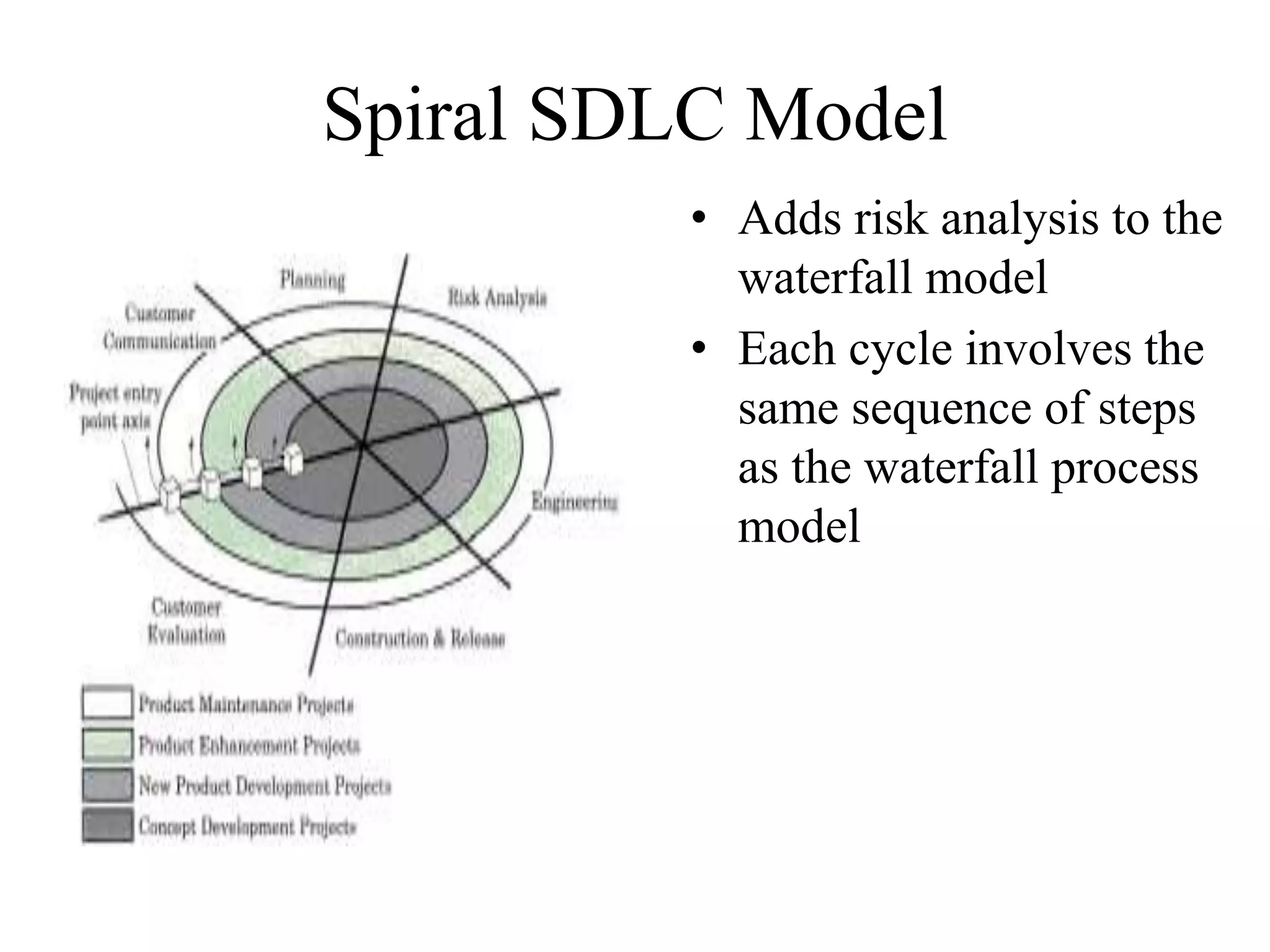

30. Spiral SDLC Model
• Adds risk analysis to the
waterfall model
• Each cycle involves the
same sequence of steps
as the waterfall process
model

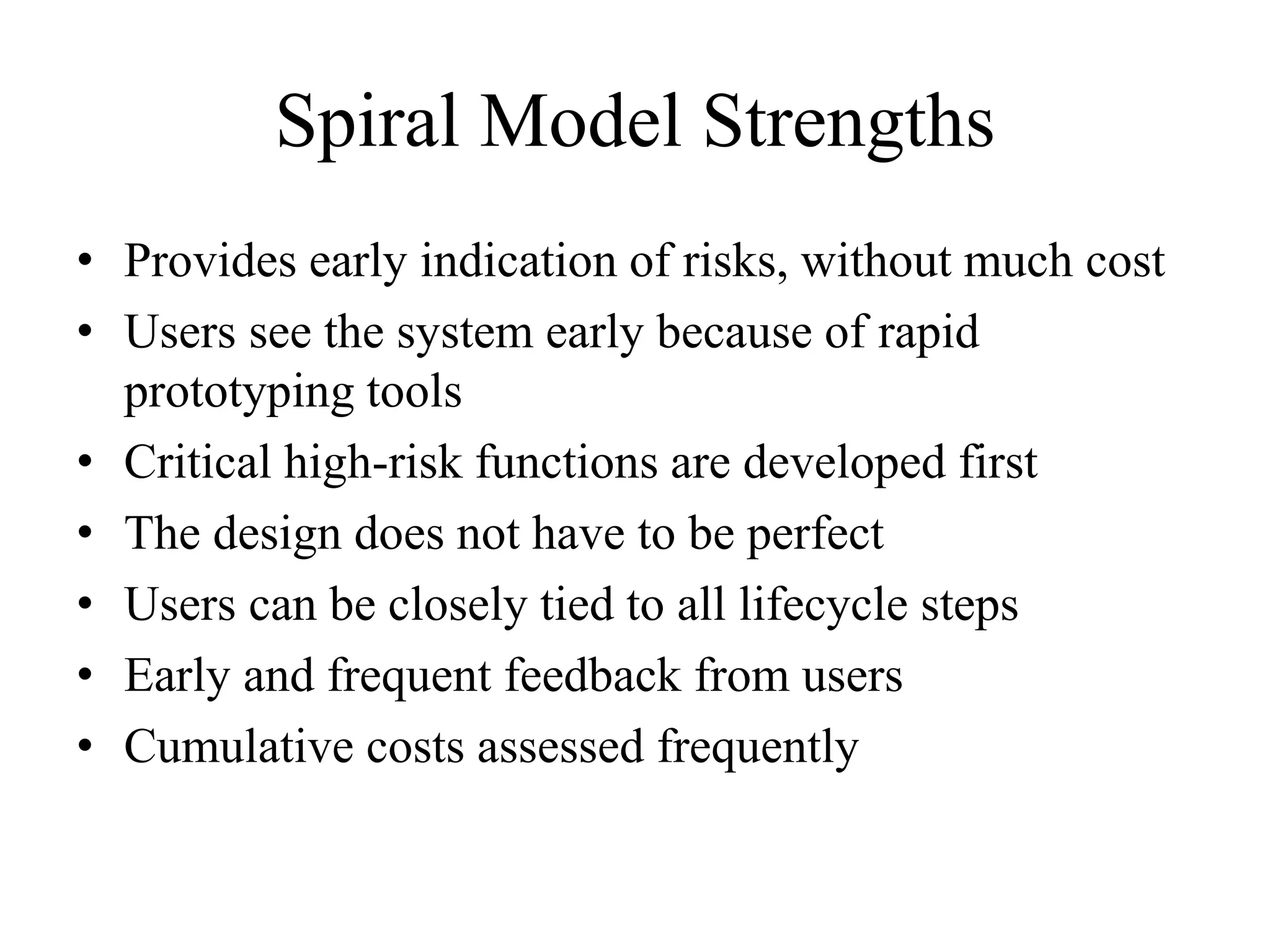

31. Spiral Model Strengths
• Provides early indication of risks, without much cost
• Users see the system early because of rapid
prototyping tools
• Critical high-risk functions are developed first
• The design does not have to be perfect
• Users can be closely tied to all lifecycle steps
• Early and frequent feedback from users
• Cumulative costs assessed frequently

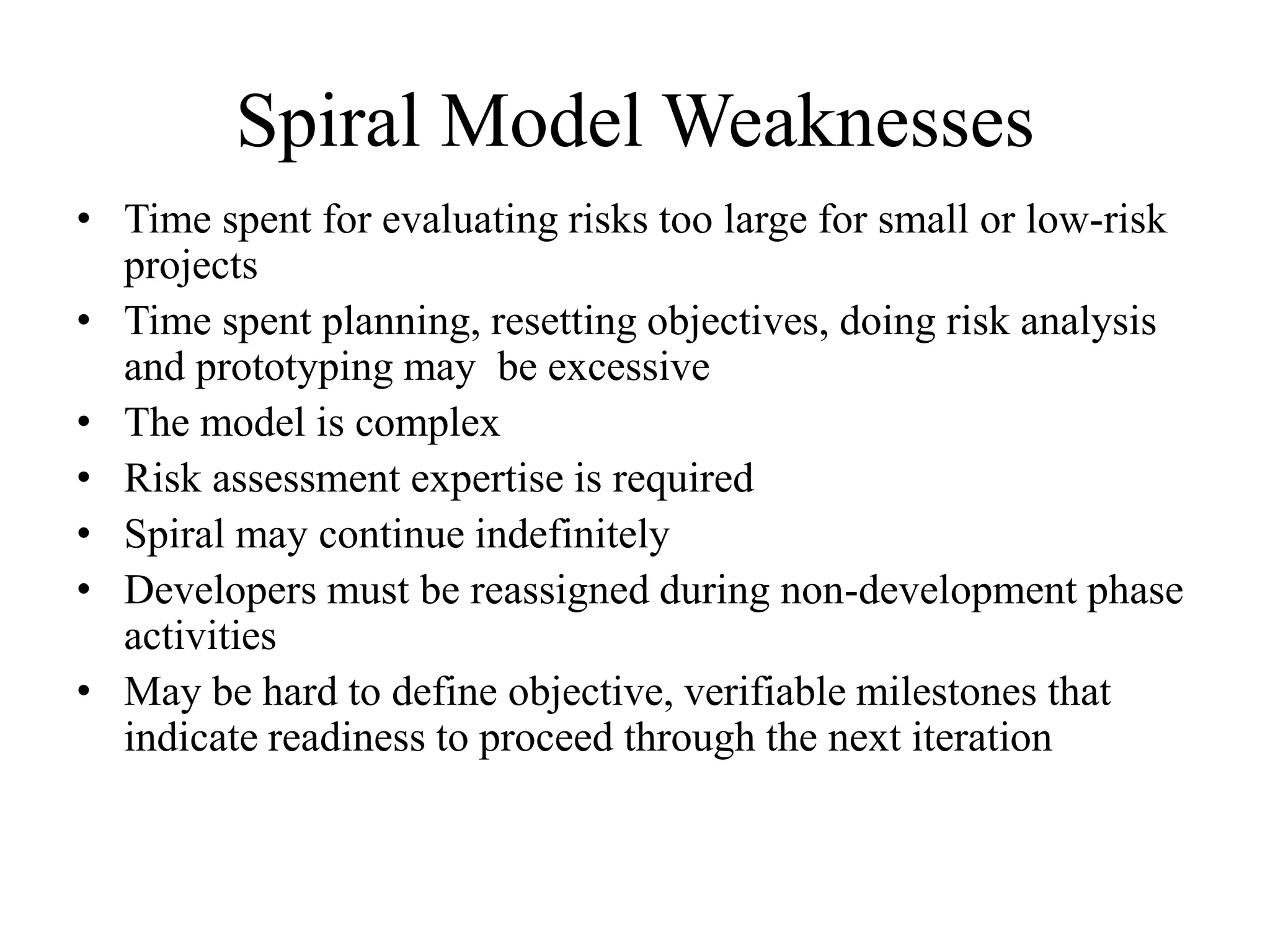

32. Spiral Model Weaknesses
• Time spent for evaluating risks too large for small or low-risk
projects
• Time spent planning, resetting objectives, doing risk analysis
and prototyping may be excessive
• The model is complex
• Risk assessment expertise is required
• Spiral may continue indefinitely
• Developers must be reassigned during non-development phase
activities
• May be hard to define objective, verifiable milestones that
indicate readiness to proceed through the next iteration
