China TURCON VARISEAL M2
The Turcon Variseal M2 is a single-acting, spring-energized seal that features a Turcon U-cup. It is resistant to chemicals and fluids, has low friction, and handles temperature changes well. It is used in applications like valves, pumps, and dosing devices. The seal ring is typically made from Turcon T40 material and the spring is stainless steel. It is suitable for pharmaceutical and food applications.
China TURCON VARISEAL M2

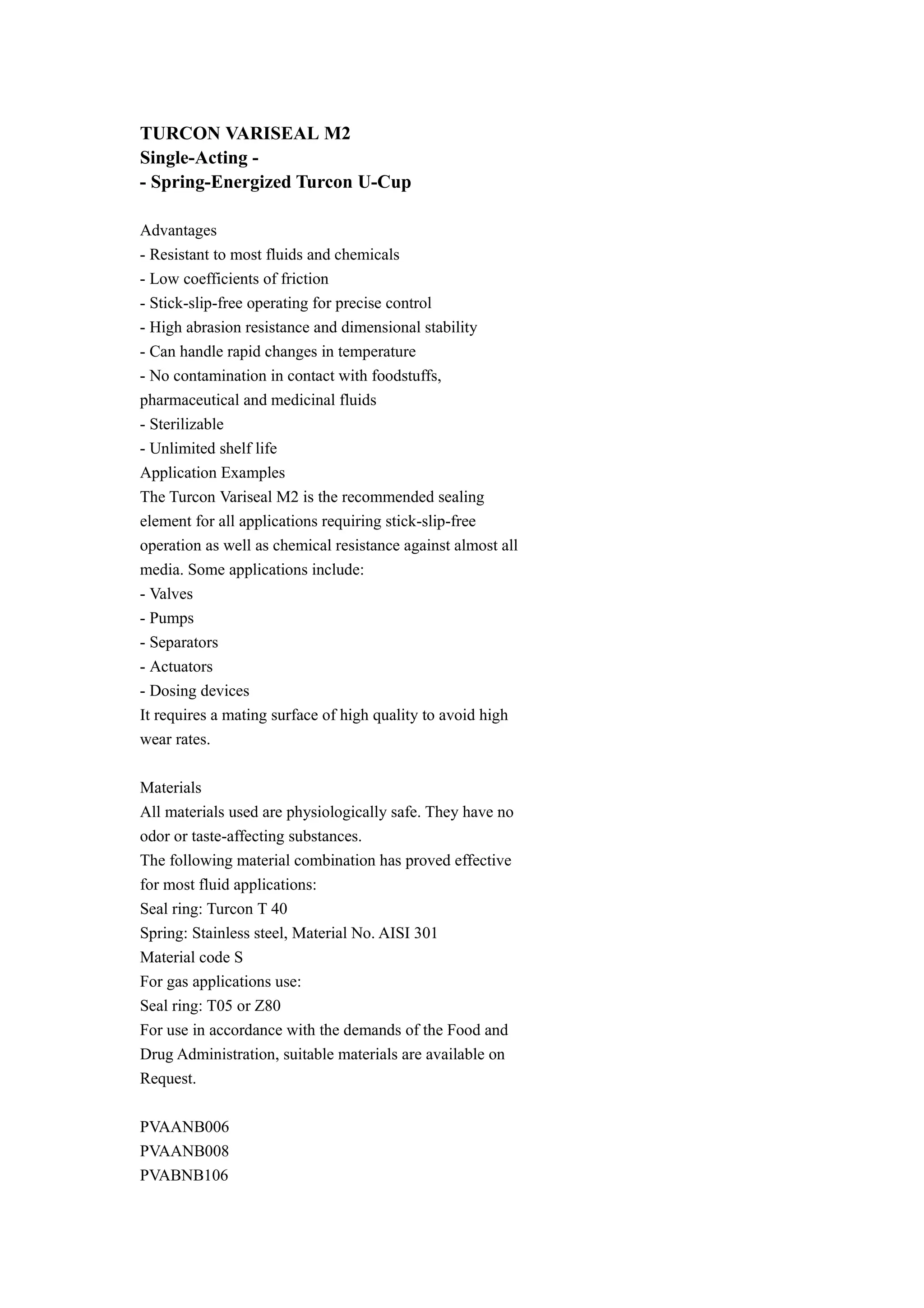

- 1. TURCON VARISEAL M2 Single-Acting- - Spring-Energized Turcon U-Cup Advantages - Resistant to most fluids and chemicals - Low coefficients of friction - Stick-slip-free operating for precise control - High abrasion resistance and dimensional stability - Can handle rapid changes in temperature - No contamination in contact with foodstuffs, pharmaceutical and medicinal fluids - Sterilizable - Unlimited shelf life Application Examples The Turcon Variseal M2 is the recommended sealing element for all applications requiring stick-slip-free operation as well as chemical resistance against almost all media. Some applications include: - Valves - Pumps - Separators - Actuators - Dosing devices It requires a mating surface of high quality to avoid high wear rates. Materials All materials used are physiologically safe. They have no odor or taste-affecting substances. The following material combination has proved effective for most fluid applications: Seal ring: Turcon T 40 Spring: Stainless steel, Material No. AISI 301 Material code S For gas applications use: Seal ring: T05 or Z80 For use in accordance with the demands of the Food and Drug Administration, suitable materials are available on Request. PVAANB006 PVAANB008 PVABNB106
- 2.

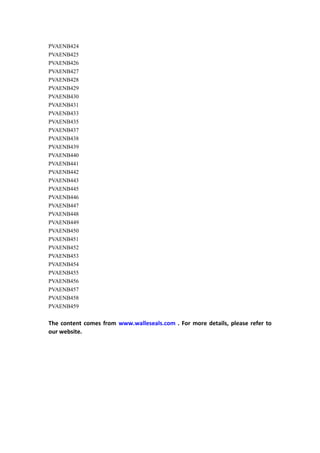

- 3. PVAENB424 PVAENB425 PVAENB426 PVAENB427 PVAENB428 PVAENB429 PVAENB430 PVAENB431 PVAENB433 PVAENB435 PVAENB437 PVAENB438 PVAENB439 PVAENB440 PVAENB441 PVAENB442 PVAENB443 PVAENB445 PVAENB446 PVAENB447 PVAENB448 PVAENB449 PVAENB450 PVAENB451 PVAENB452 PVAENB453 PVAENB454 PVAENB455 PVAENB456 PVAENB457 PVAENB458 PVAENB459 The content comesfrom www.walleseals.com . For more details, please refer to our website.
