1) The document introduces Solufarm's transparent LED film display (TLM), a new type of transparent media facade. The TLM uses a very light and thin LED film that can be directly attached to windows and curved surfaces for interior or exterior use. 2) The TLM has advantages over glass LED displays such as being lighter, more flexible for installation, and lower cost. It is well-suited for uses like building facades, media art, and advertisements. 3) Solufarm has been supplying digital signage solutions including the TLM since 2006. They have over 40 customers in Korea and export to 10 countries. The TLM has received 3 patents.

1. Transparent LED File Display
2021. 01.
www.solufarm.com

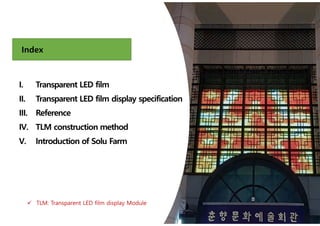

2. ü TLM: Transparent LED film display Module
Index

3. A pioneer in transparent LED!
- 3 -
1) Building landmarks through lighting -> Larger buildings and increased glass buildings
2) Media used by building glass (show window) -> Without obstruction
3) New type of media facade (digital signage)
4) Revitalization of night economy through landscape lighting
Rationality
*Good Stability
*High efficiency system
*Easy maintenance
*Reasonable price
Convenience
*Flexible film structure
*Curved surface installation
*Easy installation by lightness
*High brightness
Beauty
*Landmark
*Interior/Media art
*Excellent Ads effect
New type
media
Show window
transparency
Pursuing
beautiful interior
Differentiated
Madia
§ Differentiated transparency
§ Light and slim media
§ Installation position and space constraint
Trend
Change

4. A pioneer in transparent LED!
4

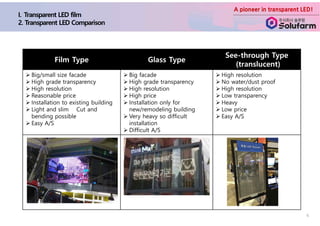

Film Type Glass Type
See-through Type
(translucent)
Ø Big/small size facade
Ø High grade transparency
Ø High resolution
Ø Reasonable price
Ø Installation to existing building
Ø Light and slim Cut and
bending possible
Ø Easy A/S
Ø Big facade
Ø High grade transparency
Ø High resolution
Ø High price
Ø Installation only for
new/remodeling building
Ø Very heavy so difficult
installation
Ø Difficult A/S
Ø High resolution
Ø No water/dust proof
Ø High resolution
Ø Low transparency
Ø Heavy
Ø Low price
Ø Easy A/S

5. A pioneer in transparent LED!
- 5 -

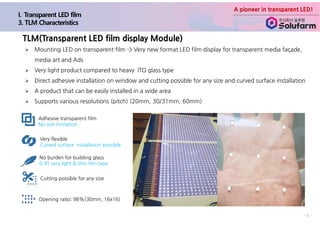

Ø Mounting LED on transparent film -> Very new format LED film display for transparent media façade,
media art and Ads
Ø Very light product compared to heavy ITO glass type
Ø Direct adhesive installation on window and cutting possible for any size and curved surface installation
Ø A product that can be easily installed in a wide area
Ø Supports various resolutions (pitch) (20mm, 30/31mm, 60mm)
TLM(Transparent LED film display Module)
Adhesive transparent film
No size limitation
Very flexible
Curved surface installation possible
No burden for building glass
0.9T very light & thin film type
Cutting possible for any size
Opening ratio: 98%(30mm, 16x16)

6. A pioneer in transparent LED!
- 6 -

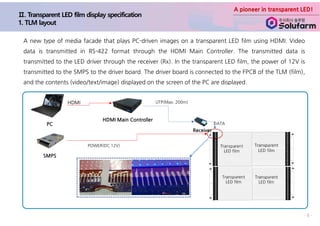

A new type of media facade that plays PC-driven images on a transparent LED film using HDMI. Video
data is transmitted in RS-422 format through the HDMI Main Controller. The transmitted data is
transmitted to the LED driver through the receiver (Rx). In the transparent LED film, the power of 12V is
transmitted to the SMPS to the driver board. The driver board is connected to the FPCB of the TLM (film),
and the contents (video/text/image) displayed on the screen of the PC are displayed.
Transparent
LED film
HDMI Main Controller
PC
UTP(Max. 200m)
DATA
POWER(DC 12V)
SMPS
Receiver
Transparent
LED film
Transparent
LED film
HDMI
Transparent
LED film

7. A pioneer in transparent LED!
- 7 -

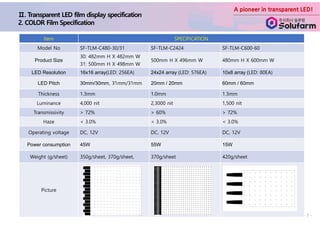

Item SPECIFICATION
Model No SF-TLM-C480-30/31 SF-TLM-C2424 SF-TLM-C600-60
Product Size
30: 482mm H X 482mm W
31: 500mm H X 498mm W
500mm H X 496mm W 480mm H X 600mm W
LED Resolution 16x16 array(LED: 256EA) 24x24 array (LED: 576EA) 10x8 array (LED: 80EA)
LED Pitch 30mm/30mm, 31mm/31mm 20mm / 20mm 60mm / 60mm
Thickness 1.3mm 1.0mm 1.3mm
Luminance 4,000 nit 2,3000 nit 1,500 nit
Transmissivity > 72% > 60% > 72%
Haze < 3.0% < 3.0% < 3.0%
Operating voltage DC, 12V DC, 12V DC, 12V
Power consumption 45W 55W 15W
Weight (g/sheet) 350g/sheet, 370g/sheet, 370g/sheet 420g/sheet

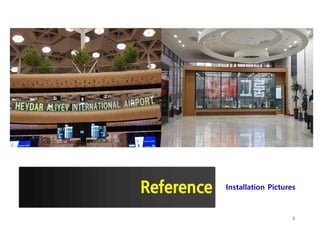

8. Installation Pictures

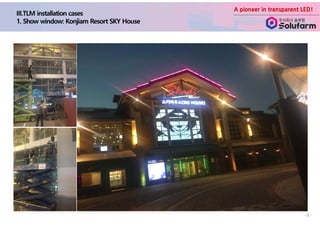

9. A pioneer in transparent LED!
- 9 -

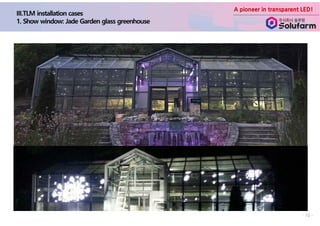

10. A pioneer in transparent LED!
- 10 -

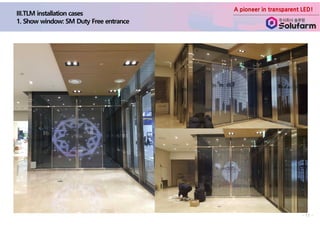

11. A pioneer in transparent LED!
- 11 -

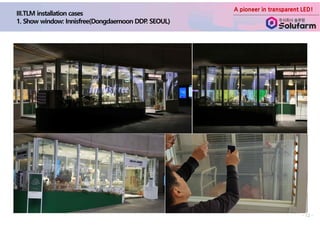

12. A pioneer in transparent LED!
- 12 -

13. A pioneer in transparent LED!
13

14. A pioneer in transparent LED!

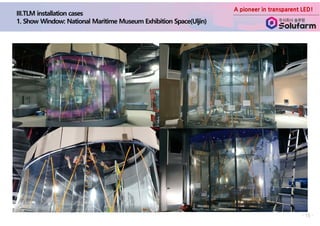

15. A pioneer in transparent LED!
- 15 -

16. A pioneer in transparent LED!
- 16 -

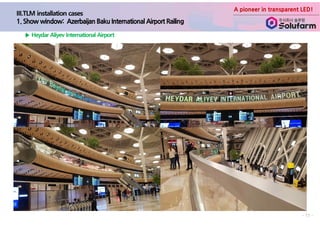

17. A pioneer in transparent LED!
- 17 -

18. A pioneer in transparent LED!
- 18 -

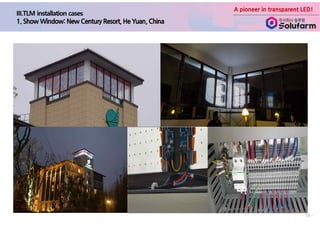

19. A pioneer in transparent LED!
- 19 -

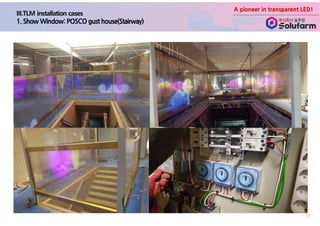

20. A pioneer in transparent LED!
- 20 -

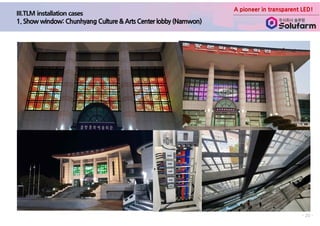

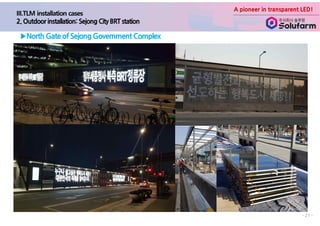

21. A pioneer in transparent LED!
- 21 -

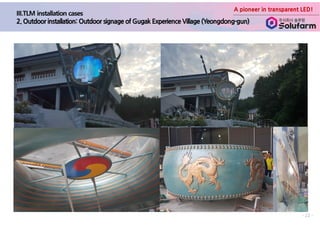

22. A pioneer in transparent LED!
- 22 -

23. A pioneer in transparent LED!

24. A pioneer in transparent LED!

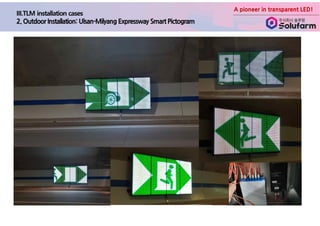

25. A pioneer in transparent LED!

26. A pioneer in transparent LED!

27. A pioneer in transparent LED!
- 27 -
① Check installation location ② Attach Film to Glass ③Drive-board Assembly
(Data/Power)
⑥ TLM operation
④Frame/SMPS Assembly ⑤ Lighting test

28. A pioneer in transparent LED!
- 28 -

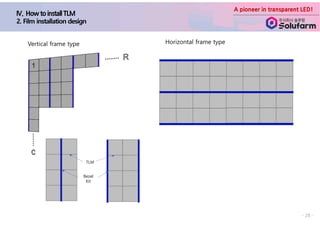

Horizontal frame type
Vertical frame type
TLM
Bezel
Kit

29. A pioneer in transparent LED!
- 29 -

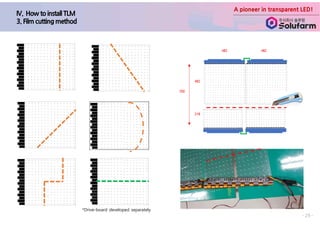

*Drive-board developed separately
482 482
482
218
700

30. A pioneer in transparent LED!
- 30 -

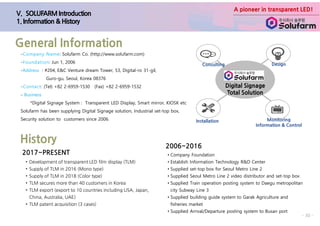

• Development of transparent LED film display (TLM)
• Supply of TLM in 2016 (Mono type)
• Supply of TLM in 2018 (Color type)
• TLM secures more than 40 customers in Korea
• TLM export (export to 10 countries including USA, Japan,
China, Australia, UAE)
• TLM patent acquisition (3 cases)
2017~PRESENT • Company Foundation
• Establish Information Technology R&D Center
• Supplied set-top box for Seoul Metro Line 2
• Supplied Seoul Metro Line 2 video distributor and set-top box
• Supplied Train operation posting system to Daegu metropolitan
city Subway Line 3
• Supplied building guide system to Garak Agriculture and
fisheries market
• Supplied Arrival/Departure posting system to Busan port
2006~2016
-Company Name: Solufarm Co. (http://www.solufarm.com)
-Foundation: Jun 1, 2006
-Address : #204, E&C Venture dream Tower, 53, Digital-ro 31-gil,
Guro-gu, Seoul, Korea 08376
-Contact: (Tel) +82 2-6959-1530 (Fax) +82 2-6959-1532
- Business
*Digital Signage System : Transparent LED Display, Smart mirror, KIOSK etc
Solufarm has been supplying Digital Signage solution, Industrial set-top box,
Security solution to customers since 2006.
General Information
History
Digital Signage
Total Solution
Consulting
Installation
Design
Monitoring
Information & Control

31. A pioneer in transparent LED!
- 31 -
키오스크 (40대 / 2015년 설치)
Garak Agriculture and Fisheries market
Kiosk & Multivision/DID
(130 sets / Installation in 2014)
Many wall type DID / Multivision / Video conference system
(Installation in 2016)
Pangyo Creative economic center Start-up campus
Gangwon land(Hotel) building guide system

32. A pioneer in transparent LED!
32

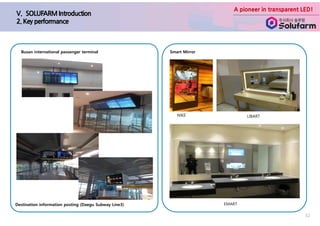

Destination information posting (Daegu Subway Line3)
Busan international passenger terminal Smart Mirror
LIBART
EMART
NIKE

33. A pioneer in transparent LED!
- 33 -

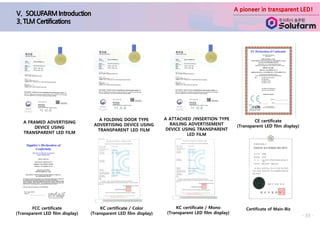

Certificate of Main-Biz
A FRAMED ADVERTISING
DEVICE USING
TRANSPARENT LED FILM
A FOLDING DOOR TYPE
ADVERTISING DEVICE USING
TRANSPARENT LED FILM
A ATTACHED /INSERTION TYPE
RAILING ADVERTISEMENT
DEVICE USING TRANSPARENT
LED FILM
CE certificate
(Transparent LED film display)
FCC certificate
(Transparent LED film display)
KC certificate / Color
(Transparent LED film display)
KC certificate / Mono
(Transparent LED film display)

34. Thank you!
Mr. HyoukBae Jeon
+82 10 9329 6457
hbjeon@solufarm.com / wjsgurqo@naver.com
www.solufarm.com
Address : #204, E&C Venture dream Tower, 53,
Digital-ro 31-gil, Guro-gu, Seoul, Korea
