Full Stack GraphQL In The Cloud With Neo4j AuraDB, Next.js, & Vercel dev.neo4j.com/fullstack-graphql-workshop
About Me William Lyon Developer Relations Engineer, Neo4j @lyonwj lyonwj.com

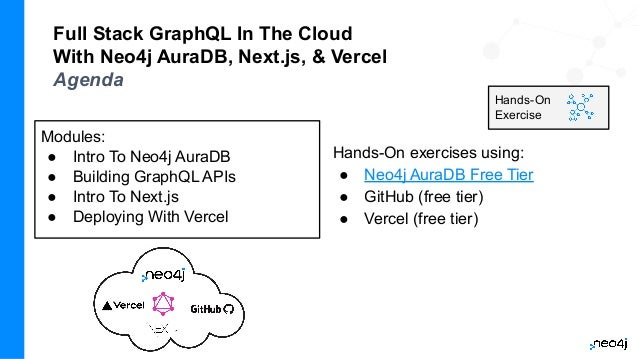

Full Stack GraphQL In The Cloud With Neo4j AuraDB, Next.js, & Vercel Agenda Modules: ● Intro To Neo4j AuraDB ● Building GraphQL APIs ● Intro To Next.js ● Deploying With Vercel Hands-On exercises using: ● Neo4j AuraDB Free Tier ● GitHub (free tier) ● Vercel (free tier) Hands-On Exercise
4 Introduction To Neo4j AuraDB Importing & Querying Data With Cypher In The Cloud

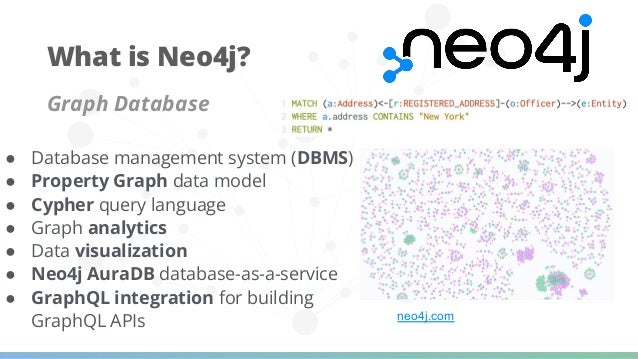

Graph Database ● Database management system (DBMS) ● Property Graph data model ● Cypher query language ● Graph analytics ● Data visualization ● Neo4j AuraDB database-as-a-service ● GraphQL integration for building GraphQL APIs What is Neo4j? neo4j.com

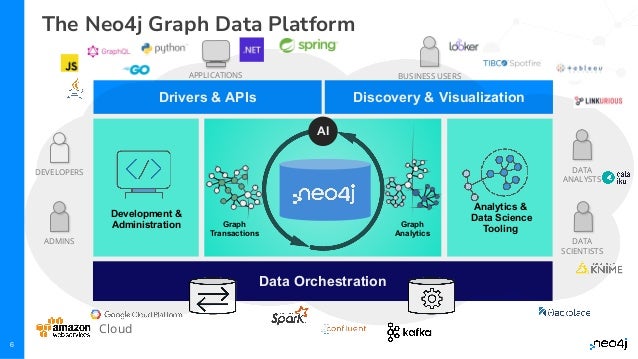

6 The Neo4j Graph Data Platform Analytics & Data Science Tooling Graph Transactions Data Orchestration Development & Administration Drivers & APIs Discovery & Visualization Graph Analytics AI BUSINESS USERS DEVELOPERS ADMINS DATA ANALYSTS DATA SCIENTISTS APPLICATIONS Cloud

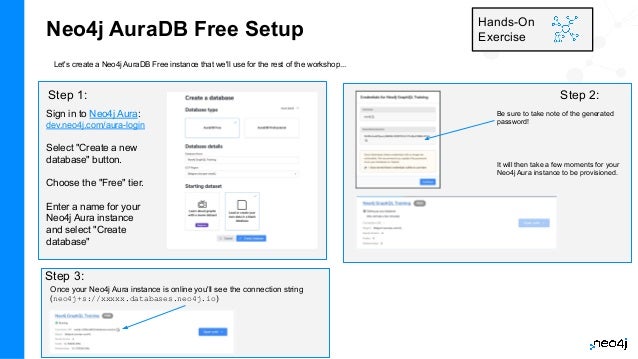

Neo4j AuraDB Free Setup Let's create a Neo4j AuraDB Free instance that we'll use for the rest of the workshop... Hands-On Exercise Once your Neo4j Aura instance is online you'll see the connection string (neo4j+s://xxxxx.databases.neo4j.io) Be sure to take note of the generated password! It will then take a few moments for your Neo4j Aura instance to be provisioned. Sign in to Neo4j Aura: dev.neo4j.com/aura-login Select "Create a new database" button. Choose the "Free" tier. Enter a name for your Neo4j Aura instance and select "Create database" Step 1: Step 2: Step 3:

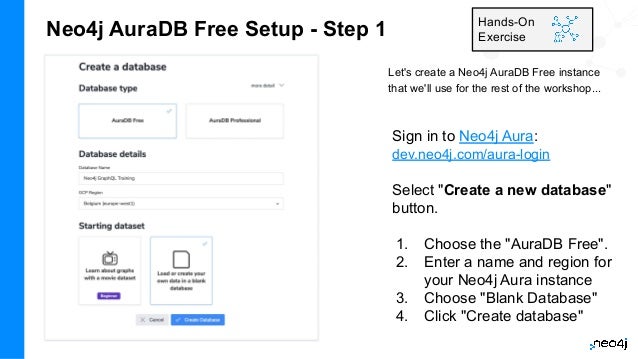

Neo4j AuraDB Free Setup - Step 1 Let's create a Neo4j AuraDB Free instance that we'll use for the rest of the workshop... Hands-On Exercise Sign in to Neo4j Aura: dev.neo4j.com/aura-login Select "Create a new database" button. 1. Choose the "AuraDB Free". 2. Enter a name and region for your Neo4j Aura instance 3. Choose "Blank Database" 4. Click "Create database"

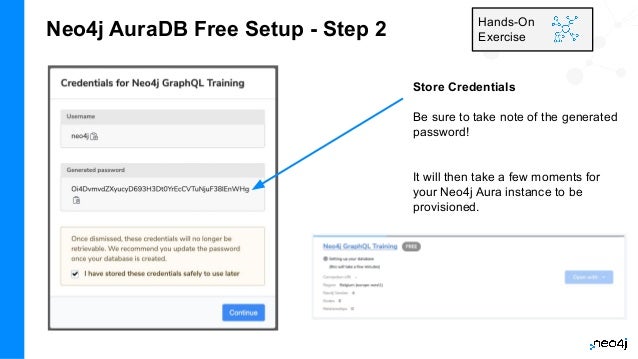

Neo4j AuraDB Free Setup - Step 2 Hands-On Exercise Store Credentials Be sure to take note of the generated password! It will then take a few moments for your Neo4j Aura instance to be provisioned.

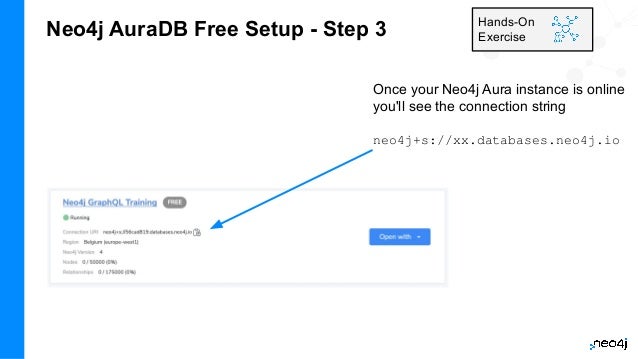

Neo4j AuraDB Free Setup - Step 3 Hands-On Exercise Once your Neo4j Aura instance is online you'll see the connection string neo4j+s://xx.databases.neo4j.io

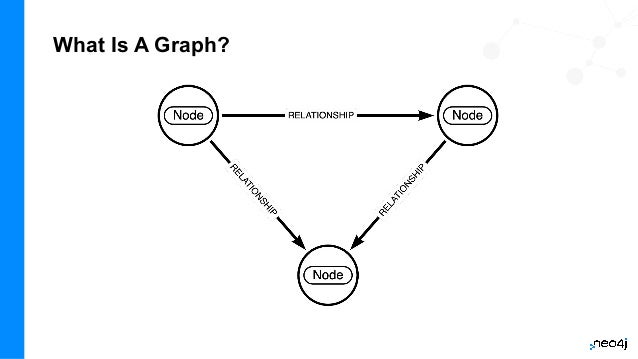

What Is A Graph?

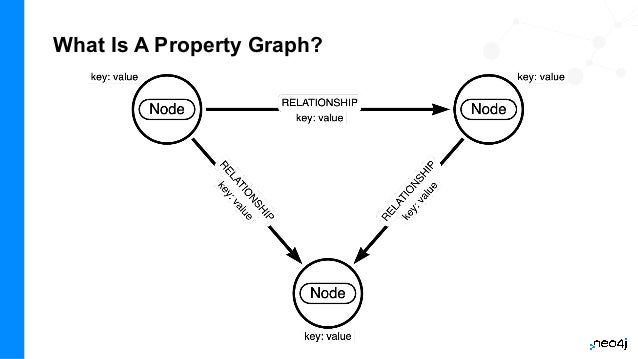

What Is A Property Graph?

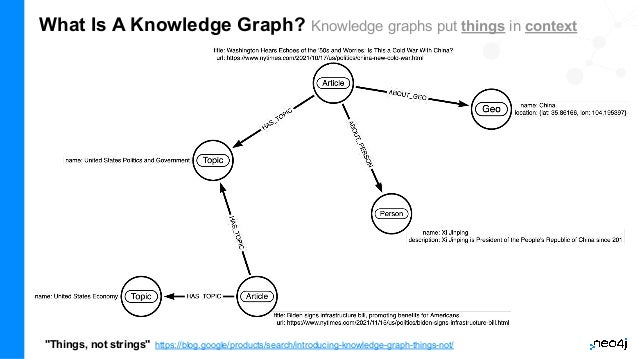

What Is A Knowledge Graph? Knowledge graphs put things in context "Things, not strings" https://blog.google/products/search/introducing-knowledge-graph-things-not/

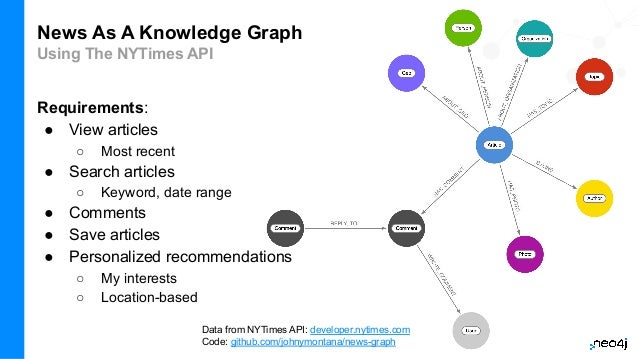

News As A Knowledge Graph Using The NYTimes API Requirements: ● View articles ○ Most recent ● Search articles ○ Keyword, date range ● Comments ● Save articles ● Personalized recommendations ○ My interests ○ Location-based Data from NYTimes API: developer.nytimes.com Code: github.com/johnymontana/news-graph

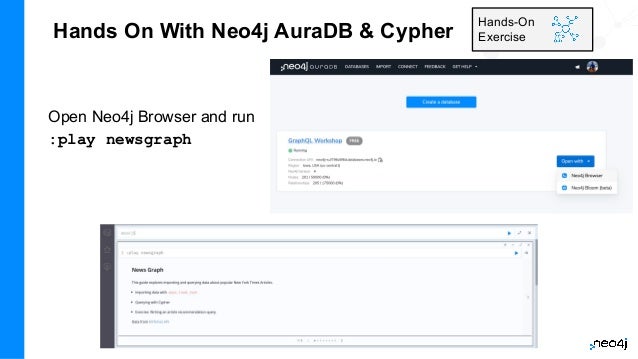

Hands On With Neo4j AuraDB & Cypher Open Neo4j Browser and run :play newsgraph Hands-On Exercise
16 Building GraphQL APIs With The Neo4j GraphQL Library

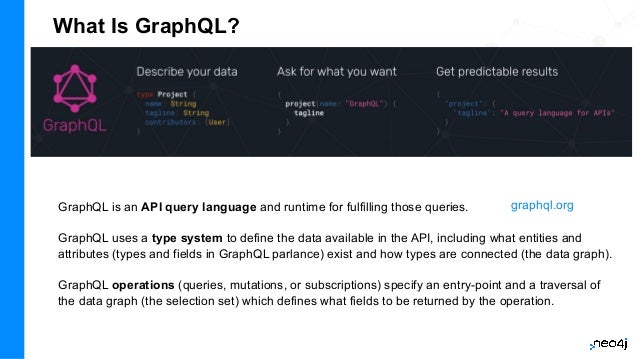

What Is GraphQL? GraphQL is an API query language and runtime for fulfilling those queries. GraphQL uses a type system to define the data available in the API, including what entities and attributes (types and fields in GraphQL parlance) exist and how types are connected (the data graph). GraphQL operations (queries, mutations, or subscriptions) specify an entry-point and a traversal of the data graph (the selection set) which defines what fields to be returned by the operation. graphql.org

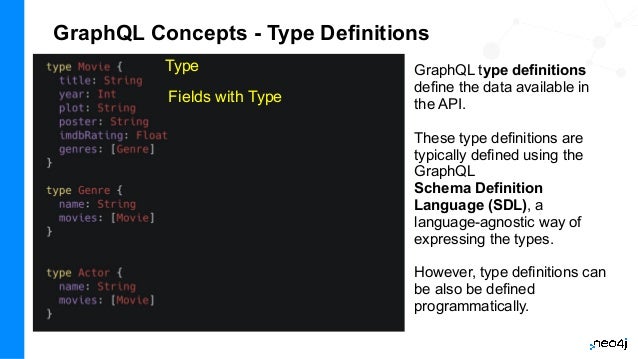

GraphQL Concepts - Type Definitions GraphQL type definitions define the data available in the API. These type definitions are typically defined using the GraphQL Schema Definition Language (SDL), a language-agnostic way of expressing the types. However, type definitions can be also be defined programmatically. Type Fields with Type

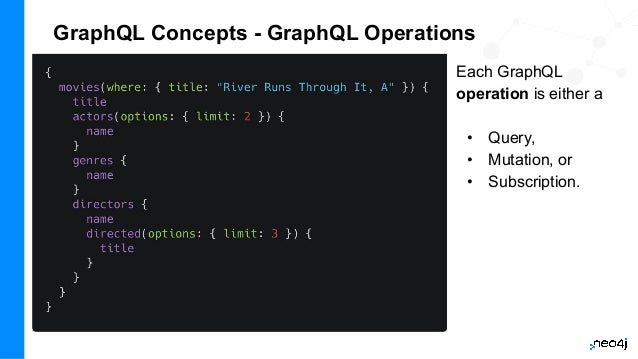

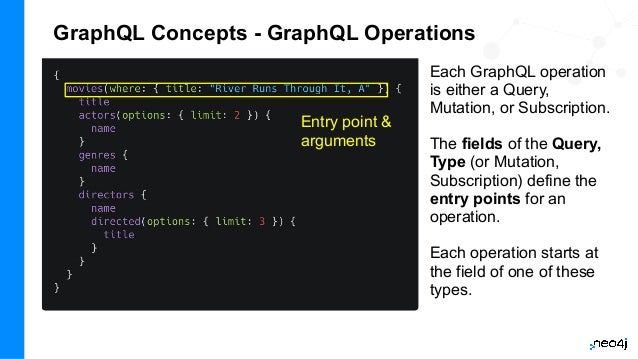

GraphQL Concepts - GraphQL Operations Each GraphQL operation is either a • Query, • Mutation, or • Subscription.
GraphQL Concepts - GraphQL Operations Each GraphQL operation is either a Query, Mutation, or Subscription. The fields of the Query, Type (or Mutation, Subscription) define the entry points for an operation. Each operation starts at the field of one of these types. Entry point & arguments

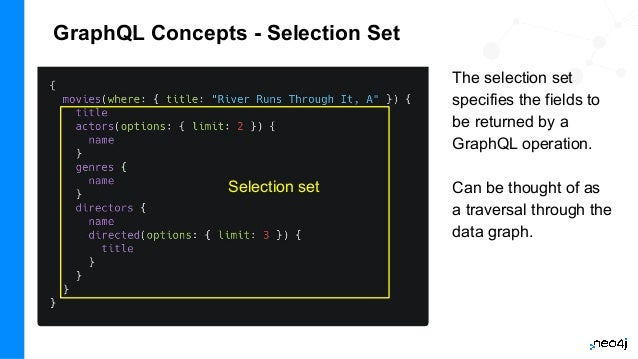

GraphQL Concepts - Selection Set The selection set specifies the fields to be returned by a GraphQL operation. Can be thought of as a traversal through the data graph. Selection set

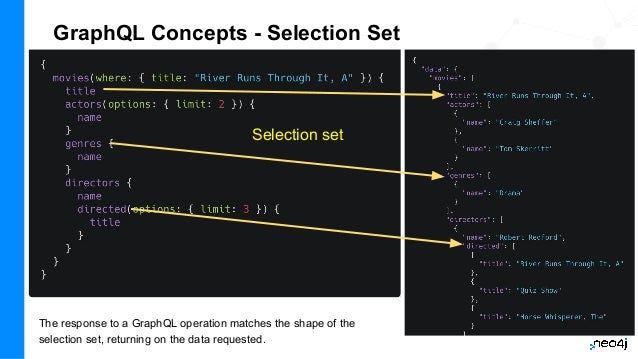

GraphQL Concepts - Selection Set The response to a GraphQL operation matches the shape of the selection set, returning on the data requested. Selection set

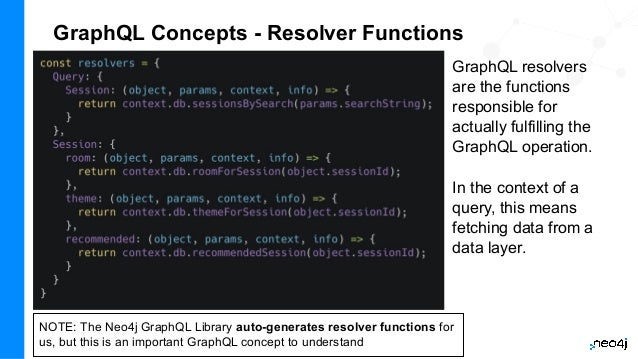

GraphQL Concepts - Resolver Functions GraphQL resolvers are the functions responsible for actually fulfilling the GraphQL operation. In the context of a query, this means fetching data from a data layer. NOTE: The Neo4j GraphQL Library auto-generates resolver functions for us, but this is an important GraphQL concept to understand
Benefits Of GraphQL ● Overfetching - sending less data over the wire ● Underfetching - everything the client needs in a single request ● The GraphQL specification defines exactly what GraphQL is ● Simplify data fetching with component-based data interactions ● "Graphs all the way down" - GraphQL can help unify disparate systems and focus API interactions on relationships instead of resources. ● Developer productivity - By reasoning about application data as a graph with a strict type system, developers can focus on building applications.
GraphQL Challenges ● Some well understood practices from REST don’t apply ○ HTTP status codes ○ Error handling ○ Caching ● Exposing arbitrary complexity to the client and performance considerations ● The n+1 query problem - the nested nature of GraphQL operations can lead to multiple requests to the data layer(s) to resolve a request ● Query costing and rate limiting Best practices and tooling have emerged to address all of the above, however it’s important to be aware of these challenges.

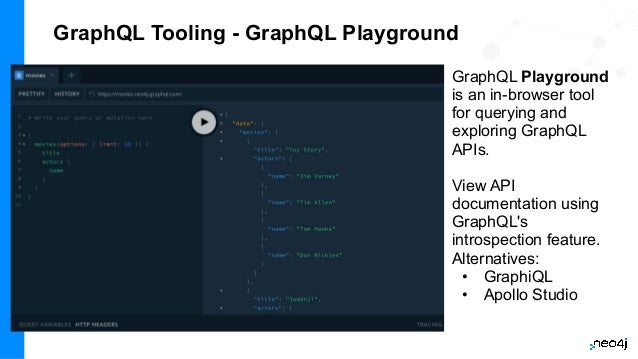

GraphQL Tooling - GraphQL Playground GraphQL Playground is an in-browser tool for querying and exploring GraphQL APIs. View API documentation using GraphQL's introspection feature. Alternatives: • GraphiQL • Apollo Studio

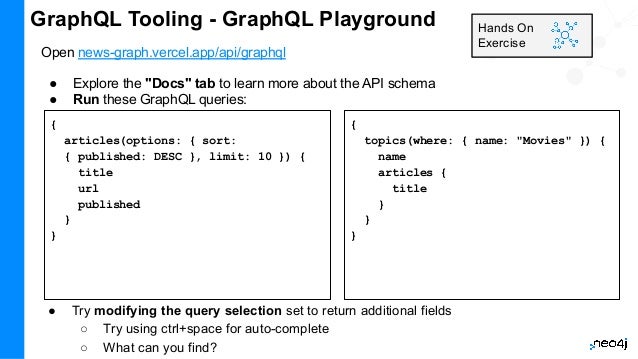

GraphQL Tooling - GraphQL Playground Open news-graph.vercel.app/api/graphql ● Explore the "Docs" tab to learn more about the API schema ● Run these GraphQL queries: Hands On Exercise { articles(options: { sort: { published: DESC }, limit: 10 }) { title url published } } { topics(where: { name: "Movies" }) { name articles { title } } } ● Try modifying the query selection set to return additional fields ○ Try using ctrl+space for auto-complete ○ What can you find?
28 Let's Build Our Own GraphQL API!
29 The Neo4j GraphQL Library Overview

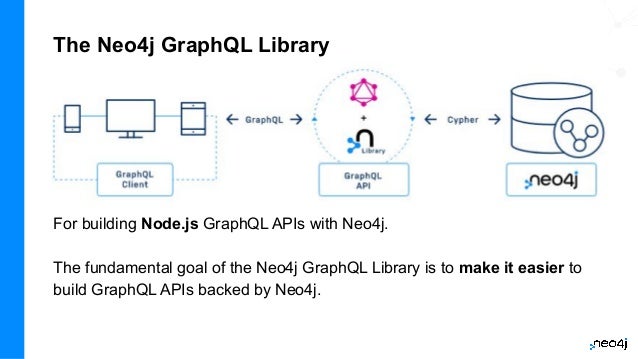

The Neo4j GraphQL Library For building Node.js GraphQL APIs with Neo4j. The fundamental goal of the Neo4j GraphQL Library is to make it easier to build GraphQL APIs backed by Neo4j.

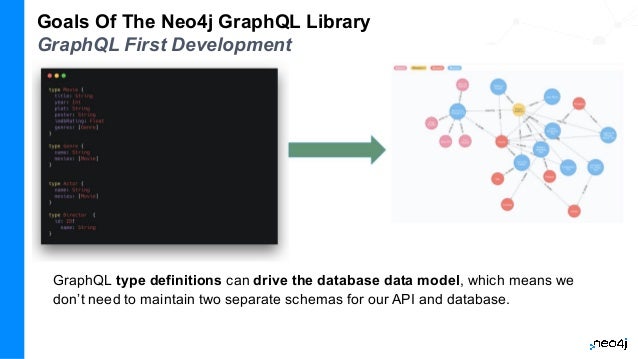

Goals Of The Neo4j GraphQL Library GraphQL First Development GraphQL type definitions can drive the database data model, which means we don’t need to maintain two separate schemas for our API and database.

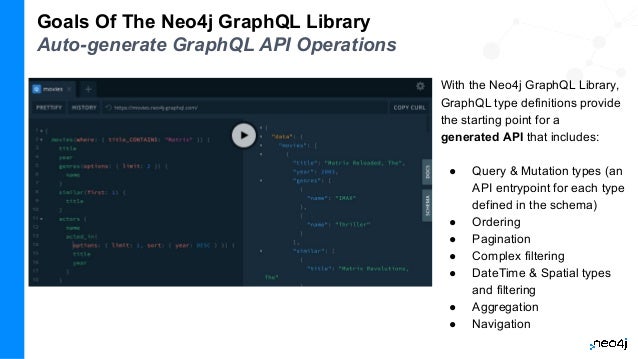

Goals Of The Neo4j GraphQL Library Auto-generate GraphQL API Operations With the Neo4j GraphQL Library, GraphQL type definitions provide the starting point for a generated API that includes: ● Query & Mutation types (an API entrypoint for each type defined in the schema) ● Ordering ● Pagination ● Complex filtering ● DateTime & Spatial types and filtering ● Aggregation ● Navigation

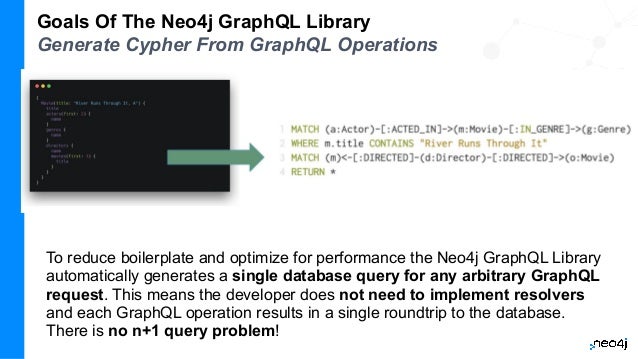

Goals Of The Neo4j GraphQL Library Generate Cypher From GraphQL Operations To reduce boilerplate and optimize for performance the Neo4j GraphQL Library automatically generates a single database query for any arbitrary GraphQL request. This means the developer does not need to implement resolvers and each GraphQL operation results in a single roundtrip to the database. There is no n+1 query problem!

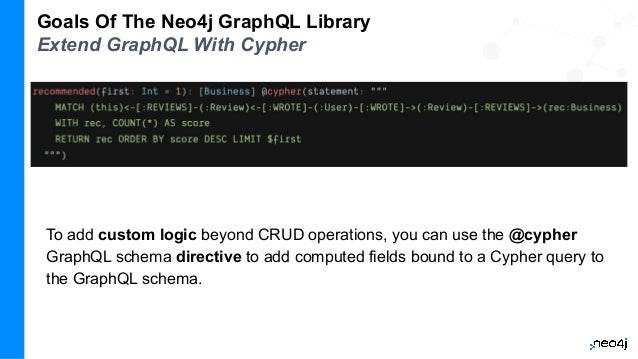

Goals Of The Neo4j GraphQL Library Extend GraphQL With Cypher To add custom logic beyond CRUD operations, you can use the @cypher GraphQL schema directive to add computed fields bound to a Cypher query to the GraphQL schema.

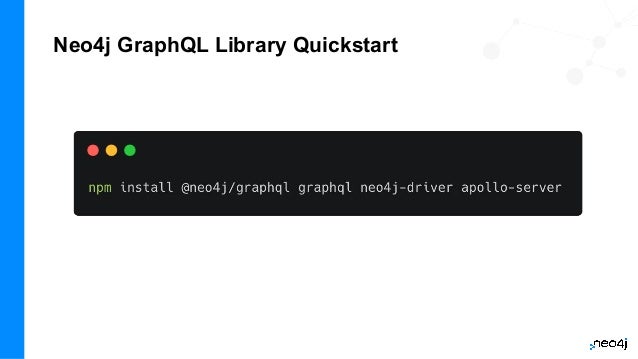

Neo4j GraphQL Library Quickstart

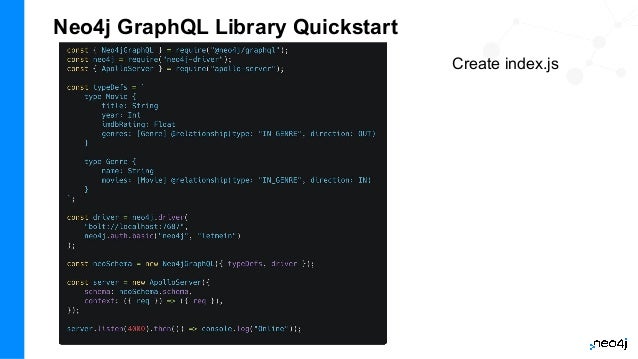

Neo4j GraphQL Library Quickstart Create index.js

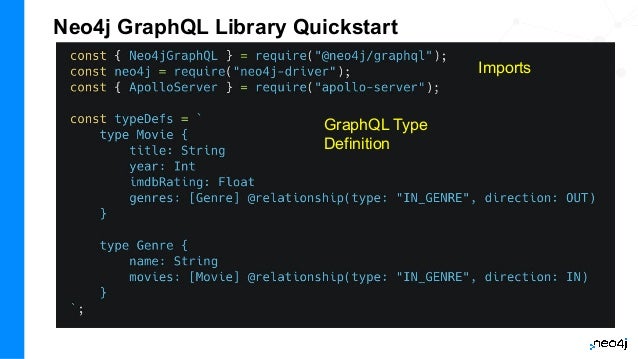

Neo4j GraphQL Library Quickstart GraphQL Type Definition Imports

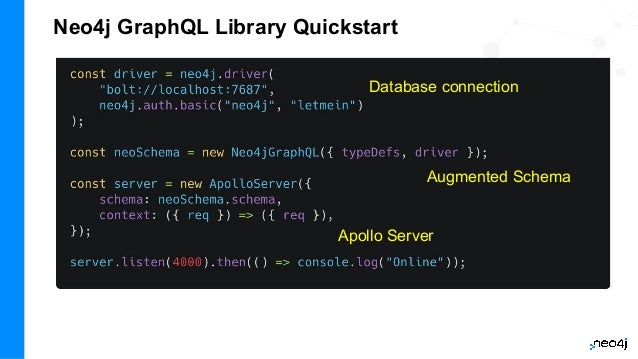

Neo4j GraphQL Library Quickstart Database connection Augmented Schema Apollo Server

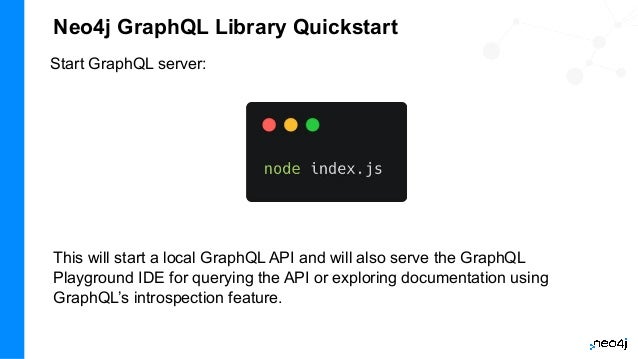

Neo4j GraphQL Library Quickstart Start GraphQL server: This will start a local GraphQL API and will also serve the GraphQL Playground IDE for querying the API or exploring documentation using GraphQL’s introspection feature.

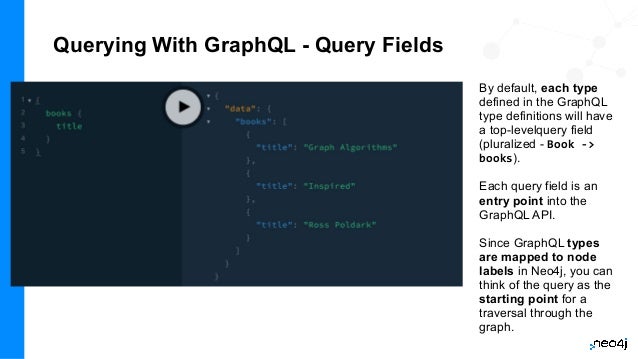

Querying With GraphQL - Query Fields By default, each type defined in the GraphQL type definitions will have a top-levelquery field (pluralized - Book -> books). Each query field is an entry point into the GraphQL API. Since GraphQL types are mapped to node labels in Neo4j, you can think of the query as the starting point for a traversal through the graph.

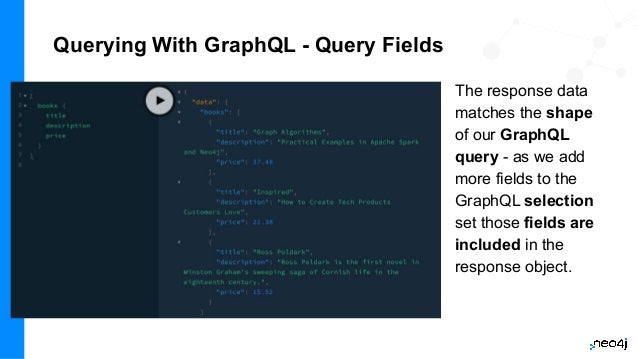

Querying With GraphQL - Query Fields The response data matches the shape of our GraphQL query - as we add more fields to the GraphQL selection set those fields are included in the response object.

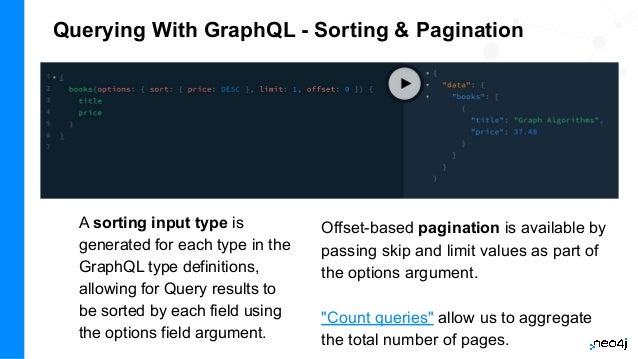

A sorting input type is generated for each type in the GraphQL type definitions, allowing for Query results to be sorted by each field using the options field argument. Querying With GraphQL - Sorting & Pagination Offset-based pagination is available by passing skip and limit values as part of the options argument. "Count queries" allow us to aggregate the total number of pages.

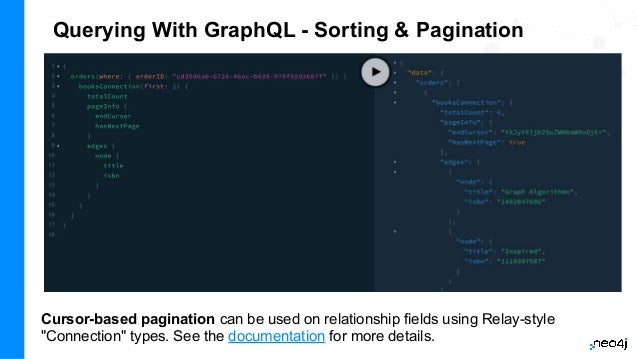

Querying With GraphQL - Sorting & Pagination Cursor-based pagination can be used on relationship fields using Relay-style "Connection" types. See the documentation for more details.

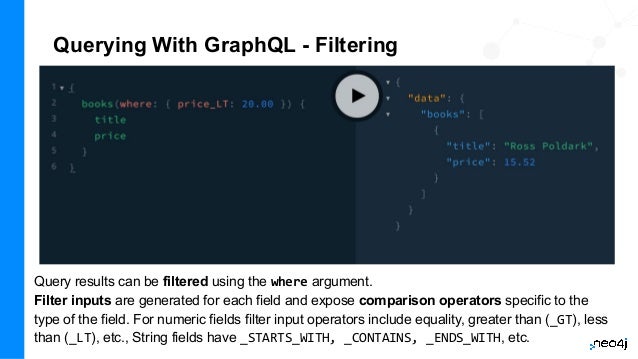

Querying With GraphQL - Filtering Query results can be filtered using the where argument. Filter inputs are generated for each field and expose comparison operators specific to the type of the field. For numeric fields filter input operators include equality, greater than (_GT), less than (_LT), etc., String fields have _STARTS_WITH, _CONTAINS, _ENDS_WITH, etc.

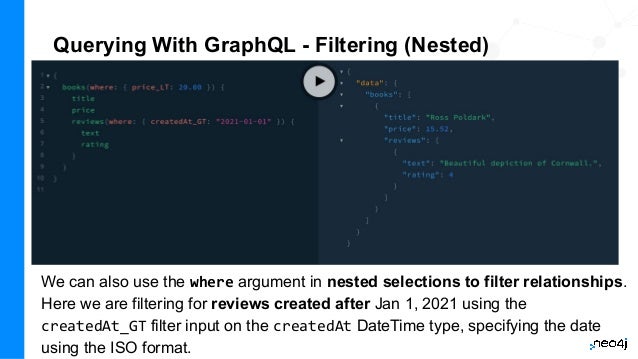

Querying With GraphQL - Filtering (Nested) We can also use the where argument in nested selections to filter relationships. Here we are filtering for reviews created after Jan 1, 2021 using the createdAt_GT filter input on the createdAt DateTime type, specifying the date using the ISO format.

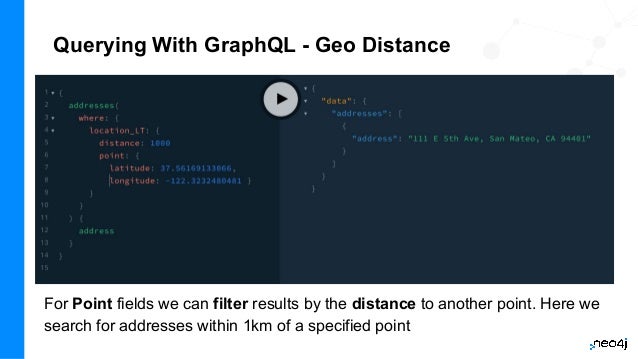

Querying With GraphQL - Geo Distance For Point fields we can filter results by the distance to another point. Here we search for addresses within 1km of a specified point

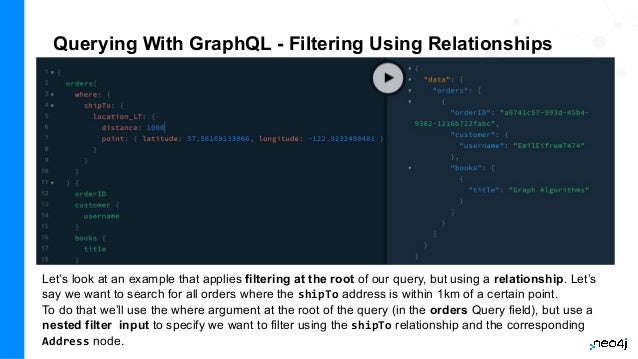

Querying With GraphQL - Filtering Using Relationships Let’s look at an example that applies filtering at the root of our query, but using a relationship. Let’s say we want to search for all orders where the shipTo address is within 1km of a certain point. To do that we’ll use the where argument at the root of the query (in the orders Query field), but use a nested filter input to specify we want to filter using the shipTo relationship and the corresponding Address node.

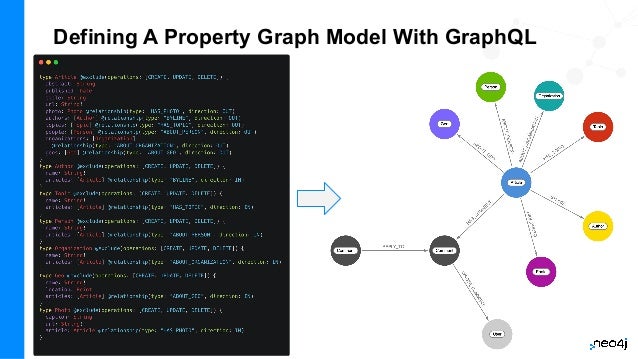

Defining A Property Graph Model With GraphQL

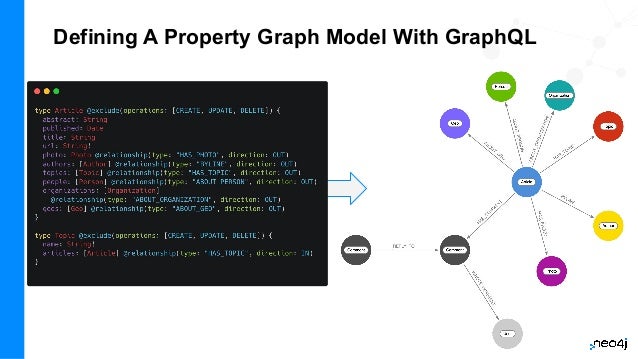

Defining A Property Graph Model With GraphQL
Data Model in arrows.app interactive modeling tool meta-model or instance-model also allows generation of GraphQL type definition
51 Introduction To Next.js Working With GraphQL In Next.js

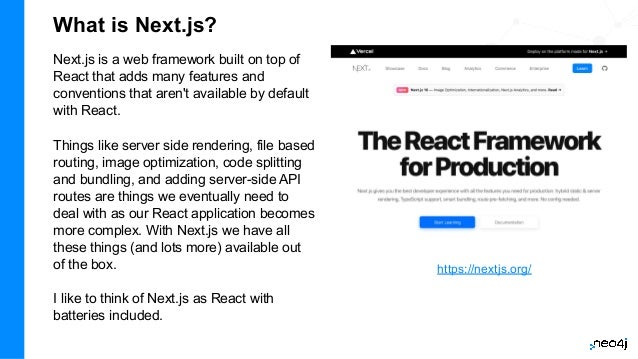

What is Next.js? Next.js is a web framework built on top of React that adds many features and conventions that aren't available by default with React. Things like server side rendering, file based routing, image optimization, code splitting and bundling, and adding server-side API routes are things we eventually need to deal with as our React application becomes more complex. With Next.js we have all these things (and lots more) available out of the box. I like to think of Next.js as React with batteries included. https://nextjs.org/

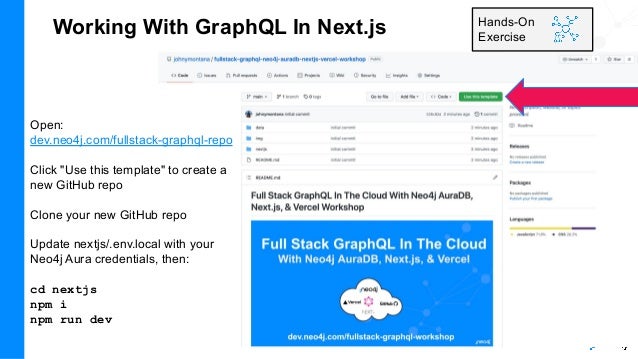

Working With GraphQL In Next.js Hands-On Exercise Open: dev.neo4j.com/fullstack-graphql-repo Click "Use this template" to create a new GitHub repo Clone your new GitHub repo Update nextjs/.env.local with your Neo4j Aura credentials, then: cd nextjs npm i npm run dev

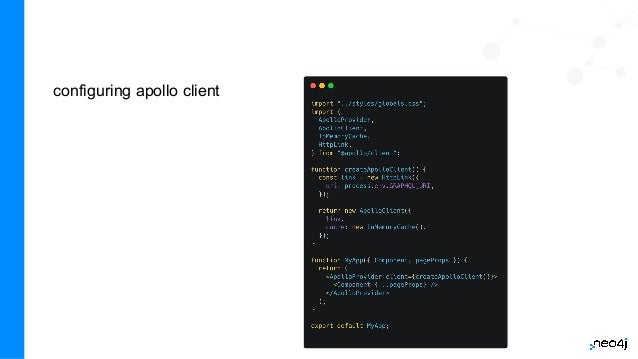

configuring apollo client
55 Introduction To Vercel Deploying Our Full Stack GraphQL Application

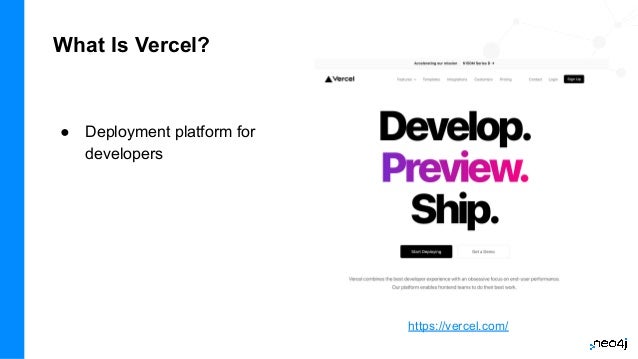

What Is Vercel? ● Deployment platform for developers https://vercel.com/

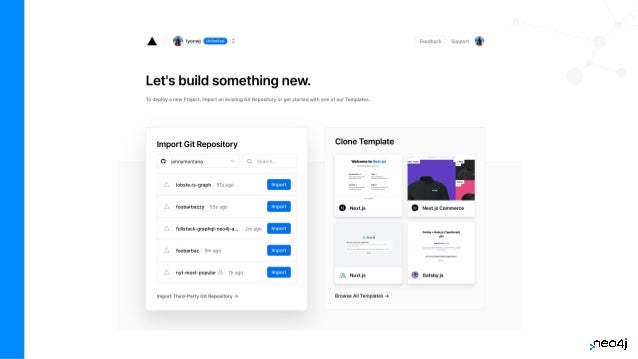

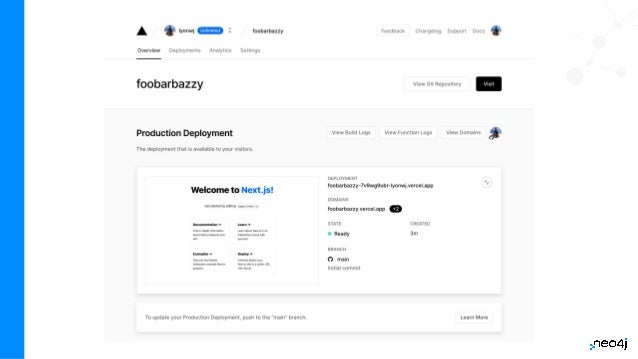

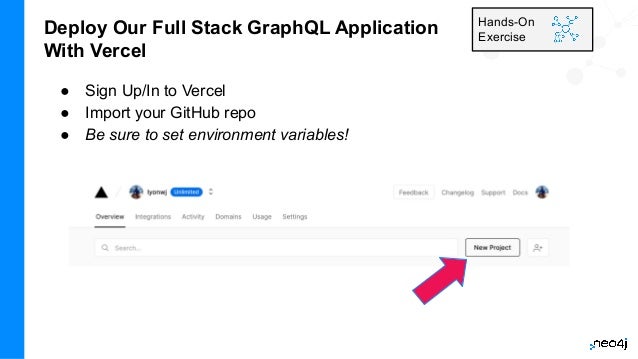

Deploy Our Full Stack GraphQL Application With Vercel ● Sign Up/In to Vercel ● Import your GitHub repo ● Be sure to set environment variables! Hands-On Exercise

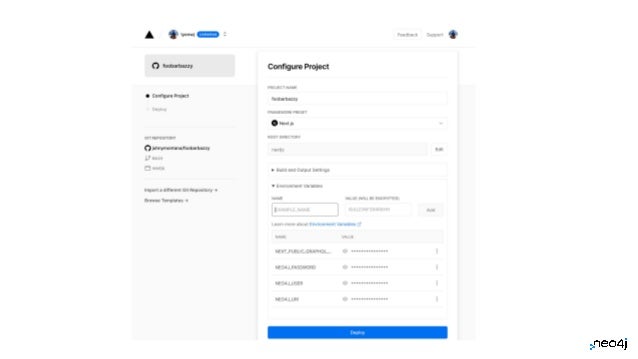

59

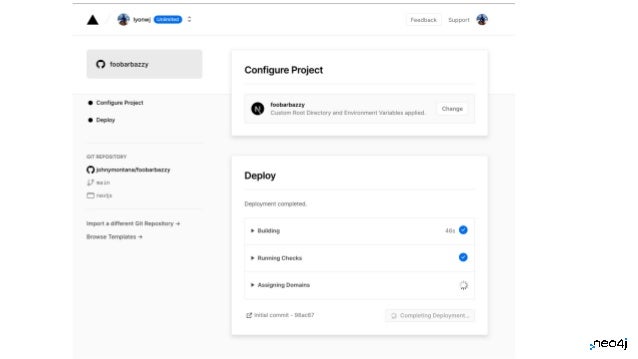

60
62 Adding Custom Logic To Our GraphQL API Cypher Schema Directive & Custom Resolvers

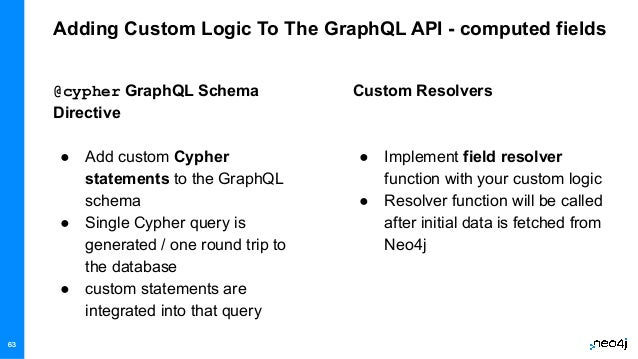

63 Adding Custom Logic To The GraphQL API - computed fields Custom Resolvers ● Implement field resolver function with your custom logic ● Resolver function will be called after initial data is fetched from Neo4j @cypher GraphQL Schema Directive ● Add custom Cypher statements to the GraphQL schema ● Single Cypher query is generated / one round trip to the database ● custom statements are integrated into that query 63

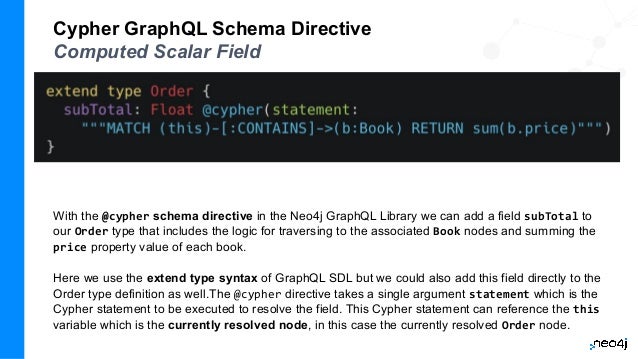

Cypher GraphQL Schema Directive Computed Scalar Field With the @cypher schema directive in the Neo4j GraphQL Library we can add a field subTotal to our Order type that includes the logic for traversing to the associated Book nodes and summing the price property value of each book. Here we use the extend type syntax of GraphQL SDL but we could also add this field directly to the Order type definition as well.The @cypher directive takes a single argument statement which is the Cypher statement to be executed to resolve the field. This Cypher statement can reference the this variable which is the currently resolved node, in this case the currently resolved Order node.

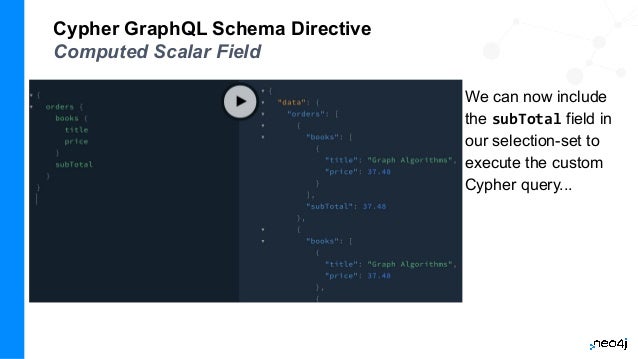

Cypher GraphQL Schema Directive Computed Scalar Field We can now include the subTotal field in our selection-set to execute the custom Cypher query...

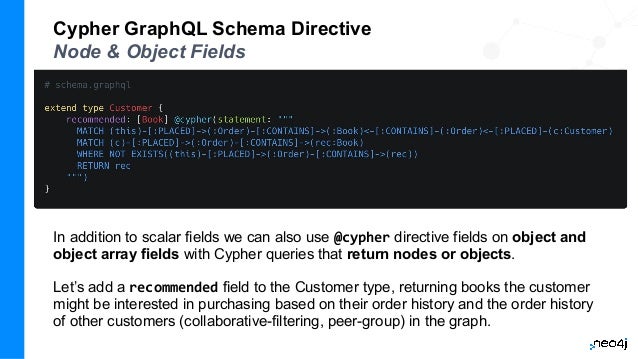

Cypher GraphQL Schema Directive Node & Object Fields In addition to scalar fields we can also use @cypher directive fields on object and object array fields with Cypher queries that return nodes or objects. Let’s add a recommended field to the Customer type, returning books the customer might be interested in purchasing based on their order history and the order history of other customers (collaborative-filtering, peer-group) in the graph.

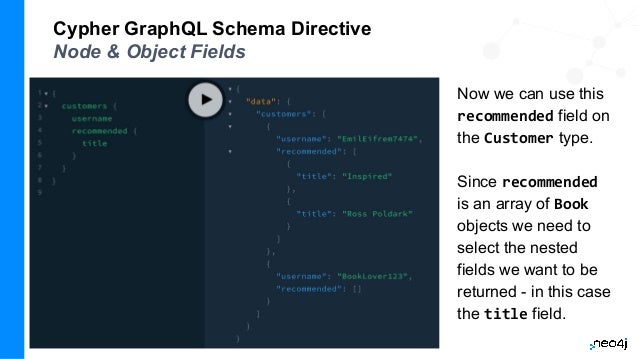

Cypher GraphQL Schema Directive Node & Object Fields Now we can use this recommended field on the Customer type. Since recommended is an array of Book objects we need to select the nested fields we want to be returned - in this case the title field.
Custom statements can also be added as top-level queries and mutations 68 But we don't have time to go into that!

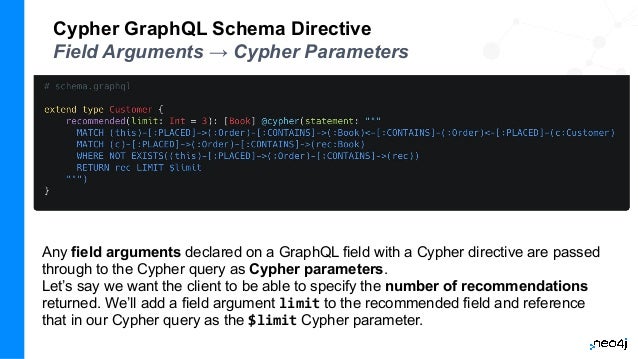

Cypher GraphQL Schema Directive Field Arguments → Cypher Parameters Any field arguments declared on a GraphQL field with a Cypher directive are passed through to the Cypher query as Cypher parameters. Let’s say we want the client to be able to specify the number of recommendations returned. We’ll add a field argument limit to the recommended field and reference that in our Cypher query as the $limit Cypher parameter.
Cypher GraphQL Schema Directive Field Arguments → Cypher Parameters We set a default value of 3 for this limit argument so that if the value isn’t specified the limit Cypher parameter will still be passed to the Cypher query with a value of 3. The client can now specify the number of recommended books to return, here 1.

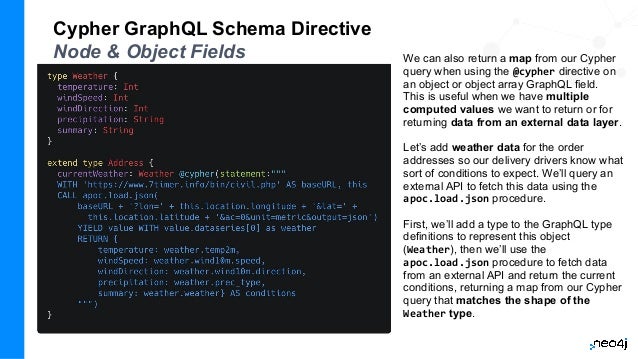

Cypher GraphQL Schema Directive Node & Object Fields We can also return a map from our Cypher query when using the @cypher directive on an object or object array GraphQL field. This is useful when we have multiple computed values we want to return or for returning data from an external data layer. Let’s add weather data for the order addresses so our delivery drivers know what sort of conditions to expect. We’ll query an external API to fetch this data using the apoc.load.json procedure. First, we’ll add a type to the GraphQL type definitions to represent this object (Weather), then we’ll use the apoc.load.json procedure to fetch data from an external API and return the current conditions, returning a map from our Cypher query that matches the shape of the Weather type.
Cypher GraphQL Schema Directive Node & Object Fields Now we can include the currentWeather field on the Address type in our GraphQL queries. Our external request is only run when we include the field into our selection set.

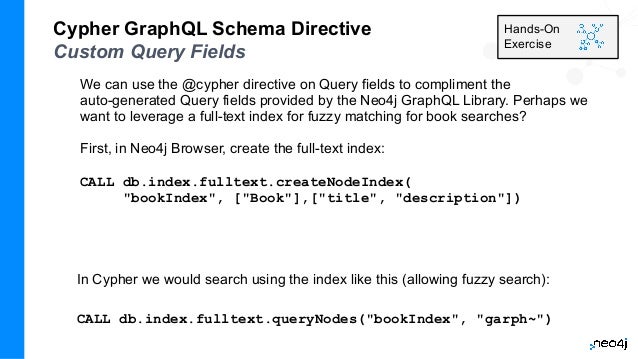

We can use the @cypher directive on Query fields to compliment the auto-generated Query fields provided by the Neo4j GraphQL Library. Perhaps we want to leverage a full-text index for fuzzy matching for book searches? First, in Neo4j Browser, create the full-text index: CALL db.index.fulltext.createNodeIndex( "bookIndex", ["Book"],["title", "description"]) Cypher GraphQL Schema Directive Custom Query Fields In Cypher we would search using the index like this (allowing fuzzy search): CALL db.index.fulltext.queryNodes("bookIndex", "garph~") Hands-On Exercise

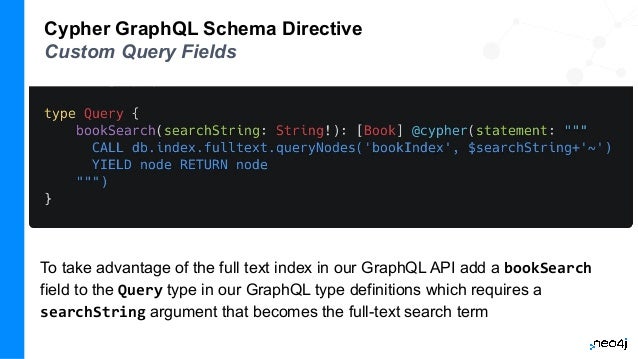

Cypher GraphQL Schema Directive Custom Query Fields To take advantage of the full text index in our GraphQL API add a bookSearch field to the Query type in our GraphQL type definitions which requires a searchString argument that becomes the full-text search term

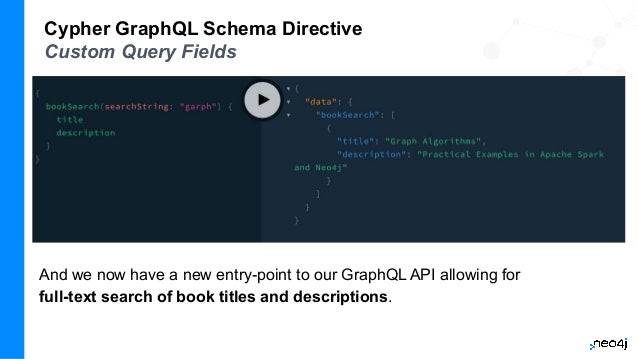

Cypher GraphQL Schema Directive Custom Query Fields And we now have a new entry-point to our GraphQL API allowing for full-text search of book titles and descriptions.

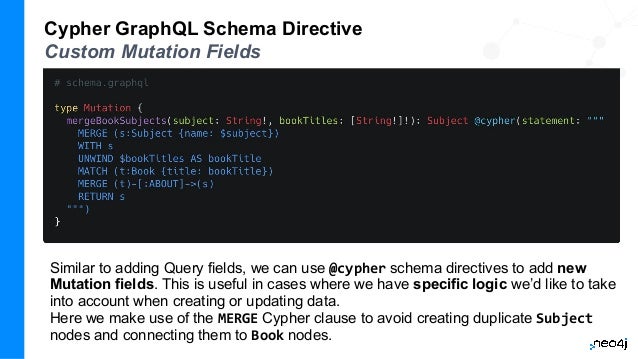

Cypher GraphQL Schema Directive Custom Mutation Fields Similar to adding Query fields, we can use @cypher schema directives to add new Mutation fields. This is useful in cases where we have specific logic we’d like to take into account when creating or updating data. Here we make use of the MERGE Cypher clause to avoid creating duplicate Subject nodes and connecting them to Book nodes.

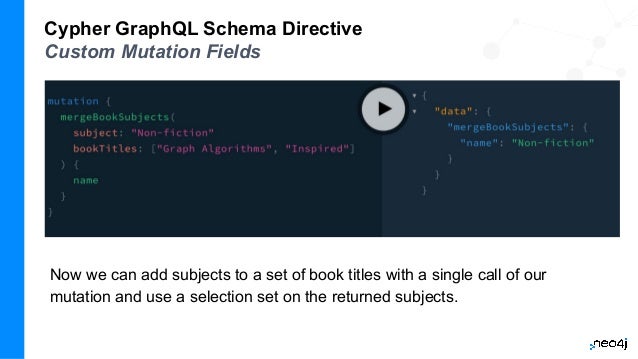

Cypher GraphQL Schema Directive Custom Mutation Fields Now we can add subjects to a set of book titles with a single call of our mutation and use a selection set on the returned subjects.
Cypher GraphQL Schema Directive Custom Resolvers Combining the power of Cypher and GraphQL is extremely powerful, however there are bound to be some cases where we want to add custom logic using code by implementing resolver functions in Javascript. This might be where we want to fetch data from another database, API, or system. Let’s consider a contrived example where we compute an estimated delivery date using a custom resolver function. First, we add an estimatedDelivery field to the Order type, including the @ignore directive which indicates we plan to resolve this field manually and it will not be included in the generated database queries. Now it’s time to implement our Order.estimatedDelivery resolver function. Our function simply calculates a random date - but the point is that this can be any custom logic we choose to define.

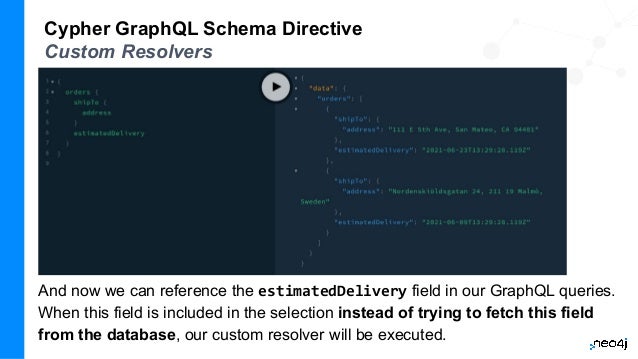

Cypher GraphQL Schema Directive Custom Resolvers And now we can reference the estimatedDelivery field in our GraphQL queries. When this field is included in the selection instead of trying to fetch this field from the database, our custom resolver will be executed.

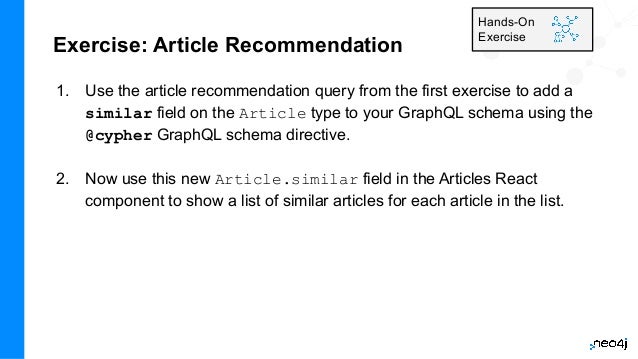

Exercise: Article Recommendation 1. Use the article recommendation query from the first exercise to add a similar field on the Article type to your GraphQL schema using the @cypher GraphQL schema directive. 2. Now use this new Article.similar field in the Articles React component to show a list of similar articles for each article in the list. Hands-On Exercise

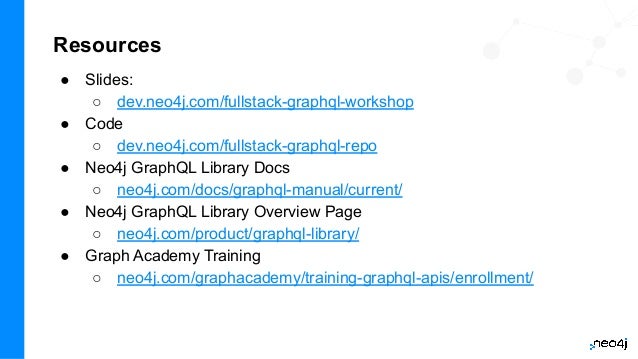

Resources ● Slides: ○ dev.neo4j.com/fullstack-graphql-workshop ● Code ○ dev.neo4j.com/fullstack-graphql-repo ● Neo4j GraphQL Library Docs ○ neo4j.com/docs/graphql-manual/current/ ● Neo4j GraphQL Library Overview Page ○ neo4j.com/product/graphql-library/ ● Graph Academy Training ○ neo4j.com/graphacademy/training-graphql-apis/enrollment/
82 Authorization Adding Authorization Rules To Your API Using The @auth Directive

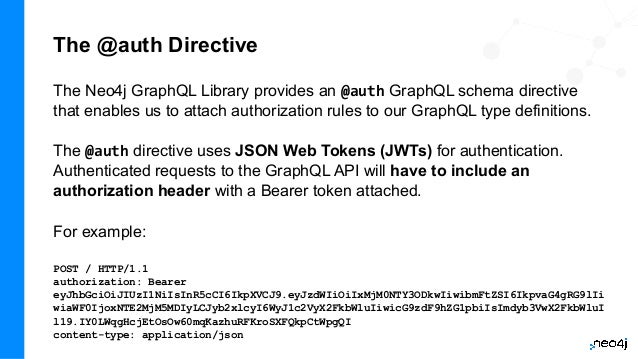

The @auth Directive The Neo4j GraphQL Library provides an @auth GraphQL schema directive that enables us to attach authorization rules to our GraphQL type definitions. The @auth directive uses JSON Web Tokens (JWTs) for authentication. Authenticated requests to the GraphQL API will have to include an authorization header with a Bearer token attached. For example: POST / HTTP/1.1 authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIi wiaWF0IjoxNTE2MjM5MDIyLCJyb2xlcyI6WyJ1c2VyX2FkbWluIiwicG9zdF9hZG1pbiIsImdyb3VwX2FkbWluI l19.IY0LWqgHcjEtOsOw60mqKazhuRFKroSXFQkpCtWpgQI content-type: application/json

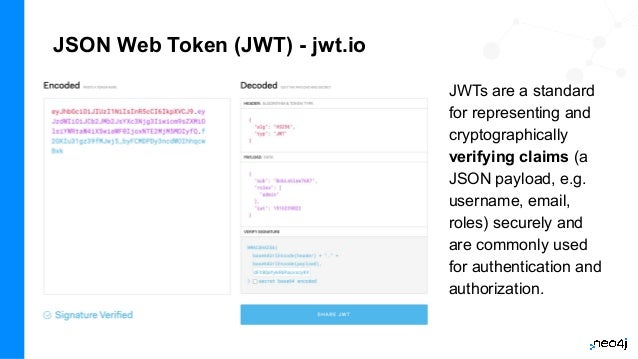

JSON Web Token (JWT) - jwt.io JWTs are a standard for representing and cryptographically verifying claims (a JSON payload, e.g. username, email, roles) securely and are commonly used for authentication and authorization.
The @auth Directive isAuthenticated The isAuthenticated rule is the simplest authorization rule we can add. It means that any GraphQL operation that accesses a field or object protected by the isAuthenticated rule must have a valid JWT in the request header. Let’s make use of the isAuthenticated authorization rule in our bookstore GraphQL API to protect the Subject type. Let’s say we want to make returning a book’s subjects a "premium" feature to encourage users to sign-up for our application. To do this we’ll make the following addition to our GraphQL type definitions, extending the Subject type.

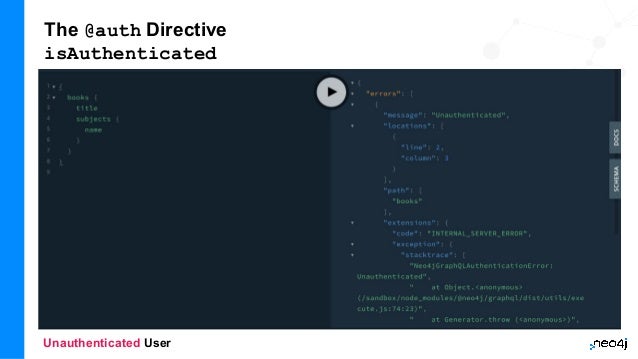

The @auth Directive isAuthenticated Unauthenticated User

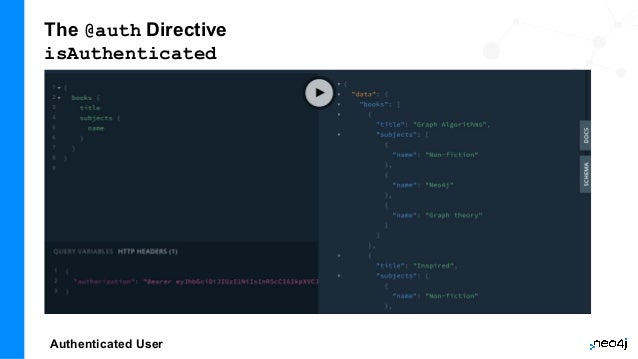

The @auth Directive isAuthenticated Authenticated User

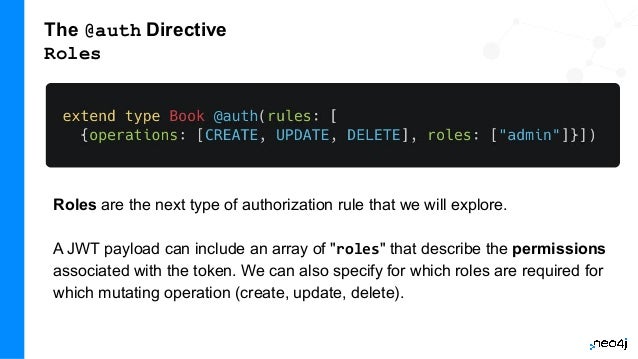

The @auth Directive Roles Roles are the next type of authorization rule that we will explore. A JWT payload can include an array of "roles" that describe the permissions associated with the token. We can also specify for which roles are required for which mutating operation (create, update, delete).

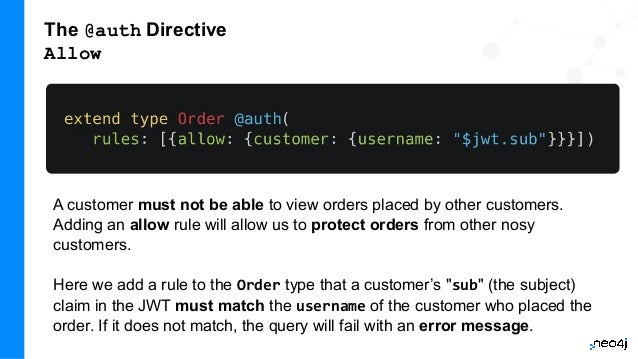

The @auth Directive Allow A customer must not be able to view orders placed by other customers. Adding an allow rule will allow us to protect orders from other nosy customers. Here we add a rule to the Order type that a customer’s "sub" (the subject) claim in the JWT must match the username of the customer who placed the order. If it does not match, the query will fail with an error message.

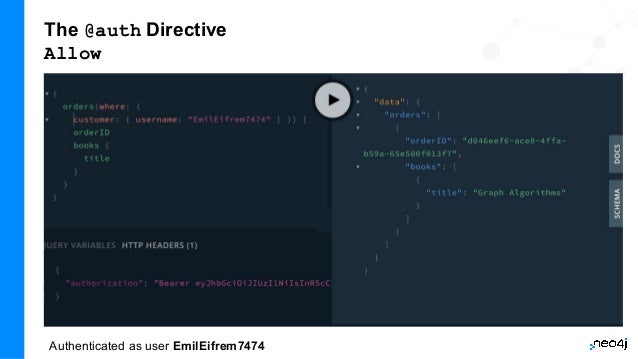

The @auth Directive Allow Authenticated as user EmilEifrem7474

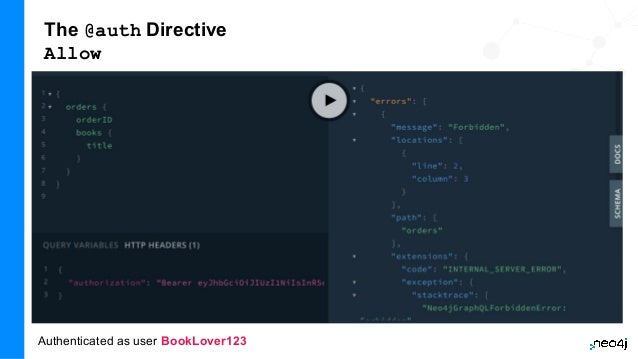

The @auth Directive Allow Authenticated as user BookLover123

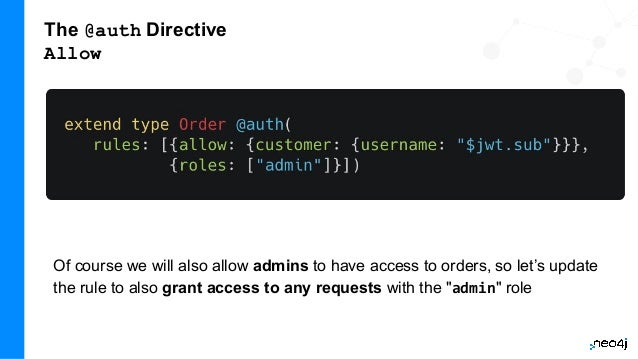

The @auth Directive Allow Of course we will also allow admins to have access to orders, so let’s update the rule to also grant access to any requests with the "admin" role

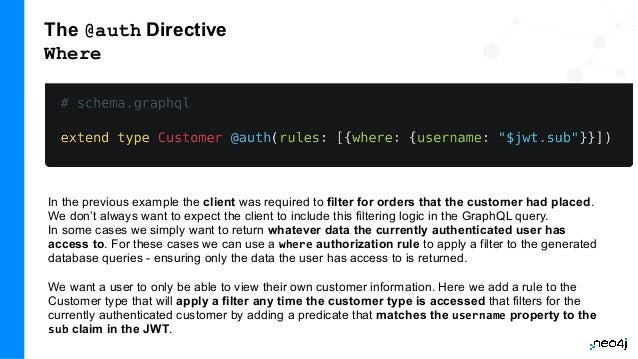

The @auth Directive Where In the previous example the client was required to filter for orders that the customer had placed. We don’t always want to expect the client to include this filtering logic in the GraphQL query. In some cases we simply want to return whatever data the currently authenticated user has access to. For these cases we can use a where authorization rule to apply a filter to the generated database queries - ensuring only the data the user has access to is returned. We want a user to only be able to view their own customer information. Here we add a rule to the Customer type that will apply a filter any time the customer type is accessed that filters for the currently authenticated customer by adding a predicate that matches the username property to the sub claim in the JWT.

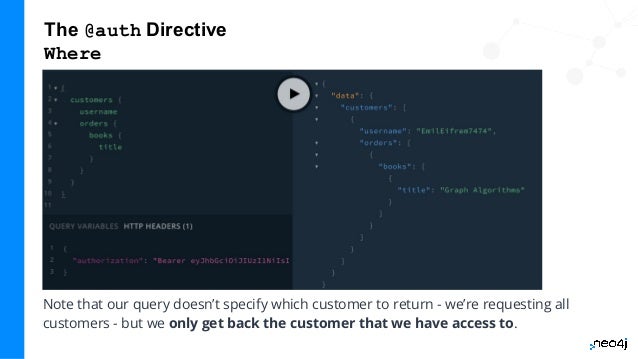

The @auth Directive Where Note that our query doesn’t specify which customer to return - we’re requesting all customers - but we only get back the customer that we have access to.

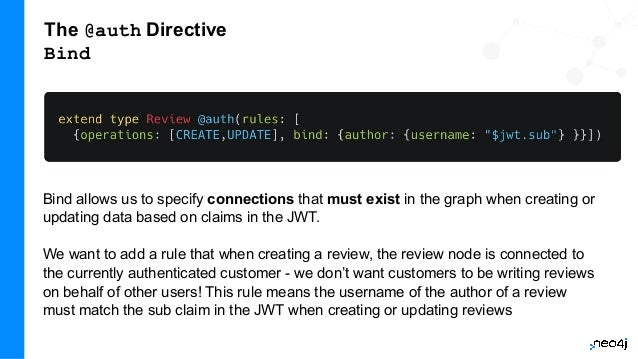

The @auth Directive Bind Bind allows us to specify connections that must exist in the graph when creating or updating data based on claims in the JWT. We want to add a rule that when creating a review, the review node is connected to the currently authenticated customer - we don’t want customers to be writing reviews on behalf of other users! This rule means the username of the author of a review must match the sub claim in the JWT when creating or updating reviews

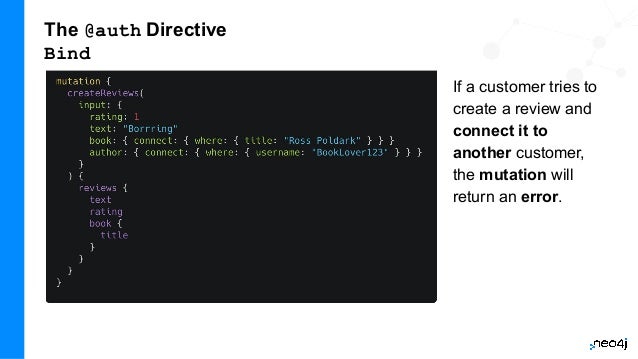

The @auth Directive Bind If a customer tries to create a review and connect it to another customer, the mutation will return an error.

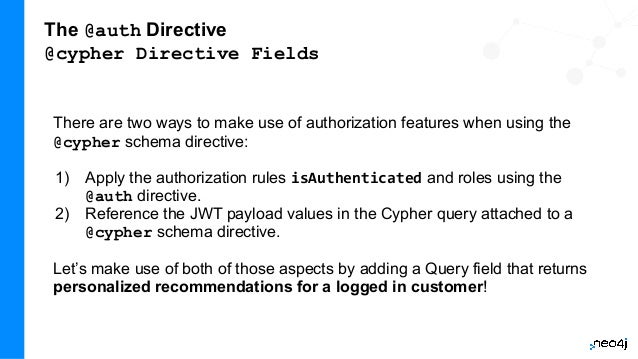

The @auth Directive @cypher Directive Fields There are two ways to make use of authorization features when using the @cypher schema directive: 1) Apply the authorization rules isAuthenticated and roles using the @auth directive. 2) Reference the JWT payload values in the Cypher query attached to a @cypher schema directive. Let’s make use of both of those aspects by adding a Query field that returns personalized recommendations for a logged in customer!

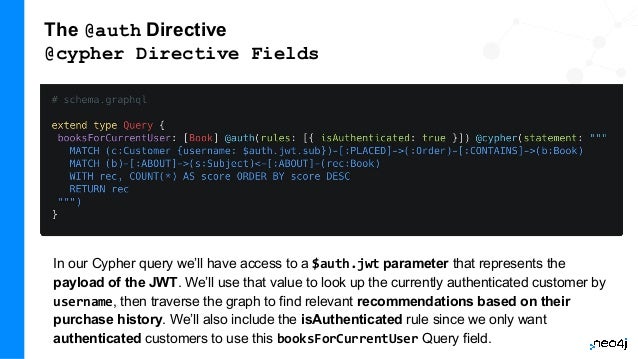

The @auth Directive @cypher Directive Fields In our Cypher query we’ll have access to a $auth.jwt parameter that represents the payload of the JWT. We’ll use that value to look up the currently authenticated customer by username, then traverse the graph to find relevant recommendations based on their purchase history. We’ll also include the isAuthenticated rule since we only want authenticated customers to use this booksForCurrentUser Query field.

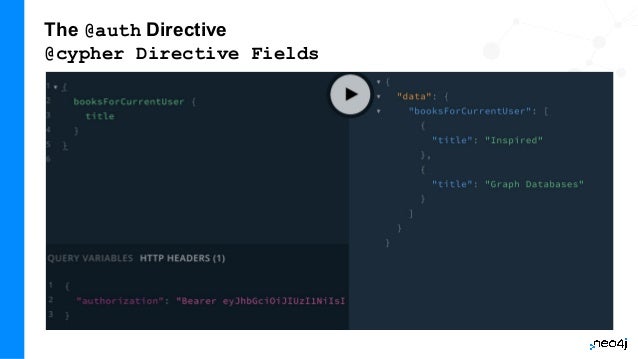

The @auth Directive @cypher Directive Fields

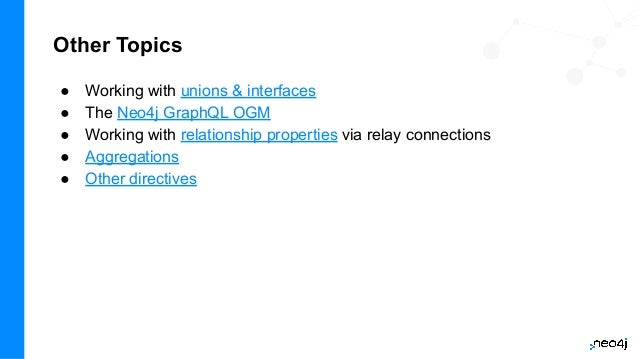

Other Topics ● Working with unions & interfaces ● The Neo4j GraphQL OGM ● Working with relationship properties via relay connections ● Aggregations ● Other directives
