1. Developing Embedded
Systems with Multicore
and Virtualization
Samuel Panijel
Regional Engineering Manager
Wind River
Q2-2011
May 4, 2011 1

2. Context
• Multicore and virtualization are creating a disruption
in the embedded industry
– Multicore provides more processing power for less power
– Virtualization provides partitioning on single and multicore
silicon
• Wind River provides a broad portfolio of technology
to assist the migration to multicore
– Runtimes, Middleware, Virtualization and Tooling
• This presentation will focus on the use of
virtualization
– For single and multicore
– Based on the Wind River Hypervisor for Embedded
2 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 2

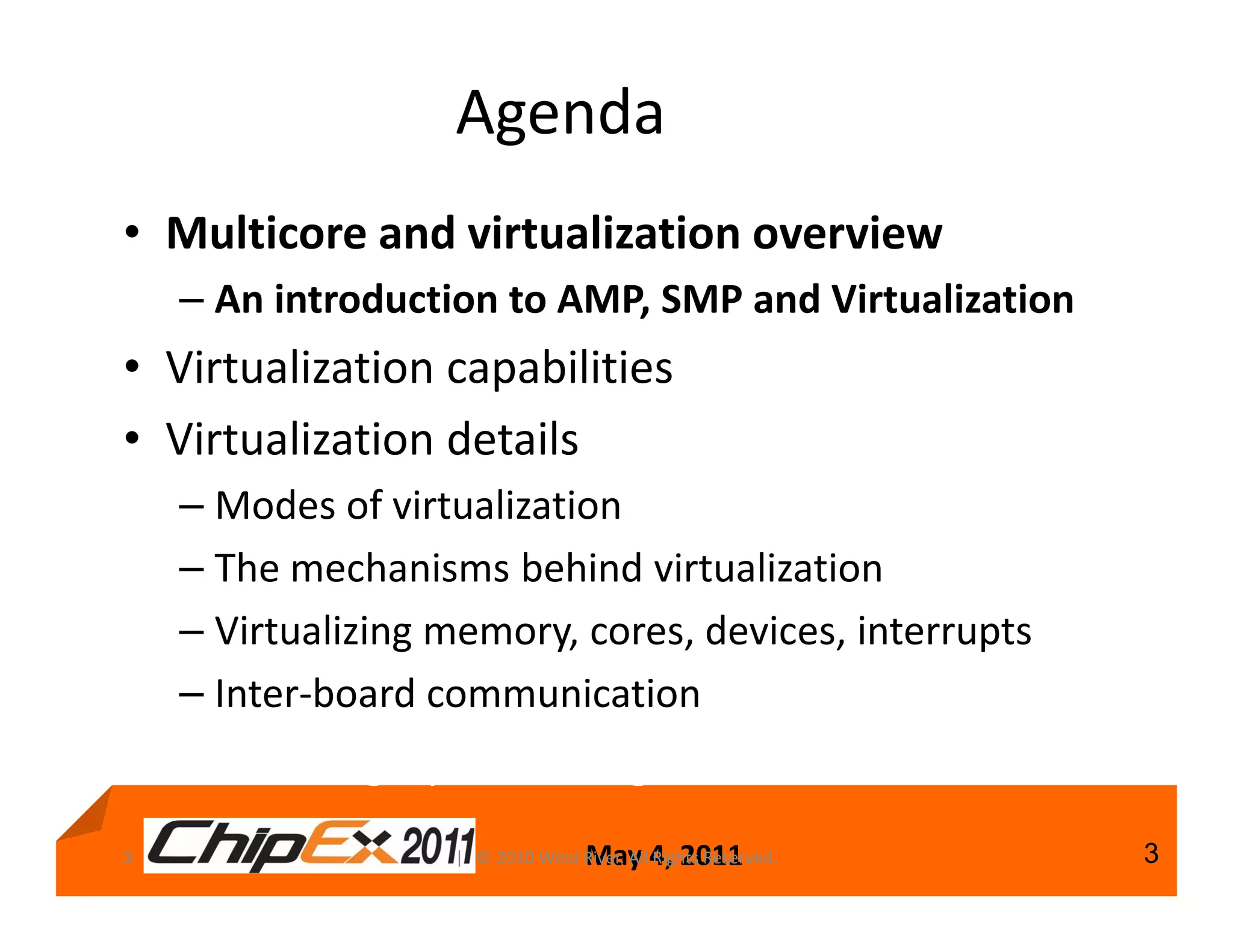

3. Agenda
• Multicore and virtualization overview
– An introduction to AMP, SMP and Virtualization
• Virtualization capabilities
• Virtualization details
– Modes of virtualization
– The mechanisms behind virtualization
– Virtualizing memory, cores, devices, interrupts
– Inter-board communication
How to design your next generation of devices
3 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 3

4. Primary Multicore Software
Configurations
“Traditional” Virtualization
OS OS
OS
Single Core Hypervisor
CPU
CPU
SMP Unsupervised AMP Supervised AMP (sAMP)
OS OS OS
OS OS
Multicore
Supervisor
Core 1 Core 2 Core 1 Core 2
Core 1 Core 2
Arbitrary combinations of these primary configurations can be used to create more
advanced configurations.
OS: Could be VxWorks, Wind River Linux, or other executive or OS
4 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 4

5. Symmetric Multiprocessing (SMP)
• A lot of experience
• Works well for parallel algorithms
• OS performs scheduling and load balancing
• A viable solution, depending on your needs
– Does not always scale with many cores SMP
• Linux and VxWorks SMP OS
Core 1 Core 2
5 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 5

6. Asymmetric Multiprocessing (AMP)
• One operating system per core
• Questions raised in regard to configuring and
run-time
– Who “owns” devices?
– How is memory split? Unsupervised AMP
– How is memory protected?
OS OS
– How is this configured?
Core 1 Core 2
– How is this built into the kernel?
• Mixed operating systems?
6 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 6

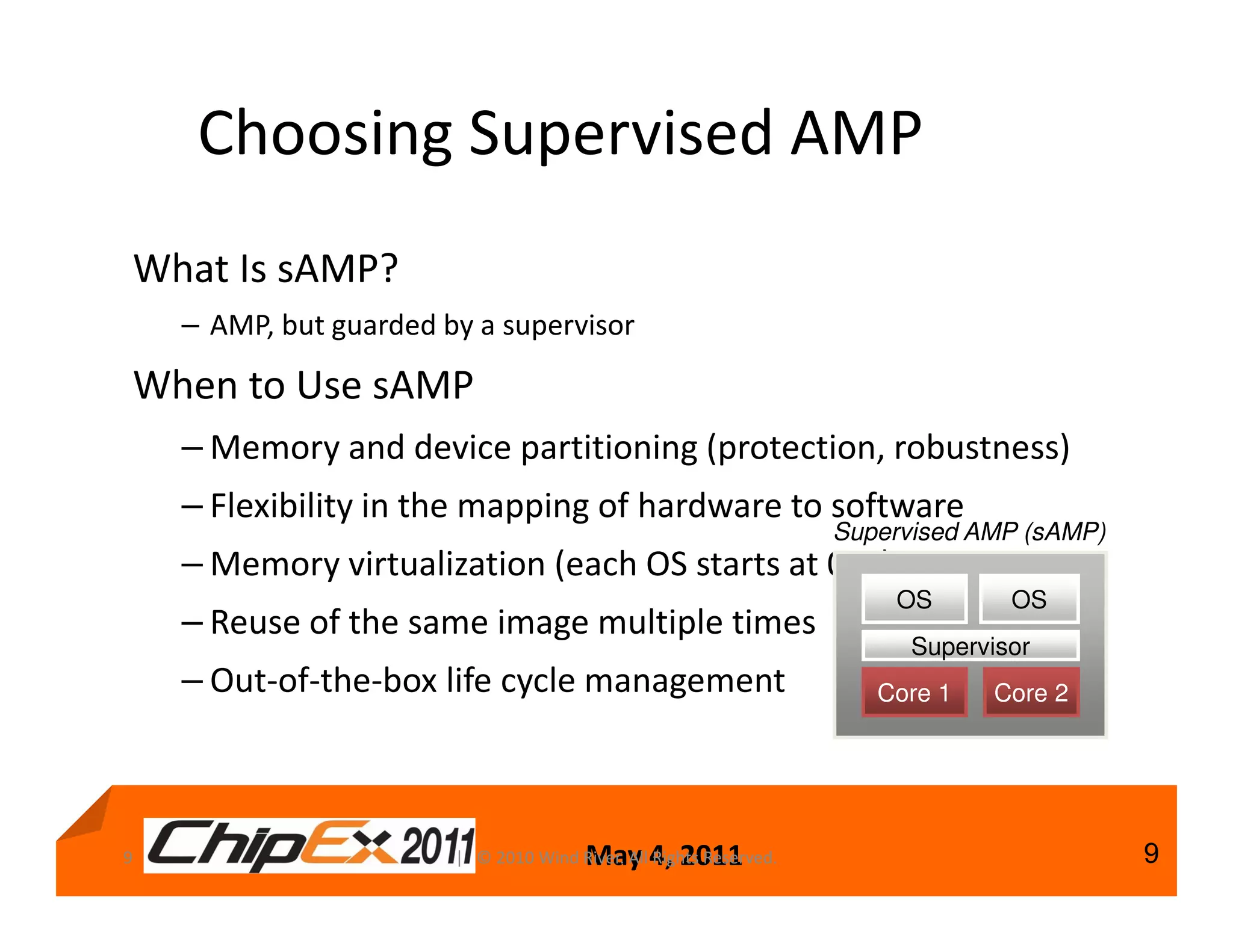

7. Choosing Supervised AMP
What Is sAMP?
– AMP, but guarded by a supervisor
When to Use sAMP
– Memory and device partitioning (protection, robustness)
– Flexibility in the mapping of hardware to software
Supervised AMP (sAMP)
– Memory virtualization (each OS starts at 0x0)
OS OS
– Reuse of the same image multiple times
Supervisor
– Out-of-the-box life cycle management Core 1 Core 2
9 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 9

8. Agenda
• Multicore and virtualization overview
– An introduction to AMP, SMP and Virtualization
• Virtualization capabilities
• Virtualization details
– Modes of virtualization
– The mechanisms behind virtualization
– Virtualizing memory, cores, devices, interrupts
– Inter-board communication
How to design your next generation of devices
10 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 10

9. Virtualization
• Partitioning is a benefit of virtualization
• Virtualization partitions the hardware into virtual boards
• The virtualization layer gives the board access to
– Virtualized processing cores (optional)
– Virtualized memory
– Virtualized devices and interrupts
• Virtualization can be done in a scalable fashion
Hypervisor Core Virtualization Guest Protection
Protected Supervisor Core Protection Virtual Memory and Devices Interrupts
Supervisor Resource Partitioning Boot Life Cycle Management Debugging
11© 2009 Wind River. All Rights Reserved.
|
| © 2010 Wind River. All Rights Reserved.
May 4, 2011 11

10. An Example Virtualization Scenario
Virtual Board 1 Virtual Board 2 Virtual Board 3
Application Application
Application
VxWorks MIPC Wind River Linux
Ethernet IDE Serial Ethernet
VCore Memory Timer VCore Memory Timer VCore Memory Timer
Configuration
Wind River Hypervisor
Physical Board
IDE Ethernet Timer Serial Memory Core Core
12 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 12

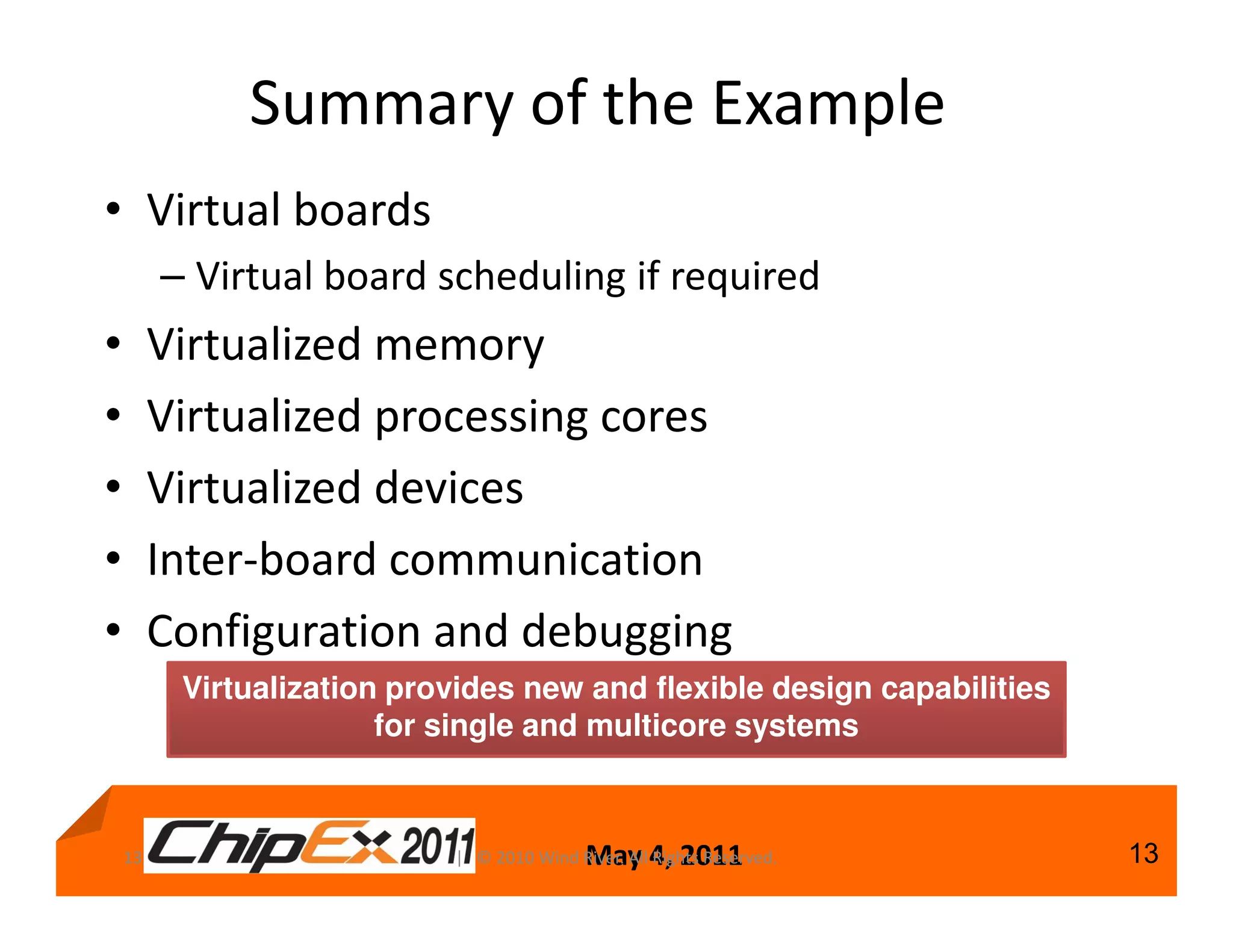

11. Summary of the Example
• Virtual boards
– Virtual board scheduling if required
• Virtualized memory
• Virtualized processing cores
• Virtualized devices
• Inter-board communication
• Configuration and debugging
Virtualization provides new and flexible design capabilities
for single and multicore systems
13 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 13

12. Virtualization Performance
• Virtualization needs to have minimal cost
• Wind River and customer benchmarking
– sAMP: Overall cost is less than 1%
– Core virtualized: With significant load only a few percent,
similar to running multiple processes
– Some additional latency to interrupt handling
• Actual performance depends on
– Processor, board, application
– Multicore configuration
• The additional design capabilities and flexibility
typically outweigh any potential overhead
14 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 14

13. Agenda
• Multicore and virtualization overview
– An introduction to AMP, SMP and Virtualization
• Virtualization capabilities
• Virtualization details
– Modes of virtualization
– The mechanisms behind virtualization
– Virtualizing memory, cores, devices, interrupts
– Inter-board communication
How to design your next generation of devices
15 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 15

14. Virtualization Principles
The hypervisor adds an additional layer of indirection
to between the OS and the physical hardware
The hypervisor virtualizes the hardware and executes
guest operating systems. The level of virtualization can
be configured based on device needs
Guest Guest Guest
Hypervisor
16 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 16

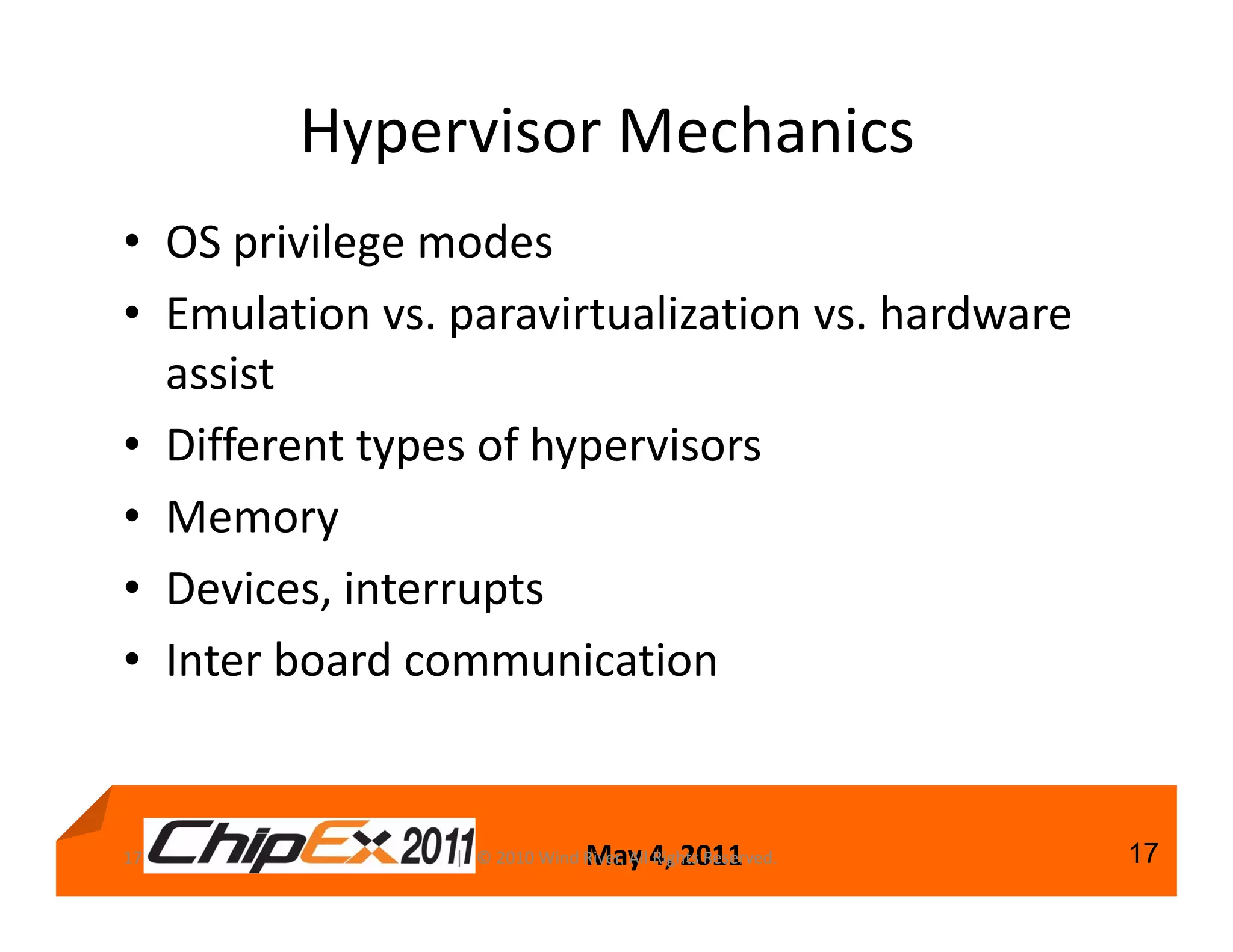

15. Hypervisor Mechanics
• OS privilege modes
• Emulation vs. paravirtualization vs. hardware
assist
• Different types of hypervisors
• Memory
• Devices, interrupts
• Inter board communication
17 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 17

16. Privilege Modes
Operating systems work in privilege modes:
The OS kernel itself can do anything with the
hardware
Device drivers are more restricted
User applications/components are least privileged
Ring 3
Ring 2 Least Privileged
Ring 1
Ring 0
Kernel
Example based on Intel
privilege rings, other
processors have similar
Device Drivers concepts
Device Drivers
Most Privileged
Applications
Intel privilege rings source: Wikipedia
18 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 18

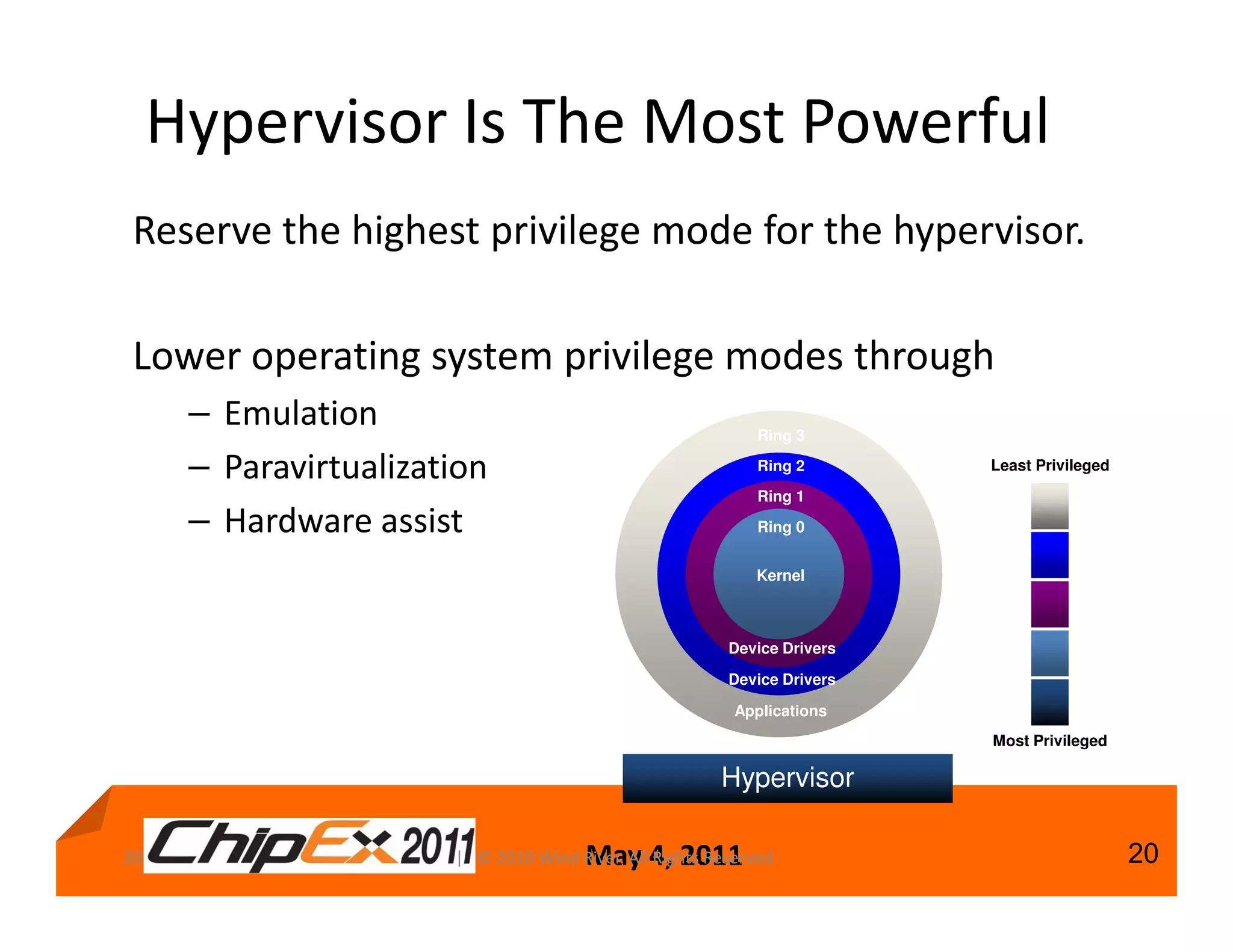

17. Hypervisor Is The Most Powerful
Reserve the highest privilege mode for the hypervisor.
Lower operating system privilege modes through
– Emulation Ring 3
– Paravirtualization Ring 2 Least Privileged
Ring 1
– Hardware assist Ring 0
Kernel
Device Drivers
Device Drivers
Applications
Most Privileged
Hypervisor
20 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 20

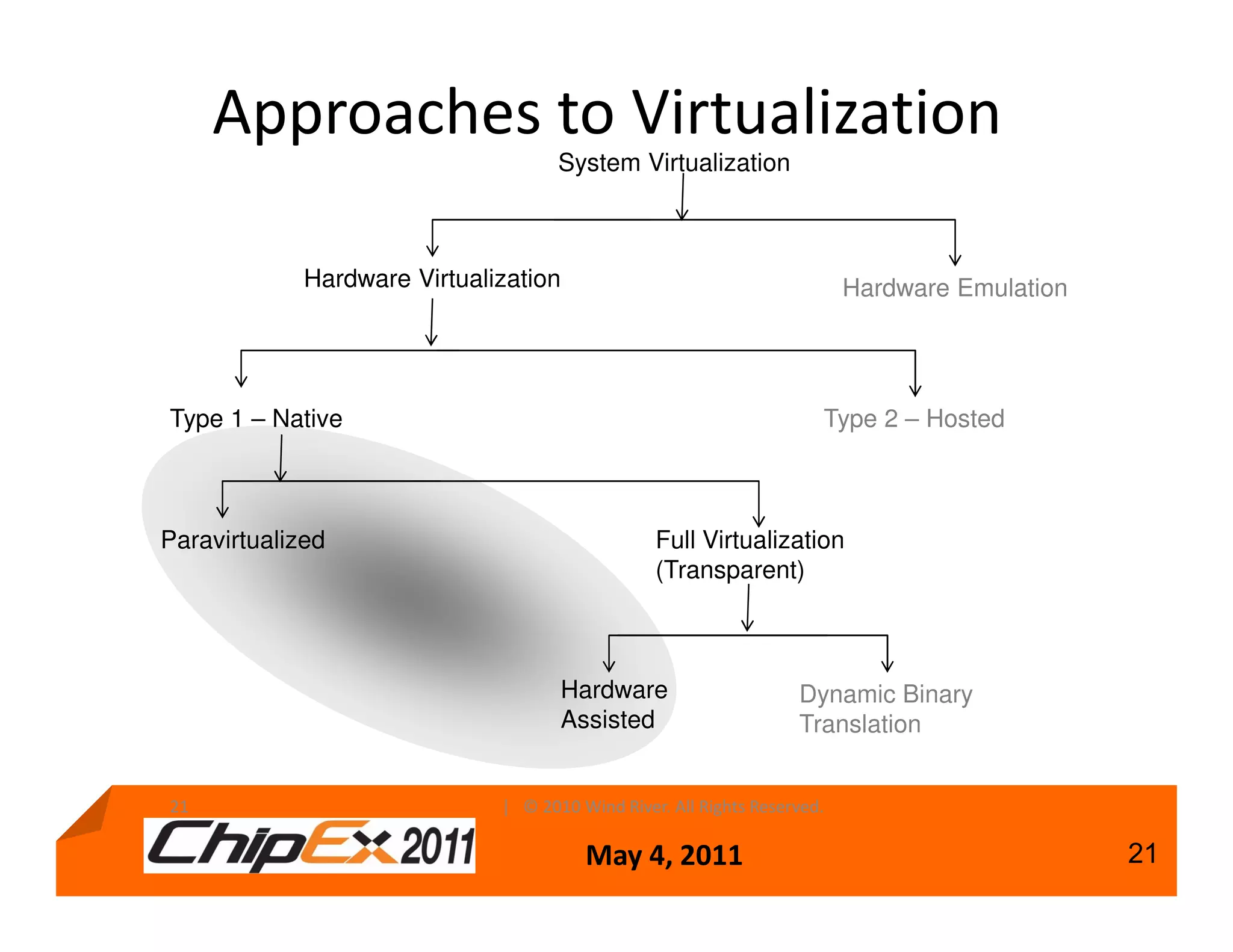

18. Approaches to Virtualization
System Virtualization
Hardware Virtualization Hardware Emulation
Type 1 – Native Type 2 – Hosted
Paravirtualized Full Virtualization
(Transparent)
Hardware Dynamic Binary
Assisted Translation
21 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 21

19. Privilege Modes – Hardware Assist
• Privilege modes are processor specific. You cannot just “add”
another mode. Only the silicon vendor can:
– Freescale e500mc
– Intel VTx
– Virtualization-aware instruction set (aka hardware-assisted
virtualization)
• If not available, paravirtualization will be more for the OS
developer.
Often the truth is in the middle: a mix of software and
hardware assist.
22 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 22

20. Privilege Modes – Paravirtualization
• Modify the guest operating system, to collaborate
with the hypervisor.
• Reduce the privilege level during design time.
• Provide a collaborative system approach.
• Use for embedded.
• Handle devices:
– In the hypervisor (impact to hypervisor size and stability)
– In a specially crafted guest (guest running in privilege)
– Directly assigned to guest
23 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 23

21. Mixing Technologies
Mixing of Paravirtualization and Hardware Assist
• Use the best of both worlds for embedded
– Paravirtualization collaboration of OS with
hypervisor (avoid privilege code and call
hypervisor instead)
– Hardware assist using silicon (great for address
translation)
Wind River hypervisor uses a mix of paravirtualization
and hardware assist, if the processor supports it.
24
| © 2010 Wind River. All Rights Reserved. May 4, 2011 24

22. Type 1 vs. Type 2 Hypervisor
A type 1 hypervisor runs directly on the hardware,
managing resources, and providing services to guests
A type 2 hypervisor is hosted in another operating
system (the host)
Guest Guest
Hypervisor
Hypervisor Host
Type 1 Type 2
The difference between type 1 and type 2 is not as simple and useful
as it seems
25 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 25

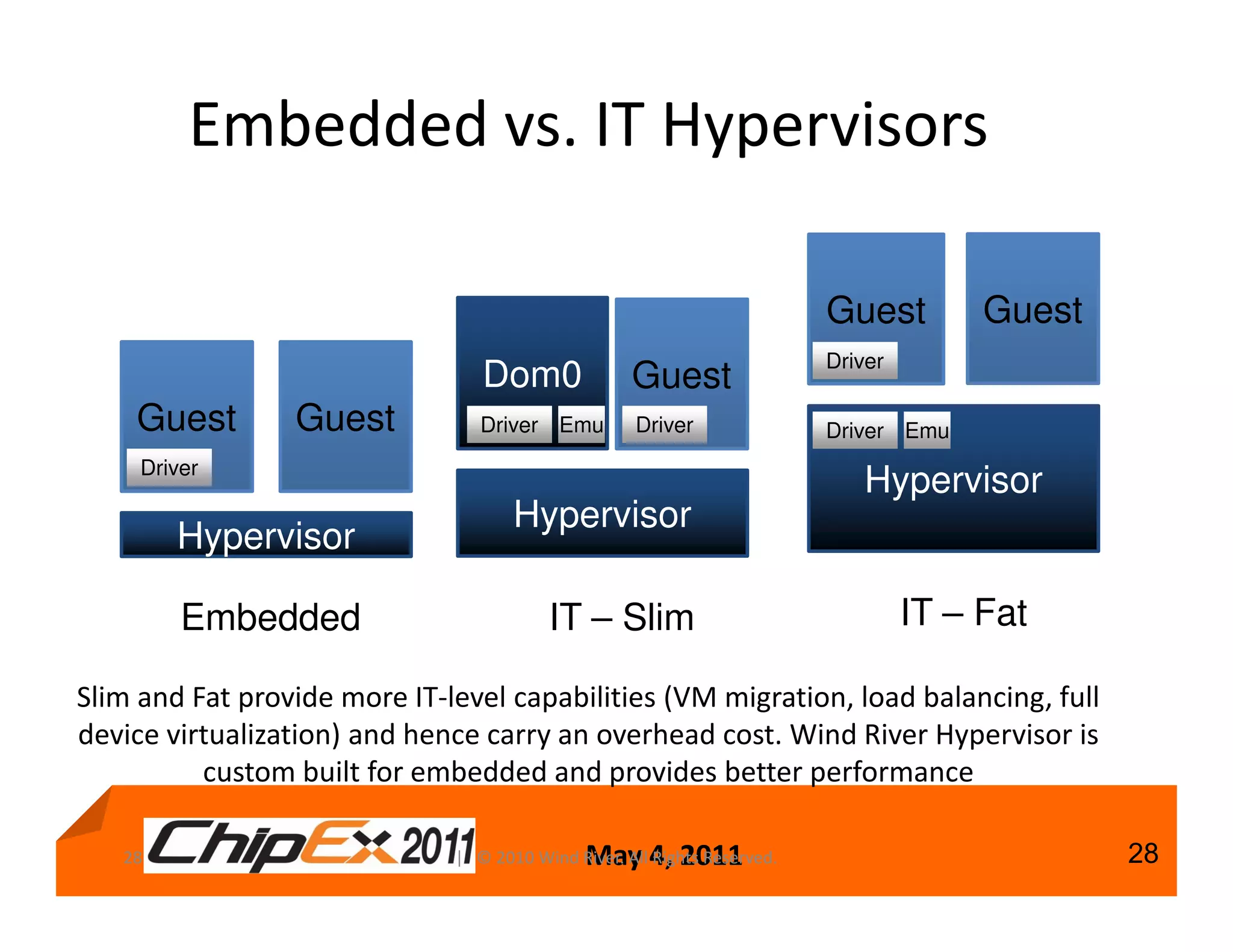

23. Embedded vs. IT Hypervisors
Guest Guest
Driver
Dom0 Guest
Guest Guest Driver Emu Driver Driver Emu
Driver
Hypervisor
Hypervisor
Hypervisor
Embedded IT – Slim IT – Fat
Slim and Fat provide more IT-level capabilities (VM migration, load balancing, full
device virtualization) and hence carry an overhead cost. Wind River Hypervisor is
custom built for embedded and provides better performance
28 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 28

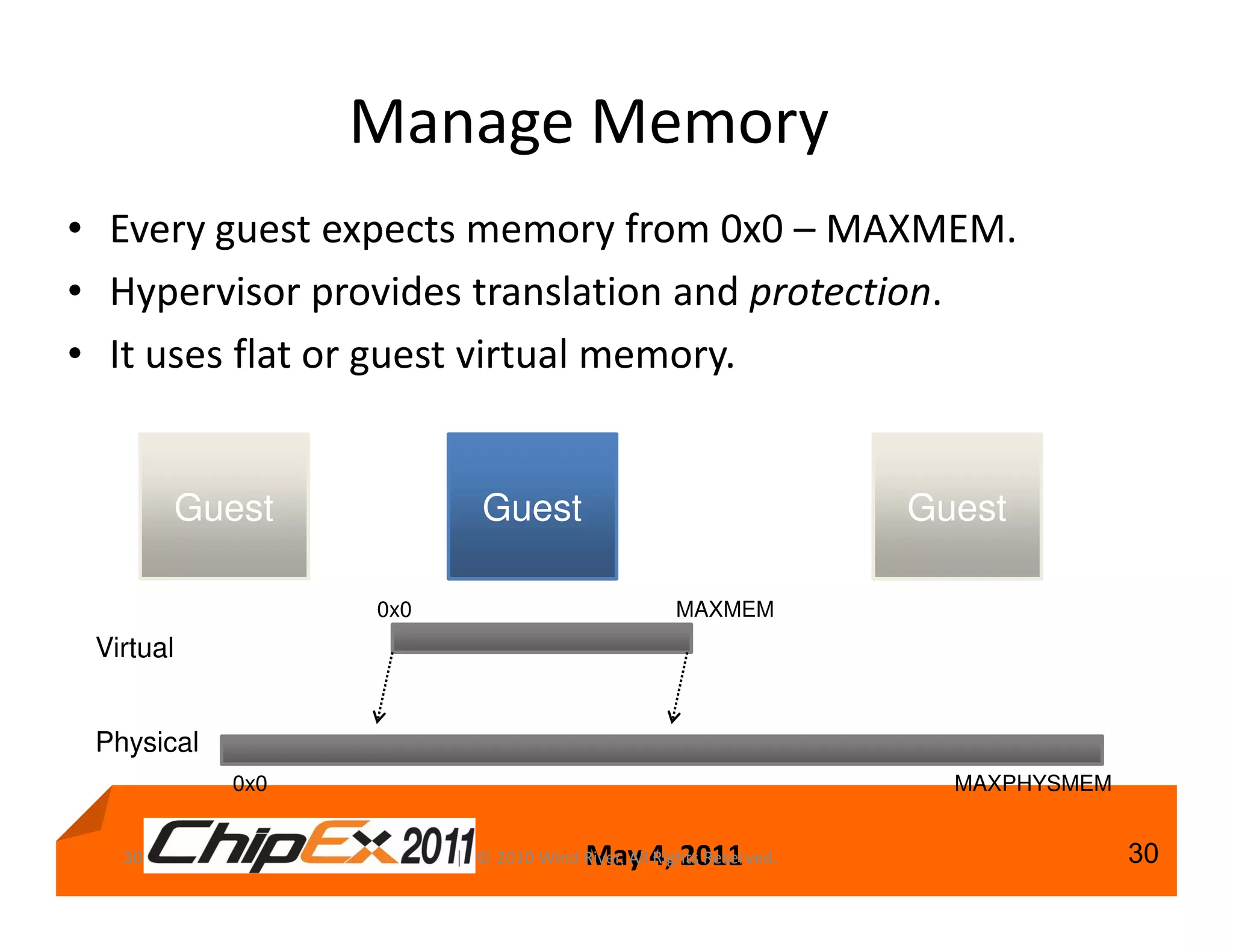

24. Manage Memory
• Every guest expects memory from 0x0 – MAXMEM.
• Hypervisor provides translation and protection.
• It uses flat or guest virtual memory.
Guest Guest Guest
0x0 MAXMEM
Virtual
Physical
0x0 MAXPHYSMEM
30 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 30

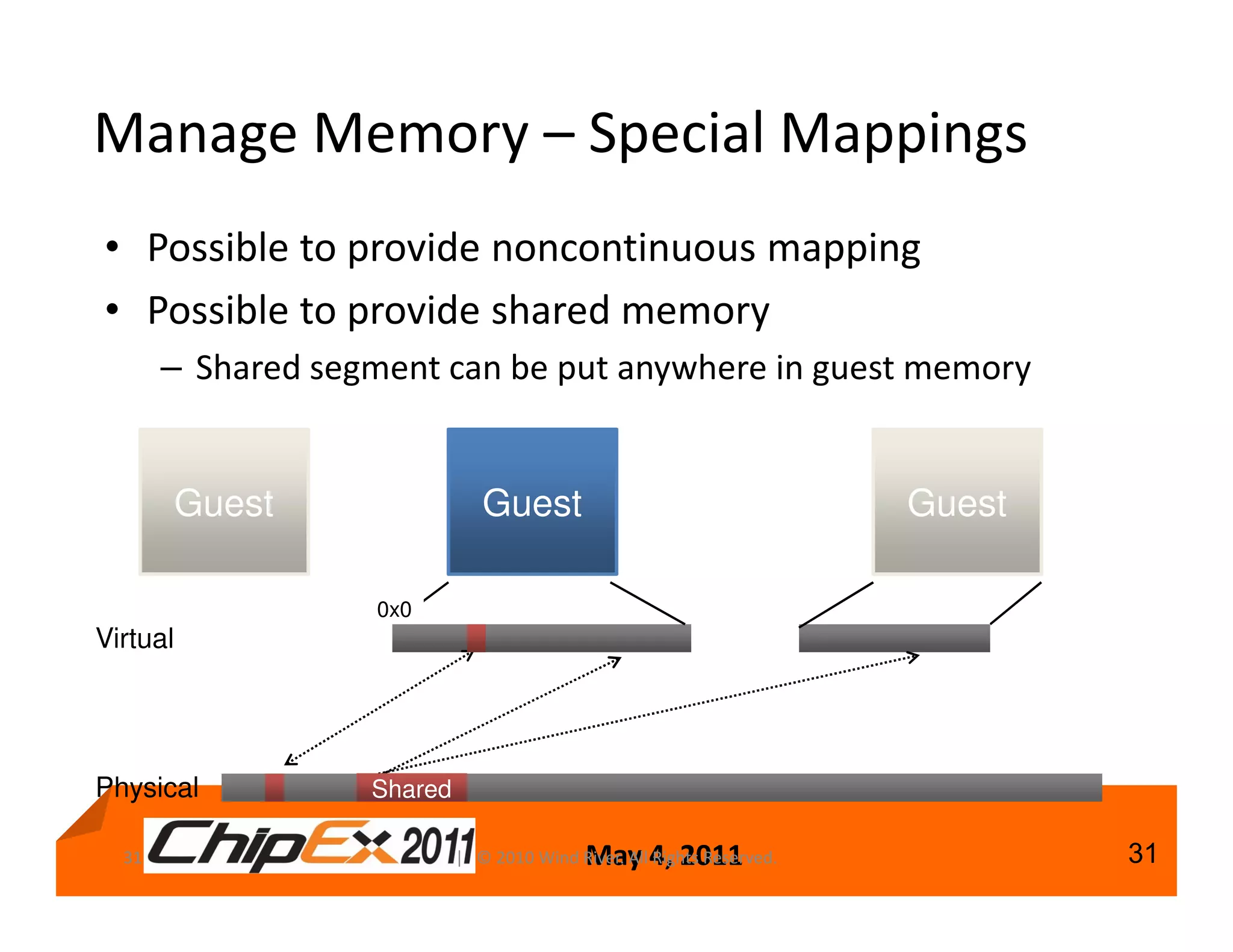

25. Manage Memory – Special Mappings
• Possible to provide noncontinuous mapping
• Possible to provide shared memory
– Shared segment can be put anywhere in guest memory
Guest Guest Guest
0x0
Virtual
Physical Shared
31 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 31

26. Device Support
Driver
Guest
Fastest, native performance
Direct Recommended where possible Driver
Guest Guest
One owner
Shared Others share shDev Driver
Guest Guest
Driver in hypervisor
Driver
Virtualized Stub Stub
Hypervisor
Stubs in the guest
Driver Hypervisor
Driver in hypervisor Guest Guest
Driver1
Emulated Emulation in hypervisor
Driver1
Driver1 Emulation
Regular driver in guest Driver2 Hypervisor
34 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 34

27. Devices Access – Virtual Interrupts
Running
Virtual Board Virtual Board
Guest Guest
Virtual Interrupt Controller Virtual Interrupt Controller
Interrupt
Pending
Interrupt
Pending
Interrupt
Wind River Hypervisor
Interrupt Controller
38 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 38

28. Core Virtualization – Schedulers
• Two different schedulers available
• Priority
– Each virtual board has a priority
– Highest priority board that is non-idle is on-processor
– Boards with the same priority are scheduled round-robin
• Time slice
– Each virtual board gets a designated time slice
– Only single core
• Scheduler is pluggable
– Other scheduling algorithms can be plugged into the
hypervisor
40 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 40

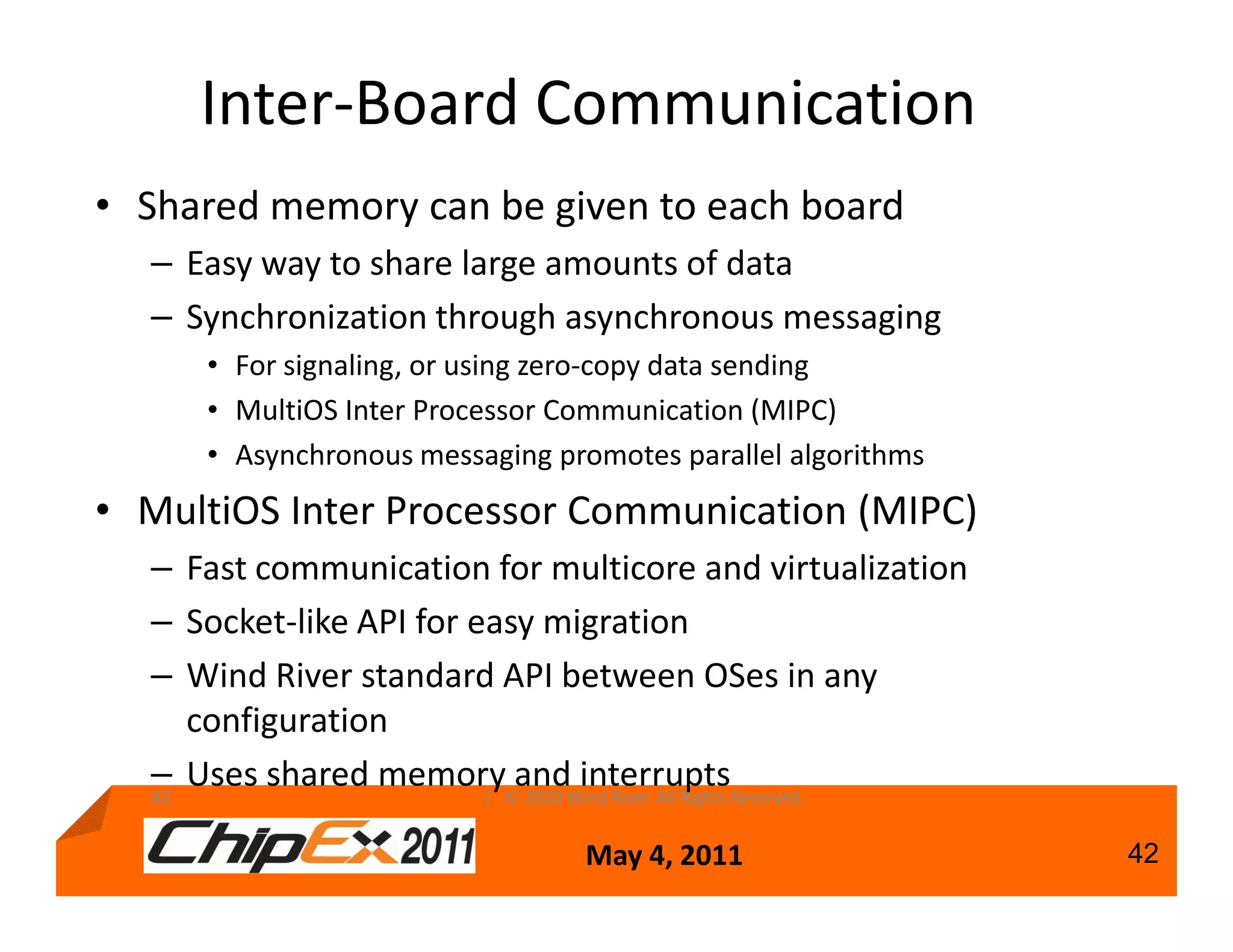

29. Inter-Board Communication
• Shared memory can be given to each board
– Easy way to share large amounts of data
– Synchronization through asynchronous messaging
• For signaling, or using zero-copy data sending
• MultiOS Inter Processor Communication (MIPC)
• Asynchronous messaging promotes parallel algorithms
• MultiOS Inter Processor Communication (MIPC)
– Fast communication for multicore and virtualization
– Socket-like API for easy migration
– Wind River standard API between OSes in any
configuration
– Uses shared memory©andWind River. All Rights Reserved.
42 | 2010
interrupts
May 4, 2011 42

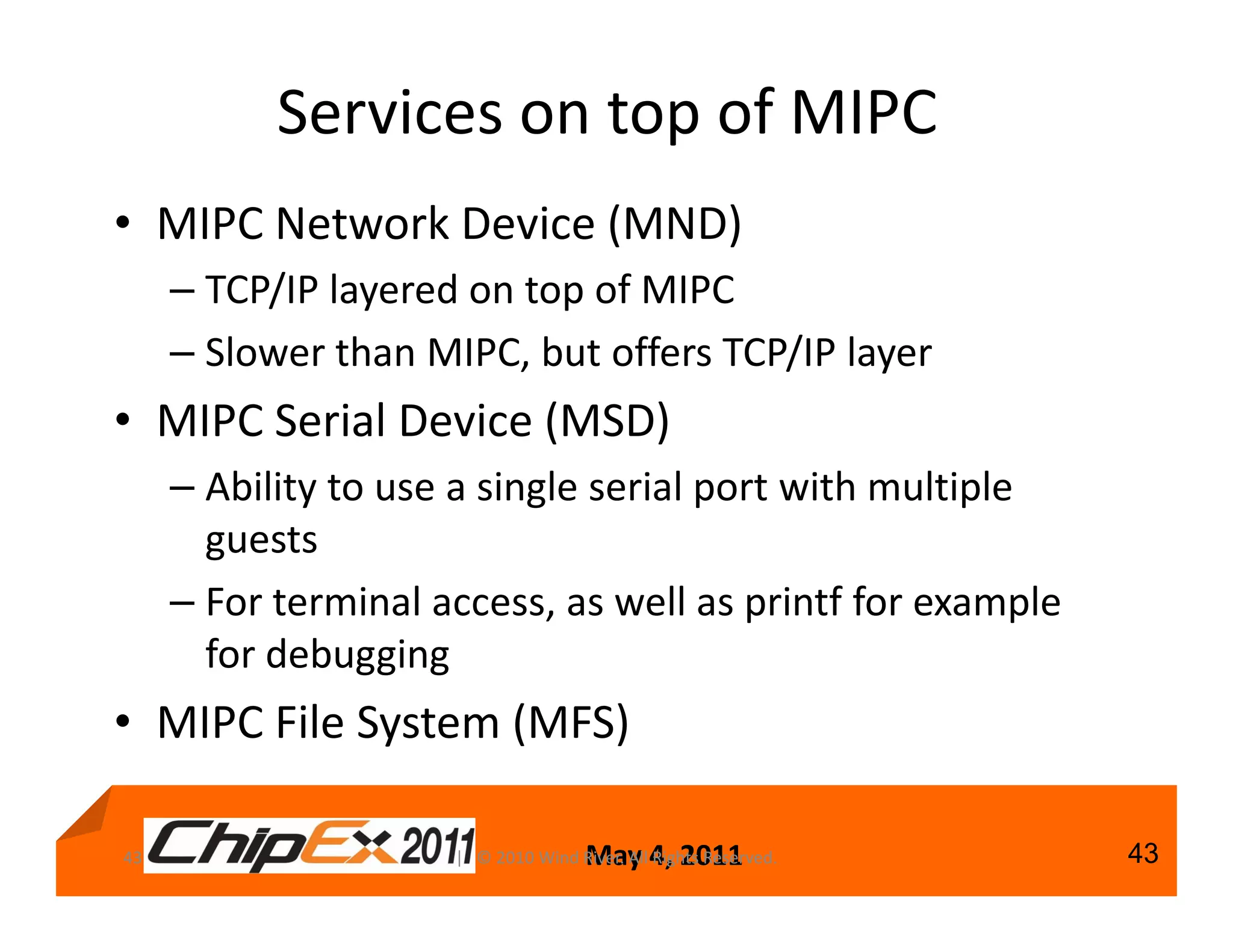

30. Services on top of MIPC
• MIPC Network Device (MND)
– TCP/IP layered on top of MIPC
– Slower than MIPC, but offers TCP/IP layer
• MIPC Serial Device (MSD)
– Ability to use a single serial port with multiple
guests
– For terminal access, as well as printf for example
for debugging
• MIPC File System (MFS)
43 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 43

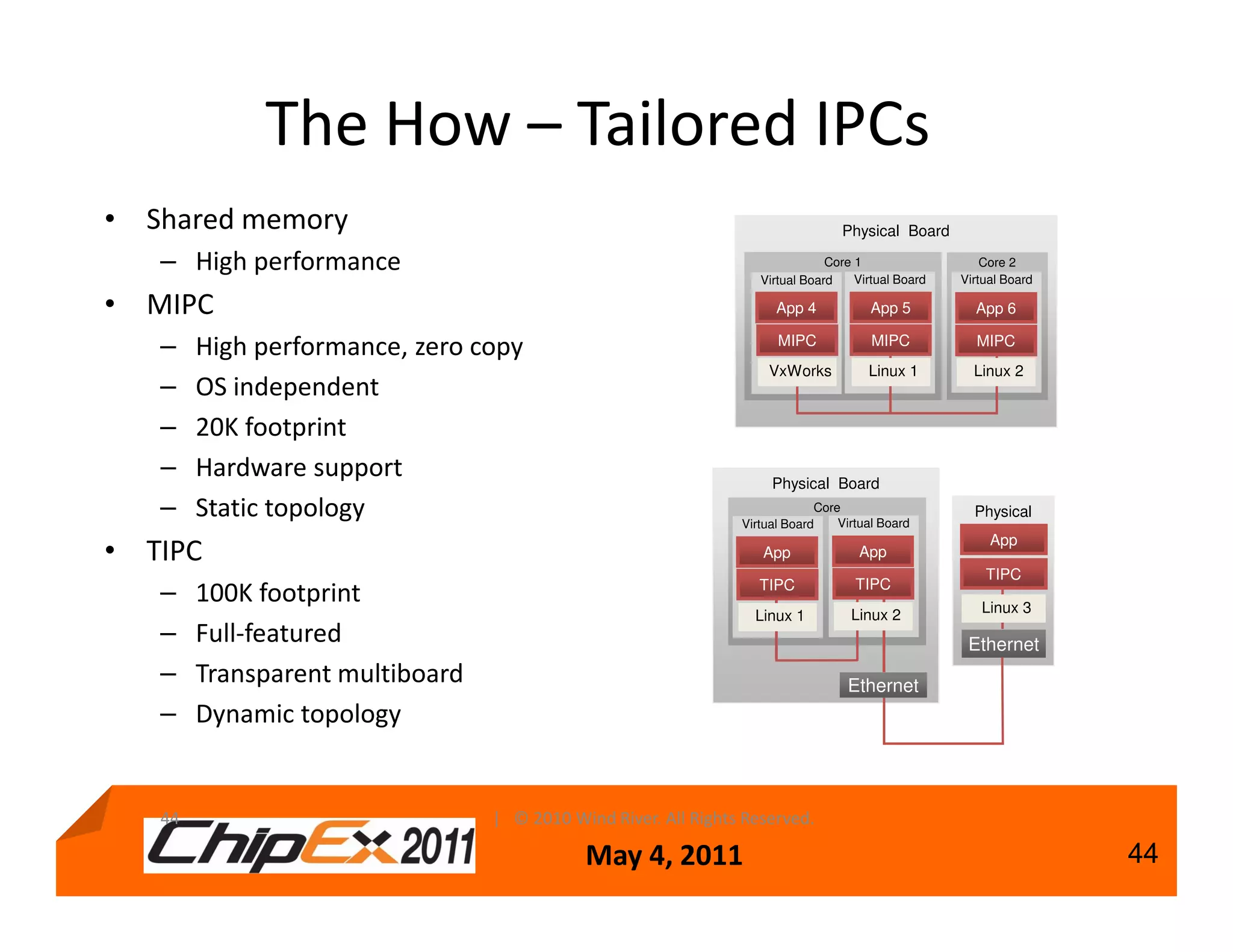

31. The How – Tailored IPCs
• Shared memory Physical Board
– High performance Core 1
Virtual Board
Core 2
Virtual Board
Virtual Board
• MIPC App 4 App 5 App 6
– High performance, zero copy MIPC MIPC MIPC
VxWorks Linux 1 Linux 2
– OS independent
– 20K footprint
– Hardware support Physical Board
– Static topology Virtual Board
Core
Virtual Board
Physical
Board
App
• TIPC App App
TIPC
TIPC TIPC
– 100K footprint Linux 3
Linux 1 Linux 2
– Full-featured Ethernet
– Transparent multiboard Ethernet
– Dynamic topology
44 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 44

32. Building a System (Standard
Approach)
Hypervisor ELF
Boot Image Image (hypervisor.elf)
(ELF format)
VxWorks ELF
Image (vxworks.elf)
Linux
Packaging Linux ELF
Image (vmlinux.elf)
Tool
VxWorks
Image Manifest
Hypervisor XML Configuration
May 4, 2011 45

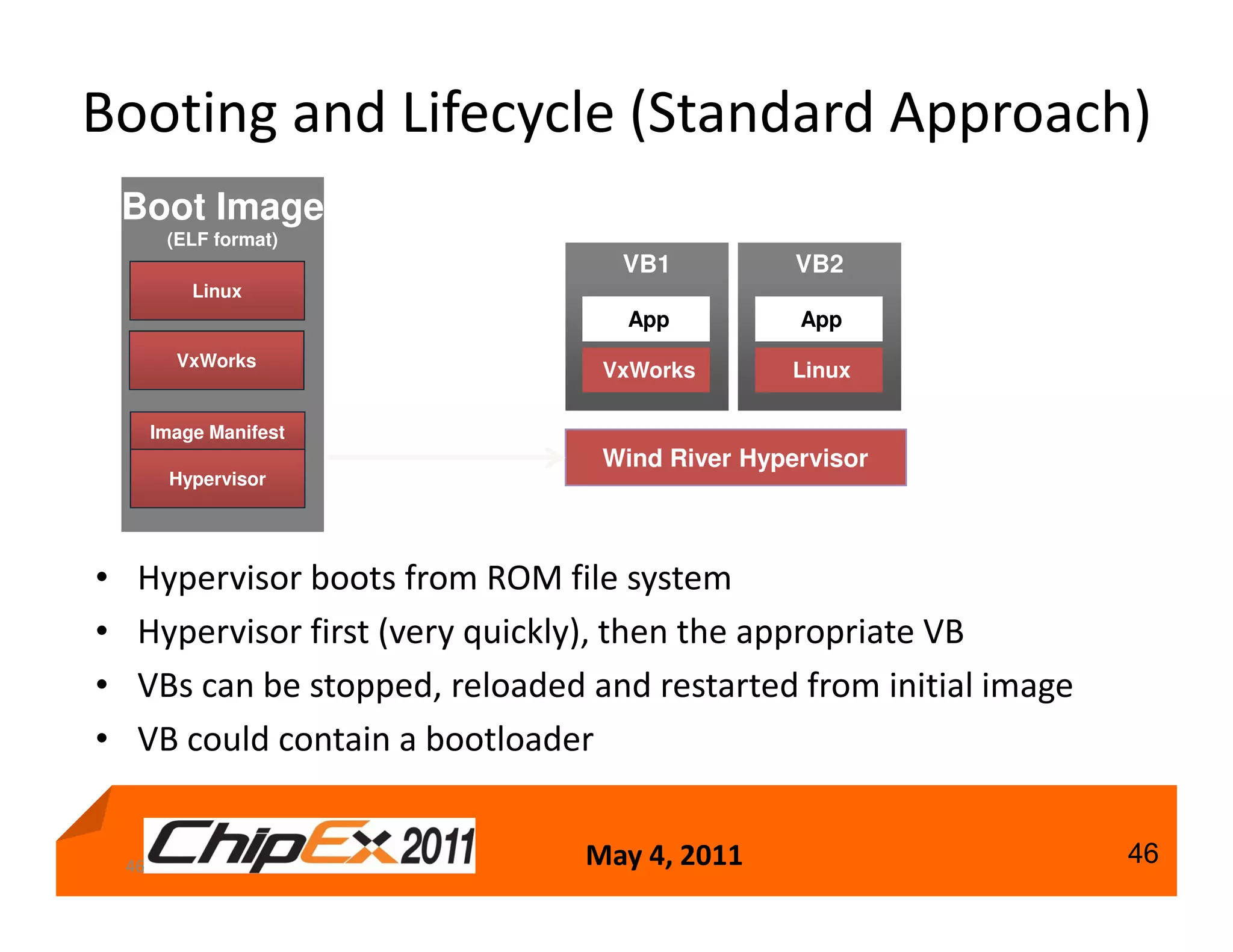

33. Booting and Lifecycle (Standard Approach)
Boot Image
(ELF format)
VB1 VB2
Linux
App App
VxWorks
VxWorks Linux
Image Manifest
Wind River Hypervisor
Hypervisor
• Hypervisor boots from ROM file system
• Hypervisor first (very quickly), then the appropriate VB
• VBs can be stopped, reloaded and restarted from initial image
• VB could contain a bootloader
46 May 4, 2011 46

34. Virtualization Details – Summary
• Modes of virtualization
• The mechanisms behind virtualization
• Virtualizing memory, cores, devices, interrupts
• Inter-board communication
Ring 3 Ring 3 Ring 3
Ring 2 Ring 2 Ring 2
Ring 1 Ring 1 Ring 1
Ring 0 Ring 0 Ring 0
Kernel Kernel Kernel
Device Drivers Device Drivers Device Drivers
Device Drivers Device Drivers Device Drivers
Applications Applications Applications
Hypervisor
Core 0 Core 1
47 May 4, 2011
| © 2010 Wind River. All Rights Reserved. 47

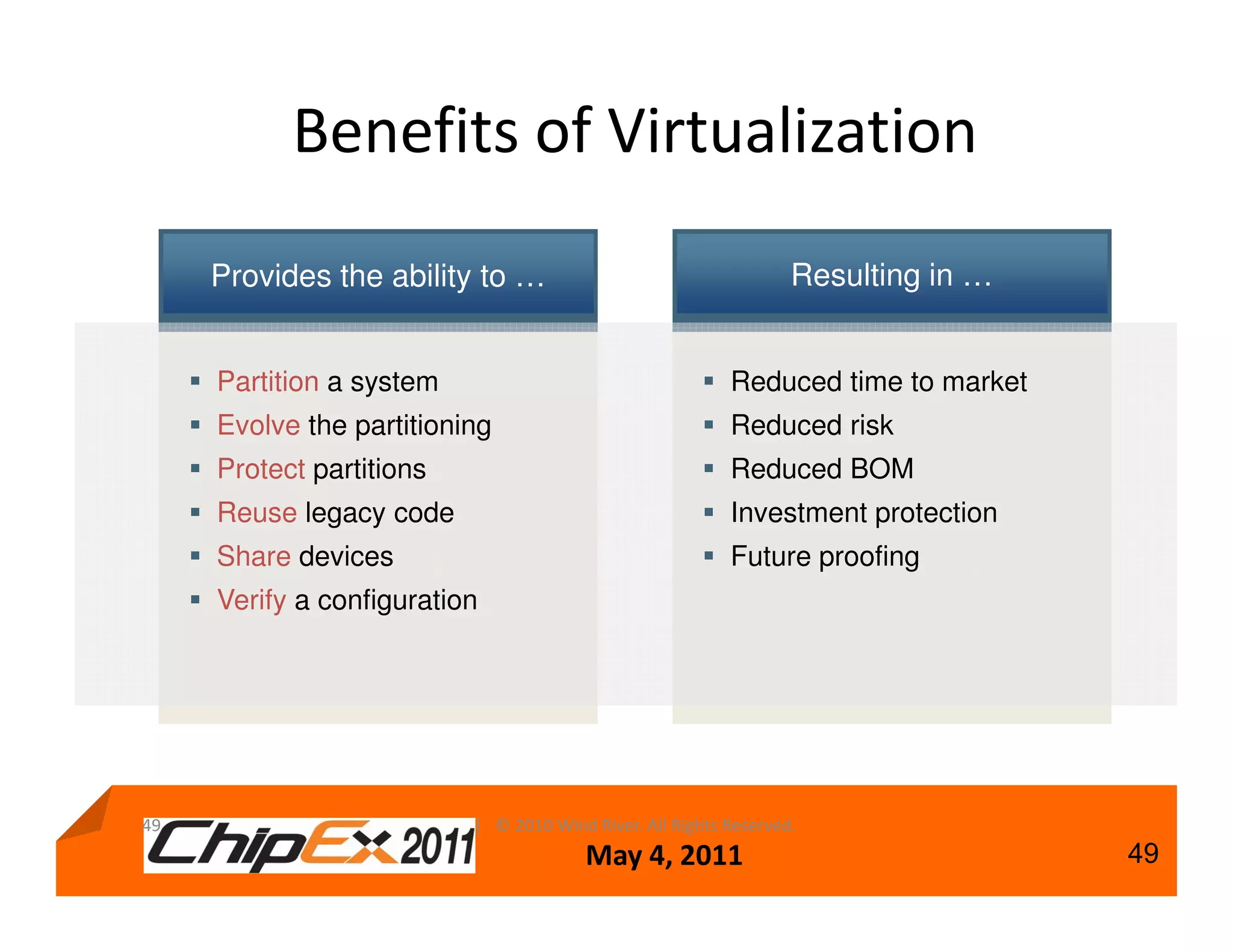

35. Benefits of Virtualization
Provides the ability to … Resulting in …
Partition a system Reduced time to market
Evolve the partitioning Reduced risk
Protect partitions Reduced BOM
Reuse legacy code Investment protection
Share devices Future proofing
Verify a configuration
49 | © 2010 Wind River. All Rights Reserved.
May 4, 2011 49

36. Multi-Context Debugging
with OCD & Wind River Hypervisor
Debug Context View
Visibility to
physical cores
- registers
- bit level details
- memory
Target Manager - cache
Multiple virtual
boards (VBs)
running VxWorks
in hypervised
environment
Fine-grained
breakpoint
control with
association
to multiple
contexts
Deep visibility and granular control to debug complex system issues:
Examples: inter-core race lock conditions, synchronization, message passing.
May 4, 2011 54
