1. 12/27/171

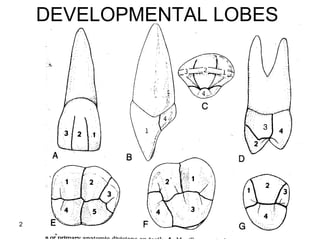

2. 12/27/172
DEVELOPMENTAL LOBES

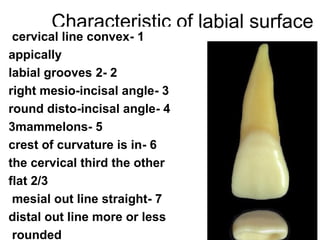

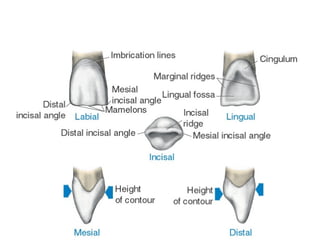

3. Characteristic of labial surface
1-cervical line convex
appically
2-2labial grooves
3-right mesio-incisal angle
4-round disto-incisal angle
5-3mammelons
6-crest of curvature is in
the cervical third the other
2/3flat
7-mesial out line straight
distal out line more or less
rounded

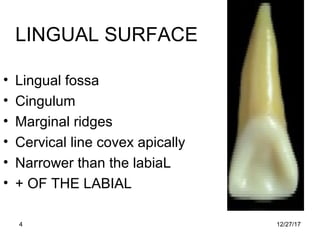

4. LINGUAL SURFACE
• Lingual fossa
• Cingulum
• Marginal ridges
• Cervical line covex apically
• Narrower than the labiaL
• + OF THE LABIAL
12/27/174

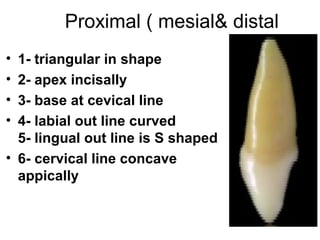

5. Proximal ( mesial& distal
• 1- triangular in shape
• 2- apex incisally
• 3- base at cevical line
• 4- labial out line curved
5- lingual out line is S shaped
• 6- cervical line concave
appically

6. incisal
• Straight line
• 3 mammelons
• Convexs labially
• Concave lingually
• Mesial right & distal
rounded
• Wider labially
,narrower lingually

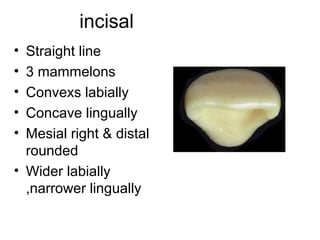

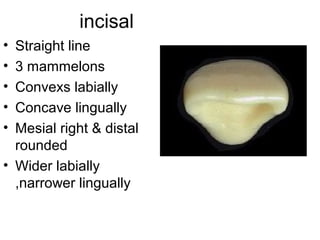

7. incisal
• Straight line
• 3 mammelons
• Convexs labially
• Concave lingually
• Mesial right & distal
rounded
• Wider labially
,narrower lingually

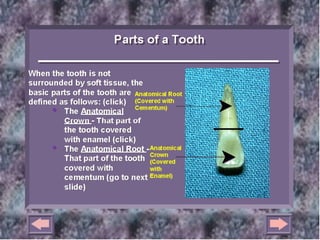

8. 12/27/178

9. 12/27/179

10. 12/27/1710

12. 12/27/1712

13. 12/27/1713

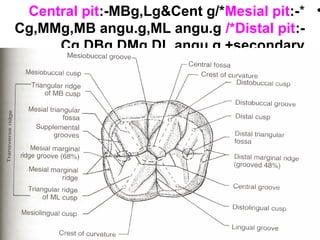

•*Central pit:-MBg,Lg&Cent g/*Mesial pit:-
Cg,MMg,MB angu.g,ML angu.g /*Distal pit:-
Cg,DBg,DMg,DL angu.g +secondary
grooves—(Y(

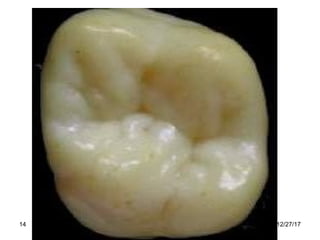

14. 12/27/1714

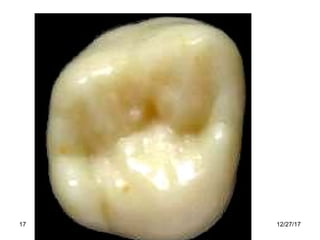

17. 12/27/1717

19. 12/27/1719
•Occlusal: There are four well developed
cusps with developmental grooves that
meet at a right angle to form the
distinctive "+4" pattern characteristic of this
tooth.

20. (2(A 16 years old girl presented with this small
tooth between her maxillary central incisors
and dificulty in cutting with her anterior teeth

21. 12/27/17 21

22. 12/27/17 22

25. 12/27/17 25

29. 12/27/17 29

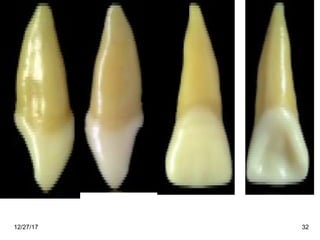

32. 12/27/17 32

34. 12/27/1734

35. 12/27/1735

36. 12/27/1736

37. 12/27/1737

38. 12/27/1738

39. 12/27/1739

40. 12/27/1740

41. 12/27/1741

42. 12/27/1742

43. 12/27/1743
Numbering systems for notation of the teeth

44. 12/27/1744
Palmer notation
system •Each tooth in a quadrant takes a letter (A
– E for deciduous) or a number (1 – 8 for
permanent) indicating its order when
counting from the midline
87654321
87654321
12345678
12345678
E D C B A
E D C B A A B C D E
A B C D E

45. 12/27/1745
Quadrants
1or 5 2or 6
4or 8 3or 7

46. 12/27/1746

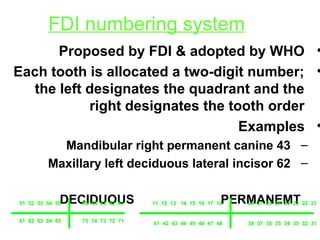

FDI numbering system
•Proposed by FDI & adopted by WHO
•Each tooth is allocated a two-digit number;
the left designates the quadrant and the
right designates the tooth order
•Examples
–Mandibular right permanent canine 43
–Maxillary left deciduous lateral incisor 62
DECIDUOUS PERMANEMT5554535251
8584838281 7172737475
6162636465 1817161514131211
4847464544434241
2122232425262728
3132333435363738

47. 12/27/1747
Universal numbering system
•Palmer – difficulty in keyboard typing
•ADA adopted the universal system in 1968
•Letters for deciduous teeth
–Consecutive from A to T
–Following a clockwise order from maxillary right second molar to
mandibular right second molar
•Numbers for permanent teeth
–Consecutive from 1 to 32
–Following a clockwise order from maxillary right third molar to
mandibular right third molar
A B C D E
T S R Q P O N M L
K
F G H I J 12345678
3231302928272625 2423222120191817
910111213141516

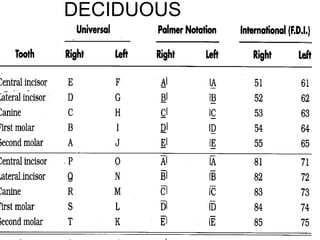

48. 12/27/1748
DECIDUOUS
TEETH

49. 12/27/1749

50. 12/27/1750

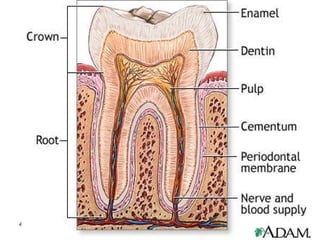

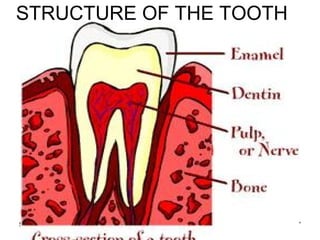

STRUCTURE OF THE TOOTH

51. 12/27/1751

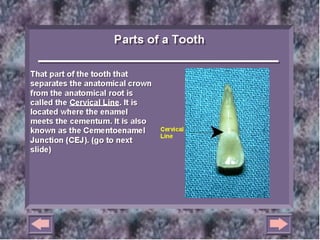

52. 12/27/1752

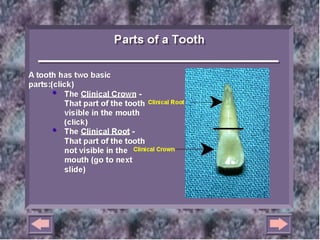

53. 12/27/1753

54. 12/27/1754

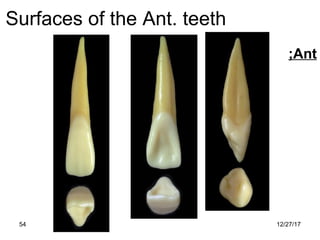

Surfaces of the Ant. teeth
Ant;

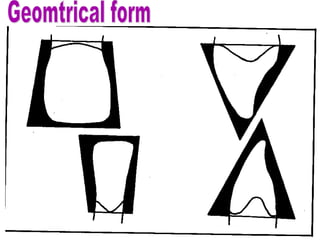

55. 12/27/1755

56. 12/27/1756

57. 12/27/1757

58. 12/27/1758

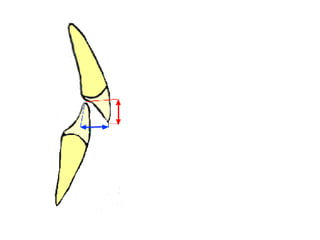

59. 12/27/1759

60. 12/27/1760

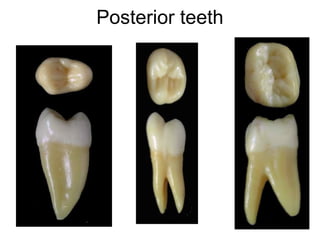

Posterior teeth

61. 12/27/1761

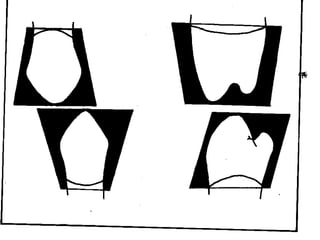

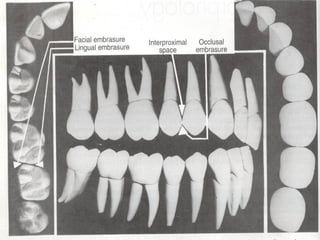

Embrasures&interproximal
space (Ligual,BUCCAL,Occlusal&interproximal
space(

62. 12/27/1762

63. 12/27/1763

64. 12/27/1764

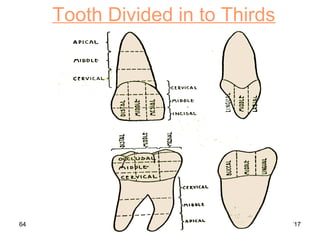

Tooth Divided in to Thirds

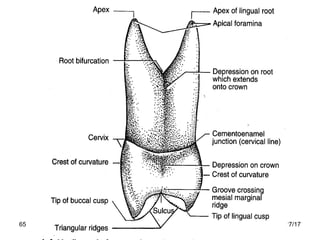

65. 12/27/1765

66. 12/27/1766

67. 12/27/1767
DEVELOPMENTAL LOBES

68. 12/27/1768

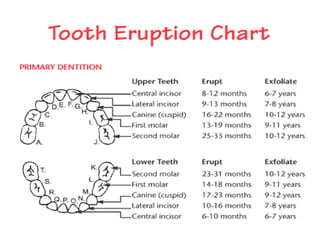

69. 12/27/1769

70. 12/27/1770

71. 12/27/1771

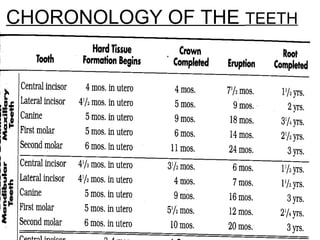

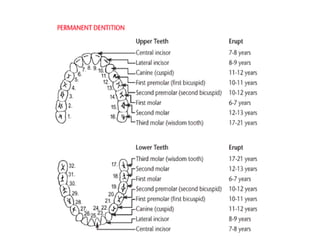

CHORONOLOGY OF THE TEETH

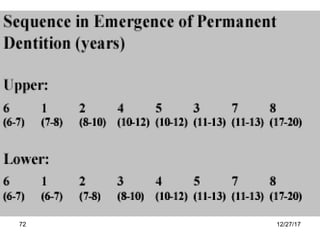

72. 12/27/1772

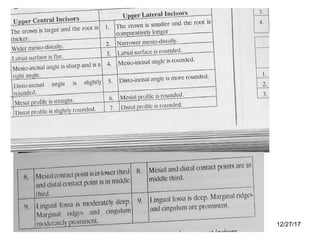

73. 12/27/1773

74. 12/27/1774

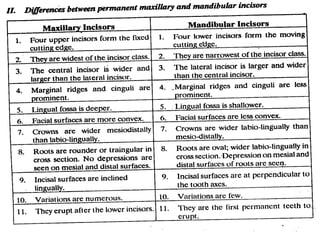

75. 12/27/1775

76. 12/27/1776

77. 12/27/1777

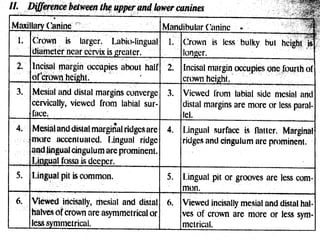

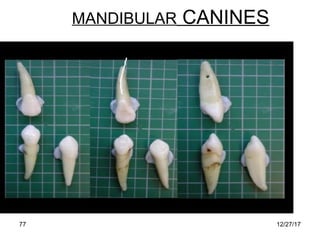

MANDIBULAR CANINES

78. 12/27/1778

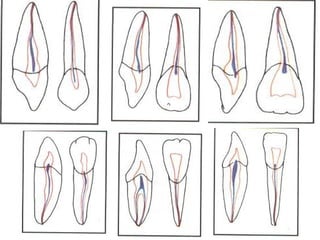

79. 12/27/1779

80. 12/27/1780

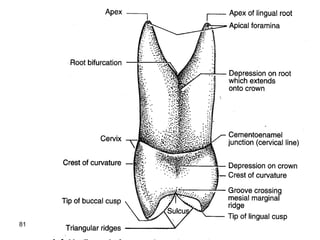

81. 12/27/1781

82. 12/27/1782

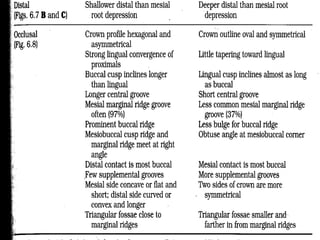

83. 12/27/1783

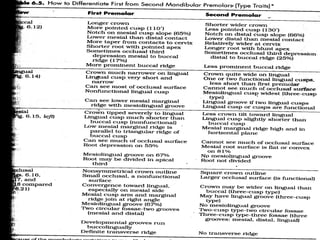

84. 12/27/1784

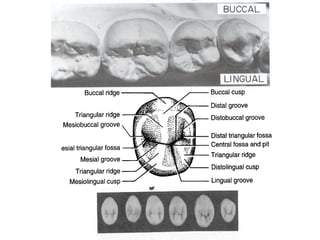

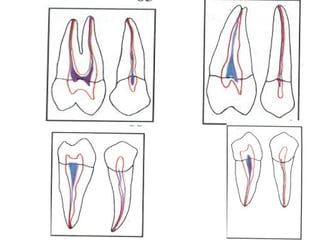

85. 12/27/1785

86. 12/27/1786

87. 12/27/1787

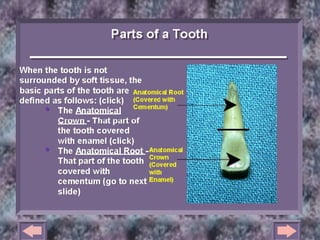

INCISORS

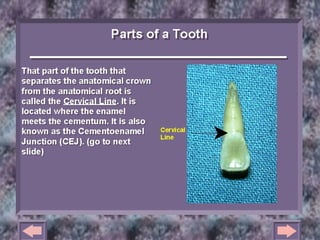

88. 12/27/1788

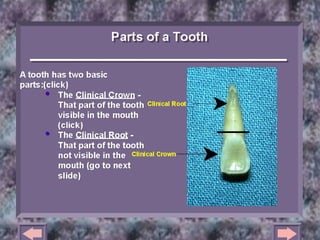

89. 12/27/1789
