- Torq/Lite has been designing and manufacturing hydraulic torque wrenches in the U.S.A. since 1981 and has been committed to quality management as an ISO registered manufacturer for 12 years. - The company offers a complete line of bolting equipment using innovative technology and is devoted to providing customers with the best and most precise products on the market. - Torq/Lite distributes out of full-service facilities in Luling, LA and Houston, TX and has sales representatives globally to serve customers across North America, South America, Asia, Europe, Australia, and the Middle East.

1. ISO 9001 Registered
Company
Introduction

2. www.torqlite.com
ISO 9001 Registered

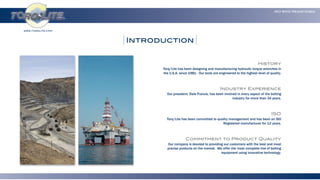

Introduction
History
Torq/Lite has been designing and manufacturing hydraulic torque wrenches in
the U.S.A. since 1981. Our tools are engineered to the highest level of quality.
Industry Experience
Our president, Dale Francis, has been involved in every aspect of the bolting
industry for more than 34 years.
ISO
Torq/Lite has been committed to quality management and has been an ISO
Registered manufacturer for 12 years.
Commitment to Product Quality
Our company is devoted to providing our customers with the best and most
precise products on the market. We offer the most complete line of bolting
equipment using innovative technology.

3. www.torqlite.com
ISO 9001 Registered
IU-XL Series
Inline Drive
Standard fractional head sizes from ¾” to 7¼” and 19mm to 185mm
hex nuts. Special sizes available.
Fast Head Exchange
Spring retaining clip allows for quick and simple changing of head sizes.
Multi-axis Porting System
The Torq/Lite IU-XL Series tools are the first and only system that allows the
swivels to be manually relocated from the top of the tool to the back of the tool
using only hand tools.
Drive Pin Design (Patented)
Reduces overall dimensions of hex head, including a thinner “nose”
radius. Fits more applications, including all 57 A.P.I. flanges.
This tool is approved for explosive environments.

4. www.torqlite.com
ISO 9001 Registered

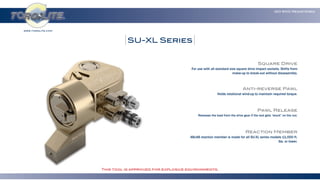

SU-XL Series
Square Drive
For use with all standard size square drive impact sockets. Shifts from
make-up to break-out without disassembly.
Anti-reverse Pawl
Holds rotational wind-up to maintain required torque.
Pawl Release
Releases the load from the drive gear if the tool gets “stuck” on the nut.
Reaction Member
48x48 reaction member is made for all SU-XL series models 11,000 ft.
lbs. or lower.
This tool is approved for explosive environments.

5. www.torqlite.com
ISO 9001 Registered
JN Series
Patented “Split-head” Design
The “split-head” itself or through use of a special made adapter/insert
can fit any size or type of Top Drive packing nut, OEM Jam Nut, hex, or any
other configuration.
Fast
The “split-head” can be placed around the wash pipe, piston rod, or any
other type of shaft, rod, pipe, or tube and on the hex nut adapter/insert in
less than one minute.
Safe
The JN series wrenches eliminate unsafe hammer wrenches, hydraulic jacks,
and other unsafe equipment currently used.
Functional
The JN series wrenches will work equally well in either Top Drive wash
pipe assemblies or compressor crosshead access ports. It will work
upside-down or sideways for both loosening and tightening.
This tool is approved for explosive environments.

6. www.torqlite.com
ISO 9001 Registered
HU SeriesHU SeriesHU Series
Adjustable Reaction Arm
The adjustable reaction arm allows the HU Series to fit all registered
Hammer Union connections with only two different tool models.
Spring Head
The head features the same patented open-gate design as the JN Series,
but has a spring-latch feature that makes applying the tool very simple.
Interchangeable Jaws
The jaws inside the head clamp the application, and since they are
interchangeable, a user can get much more range out of one head.
Hands-free Operation
Once applied, the operator does not need to hold the tool in place. The
handle is available to use and hold safely if you choose.
This tool is approved for explosive environments.

7. www.torqlite.com
ISO 9001 Registered
Common Features
Precision Machined
Increases accuracy, durability, and repeatability.
Unibody
Eliminates “pinch points.”
360° Swivels (Patented)
Allow hose movement without hose binding. Stainless steel with fewer moving
parts – a great improvement to competitor’s designs.
Slotted Piston Rod
Maintains 90° relationship between piston rod and nut. Increases
accuracy and reduces number of moving parts.

8. www.torqlite.com
ISO 9001 Registered
Common Features
TL T-6
The cylinder and reaction members are made of TL T-6 durable,
high-strength, lightweight aircraft alloy.
Light / Ergonomic
Reduces operator fatigue.
Calibrated
Every tool is tested and calibrated to +/- 0.03 accuracy
and +/- 0.01 repeatability traceable to N.I.S.T.

9. www.torqlite.com
ISO 9001 Registered
Power Consoles
Air / Electric
Torq/Lite has both air and electric hydraulic consoles for all
hydraulically-driven tools.
Intermittent / Continuous Duty
We have ½ horsepower pumps for intermittent use, standard pumps for
regular use, and continuous duty pumps for heavy use.
Variable Flow Options
Torq/Lite has various pump options.
Atex Conformity
Torq/Lite TL-SAHC hydraulic air consoles come with an ATEX Declaration
of Conformity certificate certifying them to be used in explosive areas.

10. www.torqlite.com
ISO 9001 Registered
Multipliers
Fast
Tool models consist of speeds from 25 to 245 rpm.
Light Weight
Tool weights only weigh in between 10 and 29.3 lbs.
Reaction Members
Special reaction members are available for applications for which a
normal reaction arm just will not work.
Bi-directional
On bi-directional tools, the direction control knob is locked while the tool is
running to prevent accidental damage to the gearbox.
Quiet
All tools operate at under 85dB(A) when under load.

11. www.torqlite.com
ISO 9001 Registered
Tensioners
1500 Bar System
The Torq/Lite 1500 Bar system combines high load capacity with light-
weight tooling. They are engineered from high-strength steel alloys that
increase safety and tool life.
Sub-sea Tooling
These tools are fitted with composite material high pressure seals which
clip into place and require no adjustment.
Single and Multi-stage Tensioners
Torq/Lite has tensioners for close-clearance applications.
Power Consoles
Various models of air, electric, and hand pumps to work with the
complete line of tensioners.
Custom Tensioners
Torq/Lite provides custom tensioners for applications where standard
tensioners will not work.

12. www.torqlite.com
ISO 9001 Registered
Riser Tools
Fast
The RT Series combines a high-speed rundown motor with a high-output
cylinder, making the bolting process much quicker.
Capacity
The range for our riser tools goes up to 38,000 ft. lbs., with a RT-60 in
development with a capacity of nearly 60,000 ft./lbs.
Square Drive
The RT Series has a 2½” square drive and we stock all standard-sized sockets.
These sockets can be easily modified to fit particular applications.
Patented
Our patented RT Series line features innovative technology and won the
Woelfel “Distinguished Innovation Award” at OTC 1999.

13. www.torqlite.com
ISO 9001 Registered
Robo-Spider™
Revolutionary
The innovative design for the Robo-Spider was developed with Cameron
for the Load King Series riser. It is the first fully-automated hydraulic
torqueing system in the world.
Accurate
The Robo-Spider delivers a flawless bolt-tightening performance every
time to within +/- 0.03 accuracy.
Safe
The Robo-Spider completely eliminates the risk of injury and replaces human
inconsistencies with measured performance.
Fast
Flange connection or disconnection process takes approximately two
minutes, significantly decreasing riser runs and pulls, and lowering
expensive daily rig costs.

14. www.torqlite.com
ISO 9001 Registered
HSE / ISO
Safety Manual
Torq/Lite has an extensive, 400pg. Safety Manual available upon request.
Certifications
All service technicians must become certified to a large list of standards
before entering any job site to perform work.
Representatives
We have two full-time safety representatives to maintain a high
level of safety in day-to-day operations.
ISO Certification
Torq/Lite has been an ISO certified company for over 12 years.
Our quality policy is: “Torq/Lite is committed to customer satisfaction,
continuous improvement, and safe quality products.”
CE Marked
We are CE compliant on our SU-XL and IU-XL Series wrenches.

15. www.torqlite.com
ISO 9001 Registered
Distribution Centers
Full-service Facilities
Luling, LA and Houston, TX are Torq/Lite’s two full-service locations.
Tools and parts are also available though sales representatives globally.
National
Washington, Oregon, Montana, Indiana, Nevada, Utah, Arizona, Wyoming,
Colorado, Nebraska, Oklahoma, Texas, Louisiana, Minnesota, Arkansas,
California, Pennsylvania, Mississippi, Illinois, Kentucky, Tennessee, Ala-
bama, Georgia, Florida, Virginia, Idaho, Wisconsin, New Jersey, New York,
Kansas, North Dakota, and South Dakota.
Global
North America: Canada, Mexico.
South America: Argentina, Bolivia, Brazil, Colombia, Peru, Uruguay.
Asia: China, Indonesia, Taiwan, South Korea, Singapore, Malaysia, India.
Europe: Norway, Sweden, Denmark, Russia.
Australia: Adelaide, Perth, Sydney, Brisbane, Townsville, Melbourne, and Mackay
– New Zealand.
Middle East: Saudi Arabia
