The document describes several portable thermal imaging camera models from Arbel Security in Israel. The cameras have uncooled microbolometer detectors with resolutions of 384x288 or 640x480 pixels. They operate between -20°C to +60°C and have rechargeable batteries that provide up to 7 hours of operation. The cameras can detect humans from over 1,000 meters away depending on the lens used and are suitable for security, surveillance, and rescue applications.

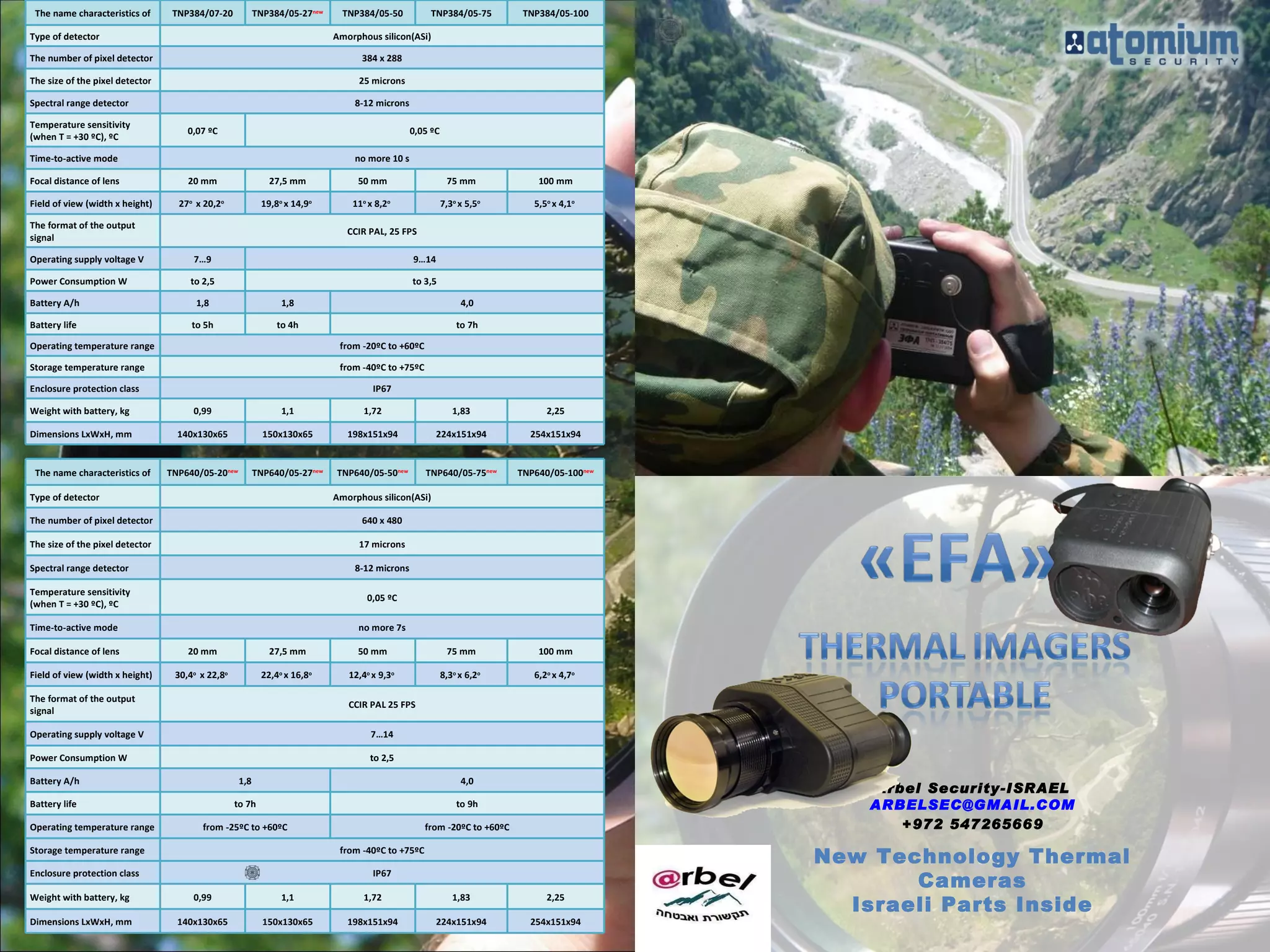

1. Arbel Security-ISRAEL [email_address] +972 547265669 New Technology Thermal Cameras Israeli Parts Inside The name characteristics of TNP 384/07-20 TNP 384/05-27 new TNP 384/05-50 TNP 384/05-75 TNP 384/05-100 Type of detector Amorphous silicon ( ASi) The number of pixel detector 384 х 288 The size of the pixel detector 25 microns Spectral range detector 8-12 microns Temperature sensitivity ( when T = +30 ºС), ºС 0,07 ºС 0,05 ºС Time-to-active mode no more 10 s Focal distance of lens 20 mm 27,5 mm 50 mm 75 mm 100 mm Field of view (width x height) 27 о х 20,2 о 19,8 о х 14,9 о 11 о х 8,2 о 7,3 о х 5,5 о 5,5 о х 4,1 о The format of the output signal CCIR PAL , 25 FPS Operating supply voltage V 7…9 9…14 Power Consumption W to 2,5 t о 3,5 Battery A/h 1,8 1,8 4,0 Battery life to 5 h to 4 h to 7 h Operating temperature range from -20 ºС t о +60ºС Storage temperature range from -40 ºС t о +75ºС Enclosure protection class IP67 Weight with battery, kg 0,99 1,1 1,72 1,83 2,25 Dimensions LxWxH, mm 140х130х65 150х130х65 198х151х94 224х151х94 254х151х94 The name characteristics of TNP 640/05-20 new TNP 640/05-27 new TNP 640/05-50 new TNP 640/05-75 new TNP 640/05-100 new Type of detector Amorphous silicon ( ASi) The number of pixel detector 640 х 480 The size of the pixel detector 17 microns Spectral range detector 8-12 microns Temperature sensitivity ( when T = +30 ºС), ºС 0,05 ºС Time-to-active mode no more 7 s Focal distance of lens 20 mm 27,5 mm 50 mm 75 mm 100 mm Field of view (width x height) 30,4 о х 22,8 о 22,4 о х 16,8 о 12,4 о х 9,3 о 8,3 о х 6,2 о 6,2 о х 4,7 о The format of the output signal CCIR PAL 25 FPS Operating supply voltage V 7…14 Power Consumption W to 2,5 Battery A/h 1,8 4,0 Battery life to 7 h to 9 h Operating temperature range from -25 ºС to +60ºС from -20 ºС to +60ºС Storage temperature range from -40 ºС to +75ºС Enclosure protection class IP67 Weight with battery, kg 0,99 1,1 1,72 1,83 2,25 Dimensions LxWxH, mm 140х130х65 150х130х65 198х151х94 224х151х94 254х151х94

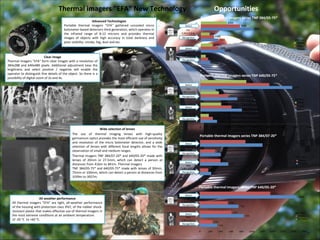

2. Opportunities Portable thermal imagers series TNP 640/05-75* Portable thermal imagers series TNP 384/05-75* With lens Portable thermal imagers series TNP 640/05-20* Portable thermal imagers series TNP 384/07-20* With lens With lens With lens m m Clear image Thermal imagers "EFA" form clear images with a resolution of 384x288 and 640x480 pixels. Additional adjustment keys the brightness and select positive / negative will enable the operator to distinguish fine details of the object. So there is a possibility of digital zoom of 2x and 4x. Advanced Technologies Portable thermal imagers "EFA" gathered uncooled micro bolometer-based detectors third generation, which operates in the infrared range of 8-12 microns and provides thermal images of objects with high accuracy in total darkness and poor visibility: smoke, fog, dust and etc. Wide selection of lenses The use of thermal imaging lenses with high-quality germanium optics provides the most efficient use of sensitivity and resolution of the micro bolometer detector, and a wide selection of lenses with different focal lengths allows for the observation of small and medium ranges. Thermal imagers TNP 384/07-20* and 640/05-20* made ​​with lenses of 20mm or 27.5mm, which can detect a person at distances from 416m to 841m. Thermal imagers TNP 384/05-75* and 640/05-75* made ​​with lenses of 50mm, 75mm or 100mm, which can detect a person at distances from 1039m to 3057m. All weather performance All thermal imagers "EFA" are tight, all-weather performance of the housing with protection class IP67, of the rubber shock-resistant plastic that makes effective use of thermal imagers in the most extreme conditions at an ambient temperature of -20 °C to +60 °C. Recognition Detect Recognition Detect Car 2,3м х 2,3 м Man 1,8м х 0,5 м Recognition Detect Recognition Detect Car 2,3 m х 2,3 m Man 1,8 m х 0,5 m Recognition Detect Recognition Detect Car 2,3 m х 2,3 m Man 1,8 m х 0,5 m Recognition Detect Recognition Detect Car 2,3 m х 2,3 m Man 1,8 m х 0,5 m Thermal imagers "EFA" New Technology

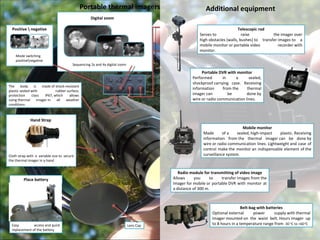

3. Кнопка включения Однократное нажатие – включение, повторное нажатие – выключение. Регулировка яркости Увеличение и уменьшение уровня яркости дисплея. При одновременном нажатии и удержании отключает монокуляр Внешний разъем Подключение внешнего питания / аналоговый видеовыход Кнопка проверки аккумулятора Нажмите и удерживайте кнопку 2-3с, цвет индикатора соответствует: Easy access and quick replacement of the battery Place battery Lens Cap Объектив Германиевый объектив с ручной подстройкой фокусировки. Возможность исполнения с объективами с фокусными расстояниями 50 mm , 75 mm или 100 mm . Высококачественный светодиодный монокуляр Резиновый наглазник предотвращает проникновение света из монокуляра , попадание на него прямых солнечных лучей и бликов. Portable thermal imagers series TNP 384/05-75* Additional equipment Telescopic rod Serves to raise the imager over high obstacles (walls, bushes) to transfer images to a mobile monitor or portable video recorder with monitor. Portable DVR with monitor Performed in a sealed, shockproof carrying case. Receiving information from the thermal imager can be done by wire or radio communication lines. Mobile monitor Made of a sealed, high-impact plastic. Receiving information from the thermal imager can be done by wire or radio communication lines. Lightweight and case of control make the monitor an indispensable element of the surveillance system. Radio module for transmitting of video image Allows you to transfer images from the Imager for mobile or portable DVR with monitor at a distance of 300 m. Belt-bag with batteries Optional external power supply with thermal imager mounted on the waist belt. Hours imager up to 8 hours in a temperature range from -30 0 С t о +60 0 С The body is made of shock-resistant plastic sealed with rubber surface, protection class IP67, which allows using thermal imager in all weather conditions Digital zoom Sequencing 2x and 4x digital zoom Hand Strap Cloth strap with a variable size to secure the thermal imager in a hand Зеленый Более 70% charge Оранжевый 30…70% charge Красный 5…30% charge Красный мигающий Менее 5% charge Positive \ negative Mode switching positive\negative

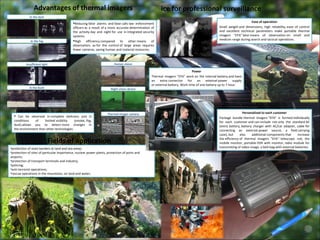

4. In the dark In the bush Reducing false alarms and false calls law enforcement officers as a result of a more accurate determination of the activity day and night for use in integrated security systems High efficiency compared to other means of observation, as for the control of large areas requires fewer cameras, saving human and material resources. Advantages of thermal imagers Fields of application protection of state borders at land and sea areas; protection of sites of particular importance, nuclear power plants, protection of ports and airports; protection of transport terminals and industry; policing; anti-terrorist operations; rescue operations in the mountains, on land and water; monitoring of fire conditions. Can be observed in complete darkness and in conditions of limited visibility (smoke, fog, dust) allows you to detect more changes in the environment than other technologies Power Thermal imagers "EFA" work on the internal battery and have an extra connector for an external power supply or external battery. Work time of one battery up to 7 hour. Ease of operation Small weight and dimensions, high reliability, ease of control and excellent technical parameters make portable thermal imagers "EFA" best means of observation on small and medium range during search and tactical operations. Personalized to each customer Package bundle thermal imagers "EFA" is formed individually for each customer and can include not only the standard kit (extra battery, battery charger with AC/car adapter, cable for connecting an external power source, a field carrying case), but also additional components that increase the efficiency of thermal imagers "EFA": telescopic rod, the mobile monitor, portable DVR with monitor, radio module for transmitting of video image, a belt-bag with external batteries. Insufficient light In the fog ice for professional surveillance Human vision Night vision device Thermal Imager camera

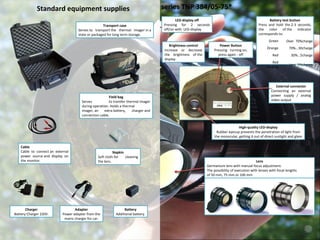

5. External connector Connecting an external power supply / analog video output Battery test button Press and hold the 2-3 seconds, the color of the indicator corresponds to: Удобный доступ и быстрая смена аккумулятора Отсек для аккумулятора Защитная крышка объектива Корпус выполнен из герметичного ударопрочного пластика с обрезиненной поверхностью, класс защиты IP 67 , что позволяет эффективно применять тепловизор при любых погодных условиях High-quality LED-display Rubber eyecup prevents the penetration of light from the monocular, getting it out of direct sunlight and glare Brightness control Increase or decrease the brightness of the display Standard equipment supplies Field bag Serves to transfer thermal imager during operation. Holds a thermal imager, an extra battery, charger and connection cable. Transport case Serves to transport the thermal imager in a state or packaged for long term storage. Napkin Soft cloth for cleaning the lens. Cable Cable to connect an external power source and display on the monitor. Battery Additional battery. Adapter Power adapter from the mains charger for car. Charger Battery Charger 220V. LED-display off Pressing for 2 seconds off/on with LED-display Power Button Pressing - turning on, press again - off series TNP 384/05-75* Цифровое увеличение Последовательное переключение 2-х и 4-х кратного цифрового увеличения Позитив\негатив Переключение режимов позитив\негатив Ремешок для руки Матерчатый ремешок с изменяющимся размером для надежной фиксации тепловизора в руке Green Over 70% charge Orange 30…70% charge Red 5…30% charge Red blinking Less 5% charge Lens Germanium lens with manual focus adjustment. The possibility of execution with lenses with focal lengths of 50 mm, 75 mm or 100 mm

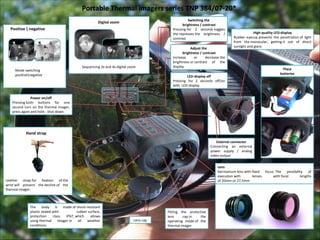

6. External connector Connecting an external power supply / analog video output Lens cap Fitting the protective lens cap in the operating mode of the thermal imager Power on/off Pressing both buttons for one second turn on the thermal imager, press again and hold - shut down. Portable Thermal imagers series TNP 384/07-20* The body is made of shock-resistant plastic sealed with rubber surface, protection class IP67, which allows using thermal imager in all weather conditions LED-display off Pressing for 2 seconds off/on with LED-display Adjust the brightness / contrast Increase or decrease the brightness or contrast of the display Switching the brightness / contrast Pressing for 2 seconds toggles the represses the brightness / contrast High-quality LED-display Rubber eyecup prevents the penetration of light from the monocular, getting it out of direct sunlight and glare. Hand strap Leather strap for fixation of the wrist will prevent the decline of the thermal imager. Digital zoom Sequencing 2x and 4x digital zoom Lens Germanium lens with fixed focus. The possibility of execution with lenses with focal lengths of 20mm or 27,5mm Place batteries Positive \ negative Mode switching positive\negative
