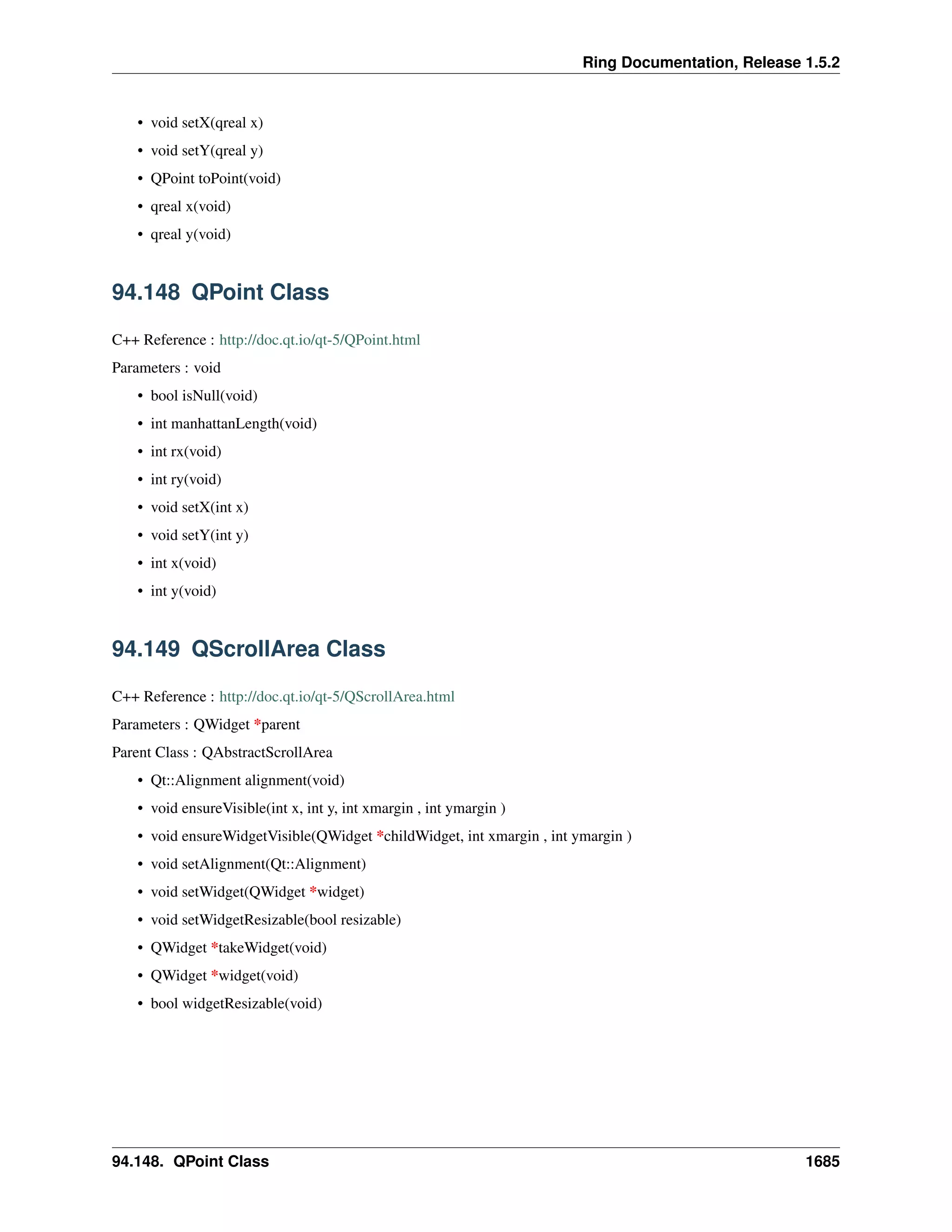

1. Ring Documentation, Release 1.5.2
• void setX(qreal x)
• void setY(qreal y)
• QPoint toPoint(void)
• qreal x(void)
• qreal y(void)
94.148 QPoint Class
C++ Reference : http://doc.qt.io/qt-5/QPoint.html
Parameters : void
• bool isNull(void)
• int manhattanLength(void)
• int rx(void)
• int ry(void)
• void setX(int x)
• void setY(int y)
• int x(void)
• int y(void)
94.149 QScrollArea Class
C++ Reference : http://doc.qt.io/qt-5/QScrollArea.html
Parameters : QWidget *parent
Parent Class : QAbstractScrollArea
• Qt::Alignment alignment(void)
• void ensureVisible(int x, int y, int xmargin , int ymargin )
• void ensureWidgetVisible(QWidget *childWidget, int xmargin , int ymargin )
• void setAlignment(Qt::Alignment)
• void setWidget(QWidget *widget)
• void setWidgetResizable(bool resizable)
• QWidget *takeWidget(void)
• QWidget *widget(void)
• bool widgetResizable(void)
94.148. QPoint Class 1685

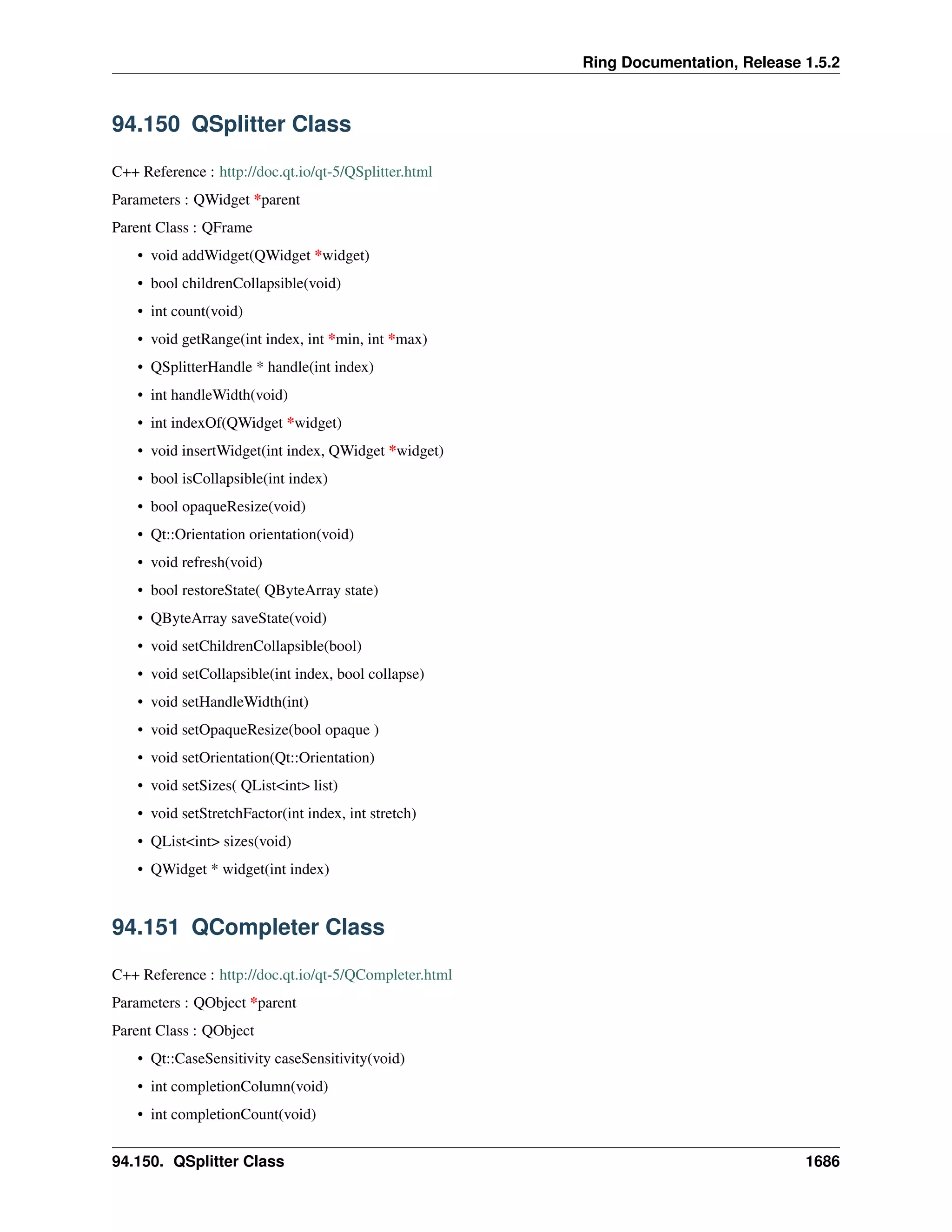

2. Ring Documentation, Release 1.5.2
94.150 QSplitter Class
C++ Reference : http://doc.qt.io/qt-5/QSplitter.html
Parameters : QWidget *parent
Parent Class : QFrame
• void addWidget(QWidget *widget)
• bool childrenCollapsible(void)
• int count(void)
• void getRange(int index, int *min, int *max)
• QSplitterHandle * handle(int index)
• int handleWidth(void)
• int indexOf(QWidget *widget)
• void insertWidget(int index, QWidget *widget)
• bool isCollapsible(int index)
• bool opaqueResize(void)
• Qt::Orientation orientation(void)
• void refresh(void)
• bool restoreState( QByteArray state)
• QByteArray saveState(void)
• void setChildrenCollapsible(bool)
• void setCollapsible(int index, bool collapse)
• void setHandleWidth(int)
• void setOpaqueResize(bool opaque )
• void setOrientation(Qt::Orientation)
• void setSizes( QList<int> list)
• void setStretchFactor(int index, int stretch)
• QList<int> sizes(void)
• QWidget * widget(int index)
94.151 QCompleter Class
C++ Reference : http://doc.qt.io/qt-5/QCompleter.html
Parameters : QObject *parent
Parent Class : QObject
• Qt::CaseSensitivity caseSensitivity(void)
• int completionColumn(void)
• int completionCount(void)
94.150. QSplitter Class 1686

3. Ring Documentation, Release 1.5.2
• QCompleter::CompletionMode completionMode(void)
• QAbstractItemModel *completionModel(void)
• QString completionPrefix(void)
• int completionRole(void)
• QString currentCompletion(void)
• QModelIndex currentIndex(void)
• int currentRow(void)
• Qt::MatchFlags filterMode(void)
• int maxVisibleItems(void)
• QAbstractItemModel * model(void)
• QCompleter::ModelSorting modelSorting(void)
• QAbstractItemView * popup(void)
• void setCaseSensitivity(Qt::CaseSensitivity caseSensitivity)
• void setCompletionColumn(int column)
• void setCompletionMode(QCompleter::CompletionMode mode)
• void setCompletionRole(int role)
• bool setCurrentRow(int row)
• void setFilterMode(Qt::MatchFlags filterMode)
• void setMaxVisibleItems(int maxItems)
• void setModel(QAbstractItemModel *model)
• void setModelSorting(QCompleter::ModelSorting sorting)
• void setPopup(QAbstractItemView *popup)
• void setWidget(QWidget *widget)
• QWidget * widget(void)
• bool wrapAround(void)
• void complete(QRect rect)
• void setCompletionPrefix(QString prefix)
• void setWrapAround(bool wrap)
94.152 QCompleter2 Class
C++ Reference : http://doc.qt.io/qt-5/QCompleter2.html
Parameters : QAbstractItemModel *model, QObject *parent
Parent Class : QCompleter
94.152. QCompleter2 Class 1687

4. Ring Documentation, Release 1.5.2
94.153 QCompleter3 Class
C++ Reference : http://doc.qt.io/qt-5/QCompleter3.html
Parameters : QStringList list, QObject *parent
Parent Class : QCompleter
94.154 QString2 Class
C++ Reference : http://doc.qt.io/qt-5/QString2.html
Parameters : void
• QString append( QString str)
• QStringList split( QString sep, QString::SplitBehavior behavior , Qt::CaseSensitivity cs )
• QStringList split_2(QChar sep, QString::SplitBehavior behavior , Qt::CaseSensitivity cs )
• QStringList split_3( QRegExp rx, QString::SplitBehavior behavior )
• QStringList split_4( QRegularExpression re, QString::SplitBehavior behavior )
94.155 QProcess Class
C++ Reference : http://doc.qt.io/qt-5/QProcess.html
Parameters : QObject *
Parent Class : QIODevice
• QStringList arguments(void)
• void closeReadChannel(QProcess::ProcessChannel channel)
• void closeWriteChannel(void)
• QProcess::ProcessError error(void)
• int exitCode(void)
• QProcess::ExitStatus exitStatus(void)
• QProcess::InputChannelMode inputChannelMode(void)
• QProcess::ProcessChannelMode processChannelMode(void)
• QProcessEnvironment processEnvironment(void)
• QString program(void)
• QByteArray readAllStandardError(void)
• QByteArray readAllStandardOutput(void)
• QProcess::ProcessChannel readChannel(void)
• void setArguments( QStringList arguments)
• void setInputChannelMode(QProcess::InputChannelMode mode)
• void setProcessChannelMode(QProcess::ProcessChannelMode mode)
94.153. QCompleter3 Class 1688

5. Ring Documentation, Release 1.5.2
• void setProcessEnvironment( QProcessEnvironment environment)
• void setProgram( QString program)
• void setReadChannel(QProcess::ProcessChannel channel)
• void setStandardErrorFile( QString fileName, QIODevice::OpenMode mode )
• void setStandardInputFile( QString fileName)
• void setStandardOutputFile( QString fileName, QIODevice::OpenMode mode )
• void setStandardOutputProcess(QProcess *destination)
• void setWorkingDirectory( QString dir)
• void start( QString program, QStringList arguments, QIODevice::OpenMode mode )
• void start_2( QString command, QIODevice::OpenMode mode )
• void start_3(QIODevice::OpenMode mode )
• QProcess::ProcessState state(void)
• bool waitForFinished(int msecs )
• bool waitForStarted(int msecs )
• QString workingDirectory(void)
• void kill(void)
• void terminate(void)
• void setreadyReadStandardErrorEvent(const char *)
• void setreadyReadStandardOutputEvent(const char *)
• const char *getreadyReadStandardErrorEvent(void)
• const char *getreadyReadStandardOutputEvent(void)
94.156 QMdiArea Class
C++ Reference : http://doc.qt.io/qt-5/QMdiArea.html
Parameters : QWidget *
Parent Class : QAbstractScrollArea
• QMdiArea::WindowOrder activationOrder(void)
• QMdiSubWindow * activeSubWindow(void)
• QMdiSubWindow * addSubWindow(QWidget * widget, Qt::WindowFlags windowFlags )
• QBrush background(void)
• QMdiSubWindow * currentSubWindow(void)
• bool documentMode(void)
• void removeSubWindow(QWidget * widget)
• void setActivationOrder(QMdiArea::WindowOrder order)
• void setBackground( QBrush background)
94.156. QMdiArea Class 1689

6. Ring Documentation, Release 1.5.2
• void setDocumentMode(bool enabled)
• void setOption(QMdiArea::AreaOption option, bool on )
• void setTabPosition(QTabWidget::TabPosition position)
• void setTabShape(QTabWidget::TabShape shape)
• void setTabsClosable(bool closable)
• void setTabsMovable(bool movable)
• void setViewMode(QMdiArea::ViewMode mode)
• QList<QMdiSubWindow *> subWindowList(QMdiArea::WindowOrder order )
• QTabWidget::TabPosition tabPosition(void)
• QTabWidget::TabShape tabShape(void)
• bool tabsClosable(void)
• bool tabsMovable(void)
• bool testOption(QMdiArea::AreaOption option)
• QMdiArea::ViewMode viewMode(void)
• void activateNextSubWindow(void)
• void activatePreviousSubWindow(void)
• void cascadeSubWindows(void)
• void closeActiveSubWindow(void)
• void closeAllSubWindows(void)
• void setActiveSubWindow(QMdiSubWindow * window)
• void tileSubWindows(void)
94.157 QMdiSubWindow Class
C++ Reference : http://doc.qt.io/qt-5/QMdiSubWindow.html
Parameters : QWidget *
Parent Class : QWidget
• bool isShaded(void)
• int keyboardPageStep(void)
• int keyboardSingleStep(void)
• QMdiArea * mdiArea(void)
• void setKeyboardPageStep(int step)
• void setKeyboardSingleStep(int step)
• void setOption(QMdiSubWindow::SubWindowOption option, bool on )
• void setSystemMenu(QMenu * systemMenu)
• void setWidget(QWidget * widget)
94.157. QMdiSubWindow Class 1690

7. Ring Documentation, Release 1.5.2
• QMenu * systemMenu(void)
• bool testOption(QMdiSubWindow::SubWindowOption option)
• QWidget * widget(void)
• void showShaded(void)
• void showSystemMenu(void)
94.158 QCursor Class
C++ Reference : http://doc.qt.io/qt-5/QCursor.html
Parameters : void
• QBitmap *bitmap(void)
• QPoint hotSpot(void)
• QBitmap *mask(void)
• QPixmap pixmap(void)
• void setShape(Qt::CursorShape shape)
• Qt::CursorShape shape(void)
94.159 QListView Class
C++ Reference : http://doc.qt.io/qt-5/QListView.html
Parameters : QWidget *
Parent Class : QAbstractItemView
• int batchSize(void)
• void clearPropertyFlags(void)
• QListView::Flow flow(void)
• QSize gridSize(void)
• bool isRowHidden(int row)
• bool isSelectionRectVisible(void)
• bool isWrapping(void)
• QListView::LayoutMode layoutMode(void)
• int modelColumn(void)
• QListView::Movement movement(void)
• QListView::ResizeMode resizeMode(void)
• void setBatchSize(int batchSize)
• void setFlow(QListView::Flow flow)
• void setGridSize( QSize size)
• void setLayoutMode(QListView::LayoutMode mode)
94.158. QCursor Class 1691

8. Ring Documentation, Release 1.5.2
• void setModelColumn(int column)
• void setMovement(QListView::Movement movement)
• void setResizeMode(QListView::ResizeMode mode)
• void setRowHidden(int row, bool hide)
• void setSelectionRectVisible(bool show)
• void setSpacing(int space)
• void setUniformItemSizes(bool enable)
• void setViewMode(QListView::ViewMode mode)
• void setWordWrap(bool on)
• void setWrapping(bool enable)
• int spacing(void)
• bool uniformItemSizes(void)
• QListView::ViewMode viewMode(void)
• bool wordWrap(void)
94.160 QAxObject Class
C++ Reference : http://doc.qt.io/qt-5/QAxObject.html
Parameters : QString
Parent Class : QAxBase
94.161 QAxBase Class
C++ Reference : http://doc.qt.io/qt-5/QAxBase.html
Parameters : QWidget *
Parent Class : QObject
• QVariant asVariant(void)
• QString control(void)
• void disableClassInfo(void)
• void disableEventSink(void)
• void disableMetaObject(void)
• QVariant dynamicCall( char *function)
• QVariant dynamicCall_2( char *function,QString)
• QString generateDocumentation(void)
• bool isNull(void)
• QAxObject * querySubObject( char *name)
• bool setControl( QString )
94.160. QAxObject Class 1692

9. Ring Documentation, Release 1.5.2
• QStringList verbs(void)
94.162 QUuid Class
C++ Reference : http://doc.qt.io/qt-5/QUuid.html
Parameters : void
• QString toString(void)
94.163 QToolButton Class
C++ Reference : http://doc.qt.io/qt-5/QToolButton.html
Parameters : QWidget *
Parent Class : QAbstractButton
• Qt::ArrowType arrowType(void)
• bool autoRaise(void)
• QAction * defaultAction(void)
• QMenu * menu(void)
• QToolButton::ToolButtonPopupMode popupMode(void)
• void setArrowType(Qt::ArrowType type)
• void setAutoRaise(bool enable)
• void setMenu(QMenu * menu)
• void setPopupMode(QToolButton::ToolButtonPopupMode mode)
• Qt::ToolButtonStyle toolButtonStyle(void)
• void setDefaultAction(QAction * action)
• void setToolButtonStyle(Qt::ToolButtonStyle style)
• void showMenu(void)
• void settriggeredEvent(const char *)
• const char *gettriggeredEvent(void)
• void setClickEvent(const char *)
• const char *getClickEvent(void)
94.164 QSerialPort Class
C++ Reference : http://doc.qt.io/qt-5/QSerialPort.html
Parameters : QObject *
Parent Class : QIODevice
• qint32 baudRate(QSerialPort::Directions directions)
94.162. QUuid Class 1693

10. Ring Documentation, Release 1.5.2
• bool clear(QSerialPort::Directions directions)
• void clearError(void)
• QSerialPort::DataBits dataBits(void)
• QSerialPort::SerialPortError error(void)
• QSerialPort::FlowControl flowControl(void)
• bool flush(void)
• void *handle(void)
• bool isDataTerminalReady(void)
• bool isRequestToSend(void)
• QSerialPort::Parity parity(void)
• QSerialPort::PinoutSignals pinoutSignals(void)
• QString portName(void)
• qint64 readBufferSize(void)
• bool setBaudRate(qint32 baudRate, QSerialPort::Directions directions)
• bool setBreakEnabled(bool set)
• bool setDataBits(QSerialPort::DataBits dataBits)
• bool setDataTerminalReady(bool set)
• bool setFlowControl(QSerialPort::FlowControl flowControl)
• bool setParity(QSerialPort::Parity parity)
• void setPort(QSerialPortInfo serialPortInfo)
• void setPortName(QString name)
• void setReadBufferSize(qint64 size)
• bool setRequestToSend(bool set)
• bool setStopBits(QSerialPort::StopBits stopBits)
• QSerialPort::StopBits stopBits(void)
• void setbaudRateChangedEvent(const char *)
• void setbreakEnabledChangedEvent(const char *)
• void setdataBitsChangedEvent(const char *)
• void setdataTerminalReadyChangedEvent(const char *)
• void seterrorEvent(const char *)
• void setflowControlChangedEvent(const char *)
• void setparityChangedEvent(const char *)
• void setrequestToSendChangedEvent(const char *)
• void setstopBitsChangedEvent(const char *)
• const char *getbaudRateChangedEvent(void)
• const char *getbreakEnabledChangedEvent(void)
94.164. QSerialPort Class 1694
