1. The Reactive Rollercoaster
Wyko Rijnsburger

2. 1. What, Why?
2. Elements of a Reactive JVM App
3. Real World Example
4. Tips

3. "Programming paradigm concerned
with data stream and the propagation
to change"
https://en.wikipedia.org/wiki/Reactive_programming

4. Writing asynchronous, non-blocking
code using Reactive APIs

5. val product: Product = getProductSync()
val offer: Offer = getOfferSync()
return combine(product, offer)

6. Thread
getProductSync()getOfferSync()combine()

7. Thread Thread Thread
getProductSync() getProductSync() getProductSync()

8. val product: Future<Product> = getProductAsync()
val offer: Future<Offer> = getOfferAsync()
return combine(product, offer)

9. Thread
getProductAsync()getOfferAsync()combine()

10. getProductSync() getOfferSync() combine()
combine()
getProductAsync() getOfferAsync()

11. "Handle concurrency with a small
number of threads and scale with less
hardware resources"
https://docs.spring.io/spring/docs/current/spring-framework-reference/web-reactive.html

12. Reactive API
● Reactive Streams specification
● "Reactive Streams is an initiative to provide a standard for asynchronous
stream processing with non-blocking back pressure."
● JDK9: java.util.concurrent.Flow

13. Project Reactor
Observable<T>
Single<T>
Flux<T>
Mono<T>
RxJava
0..N
0..1

14. ● .map()
● .flatMap()
● .zip()

15. Elements of a Reactive
JVM App

16. HTTP Client
Business logic
Controller/API
Product
ProcessedProduct
Backspin Driver/RestTemplate=
Spring MVC=

17. HTTP Client
Business logic
Controller/API
Mono<Product>
Mono<Processed
Product>
Non-blocking HTTP client
AsyncHttpClient/WebClient=
DeferredResult
Spring 5 -> Return Reactive Types=

19. HTTP Client
Business logic
Controller/API
Observable<Product>
Mono<Processed
Product>
Non-blocking HTTP client
AsyncHttpClient/WebClient=
Spring MVC + DeferredResult
WebFlux=
Mono<Product>

21. val p: Mono<Optional<Product>> = getProduct()

22. HTTP Client
Business logic
Controller/API
Observable<Product>
Mono<Optional<ProcessedProduct>
Non-blocking HTTP client
AsyncHttpClient/WebClient=
Spring MVC + DeferredResult
WebFlux=
Mono<Optional<Product>>

23. App API

26. val bundles = bundleService.getBundles(id, countryCode)
.onErrorReturn(emptyList())
val specifications = productService.getSpecifications(id)
.onErrorReturn(Optional.empty())
val offers = offerService.getOffers(id)
.onErrorReturn(Optional.empty())
Mono.zip(bundles, specifications, offers)
.map { doSomething() }

29. .flatMap()
"Ordering of the flattened values: this operator
does not necessarily preserve original ordering,
as inner elements are flattened as they arrive."

30. .flatMapSequential()
"Ordering of the flattened values: this operator
queues elements from late inners until all
elements from earlier inners have been emitted,
thus emitting inner sequences as a whole, in an
order that matches their source's order."

35. ● Performance: to
● Readability:

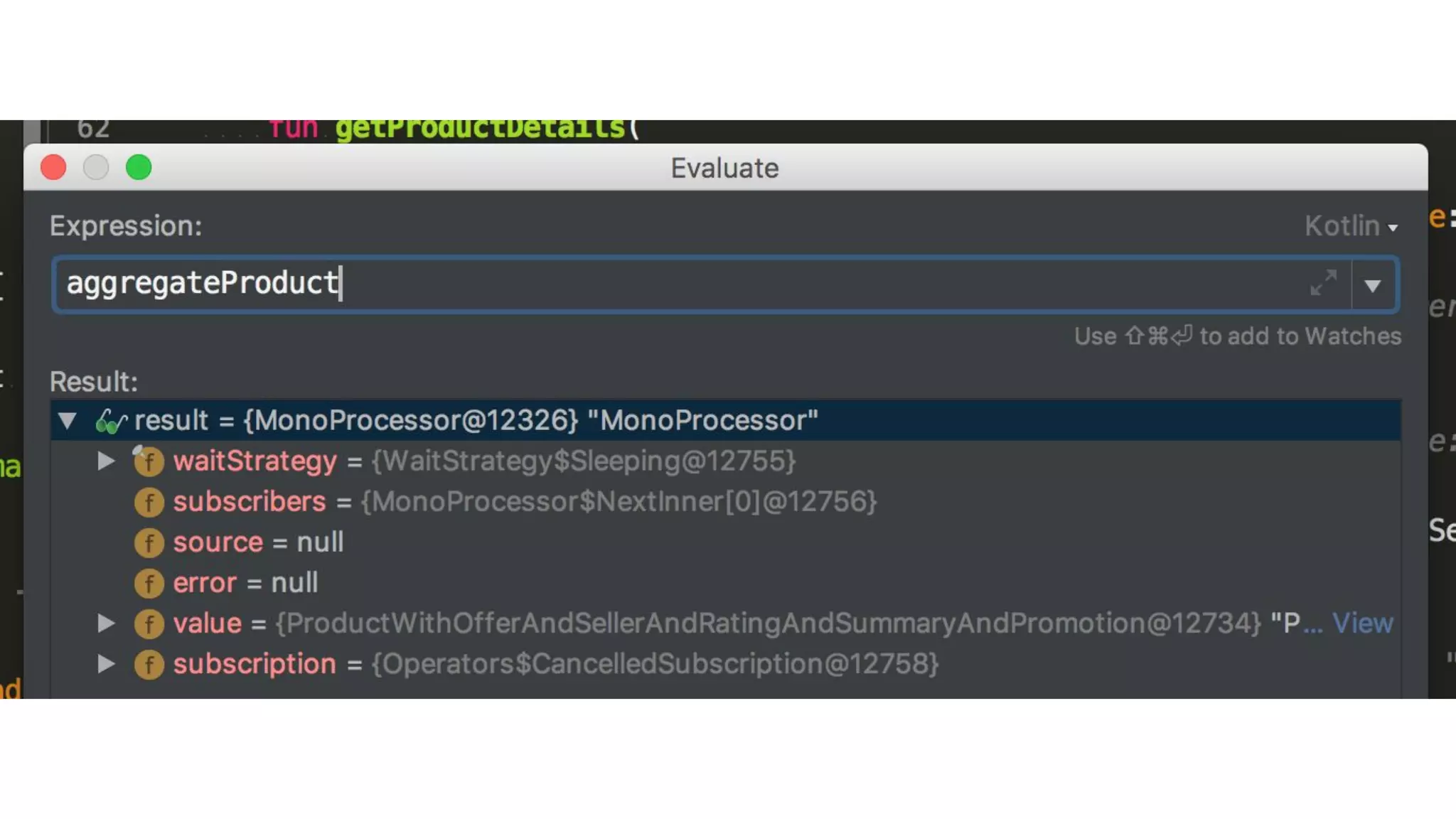

● Debugging:
● Number of unexpected issues:
● Future readiness:

36. Tips

37. Start from the top
(HTTP clients/DB drivers)

38. Use Tomcat 8

39. Use Optional within
Reactive Types

40. Convert Reactive Types to
RxJava1 when using
Hystrix
Set Isolation Strategy to
Semaphore

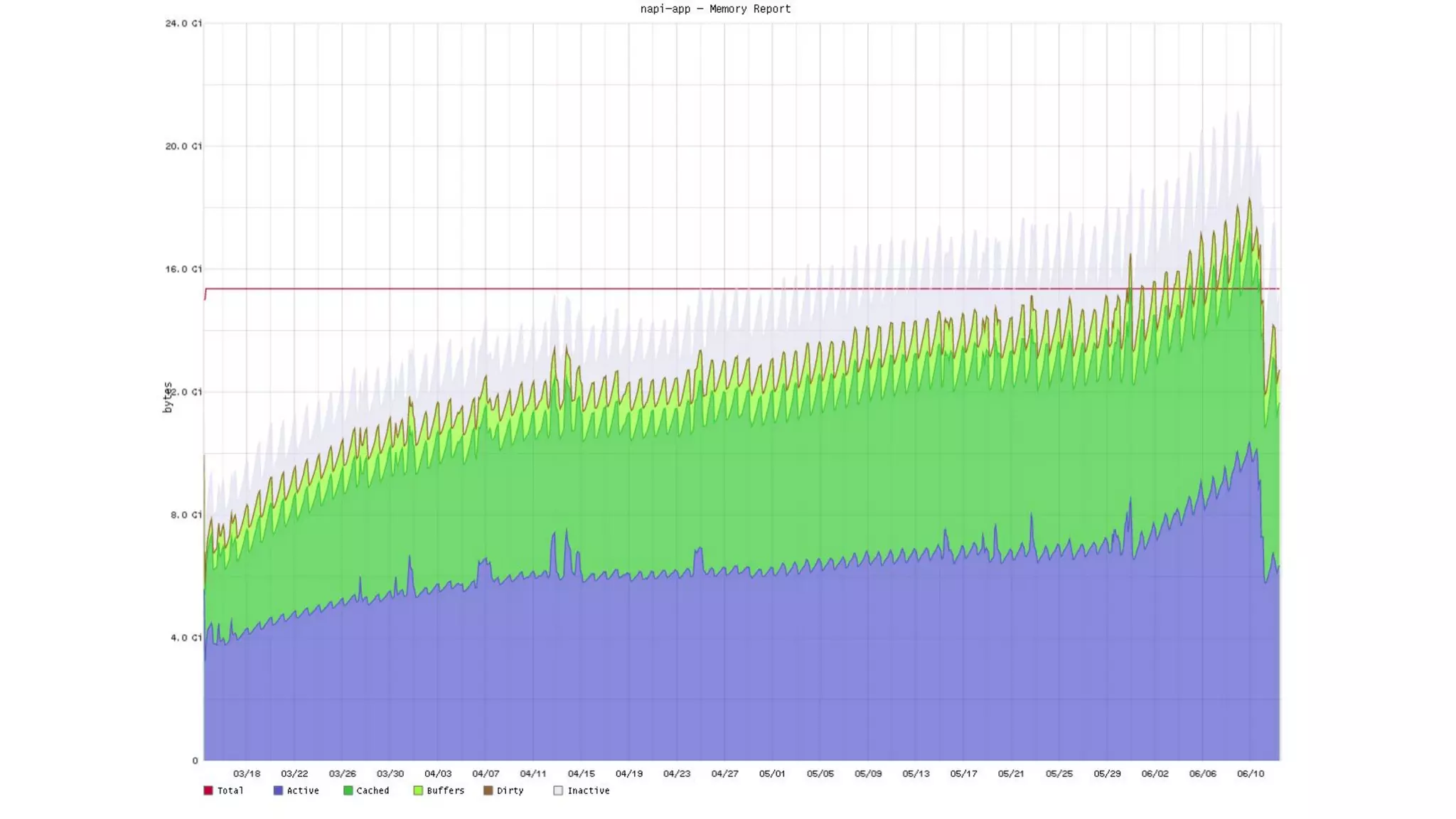

41. Performance test

44. Thanks!
