This document provides specifications for a 17x zoom lens, including its focal length range of 5-85mm, maximum aperture of f/1.4, angular field of view, filter size, dimensions, weight, and inner focusing feature. It also lists accessories for manual and servo control of focus and zoom, including modules, cables, grips, and handles.

2. Th17x5BRM
Zoom Ratio / Format 17X / 1/3"
Focal Length 5 to 85 mm
Maximum Relative Aperture 1:1.4 (5 ~ 85 mm)
Angular Field of View 5 mm55° 13’ x 32° 46’
16:9 Aspect Ratio 85 mm3° 31’ x 1° 59’
M.O.D. from Image Plane 1.11 m
M.O.D. from Front of Lens 0.90 m
Object Dimensions 5 mm872 x 490 mm
at M.O.D. 85 mm51 x 29 mm
Filter Size ø 82 mm P=0.75
Dia ø x Length (w/o Hood) ø85 x 185.5 mm
Weight (w/o Hood) 1.25 kg
Features Inner Focus

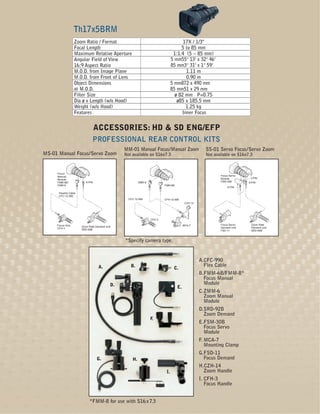

ACCESSORIES: HD & SD ENG/EFP
PROFESSIONAL REAR CONTROL KITS
MM-01 Manual Focus/Manual Zoom SS-01 Servo Focus/Servo Zoom
MS-01 Manual Focus/Servo Zoom Not available on S16x7.3 Not available on S16x7.3
Focus
Manual Focus Servo
Module 3-PIN
Module
FMM-6B/ 8-PIN ZMM-6 FSM-30B 8-PIN
FMM-8 FMM-6B
6-PIN
Flexible Cable
CFC-12-990
CFC-12-990 CFH-12-990
CZH-14
CFH-3
Focus Grip MCA-7 Focus Servo Zoom Rate
Zoom Rate Demand Unit Demand Unit Demand Unit
CFH-3 SRD-92B FSD-11 SRD-92B
*Specify camera type.
A.CFC-990
A. B. Flex Cable
C.
B.FMM-6B/FMM-8*
Focus Manual
D. Module
E.
C.ZMM-6
Zoom Manual
Module
D.SRD-92B
Zoom Demand
F.
E.FSM-30B
Focus Servo
Module
F. MCA-7
Mounting Clamp
G.FSD-11
G. H. Focus Demand
H.CZH-14
I. Zoom Handle
I. CFH-3
Focus Handle
*FMM-8 for use with S16 x 7.3
