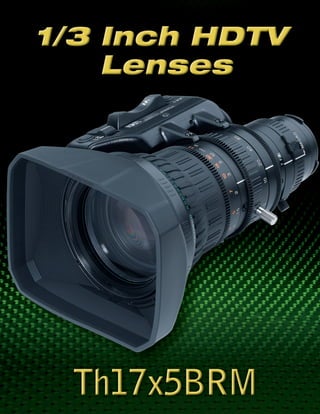

2. Th17x5BRM
Zoom Ratio / Format 17X / 1/3"
Focal Length 5 to 85 mm
Maximum Relative Aperture 1:1.4 (5 ~ 85 mm)
Angular Field of View 5 mm55° 13’ x 32° 46’
16:9 Aspect Ratio 85 mm3° 31’ x 1° 59’
M.O.D. from Image Plane 1.11 m
M.O.D. from Front of Lens 0.90 m
Object Dimensions 5 mm872 x 490 mm
at M.O.D. 85 mm51 x 29 mm
Filter Size ø 82 mm P=0.75
Dia ø x Length (w/o Hood) ø85 x 185.5 mm
Weight (w/o Hood) 1.25 kg
Features Inner Focus
ACCESSORIES: HD & SD ENG/EFP
PROFESSIONAL REAR CONTROL KITS
MM-01 Manual Focus/Manual Zoom SS-01 Servo Focus/Servo Zoom
MS-01 Manual Focus/Servo Zoom Not available on S16x7.3 Not available on S16x7.3
Focus
Manual Focus Servo
Module 3-PIN
Module
FMM-6B/ 8-PIN ZMM-6 FSM-30B 8-PIN
FMM-8 FMM-6B
6-PIN
Flexible Cable
CFC-12-990
CFC-12-990 CFH-12-990
CZH-14
CFH-3
Focus Grip MCA-7 Focus Servo Zoom Rate
Zoom Rate Demand Unit Demand Unit Demand Unit
CFH-3 SRD-92B FSD-11 SRD-92B
*Specify camera type.
A.CFC-990
A. B. Flex Cable
C.
B.FMM-6B/FMM-8*
Focus Manual
D. Module
E.
C.ZMM-6
Zoom Manual
Module
D.SRD-92B
Zoom Demand
F.
E.FSM-30B
Focus Servo
Module
F. MCA-7
Mounting Clamp
G.FSD-11
G. H. Focus Demand
H.CZH-14
I. Zoom Handle
I. CFH-3
Focus Handle
*FMM-8 for use with S16 x 7.3
