Testerone: Test Automation and ATTD using RobotFramework Libraries
- 1. TEST AUTOMATION USING ROBOTFRAMEWORK LIBRARIES BROUGHT TO YOU BY STOJAN PESHOV ATTD

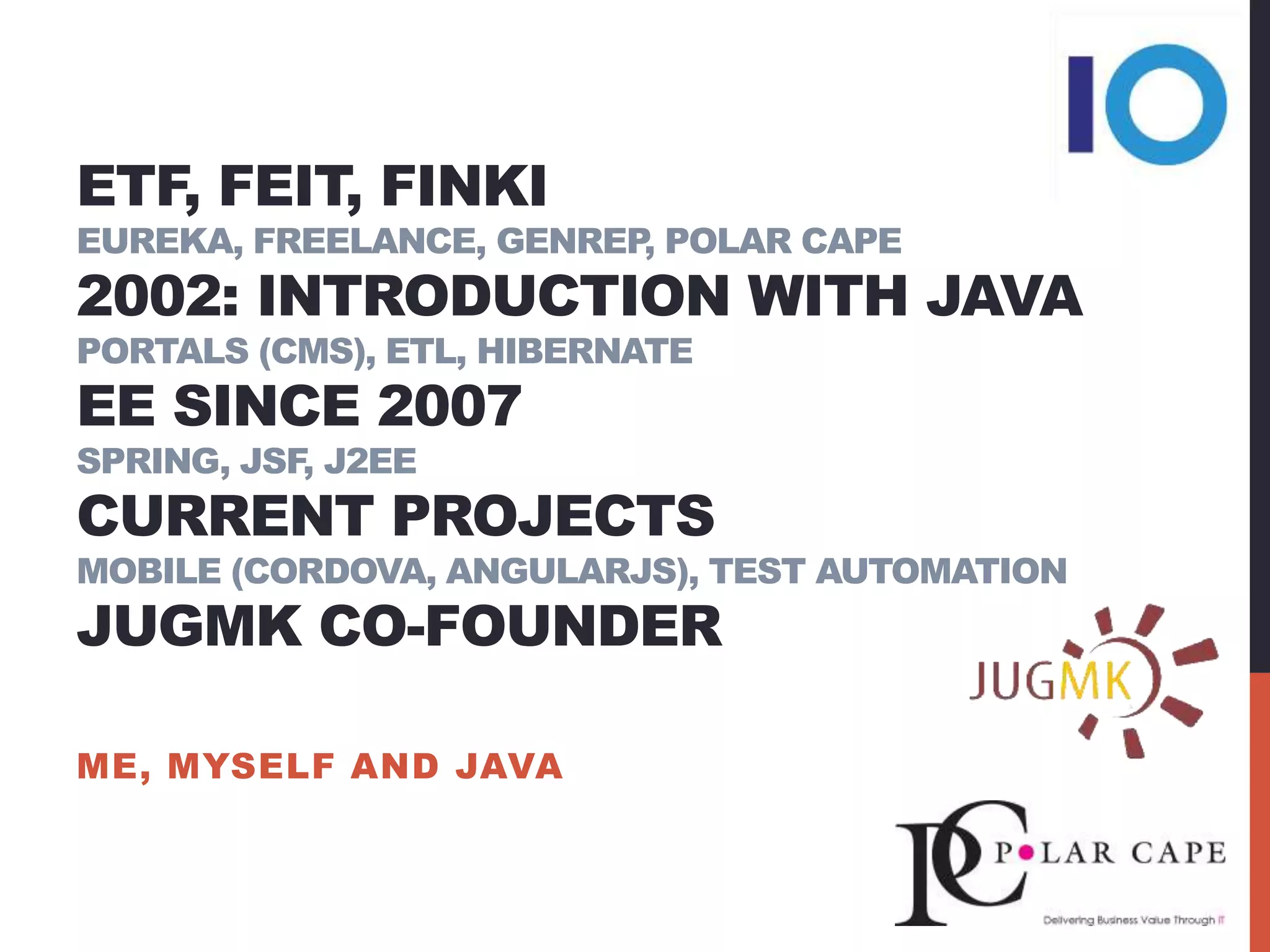

- 2. ME, MYSELF AND JAVA ETF, FEIT, FINKI EUREKA, FREELANCE, GENREP, POLAR CAPE 2002: INTRODUCTION WITH JAVA PORTALS (CMS), ETL, HIBERNATE EE SINCE 2007 SPRING, JSF, J2EE CURRENT PROJECTS MOBILE (CORDOVA, ANGULARJS), TEST AUTOMATION JUGMK CO-FOUNDER

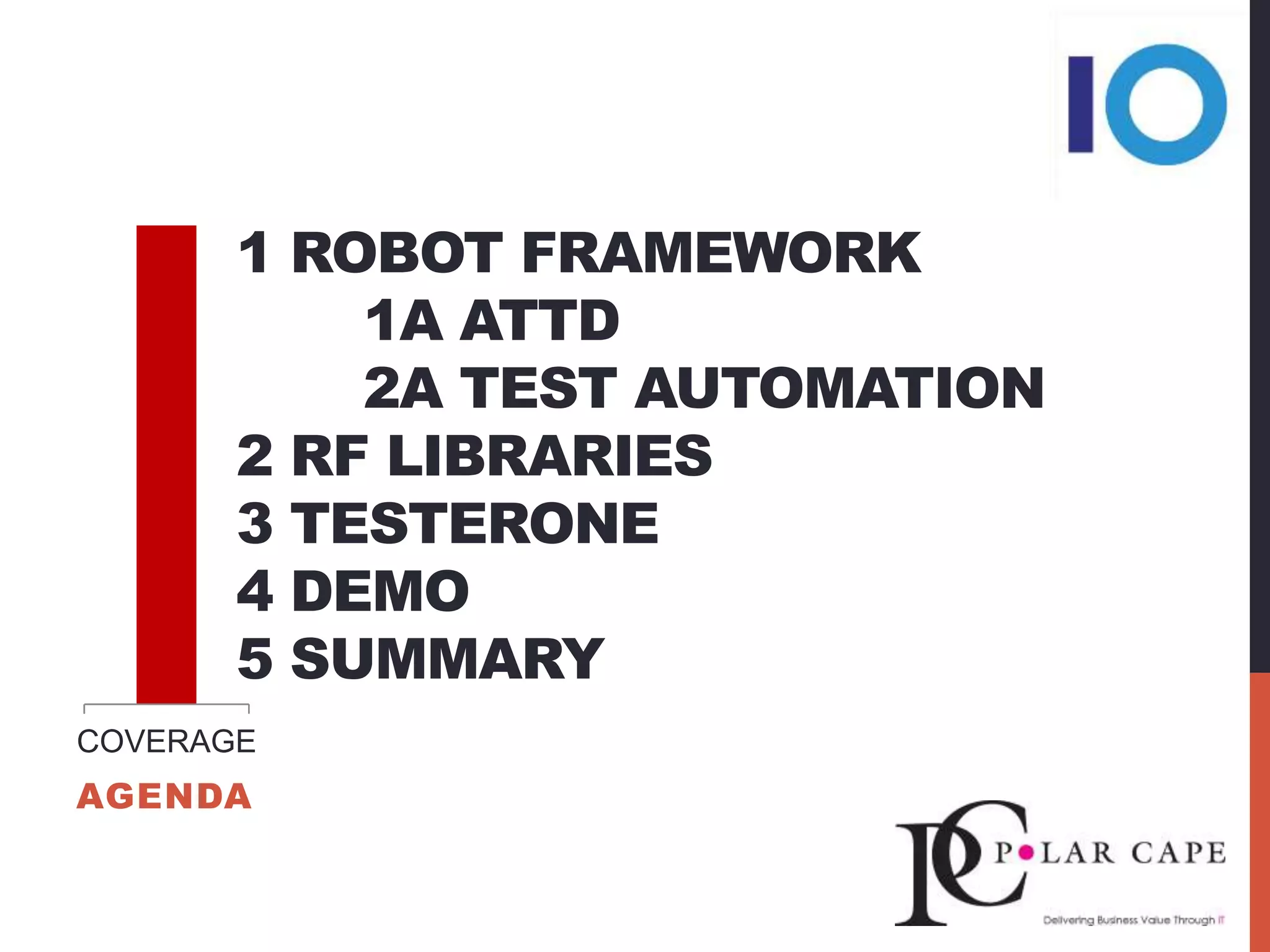

- 3. 1 ROBOT FRAMEWORK 1A ATTD 2A TEST AUTOMATION 2 RF LIBRARIES 3 TESTERONE 4 DEMO 5 SUMMARY AGENDA COVERAGE

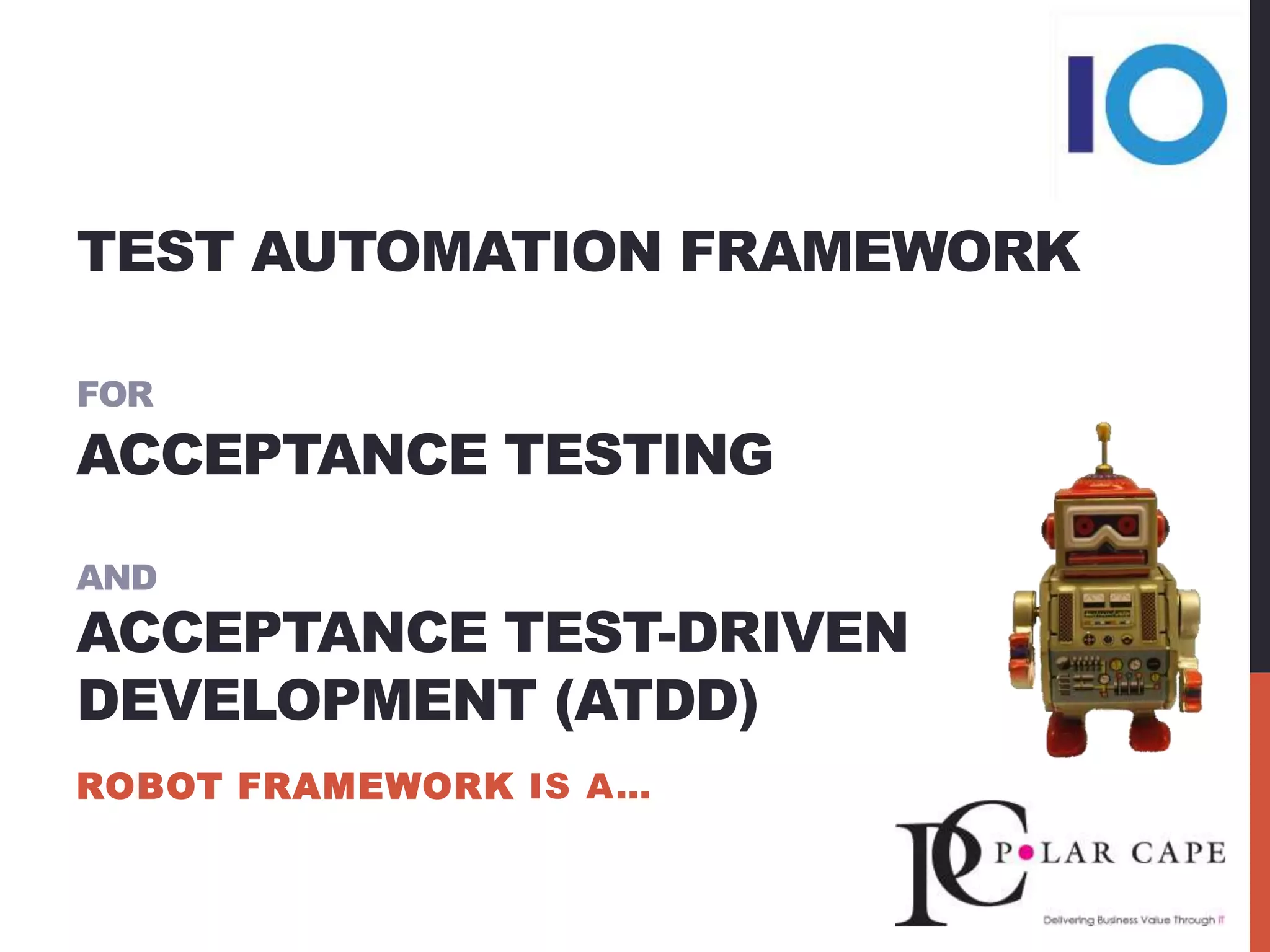

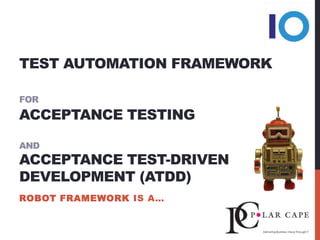

- 4. TEST AUTOMATION FRAMEWORK FOR ACCEPTANCE TESTING AND ACCEPTANCE TEST-DRIVEN DEVELOPMENT (ATDD) ROBOT FRAMEWORK IS A…

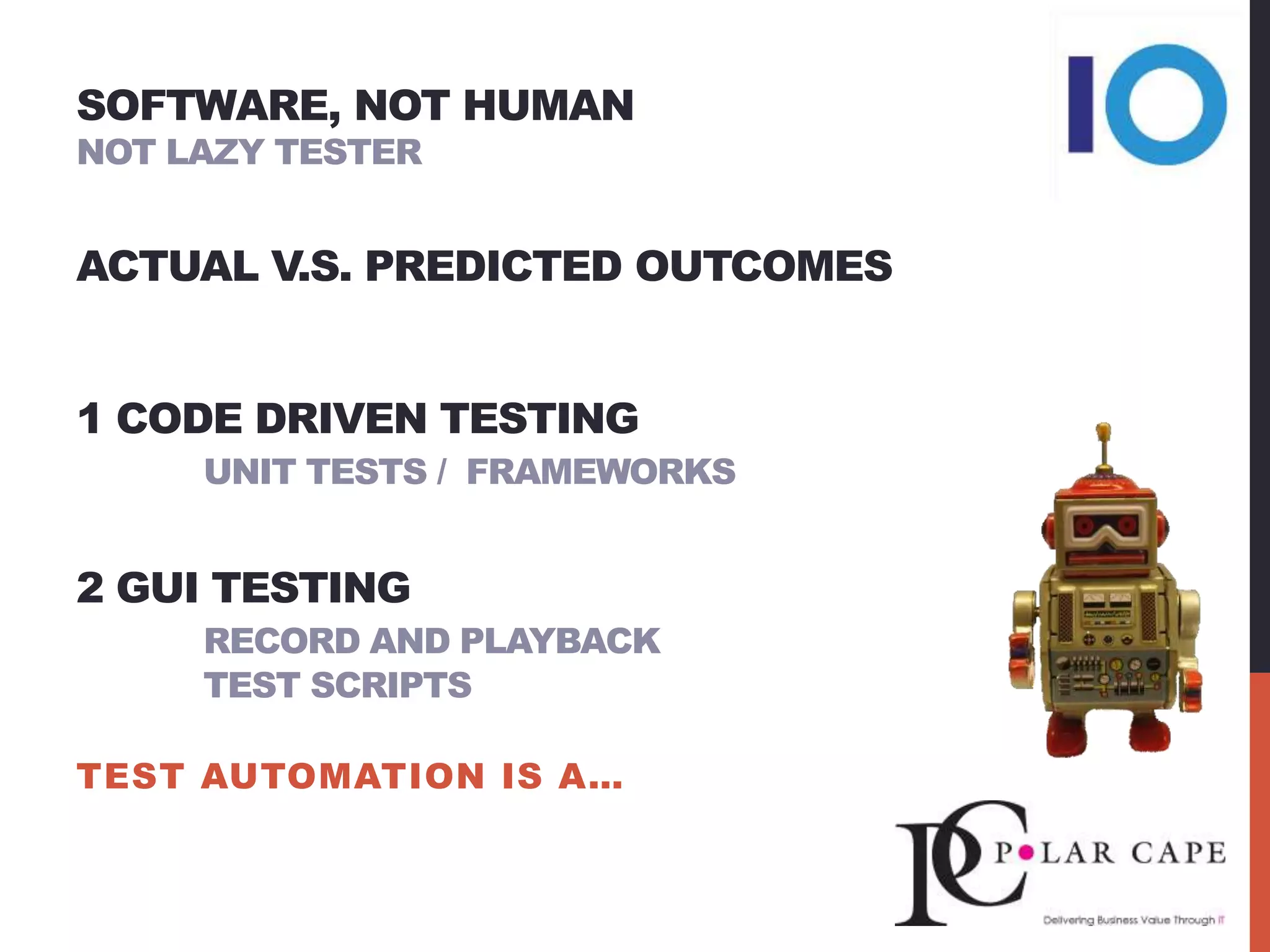

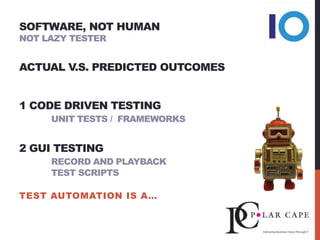

- 5. SOFTWARE, NOT HUMAN NOT LAZY TESTER ACTUAL V.S. PREDICTED OUTCOMES 1 CODE DRIVEN TESTING UNIT TESTS / FRAMEWORKS 2 GUI TESTING RECORD AND PLAYBACK TEST SCRIPTS TEST AUTOMATION IS A…

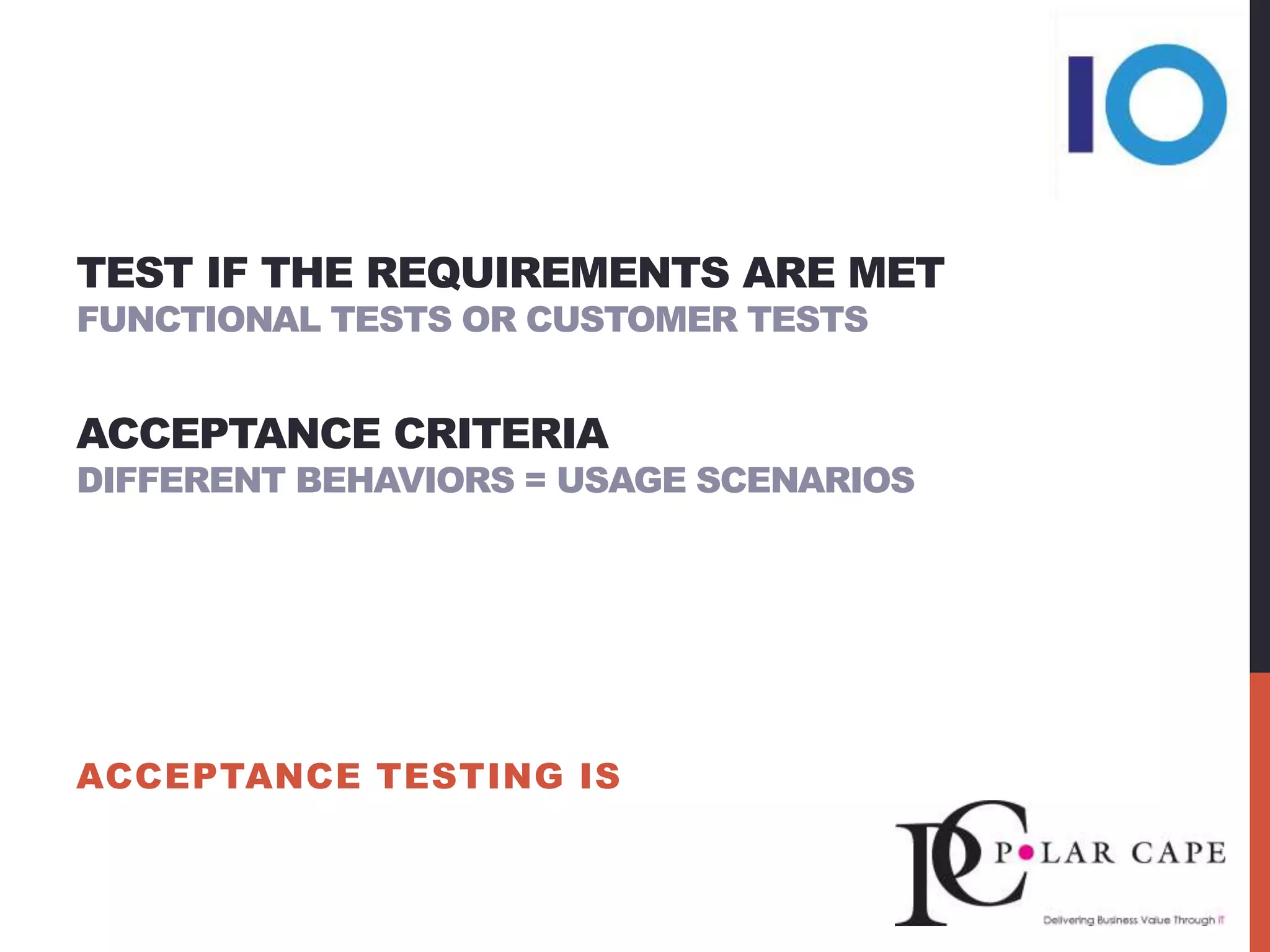

- 6. TEST IF THE REQUIREMENTS ARE MET FUNCTIONAL TESTS OR CUSTOMER TESTS ACCEPTANCE CRITERIA DIFFERENT BEHAVIORS = USAGE SCENARIOS ACCEPTANCE TESTING IS

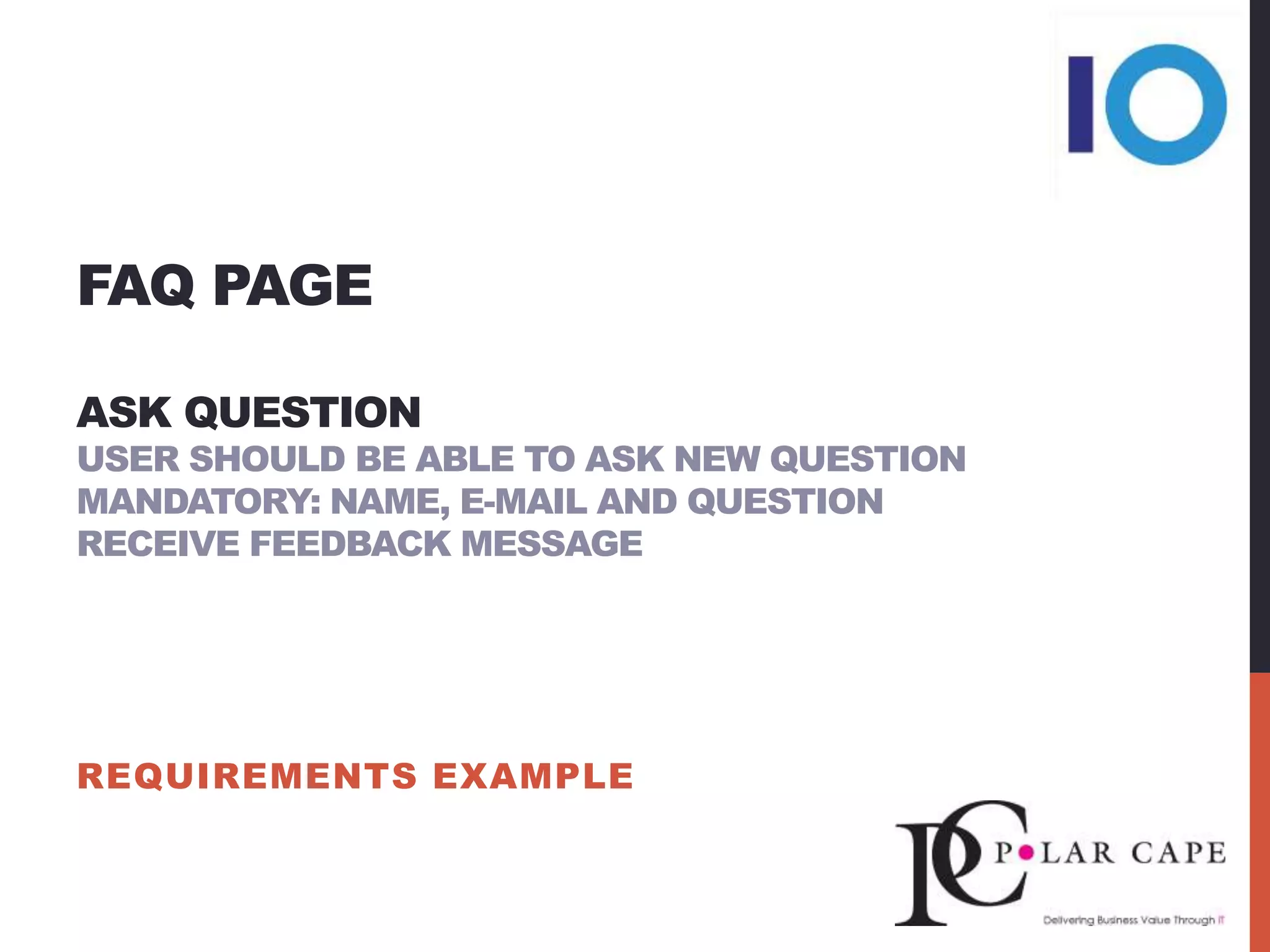

- 7. FAQ PAGE ASK QUESTION USER SHOULD BE ABLE TO ASK NEW QUESTION MANDATORY: NAME, E-MAIL AND QUESTION RECEIVE FEEDBACK MESSAGE REQUIREMENTS EXAMPLE

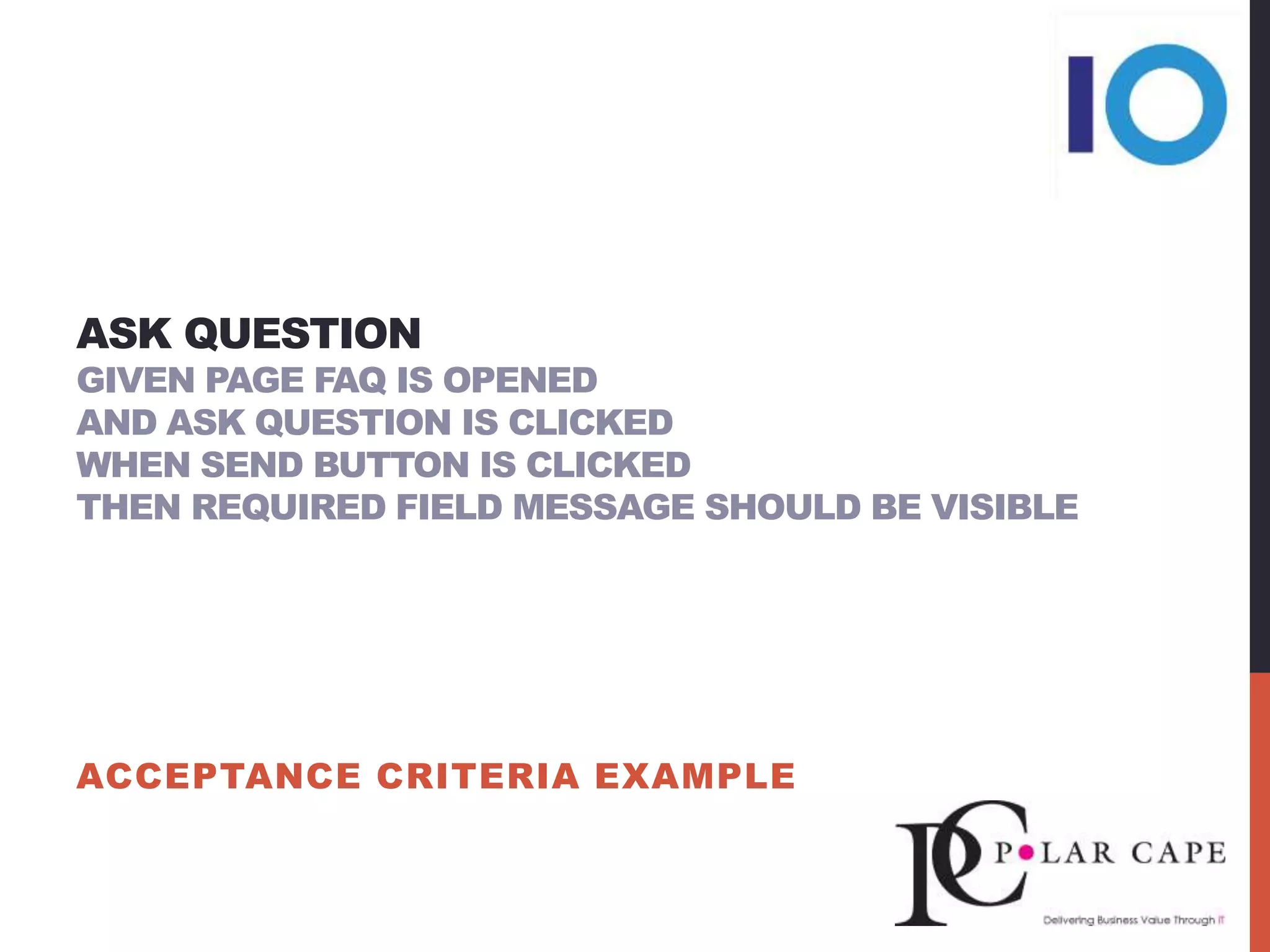

- 8. ASK QUESTION GIVEN PAGE FAQ IS OPENED AND ASK QUESTION IS CLICKED WHEN SEND BUTTON IS CLICKED THEN REQUIRED FIELD MESSAGE SHOULD BE VISIBLE ACCEPTANCE CRITERIA EXAMPLE

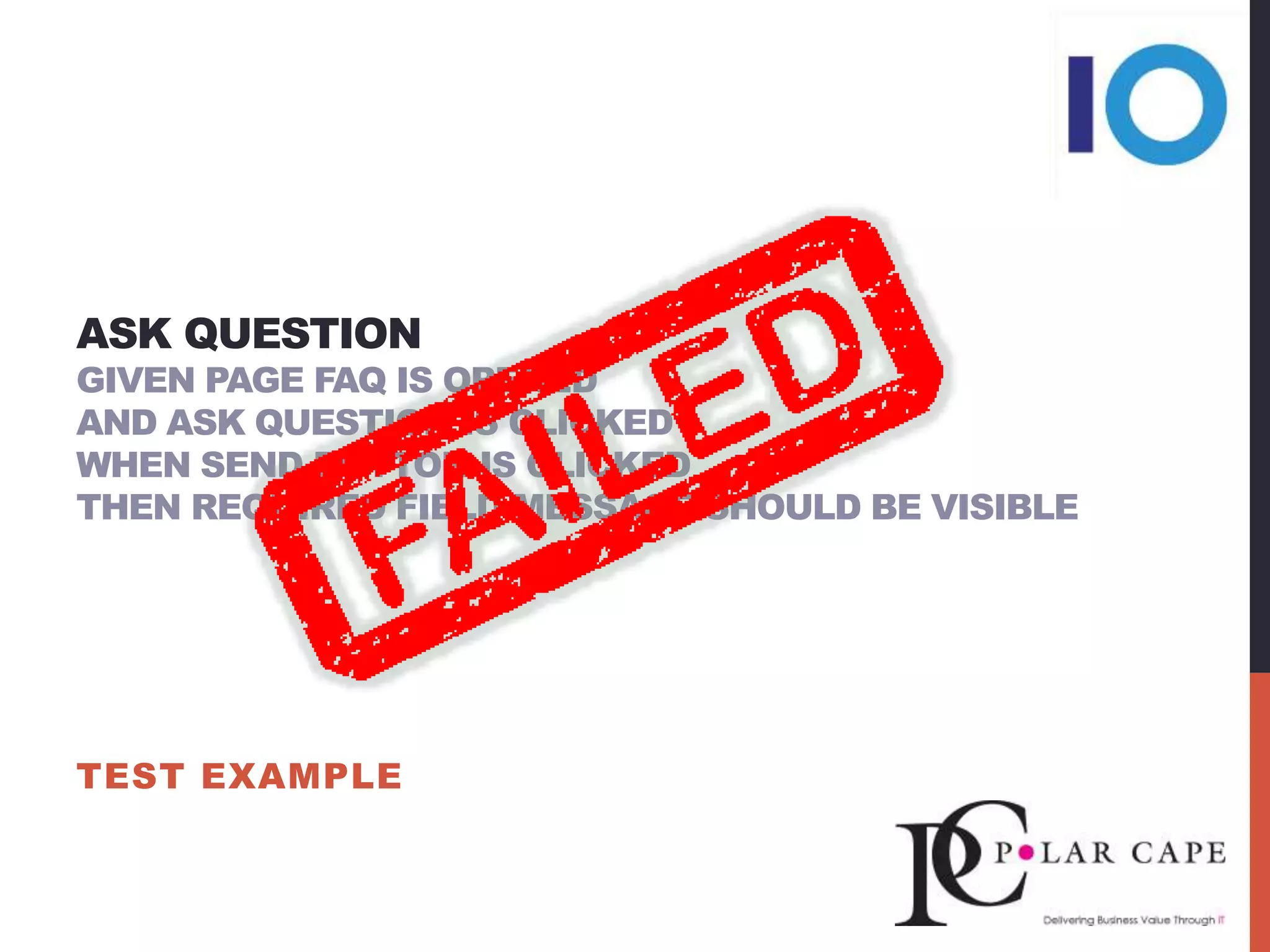

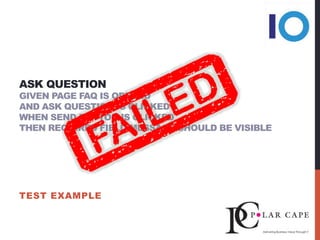

- 9. ASK QUESTION GIVEN PAGE FAQ IS OPENED AND ASK QUESTION IS CLICKED WHEN SEND BUTTON IS CLICKED THEN REQUIRED FIELD MESSAGE SHOULD BE VISIBLE TEST EXAMPLE

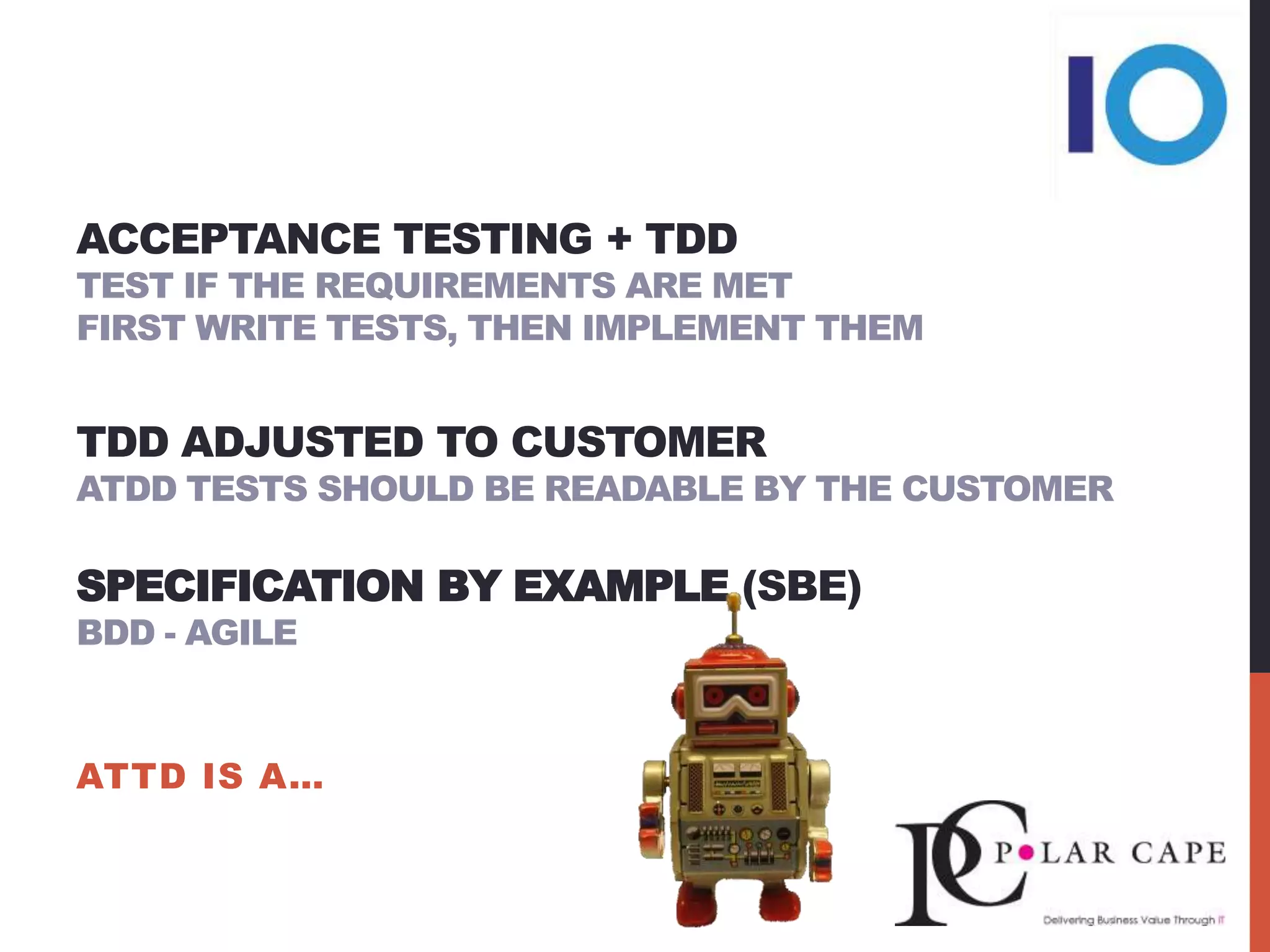

- 10. ACCEPTANCE TESTING + TDD TEST IF THE REQUIREMENTS ARE MET FIRST WRITE TESTS, THEN IMPLEMENT THEM TDD ADJUSTED TO CUSTOMER ATDD TESTS SHOULD BE READABLE BY THE CUSTOMER SPECIFICATION BY EXAMPLE (SBE) BDD - AGILE ATTD IS A…

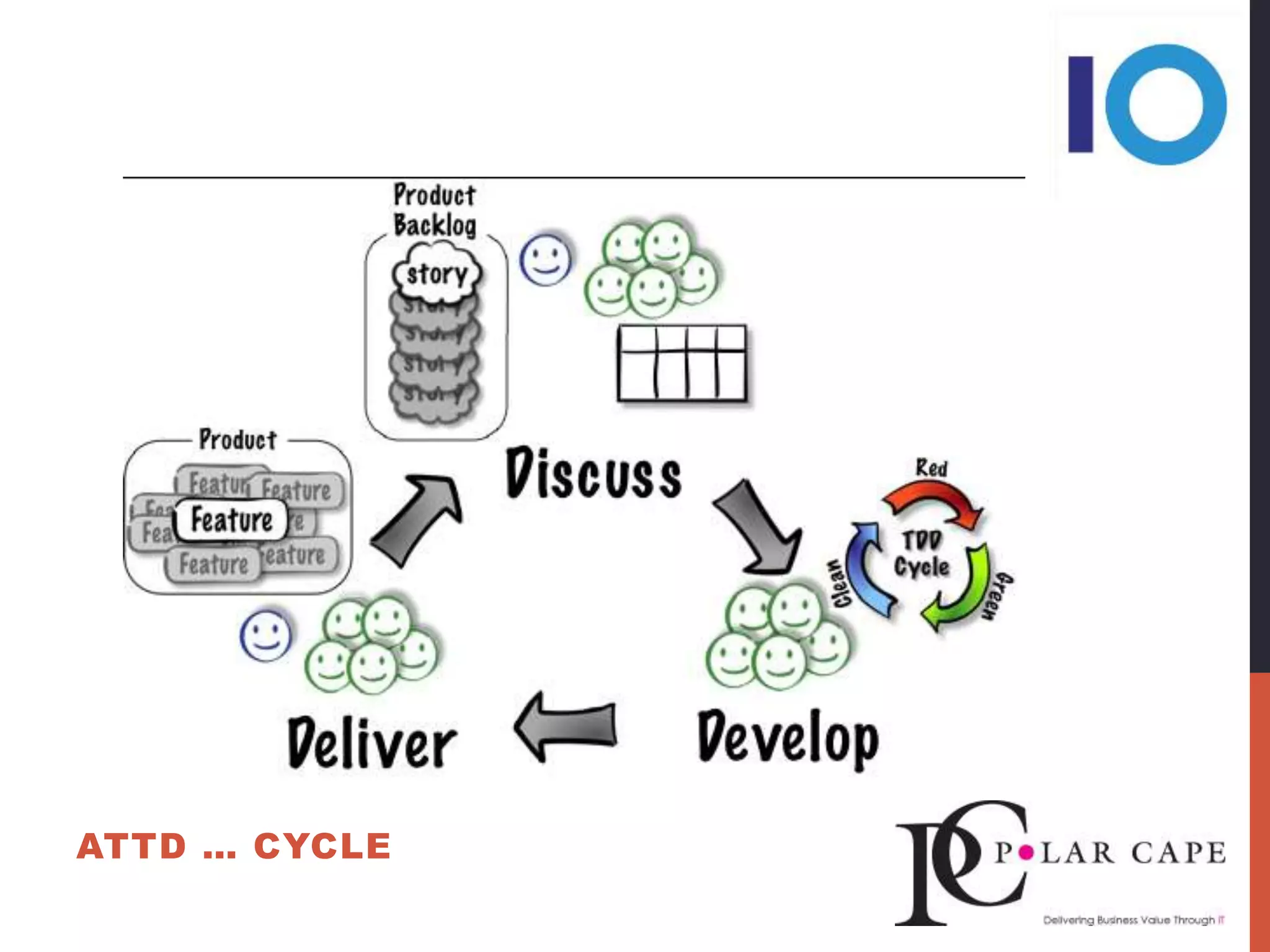

- 11. ATTD … CYCLE

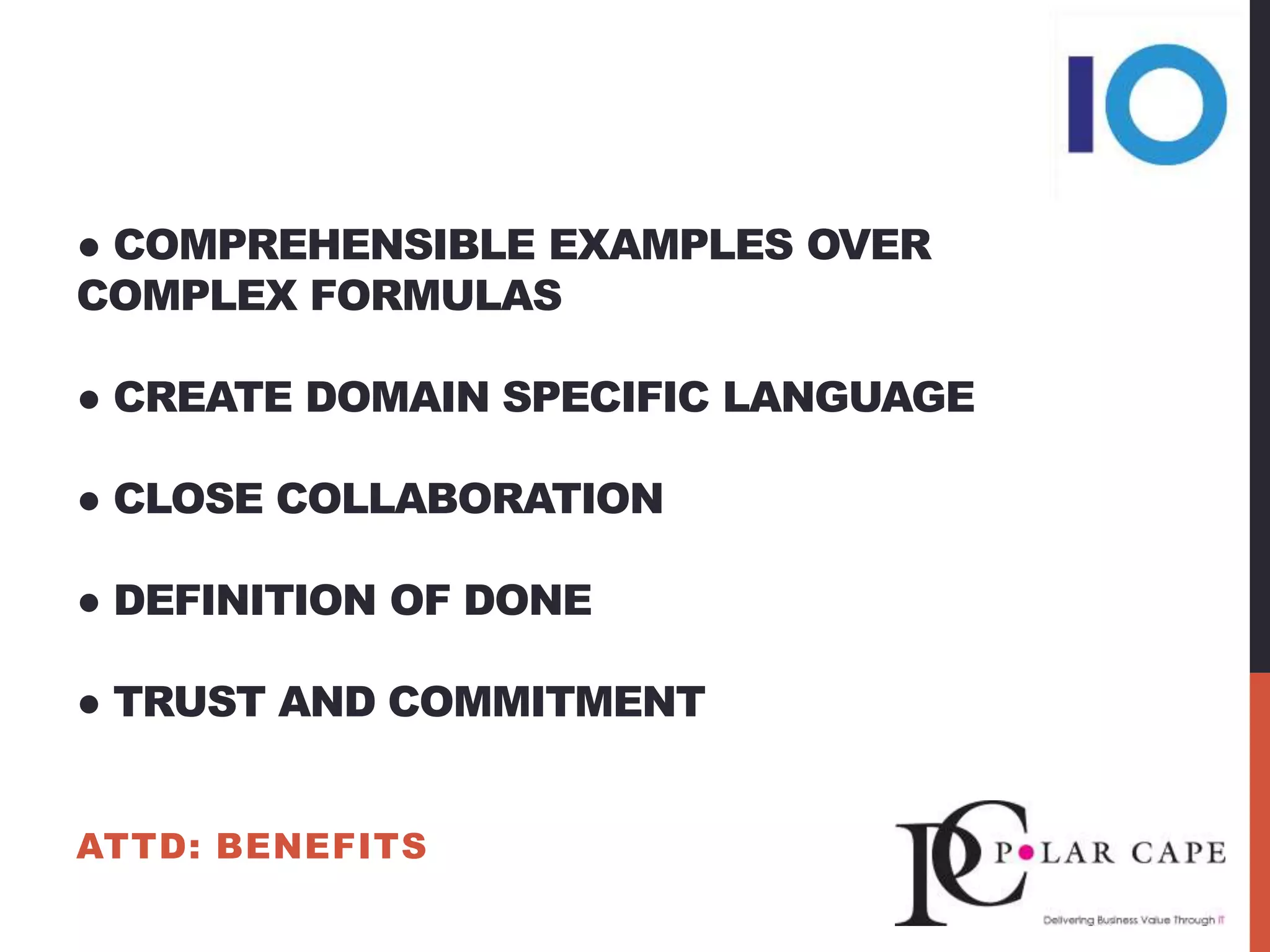

- 13. ATTD: BENEFITS ● COMPREHENSIBLE EXAMPLES OVER COMPLEX FORMULAS ● CREATE DOMAIN SPECIFIC LANGUAGE ● CLOSE COLLABORATION ● DEFINITION OF DONE ● TRUST AND COMMITMENT

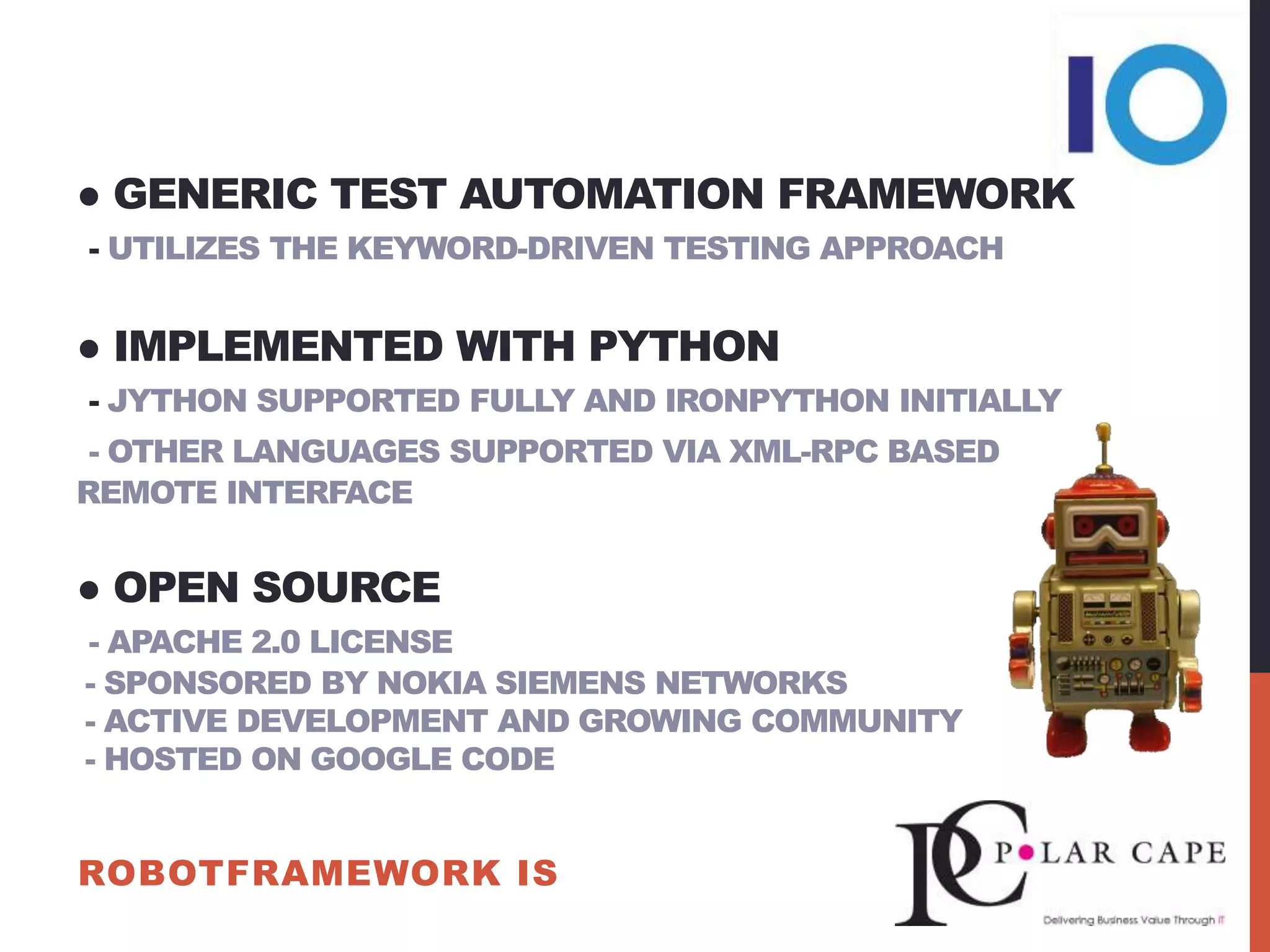

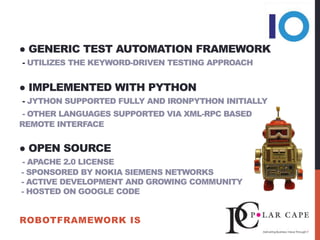

- 15. ● GENERIC TEST AUTOMATION FRAMEWORK - UTILIZES THE KEYWORD-DRIVEN TESTING APPROACH ● IMPLEMENTED WITH PYTHON - JYTHON SUPPORTED FULLY AND IRONPYTHON INITIALLY - OTHER LANGUAGES SUPPORTED VIA XML-RPC BASED REMOTE INTERFACE ● OPEN SOURCE - APACHE 2.0 LICENSE - SPONSORED BY NOKIA SIEMENS NETWORKS - ACTIVE DEVELOPMENT AND GROWING COMMUNITY - HOSTED ON GOOGLE CODE ROBOTFRAMEWORK IS

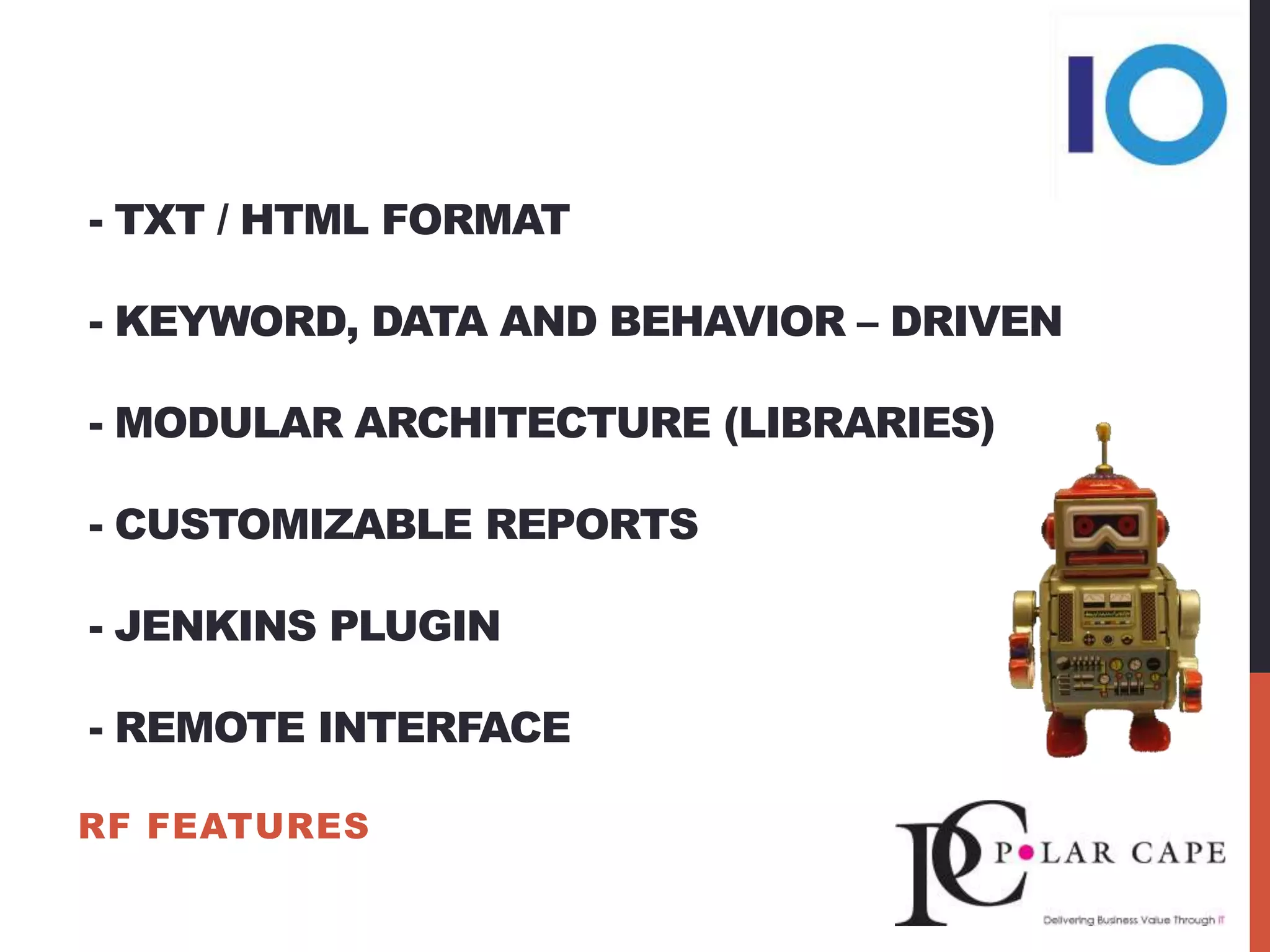

- 16. - TXT / HTML FORMAT - KEYWORD, DATA AND BEHAVIOR – DRIVEN - MODULAR ARCHITECTURE (LIBRARIES) - CUSTOMIZABLE REPORTS - JENKINS PLUGIN - REMOTE INTERFACE RF FEATURES

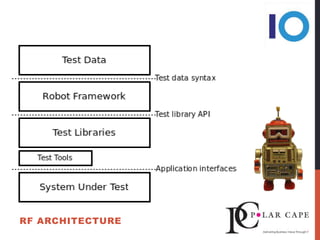

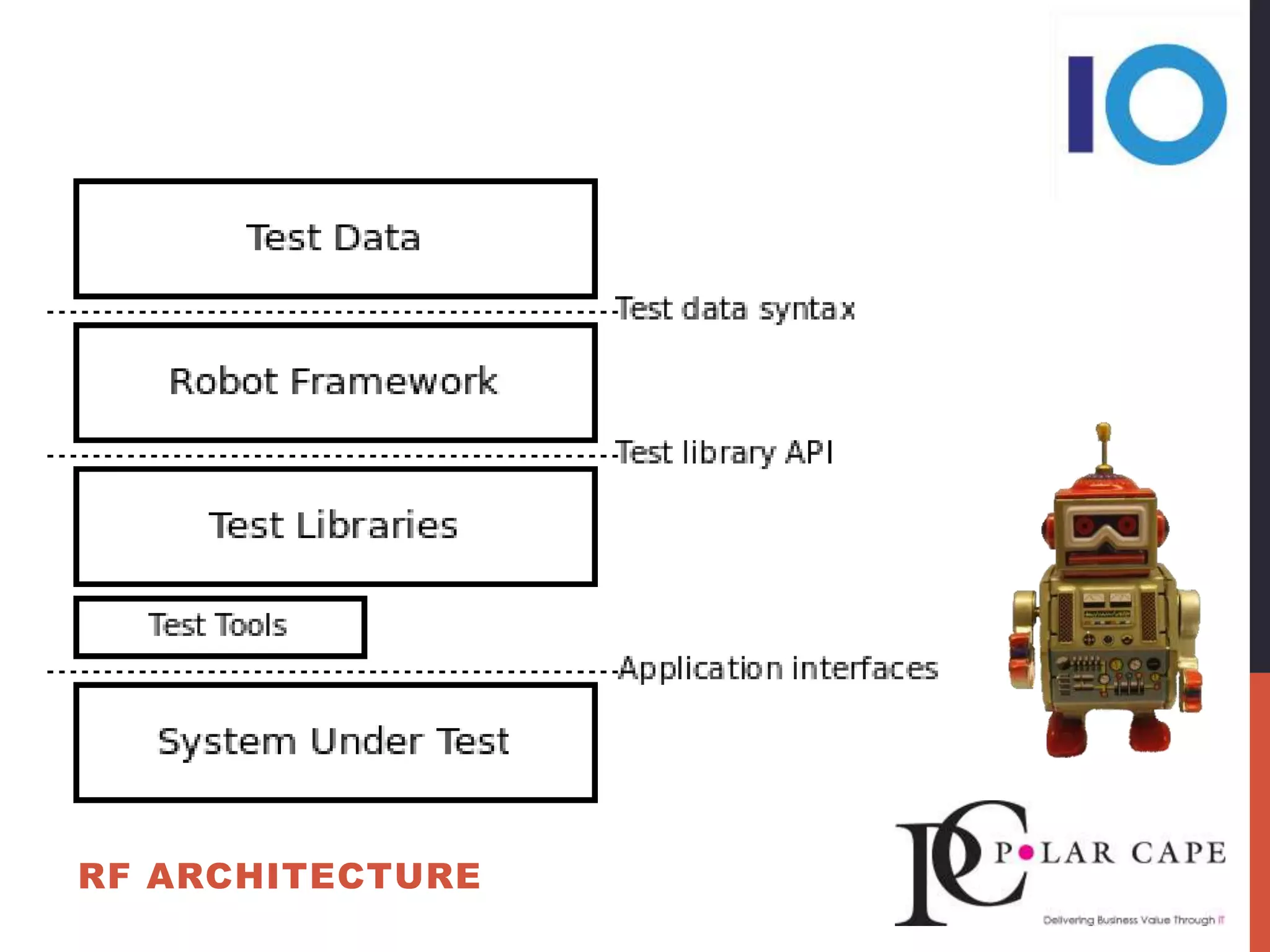

- 17. RF ARCHITECTURE

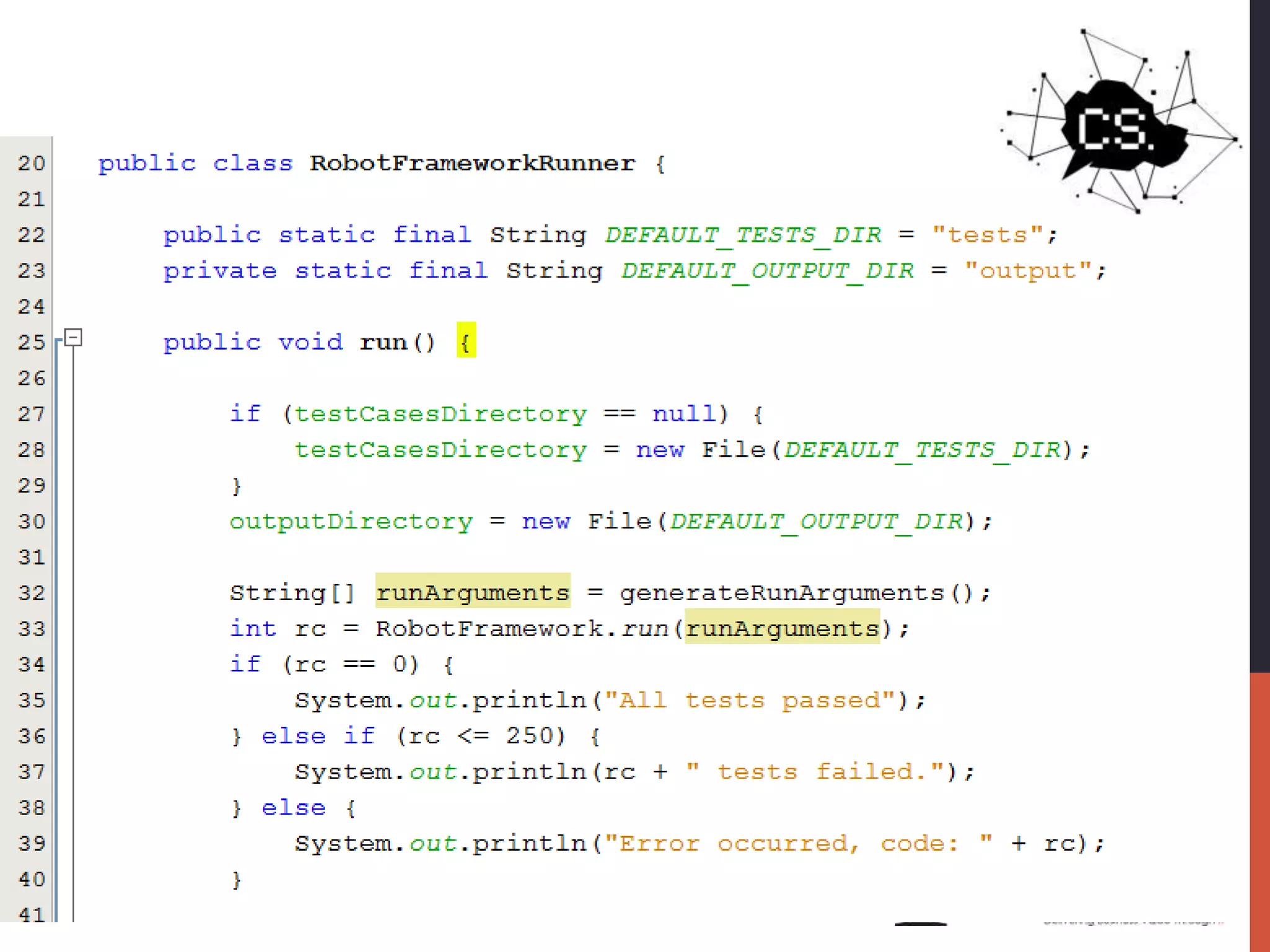

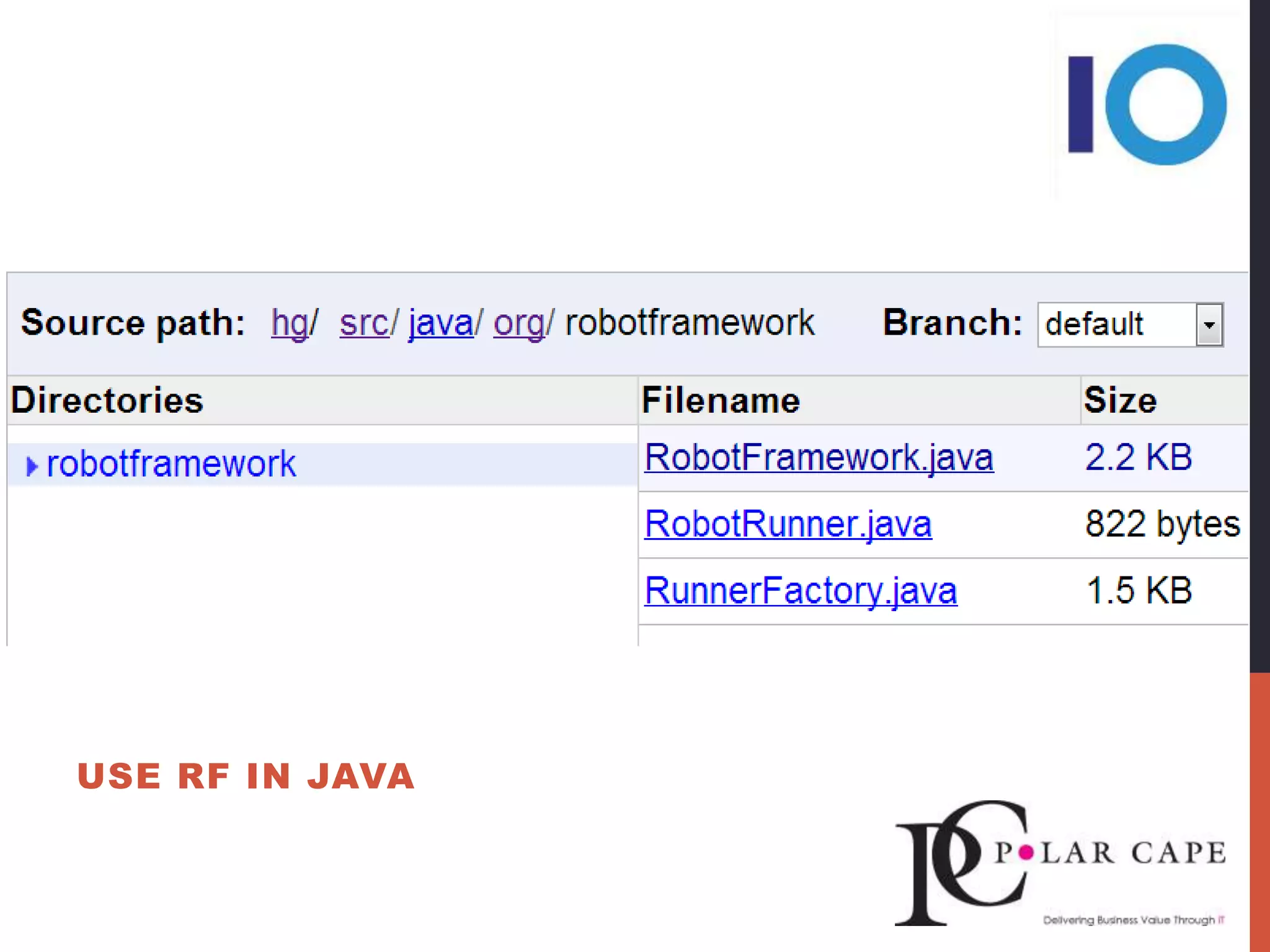

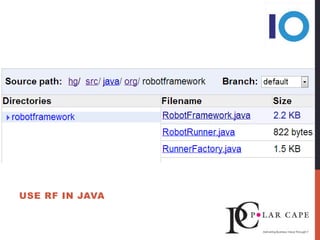

- 18. USE RF IN JAVA

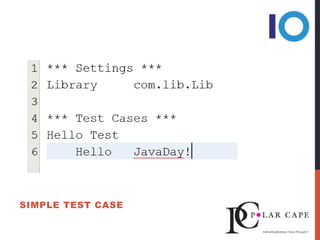

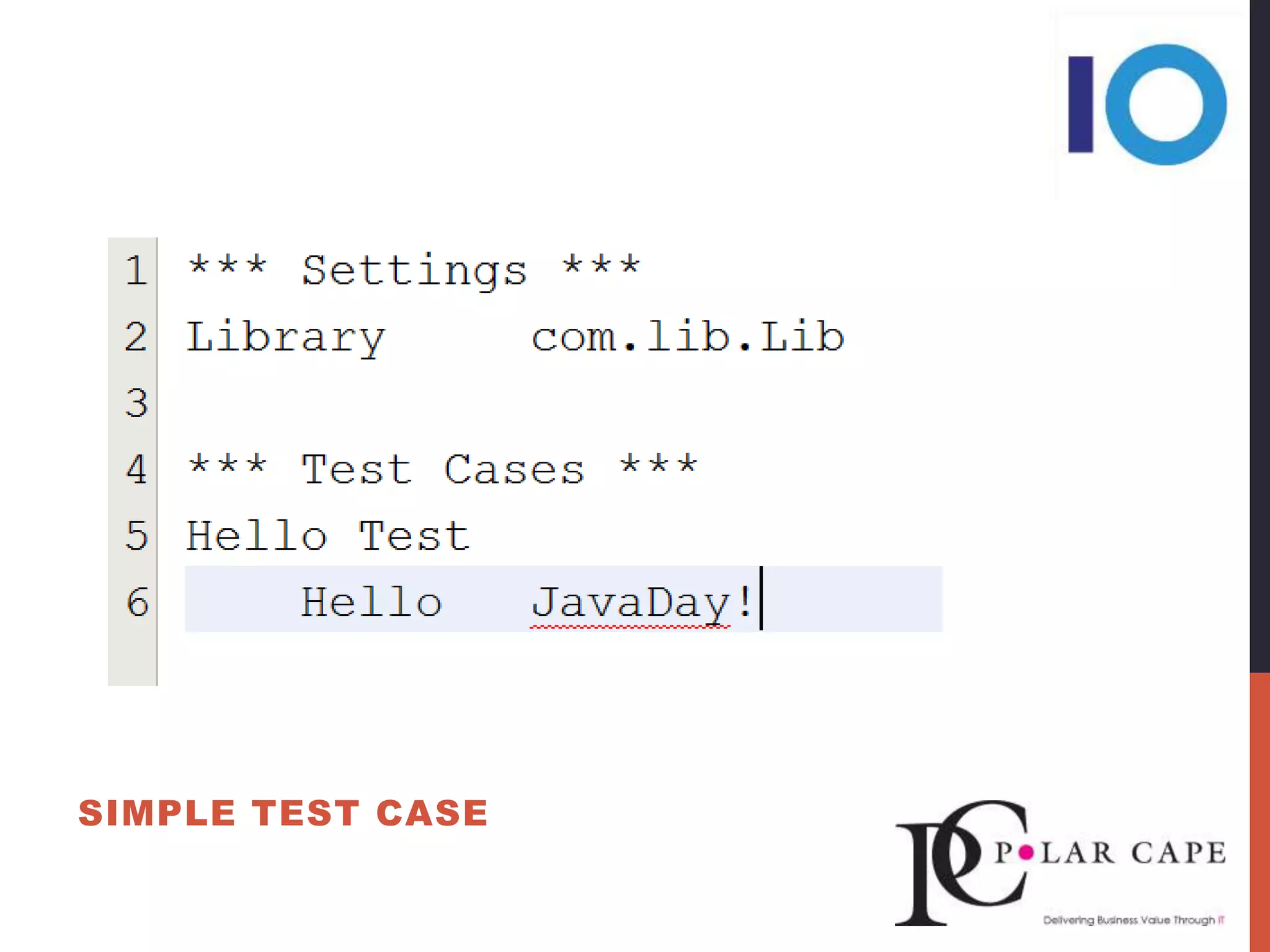

- 21. SIMPLE TEST CASE

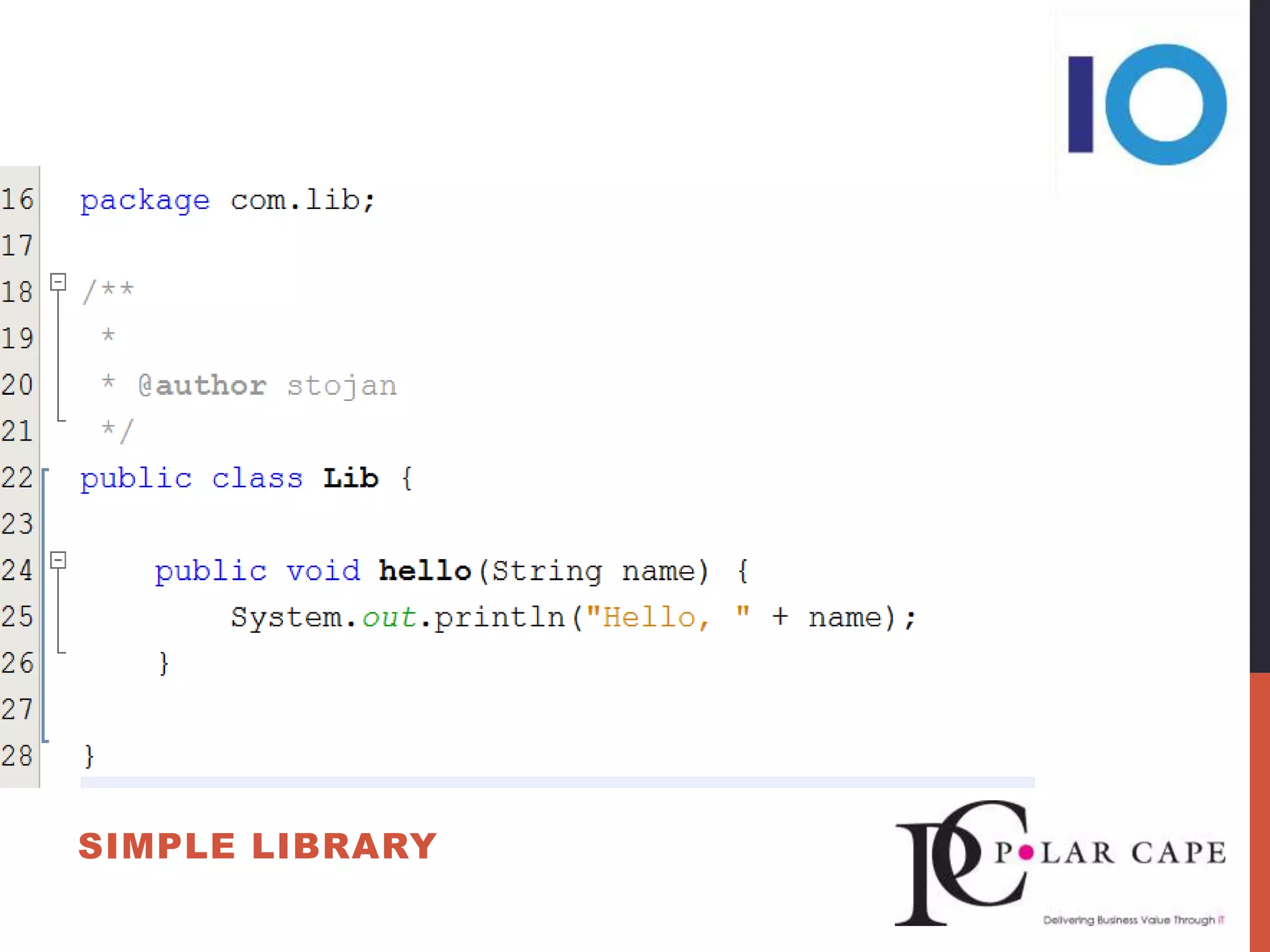

- 22. SIMPLE LIBRARY

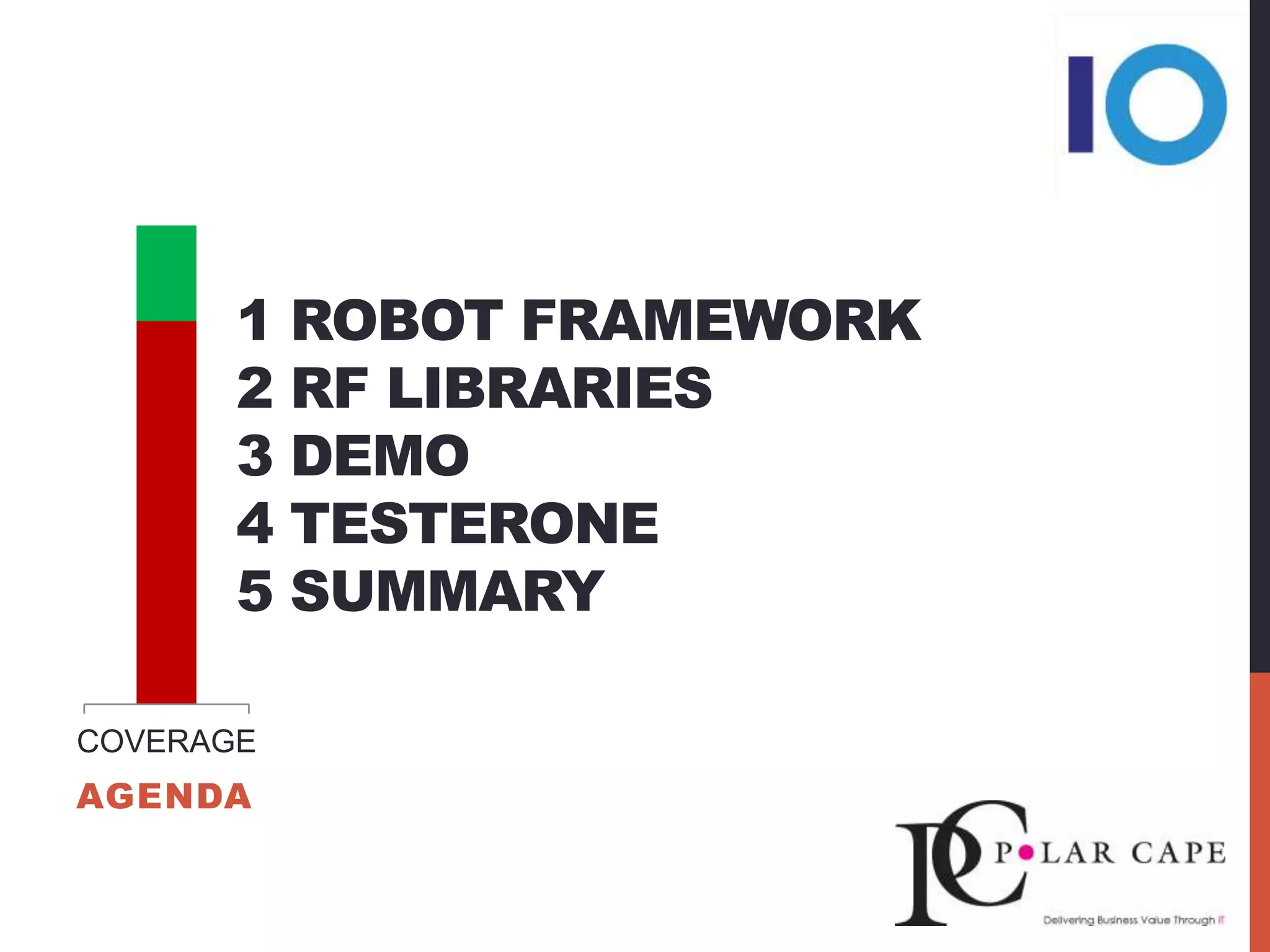

- 23. 1 ROBOT FRAMEWORK 2 RF LIBRARIES 3 DEMO 4 TESTERONE 5 SUMMARY AGENDA COVERAGE
- 24. RF LIBRARES SELENIUM 2 LIBRARY AUTOMATES BROWSER AUTOIT AUTOMATES WINDOWS APPS MONKEYTALK AUTOMATES DEVICES (MOBILE) OTHER OPERATINGSYSTEM, TELNET, SCREENSHOT, STRING, … SWINGLIBRARY, SSHLIBRARY, DBLIBRARY

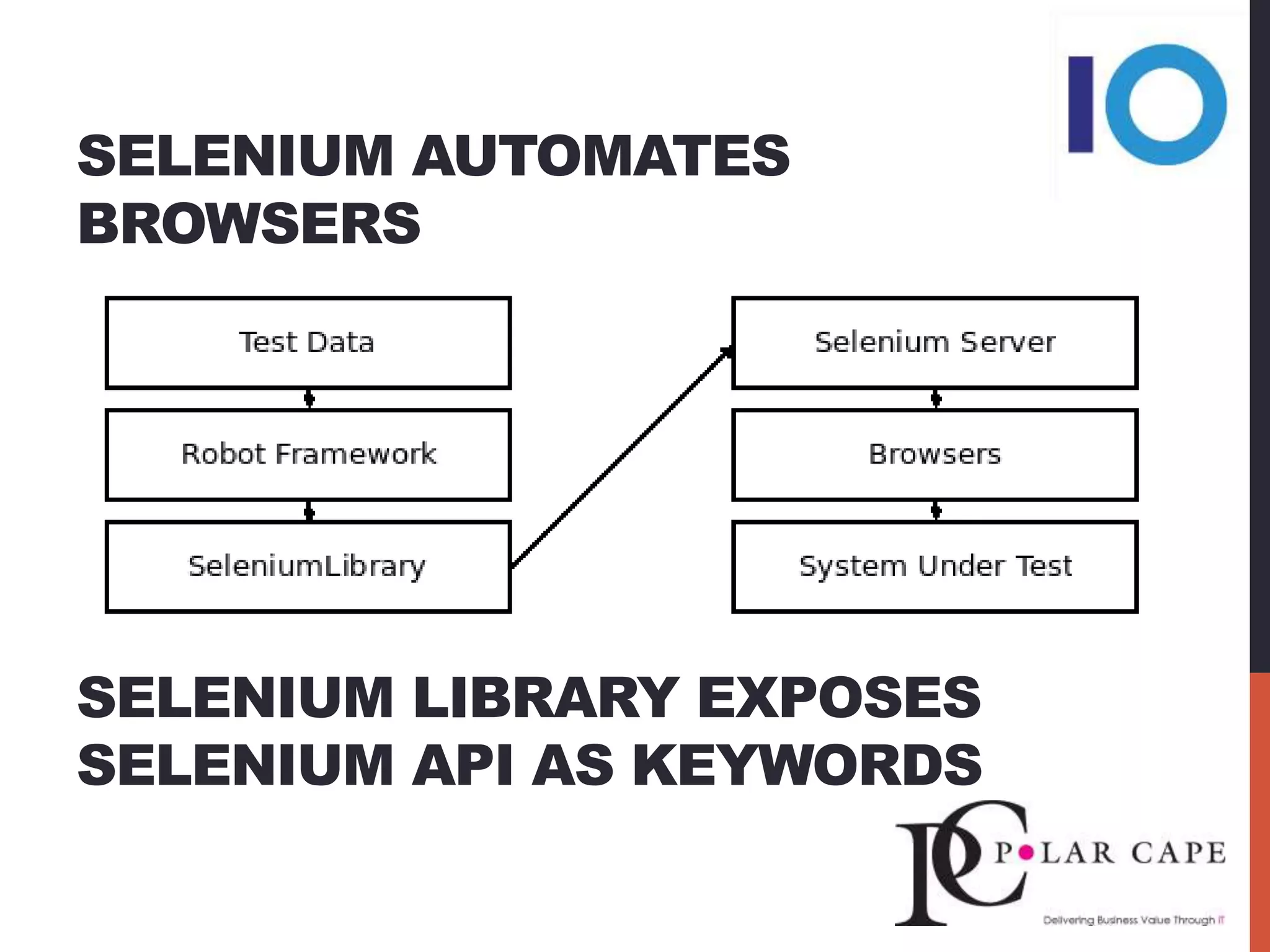

- 25. SELENIUM AUTOMATES BROWSERS SELENIUM LIBRARY EXPOSES SELENIUM API AS KEYWORDS

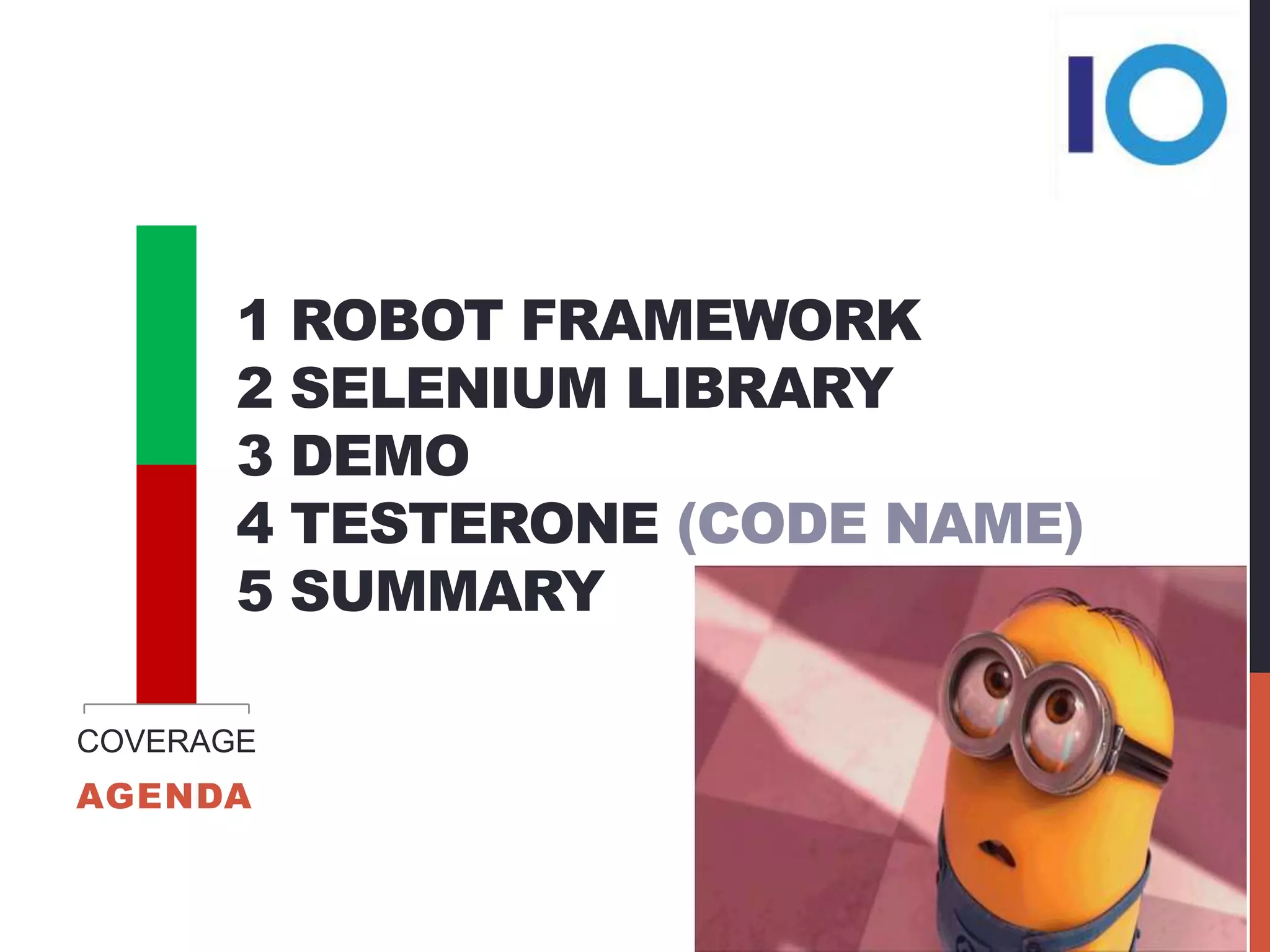

- 26. 1 ROBOT FRAMEWORK 2 SELENIUM LIBRARY 3 DEMO 4 TESTERONE (CODE NAME) 5 SUMMARY AGENDA COVERAGE

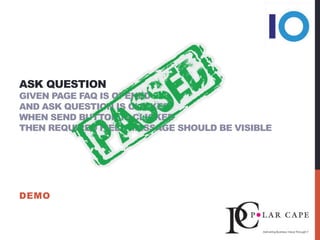

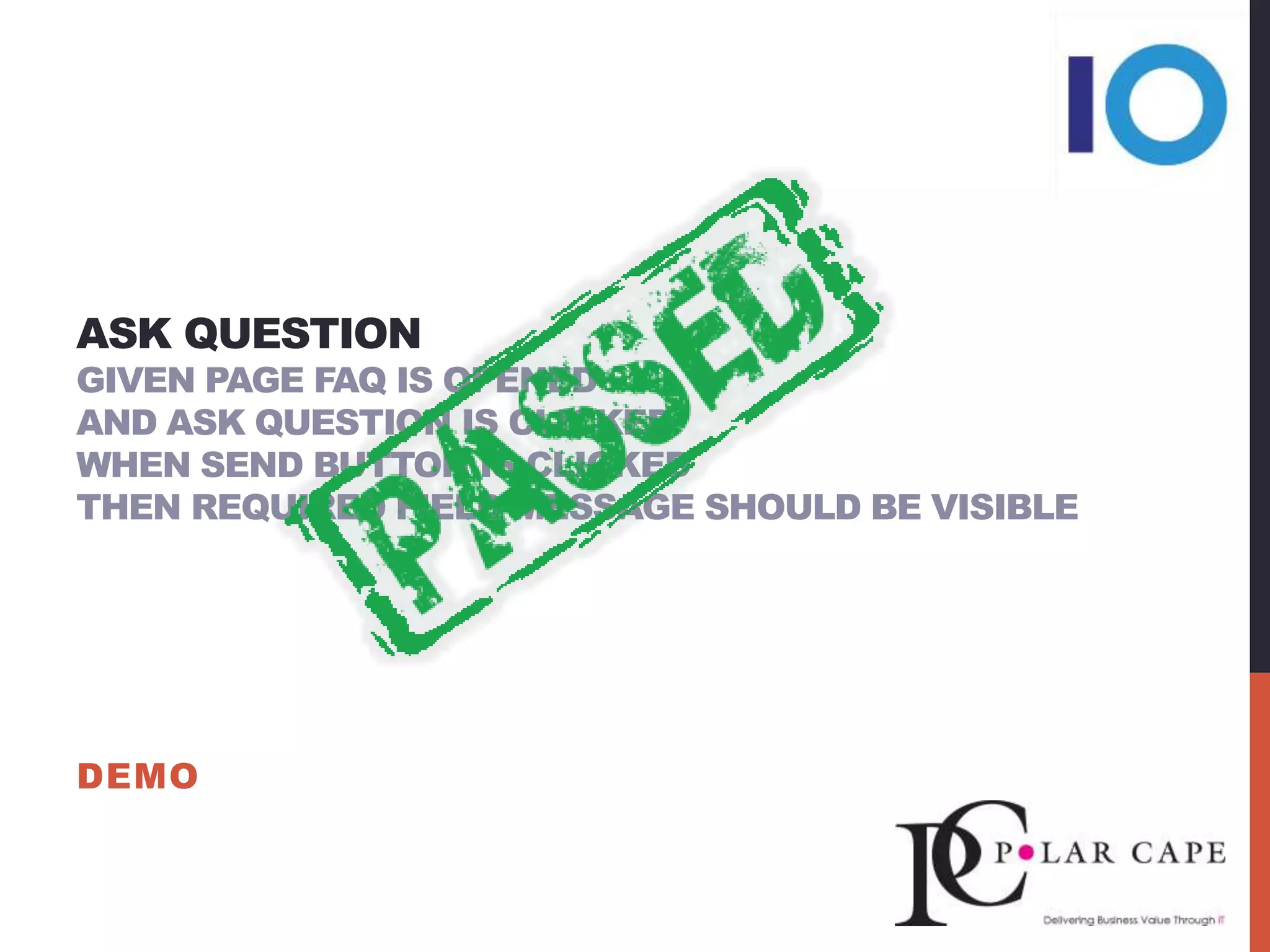

- 27. ASK QUESTION GIVEN PAGE FAQ IS OPENED AND ASK QUESTION IS CLICKED WHEN SEND BUTTON IS CLICKED THEN REQUIRED FIELD MESSAGE SHOULD BE VISIBLE DEMO

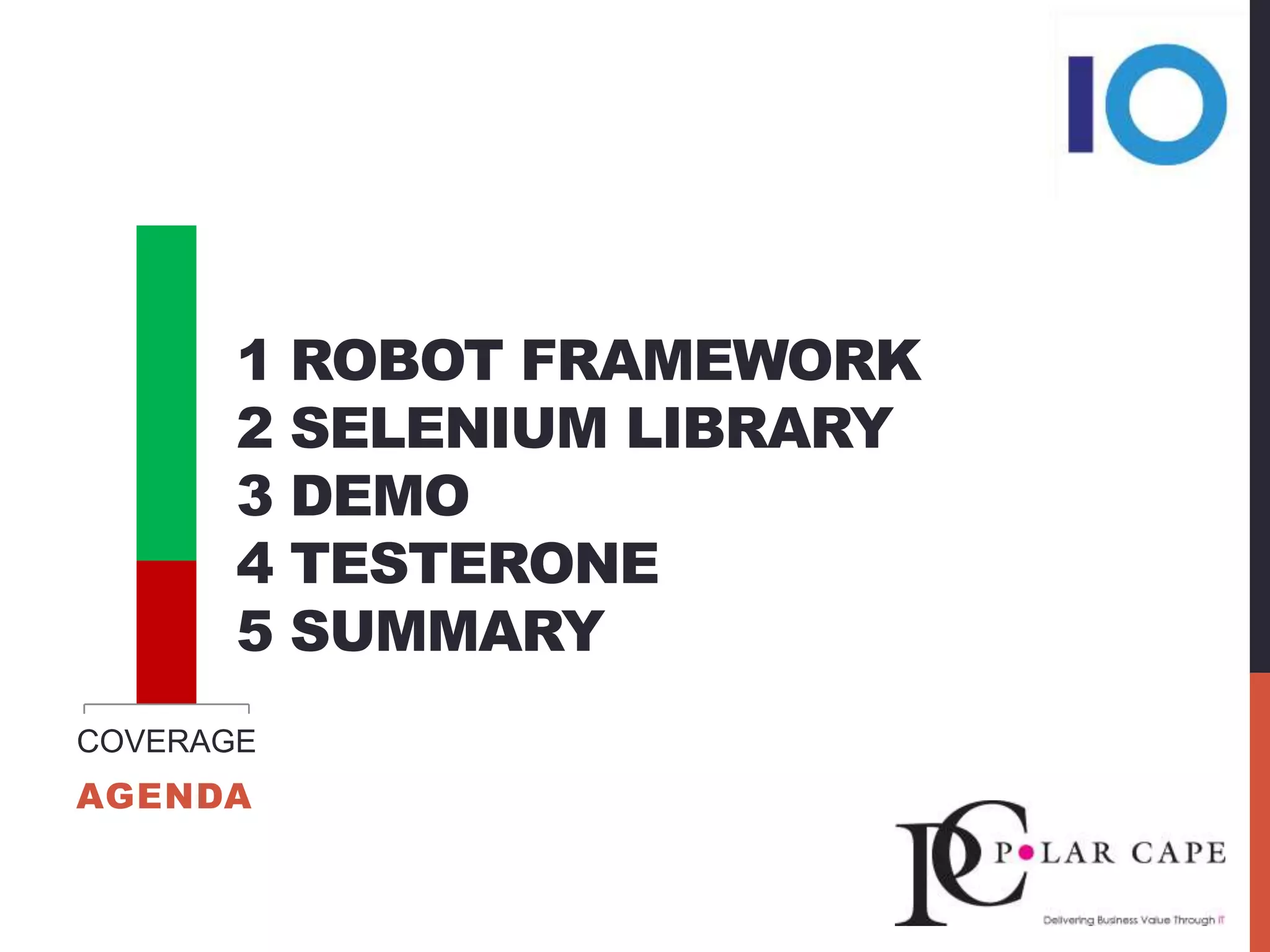

- 28. 1 ROBOT FRAMEWORK 2 SELENIUM LIBRARY 3 DEMO 4 TESTERONE 5 SUMMARY AGENDA COVERAGE

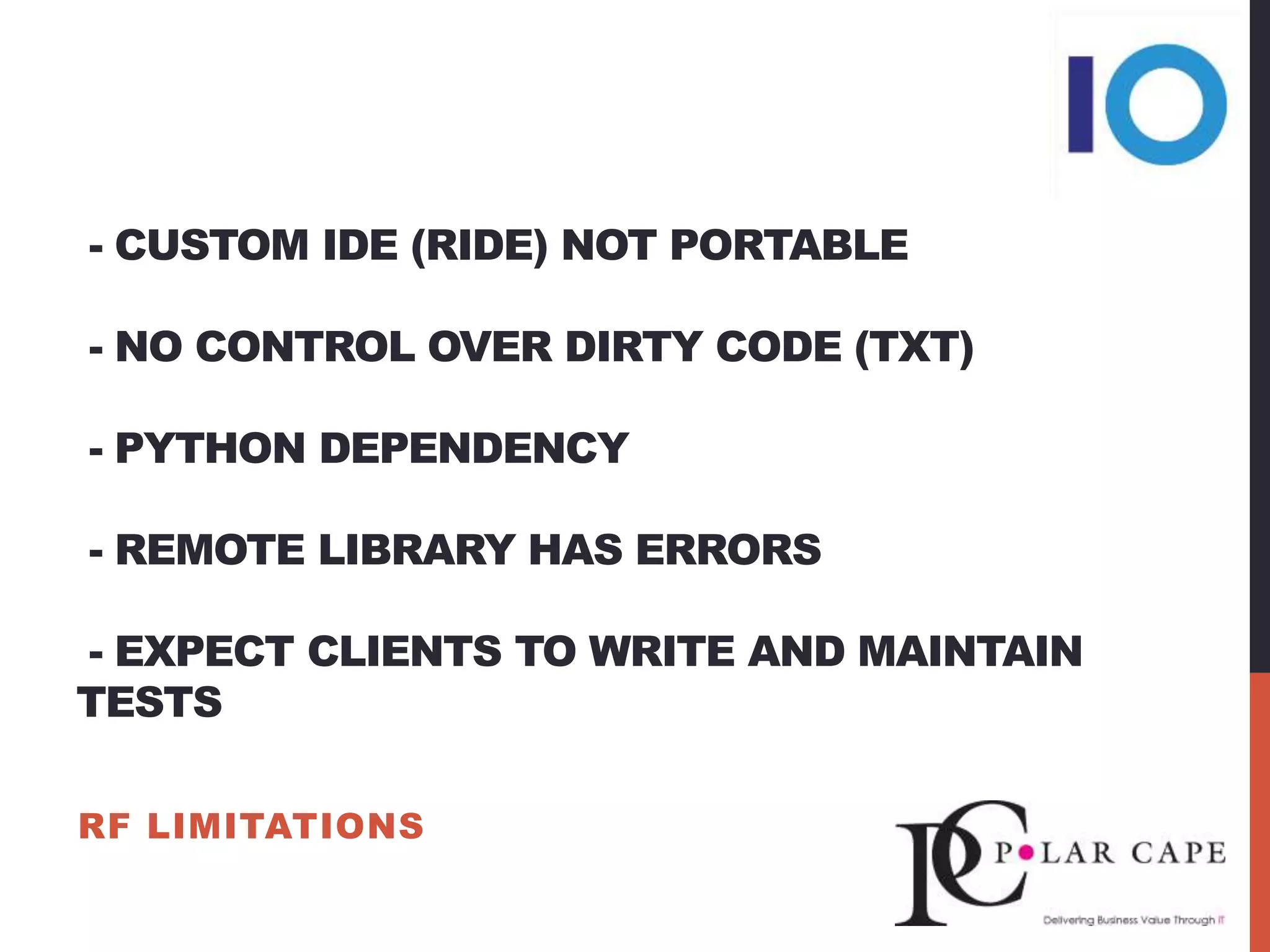

- 29. - CUSTOM IDE (RIDE) NOT PORTABLE - NO CONTROL OVER DIRTY CODE (TXT) - PYTHON DEPENDENCY - REMOTE LIBRARY HAS ERRORS - EXPECT CLIENTS TO WRITE AND MAINTAIN TESTS RF LIMITATIONS
- 30. TESTERONE

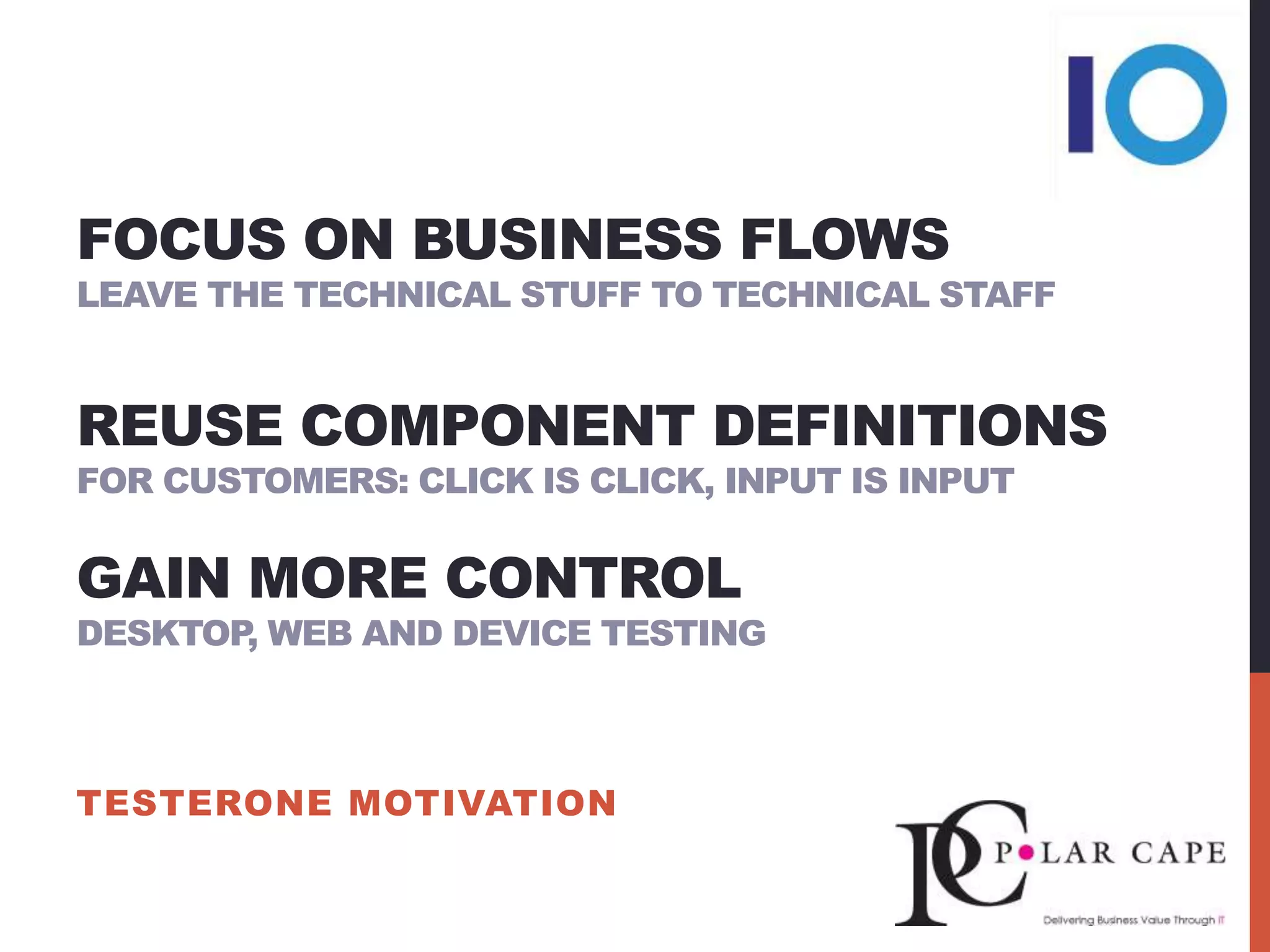

- 31. FOCUS ON BUSINESS FLOWS LEAVE THE TECHNICAL STUFF TO TECHNICAL STAFF REUSE COMPONENT DEFINITIONS FOR CUSTOMERS: CLICK IS CLICK, INPUT IS INPUT GAIN MORE CONTROL DESKTOP, WEB AND DEVICE TESTING TESTERONE MOTIVATION

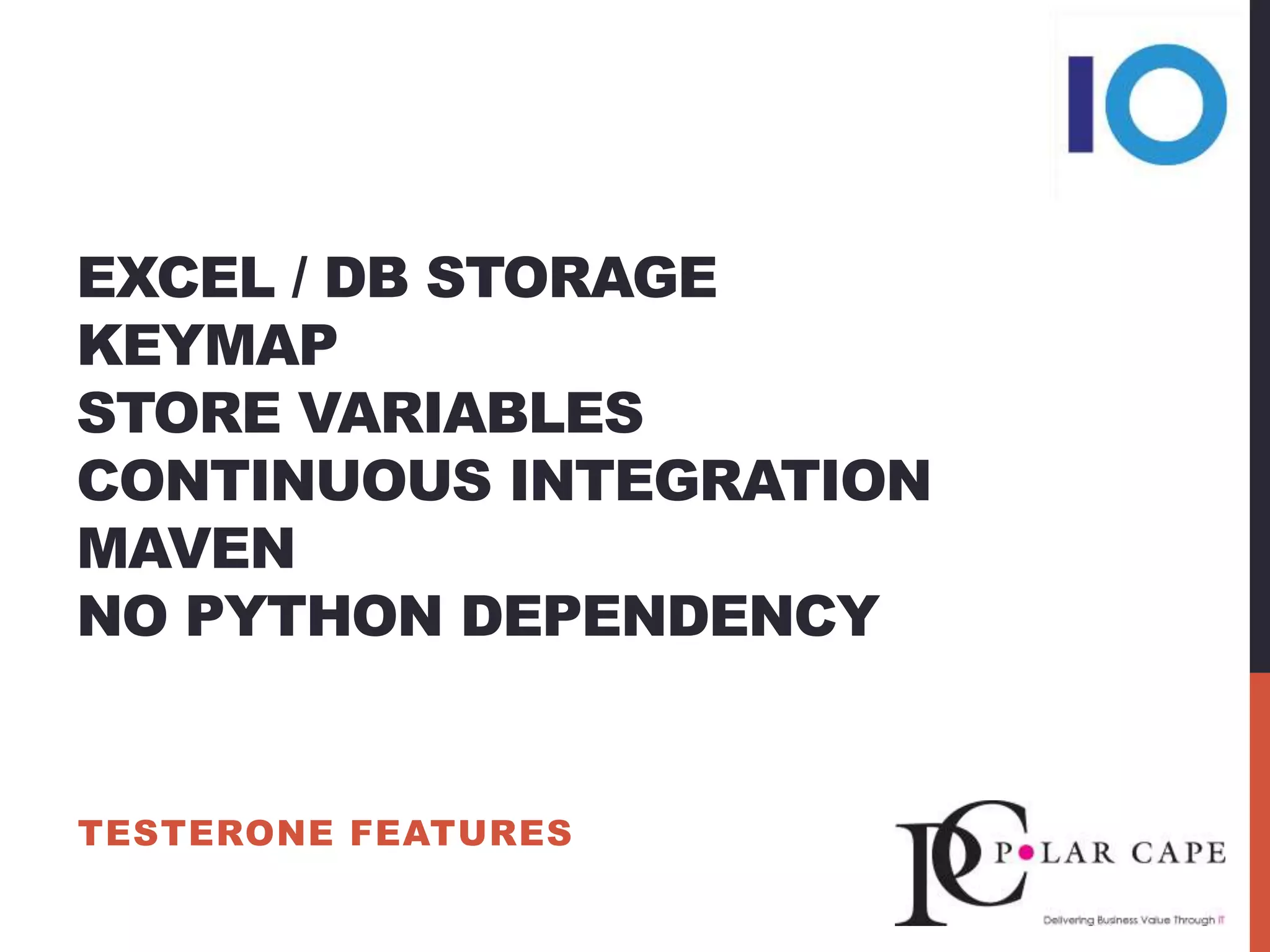

- 32. EXCEL / DB STORAGE KEYMAP STORE VARIABLES CONTINUOUS INTEGRATION MAVEN NO PYTHON DEPENDENCY TESTERONE FEATURES

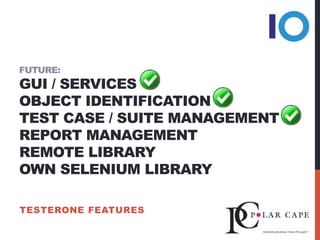

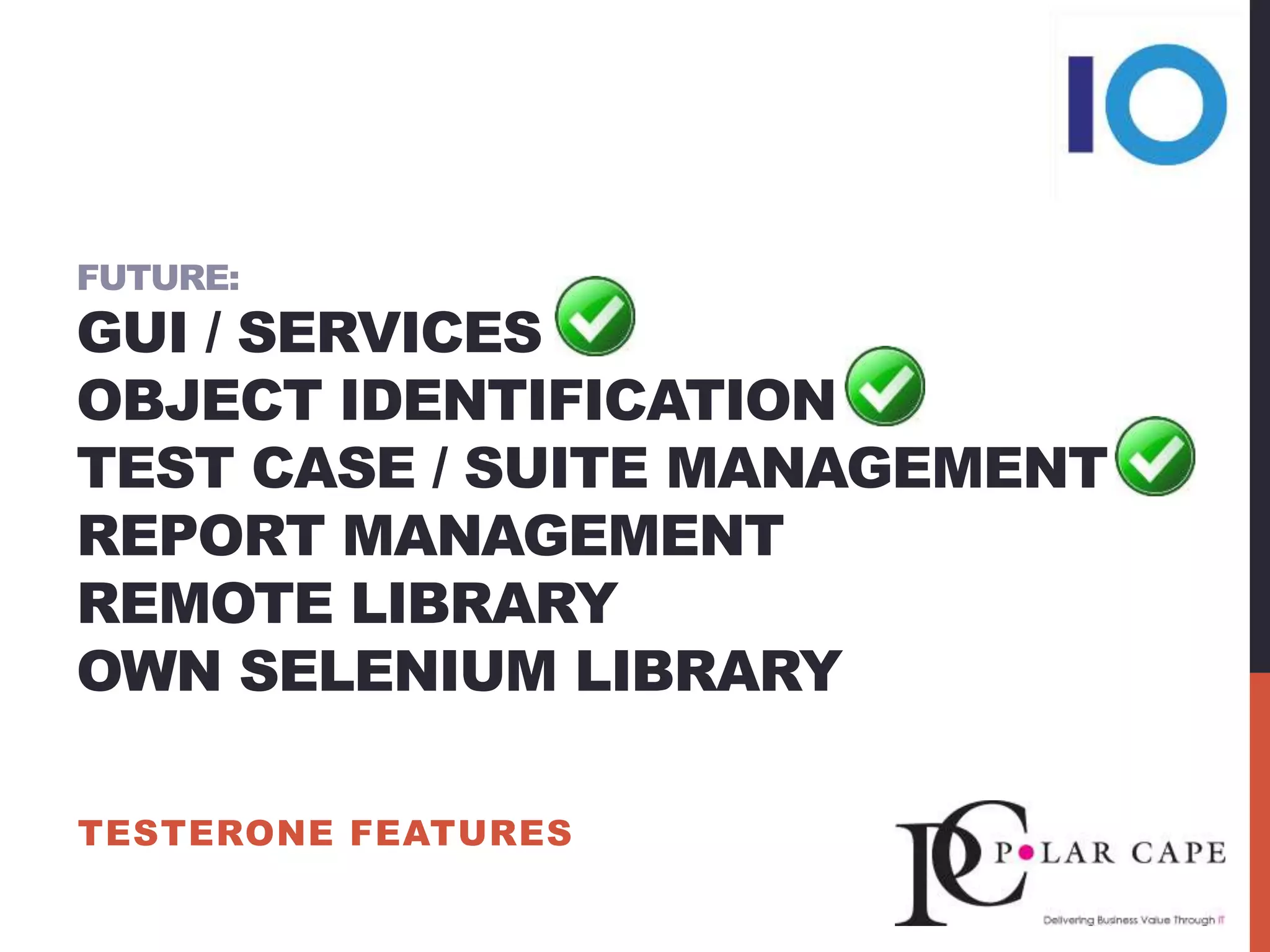

- 33. FUTURE: GUI / SERVICES OBJECT IDENTIFICATION TEST CASE / SUITE MANAGEMENT REPORT MANAGEMENT REMOTE LIBRARY OWN SELENIUM LIBRARY TESTERONE FEATURES

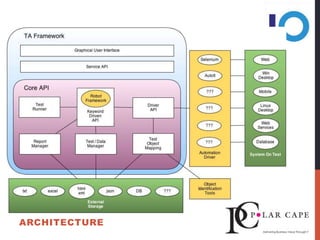

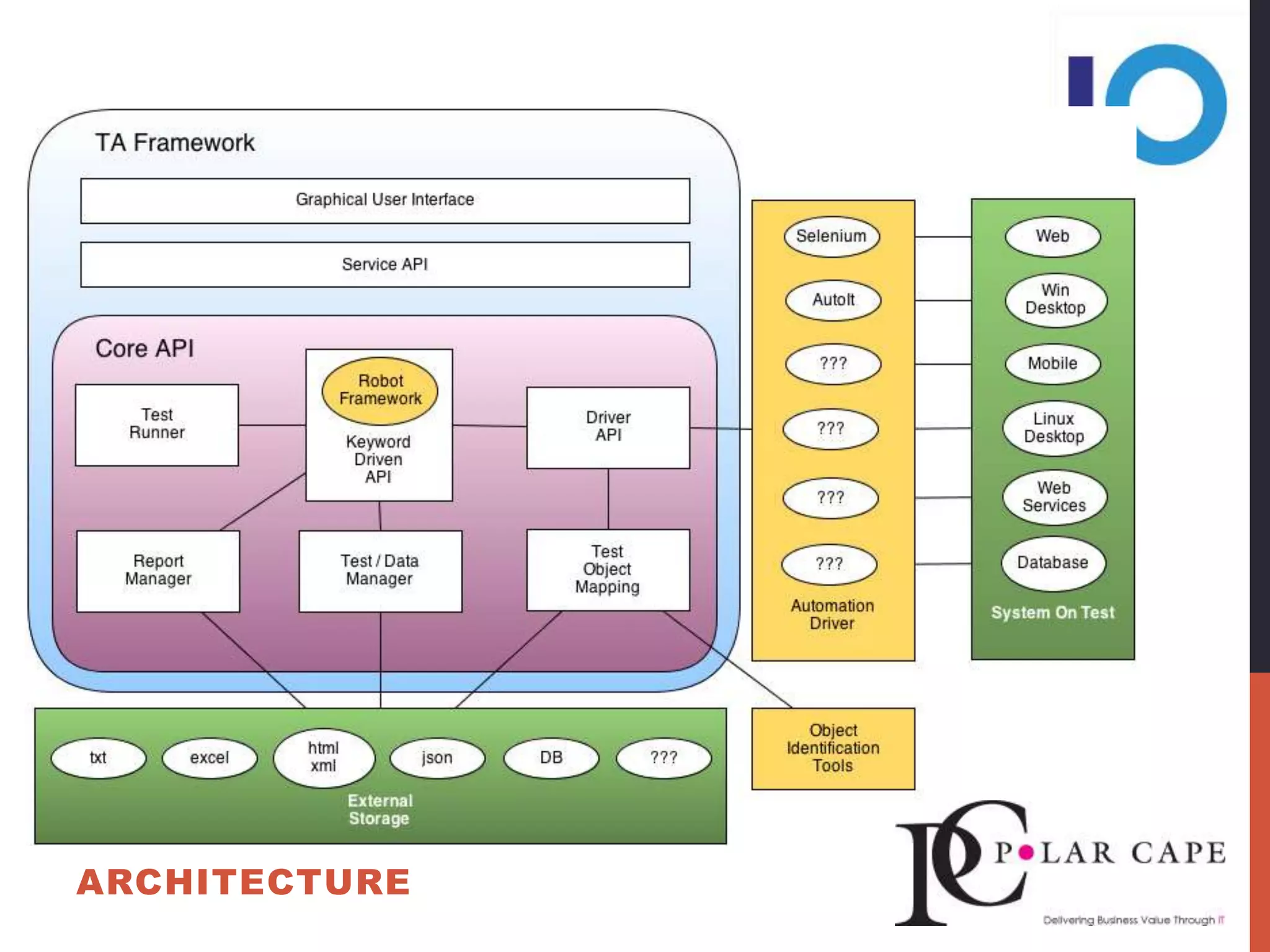

- 34. ARCHITECTURE

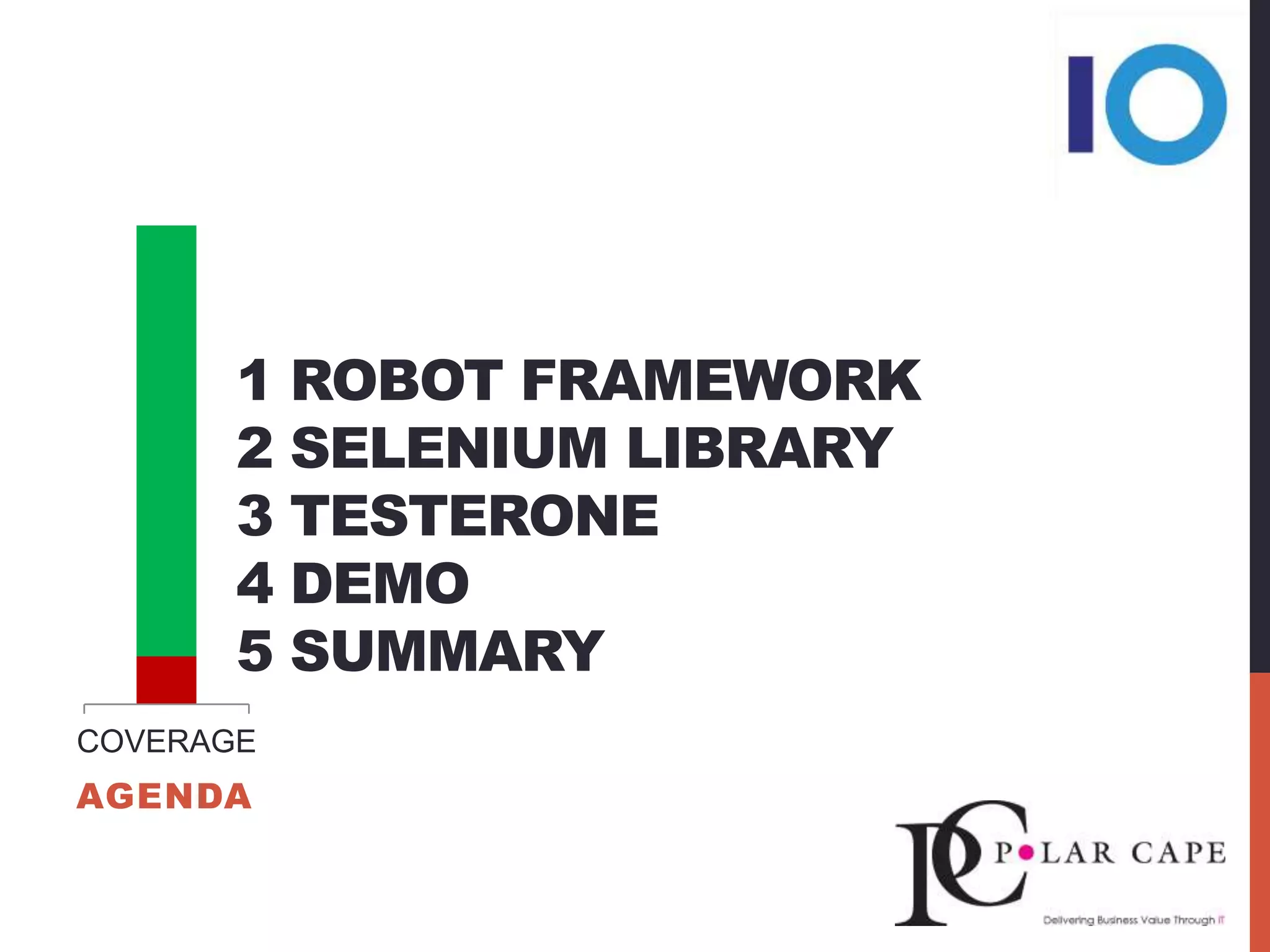

- 36. 1 ROBOT FRAMEWORK 2 SELENIUM LIBRARY 3 TESTERONE 4 DEMO 5 SUMMARY AGENDA COVERAGE

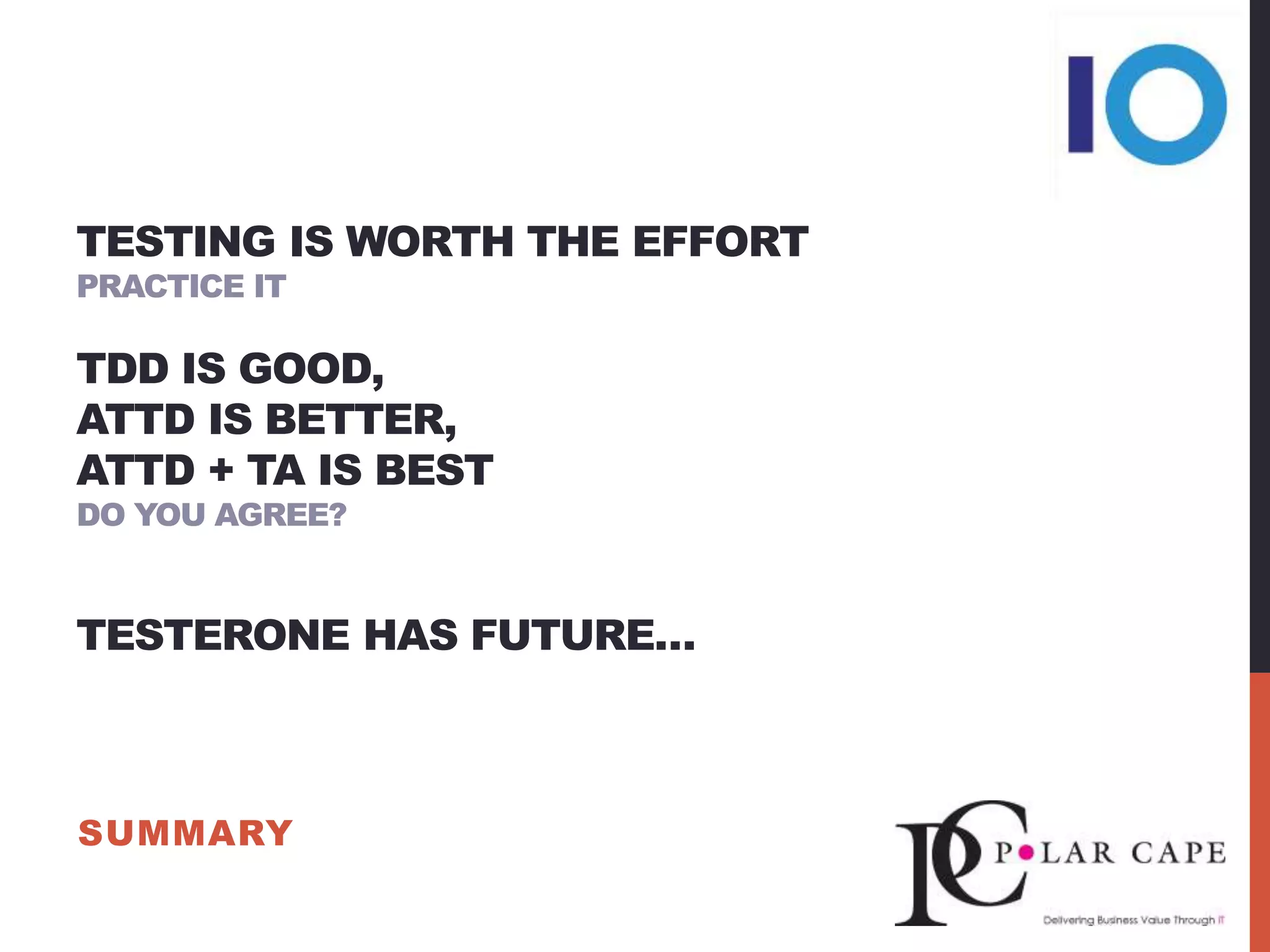

- 37. TESTING IS WORTH THE EFFORT PRACTICE IT TDD IS GOOD, ATTD IS BETTER, ATTD + TA IS BEST DO YOU AGREE? TESTERONE HAS FUTURE… SUMMARY

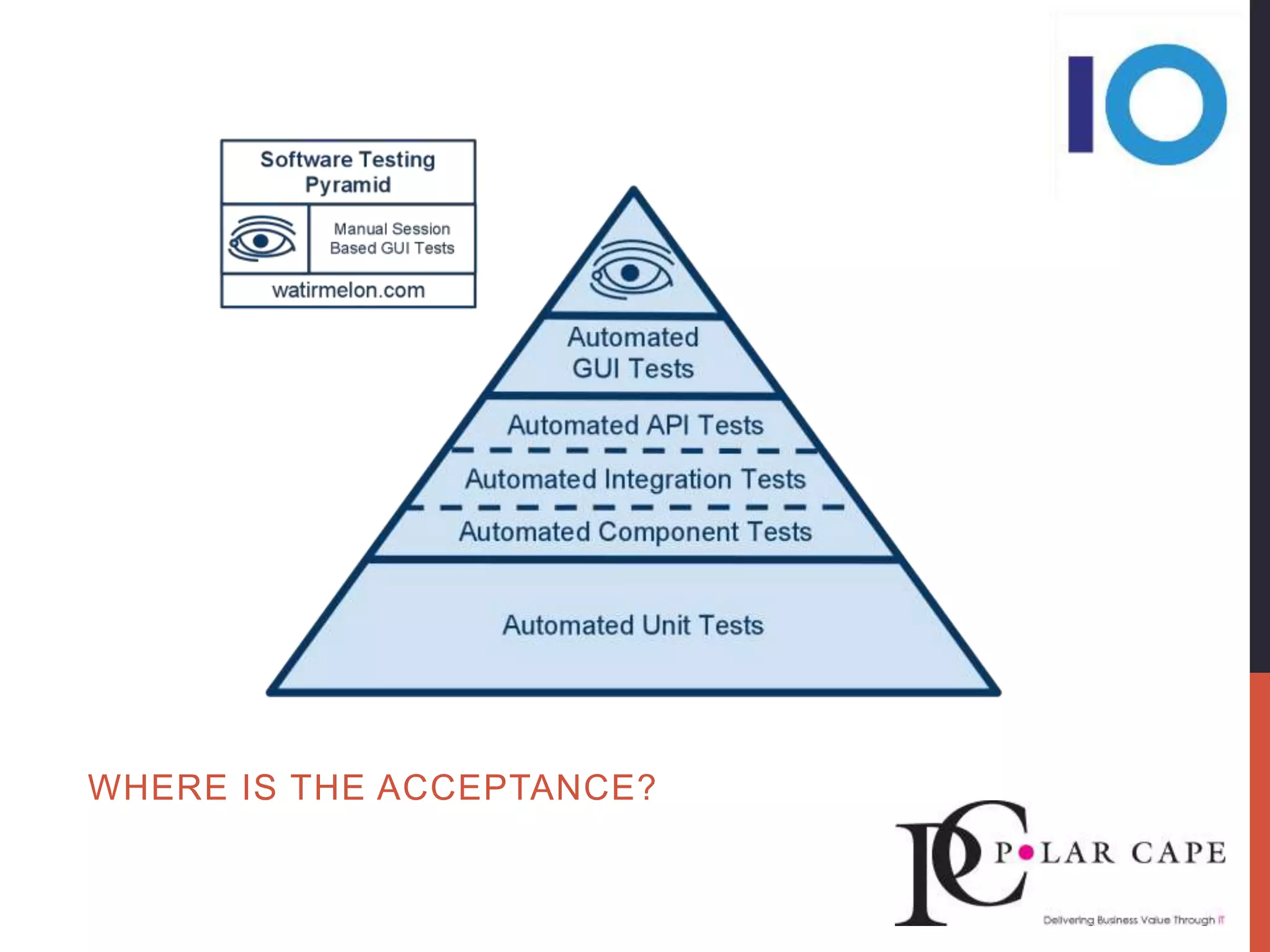

- 38. WHERE IS THE ACCEPTANCE?

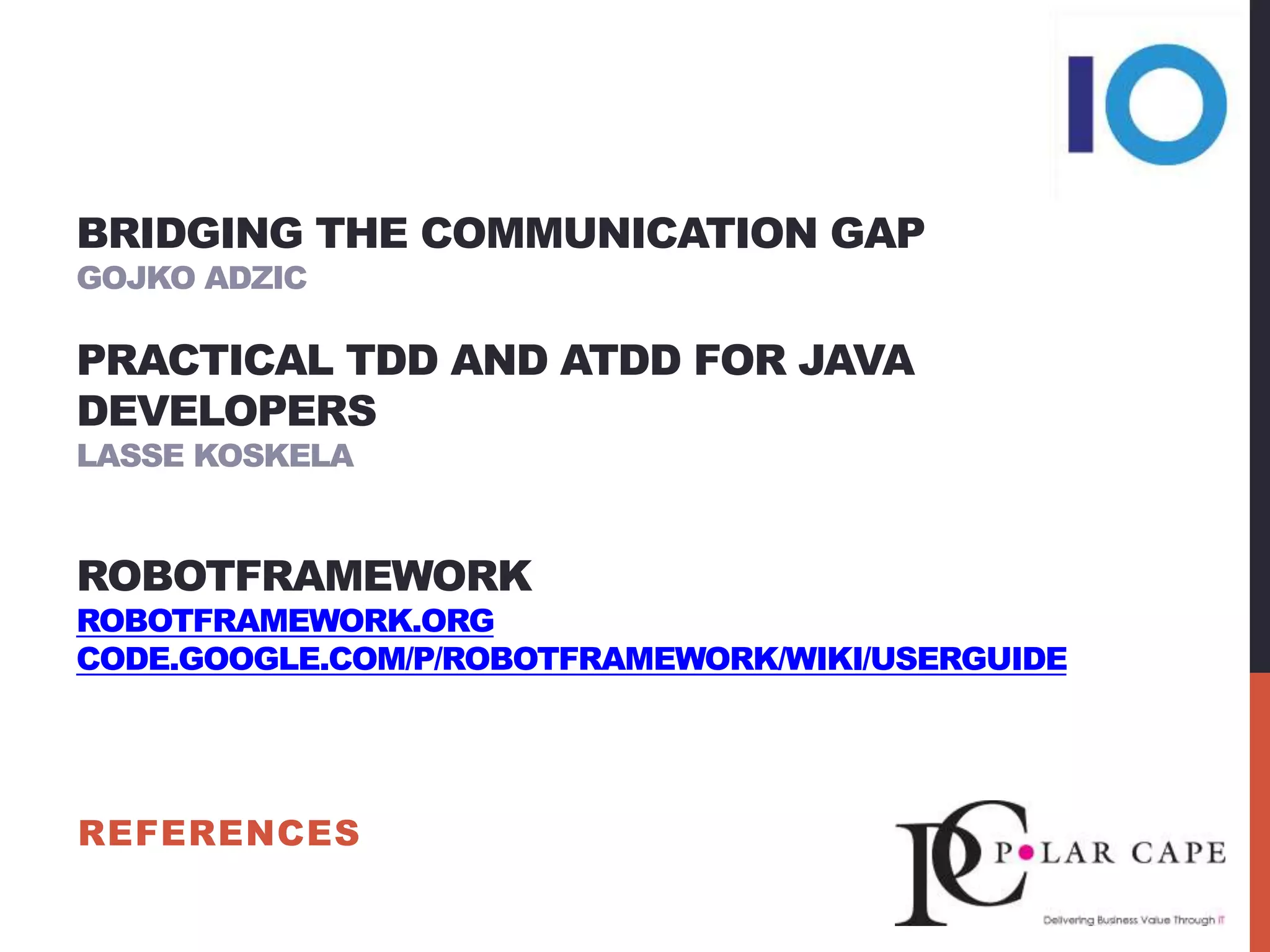

- 39. BRIDGING THE COMMUNICATION GAP GOJKO ADZIC PRACTICAL TDD AND ATDD FOR JAVA DEVELOPERS LASSE KOSKELA ROBOTFRAMEWORK ROBOTFRAMEWORK.ORG CODE.GOOGLE.COM/P/ROBOTFRAMEWORK/WIKI/USERGUIDE REFERENCES

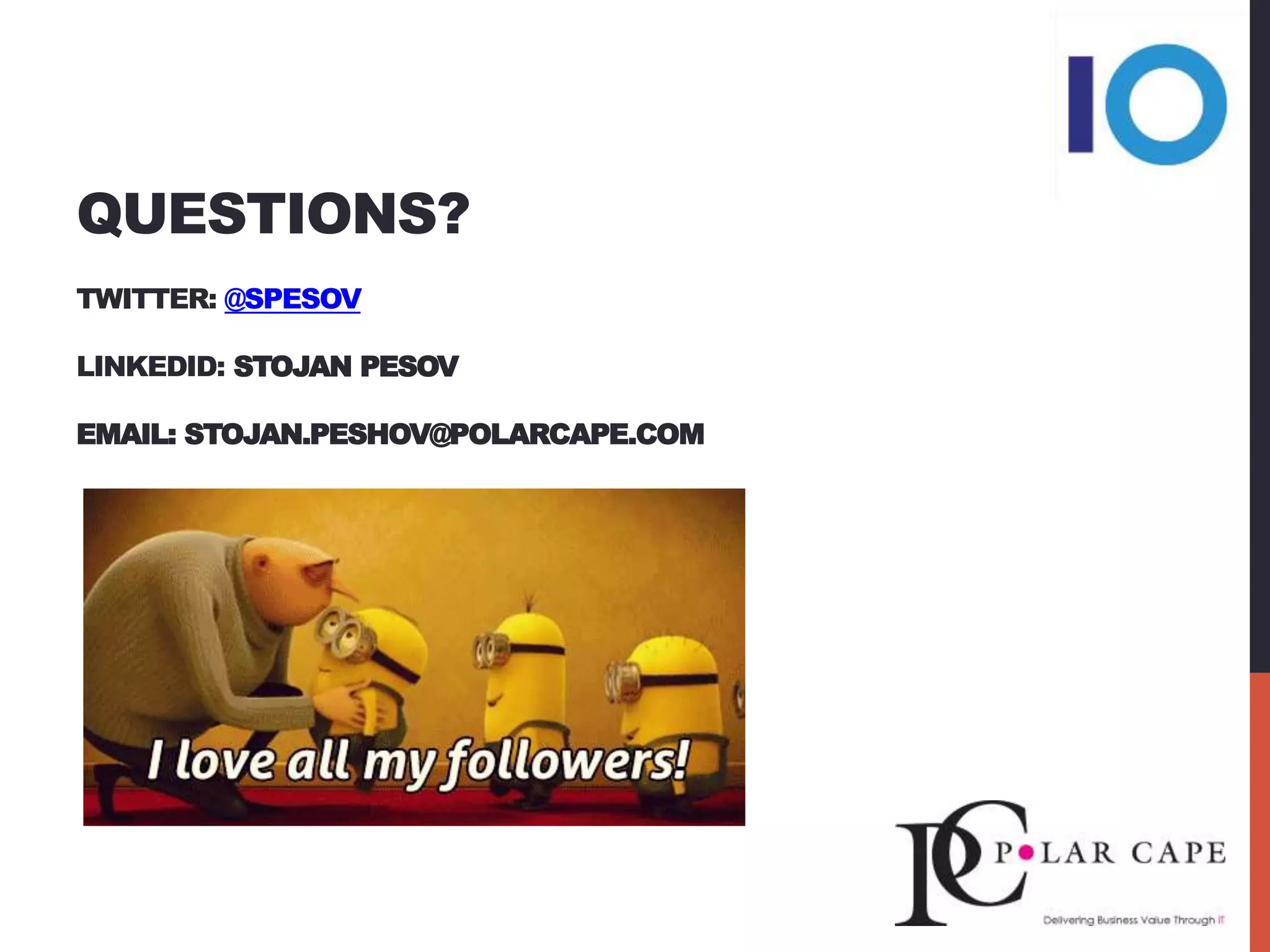

- 40. QUESTIONS? TWITTER: @SPESOV LINKEDID: STOJAN PESOV EMAIL: STOJAN.PESHOV@POLARCAPE.COM
- 41. THANK YOU
Editor's Notes
- Test Automation http://en.wikipedia.org/wiki/Test_automation Control the test execution actual outcomes v.s. predicted outcomes using another software good for regression testing saves lots of time 1. Code-driven testing. Unit frameworks 2. Graphical user interface testing. record and playback (maintainability problems) little or no coding test scripts (application under test)
- TDD v.s. ATDD dev v.s. business ATDD tests should be readable by the customer. TDD tests do not. SBE instead of writing abstract specifications
- Q: Are you familiar with Agile? Poll: Does anyone work non agile? Requirements = User Stories all the acceptance criteria = functional spec ATTD uses executable functional spec

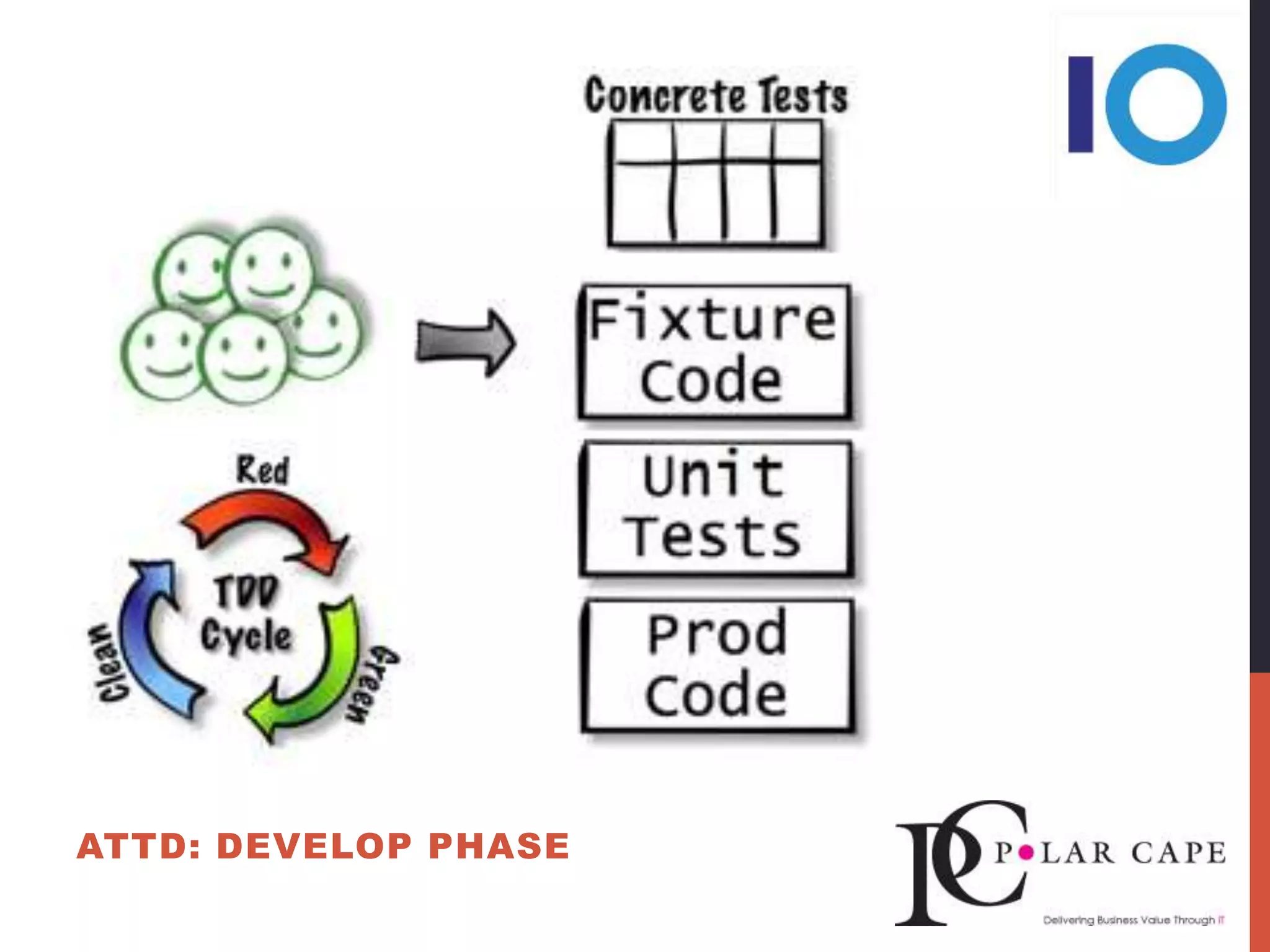

- Concrete Tests are written using acceptance criteria
- Concrete Tests are written using acceptance criteria
- - Who have used / heard of RF? Where does the RF fit in ATTD? We can do ATTD using unit tests or by testing a GUI
- The term Gherkin, however, is specific to the Cucumber and Jbehave software tools

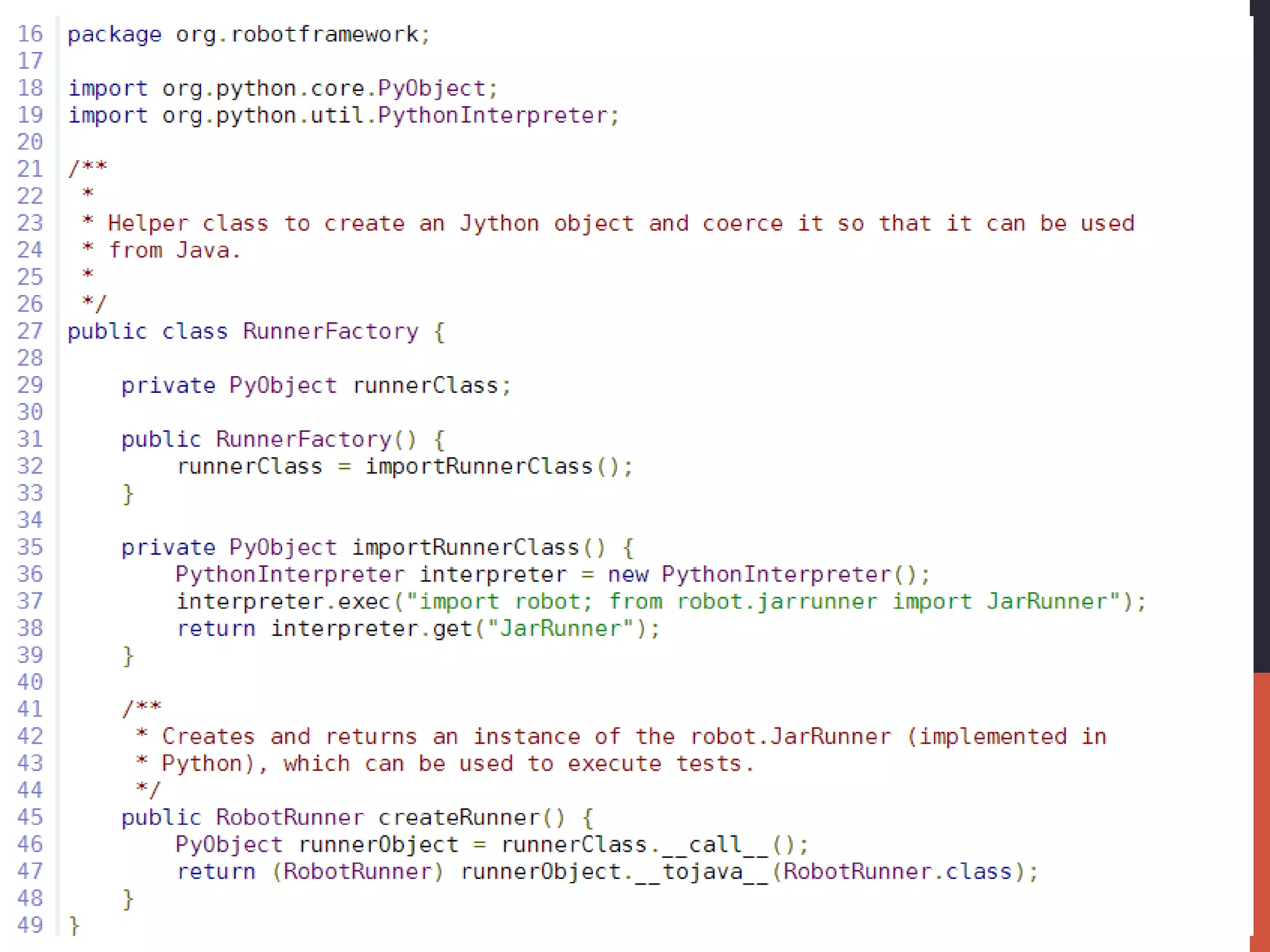

- Classes that enables RF usage in Java Jython is included in RF jar
- Instance of robot.JarRunner is created which is python class.
- In order to execute test cases / suites we need to call run with prepared arguments Same arguments used from CLI Most important args are tests and output dir
- SeleniumLibary uses Selenium Remote Controller's (RC) Python client library to communicate with the Selenium Server. The Selenium Server is the core component of the Selenium Remote Controller. responsible on launching browsers and interacting with them. Java application, but there are client libraries for various programming languages. SeleniumLibrary includes the Selenium Server JAR package. Flex testing uses Flex Pilot tool.
- Love at first site
- The name is better than Testacular - Karma
- focus on business flows focus on users without technical knowledge technical details should be predefined Reuse component definitions separation of concerns, developers should define the technical details of the components maintenability, gain more control better testcase management / edit component scanning / detection CI, Jenkins customizable reports
- Excel (last project) / db storage (current and next) RF has no excel support / db convert to tsv Keymap map business to object ids Store variables store results from keyword executions as variables and use it later as data / assert CI (currently jenkins, robot plugin)
- gui (for editing, management, etc..) object identification (spy for desktop, crawler for web) test case / suite management (crud) report management (custom design, archive) Remote library (nema moznost za screenshot, bugs) own selenium library (direct selenium implementation)
- Практикувајте ТА, дефинитивно е исплатливо видовме дека е лесно дури и со Јава
- By removing the term acceptance, and showing what the automated tests test, I believe the first automated test pyramid shows a solid approach to automated testing. Acceptance tests and functional tests can be anywhere in the pyramid, but you should limit your GUI tests, often by increasing your unit test coverage.
- Практикувајте ТА, дефинитивно е исплатливо видовме дека е лесно дури и со Јава
- Практикувајте ТА, дефинитивно е исплатливо видовме дека е лесно дури и со Јава
