![Resolvendo o problema
RULE setRequestsRecovery
CLASS org.jbpm.process.core.timer.impl.QuartzSchedulerService
METHOD internalSchedule
AT WRITE $jobq
IF TRUE
DO
traceln("[BYTEMAN] Current Value for requestsRecovery: " + $jobq.requestsRecovery() +
" ---------- UPDATING");
$jobq.setRequestsRecovery(true);
traceln("[BYTEMAN] New value for requestsRecovery: " + $jobq.requestsRecovery());
ENDRULE](https://image.slidesharecdn.com/byteman-pres-trilha-java-spolti-161018124619/75/TDC2016POA-Trilha-Java-Introducao-ao-Byteman-3-2048.jpg)
![Especificadores de Localização
AT ENTRY AFTER INVOKE [ type .] method [ ( argtypes ) ][count | ALL ]
AT EXIT AT SYNCHRONIZE [count | ALL ]
AT LINE number AFTER SYNCHRONIZE [count | ALL ]
AT READ [type .] field [count | ALL ] AT THROW [count | ALL ]
AT READ $var-or-idx [count | ALL ] AT EXCEPTION EXIT
AFTER READ [ type .] field [count | ALL ]
AFTER READ $var-or-idx [count | ALL ]
AT WRITE [ type .] field [count | ALL ]
AT WRITE $var-or-idx [count | ALL ]
AFTER WRITE [ type .] field [count | ALL ]
AFTER WRITE $var-or-idx [count | ALL ]
AT INVOKE [ type .] method [ ( argtypes ) ] [count | ALL ]](https://image.slidesharecdn.com/byteman-pres-trilha-java-spolti-161018124619/75/TDC2016POA-Trilha-Java-Introducao-ao-Byteman-7-2048.jpg)
![Ativando o Byteman no WildFly 10!
• Arquivos standalone.conf e domain.conf
if [ "x$JBOSS_MODULES_SYSTEM_PKGS" = "x" ]; then
JBOSS_MODULES_SYSTEM_PKGS="org.jboss.byteman"
fi
Modo Standalone:
JAVA_OPTS="$JAVA_OPTS
-javaagent:$BYTEMAN_HOME/lib/byteman.jar=script:/dados/presentations/byteman/demo/byteman-web-app/src/resources/th
read.btm,boot:$BYTEMAN_HOME/lib/byteman.jar,boot:/dados/presentations/byteman/demo/byteman-helper/target/byteman-
helper-1.0-SNAPSHOT.jar -Dorg.jboss.byteman.transform.all"
Domain:
<jvm-options>
<option
value="-javaagent:/${jboss.home.dir}/byteman/lib/byteman.jar=script:${jboss.home.dir}/byteman/scripts/org.jboss.re
moting3.EndpointImpl.btm,boot:${jboss.home.dir}/byteman/lib/byteman.jar"/>
<option value="-Dorg.jboss.byteman.transform.all=true"/>
</jvm-options>](https://image.slidesharecdn.com/byteman-pres-trilha-java-spolti-161018124619/75/TDC2016POA-Trilha-Java-Introducao-ao-Byteman-13-2048.jpg)
Uploaded bytdc-globalcode
TDC2016POA | Trilha Java - Introdução ao Byteman
This document provides an introduction and overview of Byteman, a tool for injecting faults into Java applications. It covers how to activate and load Byteman, the structure of Byteman rules using ECA (Event-Condition-Action), rule locations, helpers, expressions, compiling vs interpreting rules, testing rules with BMUnit, configuration options, and examples. Demonstrations of Byteman are also mentioned.
More Related Content
TDC2016POA | Trilha Java - Introdução ao Byteman
- 1. Introdução ao Byteman FilippeSpolti Software Engineer - Red Hat

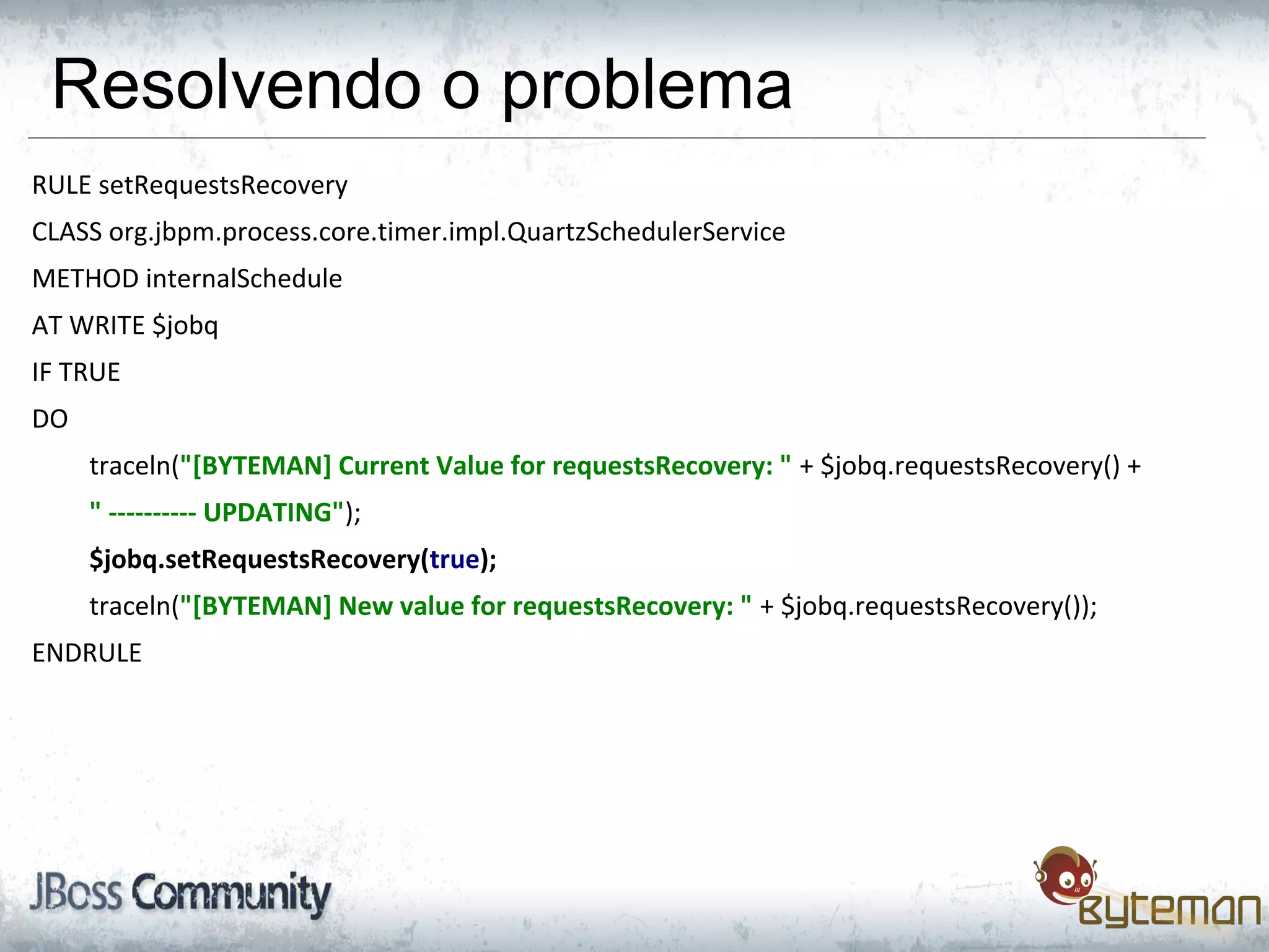

- 3. Resolvendo o problema RULEsetRequestsRecovery CLASS org.jbpm.process.core.timer.impl.QuartzSchedulerService METHOD internalSchedule AT WRITE $jobq IF TRUE DO traceln("[BYTEMAN] Current Value for requestsRecovery: " + $jobq.requestsRecovery() + " ---------- UPDATING"); $jobq.setRequestsRecovery(true); traceln("[BYTEMAN] New value for requestsRecovery: " + $jobq.requestsRecovery()); ENDRULE

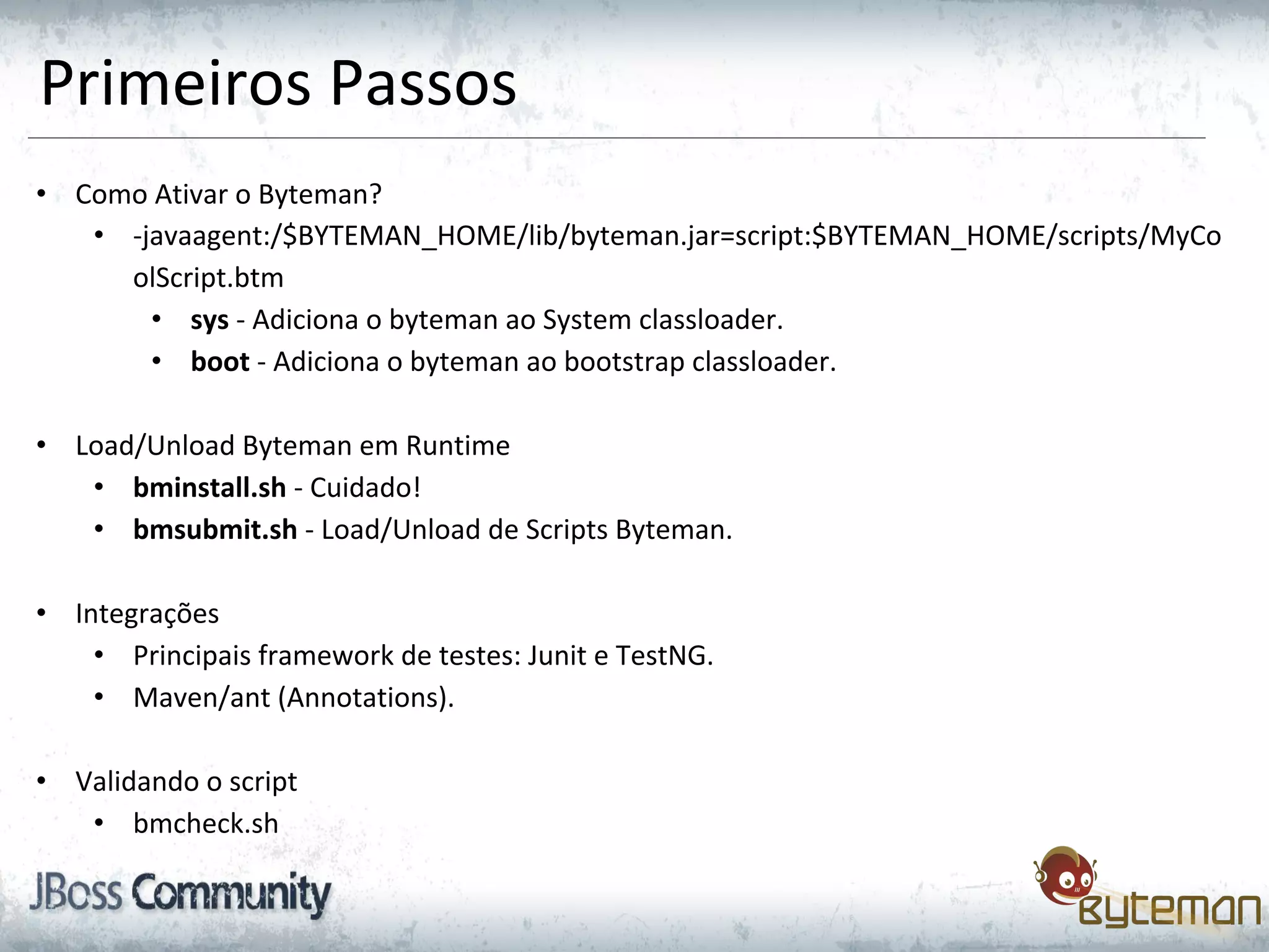

- 4. Primeiros Passos • ComoAtivar o Byteman? • -javaagent:/$BYTEMAN_HOME/lib/byteman.jar=script:$BYTEMAN_HOME/scripts/MyCo olScript.btm • sys - Adiciona o byteman ao System classloader. • boot - Adiciona o byteman ao bootstrap classloader. • Load/Unload Byteman em Runtime • bminstall.sh - Cuidado! • bmsubmit.sh - Load/Unload de Scripts Byteman. • Integrações • Principais framework de testes: Junit e TestNG. • Maven/ant (Annotations). • Validando o script • bmcheck.sh

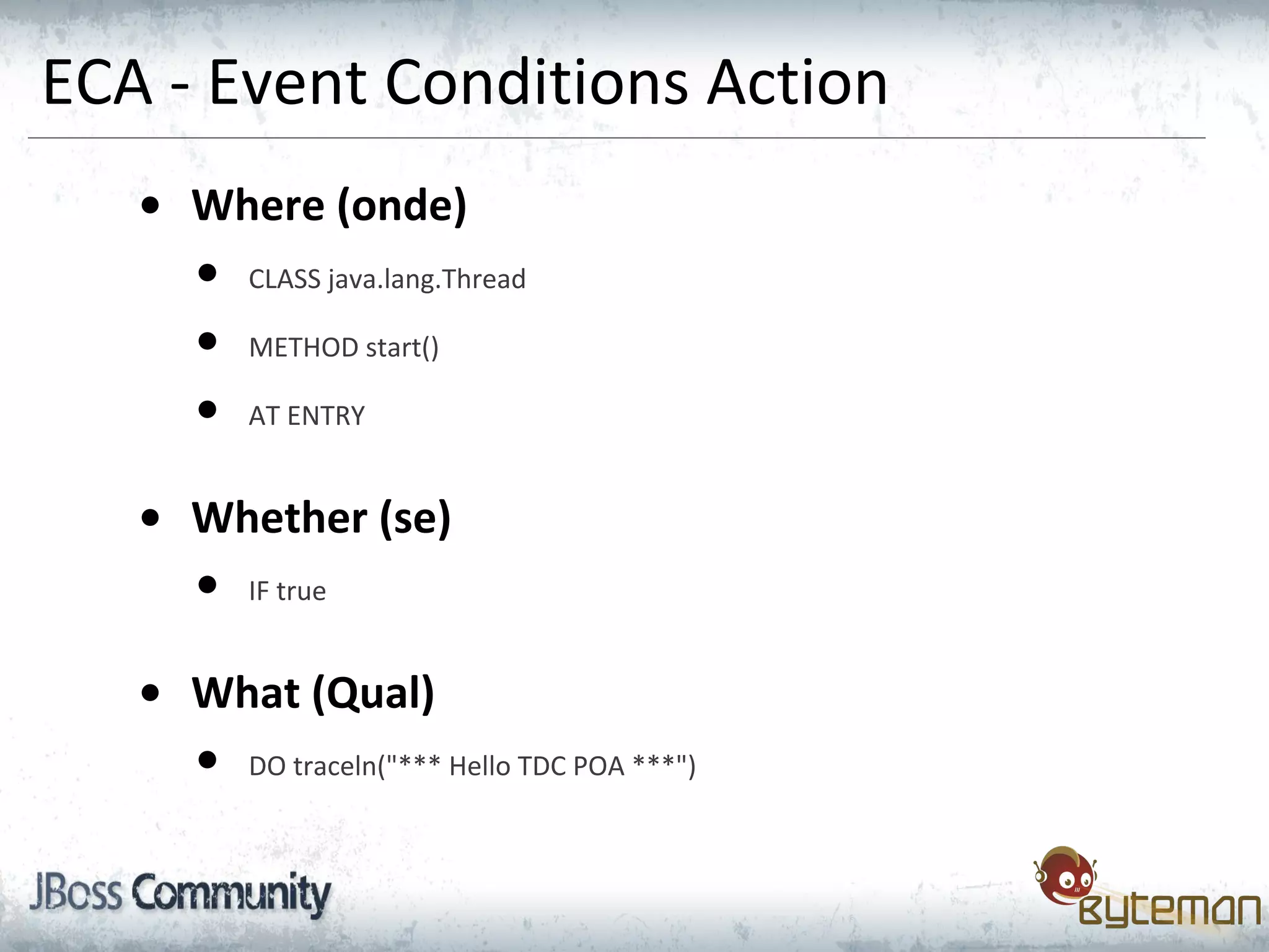

- 5. ECA - EventConditions Action • Where (onde) • CLASS java.lang.Thread • METHOD start() • AT ENTRY • Whether (se) • IF true • What (Qual) • DO traceln("*** Hello TDC POA ***")

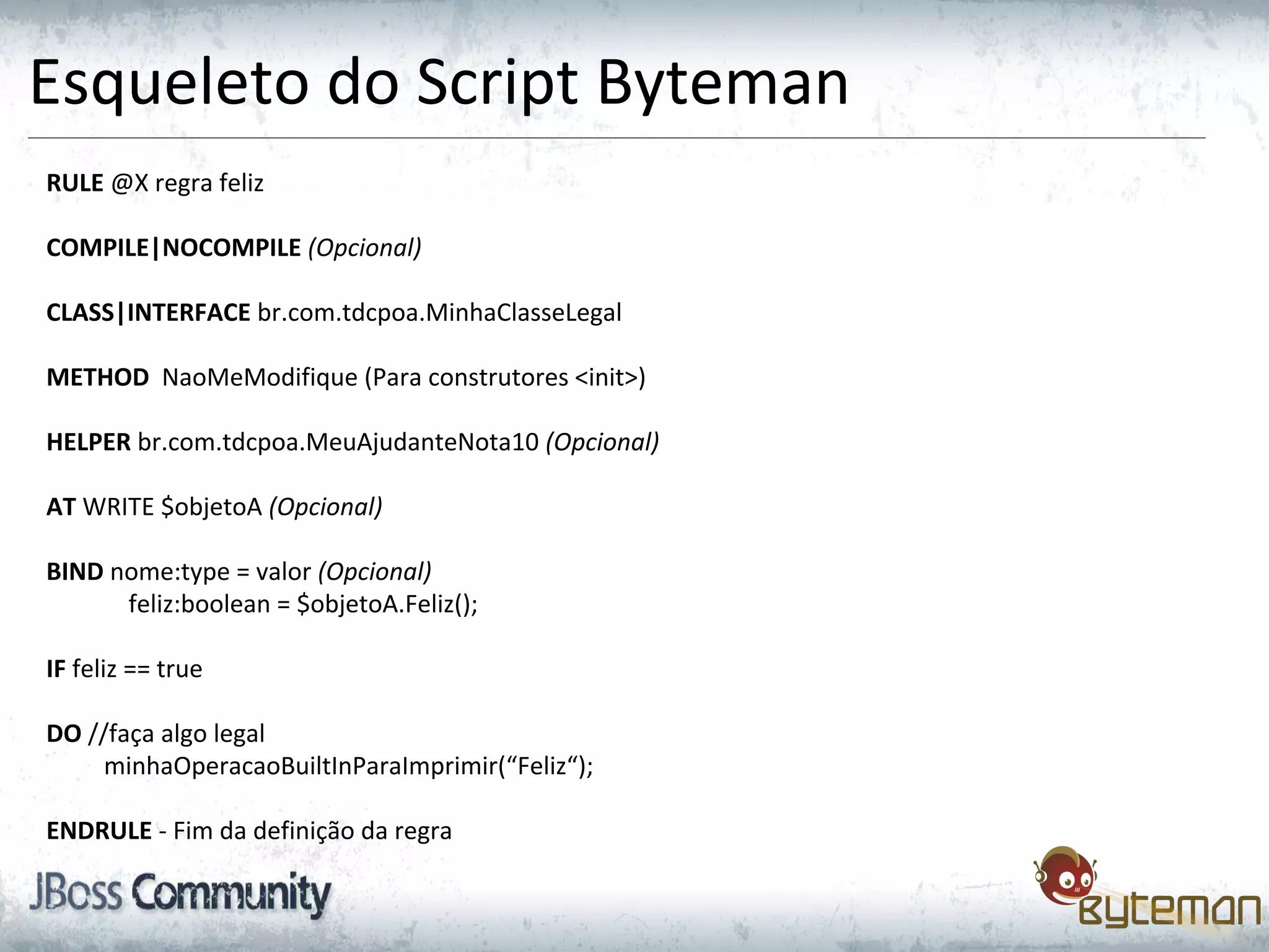

- 6. Esqueleto do ScriptByteman RULE @X regra feliz COMPILE|NOCOMPILE (Opcional) CLASS|INTERFACE br.com.tdcpoa.MinhaClasseLegal METHOD NaoMeModifique (Para construtores <init>) HELPER br.com.tdcpoa.MeuAjudanteNota10 (Opcional) AT WRITE $objetoA (Opcional) BIND nome:type = valor (Opcional) feliz:boolean = $objetoA.Feliz(); IF feliz == true DO //faça algo legal minhaOperacaoBuiltInParaImprimir(“Feliz“); ENDRULE - Fim da definição da regra

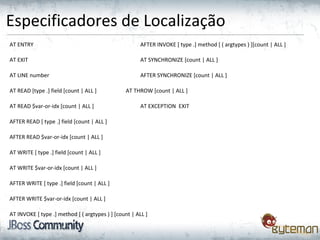

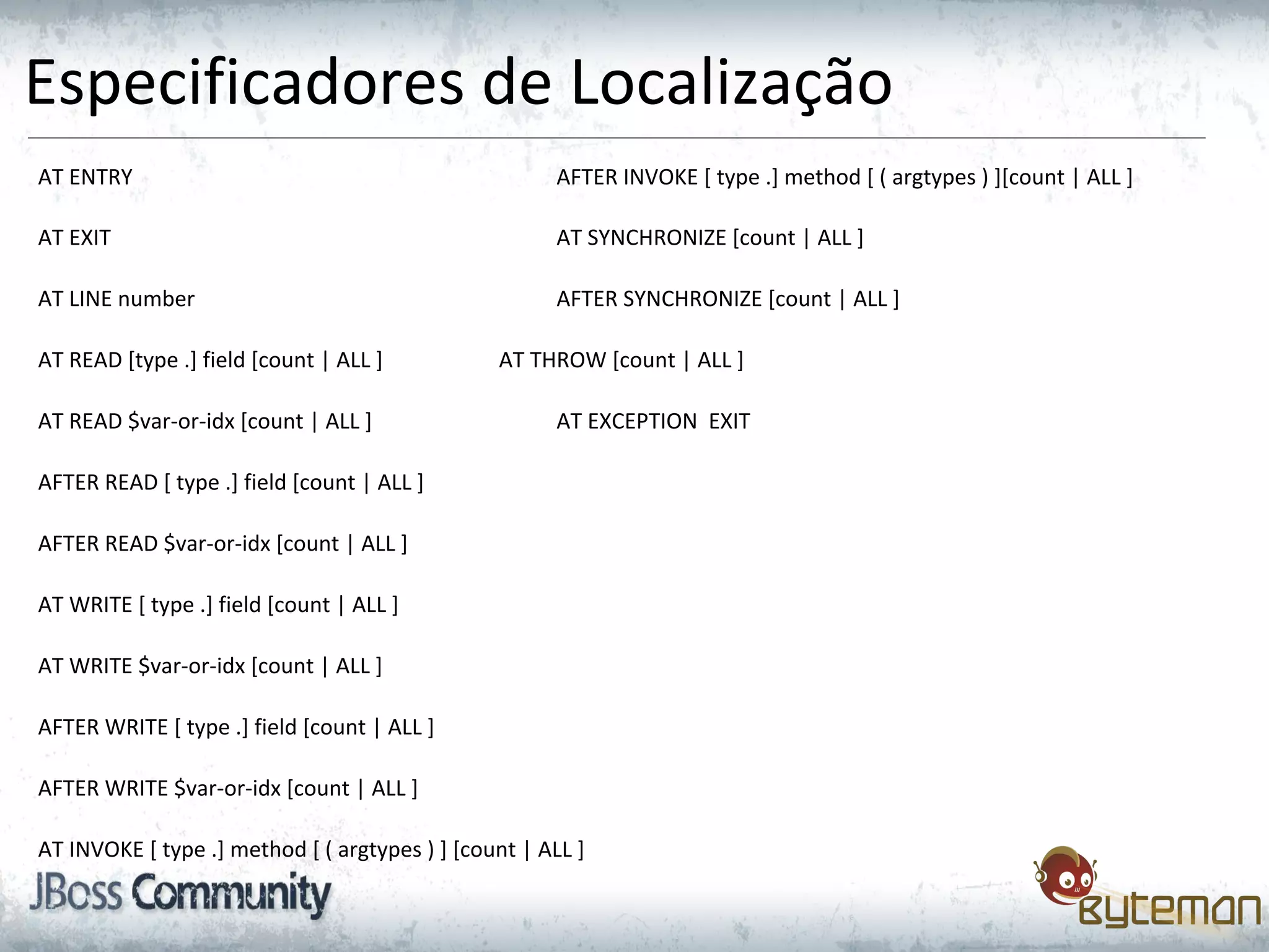

- 7. Especificadores de Localização ATENTRY AFTER INVOKE [ type .] method [ ( argtypes ) ][count | ALL ] AT EXIT AT SYNCHRONIZE [count | ALL ] AT LINE number AFTER SYNCHRONIZE [count | ALL ] AT READ [type .] field [count | ALL ] AT THROW [count | ALL ] AT READ $var-or-idx [count | ALL ] AT EXCEPTION EXIT AFTER READ [ type .] field [count | ALL ] AFTER READ $var-or-idx [count | ALL ] AT WRITE [ type .] field [count | ALL ] AT WRITE $var-or-idx [count | ALL ] AFTER WRITE [ type .] field [count | ALL ] AFTER WRITE $var-or-idx [count | ALL ] AT INVOKE [ type .] method [ ( argtypes ) ] [count | ALL ]

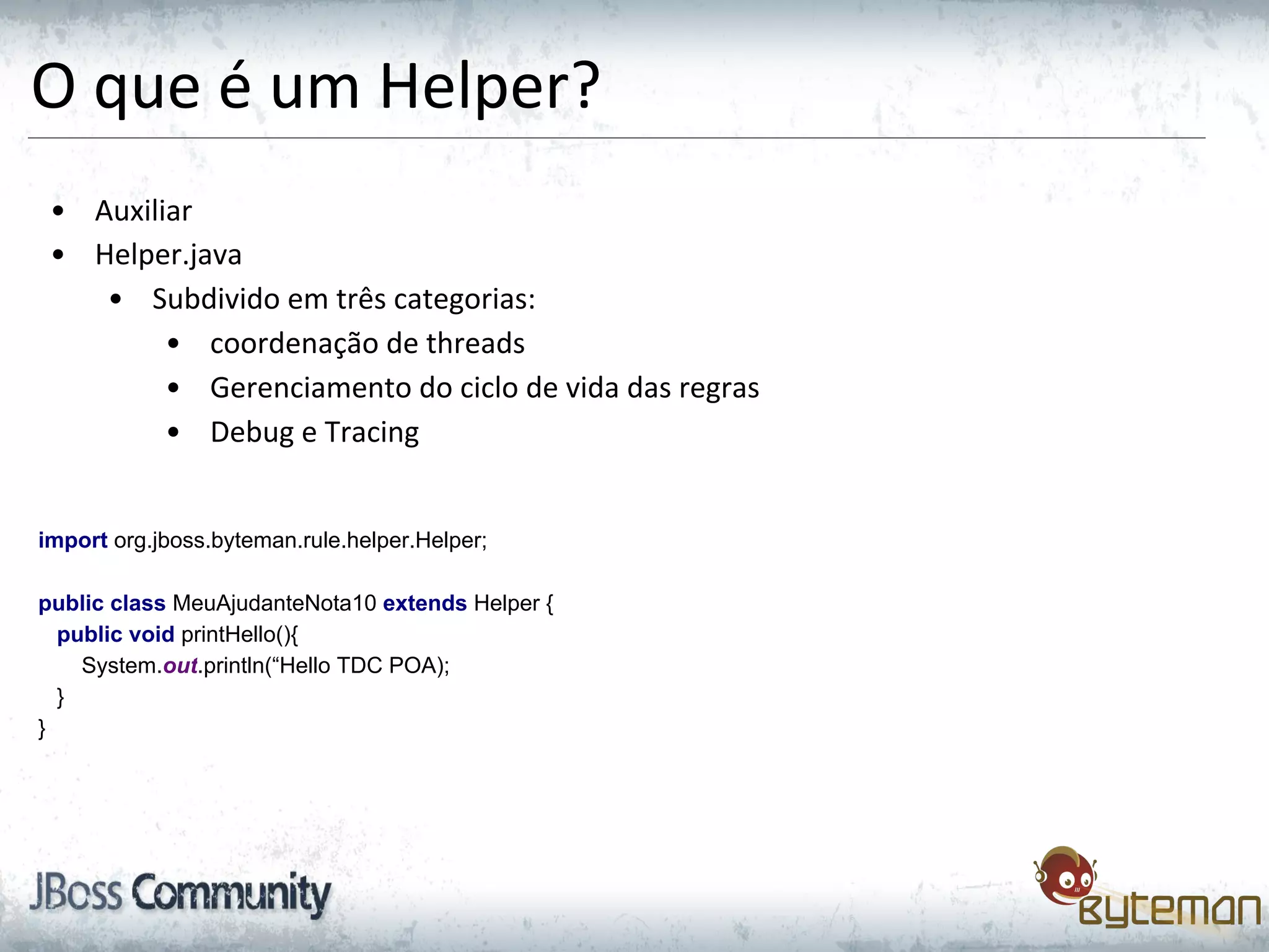

- 8. O que éum Helper? • Auxiliar • Helper.java • Subdivido em três categorias: • coordenação de threads • Gerenciamento do ciclo de vida das regras • Debug e Tracing import org.jboss.byteman.rule.helper.Helper; public class MeuAjudanteNota10 extends Helper { public void printHello(){ System.out.println(“Hello TDC POA); } }

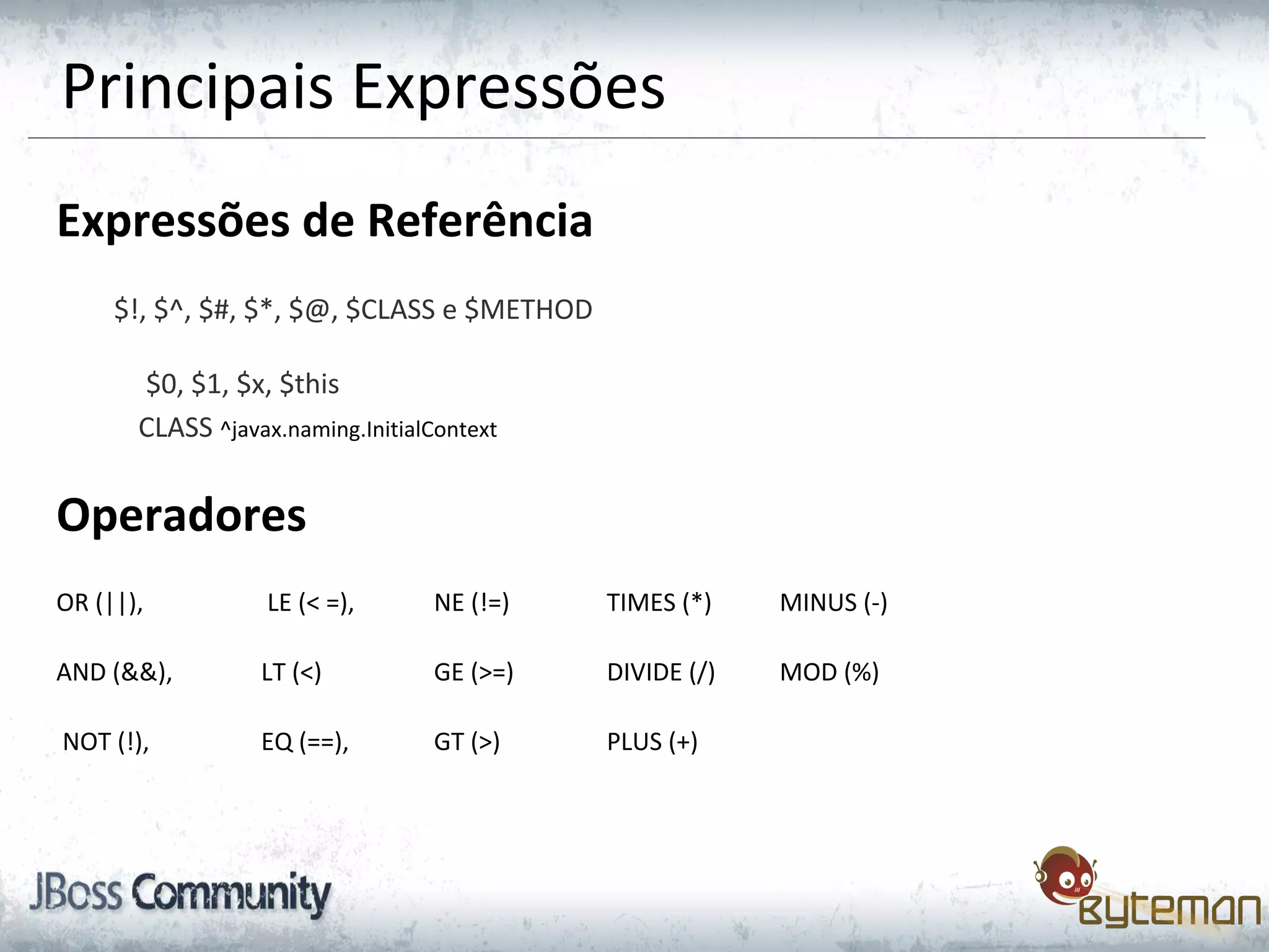

- 9. Expressões de Referência $!,$^, $#, $*, $@, $CLASS e $METHOD $0, $1, $x, $this CLASS ^javax.naming.InitialContext Operadores OR (||), LE (< =), NE (!=) TIMES (*) MINUS (-) AND (&&), LT (<) GE (>=) DIVIDE (/) MOD (%) NOT (!), EQ (==), GT (>) PLUS (+) Principais Expressões

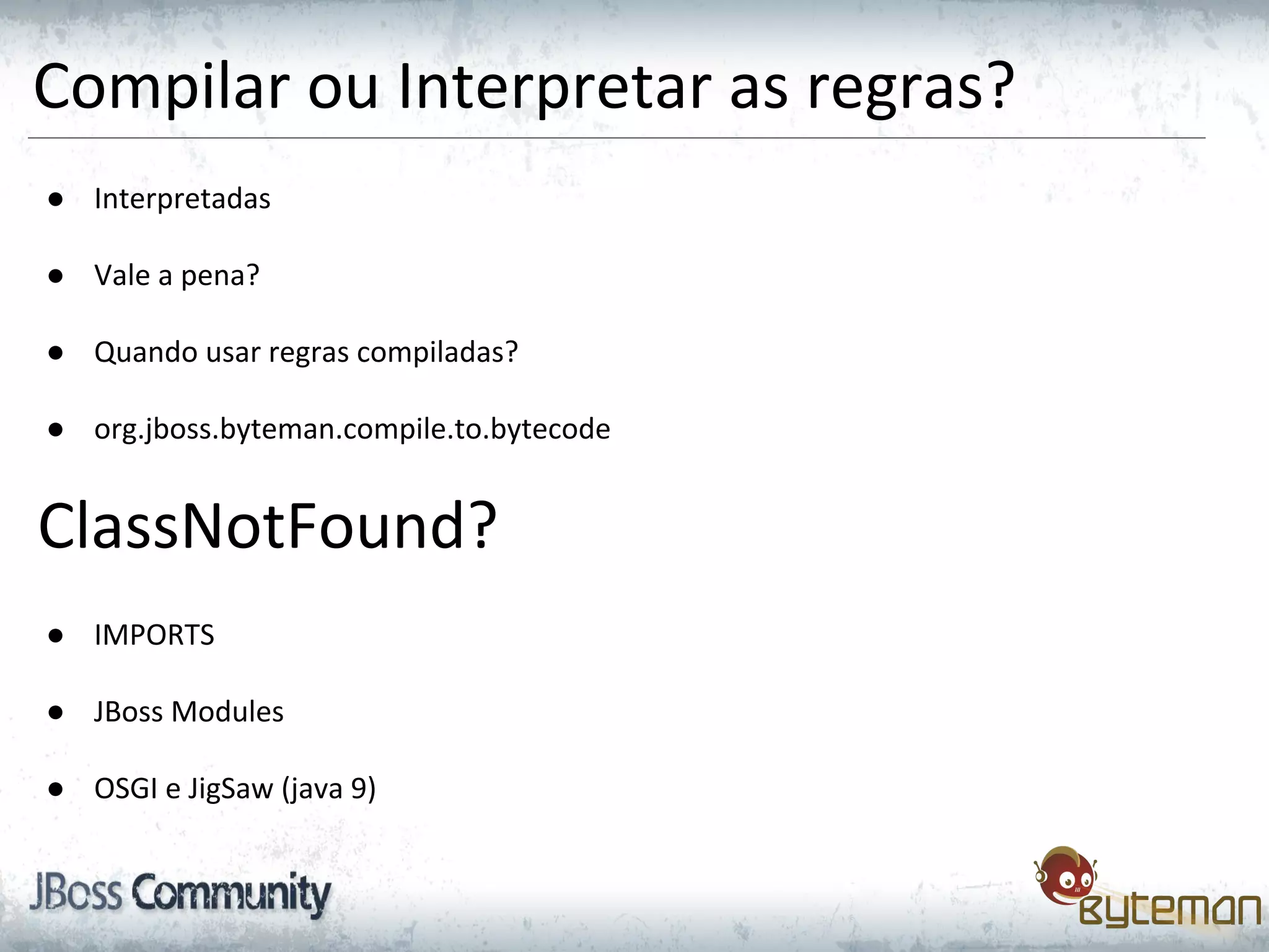

- 10. Compilar ou Interpretaras regras? ● Interpretadas ● Vale a pena? ● Quando usar regras compiladas? ● org.jboss.byteman.compile.to.bytecode ClassNotFound? ● IMPORTS ● JBoss Modules ● OSGI e JigSaw (java 9)

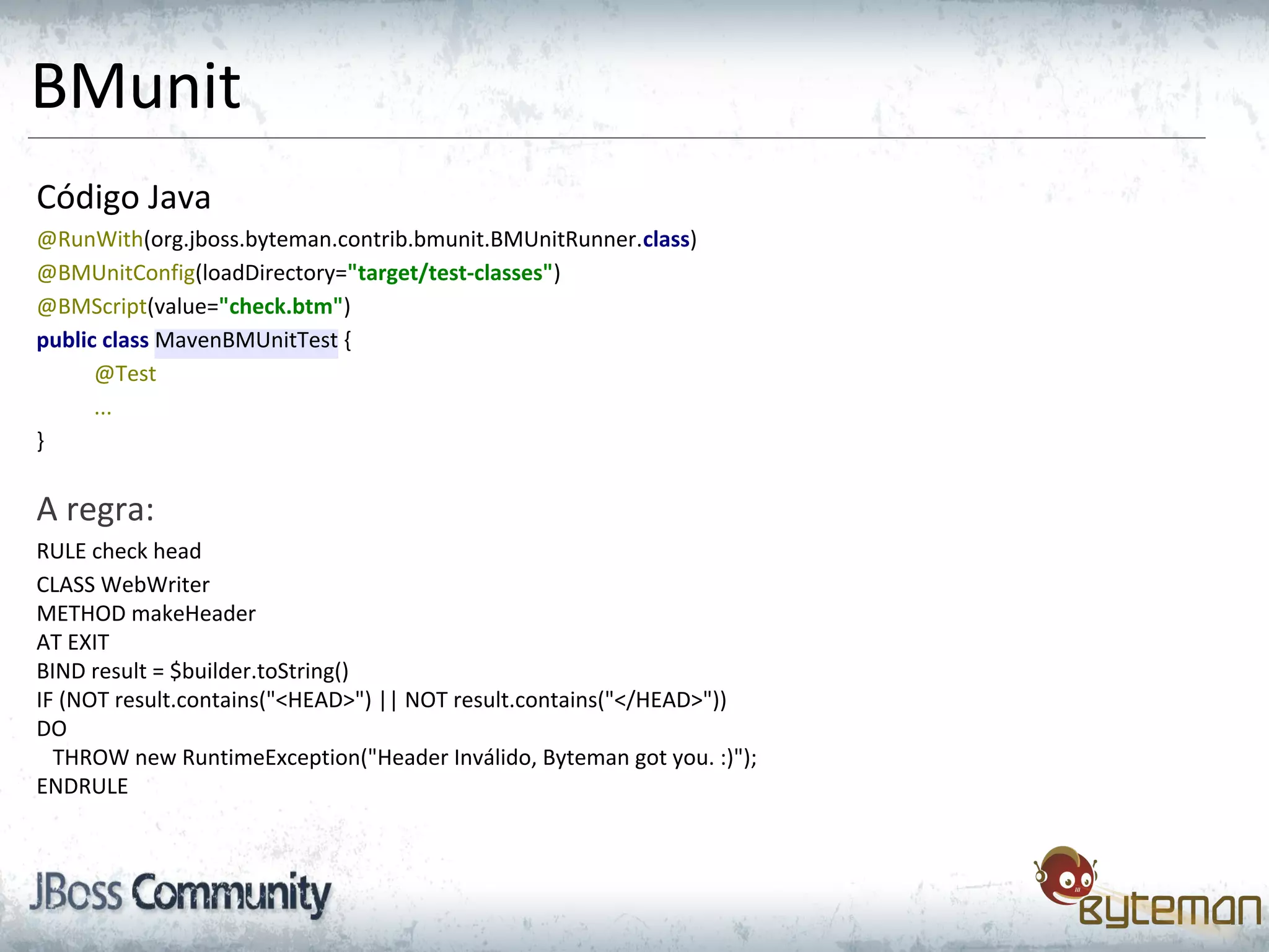

- 11. BMunit Código Java @RunWith(org.jboss.byteman.contrib.bmunit.BMUnitRunner.class) @BMUnitConfig(loadDirectory="target/test-classes") @BMScript(value="check.btm") public classMavenBMUnitTest { @Test ... } A regra: RULE check head CLASS WebWriter METHOD makeHeader AT EXIT BIND result = $builder.toString() IF (NOT result.contains("<HEAD>") || NOT result.contains("</HEAD>")) DO THROW new RuntimeException("Header Inválido, Byteman got you. :)"); ENDRULE

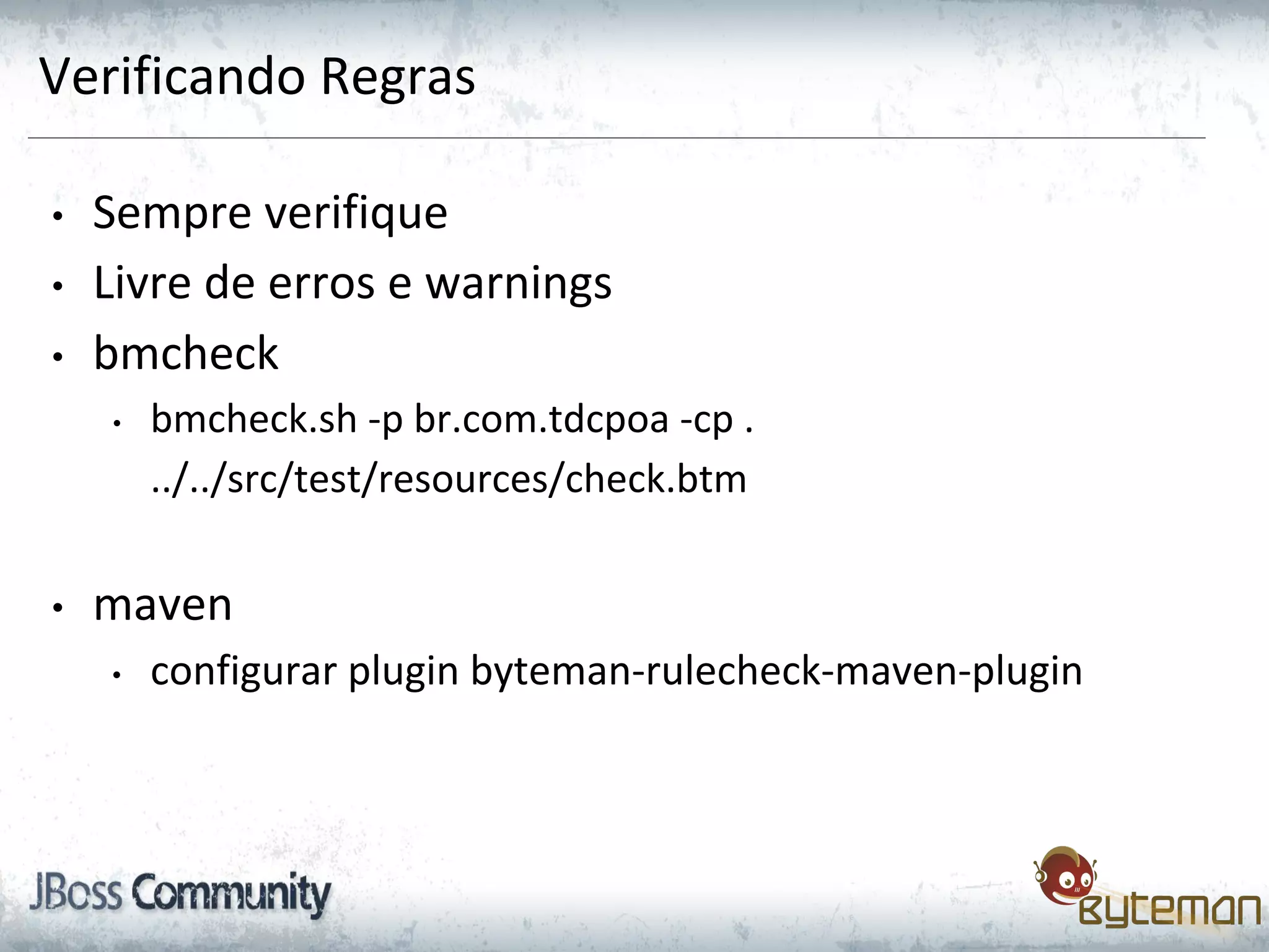

- 12. Verificando Regras • Sempreverifique • Livre de erros e warnings • bmcheck • bmcheck.sh -p br.com.tdcpoa -cp . ../../src/test/resources/check.btm • maven • configurar plugin byteman-rulecheck-maven-plugin

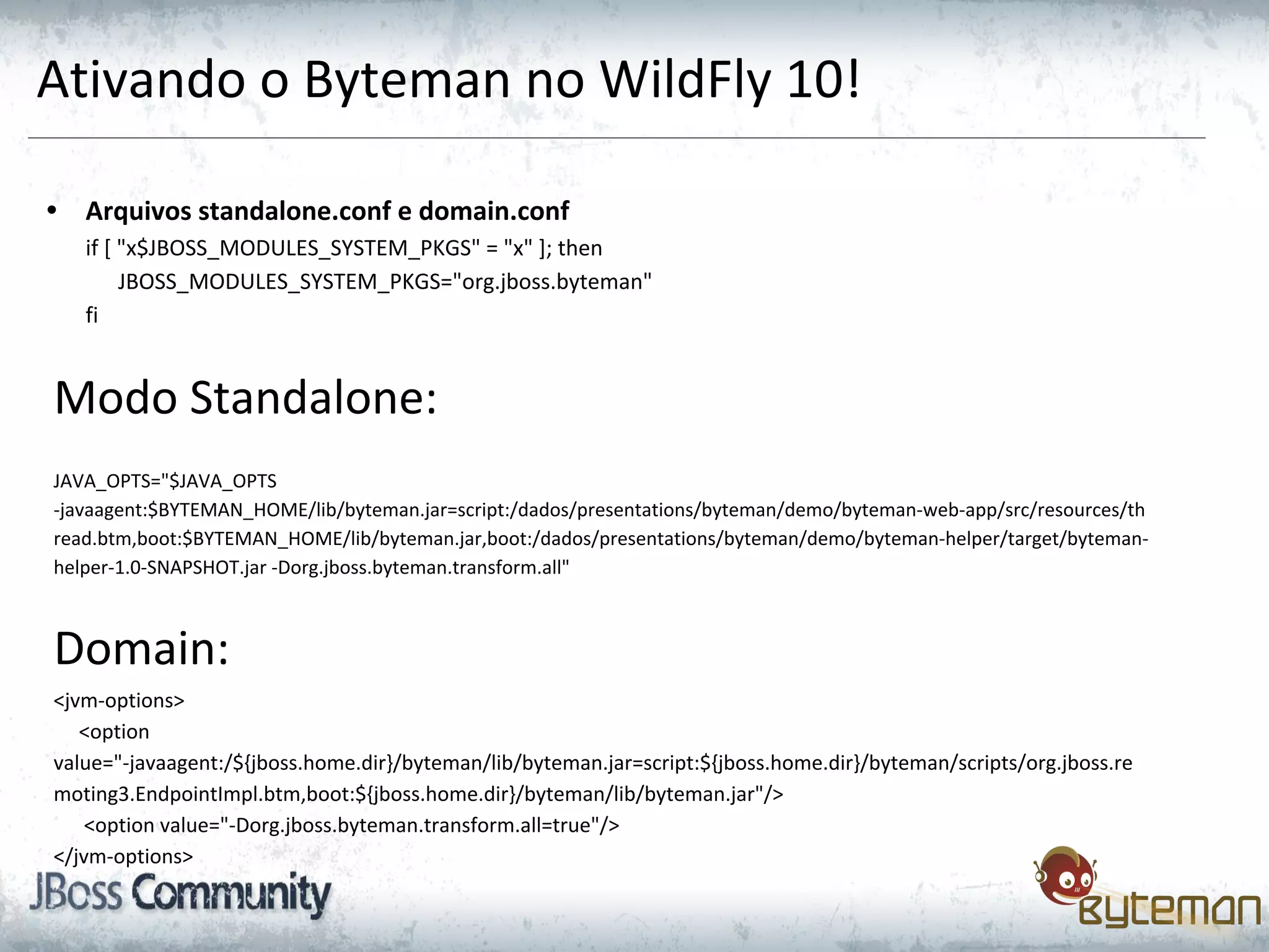

- 13. Ativando o Bytemanno WildFly 10! • Arquivos standalone.conf e domain.conf if [ "x$JBOSS_MODULES_SYSTEM_PKGS" = "x" ]; then JBOSS_MODULES_SYSTEM_PKGS="org.jboss.byteman" fi Modo Standalone: JAVA_OPTS="$JAVA_OPTS -javaagent:$BYTEMAN_HOME/lib/byteman.jar=script:/dados/presentations/byteman/demo/byteman-web-app/src/resources/th read.btm,boot:$BYTEMAN_HOME/lib/byteman.jar,boot:/dados/presentations/byteman/demo/byteman-helper/target/byteman- helper-1.0-SNAPSHOT.jar -Dorg.jboss.byteman.transform.all" Domain: <jvm-options> <option value="-javaagent:/${jboss.home.dir}/byteman/lib/byteman.jar=script:${jboss.home.dir}/byteman/scripts/org.jboss.re moting3.EndpointImpl.btm,boot:${jboss.home.dir}/byteman/lib/byteman.jar"/> <option value="-Dorg.jboss.byteman.transform.all=true"/> </jvm-options>

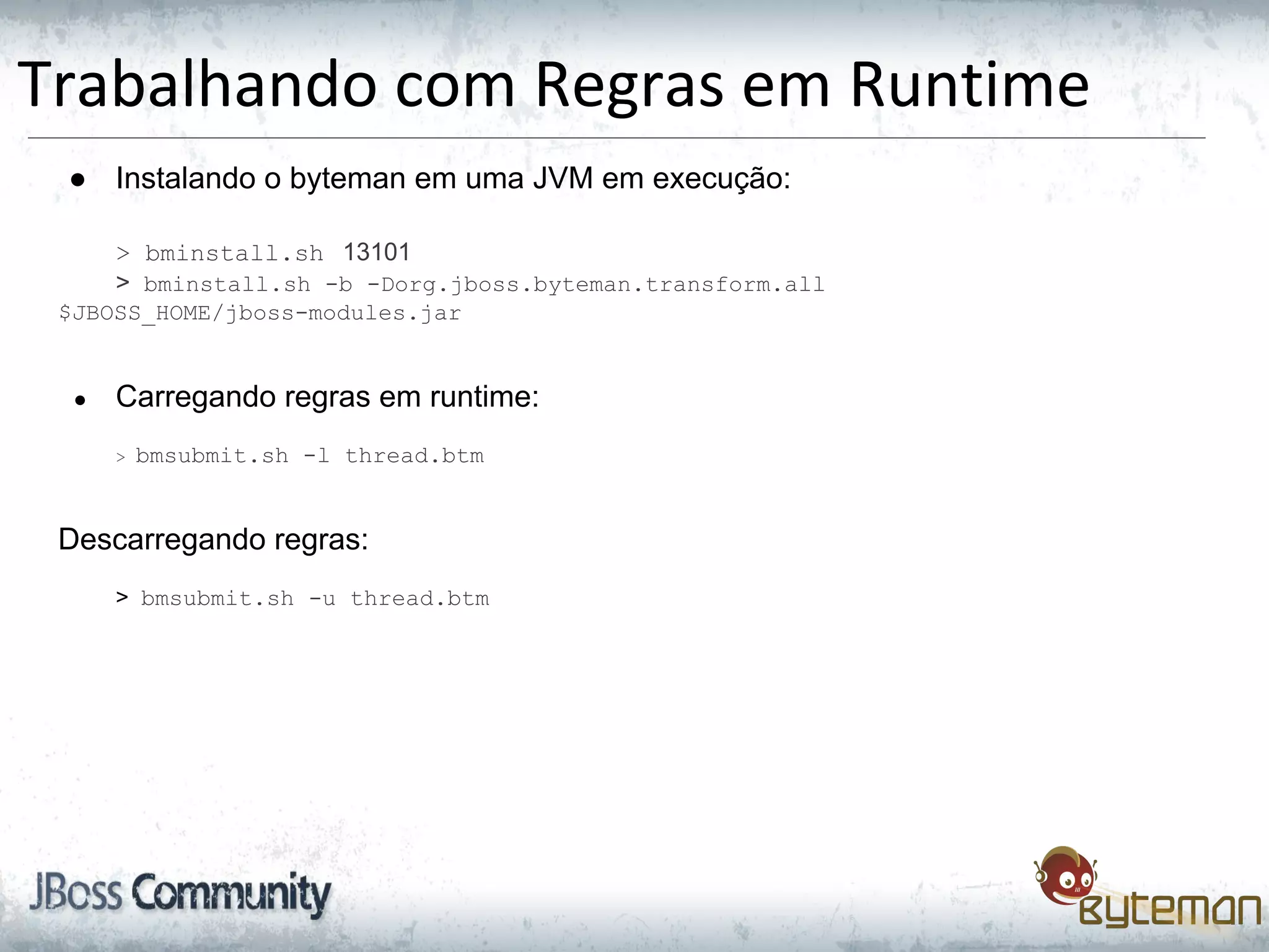

- 14. Trabalhando com Regrasem Runtime ● Instalando o byteman em uma JVM em execução: > bminstall.sh 13101 > bminstall.sh -b -Dorg.jboss.byteman.transform.all $JBOSS_HOME/jboss-modules.jar ● Carregando regras em runtime: > bmsubmit.sh -l thread.btm Descarregando regras: > bmsubmit.sh -u thread.btm
- 15. Opções disponíveis doagente java script:scriptfile resourcescript:scriptfile listener:boolean port:portnum address:host manager:classname modules:classname sys:jarfile boot:jarfile policy:boolean prop:name=value

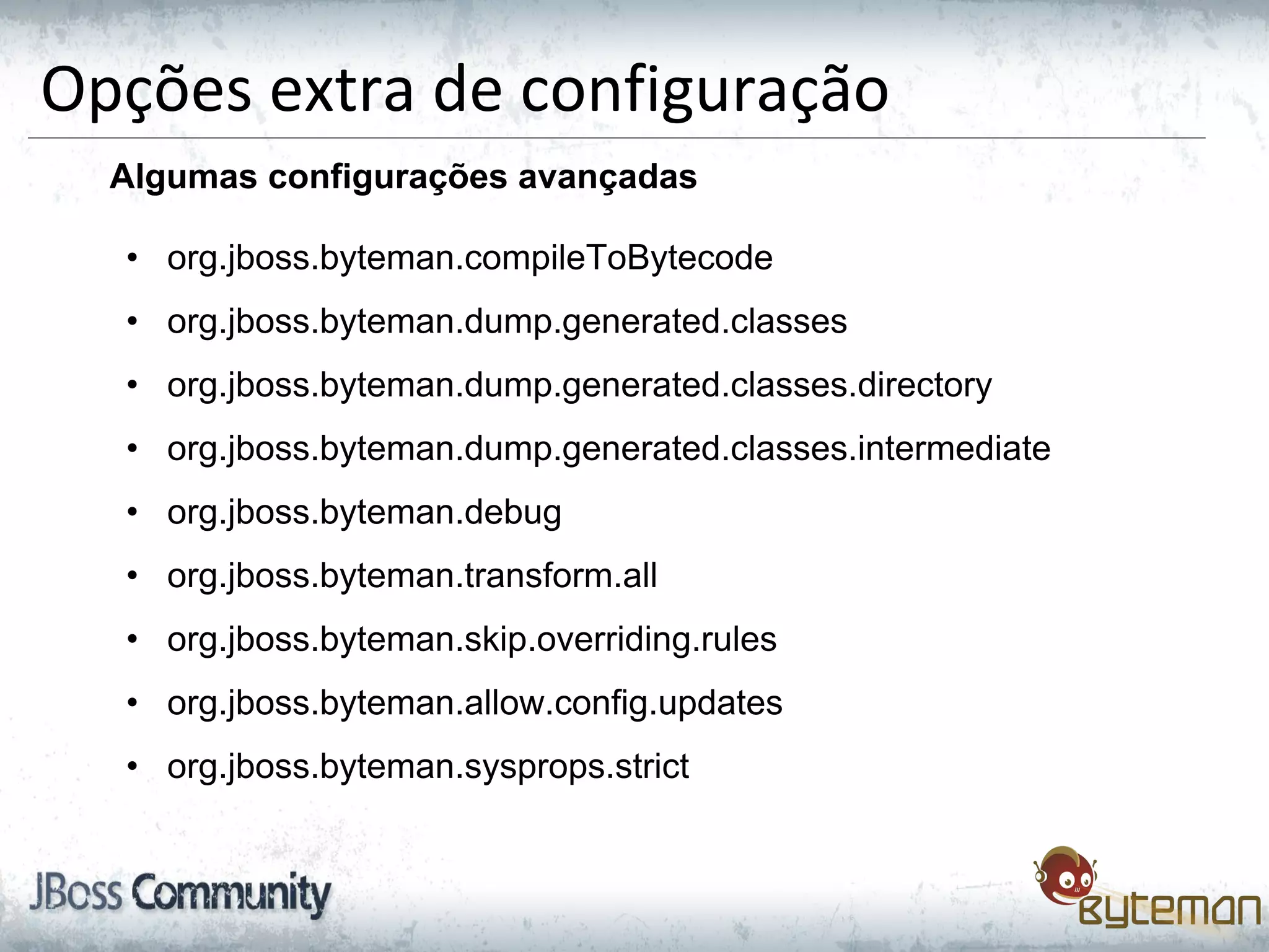

- 16. Opções extra deconfiguração Algumas configurações avançadas • org.jboss.byteman.compileToBytecode • org.jboss.byteman.dump.generated.classes • org.jboss.byteman.dump.generated.classes.directory • org.jboss.byteman.dump.generated.classes.intermediate • org.jboss.byteman.debug • org.jboss.byteman.transform.all • org.jboss.byteman.skip.overriding.rules • org.jboss.byteman.allow.config.updates • org.jboss.byteman.sysprops.strict

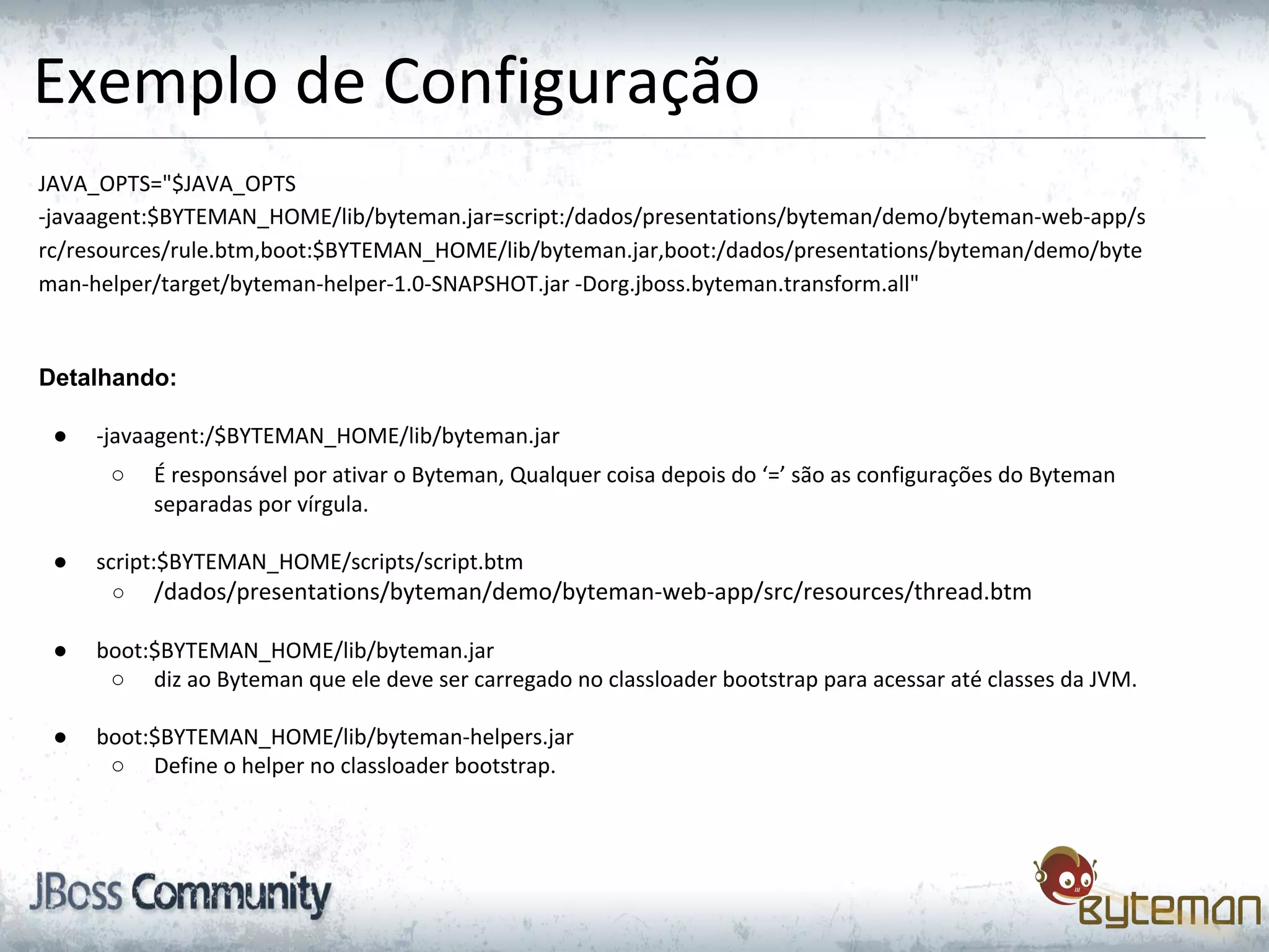

- 17. Exemplo de Configuração JAVA_OPTS="$JAVA_OPTS -javaagent:$BYTEMAN_HOME/lib/byteman.jar=script:/dados/presentations/byteman/demo/byteman-web-app/s rc/resources/rule.btm,boot:$BYTEMAN_HOME/lib/byteman.jar,boot:/dados/presentations/byteman/demo/byte man-helper/target/byteman-helper-1.0-SNAPSHOT.jar-Dorg.jboss.byteman.transform.all" Detalhando: ● -javaagent:/$BYTEMAN_HOME/lib/byteman.jar ○ É responsável por ativar o Byteman, Qualquer coisa depois do ‘=’ são as configurações do Byteman separadas por vírgula. ● script:$BYTEMAN_HOME/scripts/script.btm ○ /dados/presentations/byteman/demo/byteman-web-app/src/resources/thread.btm ● boot:$BYTEMAN_HOME/lib/byteman.jar ○ diz ao Byteman que ele deve ser carregado no classloader bootstrap para acessar até classes da JVM. ● boot:$BYTEMAN_HOME/lib/byteman-helpers.jar ○ Define o helper no classloader bootstrap.

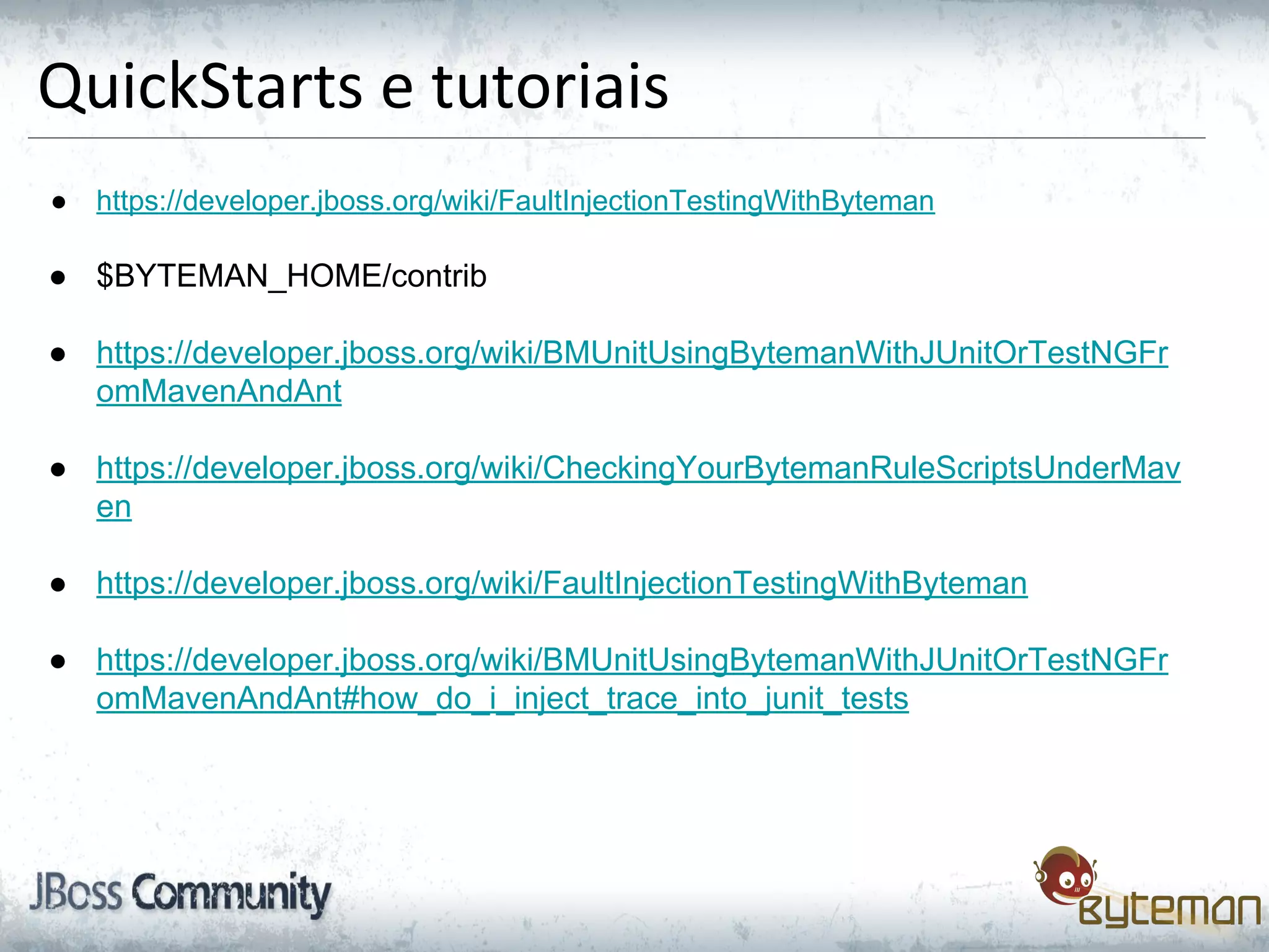

- 18. QuickStarts e tutoriais ●https://developer.jboss.org/wiki/FaultInjectionTestingWithByteman ● $BYTEMAN_HOME/contrib ● https://developer.jboss.org/wiki/BMUnitUsingBytemanWithJUnitOrTestNGFr omMavenAndAnt ● https://developer.jboss.org/wiki/CheckingYourBytemanRuleScriptsUnderMav en ● https://developer.jboss.org/wiki/FaultInjectionTestingWithByteman ● https://developer.jboss.org/wiki/BMUnitUsingBytemanWithJUnitOrTestNGFr omMavenAndAnt#how_do_i_inject_trace_into_junit_tests
- 19.

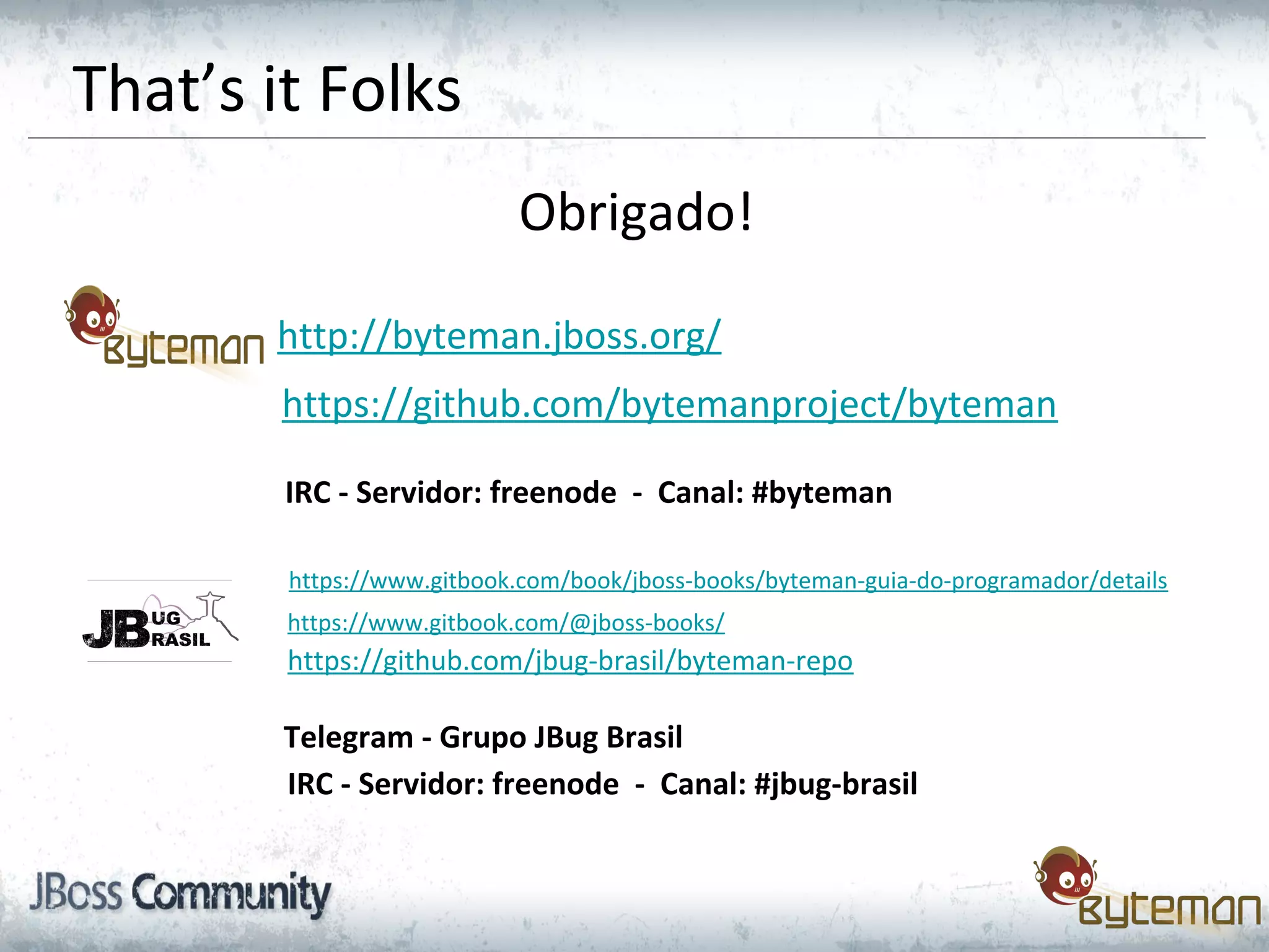

- 20. That’s it Folks Obrigado! http://byteman.jboss.org/ https://github.com/bytemanproject/byteman IRC- Servidor: freenode - Canal: #byteman https://www.gitbook.com/book/jboss-books/byteman-guia-do-programador/details https://www.gitbook.com/@jboss-books/ https://github.com/jbug-brasil/byteman-repo Telegram - Grupo JBug Brasil IRC - Servidor: freenode - Canal: #jbug-brasil
