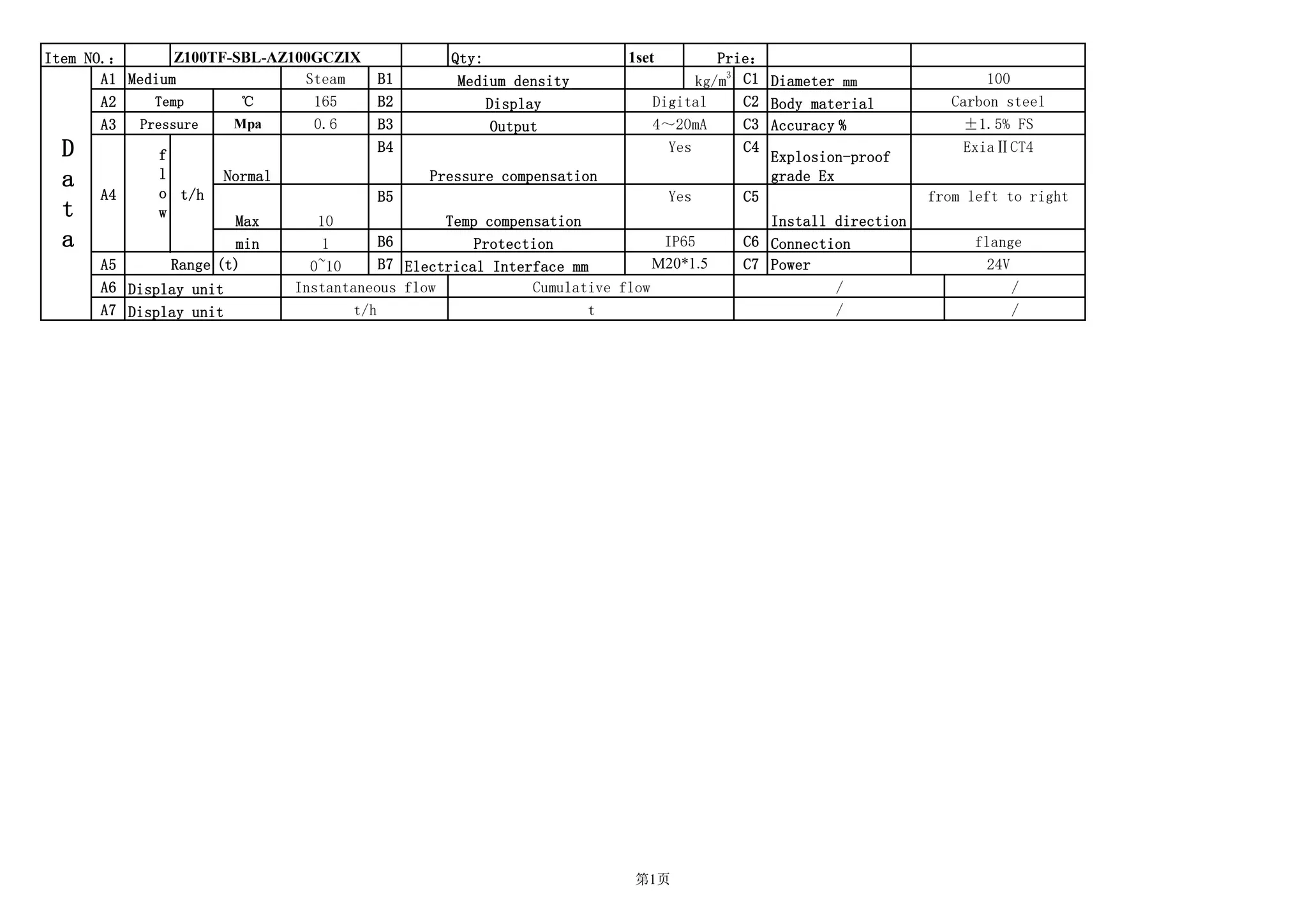

Steam target flow meter
1. Item NO.: Z100TF-SBL-AZ100GCZIX Qty: 1set Prie:
D
a
t
a
A1 Medium Steam B1 Medium density kg/m
3
C1 Diameter mm 100
A2 Temp ℃ 165 B2 Display Digital C2 Body material Carbon steel
A3 Pressure Mpa 0.6 B3 Output 4~20mA C3 Accuracy % ±1.5% FS
A4
f
l
o
w
t/h
Normal
B4
Pressure compensation
Yes C4
Explosion-proof
grade Ex
ExiaⅡCT4
Max 10
B5
Temp compensation
Yes C5
Install direction
from left to right
min 1 B6 Protection IP65 C6 Connection flange
A5 Range (t) 0~10 B7 Electrical Interface mm M20*1.5 C7 Power 24V
A6 Display unit Instantaneous flow Cumulative flow / /
A7 Display unit t/h t / /
