Static routing
- 1.

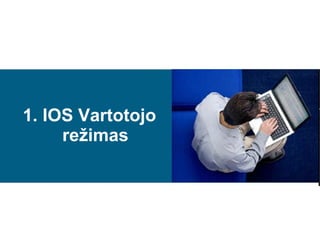

- 2. 1. IOSVartotojo režimas

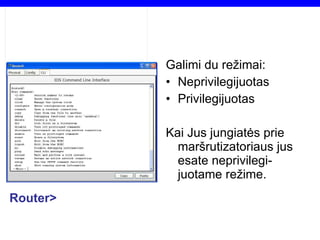

- 3. Galimi du režimai:Neprivilegijuotas Privilegijuotas Kai Jus jungiatės prie maršrutizatoriaus jus esate neprivilegi-juotame režime. Router>
- 4. 1.1 Komanda show neprivilegijuotame režime ribota. Jūs negalite redaguoti arba žiūrėti konfigū - racijas šitame režime; Jūs galite tik peržiūrėti maršrutizatoriaus statusą ir kita įvairia informacija. Router>? Execcommands: <1-99> Sessionnumbertoresume connect Openaterminalconnection disconnect Disconnectanexistingnetworkconnection enable Turnonprivilegedcommands exit ExitfromtheEXEC logout ExitfromtheEXEC ping Sendechomessages resume Resumeanactivenetworkconnection show Showrunningsysteminformation telnet Openatelnetconnection traceroute Traceroutetodestination Router> show ip route Codes:C-connected,S-static,I-IGRP,R-RIP,M-mobile,B-BGP D-EIGRP,EX-EIGRPexternal,O-OSPF,IA-OSPFinterarea N1-OSPFNSSAexternaltype1,N2-OSPFNSSAexternaltype2 E1-OSPFexternaltype1,E2-OSPFexternaltype2,E-EGP i-IS-IS,L1-IS-ISlevel-1,L2-IS-ISlevel-2,ia-IS-ISinterarea *-candidatedefault,U-per-userstaticroute,o-ODR P-periodicdownloadedstaticroute Gateway of last resort is not set 172.20.0.0/24 is subnetted,1subnets C 172.20.2.0 is directly connected,FastEthernet0/1 S 192.168.1.0/24[1/0] via172.20.2.2

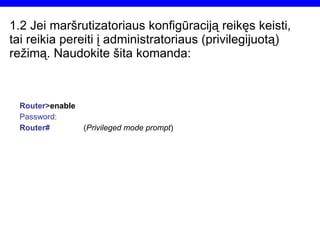

- 5. 1.2 Jeimaršrutizatoriaus konfigūraciją reikęs keisti, tai reikia pereiti į administratoriaus (privilegijuotą) režimą. Naudokite šita komanda: Router> enable Password: Router# ( Privileged mode prompt )
- 6. 1.3 Dabargalima keisti maršrutizatoriaus konfigūracija. Kad tai padaryti reikia įvesti komanda: configure terminal arba conf t Šita komanda galima įvesti jeigu Jūs esate privilegijuotame režime. Router# configureterminal Enter configuration commands,one per line.End with Ctrl-Z Router(config)# ( Konfigūravimorežimas)

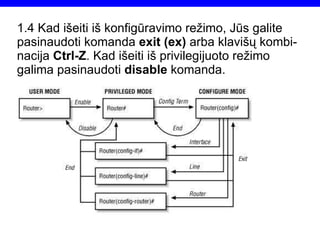

- 7. 1.4 Kadišeiti iš konfigūravimo režimo, Jūs galite pasinaudoti komanda exit (ex) arba klavišų kombi-nacija Ctrl-Z . Kad išeiti iš privilegijuoto režimo galima pasinaudoti disable komanda. Router(config)#exit Router#disable Router>
- 8. 2. Statinismaršrutizavimas

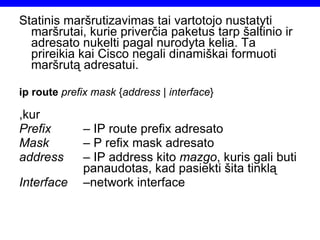

- 9. Statinis maršrutizavimas taivartotojo nustatyti maršrutai, kurie priverčia paketus tarp šaltinio ir adresato nukelti pagal nurodyta kelia. Ta prireikia kai Cisco negali dinamiškai formuoti maršrutą adresatui. ip route prefix mask { address | interface } ,kur Prefix – IP route prefix adresato Mask – P refix mask adresato address – IP address kito mazgo , kuris gali buti panaudotas, kad pasiekti šita tinklą Interface – network interface

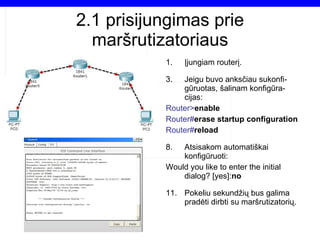

- 10. 2.1 prisijungimasprie maršrutizatoriaus Įjungiam routerį. Jeigu buvo anksčiau sukonfi-gūruotas, šalinam konfigūra-cijas: Router> enable Router# erase startup configuration Router# reload Atsisakom automatiškai konfigūruoti: Would you like to enter the initial dialog? [yes]: no Pokeliu sekundžių bus galima pradėti dirbti su maršrutizatorių.

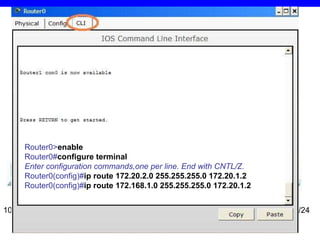

- 11. 2.2. Pavyzdys 110.10.10.2/24 10.10.10.1/24 172.20.1.1/24 172.20.2.1/24 172.20.1.2/24 172.20.2.2/24 192.168.1.1/24 192.168.1.2/24 Router 0 > en able Router 0 # configure terminal Enter configuration commands,one per line. End with CNTL/Z. Router 0 (config)# ip route 172.20.2.0 255.255.255.0 172.20.1.2 Router 0 (config)# ip route 172.168.1.0 255.255.255.0 172.20.1.2

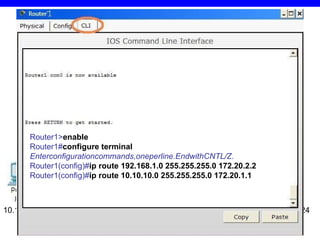

- 12. 2.2. Pavyzdys 110.10.10.2/24 10.10.10.1/24 172.20.1.1/24 172.20.2.1/24 172.20.1.2/24 172.20.2.2/24 192.168.1.1/24 192.168.1.2/24 Router1> en able Router1# configure terminal Enterconfigurationcommands,oneperline.EndwithCNTL/Z. Router1(config)# ip route 1 92.168.1.0 255.255.255.0 172.20. 2 .2 Router1(config)# ip route 10.10.10 .0 255.255.255.0 172 .2 0.1.1

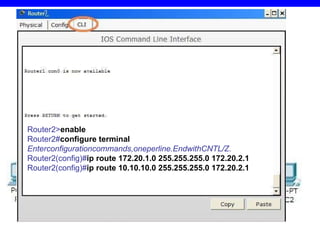

- 13. 2.2pavyzdys 10.10.10.1/24 172.20.1.1/24172.20.2.1/24 172.20.1.2/24 172.20.2.2/24 192.168.1.1/24 Router 2 > en able Router 2 # configure terminal Enterconfigurationcommands,oneperline.EndwithCNTL/Z. Router 2 (config)# ip route 1 72.20.1.0 255.255.255.0 172.20. 2 . 1 Router 2 (config)# ip route 10.10.10 .0 255.255.255.0 172 .2 0.2.1

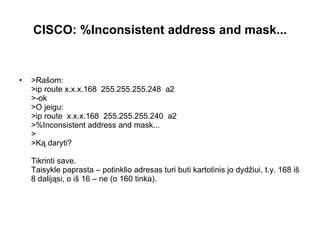

- 14. CISCO: %Inconsistent address and mask... >Rašom: >ip route x.x.x.168 255.255.255.248 a2 >-ok >O jeigu: >ip route x.x.x.168 255.255.255.240 a2 >%Inconsistent address and mask... > >Ką daryti? Tikrinti save. Taisykle paprasta – potinklio adresas turi buti kartotinis jo dydžiui, t.y. 168 iš 8 dalijąsi , o iš 16 – ne ( o 160 tinka).

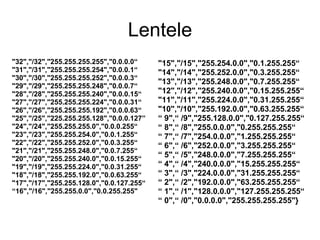

- 15. Lentele "32","/32","255.255.255.255","0.0.0.0“ "31","/31","255.255.255.254","0.0.0.1“"30","/30","255.255.255.252","0.0.0.3“ "29","/29","255.255.255.248","0.0.0.7“ "28","/28","255.255.255.240","0.0.0.15“ "27","/27","255.255.255.224","0.0.0.31“ "26","/26","255.255.255.192","0.0.0.63“ "25","/25","225.255.255.128","0.0.0.127” "24","/24","255.255.255.0","0.0.0.255“ "23","/23","255.255.254.0","0.0.1.255“ "22","/22","255.255.252.0","0.0.3.255“ "21","/21","255.255.248.0","0.0.7.255“ "20","/20","255.255.240.0","0.0.15.255“ "19","/19","255.255.224.0","0.0.31.255“ "18","/18","255.255.192.0","0.0.63.255“ "17","/17","255.255.128.0","0.0.127.255“ “ 16","/16","255.255.0.0","0.0.255.255" "15","/15","255.254.0.0","0.1.255.255“ "14","/14","255.252.0.0","0.3.255.255“ "13","/13","255.248.0.0","0.7.255.255“ "12","/12","255.240.0.0","0.15.255.255“ "11","/11","255.224.0.0","0.31.255.255“ "10","/10","255.192.0.0","0.63.255.255“ “ 9",“ /9","255.128.0.0","0.127.255.255“ “ 8",“ /8","255.0.0.0","0.255.255.255“ “ 7",“ /7","254.0.0.0","1.255.255.255“ “ 6",“ /6","252.0.0.0","3.255.255.255“ “ 5",“ /5","248.0.0.0","7.255.255.255“ “ 4",“ /4","240.0.0.0","15.255.255.255“ “ 3",“ /3","224.0.0.0","31.255.255.255“ “ 2",“ /2","192.0.0.0","63.255.255.255“ “ 1",“ /1","128.0.0.0","127.255.255.255“ “ 0",“ /0","0.0.0.0","255.255.255.255"}
- 16. Q &A Denis Naugolnikov Šiaulių Universitetas Technologijos fakultetas [email_address] 2008
