Las maquinas de estado y los flujos de trabajo no son nada nuevo, pero sí quizás algo de lo que has oído hablar pero no te has lanzado a implementar. Cada vez más, esta empezando a formar una parte muy importante de la evolución tecnológica de muchas empresas. Nos pueden servir para solucionar algunos comportamientos en nuestro pequeño proyecto o ser la solución idónea cuando necesitamos aclarar muchos de los procesos de negocio que podemos encontrar en un proyecto muy grande y quizás muy monolítico. Tecnológicamente hablando, es una muy buena herramienta para encapsular una lógica de negocio que suele ser compleja y tediosa. Con esta charla me gustaría compartir mi experiencia trabajando con dichos procesos, ayudaros a entender dichos conceptos y saber diferenciar cuando usar uno u el otro, algo muy importante. Por supuesto, veremos y comentaremos implementaciones en PHP y algunas de las librerías que nos pueden ayudar a agilizar aún más la implementación de estos modelos en nuestros proyectos. URL del evento: http://www.meetup.com/es-ES/PHPMad/events/234585802/

1. 1

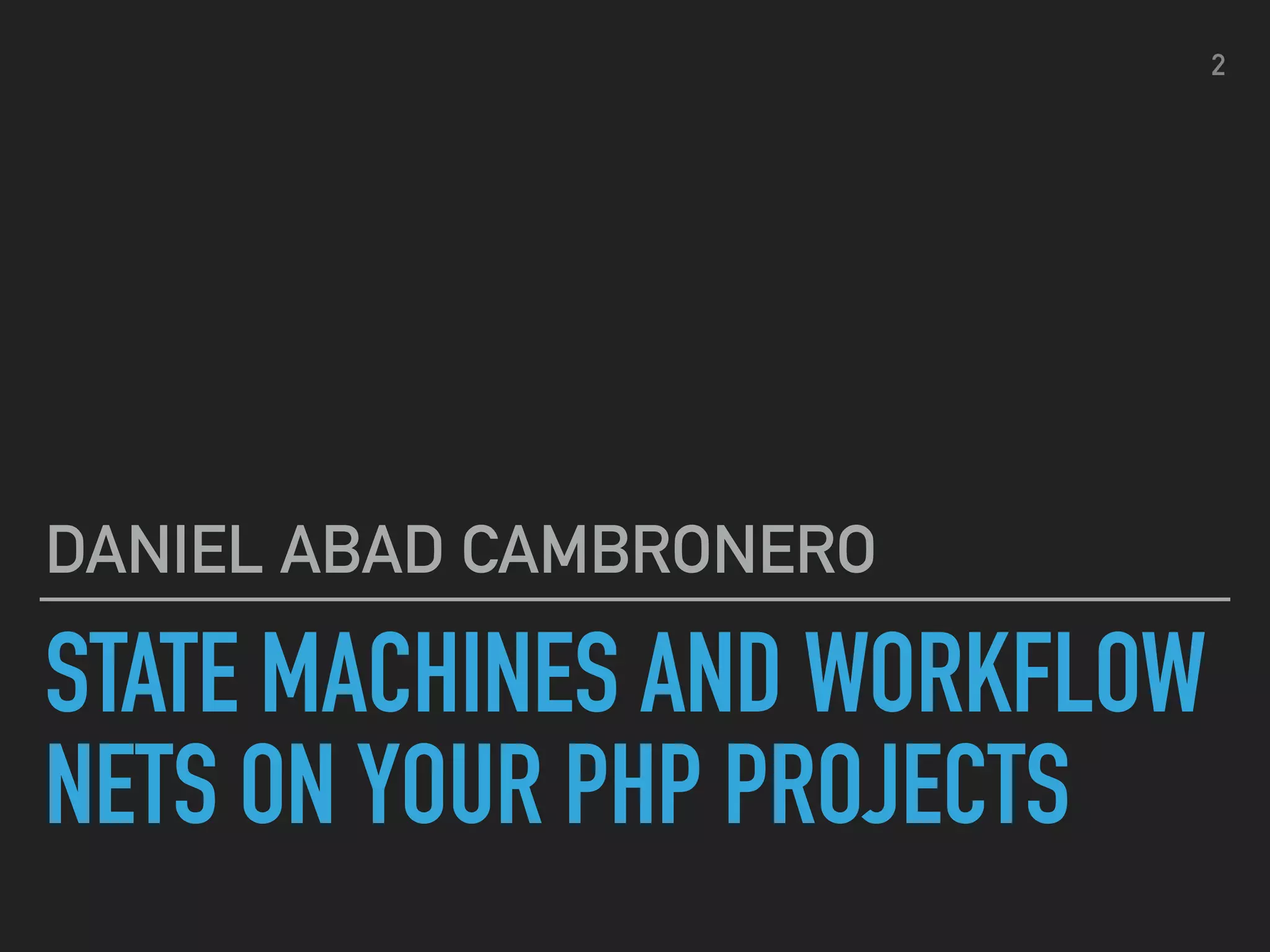

2. STATE MACHINES AND WORKFLOW
NETS ON YOUR PHP PROJECTS
DANIEL ABAD CAMBRONERO
2

3. PRESENTATION
▸ Daniel Abad Cambronero
▸ https://github.com/ruudy-es
▸ @Ruudy_es
▸ Senior Software Developer
WHO I IM
3

4. INTRODUCTION
WHY?
▸ What are the three most important ideas in programming?
1. Abstraction
2. Abstraction
3. Abstraction
4

5. STATE MACHINES
DEFINITION
▸ Is a computational model used to design both computer
programs and sequential logic circuits
▸ It is conceived as an abstract machine that can be in one of
a finite number of states
▸ No ambiguity is allowed, the machine does not have
human intuition and must follow instructions
▸ It can change from one state to another when triggered by
an event or condition
5

6. STATE MACHINES
IMPORTANT CONCEPTS
▸ STATE
▸ TRANSITION
▸ EVENT / TRANSITION CONDITIONS
▸ ENTRY ACTION
▸ EXIT ACTION
6

7. STATE MACHINES
THEY ARE AMONG US
This is not brand new, have decades of research behind them,
analyzing and simplifying them.
▸ Electronic design automation
▸ Communication protocol design
▸ Language parsing
▸ To describe neurological systems (biology)
▸ To describe simple parts of the grammars of natural language
(linguistics)
7

8. STATE MACHINES
CLOSER THAN YOU THINK
8
▸ SM can model a
large number of
problems:

9. STATE MACHINES
ALSO…
▸ It really helps the design process
▸ Just with a look at the drawing, most of the people will
understand what is happening there
▸ It’ll make debugging easier and help us find where the
points of failure are
9

10. STATE MACHINES
WOW !
10

11. WORKFLOW NETS
DEFINITION
▸ Try to represent a complex human task with an steps
process
▸ Is a subclass of Petri nets intending to model the workflow
of process activities.
Wait…..
11

12. WOKFLOW NETS
PETRI NET?
▸ Place / transition net, one of the several mathematical
modelling languages for the description of distributed
systems.
▸ Arcs run from a place to a transition or vice versa, never
between places or between transitions
▸ The model never gets stuck in a transition
12

13. WOKFLOW NETS
STRUCTURES
13

14. WORKFLOW NETS
GO BACK TO THE DEFINITION
▸ Transitions are assigned to tasks or activities
▸ Places are assigned to the pre/post conditions
▸ Have the addition of a single input (source) place with no
previous transitions, and output place (sink) with no
following transitions.
14

15. WORKFLOW NETS
IMPORTANT CONCEPTS
▸ Transitions
▸ Places
▸ Arcs
▸ Marking
15

16. WORKFLOW NETS
BENEFITS
▸ Can represent an orchestrated and repeatable pattern of business
activity
▸ It can be depicted as a sequence of operations
▸ Strongly related with how people actually work and how
organizations handle information
▸ A newcomer can easily understand a program just looking at the
Workflow Definition Graph.
▸ Even more easy to debug and notice points of failure than State
Machine
16

17. STATE MACHINES VS WORKFLOW NETS
SUMMARISING
STATE MACHINE
‣ Must be only on one state
‣ Has only an exclusive
gateway
‣ Can be cyclic (loop)
‣ Could have transitions
with same name
WORKFLOW NET
‣ Marking could be composed
by multiple places
‣ Has a parallel gateway,
inclusive gateway and
exclusive gateway
‣ Are usually acyclic (start to
finish)
‣ Transitions name must be
unique
17

18. ENOUGH THEORY
18

19. MAKE THIS USABLE
RECOGNIZING IT
▸ Our model have a state or status field
▸ We are using boolean fields (published, paid)
▸ We are using nullable timestamps (published_at, paid_at)
▸ Having records that are only valid for a given period in
time (subscriptions with start and end date)
▸ Approved / Rejected process depending of multiple
checks
19

20. MAKE THIS USABLE
HAVE YOU EVER SEEN THIS?
20
▸ You ever thought or see something like this?

21. MAKE THIS USABLE
OR THIS?
21

22. MAKE THIS USABLE
HOW TO (PHP)
▸ Encapsulate the graph logic
▸ Design a good architecture around:
▸ Models
▸ Transition conditions
▸ Movements Logic
▸ Events / Automatization
▸ Tests / Documentation
22

23. ENCAPSULATE THE GRAPH LOGIC
STATE MACHINES LIBRARIES
▸ https://github.com/winzou/state-machine
▸ https://github.com/winzou/StateMachineBundle
▸ https://github.com/yohang/Finite
▸ https://github.com/Metabor/Statemachine
▸ https://github.com/sebastianbergmann/state
23

24. ENCAPSULATE THE GRAPH LOGIC
WORKFLOW NETS LIBRARIES
▸ https://github.com/symfony/workflow (3.x)
▸ https://github.com/fduch/workflow-bundle (2.x
compatibility)
▸ https://github.com/lexik/LexikWorkflowBundle (2.x)
▸ http://www.yiiframework.com/extension/simpleworkflow/
▸ https://github.com/florianv/petrinet
24

25. ENCAPSULATE THE GRAPH LOGIC
JUST DO IT
25

26. ENCAPSULATE THE GRAPH LOGIC
LOOKS QUITE SIMPLE
26

27. EXAMPLE - GRAPHS
STATE MACHINE GRAPH
27

28. EXAMPLE - GRAPHS
WORKFLOW NET GRAPH
28

29. EXAMPLE - ENCAPSULATE GRAPH LOGIC
LIBRARIES CONFIGURATION
29

30. EXAMPLE - DESIGN A GOOD ARCHITECTURE AROUND
MODELS
‣ Not type tables (for SM and WF)
▸ Not enum columns
▸ Easy as VARCHAR or LONGTEXT
▸ Do not try to replicate the SM / WF logic in your model
▸ SM & WF will use attributes for your model
30

31. EXAMPLE - DESIGN A GOOD ARCHITECTURE AROUND
SCHEMA
31

32. EXAMPLE - DESIGN A GOOD ARCHITECTURE AROUND
TRANSITIONS CONDITIONS
▸ Constraints / Validators
▸ Repositories / Models
▸ Library Events (not recommended)
32

33. EXAMPLE - DESIGN A GOOD ARCHITECTURE AROUND
MOVEMENTS LOGIC
33

34. EXAMPLE
DEMO TIME

35. DESIGN A GOOD ARCHITECTURE AROUND
EVENTS / AUTOMATIZATION
▸ Crons
▸ Model changes
▸ Transitions
▸ Places / States reach / leave
▸ Logs
35

36. DESIGN A GOOD ARCHITECTURE AROUND
TEST & DOCUMENTATION
Is almost impossible to cover all the cases from start.
▸ What happens if an enemy die?
▸ What happens if meanwhile im evading, enemy move to
another zone?
36

37. FINAL TIPS
MIX IT!
37
▸ A state machine could be part of a transition in a Workflow
net
▸ The final place of a Workflow could be one of the
requirements in a State machine transaction
▸ The enemy state could be another state machine with
different reactions (kind of AI), or a second instance of the
current one, interacting each other.

38. FINAL TIPS
QUITE SIMILAR, WHY TO USE BOTH?
38

39. THE END
QUESTIONS
39

40. THANKS
THANK YOU!
40
Demo repository:
▸ https://github.com/ruudy-es/phpmad-phpmachine-videogame
