The document discusses the tools and features available in STAAD Pro for modeling, assigning properties, supports, and analyzing structural designs. It lists tools for editing models, defining material properties, assigning cross-sectional properties to structural elements, selecting from steel and aluminum shape tables, assigning profiles to elements, and specifying support conditions.

1. STAAD Pro
ANALYSING AND DESIGNING

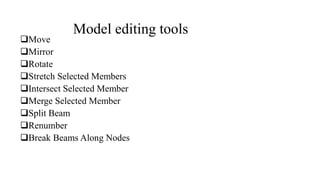

2. Model editing tools
Move
Mirror
Rotate
Stretch Selected Members
Intersect Selected Member
Merge Selected Member
Split Beam
Renumber
Break Beams Along Nodes

3. Material Property
Elasticity Kn/𝑚𝑚2
Density Kn/𝑚𝑚3
Young’s Modulus no unit
Poisson’s Ratio no unit
Damping Ratio no unit
Shear Modulus no unit
Thermal Coefficient /℃
Compressive strength Kn/𝑚𝑚2
Grade of steel Kn/𝑚𝑚2
Ultimate strength Kn/𝑚𝑚2

4. Assigning Property
Prismatic
Circle
Rectangle
Tee
Trapezoidal
General
Tapered I
Tapered Tube

5. Steel Table
Angle
Angle with lips
Channel
Channel with lips
Zee
Zee with lips
Hat

6. Aluminum Table
H Beam
Army/Navy I Beam
I Beam
Army/Navy Tee
Tee
Army/Navy Channel
Channel
Special Channel
American Standard Channel
Rectangular
Square
Round
Pipe

7. Assign Profile
Angle
Double angle
Beam
Column
Channel

8. Assigning to Structure

9. Support Specification
Pinned
Fixed
Fixed But
Enforced But
Enforced
Inclined

10. Assigning The Support
