Project stORM is an ORM library for SQLite on Android that aims to provide an easy and convention-based way to map objects to database tables. It uses annotation processing to generate database helper classes and data access objects (DAOs) that allow storing and querying objects with minimal boilerplate code or performance overhead. The library supports basic CRUD operations on objects as well as filtering and sorting but does not currently support object relationships or complex queries.

1. Project stORM:
an ORM for SQLite
+David Chandler
(ex) Android Developer Advocate
http://turbomanage.com

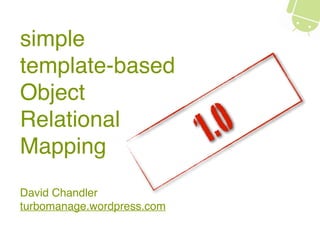

2. simple
template-based
Object
Relational
Mapping
David Chandler
turbomanage.wordpress.com
1.0

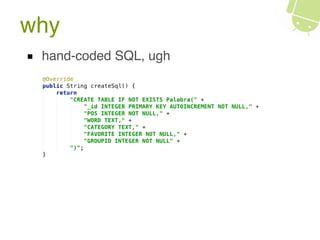

3. why
hand-coded SQL, ugh

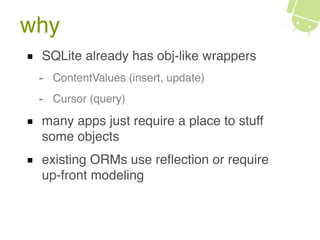

4. why
SQLite already has obj-like wrappers
- ContentValues (insert, update)
- Cursor (query)
many apps just require a place to stuff
some objects
existing ORMs use reflection or require
up-front modeling

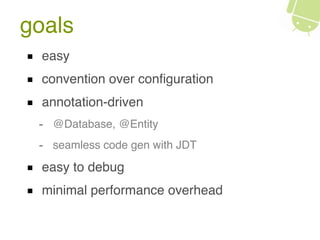

5. goals
easy
convention over configuration
annotation-driven
- @Database, @Entity
- seamless code gen with JDT
easy to debug
minimal performance overhead

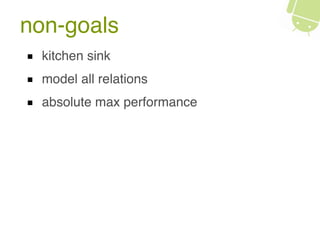

6. non-goals
kitchen sink
model all relations
absolute max performance

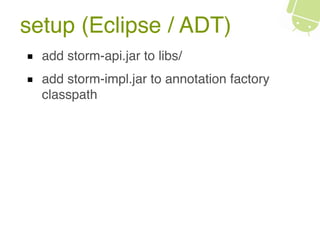

7. setup (Eclipse / ADT)
add storm-api.jar to libs/
add storm-impl.jar to annotation factory
classpath

8. setup (Android Studio)
github.com/turbomanage/storm-gen
buildscript {
repositories {
mavenCentral()
}
dependencies {
classpath 'com.android.tools.build:gradle:0.13.+'
classpath 'com.neenbedankt.gradle.plugins:android-apt:1.4'
}
}
apply plugin: 'android-apt'
dependencies {
apt ‘com.turbomanage.storm:storm-impl:1.0'
compile 'com.android.support:appcompat-v7:19.1.0'
compile 'log4j:log4j:1.2.17'
compile 'javax.persistence:persistence-api:1.0'
compile ‘com.turbomanage.storm:storm-api:1.0'
}

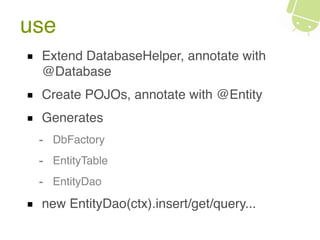

9. use
Extend DatabaseHelper, annotate with
@Database
Create POJOs, annotate with @Entity
Generates
- DbFactory
- EntityTable
- EntityDao
new EntityDao(ctx).insert/get/query...

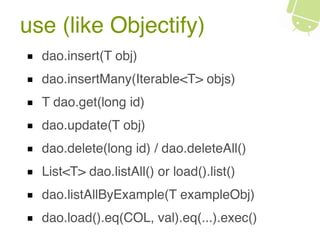

10. use (like Objectify)
dao.insert(T obj)
dao.insertMany(Iterable<T> objs)
T dao.get(long id)
dao.update(T obj)
dao.delete(long id) / dao.deleteAll()
List<T> dao.listAll() or load().list()
dao.listAllByExample(T exampleObj)
dao.load().eq(COL, val).eq(...).exec()

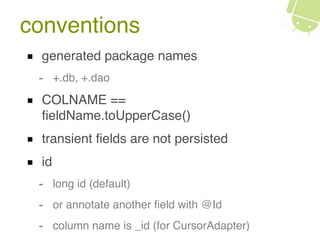

11. conventions
generated package names
- +.db, +.dao
COLNAME ==
fieldName.toUpperCase()
transient fields are not persisted
id
- long id (default)
- or annotate another field with @Id
- column name is _id (for CursorAdapter)

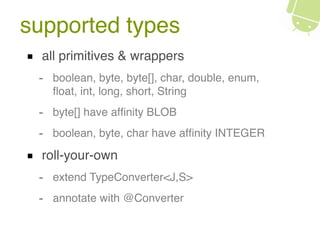

12. supported types
all primitives & wrappers
- boolean, byte, byte[], char, double, enum,
float, int, long, short, String
- byte[] have affinity BLOB
- boolean, byte, char have affinity INTEGER
roll-your-own
- extend TypeConverter<J,S>
- annotate with @Converter

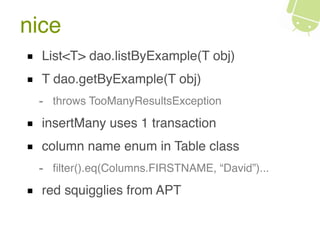

13. nice
List<T> dao.listByExample(T obj)
T dao.getByExample(T obj)
- throws TooManyResultsException
insertMany uses 1 transaction
column name enum in Table class
- filter().eq(Columns.FIRSTNAME, “David”)...
red squigglies from APT

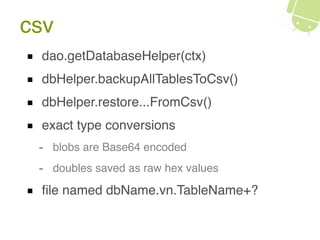

14. csv
dao.getDatabaseHelper(ctx)
dbHelper.backupAllTablesToCsv()
dbHelper.restore...FromCsv()
exact type conversions
- blobs are Base64 encoded
- doubles saved as raw hex values
file named dbName.vn.TableName+?

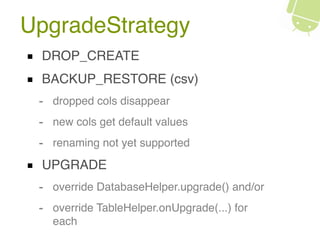

15. UpgradeStrategy
DROP_CREATE
BACKUP_RESTORE (csv)
- dropped cols disappear
- new cols get default values
- renaming not yet supported
UPGRADE
- override DatabaseHelper.upgrade() and/or
- override TableHelper.onUpgrade(...) for
each

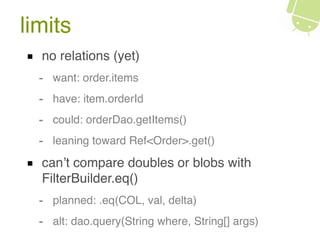

16. limits
no relations (yet)
- want: order.items
- have: item.orderId
- could: orderDao.getItems()
- leaning toward Ref<Order>.get()
can’t compare doubles or blobs with
FilterBuilder.eq()
- planned: .eq(COL, val, delta)
- alt: dao.query(String where, String[] args)

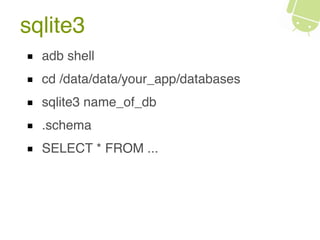

17. sqlite3
adb shell
cd /data/data/your_app/databases
sqlite3 name_of_db
.schema
SELECT * FROM ...

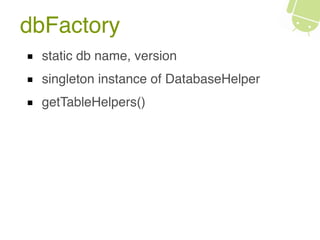

18. dbFactory
static db name, version
singleton instance of DatabaseHelper
getTableHelpers()

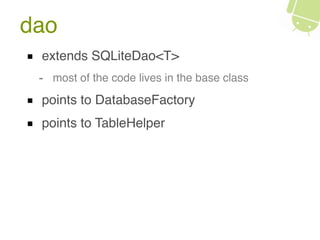

19. dao
extends SQLiteDao<T>
- most of the code lives in the base class
points to DatabaseFactory
points to TableHelper

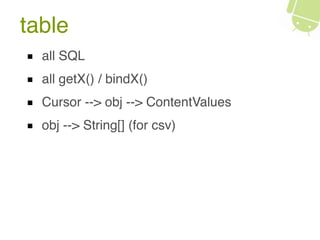

20. table
all SQL
all getX() / bindX()
Cursor --> obj --> ContentValues
obj --> String[] (for csv)

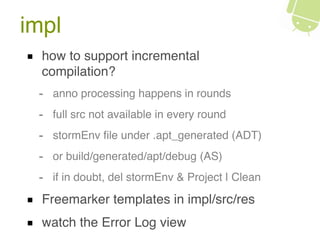

21. impl
how to support incremental
compilation?
- anno processing happens in rounds
- full src not available in every round
- stormEnv file under .apt_generated (ADT)
- or build/generated/apt/debug (AS)
- if in doubt, del stormEnv & Project | Clean
Freemarker templates in impl/src/res
watch the Error Log view

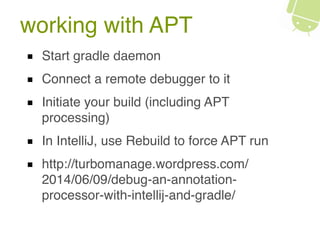

22. working with APT
Start gradle daemon
Connect a remote debugger to it
Initiate your build (including APT
processing)
In IntelliJ, use Rebuild to force APT run
http://turbomanage.wordpress.com/
2014/06/09/debug-an-annotation-
processor-with-intellij-and-gradle/

23. Android Debug Bridge
adb logcat
adb shell
adb shell dumpsys meminfo <pkg>
adb kill-server :-(
other command lines
- android (launches SDK manager)
- hierarchyviewer
- emulator @avd_name (see ~/.android/avd)

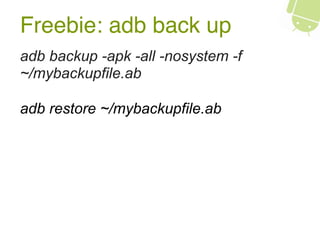

24. Freebie: adb back up
adb backup -apk -all -nosystem -f
~/mybackupfile.ab
adb restore ~/mybackupfile.ab

25. future
limited relations (@Key, Ref<T>)
more filter methods gt(), lt(), etc.
@Id for custom id col
@Column(name=”custom”)

26. src
github.com/turbomanage/storm-gen

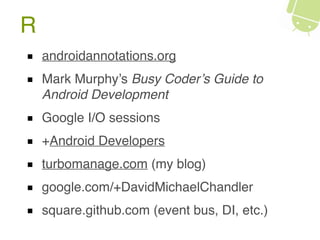

27. R
androidannotations.org
Mark Murphy’s Busy Coder’s Guide to
Android Development
Google I/O sessions
+Android Developers
turbomanage.com (my blog)
google.com/+DavidMichaelChandler
square.github.com (event bus, DI, etc.)
