1. www.squire-technologies.com
August 2016
1
Squire Technologies
Rolling out a VoLTE network
Lessons Learned

2. www.squire-technologies.com

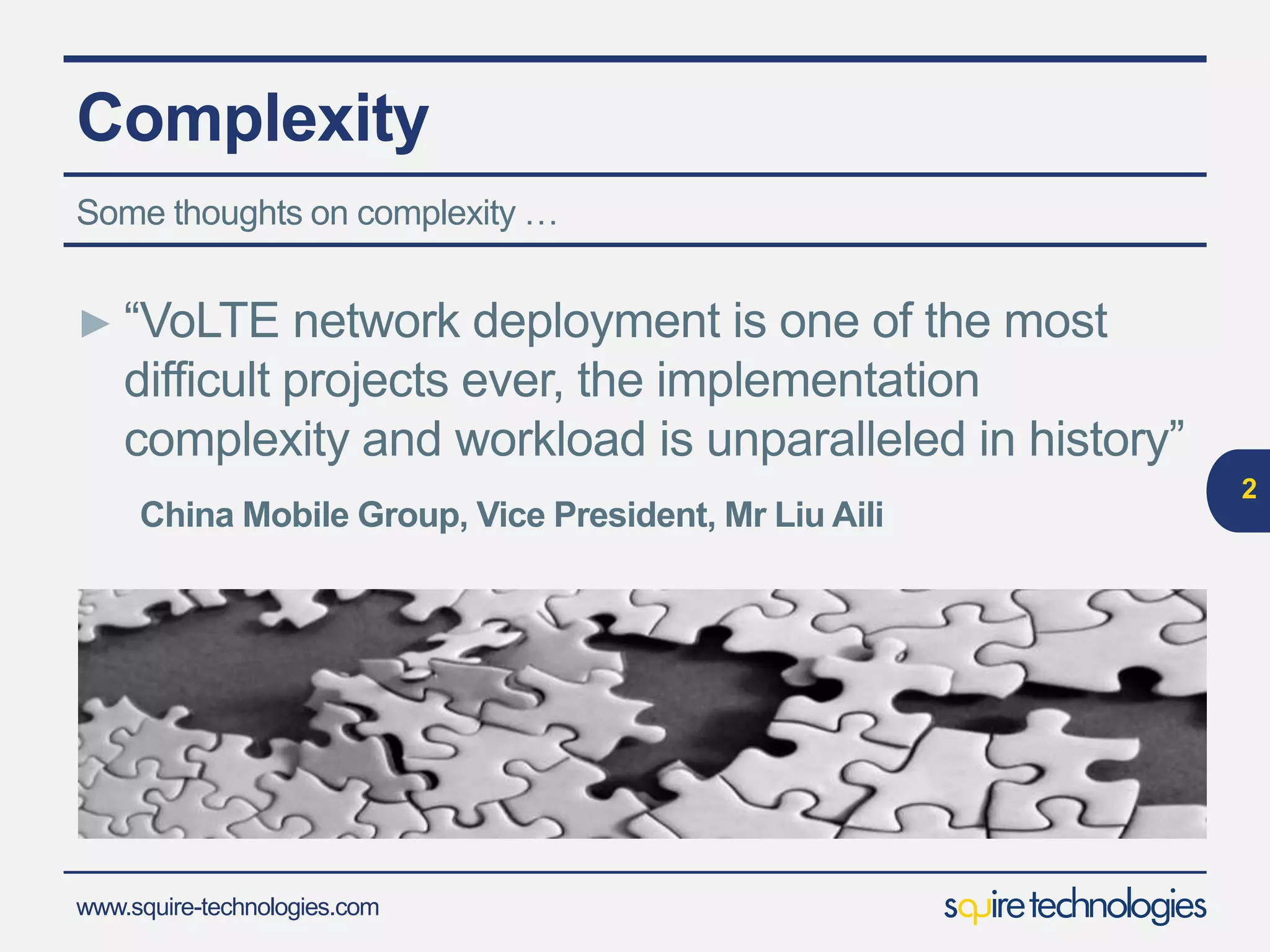

Complexity
► “VoLTE network deployment is one of the most
difficult projects ever, the implementation
complexity and workload is unparalleled in history”
China Mobile Group, Vice President, Mr Liu Aili
2
Some thoughts on complexity …

3. www.squire-technologies.com

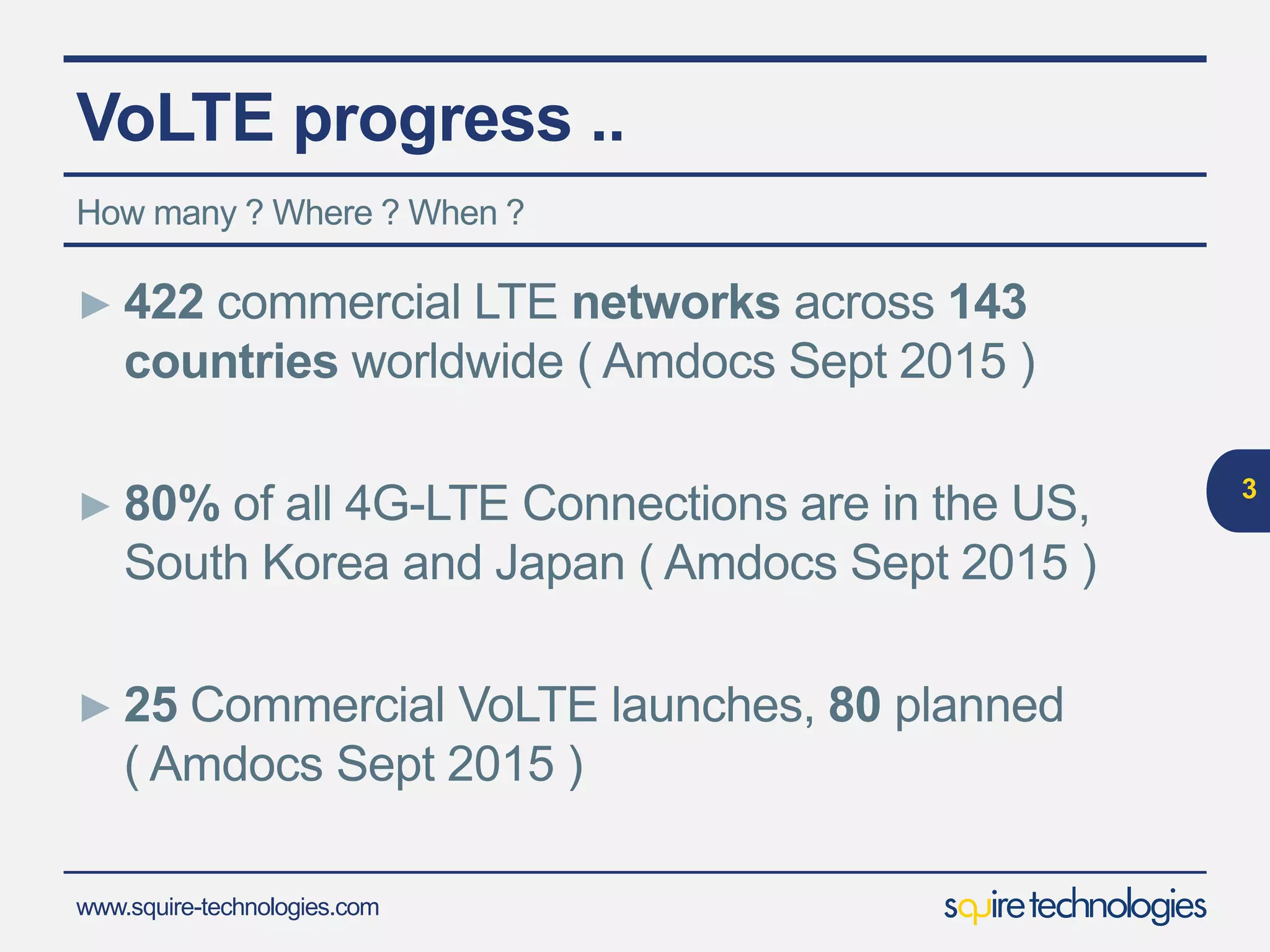

VoLTE progress ..
► 422 commercial LTE networks across 143
countries worldwide ( Amdocs Sept 2015 )
► 80% of all 4G-LTE Connections are in the US,
South Korea and Japan ( Amdocs Sept 2015 )
► 25 Commercial VoLTE launches, 80 planned
( Amdocs Sept 2015 )
3
How many ? Where ? When ?

4. www.squire-technologies.com
Why is VoLTE finally being rolled out ?
► Struggled to find real business case
► HD Voice
► Extended battery life
► Faster call setup
► The rise of VoWiFi and ViWiFi
► Apple adds support for VoWiFi and VoLTE to iOS 8 - September 2014
► Provides near 100% voice coverage for LTE subscribers
► Provides a secure means of connecting to mobile networks
► Reduces radio bandwidth
► Solve / Stop Gap Solution to Roaming ?
► Native support for VoLTE on handset starts the fight back against the
OTT
4
VoLTE at last …

5. www.squire-technologies.com
Who is rolling out VoLTE?
► Two types of carrier :-
► Carrier A – full end-to-end test in labs of all network
types, all technologies, all handsets, all vendors and
then full launch
► Carrier B – prepared to do a staggered rollout of
services in order to capture market share and take
advantage of “emerging technologies”.
5
VoLTE. Who ?

6. www.squire-technologies.com
Live VoLTE rollout
► Smile owns and operates mobile wireless 4G LTE broadband networks
in Nigeria, Tanzania and Uganda – combined market potential of 300
million subscribers
► Was the first 4G LTE network in Africa in 2012
► Raised US $365 million in 2015 to fund expansion
► Wanted to rollout and support VoLTE, ViLTE,VoWiFi,ViWiFi
► Developed softphone App
► Support for off-net subscribers over WiFi
► Support for subscribers without VoLTE handset
► Allow subscribers to use service on tablets , PC’s – “Presence”, “Follow-Me”
service
► Support for messaging – SMS across 4G <-> 2G,3G
► Network rollout commenced in April 2015
► Nov 2015 – “Smile has developed interconnect platforms with our key
provider, Squire Technologies, to allow us to achieve full interconnect
nationally and internationally to any network “ Tom Allen CTO
6
Smile Group – South Africa

7. www.squire-technologies.com
So who are Squire Technologies ?
The Signalling Specialists to the Telecoms Industry.
7
www.squire-technologies.com
► Formed in 2001 with HQ in the UK
► Signalling Specialists – SS7, VoIP, NGN and VoLTE /
IMS
► Provide a range of products and end-to-end solutions
along with the associated to insure successful
deployment and ongoing support
► Deployed in over 90 countries worldwide
► Deliver to carriers in the fixed and mobile space, ISPs,
systems integrators and telecom equipment suppliers

8. www.squire-technologies.com
Technology Timeline
8
2015
2013
2011
2009
2005
2004
2001
VoLTE
MGCF - IWF
SBC
SMS Gateways
MG
MGC
Company
Formation
8 I
2006 SoftSwitch
SS7
SIP / H.323
SIGTRAN
DIAMETER
RADIUS
Products and Technologies
Technology
MAP - SMS
2016 DSC
VoLTE
DSC
DDos etc ..
Products
VoLTE
DSC

9. www.squire-technologies.com
What were the issues ?
► Vendors, Vendors and more Vendors :-
► 26 x Network Operators
►2G
►3G
►PSTN
►VoIP
► 2 x Radio Network Suppliers
► 3 x mobile handset manufacturers
► 1 x App developer
► 1 x IMS core vendor
9
What issues were Smile facing ?

10. www.squire-technologies.com

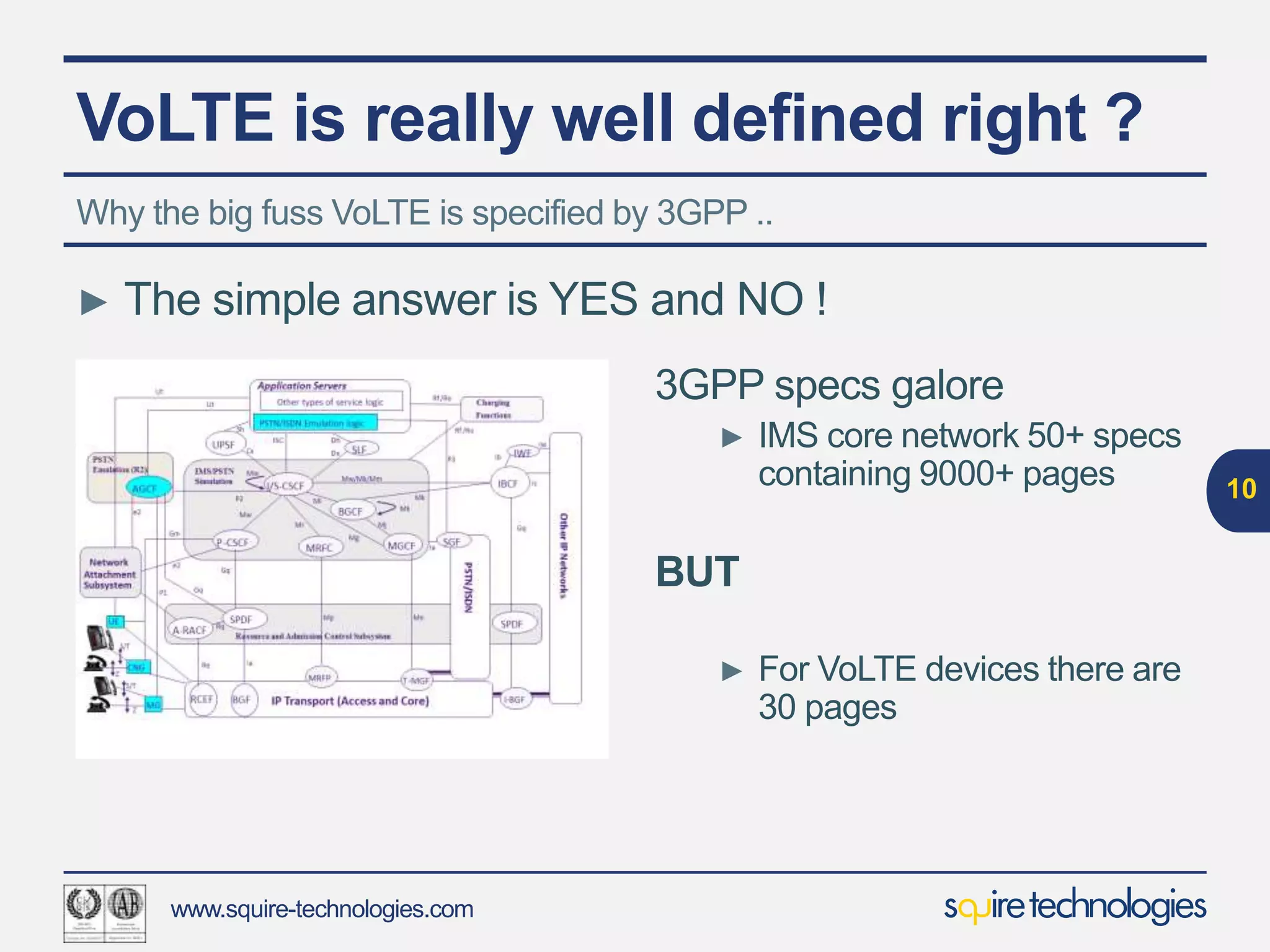

VoLTE is really well defined right ?
► The simple answer is YES and NO !
10
Why the big fuss VoLTE is specified by 3GPP ..
3GPP specs galore
► IMS core network 50+ specs
containing 9000+ pages
BUT
► For VoLTE devices there are
30 pages

11. www.squire-technologies.com
Live VoLTE rollout
11
A lot to consider
VoLTE
to
2G
3G
VoIP
Operators
Handsets
Apps
Messaging PSTN
Pre-
Conditions

12. www.squire-technologies.com
Live VoLTE Rollout
12
Practical Solutions
► Set up a lab to provide :-
► Comprehensive test facilities
► Rapid testing of new features across
all devices / apps
► Regression testing on new device /
app versions
► Rapid turn around on support issues
► Managed rollout of new features
► Access to our R&D development
team
and
► Deployment of flexible subset of
Squire SVI products ..

13. www.squire-technologies.com
The Technical Solution
13
Live VoLTE Rollout

14. www.squire-technologies.com
Live VoLTE Rollout
► Pre-Condition Conundrums
► Early Media – no “early” announcements i.e. Mobile
Number Portability
► No ringtone
► Forking between VoLTE and non VoLTE devices
► Softphone App
► Interop and testing
► Follow-me – single number , multiple devices
14
Problems Solved

15. www.squire-technologies.com

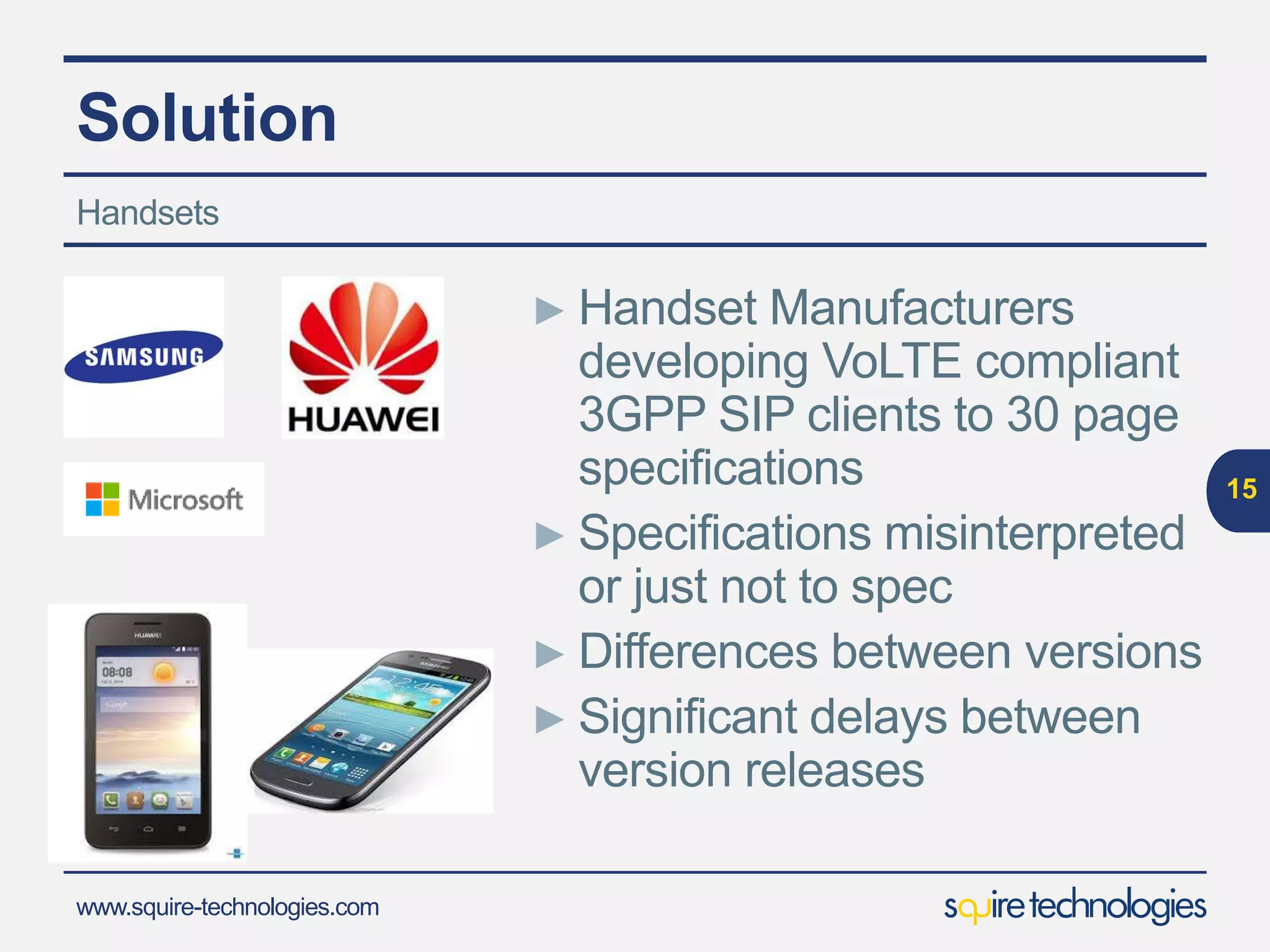

Solution
15
Handsets
► Handset Manufacturers
developing VoLTE compliant
3GPP SIP clients to 30 page
specifications
► Specifications misinterpreted
or just not to spec
► Differences between versions
► Significant delays between
version releases

16. www.squire-technologies.com
Summary
What did we learn ?
16
www.squire-technologies.com
► VoLTE deployment is complex
► Commercial pressure – budget + launch dates
► Solved with a combination of Squire
Technologies flexible product set and access
to signaling expertise to insure :-
► project delivered to timescale
► project delivered to budget
► ongoing development and support – LI , USSD ,
Rich Communication Services ( RCS ) , additional
African country rollout
