Squire Technologes: Session Border Controller

www.squire-technologies.com
Session Border Controller
Date, Audience details
1
Squire Technologies
SVI_SBC

SVI_SBC Session Border Controller
Overview
2
State-of-the-art Session Border Controller providing a uniform network
interface with comprehensive security in fixed and mobile operators
NGN and VoLTE IMS networks.
Mature, proven, carrier grade technology packed with feature rich
capabilities
Flexible pricing model to meet budget expectations, scale of deployment
and future growth requirements
Dedicated Technical Architecture and Installation team
24x7x365 Global Support

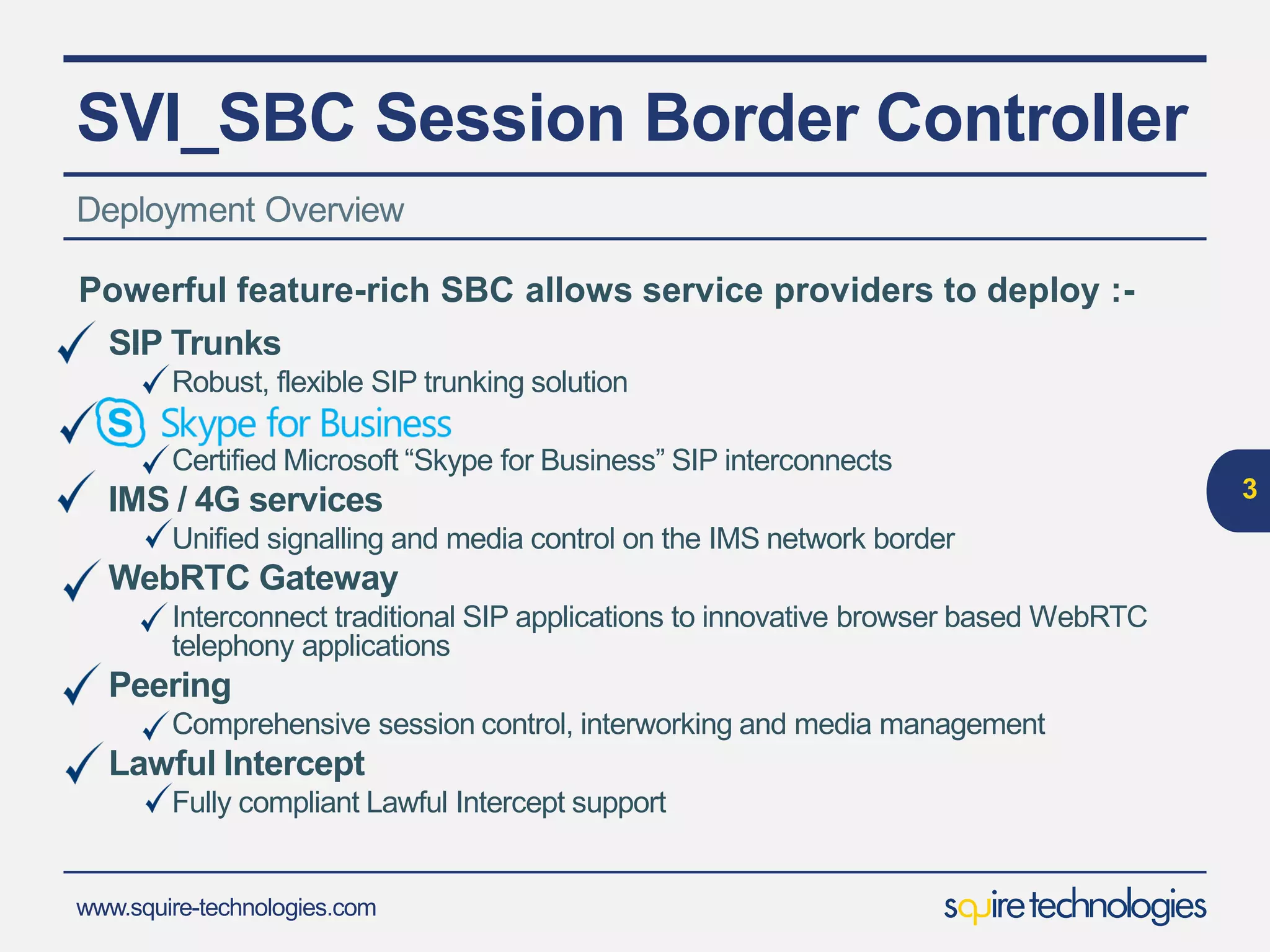

Deployment Overview
3
SIP Trunks
Robust, flexible SIP trunking solution
S
Certified Microsoft “Skype for Business” SIP interconnects
VoLTE Signalling Solution
Comprehensive VoLTE signalling solution
WebRTC Gateway
Interconnect traditional SIP applications to innovative browser based WebRTC
telephony applications
Peering
Comprehensive session control, interworking and media management
Lawful Intercept
Fully compliant Lawful Intercept support
Powerful feature-rich SBC allows service providers to deploy :-

Security
Comprehensive Firewall protection
State of the art DOS protection
VPN/ IPSec
Interworking
SIP, SIP-I, SIP-T, H.323, SIGTRAN,
IPv4, IPv6
NAT / Toplogy Hiding
Media
Transcoding support for wide range
of voice codecs
FAX, DTMF interworking

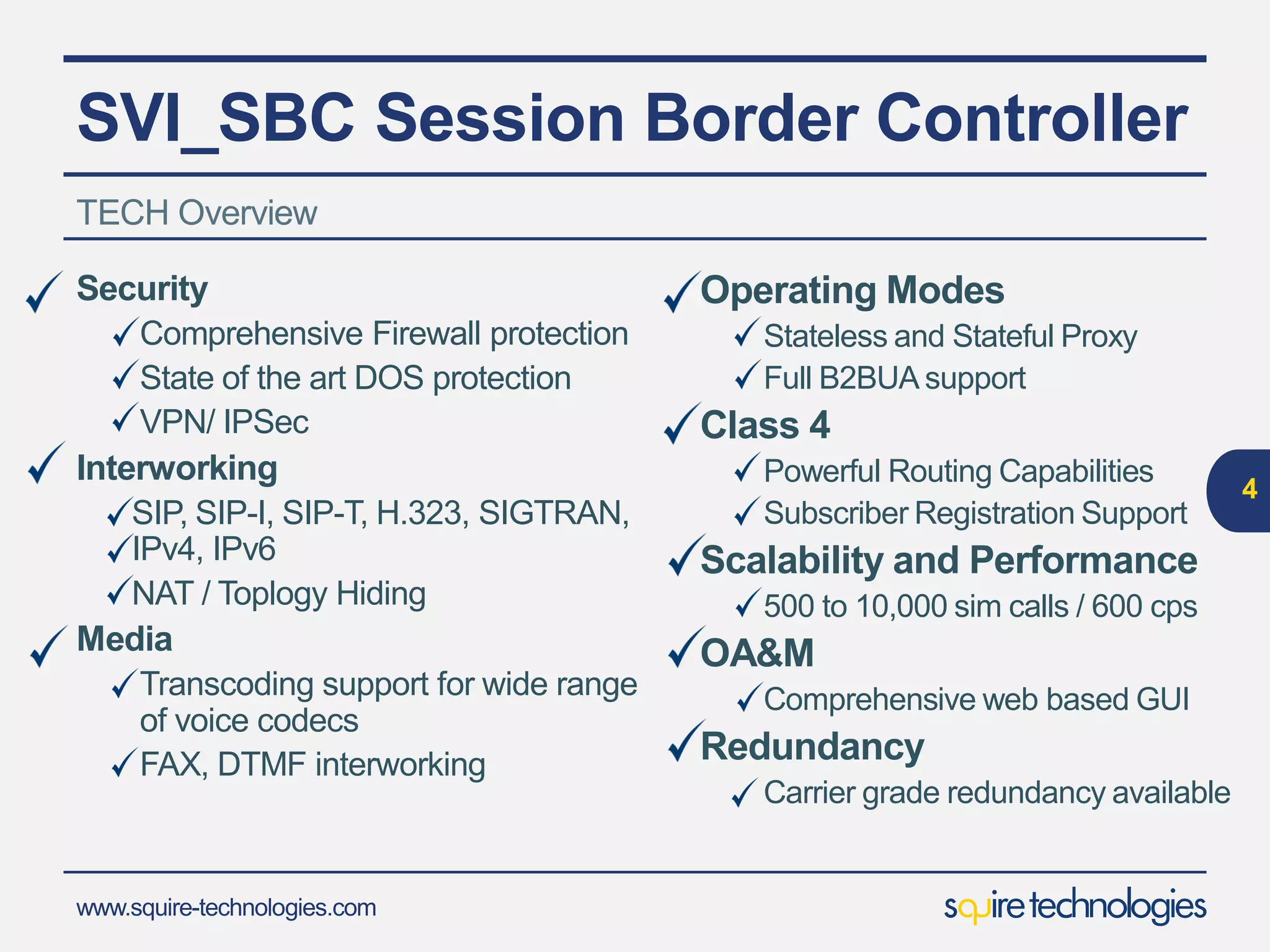

TECH Overview
4
Operating Modes
Stateless and Stateful Proxy
Full B2BUA support
Class 4
Powerful Routing Capabilities
Subscriber Registration Support
Scalability and Performance
500 to 30,000 sim calls / 600 cps
OA&M
Comprehensive web based GUI
Redundancy
Carrier grade redundancy available

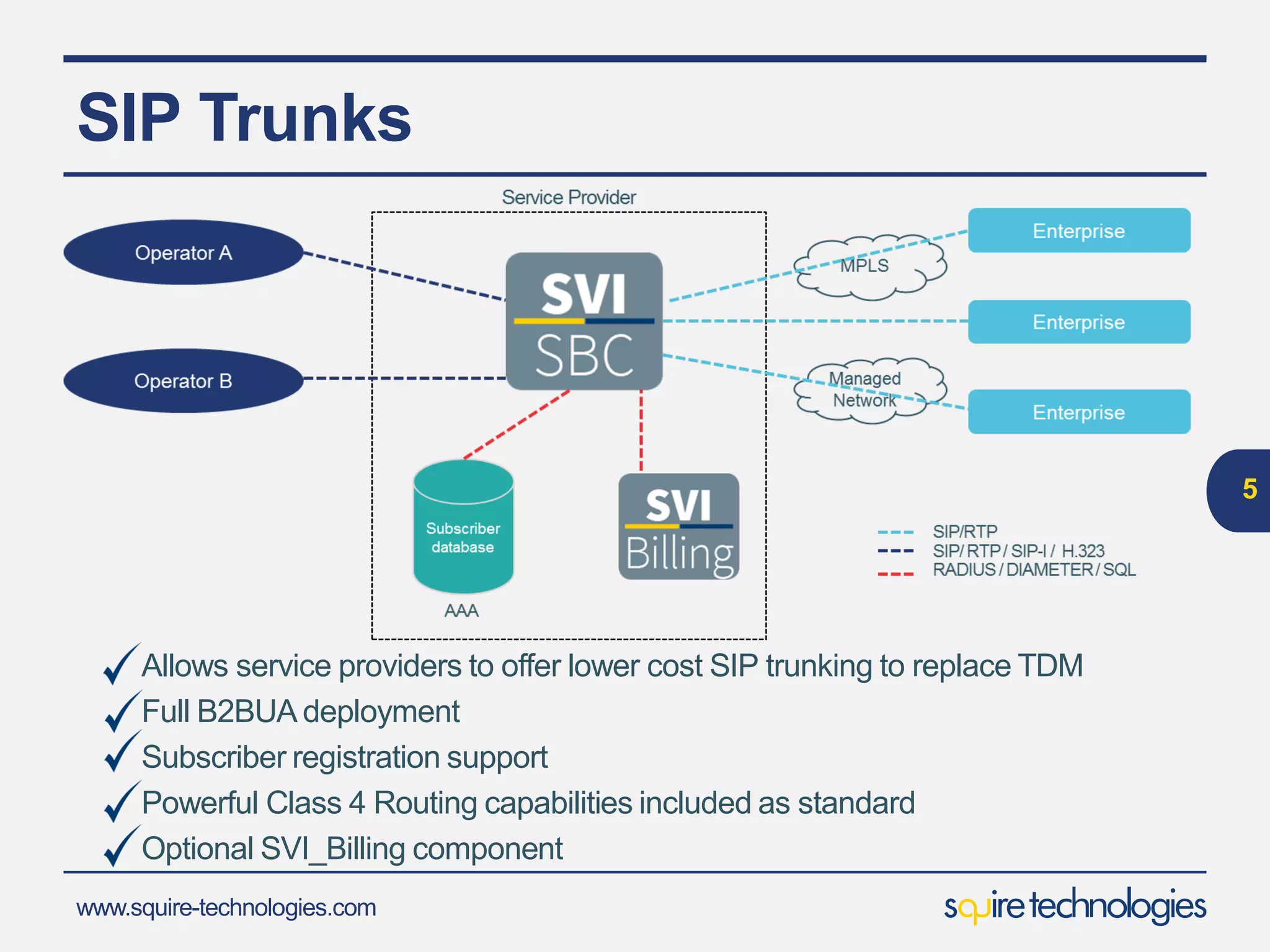

SIP Trunks
5
Allows service providers to offer lower cost SIP trunking to replace TDM
Full B2BUA deployment
Subscriber registration support
Powerful Class 4 Routing capabilities included as standard
Optional SVI_Billing component

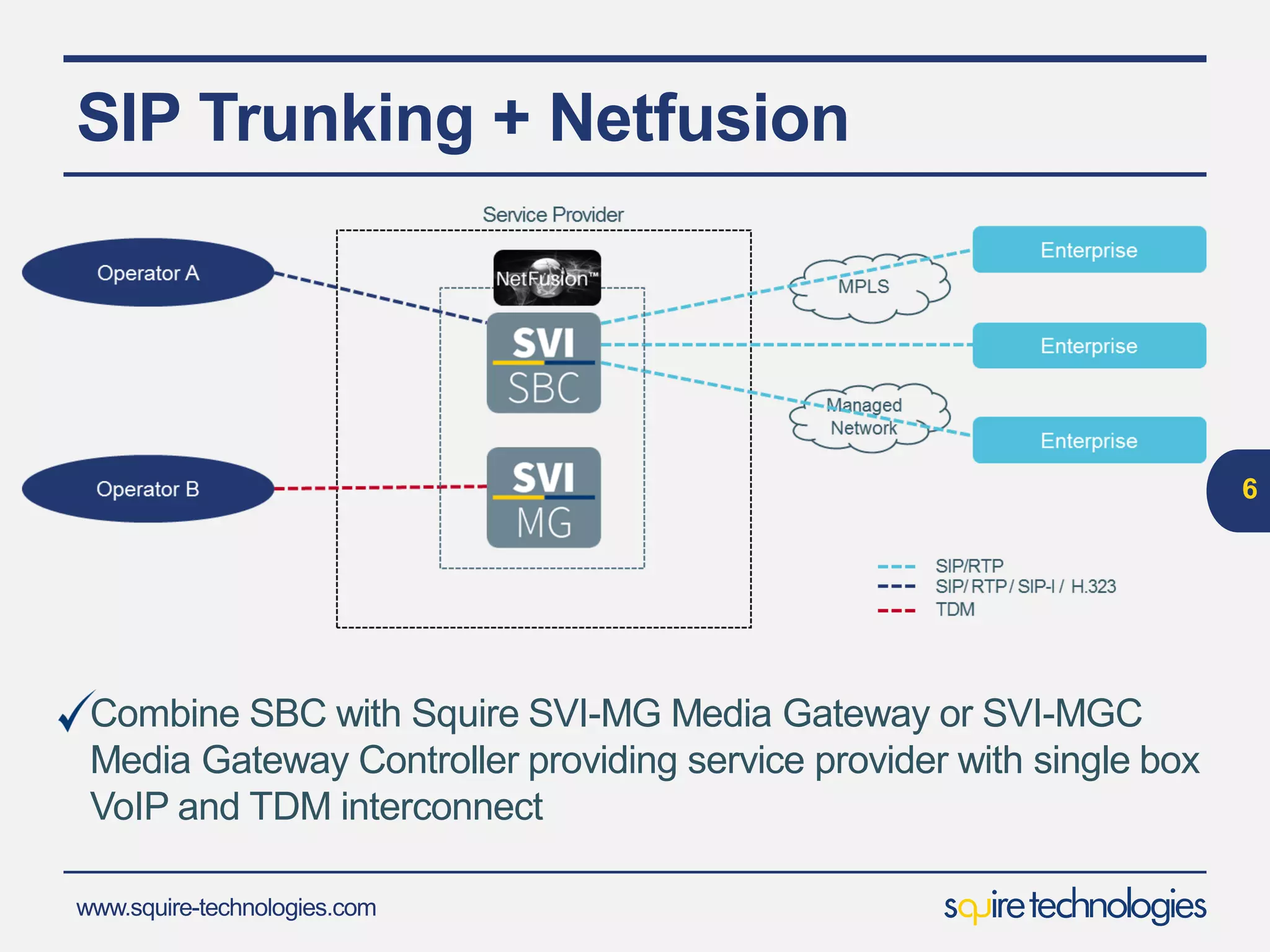

SIP Trunking + Netfusion
6
Combine SBC with Squire SVI-MG Media Gateway or SVI-MGC
Media Gateway Controller providing service provider with single box
VoIP and TDM interconnect

s
7

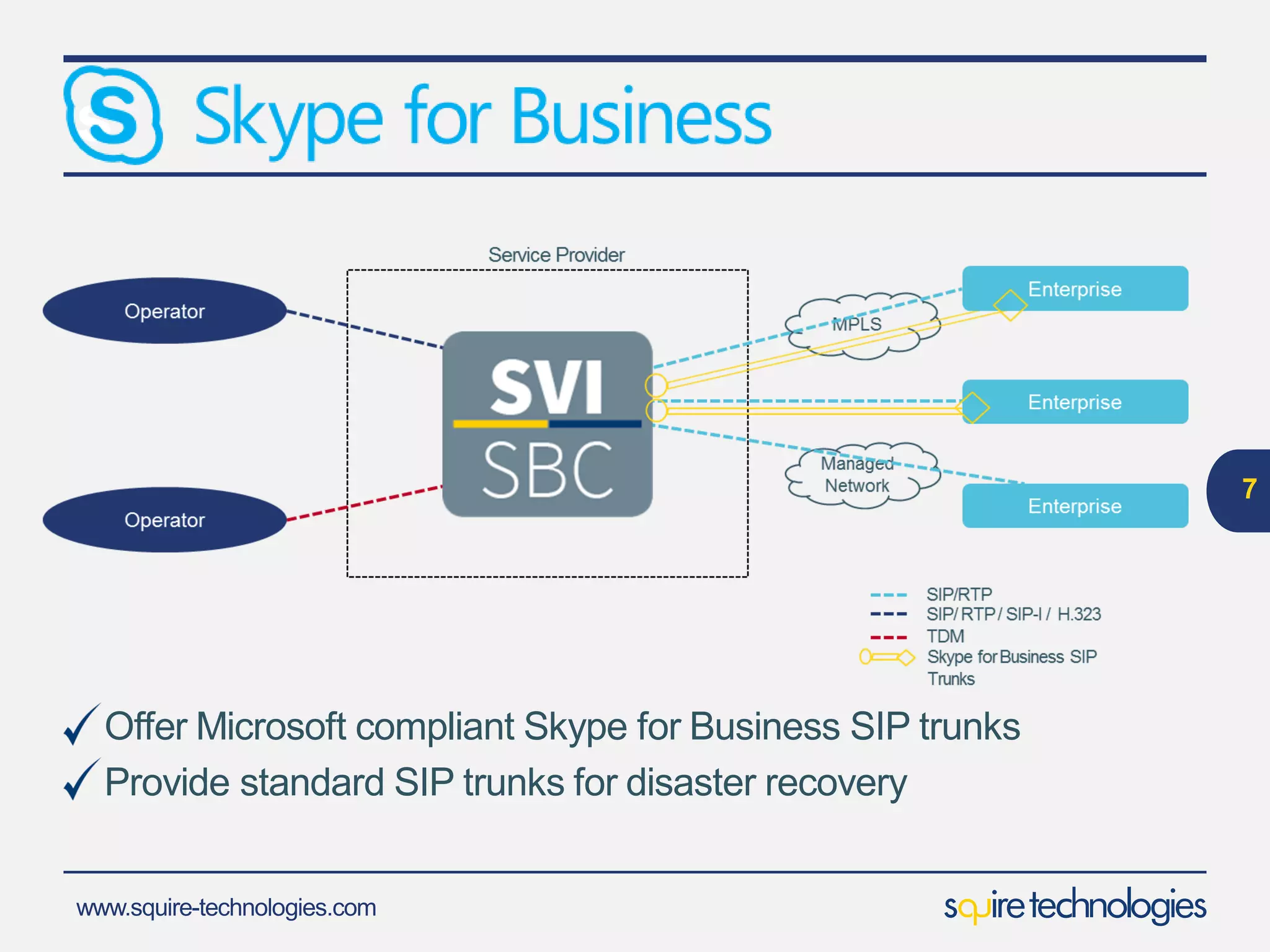

Offer Microsoft compliant Skype for Business SIP trunks
Provide standard SIP trunks for disaster recovery

VoLTE Signalling Solution
8
The SVI-SBC lies at the core of Squire Technologies solutions for VoLTE.
Optimal use of radio bandwidth delivering substantial cost savings
Voice Quality Assurance
Rapid Support for Multi vendor VoLTE handsets
Enable multi device, single number support
See squire-technologies.co.uk/solutions/voice-over-lte for full solution overview

VoLTE Signalling Solution cont..
9
Support for VoLTE Pre-Conditions
Manage end-to-end bandwidth
Insures Voice Quality
Rapid deployment of new VoLTE handsets
Support for multi device, single number services
Manage multiple subscriber registration for softphone app’s across
multiple devices – tablets, laptops, mobiles
Manage subscriber forking
Retain a single number per subscriber
Support for signaling and media inter-op with traditional VoIP
devices and App enabled softphones.

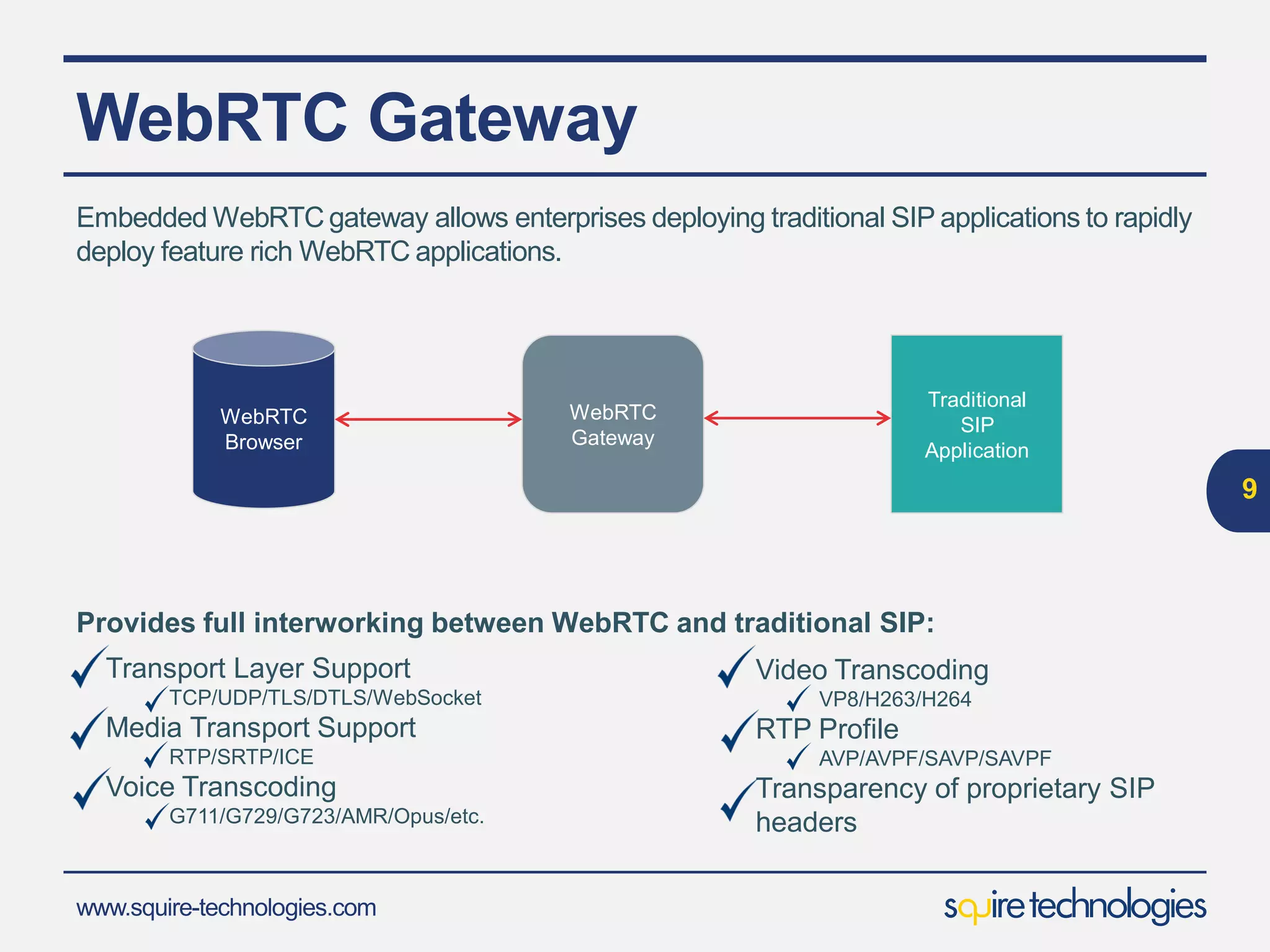

WebRTC Gateway
10
Embedded WebRTC gateway allows enterprises deploying traditional SIP applications to rapidly
deploy feature rich WebRTC applications.
Transport Layer Support
TCP/UDP/TLS/DTLS/WebSocket
Media Transport Support
RTP/SRTP/ICE
Voice Transcoding
G711/G729/G723/AMR/Opus/etc.
Video Transcoding
VP8/H263/H264
RTP Profile
AVP/AVPF/SAVP/SAVPF
Transparency of proprietary SIP
headers
Provides full interworking between WebRTC and traditional SIP:
WebRTC
Gateway
Traditional
SIP
Application
WebRTC
Browser

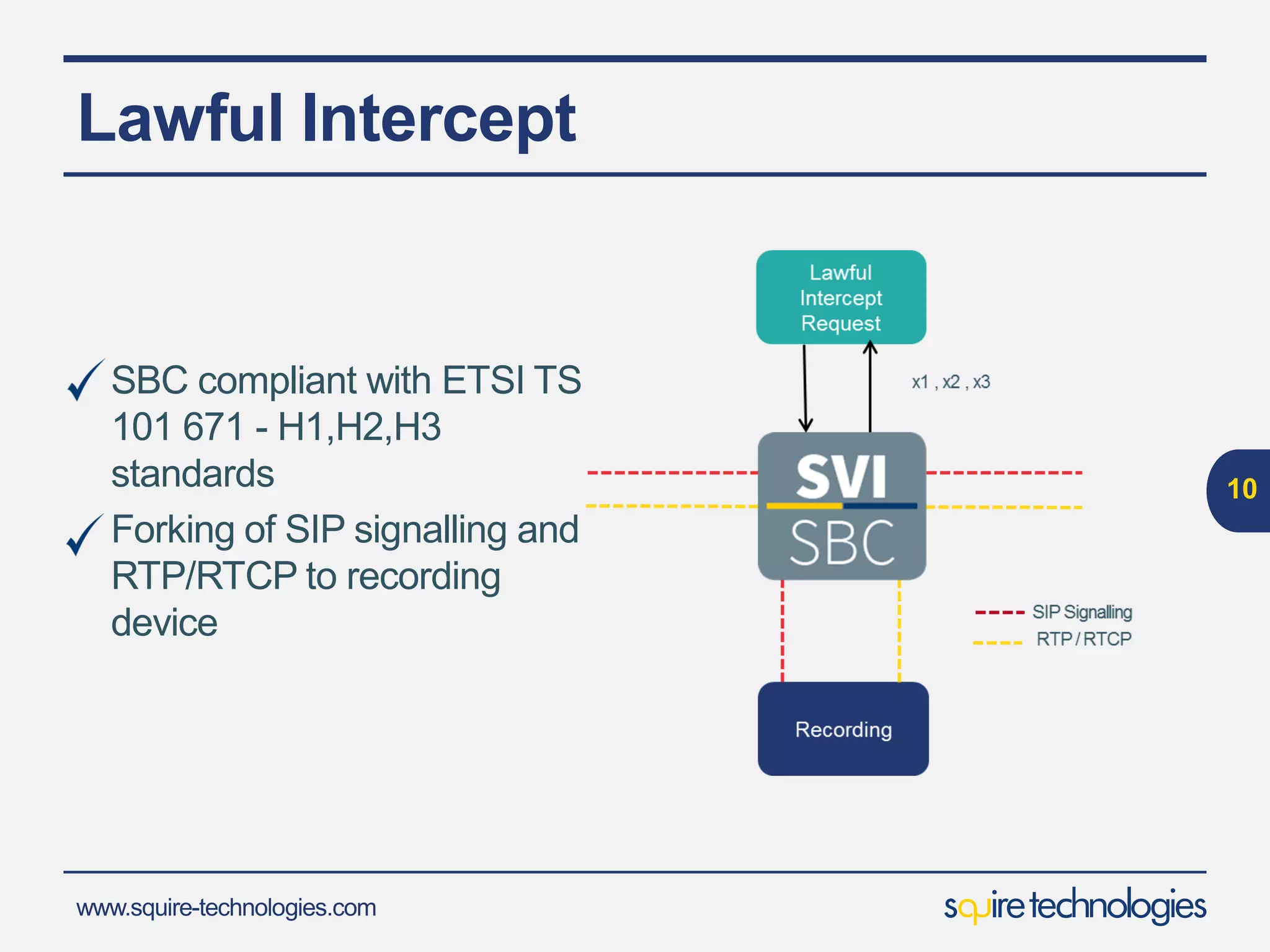

Lawful Intercept
11
SBC compliant with ETSI TS
101 671 - H1,H2,H3
standards
Forking of SIP signalling and
RTP/RTCP to recording
device

12

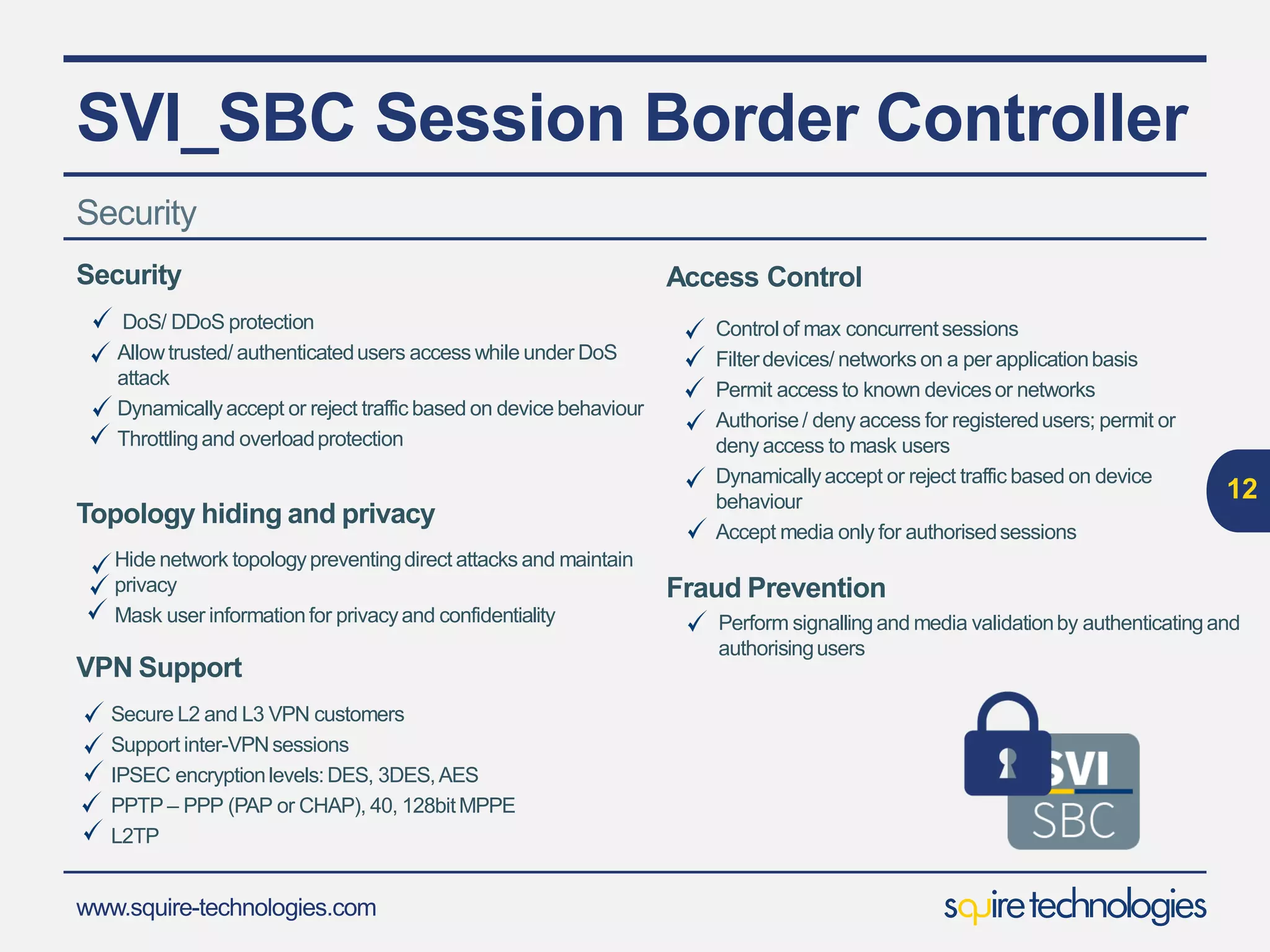

Security
Denial of Service (Dos)
Firewall protection from Registration Throttling
Authorization Overload
UserAuthentication
Access Control
Policy Enforcement
Fraud Prevention
Security Assured Connection using VPN Comprehensive security
features including:-

13
Security
DoS/ DDoS protection
Allowtrusted/ authenticatedusers access while under DoS
attack
Dynamicallyaccept or reject traffic based on device behaviour
Throttlingand overloadprotection
Security
Hide network topologypreventingdirect attacks and maintain
privacy
Mask user informationfor privacyand confidentiality
Topology hiding and privacy
Secure L2 and L3 VPN customers
Support inter-VPNsessions
IPSEC encryptionlevels:DES, 3DES,AES
PPTP – PPP (PAP or CHAP), 40, 128bitMPPE
L2TP
VPN Support
Control of max concurrentsessions
Filterdevices/ networks on a per applicationbasis
Permit access to known devicesor networks
Authorise/ deny access for registeredusers; permit or
deny access to mask users
Dynamicallyaccept or reject traffic based on device
behaviour
Accept media only for authorisedsessions
Access Control
Perform signallingand media validationby authenticatingand
authorisingusers
Fraud Prevention

14

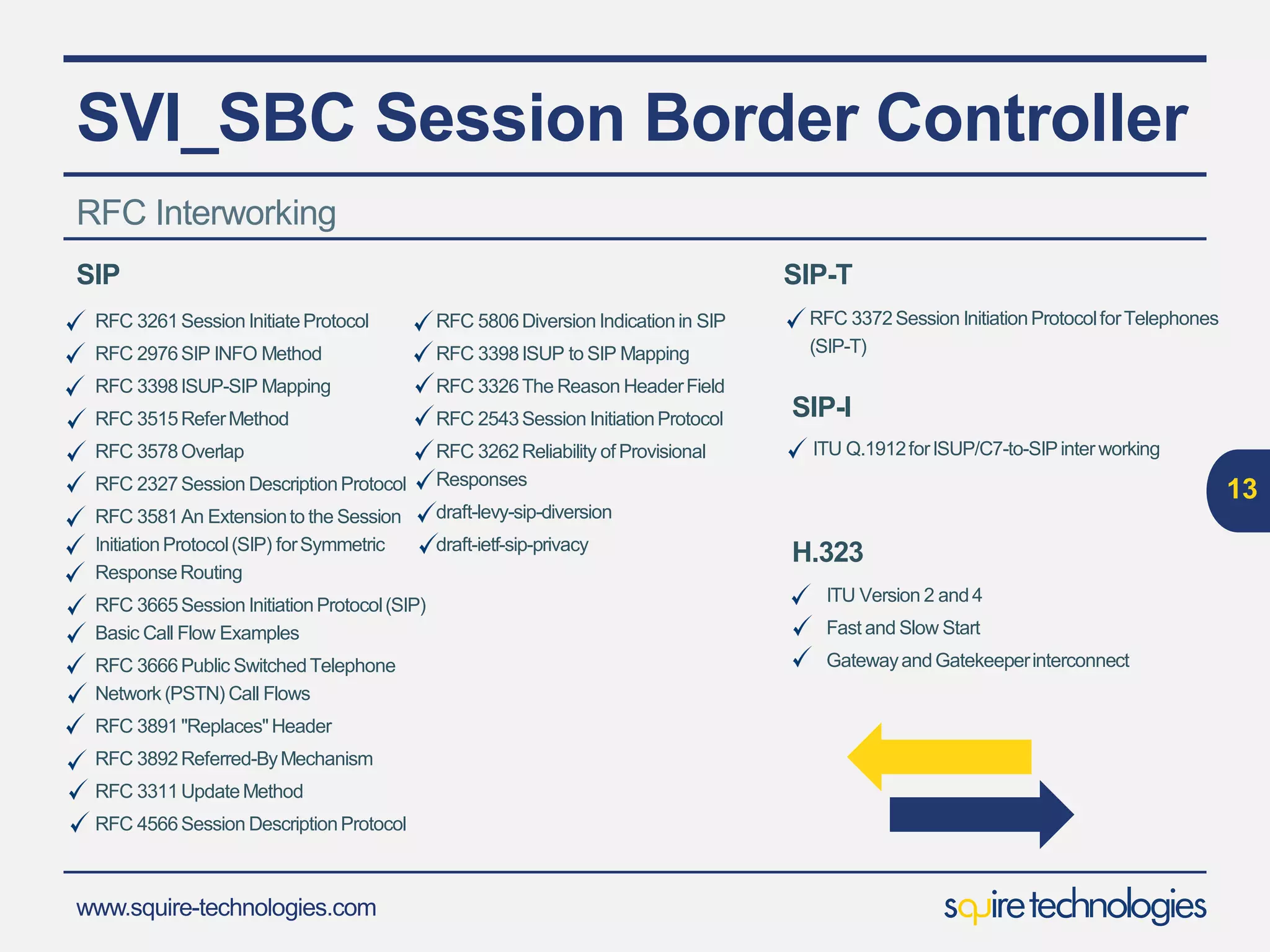

RFC Interworking
RFC 3261Session InitiateProtocol
RFC 2976SIP INFO Method
RFC 3398ISUP-SIP Mapping
RFC 3515ReferMethod
RFC 3578Overlap
RFC 2327Session DescriptionProtocol
RFC 3581An Extensionto the Session
InitiationProtocol(SIP) forSymmetric
ResponseRouting
RFC 3665Session InitiationProtocol(SIP)
Basic Call Flow Examples
RFC 3666Public SwitchedTelephone
Network (PSTN) Call Flows
RFC 3891"Replaces"Header
RFC 3892Referred-ByMechanism
RFC 3311UpdateMethod
RFC 4566Session DescriptionProtocol
RFC 5806Diversion Indicationin SIP
RFC 3398ISUP to SIP Mapping
RFC 3326The Reason HeaderField
RFC 2543Session InitiationProtocol
RFC 3262Reliability of Provisional
Responses
draft-levy-sip-diversion
draft-ietf-sip-privacy
SIP SIP-T
RFC 3372Session InitiationProtocolforTelephones
(SIP-T)
SIP-I
ITU Q.1912forISUP/C7-to-SIPinterworking
H.323
ITU Version 2 and4
Fast and Slow Start
GatewayandGatekeeperinterconnect

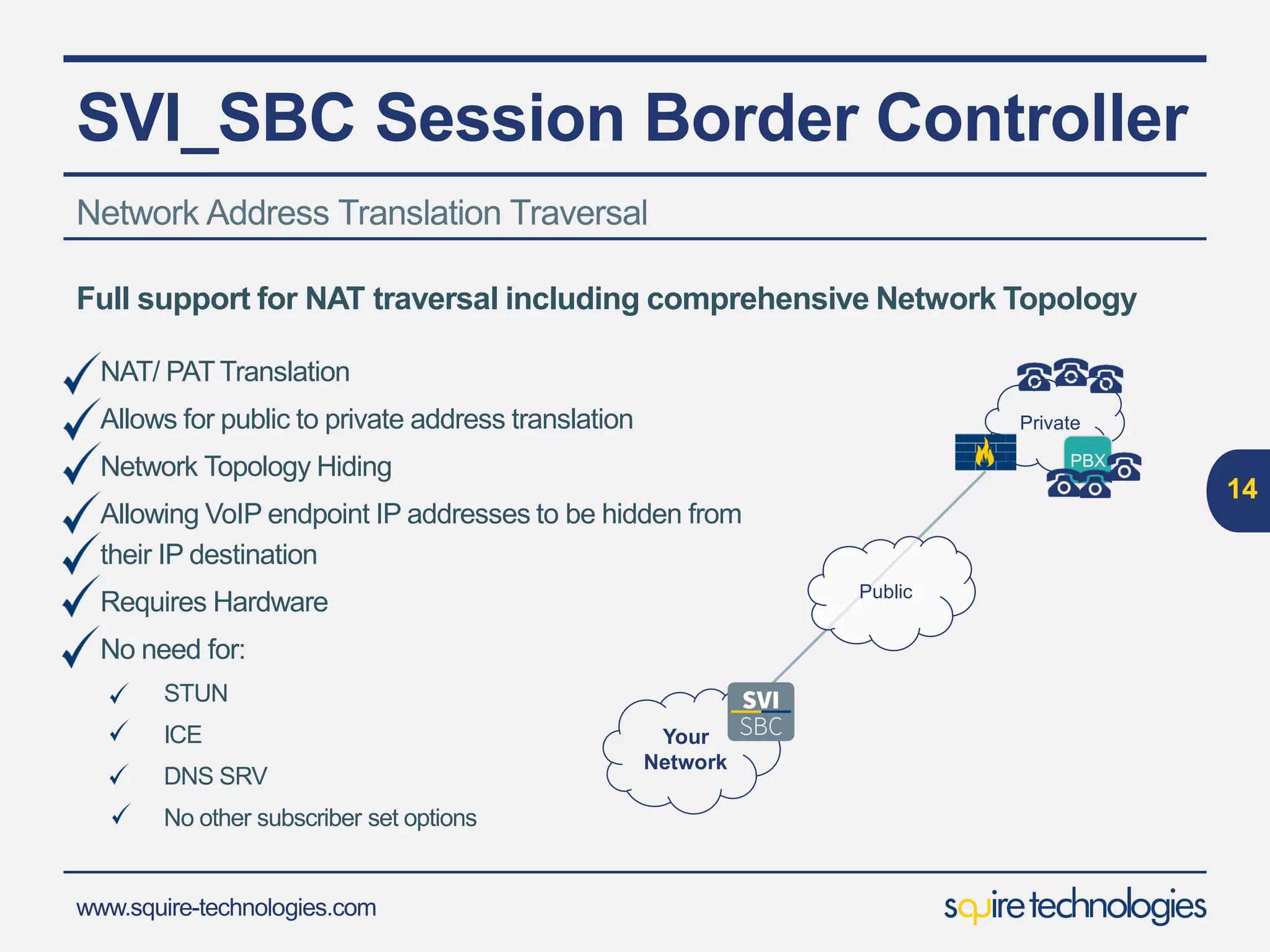

Network Address Translation Traversal
15
Your
Network
Private
PBX
NAT/ PATTranslation
Allows for public to private address translation
Network Topology Hiding
Allowing VoIP endpoint IP addresses to be hidden from
their IP destination
Requires Hardware
No need for:
STUN
ICE
DNS SRV
No other subscriber set options
Full support for NAT traversal including comprehensive Network Topology
Public

16

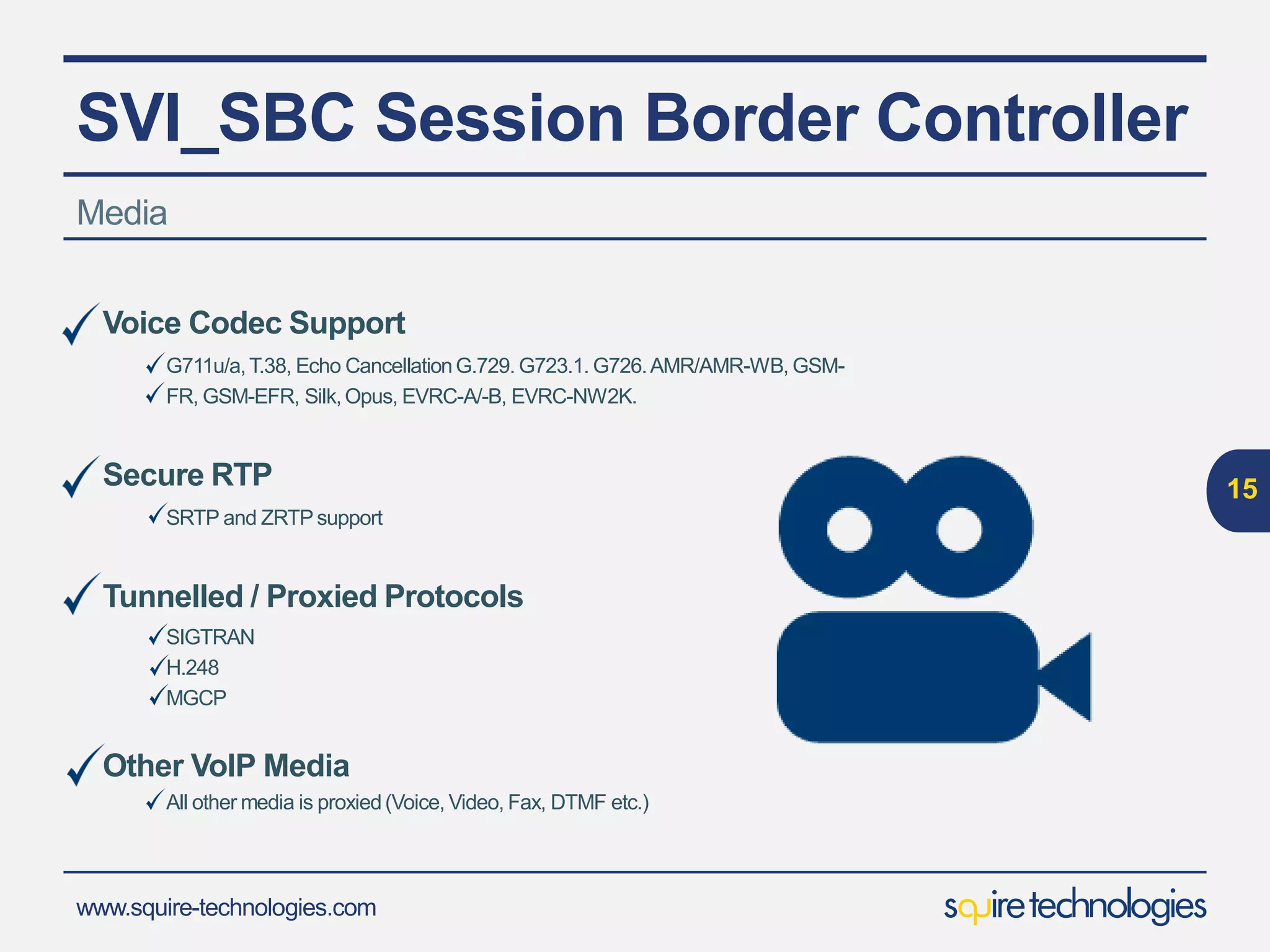

Media
Voice Codec Support
G711u/a,T.38, Echo CancellationG.729. G723.1. G726.AMR/AMR-WB, GSM-
FR, GSM-EFR, Silk,Opus, EVRC-A/-B, EVRC-NW2K.
Secure RTP
SRTP and ZRTP support
Tunnelled / Proxied Protocols
SIGTRAN
H.248
MGCP
Other VoIP Media
All other media is proxied(Voice, Video, Fax, DTMF etc.)

17
Class 4
IMSNGN
RADIUS/DIAMETE
R server
Subscriber
Database
Intelligent Call Routing
Flexibleroutingoptionswith powerful regularexpression
based manipulationof outboundmessage contents
Subscriber Registration
Via onboardor customer database
RADIUS and DIAMETER Support
FullAAA support
Billing
OptionalSVI_Billing moduleavailable supporting
Wholesale/Retail/Switch Partitioning
Comprehensive Class 4 functionality included as standard :-

18

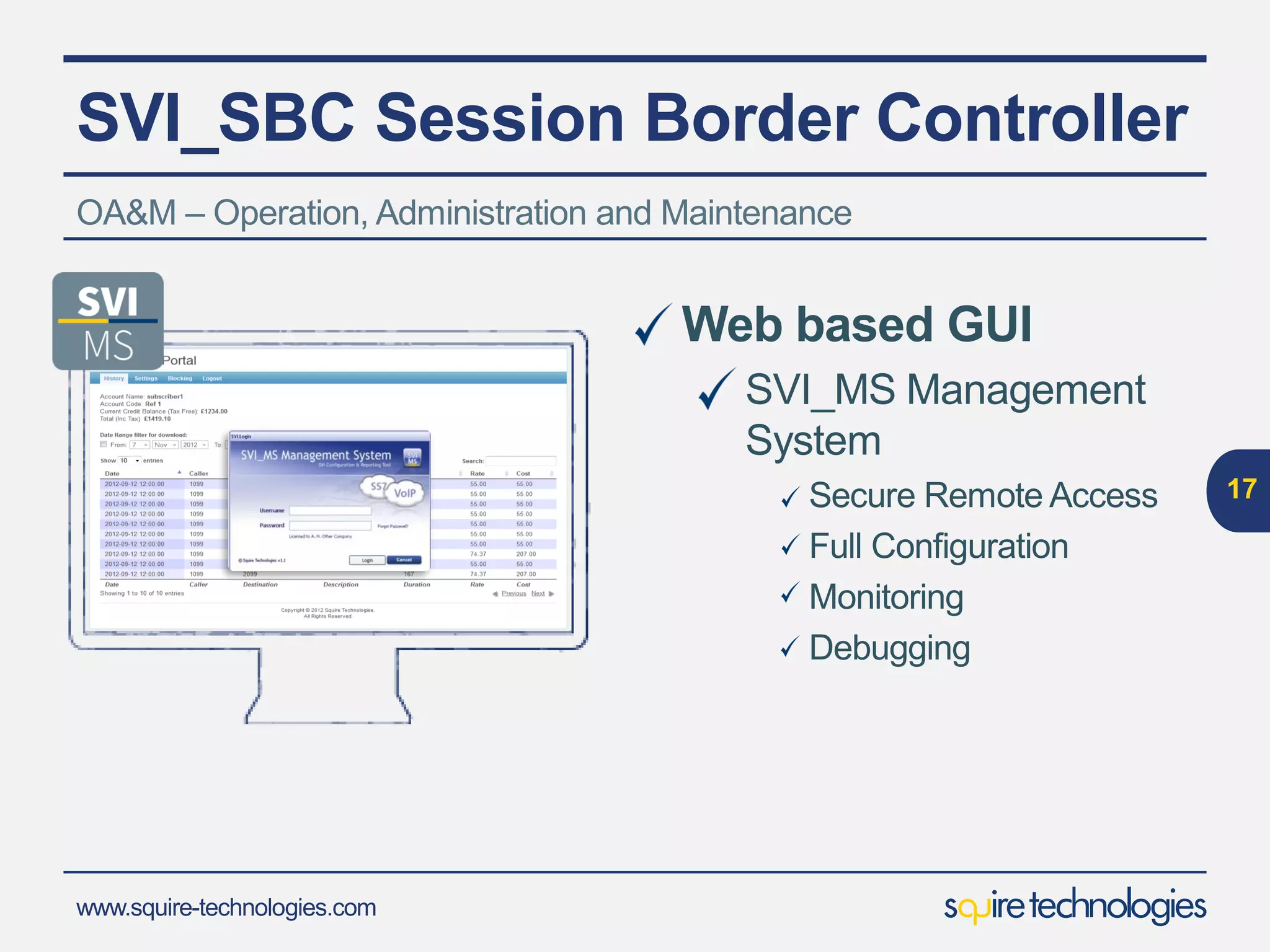

OA&M – Operation, Administration and Maintenance
Web based GUI
SVI_MS Management
System
Secure Remote Access
Full Configuration
Monitoring
Debugging

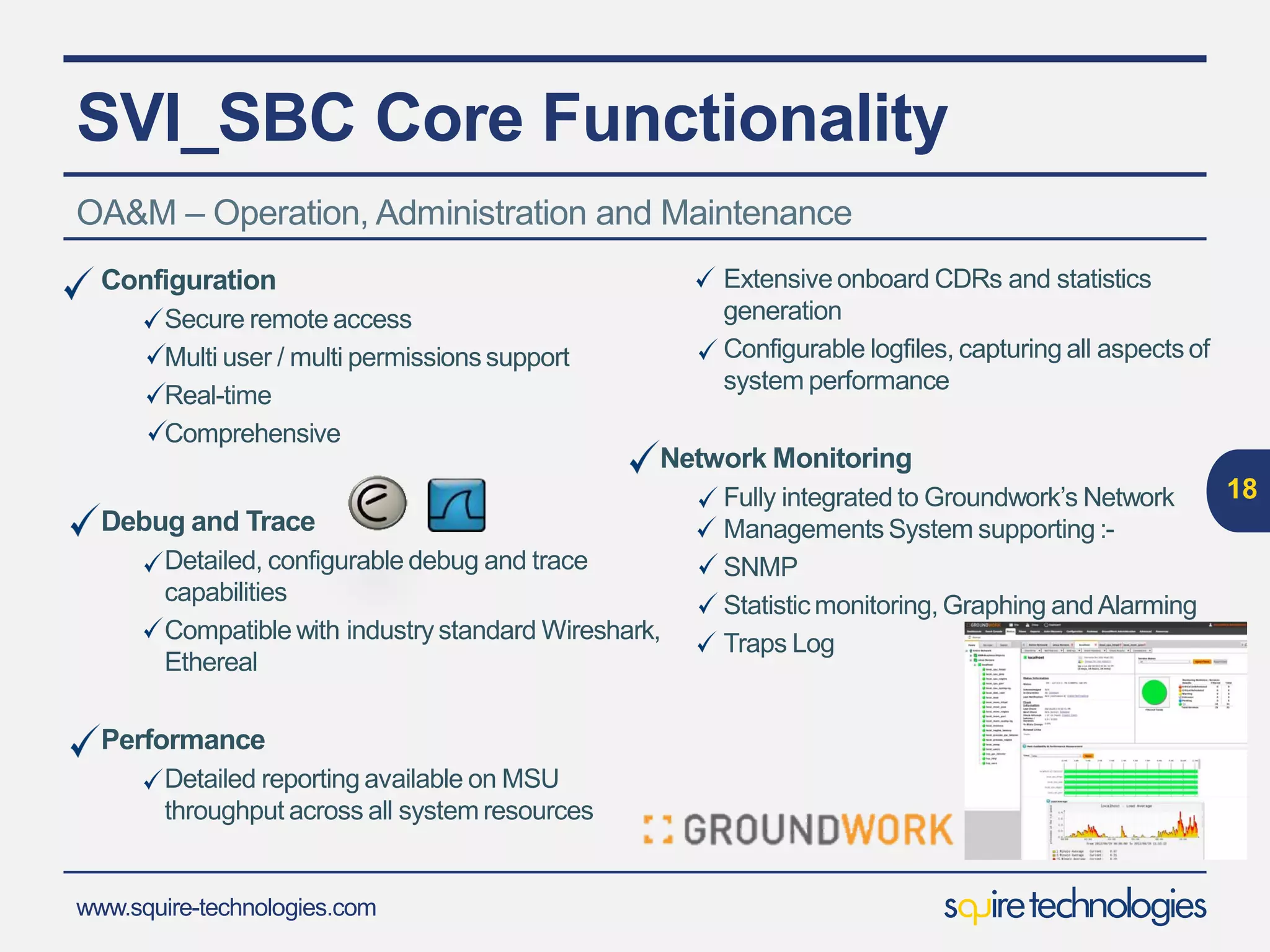

SVI_SBC Core Functionality
19
Configuration
Secure remote access
Multi user / multi permissionssupport
Real-time
Comprehensive
Debug and Trace
Detailed, configurable debug and trace
capabilities
Compatible with industrystandard Wireshark,
Ethereal
Performance
Detailed reporting available on MSU
throughput across all systemresources
Extensive onboard CDRs and statistics
generation
Configurable logfiles, capturing all aspects of
system performance
Network Monitoring
Fully integrated to Groundwork’s Network
Managements System supporting :-
SNMP
Statisticmonitoring,Graphing andAlarming
Traps Log
OA&M – Operation, Administration and Maintenance

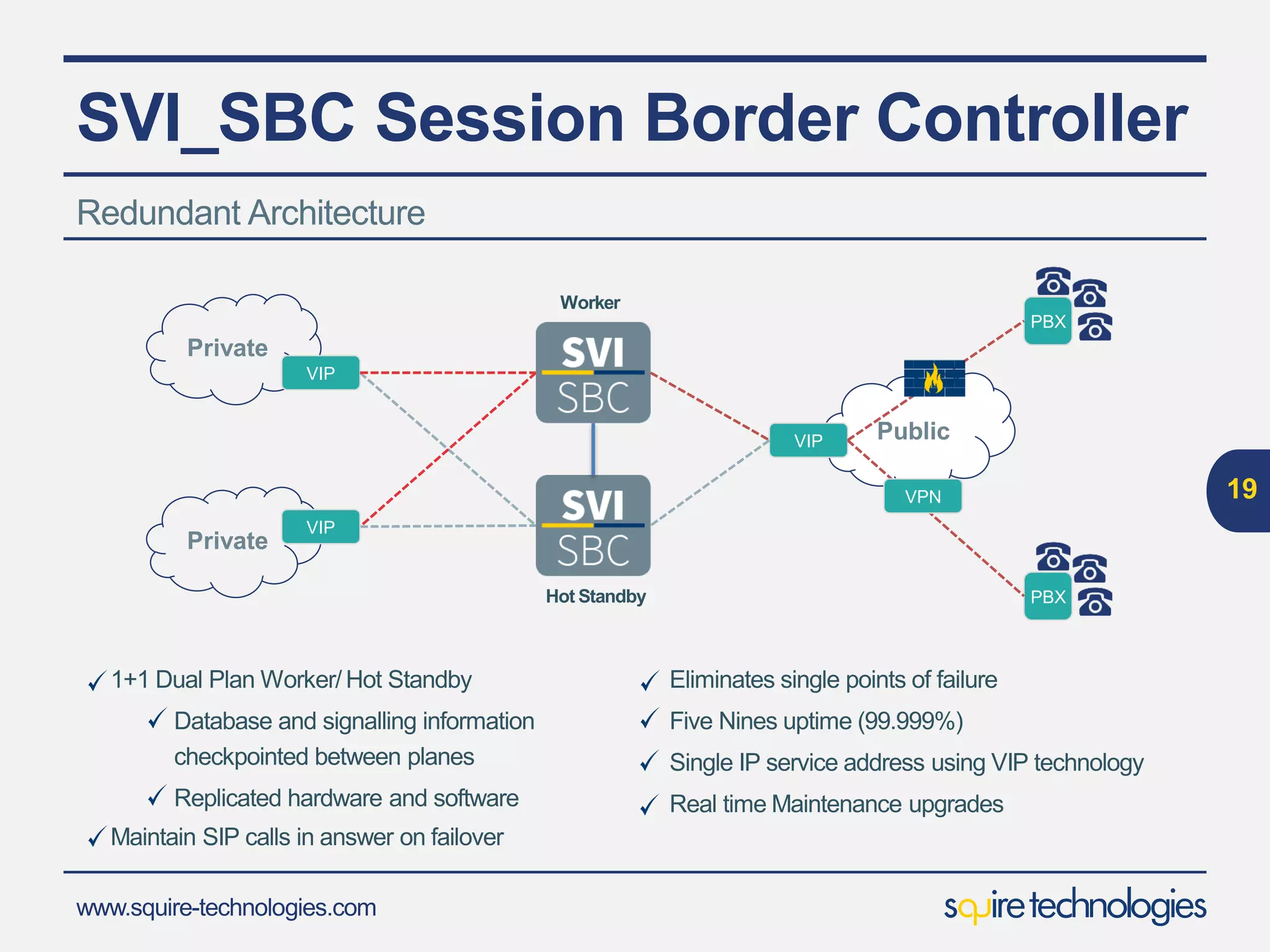

1+1 Dual Plan Worker/ Hot Standby
Database and signalling information
checkpointed between planes
Replicated hardware and software
Maintain SIP calls in answer on failover
Eliminates single points of failure
Five Nines uptime (99.999%)
Single IP service address using VIP technology
Real time Maintenance upgrades
20
Redundant Architecture
Private
Worker
Hot Standby
Public
VIP
VIP
Private
VIP
PBX
PBX
VPN

21

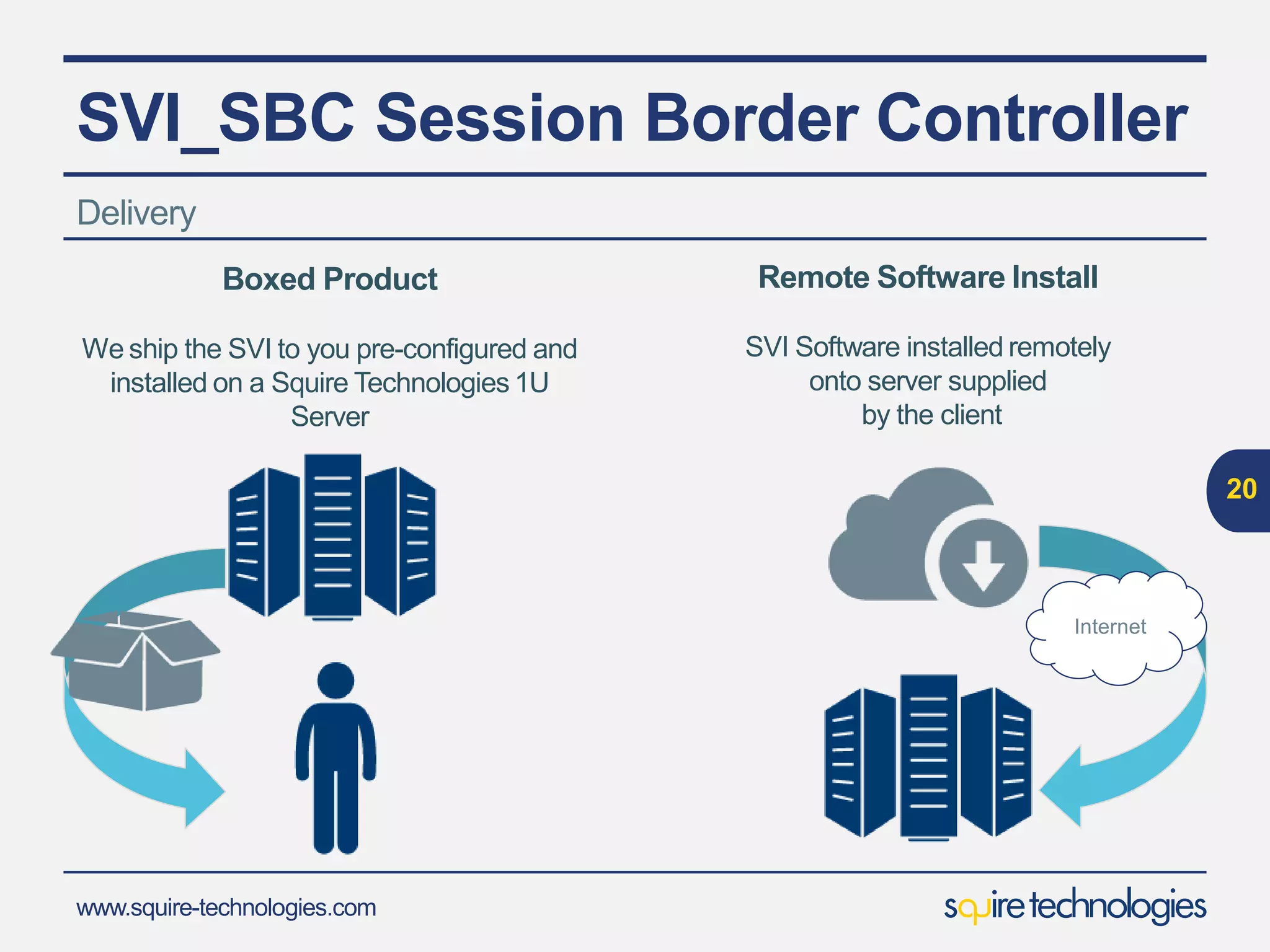

Delivery
Boxed Product
We ship the SVI to you pre-configured and
installed on a Squire Technologies 1U
Server
Remote Software Install
SVI Software installed remotely
onto server supplied
by the client
Internet

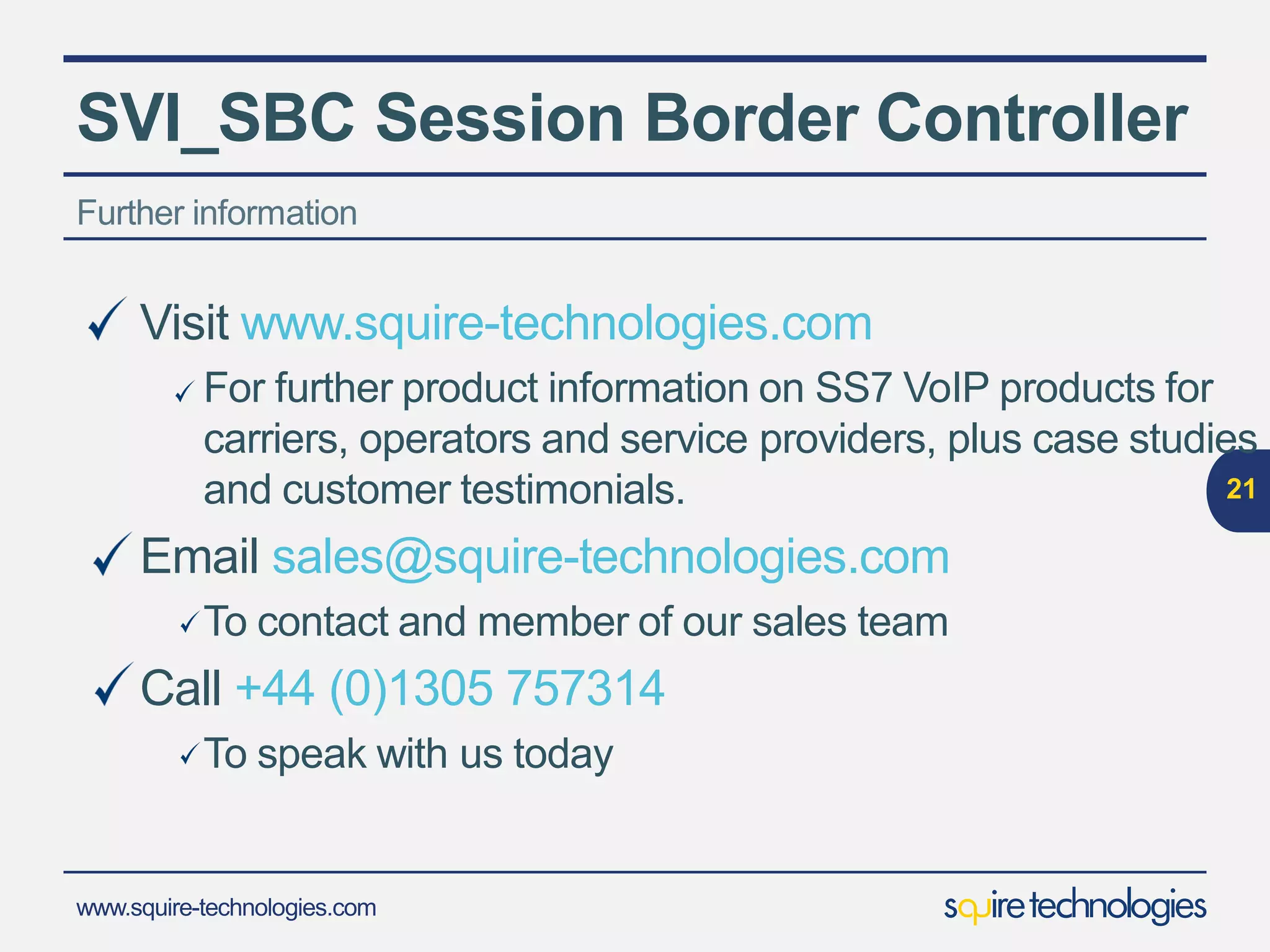

Visit www.squire-technologies.com
For further product information on SS7 VoIP products for
carriers, operators and service providers, plus case studies
and customer testimonials.
Email sales@squire-technologies.com
To contact and member of our sales team
Call +44 (0)1305 757314
To speak with us today
22
Further information

64 High West Street, Dorchester,
Dorset. DT1 1XA UK
