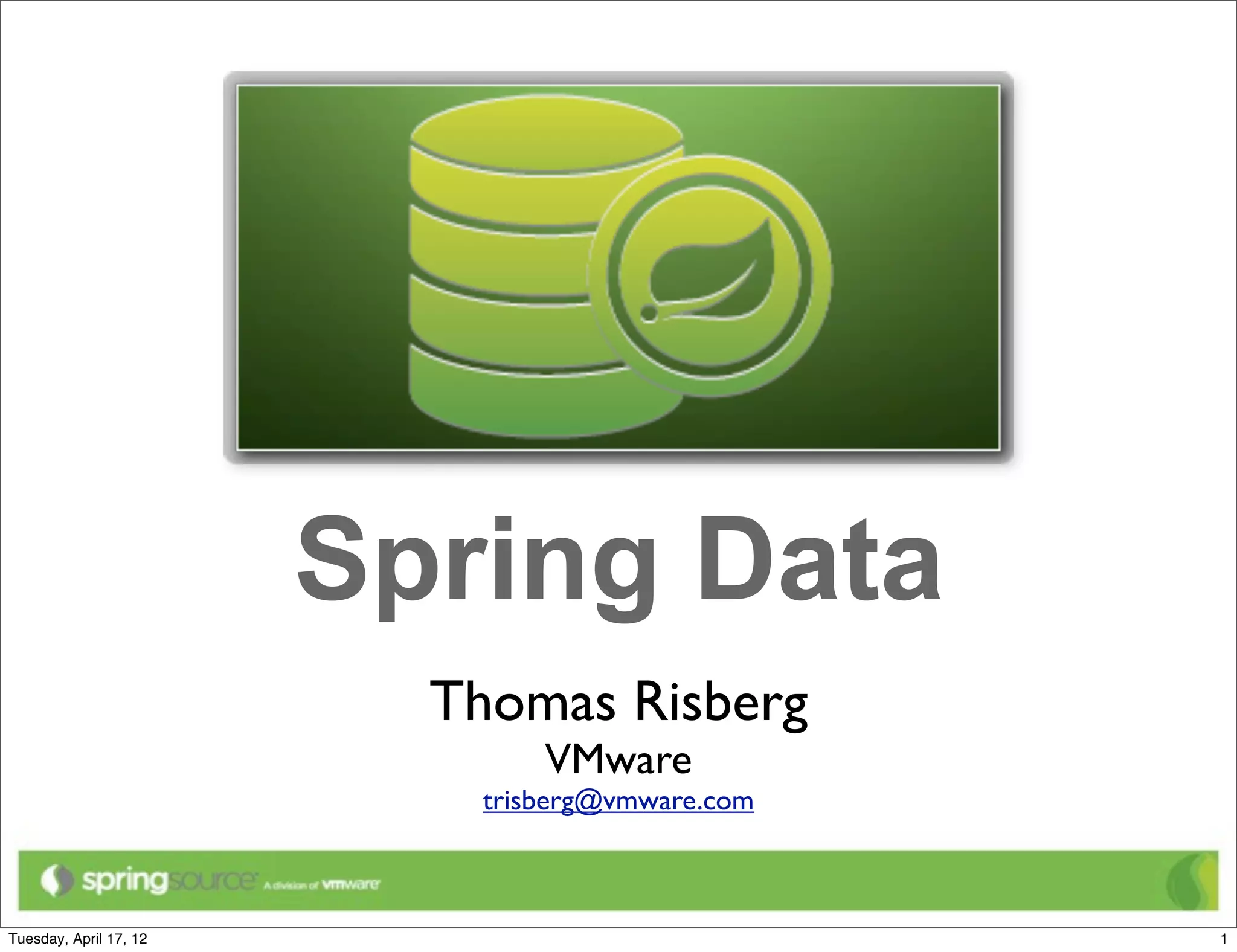

1. Spring Data
Thomas Risberg
VMware
trisberg@vmware.com
Tuesday, April 17, 12 1

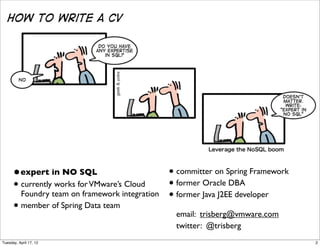

2. •expert in NO SQL • committer on Spring Framework
• currently works for VMware’s Cloud • former Oracle DBA
Foundry team on framework integration • former Java J2EE developer
• member of Spring Data team email: trisberg@vmware.com
twitter: @trisberg
Tuesday, April 17, 12 2

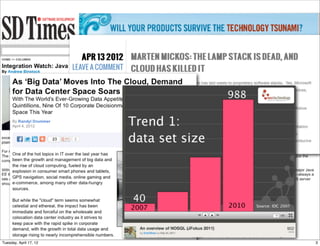

3. Tuesday, April 17, 12 3

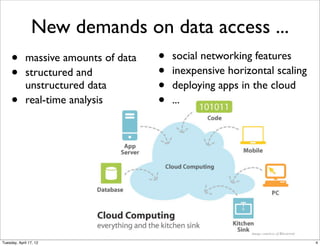

4. New demands on data access ...
• massive amounts of data • social networking features
• structured and • inexpensive horizontal scaling
unstructured data • deploying apps in the cloud
• real-time analysis • ...
image courtesy of Bitcurrent
Tuesday, April 17, 12 4

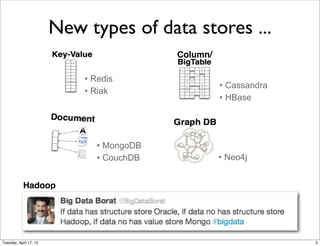

5. New types of data stores ...
Column/
• Redis
• Cassandra
• Riak
• HBase
• MongoDB
• CouchDB • Neo4j
Hadoop
Tuesday, April 17, 12 5

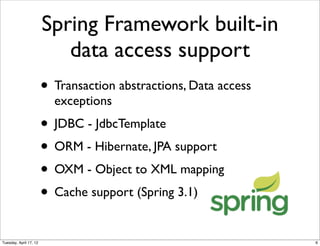

6. Spring Framework built-in
data access support
• Transaction abstractions, Data access
exceptions
• JDBC - JdbcTemplate
• ORM - Hibernate, JPA support
• OXM - Object to XML mapping
• Cache support (Spring 3.1)
Tuesday, April 17, 12 6

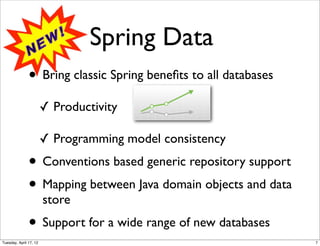

7. Spring Data
• Bring classic Spring benefits to all databases
✓ Productivity
✓ Programming model consistency
• Conventions based generic repository support
• Mapping between Java domain objects and data
store
• Support for a wide range of new databases
Tuesday, April 17, 12 7

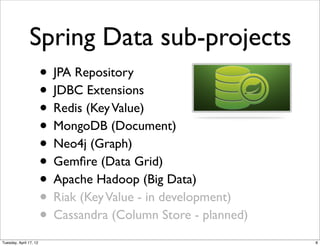

8. Spring Data sub-projects
• JPA Repository
• JDBC Extensions
• Redis (Key Value)
• MongoDB (Document)
• Neo4j (Graph)
• Gemfire (Data Grid)
• Apache Hadoop (Big Data)
• Riak (Key Value - in development)
• Cassandra (Column Store - planned)
Tuesday, April 17, 12 8

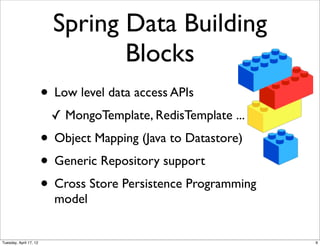

9. Spring Data Building
Blocks
• Low level data access APIs
✓ MongoTemplate, RedisTemplate ...
• Object Mapping (Java to Datastore)
• Generic Repository support
• Cross Store Persistence Programming
model
Tuesday, April 17, 12 9

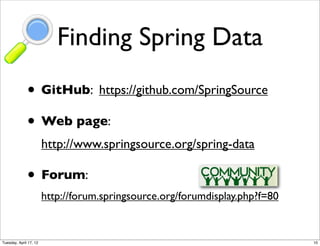

10. Finding Spring Data
• GitHub: https://github.com/SpringSource
• Web page:
http://www.springsource.org/spring-data
• Forum:
http://forum.springsource.org/forumdisplay.php?f=80
Tuesday, April 17, 12 10

11. Three databases for
today’s talk
• Relational database
• Document database
• Graph database
Tuesday, April 17, 12 11

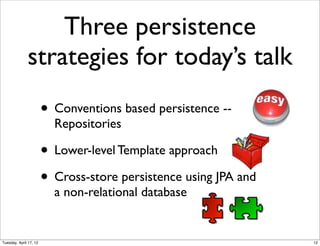

12. Three persistence
strategies for today’s talk
• Conventions based persistence --
Repositories
• Lower-level Template approach
• Cross-store persistence using JPA and
a non-relational database
Tuesday, April 17, 12 12

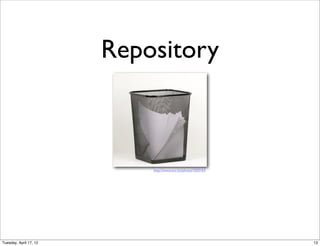

13. Repository
http://www.sxc.hu/photo/1020163
Tuesday, April 17, 12 13

14. Repository
Mediates between the domain and data mapping layers using
a collection-like interface for accessing domain objects.
http://martinfowler.com/eaaCatalog/repository.html
http://msdn.microsoft.com/en-us/library/ff649690.aspx
Tuesday, April 17, 12 14

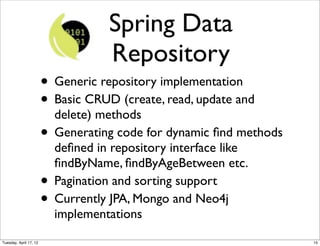

15. Spring Data
Repository
• Generic repository implementation
• Basic CRUD (create, read, update and
delete) methods
• Generating code for dynamic find methods
defined in repository interface like
findByName, findByAgeBetween etc.
• Pagination and sorting support
• Currently JPA, Mongo and Neo4j
implementations
Tuesday, April 17, 12 15

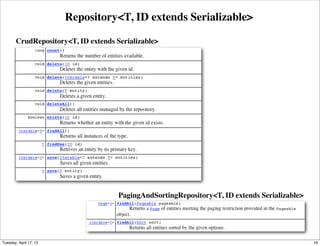

16. Repository<T, ID extends Serializable>
CrudRepository<T, ID extends Serializable>
PagingAndSortingRepository<T, ID extends Serializable>
Tuesday, April 17, 12 16

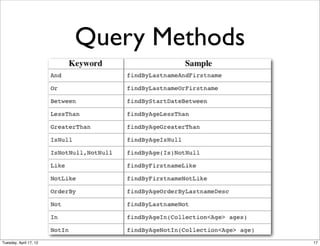

17. Query Methods
Tuesday, April 17, 12 17

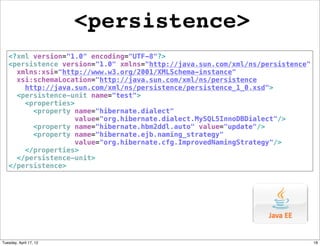

18. <persistence>
<?xml version="1.0" encoding="UTF-8"?>
<persistence version="1.0" xmlns="http://java.sun.com/xml/ns/persistence"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/persistence
http://java.sun.com/xml/ns/persistence/persistence_1_0.xsd">
<persistence-unit name="test">
<properties>
<property name="hibernate.dialect"
value="org.hibernate.dialect.MySQL5InnoDBDialect"/>
<property name="hibernate.hbm2ddl.auto" value="update"/>
<property name="hibernate.ejb.naming_strategy"
value="org.hibernate.cfg.ImprovedNamingStrategy"/>
</properties>
</persistence-unit>
</persistence>
Tuesday, April 17, 12 18

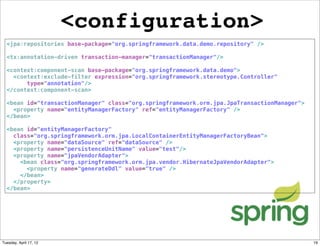

19. <configuration>
<jpa:repositories base-package="org.springframework.data.demo.repository" />
<tx:annotation-driven transaction-manager="transactionManager"/>
<context:component-scan base-package="org.springframework.data.demo">
<context:exclude-filter expression="org.springframework.stereotype.Controller"
type="annotation"/>
</context:component-scan>
<bean id="transactionManager" class="org.springframework.orm.jpa.JpaTransactionManager">
<property name="entityManagerFactory" ref="entityManagerFactory" />
</bean>
<bean id="entityManagerFactory"
class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean">
<property name="dataSource" ref="dataSource" />
<property name="persistenceUnitName" value="test"/>
<property name="jpaVendorAdapter">
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter">
<property name="generateDdl" value="true" />
</bean>
</property>
</bean>
Tuesday, April 17, 12 19

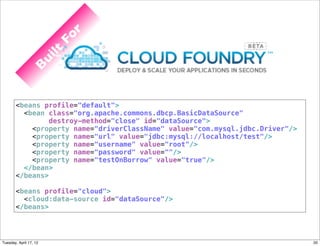

20. r
Fo
lt
ui
B
<beans profile="default">
<bean class="org.apache.commons.dbcp.BasicDataSource"
destroy-method="close" id="dataSource">
<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://localhost/test"/>
<property name="username" value="root"/>
<property name="password" value=""/>
<property name="testOnBorrow" value="true"/>
</bean>
</beans>
<beans profile="cloud">
<cloud:data-source id="dataSource"/>
</beans>
Tuesday, April 17, 12 20

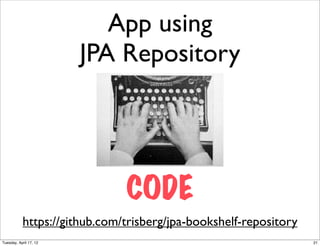

21. App using
JPA Repository
CODE
https://github.com/trisberg/jpa-bookshelf-repository
Tuesday, April 17, 12 21

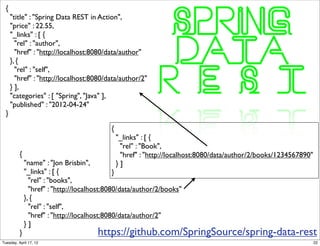

22. {
"title" : "Spring Data REST in Action",
"price" : 22.55,
"_links" : [ {
"rel" : "author",
"href" : "http://localhost:8080/data/author"
}, {
"rel" : "self",
"href" : "http://localhost:8080/data/author/2"
} ],
"categories" : [ "Spring", "Java" ],
"published" : "2012-04-24"
}
{
"_links" : [ {
"rel" : "Book",
{ "href" : "http://localhost:8080/data/author/2/books/1234567890"
"name" : "Jon Brisbin", }]
"_links" : [ { }
"rel" : "books",
"href" : "http://localhost:8080/data/author/2/books"
}, {
"rel" : "self",
"href" : "http://localhost:8080/data/author/2"
}]
} https://github.com/SpringSource/spring-data-rest
Tuesday, April 17, 12 22

23. Tuesday, April 17, 12 23

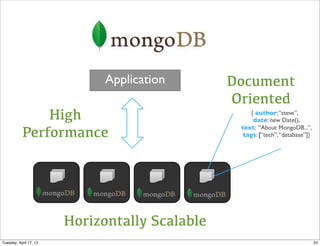

24. Application Document
Oriented
High { author: “steve”,
date: new Date(),
Performance text: “About MongoDB...”,
tags: [“tech”, “database”]}
Horizontally Scalable
Tuesday, April 17, 12 24

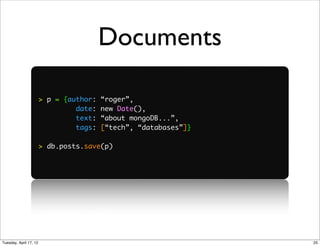

25. Documents
> p = {author: “roger”,
date: new Date(),
text: “about mongoDB...”,
tags: [“tech”, “databases”]}
> db.posts.save(p)
Tuesday, April 17, 12 25

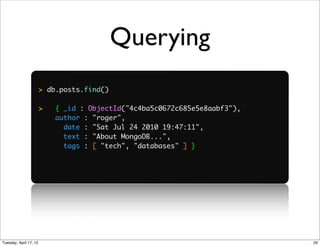

26. Querying
> db.posts.find()
> { _id : ObjectId("4c4ba5c0672c685e5e8aabf3"),
author : "roger",
date : "Sat Jul 24 2010 19:47:11",
text : "About MongoDB...",
tags : [ "tech", "databases" ] }
Tuesday, April 17, 12 26

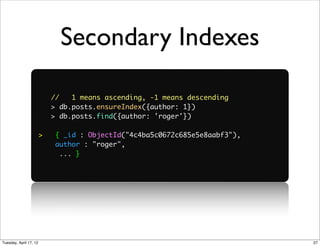

27. Secondary Indexes
// 1 means ascending, -1 means descending
> db.posts.ensureIndex({author: 1})
> db.posts.find({author: 'roger'})
> { _id : ObjectId("4c4ba5c0672c685e5e8aabf3"),
author : "roger",
... }
Tuesday, April 17, 12 27

28. Conditional Query
Operators
$all, $exists, $mod, $ne, $in, $nin, $nor, $or, $size,
$type, $lt, $lte, $gt, $gte
// find posts with any tags
> db.posts.find( {tags: {$exists: true }} )
// find posts matching a regular expression
> db.posts.find( {author: /^rog*/i } )
// count posts by author
> db.posts.find( {author: ‘roger’} ).count()
Tuesday, April 17, 12 28

29. Atomic Updates
$set, $unset, $inc, $push, $pushAll,
$pull, $pullAll, $bit
> comment = { author: “fred”,
date: new Date(),
text: “Best Movie Ever”}
> db.posts.update( { _id: “...” },
$push: {comments: comment} );
Tuesday, April 17, 12 29

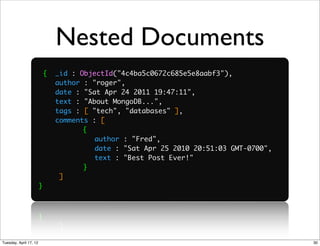

30. Nested Documents
{ _id : ObjectId("4c4ba5c0672c685e5e8aabf3"),
author : "roger",
date : "Sat Apr 24 2011 19:47:11",
text : "About MongoDB...",
tags : [ "tech", "databases" ],
comments : [
{
author : "Fred",
date : "Sat Apr 25 2010 20:51:03 GMT-0700",
text : "Best Post Ever!"
}
]
}
Tuesday, April 17, 12 30

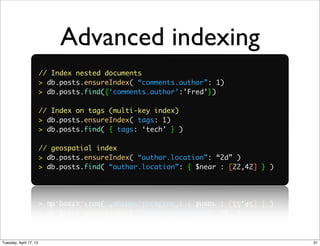

31. Advanced indexing
// Index nested documents
> db.posts.ensureIndex( “comments.author”: 1)
> db.posts.find({‘comments.author’:’Fred’})
// Index on tags (multi-key index)
> db.posts.ensureIndex( tags: 1)
> db.posts.find( { tags: ‘tech’ } )
// geospatial index
> db.posts.ensureIndex( “author.location”: “2d” )
> db.posts.find( “author.location”: { $near : [22,42] } )
Tuesday, April 17, 12 31

32. Rich Documents
{ _id : ObjectId("4c4ba5c0672c685e5e8aabf3"),
line_items : [ { sku: ‘tt-123’,
name: ‘Coltrane: Impressions’ },
{ sku: ‘tt-457’,
name: ‘Davis: Kind of Blue’ } ],
address : { name: ‘Banker’,
street: ‘111 Main’,
zip: 10010 },
payment: { cc: 4567,
exp: Date(2011, 7, 7) },
subtotal: 2355
}
Tuesday, April 17, 12 32

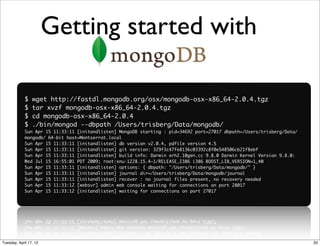

33. Getting started with
$ wget http://fastdl.mongodb.org/osx/mongodb-osx-x86_64-2.0.4.tgz
$ tar xvzf mongodb-osx-x86_64-2.0.4.tgz
$ cd mongodb-osx-x86_64-2.0.4
$ ./bin/mongod --dbpath /Users/trisberg/Data/mongodb/
Sun Apr 15 11:33:11 [initandlisten] MongoDB starting : pid=34692 port=27017 dbpath=/Users/trisberg/Data/
mongodb/ 64-bit host=Montserrat.local
Sun Apr 15 11:33:11 [initandlisten] db version v2.0.4, pdfile version 4.5
Sun Apr 15 11:33:11 [initandlisten] git version: 329f3c47fe8136c03392c8f0e548506cb21f8ebf
Sun Apr 15 11:33:11 [initandlisten] build info: Darwin erh2.10gen.cc 9.8.0 Darwin Kernel Version 9.8.0:
Wed Jul 15 16:55:01 PDT 2009; root:xnu-1228.15.4~1/RELEASE_I386 i386 BOOST_LIB_VERSION=1_40
Sun Apr 15 11:33:11 [initandlisten] options: { dbpath: "/Users/trisberg/Data/mongodb/" }
Sun Apr 15 11:33:11 [initandlisten] journal dir=/Users/trisberg/Data/mongodb/journal
Sun Apr 15 11:33:11 [initandlisten] recover : no journal files present, no recovery needed
Sun Apr 15 11:33:12 [websvr] admin web console waiting for connections on port 28017
Sun Apr 15 11:33:12 [initandlisten] waiting for connections on port 27017
Tuesday, April 17, 12 33

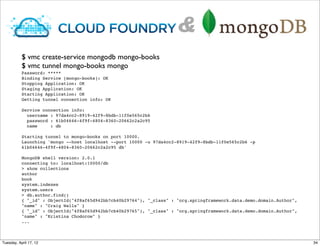

34. &
$ vmc create-service mongodb mongo-books
$ vmc tunnel mongo-books mongo
Password: *****
Binding Service [mongo-books]: OK
Stopping Application: OK
Staging Application: OK
Starting Application: OK
Getting tunnel connection info: OK
Service connection info:
username : 97da4cc2-8919-42f9-8bdb-11f0e565c2b6
password : 61b04646-4f9f-4804-8360-20662c2a2c95
name : db
Starting tunnel to mongo-books on port 10000.
Launching 'mongo --host localhost --port 10000 -u 97da4cc2-8919-42f9-8bdb-11f0e565c2b6 -p
61b04646-4f9f-4804-8360-20662c2a2c95 db'
MongoDB shell version: 2.0.1
connecting to: localhost:10000/db
> show collections
author
book
system.indexes
system.users
> db.author.find()
{ "_id" : ObjectId("4f8af65d942bb7cb40b29764"), "_class" : "org.springframework.data.demo.domain.Author",
"name" : "Craig Walls" }
{ "_id" : ObjectId("4f8af65d942bb7cb40b29765"), "_class" : "org.springframework.data.demo.domain.Author",
"name" : "Kristina Chodorow" }
...
Tuesday, April 17, 12 34

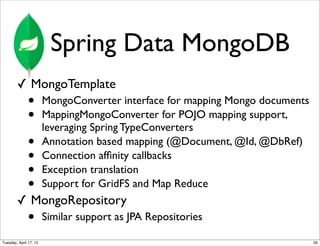

35. Spring Data MongoDB
✓ MongoTemplate
• MongoConverter interface for mapping Mongo documents
• MappingMongoConverter for POJO mapping support,
leveraging Spring TypeConverters
• Annotation based mapping (@Document, @Id, @DbRef)
• Connection affinity callbacks
• Exception translation
• Support for GridFS and Map Reduce
✓ MongoRepository
• Similar support as JPA Repositories
Tuesday, April 17, 12 35

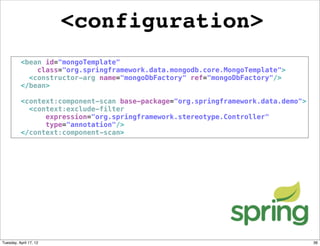

36. <configuration>
<bean id="mongoTemplate"
class="org.springframework.data.mongodb.core.MongoTemplate">
<constructor-arg name="mongoDbFactory" ref="mongoDbFactory"/>
</bean>
<context:component-scan base-package="org.springframework.data.demo">
<context:exclude-filter
expression="org.springframework.stereotype.Controller"
type="annotation"/>
</context:component-scan>
Tuesday, April 17, 12 36

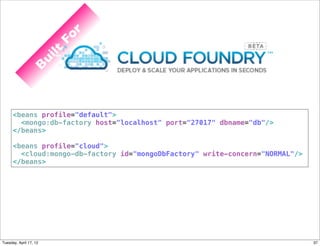

37. r
Fo
lt
ui
B
<beans profile="default">
<mongo:db-factory host="localhost" port="27017" dbname="db"/>
</beans>
<beans profile="cloud">
<cloud:mongo-db-factory id="mongoDbFactory" write-concern="NORMAL"/>
</beans>
Tuesday, April 17, 12 37

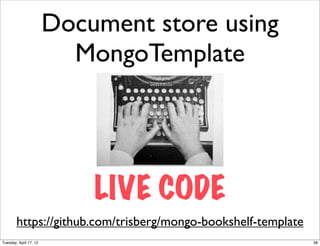

38. Document store using
MongoTemplate
LIVE CODE
https://github.com/trisberg/mongo-bookshelf-template
Tuesday, April 17, 12 38

39. • DB is a collection of graph nodes, relationships
• Nodes and relationships have properties
• Querying is done via a traversal API
• Indexes on node/relationship properties
• Written in Java, can be embedded
• Transactional (ACID)
• Master-Slave replication
• Standalone using REST API
Tuesday, April 17, 12 39

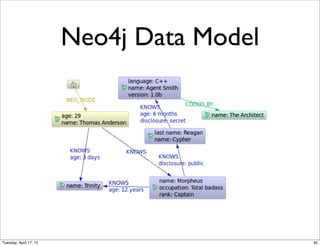

40. Neo4j Data Model
Tuesday, April 17, 12 40

41. Features
• Support for property graphs (nodes connected via
relationships, each with arbitrary properties)
• Transparent mapping of annotated POJO entities (using
AspectJ
• Neo4jTemplate with convenient API, exception translation
and optional transaction management
• Supports the Cypher and Gremlin query languages
• Dynamic type projections (duck typing)
• Spring Data Repositories Support
• Cross-store support for partial JPA – Graph Entities
Tuesday, April 17, 12 41

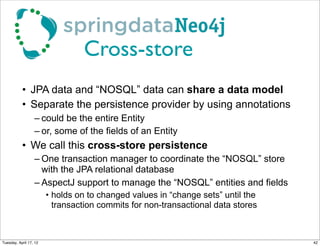

42. Cross-store
• JPA data and “NOSQL” data can share a data model
• Separate the persistence provider by using annotations
– could be the entire Entity
– or, some of the fields of an Entity
• We call this cross-store persistence
– One transaction manager to coordinate the “NOSQL” store
with the JPA relational database
– AspectJ support to manage the “NOSQL” entities and fields
• holds on to changed values in “change sets” until the
transaction commits for non-transactional data stores
Tuesday, April 17, 12 42

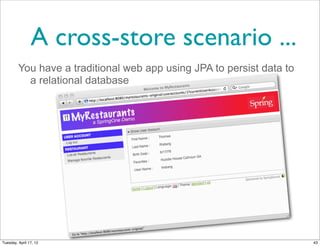

43. A cross-store scenario ...
You have a traditional web app using JPA to persist data to
a relational database
Tuesday, April 17, 12 43

44. JPA Data Model
Restaurant UserAccount
@Entity @Entity
public class Restaurant { @Table(name = "user_account")
@Id @GeneratedValue public class UserAccount {
private Long id; @Id @GeneratedValue
private String name; private Long id;
private String city; private String userName;
private String state; private String firstName;
private String zipCode; private String lastName;
@Temporal(TemporalType.TIMESTAMP)
private Date birthDate;
@ManyToMany(cascade = CascadeType.ALL)
private Set<Restaurant> favorites;
Tuesday, April 17, 12 44

45. Cross-store
Data Model
Restaurant UserAccount
@Entity @Entity
@NodeEntity(partial = true) @Table(name = "user_account")
public class Restaurant { @NodeEntity(partial = true)
@Id @GeneratedValue public class UserAccount {
private Long id; @Id @GeneratedValue
private String name; private Long id;
private String city; private String userName;
private String state; private String firstName;
private String zipCode; private String lastName;
@Temporal(TemporalType.TIMESTAMP)
private Date birthDate;
@ManyToMany(cascade = CascadeType.ALL)
Recommendation private Set<Restaurant> favorites;
@RelationshipEntity @GraphProperty
public class Recommendation { String nickname;
@StartNode @RelatedTo(type = "friends",
private UserAccount user; elementClass = UserAccount.class)
@EndNode Set<UserAccount> friends;
private Restaurant restaurant; @RelatedToVia(type = "recommends",
private int stars; elementClass = Recommendation.class)
private String comment; Iterable<Recommendation> recommendations;
Tuesday, April 17, 12 45

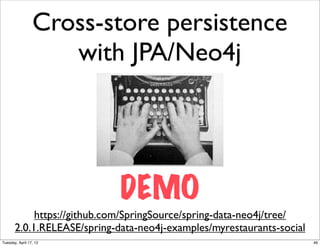

46. Cross-store persistence
with JPA/Neo4j
DEMO
https://github.com/SpringSource/spring-data-neo4j/tree/
2.0.1.RELEASE/spring-data-neo4j-examples/myrestaurants-social
Tuesday, April 17, 12 46

47. Questions?
http://www.sxc.hu/photo/860327
Tuesday, April 17, 12 47
