1. Spill Kits &
Containment Systems
F R O M O I L T E C H N I C S L T D
Spill Kits
Spill Systems
Pages 02 - 10
Secondary Containment
Pages 11 - 15
Drum & Bulk Storage
Pages 16 - 21
Pages 22 - 31

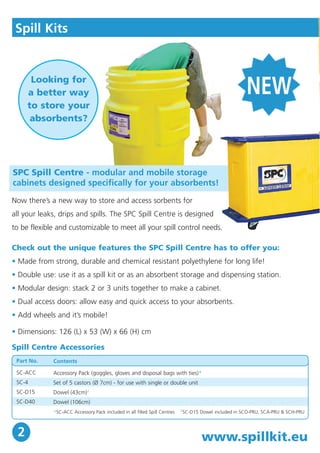

2. Spill Kits
SPC Spill Centre - modular and mobile storage
cabinets designed specifically for your absorbents!
www.spillkit.eu
Looking for
a better way
to store your
absorbents?
Now there’s a new way to store and access sorbents for
all your leaks, drips and spills. The SPC Spill Centre is designed
to be flexible and customizable to meet all your spill control needs.
Check out the unique features the SPC Spill Centre has to offer you:
• Made from strong, durable and chemical resistant polyethylene for long life!
• Double use: use it as a spill kit or as an absorbent storage and dispensing station.
• Modular design: stack 2 or 3 units together to make a cabinet.
• Dual access doors: allow easy and quick access to your absorbents.
• Add wheels and it’s mobile!
• Dimensions: 126 (L) x 53 (W) x 66 (H) cm
Spill Centre Accessories
Part No.
SC-ACC
SC-4
SC-D15
SC-D40
Contents
Accessory Pack (goggles, gloves and disposal bags with ties)*
Set of 5 castors (Ø 7cm) - for use with single or double unit
Dowel (43cm)†
Dowel (106cm)
*SC-ACC Accessory Pack included in all filled Spill Centres †SC-D15 Dowel included in SCO-PRU, SCA-PRU & SCH-PRU
2
NEW

3. Spill Centres - complete with Accessory Pack (SC-ACC) and the following Absorbents:
Oil Only Absorption Cap.
SCO-PRU
SCO-PSU
SCO-SWU
Maintenance
SCA-PRU
SCA-PSU
SCA-SWU
Hazardous Liquids
SCH-PRU
SCH-PSU
SCH-SWU
Cabinet Only
SC-3000
Contents
100 Pads (ENV100-M) - 41 x 51cm, 1 Roll (OP15-DP-E) - 38cm x 46m,
Dowel (SC-D15) - 43cm
100 Pads (ENV 100-M) - 41 x 51cm, 12 Socs (OIL412) - Ø 7.6 x 122cm
12 Socs (OIL412) - Ø 7.6 x 122cm, 8 Pillows (OIL1818-2) - 43 x 48cm
100 Pads (GP100-M) - 41 x 51cm, 1 Roll (MR15-DP-E) - 38cm x 46m,
Dowel (SC-D15) - 43cm
100 Pads (GP100-M) - 41 x 51cm, 12 Socs (AW412) - Ø 7.6 x 122cm
12 Socs (AW412) - Ø 7.6 x 122cm, 8 Pillows (AW1818-2) - 43 x 48cm
100 Pads (UN100-E) - 41 x 51cm, 1 Roll (UN15-DP-E) - 38cm x 46m,
Dowel (SC-D15) - 43cm
100 Pads (UN1719-E) - 41 x 51cm, 12 Socs (HAZ412) - Ø 7.6 x 122cm
12 Socs (HAZ412) - Ø 7.6 x 122cm, 8 Pillows (HAZ1818-2) - 43 x 48cm
Cabinet only - unassembled
230 Litres
179 Litres
96 Litres
189 Litres
140 Litres
98 Litres
161 Litres
133 Litres
98 Litres
N/A
www.spillsystems.eu 3

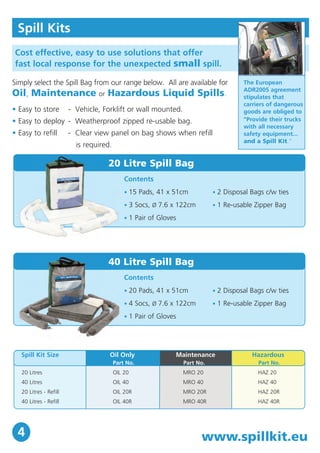

4. Spill Kits
Cost effective, easy to use solutions that offer
fast local response for the unexpected small spill.
Simply select the Spill Bag from our range below. All are available for
Oil, Maintenance or Hazardous Liquid Spills.
• Easy to store - Vehicle, Forklift or wall mounted.
• Easy to deploy - Weatherproof zipped re-usable bag.
• Easy to refill - Clear view panel on bag shows when refill
is required.
20 Litre Spill Bag
Contents
• 15 Pads, 41 x 51cm
• 3 Socs, Ø 7.6 x 122cm
• 1 Pair of Gloves
The European
ADR2005 agreement
stipulates that
carriers of dangerous
goods are obliged to
“Provide their trucks
with all necessary
safety equipment...
and a Spill Kit.”
• 2 Disposal Bags c/w ties
• 1 Re-usable Zipper Bag
40 Litre Spill Bag
Contents
• 20 Pads, 41 x 51cm
• 4 Socs, Ø 7.6 x 122cm
• 1 Pair of Gloves
• 2 Disposal Bags c/w ties
• 1 Re-usable Zipper Bag
Spill Kit Size Oil Only Maintenance Hazardous
Part No.
HAZ 20
HAZ 40
HAZ 20R
HAZ 40R
20 Litres
40 Litres
20 Litres - Refill
40 Litres - Refill
Part No.
OIL 20
OIL 40
OIL 20R
OIL 40R
Part No.
MRO 20
MRO 40
MRO 20R
MRO 40R
4 www.spillkit.eu

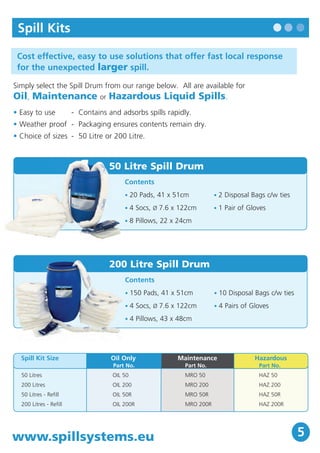

5. Spill Kits
Cost effective, easy to use solutions that offer fast local response
for the unexpected larger spill.
Simply select the Spill Drum from our range below. All are available for
Oil, Maintenance or Hazardous Liquid Spills.
• Easy to use - Contains and adsorbs spills rapidly.
• Weather proof - Packaging ensures contents remain dry.
• Choice of sizes - 50 Litre or 200 Litre.
• 2 Disposal Bags c/w ties
• 1 Pair of Gloves
50 Litre Spill Drum
Contents
• 20 Pads, 41 x 51cm
• 4 Socs, Ø 7.6 x 122cm
• 8 Pillows, 22 x 24cm
Contents
• 150 Pads, 41 x 51cm
• 4 Socs, Ø 7.6 x 122cm
• 4 Pillows, 43 x 48cm
• 10 Disposal Bags c/w ties
• 4 Pairs of Gloves
200 Litre Spill Drum
Spill Kit Size Oil Only Maintenance Hazardous
Part No.
HAZ 50
HAZ 200
HAZ 50R
HAZ 200R
50 Litres
200 Litres
50 Litres - Refill
200 Litres - Refill
Part No.
OIL 50
OIL 200
OIL 50R
OIL 200R
Part No.
MRO 50
MRO 200
MRO 50R
MRO 200R
www.spillsystems.eu
5

6. For fast spill response anywhere in the plant.
Simply select the Mobile Spill Kit from our range below. All are available for
Oil, Maintenance or Hazardous Liquid Spills.
• For medium sized spills.
• Weather-resistant polyethylene
container protects sorbents against
dirt, moisture and damage.
• Hinged lid provides easy access
to the products.
• Wheels allow excellent mobility in
and outdoors.
120 Litre Mobile Spill Kit
www.spillkit.eu
Contents
• 50 Pads, 41 x 51cm
• 12 Socs, Ø 7.6 x 122cm
• 12 Pillows, 22 x 24cm
• 1 Pair of Gloves
• 10 Disposal Bags c/w ties
240 Litre Mobile Spill Kit
• 150 Pads, 41 x 51cm
• 4 Socs, Ø 7.6 x 122cm
• 10 Pillows, 43 x 48cm
• Spill Magnet, 1 x 5Kg
• 1 Pair of Gloves
• 10 Disposal Bags c/w ties
• 1 Warning Sign
Contents
360 Litre Mobile Spill Kit
• 150 Pads, 41 x 51cm
• 6 Socs, Ø 7.6 x 122cm
• 6 Socs, Ø 7.6 x 244cm
• 16 Pillows, 43 x 48cm
• Spill Magnet, 1 x 5Kg
• 2 Pairs of Gloves
• 24 Disposal Bags c/w ties
• 1 Warning Sign
Contents
Spill Kits
6

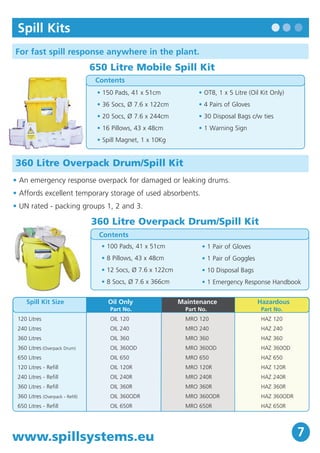

7. For fast spill response anywhere in the plant.
650 Litre Mobile Spill Kit
• 150 Pads, 41 x 51cm
• 36 Socs, Ø 7.6 x 122cm
• 20 Socs, Ø 7.6 x 244cm
• 16 Pillows, 43 x 48cm
• Spill Magnet, 1 x 10Kg
360 Litre Overpack Drum/Spill Kit
• An emergency response overpack for damaged or leaking drums.
• Affords excellent temporary storage of used absorbents.
• UN rated - packing groups 1, 2 and 3.
360 Litre Overpack Drum/Spill Kit
• 100 Pads, 41 x 51cm
• 8 Pillows, 43 x 48cm
• 12 Socs, Ø 7.6 x 122cm
• 8 Socs, Ø 7.6 x 366cm
www.spillsystems.eu
• 1 Pair of Gloves
• 1 Pair of Goggles
• 10 Disposal Bags
• 1 Emergency Response Handbook
Contents
• OT8, 1 x 5 Litre (Oil Kit Only)
• 4 Pairs of Gloves
• 30 Disposal Bags c/w ties
• 1 Warning Sign
Contents
Spill Kits
7
Spill Kit Size Oil Only Maintenance Hazardous
Part No.
HAZ 120
HAZ 240
HAZ 360
HAZ 360OD
HAZ 650
HAZ 120R
HAZ 240R
HAZ 360R
HAZ 360ODR
HAZ 650R
120 Litres
240 Litres
360 Litres
360 Litres (Overpack Drum)
650 Litres
120 Litres - Refill
240 Litres - Refill
360 Litres - Refill
360 Litres (Overpack - Refill)
650 Litres - Refill
Part No.
OIL 120
OIL 240
OIL 360
OIL 360OD
OIL 650
OIL 120R
OIL 240R
OIL 360R
OIL 360ODR
OIL 650R
Part No.
MRO 120
MRO 240
MRO 360
MRO 360OD
MRO 650
MRO 120R
MRO 240R
MRO 360R
MRO 360ODR
MRO 650R

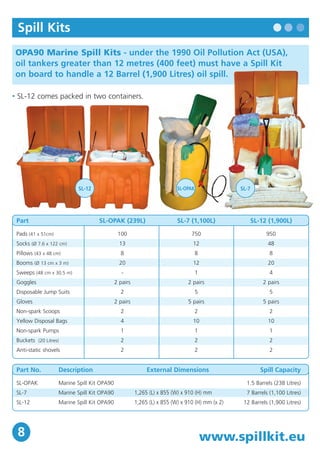

8. OPA90 Marine Spill Kits - under the 1990 Oil Pollution Act (USA),
oil tankers greater than 12 metres (400 feet) must have a Spill Kit
on board to handle a 12 Barrel (1,900 Litres) oil spill.
www.spillkit.eu
Part
Pads (41 x 51cm)
Socks (Ø 7.6 x 122 cm)
Pillows (43 x 48 cm)
Booms (Ø 13 cm x 3 m)
Sweeps (48 cm x 30.5 m)
Goggles
Disposable Jump Suits
Gloves
Non-spark Scoops
Yellow Disposal Bags
Non-spark Pumps
Buckets (20 Litres)
Anti-static shovels
SL-OPAK (239L)
100
13
8
20
-
2 pairs
2
2 pairs
2
4
1
2
2
SL-7 (1,100L)
750
12
8
12
1
2 pairs
5
5 pairs
2
10
1
2
2
SL-12 (1,900L)
950
48
8
20
4
2 pairs
5
5 pairs
2
10
1
2
2
• SL-12 comes packed in two containers.
SL-12 SL-OPAK
SL-7
Part No.
SL-OPAK
SL-7
SL-12
Description
Marine Spill Kit OPA90
Marine Spill Kit OPA90
Marine Spill Kit OPA90
External Dimensions
1,265 (L) x 855 (W) x 910 (H) mm
1,265 (L) x 855 (W) x 910 (H) mm (x 2)
Spill Capacity
1.5 Barrels (238 Litres)
7 Barrels (1,100 Litres)
12 Barrels (1,900 Litres)
Spill Kits
8

9. Spill Kits
Spill Box - pads in a convenient dispenser box, giving an
opportunity to create multiple spill stations in your plant!
• Reusable plastic box allows you to refill your
spill boxes once pads have been used,
• Light-weight - easy to fix to any surface.
• Yellow colour for high visibility.
• Small size - can fit behind driver’s seat on a
truck or forklift.
• Refills available.
• Visual instructions printed on front and back
for both use and re-filling.
• Available for Oil Only, Maintenance &
Hazardous Liquids.
• Dimensions: 44 x 53 x 4cm
NEW
Description Oil Only Maintenance Hazardous
Part No.
SA-SBH
(inc. 10 pads, 41 x 51cm)
UN100-E
(100 pads per box)
Spill Box
Pad Refills
Part No.
SA-SBO
(inc. 15 pads, 41 x 51cm)
SXT200-E
(200 pads per box)
Part No.
SA-SBA
(inc. 15 pads, 41 x 51cm)
UXT200-E
(200 pads per box)
Capacity
10 Litres
136 Litres
Capacity
10 Litres
136 Litres
Capacity
9 Litres
88 Litres
www.spillsystems.eu 9

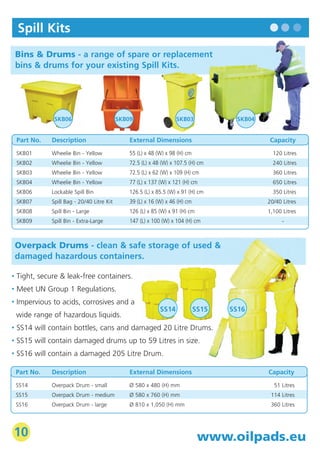

10. Spill Kits
Bins & Drums - a range of spare or replacement
bins & drums for your existing Spill Kits.
SKB06 SKB03
SKB04
Part No.
SKB01
SKB02
SKB03
SKB04
SKB06
SKB07
SKB08
SKB09
Description
Wheelie Bin - Yellow
Wheelie Bin - Yellow
Wheelie Bin - Yellow
Wheelie Bin - Yellow
Lockable Spill Bin
Spill Bag - 20/40 Litre Kit
Spill Bin - Large
Spill Bin - Extra-Large
SKB09
External Dimensions
55 (L) x 48 (W) x 98 (H) cm
72.5 (L) x 48 (W) x 107.5 (H) cm
72.5 (L) x 62 (W) x 109 (H) cm
77 (L) x 137 (W) x 121 (H) cm
126.5 (L) x 85.5 (W) x 91 (H) cm
39 (L) x 16 (W) x 46 (H) cm
126 (L) x 85 (W) x 91 (H) cm
147 (L) x 100 (W) x 104 (H) cm
Capacity
120 Litres
240 Litres
360 Litres
650 Litres
350 Litres
20/40 Litres
1,100 Litres
-
Overpack Drums - clean & safe storage of used &
damaged hazardous containers.
• Tight, secure & leak-free containers.
• Meet UN Group 1 Regulations.
• Impervious to acids, corrosives and a
wide range of hazardous liquids.
• SS14 will contain bottles, cans and damaged 20 Litre Drums.
• SS15 will contain damaged drums up to 59 Litres in size.
• SS16 will contain a damaged 205 Litre Drum.
SS14 SS15 SS16
Part No.
SS14
SS15
SS16
Description
Overpack Drum - small
Overpack Drum - medium
Overpack Drum - large
External Dimensions
Ø 580 x 480 (H) mm
Ø 580 x 760 (H) mm
Ø 810 x 1,050 (H) mm
Capacity
51 Litres
114 Litres
360 Litres
10 www.oilpads.eu

11. Spill Systems
Bunded Trolley - the “must have” general purpose trolley for
workshops, warehouses and laboratories across all sectors.
• Made from sturdy 100% polyethylene.
• Can hold four 25 Litre drums.
• Ideal for safe transport & storage of small
drums, containers and other items.
• Two lockable castors.
• Suitable for indoor & outdoor use.
• Lightweight & easy to use.
Part No.
SS01
Description
Bunded Trolley
External Dimensions
700 (W) x 900 (L) x 980 (H) mm
Weight
18kg
Sump Cap.
100 Litres
Poly Work Cart - a flexible & robust mobile workstation suitable
for general maintenance and repair applications across all sectors.
• Made from sturdy 100% polyethylene.
• Secure internal storage area.
• Slotted opening in door for gloves & manuals.
• Two external trays ideal for holding
tools and additional materials.
• Lockable front wheels.
Part No.
SS02
Description
Poly Work Cart
External Dimensions
725 (W) x 640 (L) x 1,075 (H) mm
Weight
27kg
www.spillsystems.eu 11

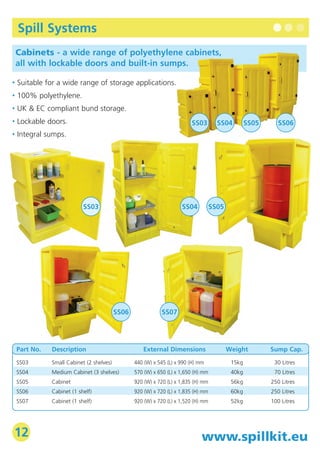

12. Spill Systems
Cabinets - a wide range of polyethylene cabinets,
all with lockable doors and built-in sumps.
• Suitable for a wide range of storage applications.
• 100% polyethylene.
• UK & EC compliant bund storage.
• Lockable doors.
• Integral sumps.
SS03 SS04 SS05 SS06
SS03 SS04 SS05
SS06
SS07
Part No.
SS03
SS04
SS05
SS06
SS07
Description
Small Cabinet (2 shelves)
Medium Cabinet (3 shelves)
Cabinet
Cabinet (1 shelf)
Cabinet (1 shelf)
External Dimensions
440 (W) x 545 (L) x 990 (H) mm
570 (W) x 650 (L) x 1,650 (H) mm
920 (W) x 720 (L) x 1,835 (H) mm
920 (W) x 720 (L) x 1,835 (H) mm
920 (W) x 720 (L) x 1,520 (H) mm
Weight
15kg
40kg
56kg
60kg
52kg
Sump Cap.
30 Litres
70 Litres
250 Litres
250 Litres
100 Litres
12 www.spillkit.eu

13. Poly Maintenance Carts - a flexible and robust unit suitable for
general maintenance and any spill management application.
• Secure internal storage for drums & containers. • Lightweight & easy to use.
• Slotted opening in door for gloves & manuals.
• Complete with roll holder & hinged lid.
• Made from sturdy 100% polyethylene.
• Suitable for indoor or outdoor use.
• Lockable doors. • Lockable front wheels.
• Upper storage suitable for 5 Litre cans or pads.
• Lower storage suitable for 20 & 25 Litre drums or socs.
Part No.
SS08
SS09
SS10
Description
Maintenance Cart
Maintenance Cart
Maintenance Cart
SS08 SS09 SS10
External Dimensions
725 (W) x 640 (L) x 1520 (H) mm
725 (W) x 650 (L) x 1520 (H) mm
725 (W) x 650 (L) x 1550 (H) mm
Weight
31kg
37kg
39kg
Poly Roll Holders - a flexible and robust roll dispenser
that accepts all standard absorbent and paper rolls.
• Ideal for environments where spills are likely
and a fast clean-up is essential.
• Suitable for janitorial, engineering and general
maintenance applications across all sectors.
• Made from sturdy 100% polyethylene.
SS12
• Accepts all standard roll sizes.
• Lightweight & easy to move.
• Can be fitted on top of the Poly Work Cart (SS02).
• Easy dispensing action.
Max. Roll.
Ø 430 x 500 (W) mm
Ø 480 x 520 (W) mm
Ø 550 x 520 (W) mm
SS11
SS13
• SS12 fitted onto SS02
Spill Systems
Part No.
SS11
SS12
SS13
Description
Poly Roll Holder - small
Poly Roll Holder - large
Poly Roll Holder - X-large
External Dimensions
560 (W) x 640 (L) x 570 (H) mm
625 (W) x 640 (L) x 580 (H) mm
625 (W) x 650 (L) x 1620 (H) mm
Weight
8kg
10kg
11kg
Max. Roll.
Ø 430 x 500 (W) mm
Ø 480 x 520 (W) mm
Ø 550 x 520 (W) mm
www.spillsystems.eu 13

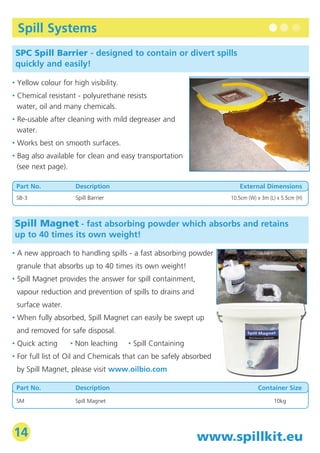

14. External Dimensions
SPC Spill Barrier - designed to contain or divert spills
quickly and easily!
• Yellow colour for high visibility.
• Chemical resistant - polyurethane resists
water, oil and many chemicals.
• Re-usable after cleaning with mild degreaser and
water.
• Works best on smooth surfaces.
• Bag also available for clean and easy transportation
(see next page).
www.spillkit.eu
Spill Systems
Part No.
SB-3
14
Description
Spill Barrier 10.5cm (W) x 3m (L) x 5.5cm (H)
Spill Magnet - fast absorbing powder which absorbs and retains
up to 40 times its own weight!
• A new approach to handling spills - a fast absorbing powder
granule that absorbs up to 40 times its own weight!
• Spill Magnet provides the answer for spill containment,
vapour reduction and prevention of spills to drains and
surface water.
• When fully absorbed, Spill Magnet can easily be swept up
and removed for safe disposal.
• Quick acting • Non leaching • Spill Containing
• For full list of Oil and Chemicals that can be safely absorbed
by Spill Magnet, please visit www.oilbio.com
Part No.
SM
Description
Spill Magnet
Container Size
10kg

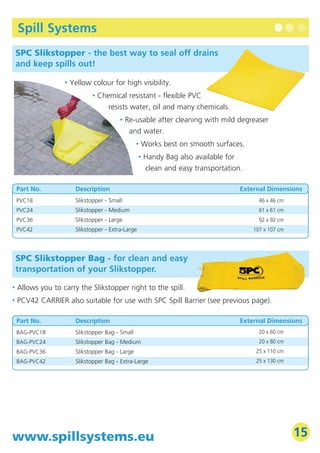

15. Spill Systems
Part No.
PVC18
PVC24
PVC36
PVC42
Description
Slikstopper - Small
Slikstopper - Medium
Slikstopper - Large
Slikstopper - Extra-Large
External Dimensions
46 x 46 cm
61 x 61 cm
92 x 92 cm
107 x 107 cm
• Allows you to carry the Slikstopper right to the spill.
• PCV42 CARRIER also suitable for use with SPC Spill Barrier (see previous page).
www.spillsystems.eu
External Dimensions
15
SPC Slikstopper - the best way to seal off drains
and keep spills out!
• Yellow colour for high visibility.
• Chemical resistant - flexible PVC
resists water, oil and many chemicals.
• Re-usable after cleaning with mild degreaser
and water.
• Works best on smooth surfaces.
• Handy Bag also available for
clean and easy transportation.
SPC Slikstopper Bag - for clean and easy
transportation of your Slikstopper.
Part No.
BAG-PVC18
BAG-PVC24
BAG-PVC36
BAG-PVC42
Description
Slikstopper Bag - Small
Slikstopper Bag - Medium
Slikstopper Bag - Large
Slikstopper Bag - Extra-Large
20 x 60 cm
20 x 80 cm
25 x 110 cm
25 x 130 cm

16. Secondary Containment
Spill Pallets - Ideal platforms for indoor storage
of 110, 200 Litre drums and 1000 Litre IBCs.
• Injection moulded for consistent
wall thickness, excellent finish,
lighter weight and extra strength.
• Both the 2 drum and 4 drum
Spill Pallets are the same height,
offering compatability and
easy transfer of drums.
• Grates can be interchanged
between the pallets and offer
large openings to easily
remove spills.
• Nestable pallets allow you to
make better use of plant,
warehouse or trailer space.
• Optional ramp works with both
the 2 drum and 4 drum Spill Pallets.
• Engineered to make sure you can
easily use your forklift or pallet jack
to relocate your pallets.
Our Spill Decks and Spill Pallets* were compression tested to
+13,500Kgs and found to be in a like new condition after testing ...
or as the compression testing house said ...
“We had to stop at 13,636kgs in order to
avoid damaging the test rig!” *SC-SD2, SC-DP2 and SC-DP4
16 www.spilllkit.eu

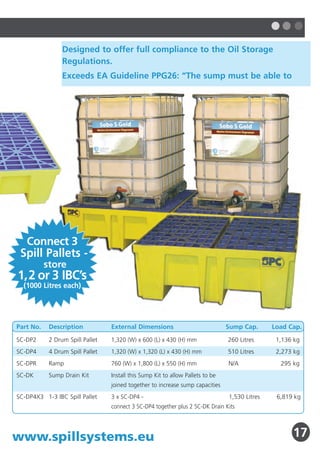

17. Designed to offer full compliance to the Oil Storage
Regulations.
Exceeds EA Guideline PPG26: “The sump must be able to
Connect 3
Spill Pallets -
1,2 or 3 IBC’s
(1000 Litres each)
Part No.
SC-DP2
SC-DP4
SC-DPR
SC-DK
SC-DP4X3
store
Description
2 Drum Spill Pallet
4 Drum Spill Pallet
Ramp
Sump Drain Kit
1-3 IBC Spill Pallet
Sump Cap.
260 Litres
510 Litres
N/A
External Dimensions
1,320 (W) x 600 (L) x 430 (H) mm
1,320 (W) x 1,320 (L) x 430 (H) mm
760 (W) x 1,800 (L) x 550 (H) mm
Install this Sump Kit to allow Pallets to be
joined together to increase sump capacities
3 x SC-DP4 -
connect 3 SC-DP4 together plus 2 SC-DK Drain Kits
Load Cap.
1,136 kg
2,273 kg
295 kg
6,819 kg
1,530 Litres
www.spillsystems.eu 17

18. Secondary Containment
Spill Decks - contain hazardous leaks in your drum storage and
dispensing areas with these interchangeable decks.
These low profile, 2-drum Spill Decks are a cost
effective means for containing potentially hazardous
leaks in your drum storage and dispensing areas.
• 80 Litre sump capacity.
• Manufactured by injection moulding to give extra
strength and consistent size.
• Built-in clips allow safe and easy connections to
create the drum storage platform of your choice.
• Nestable decks minimise storage space and reduced
transportation costs.
• Integral forklift pockets
for easy transportation.
Sump Cap.
80 Litres
Part No.
SC-SD2
SC-DK
Description
2 Drum Spill Deck
Sump Drain Kit
Load Cap.
1,136 kg
External Dimensions
1,320 (W) x 660 (L) x 150 (H) mm
Install this optional Sump Kit to allow decks
to be joined together to increase sump capacities
18 www.spillkit.eu

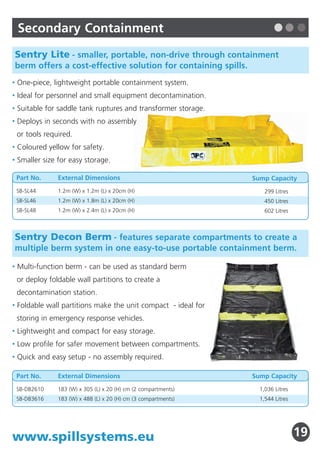

19. Sentry Lite - smaller, portable, non-drive through containment
berm offers a cost-effective solution for containing spills.
• One-piece, lightweight portable containment system.
• Ideal for personnel and small equipment decontamination.
• Suitable for saddle tank ruptures and transformer storage.
• Deploys in seconds with no assembly
or tools required.
• Coloured yellow for safety.
• Smaller size for easy storage.
Sentry Decon Berm- features separate compartments to create a
multiple berm system in one easy-to-use portable containment berm.
• Multi-function berm - can be used as standard berm
or deploy foldable wall partitions to create a
decontamination station.
• Foldable wall partitions make the unit compact - ideal for
storing in emergency response vehicles.
• Lightweight and compact for easy storage.
• Low profile for safer movement between compartments.
• Quick and easy setup - no assembly required.
Part No.
SB-DB2610
SB-DB3616
External Dimensions
183 (W) x 305 (L) x 20 (H) cm (2 compartments)
183 (W) x 488 (L) x 20 (H) cm (3 compartments)
www.spillsystems.eu
Sump Capacity
1,036 Litres
1,544 Litres
Part No.
SB-SL44
SB-SL46
SB-SL48
External Dimensions
1.2m (W) x 1.2m (L) x 20cm (H)
1.2m (W) x 1.8m (L) x 20cm (H)
1.2m (W) x 2.4m (L) x 20cm (H)
Sump Capacity
299 Litres
450 Litres
602 Litres
Secondary Containment
19

20. Sentry QuickBerm- self-contained, portable containment system
providing a superior measure of protection against leaks and spills.
• One-piece, lightweight portable containment system.
• Easy to deploy - ready to use at a moment’s notice.
• Counter-balanced outside locking supports.
• Drive-in use.
• Rugged construction.
Sentry Berm Guards - prolong the life of your Sentry QuickBerm.
• Ground Tarp - deploy the tarp under your berm to create a
smoother surface and protect the berm from rocks and debris.
• Track Tarp - offers extra protection along the tyre paths,
reducing wear & tear from abrasion, braking and skidding.
Petro-Pipe
• Allows rainwater to drain from your spill berm.
• Prevents hydro-carbons from leaking out.
• Easily connects to Sentry QuickBerm drain plug.
• Automatic shut-off when unit needs replaced.
Part No.
SB-PETRO-PIPE
Description
Pipe to drain rainwater from the Sentry Quickberm (includes 3.8cm valve)
Part No.
SB-SQ3
SB-SQ8
SB-SQ11
SB-SQ15
SB-SQ16
SB-SQ20
External Dimensions
3m (W) x 3m (L) x 30.5cm (H)
3m (W) x 7.9m (L) x 30.5cm (H)
3.6m (W) x 10.9m (L) x 30.5cm (H)
3.6m (W) x 15.2m (L) x 30.5cm (H)
4.2m (W) x 16.4m (L) x 30.5cm (H)
4.8m (W) x 20.1m (L) x 30.5cm (H)
2,830 Litres
7,356 Litres
12,227 Litres
16,980 Litres
21,396 Litres
29,888 Litres
Secondary Containment
Part No.
SB-BG-TARP5
SB-BG-TRACK5
External Dimensions
Ground Tarp - 1.5 (W) x 5 (L) m
Track Tarp - 91cm (W) x 5m (L)
Sump Capacity

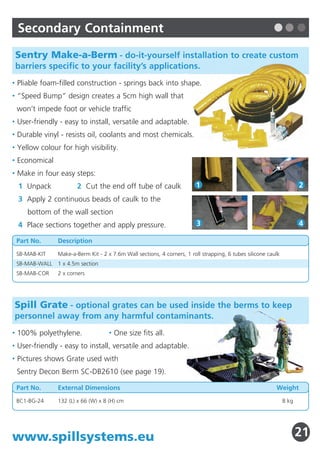

21. Secondary Containment
Sentry Make-a-Berm- do-it-yourself installation to create custom
barriers specific to your facility’s applications.
• Pliable foam-filled construction - springs back into shape.
• “Speed Bump” design creates a 5cm high wall that
won’t impede foot or vehicle traffic
• User-friendly - easy to install, versatile and adaptable.
• Durable vinyl - resists oil, coolants and most chemicals.
• Yellow colour for high visibility.
• Economical
• Make in four easy steps:
1 Unpack 2 Cut the end off tube of caulk
3 Apply 2 continuous beads of caulk to the
bottom of the wall section
4 Place sections together and apply pressure.
Part No.
SB-MAB-KIT
SB-MAB-WALL
SB-MAB-COR
1 2
3 4
Description
Make-a-Berm Kit - 2 x 7.6m Wall sections, 4 corners, 1 roll strapping, 6 tubes silicone caulk
1 x 4.5m section
2 x corners
Spill Grate - optional grates can be used inside the berms to keep
personnel away from any harmful contaminants.
• 100% polyethylene. • One size fits all.
• User-friendly - easy to install, versatile and adaptable.
• Pictures shows Grate used with
Sentry Decon Berm SC-DB2610 (see page 19).
Part No.
BC1-BG-24
External Dimensions
132 (L) x 66 (W) x 8 (H) cm
Weight
8 kg
www.spillsystems.eu 21

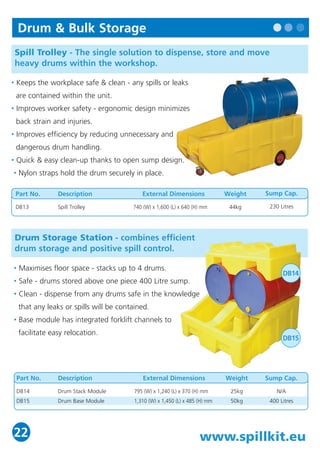

22. www.spillkit.eu
Drum & Bulk Storage
Drum Storage Station - combines efficient
drum storage and positive spill control.
• Maximises floor space - stacks up to 4 drums.
• Safe - drums stored above one piece 400 Litre sump.
• Clean - dispense from any drums safe in the knowledge
that any leaks or spills will be contained.
• Base module has integrated forklift channels to
facilitate easy relocation.
22
DB14
DB15
Spill Trolley - The single solution to dispense, store and move
heavy drums within the workshop.
• Keeps the workplace safe & clean - any spills or leaks
are contained within the unit.
• Improves worker safety - ergonomic design minimizes
back strain and injuries.
• Improves efficiency by reducing unnecessary and
dangerous drum handling.
• Quick & easy clean-up thanks to open sump design.
• Nylon straps hold the drum securely in place.
Part No.
DB13
Description
Spill Trolley
External Dimensions
740 (W) x 1,600 (L) x 640 (H) mm
Weight
44kg
Sump Cap.
230 Litres
Part No.
DB14
DB15
Description
Drum Stack Module
Drum Base Module
External Dimensions
795 (W) x 1,240 (L) x 370 (H) mm
1,310 (W) x 1,450 (L) x 485 (H) mm
Weight
25kg
50kg
Sump Cap.
N/A
400 Litres

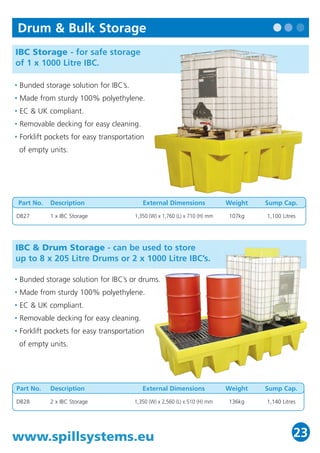

23. IBC Storage - for safe storage
of 1 x 1000 Litre IBC.
• Bunded storage solution for IBC’s.
• Made from sturdy 100% polyethylene.
• EC & UK compliant.
• Removable decking for easy cleaning.
• Forklift pockets for easy transportation
of empty units.
Part No.
DB27
Description
1 x IBC Storage
External Dimensions
1,350 (W) x 1,760 (L) x 710 (H) mm
Weight
107kg
Sump Cap.
1,100 Litres
IBC & Drum Storage - can be used to store
up to 8 x 205 Litre Drums or 2 x 1000 Litre IBC’s.
• Bunded storage solution for IBC’s or drums.
• Made from sturdy 100% polyethylene.
• EC & UK compliant.
• Removable decking for easy cleaning.
• Forklift pockets for easy transportation
of empty units.
Part No.
DB28
Description
2 x IBC Storage
External Dimensions
1,350 (W) x 2,560 (L) x 510 (H) mm
Weight
136kg
Sump Cap.
1,140 Litres
Drum & Bulk Storage
www.spillsystems.eu 23

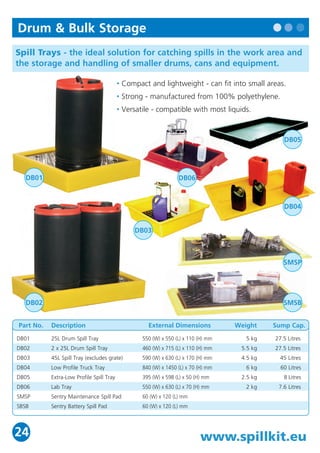

24. Drum & Bulk Storage
Spill Trays - the ideal solution for catching spills in the work area and
the storage and handling of smaller drums, cans and equipment.
DB01
DB02
Part No.
DB01
DB02
DB03
DB04
DB05
DB06
SMSP
SBSB
• Compact and lightweight - can fit into small areas.
• Strong - manufactured from 100% polyethylene.
• Versatile - compatible with most liquids.
Description
25L Drum Spill Tray
2 x 25L Drum Spill Tray
45L Spill Tray (excludes grate)
Low Profile Truck Tray
Extra-Low Profile Spill Tray
Lab Tray
Sentry Maintenance Spill Pad
Sentry Battery Spill Pad
DB03
DB06
External Dimensions
550 (W) x 550 (L) x 110 (H) mm
460 (W) x 715 (L) x 110 (H) mm
590 (W) x 630 (L) x 170 (H) mm
840 (W) x 1450 (L) x 70 (H) mm
395 (W) x 598 (L) x 50 (H) mm
550 (W) x 630 (L) x 70 (H) mm
60 (W) x 120 (L) mm
60 (W) x 120 (L) mm
Weight
5 kg
5.5 kg
4.5 kg
6 kg
2.5 kg
2 kg
DB05
DB04
SMSP
SMSB
Sump Cap.
27.5 Litres
27.5 Litres
45 Litres
60 Litres
8 Litres
7.6 Litres
24 www.spillkit.eu

25. Drum & Bulk Storage
Poly Drum Dolly - safe & robust solution for moving 205 Litre Drums
or smaller containers.
• Made from sturdy 100% polyethylene.
• Lightweight & easy to handle.
• 4 castors for added stability - 2 lockable.
• 30 Litre Sump capacity.
• DB10 includes steel handle for increased
versatility and mobility.
www.spillsystems.eu
DB09 DB10
External Dimensions
725 (W) x 725 (L) x 255 (H) mm
725 (W) x 725 (L) x 990 (H) mm
Weight
14 kg
15.5 kg
Sump Cap.
30 Litres
30 Litres
Description
Poly Drum Dolly
Poly Drum Dolly with handle
Part No.
DB09
DB10
25
Drum Storage Station - store your drums or cans safely in
this robust covered sump pallet.
• Suitable for indoor or outdoor
use.
• DB11 for storing 2 x 205 Litre
Drums vertically.
• DB12 comes with grid & shelf
for storing 5 and 25 Litre cans.
DB11 DB12
Part No.
DB11
DB12
External Dimensions
940 (W) x 1,630 (L) x 1,420 (H) mm
940 (W) x 1,630 (L) x 1,420 (H) mm
Description
2 x 205L Drum Storage
5 & 25L Can Storage
Weight
95 kg
95 kg
Sump Cap.
260 Litres
260 Litres

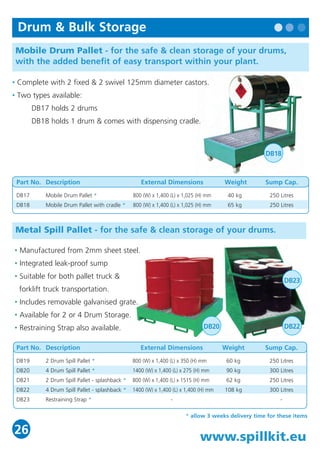

26. Mobile Drum Pallet - for the safe & clean storage of your drums,
with the added benefit of easy transport within your plant.
• Complete with 2 fixed & 2 swivel 125mm diameter castors.
• Two types available:
DB17 holds 2 drums
DB18 holds 1 drum & comes with dispensing cradle.
DB18
Metal Spill Pallet - for the safe & clean storage of your drums.
DB23
www.spillkit.eu
• Manufactured from 2mm sheet steel.
• Integrated leak-proof sump
• Suitable for both pallet truck &
forklift truck transportation.
• Includes removable galvanised grate.
• Available for 2 or 4 Drum Storage.
• Restraining Strap also available.
DB20 DB22
* allow 3 weeks delivery time for these items
Part No.
DB19
DB20
DB21
DB22
DB23
Description
2 Drum Spill Pallet *
4 Drum Spill Pallet *
2 Drum Spill Pallet - splashback *
4 Drum Spill Pallet - splashback *
Restraining Strap *
External Dimensions
800 (W) x 1,400 (L) x 350 (H) mm
1400 (W) x 1,400 (L) x 275 (H) mm
800 (W) x 1,400 (L) x 1515 (H) mm
1400 (W) x 1,400 (L) x 1,400 (H) mm
-
Weight
60 kg
90 kg
62 kg
108 kg
Sump Cap.
250 Litres
300 Litres
250 Litres
300 Litres
-
Part No.
DB17
DB18
Description
Mobile Drum Pallet *
Mobile Drum Pallet with cradle *
External Dimensions
800 (W) x 1,400 (L) x 1,025 (H) mm
800 (W) x 1,400 (L) x 1,025 (H) mm
Weight
40 kg
65 kg
Sump Cap.
250 Litres
250 Litres
Drum & Bulk Storage
26

27. Drum & Bulk Storage
Stackable Drum Stand -
vertical drum storage solution.
• Available to accommodate 2 or 4 x 205 Litre drums.
• Solid sides for added safety (not shown).
• Stackable up to 2 high.
• Integrated leak-proof sump
Stackable Drum Stand - horizontal drum storage solution.
• Holds 2 x 205 Litre drums horizontally.
• Designed to be used with DB20 Spill Pallet.
• Manufactured from 50 x 50 x 3 mm RHS.
• Integrated forklift channels for easy transportation.
• Pallet nesting feet for stacking up to 2 high.
Part No.
DB26
Description
2 Drum Horizontal Rack *
External Dimensions
700 (W) x 1,410 (L) x 825 (H) mm
Weight
141 kg
DB25
Sump Cap.
N/A
* allow 3 weeks delivery time for these items
www.spillsystems.eu
27
Part No.
DB24
DB25
Description
2 Drum Vertical Stand *
4 Drum Vertical Stand *
External Dimensions
800 (W) x 1,400 (L) x 1,305 (H) mm
1,400 (W) x 1,400 (L) x 1,230 (H) mm
Weight
90 kg
152 kg
Sump Cap.
230 Litres
300 Litres

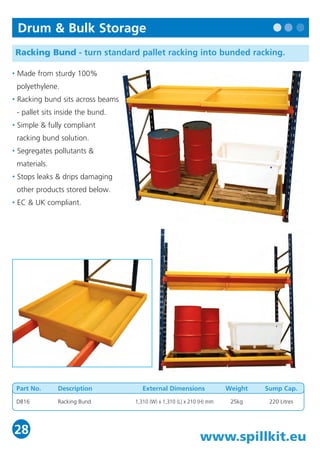

28. Racking Bund - turn standard pallet racking into bunded racking.
• Made from sturdy 100%
polyethylene.
• Racking bund sits across beams
- pallet sits inside the bund.
• Simple & fully compliant
racking bund solution.
• Segregates pollutants &
materials.
• Stops leaks & drips damaging
other products stored below.
• EC & UK compliant.
Part No.
DB16
Description
Racking Bund
External Dimensions
1,310 (W) x 1,310 (L) x 210 (H) mm
Weight
25kg
Sump Cap.
220 Litres
Drum & Bulk Storage
28 www.spillkit.eu

29. Flammable Liquid / Acid & Chemical Storage Cabinets -
prevent pollution & hazardous situations by containing accidental spills.
• Constructed from Zintec coated steel - spot welded seams with gas welded corner joints.
• Reinforced vertical panel in doors - prevents heat distortion.
• Two point locking system.
FLAMMABLE
• Fully adjustable shelves - maximum 45mm pitch.
LIQUIDS
• Perforated shelves for maximum drainage.
• Removable leakproof sump.
• Sump cover allows containers to be stored on top.
• Finished in Yellow Stove Enamel (Flammable)
ACIDS &
or White Full Epoxy Powder Coat (Chemical).
CHEMICALS
• All cabinets comply with HSG51, COSHH &
current HSE regulations. • Delivered ex works.
Part No.
DB37
DB38
DB39
DB40
DB41
DB42
DB43
DB44
Acids & Chemicals
Cabinet - single door
Cabinet - single door
Cabinet - double door
Cabinet - double door
Cabinet - double door
Cabinet - double door
Cabinet - double door
Cabinet - double door
www.spillsystems.eu
External Dimensions
458 (W) x 458 (L) x 762 (H) mm
458 (W) x 458 (L) x 915 (H) mm
306 (W) x 610 (L) x 610 (H) mm
483 (W) x 915 (L) x 712 (H) mm
483 (W) x 915 (L) x 915 (H) mm
483 (W) x 915 (L) x 1,200(H) mm
483 (W) x 915 (L) x 1,500 (H) mm
483 (W) x 915 (L) x 1,830 (H) mm
Part No.
DB29
DB30
DB31
DB32
DB33
DB34
DB35
DB36
Flammable Liquids
Cabinet - single door
Cabinet - single door
Cabinet - double door
Cabinet - double door
Cabinet - double door
Cabinet - double door
Cabinet - double door
Cabinet - double door
External Dimensions
458 (W) x 458 (L) x 762 (H) mm
458 (W) x 458 (L) x 915 (H) mm
306 (W) x 610 (L) x 610 (H) mm
483 (W) x 915 (L) x 712 (H) mm
483 (W) x 915 (L) x 915 (H) mm
483 (W) x 915 (L) x 1,200(H) mm
483 (W) x 915 (L) x 1,500 (H) mm
483 (W) x 915 (L) x 1,830 (H) mm
Drum & Bulk Storage
29
Allow 4 weeks delivery time for these items

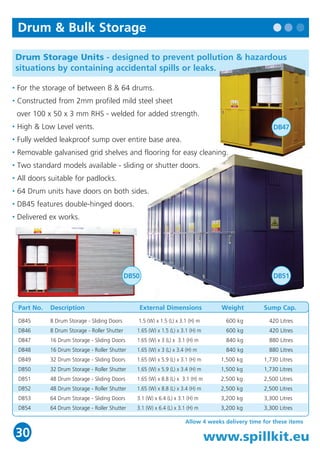

30. Drum & Bulk Storage
Drum Storage Units - designed to prevent pollution & hazardous
situations by containing accidental spills or leaks.
DB47
• For the storage of between 8 & 64 drums.
• Constructed from 2mm profiled mild steel sheet
over 100 x 50 x 3 mm RHS - welded for added strength.
• High & Low Level vents.
• Fully welded leakproof sump over entire base area.
• Removable galvanised grid shelves and flooring for easy cleaning.
• Two standard models available - sliding or shutter doors.
• All doors suitable for padlocks.
• 64 Drum units have doors on both sides.
• DB45 features double-hinged doors.
• Delivered ex works.
DB50 DB51
Sump Cap.
420 Litres
420 Litres
880 Litres
880 Litres
1,730 Litres
1,730 Litres
2,500 Litres
2,500 Litres
3,300 Litres
3,300 Litres
Weight
600 kg
600 kg
840 kg
840 kg
1,500 kg
1,500 kg
2,500 kg
2,500 kg
3,200 kg
3,200 kg
Allow 4 weeks delivery time for these items
www.spillkit.eu
External Dimensions
1.5 (W) x 1.5 (L) x 3.1 (H) m
1.65 (W) x 1.5 (L) x 3.1 (H) m
1.65 (W) x 3 (L) x 3.1 (H) m
1.65 (W) x 3 (L) x 3.4 (H) m
1.65 (W) x 5.9 (L) x 3.1 (H) m
1.65 (W) x 5.9 (L) x 3.4 (H) m
1.65 (W) x 8.8 (L) x 3.1 (H) m
1.65 (W) x 8.8 (L) x 3.4 (H) m
3.1 (W) x 6.4 (L) x 3.1 (H) m
3.1 (W) x 6.4 (L) x 3.1 (H) m
Description
8 Drum Storage - Sliding Doors
8 Drum Storage - Roller Shutter
16 Drum Storage - Sliding Doors
16 Drum Storage - Roller Shutter
32 Drum Storage - Sliding Doors
32 Drum Storage - Roller Shutter
48 Drum Storage - Sliding Doors
48 Drum Storage - Roller Shutter
64 Drum Storage - Sliding Doors
64 Drum Storage - Roller Shutter
Part No.
DB45
DB46
DB47
DB48
DB49
DB50
DB51
DB52
DB53
DB54
30

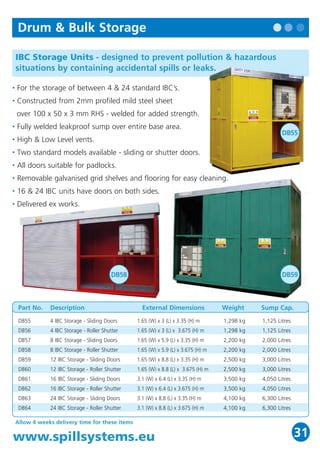

31. IBC Storage Units - designed to prevent pollution & hazardous
situations by containing accidental spills or leaks.
• For the storage of between 4 & 24 standard IBC’s.
• Constructed from 2mm profiled mild steel sheet
over 100 x 50 x 3 mm RHS - welded for added strength.
• Fully welded leakproof sump over entire base area.
• High & Low Level vents.
• Two standard models available - sliding or shutter doors.
• All doors suitable for padlocks.
• Removable galvanised grid shelves and flooring for easy cleaning.
• 16 & 24 IBC units have doors on both sides.
• Delivered ex works.
Part No.
DB55
DB56
DB57
DB58
DB59
DB60
DB61
DB62
DB63
DB64
Description
4 IBC Storage - Sliding Doors
4 IBC Storage - Roller Shutter
8 IBC Storage - Sliding Doors
8 IBC Storage - Roller Shutter
12 IBC Storage - Sliding Doors
12 IBC Storage - Roller Shutter
16 IBC Storage - Sliding Doors
16 IBC Storage - Roller Shutter
24 IBC Storage - Sliding Doors
24 IBC Storage - Roller Shutter
www.spillsystems.eu
DB55
DB58 DB59
Allow 4 weeks delivery time for these items
External Dimensions
1.65 (W) x 3 (L) x 3.35 (H) m
1.65 (W) x 3 (L) x 3.675 (H) m
1.65 (W) x 5.9 (L) x 3.35 (H) m
1.65 (W) x 5.9 (L) x 3.675 (H) m
1.65 (W) x 8.8 (L) x 3.35 (H) m
1.65 (W) x 8.8 (L) x 3.675 (H) m
3.1 (W) x 6.4 (L) x 3.35 (H) m
3.1 (W) x 6.4 (L) x 3.675 (H) m
3.1 (W) x 8.8 (L) x 3.35 (H) m
3.1 (W) x 8.8 (L) x 3.675 (H) m
Weight
1,298 kg
1,298 kg
2,200 kg
2,200 kg
2,500 kg
2,500 kg
3,500 kg
3,500 kg
4,100 kg
4,100 kg
Sump Cap.
1,125 Litres
1,125 Litres
2,000 Litres
2,000 Litres
3,000 Litres
3,000 Litres
4,050 Litres
4,050 Litres
6,300 Litres
6,300 Litres
Drum & Bulk Storage
31

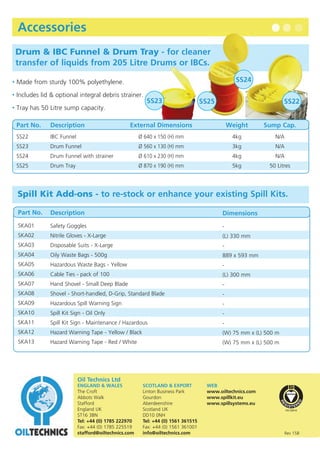

32. Spill Kit Add-ons - to re-stock or enhance your existing Spill Kits.
ENGLAND & WALES
The Croft
Abbots Walk
Stafford
England UK
ST16 3BN
Tel: +44 (0) 1785 222970
Fax: +44 (0) 1785 225519
stafford@oiltechnics.com
WEB
www.oiltechnics.com
www.spillkit.eu
www.spillsystems.eu
Oil Technics Ltd
SCOTLAND & EXPORT
Linton Business Park
Gourdon
Aberdeenshire
Scotland UK
DD10 0NH
Tel: +44 (0) 1561 361515
Fax: +44 (0) 1561 361001
info@oiltechnics.com Rev 15B
Part No.
SKA01
SKA02
SKA03
SKA04
SKA05
SKA06
SKA07
SKA08
SKA09
SKA10
SKA11
SKA12
SKA13
Description
Safety Goggles
Nitrile Gloves - X-Large
Disposable Suits - X-Large
Oily Waste Bags - 500g
Hazardous Waste Bags - Yellow
Cable Ties - pack of 100
Hand Shovel - Small Deep Blade
Shovel - Short-handled, D-Grip, Standard Blade
Hazardous Spill Warning Sign
Spill Kit Sign - Oil Only
Spill Kit Sign - Maintenance / Hazardous
Hazard Warning Tape - Yellow / Black
Hazard Warning Tape - Red / White
Dimensions
-
(L) 330 mm
-
889 x 593 mm
-
(L) 300 mm
-
-
-
-
-
(W) 75 mm x (L) 500 m
(W) 75 mm x (L) 500 m
SS23
SS24
SS25 SS22
Accessories
Part No.
SS22
SS23
SS24
SS25
Description
IBC Funnel
Drum Funnel
Drum Funnel with strainer
Drum Tray
External Dimensions
Ø 640 x 150 (H) mm
Ø 560 x 130 (H) mm
Ø 610 x 230 (H) mm
Ø 870 x 190 (H) mm
Weight
4kg
3kg
4kg
5kg
Sump Cap.
N/A
N/A
N/A
50 Litres
Drum & IBC Funnel & Drum Tray - for cleaner
transfer of liquids from 205 Litre Drums or IBCs.
• Made from sturdy 100% polyethylene.
• Includes lid & optional integral debris strainer.
• Tray has 50 Litre sump capacity.
