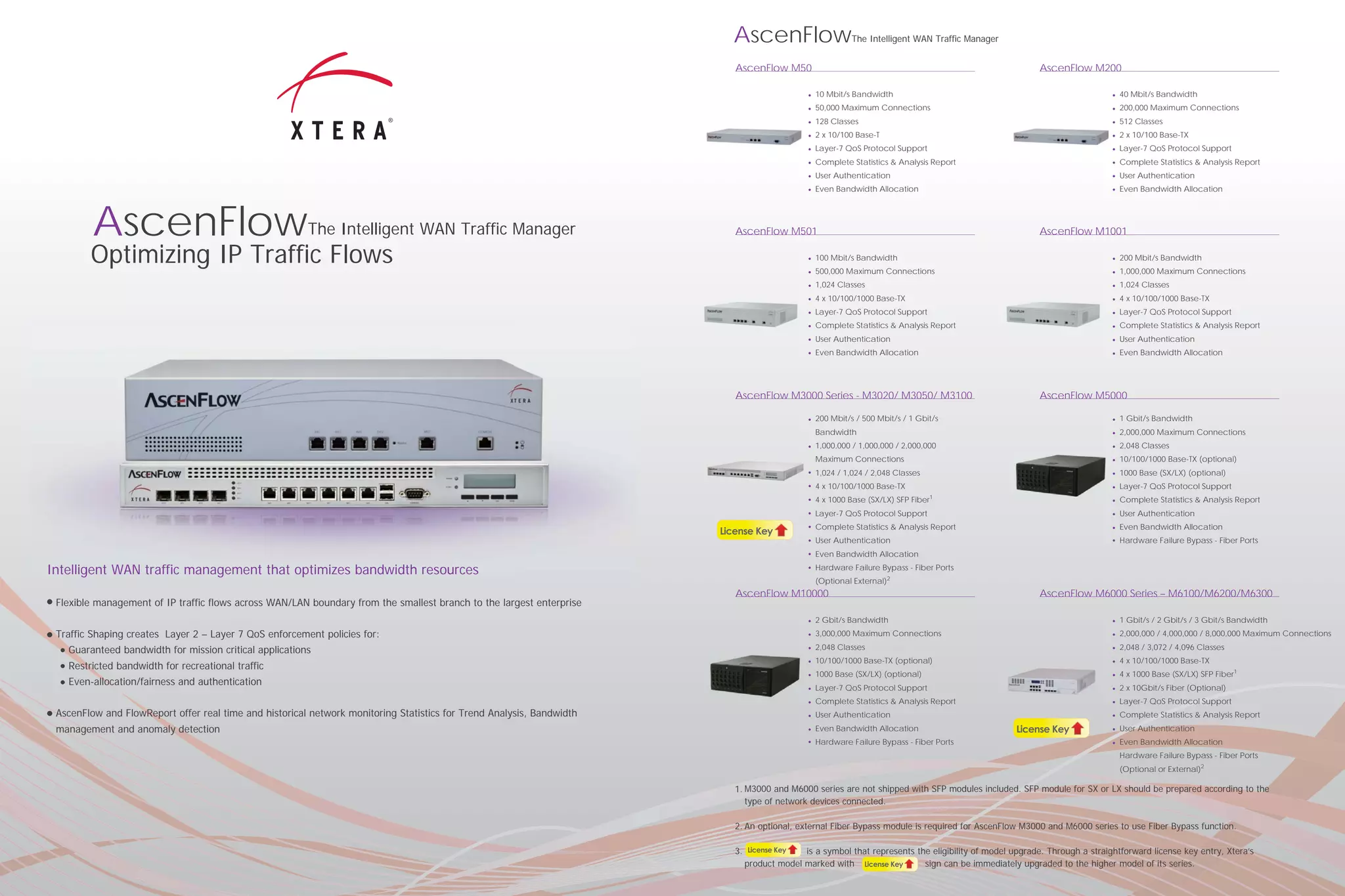

1. AscenFlowThe Intelligent WAN Traffic Manager
AscenFlow M50 AscenFlow M200
10 Mbit/s Bandwidth 40 Mbit/s Bandwidth
50,000 Maximum Connections 200,000 Maximum Connections
128 Classes 512 Classes
2 x 10/100 Base-T 2 x 10/100 Base-TX
Layer-7 QoS Protocol Support Layer-7 QoS Protocol Support
Complete Statistics & Analysis Report Complete Statistics & Analysis Report
User Authentication User Authentication
Even Bandwidth Allocation Even Bandwidth Allocation
AscenFlowThe Intelligent WAN Traffic Manager AscenFlow M501 AscenFlow M1001
Optimizing IP Traffic Flows 100 Mbit/s Bandwidth
500,000 Maximum Connections
200 Mbit/s Bandwidth
1,000,000 Maximum Connections
1,024 Classes 1,024 Classes
4 x 10/100/1000 Base-TX 4 x 10/100/1000 Base-TX
Layer-7 QoS Protocol Support Layer-7 QoS Protocol Support
Complete Statistics & Analysis Report Complete Statistics & Analysis Report
User Authentication User Authentication
Even Bandwidth Allocation Even Bandwidth Allocation
AscenFlow M3000 Series - M3020/ M3050/ M3100 AscenFlow M5000
200 Mbit/s / 500 Mbit/s / 1 Gbit/s 1 Gbit/s Bandwidth
Bandwidth 2,000,000 Maximum Connections
1,000,000 / 1,000,000 / 2,000,000 2,048 Classes
Maximum Connections 10/100/1000 Base-TX (optional)
1,024 / 1,024 / 2,048 Classes 1000 Base (SX/LX) (optional)
4 x 10/100/1000 Base-TX Layer-7 QoS Protocol Support
4 x 1000 Base (SX/LX) SFP Fiber1 Complete Statistics & Analysis Report
Layer-7 QoS Protocol Support User Authentication
Complete Statistics & Analysis Report Even Bandwidth Allocation
User Authentication Hardware Failure Bypass - Fiber Ports
Even Bandwidth Allocation
Intelligent WAN traffic management that optimizes bandwidth resources Hardware Failure Bypass - Fiber Ports
(Optional External)2
AscenFlow M10000 AscenFlow M6000 Series – M6100/M6200/M6300
Flexible management of IP traffic flows across WAN/LAN boundary from the smallest branch to the largest enterprise
2 Gbit/s Bandwidth 1 Gbit/s / 2 Gbit/s / 3 Gbit/s Bandwidth
Traffic Shaping creates Layer 2 – Layer 7 QoS enforcement policies for: 3,000,000 Maximum Connections 2,000,000 / 4,000,000 / 8,000,000 Maximum Connections
Guaranteed bandwidth for mission critical applications 2,048 Classes 2,048 / 3,072 / 4,096 Classes
10/100/1000 Base-TX (optional) 4 x 10/100/1000 Base-TX
Restricted bandwidth for recreational traffic
1000 Base (SX/LX) (optional) 4 x 1000 Base (SX/LX) SFP Fiber1
Even-allocation/fairness and authentication
Layer-7 QoS Protocol Support 2 x 10Gbit/s Fiber (Optional)
Complete Statistics & Analysis Report Layer-7 QoS Protocol Support
AscenFlow and FlowReport offer real time and historical network monitoring Statistics for Trend Analysis, Bandwidth User Authentication Complete Statistics & Analysis Report
management and anomaly detection Even Bandwidth Allocation User Authentication
Hardware Failure Bypass - Fiber Ports Even Bandwidth Allocation
Hardware Failure Bypass - Fiber Ports
(Optional or External)2
1. M3000 and M6000 series are not shipped with SFP modules included. SFP module for SX or LX should be prepared according to the
type of network devices connected.
2. An optional, external Fiber Bypass module is required for AscenFlow M3000 and M6000 series to use Fiber Bypass function.
3. is a symbol that represents the eligibility of model upgrade. Through a straightforward license key entry, Xtera’s
product model marked with sign can be immediately upgraded to the higher model of its series.
