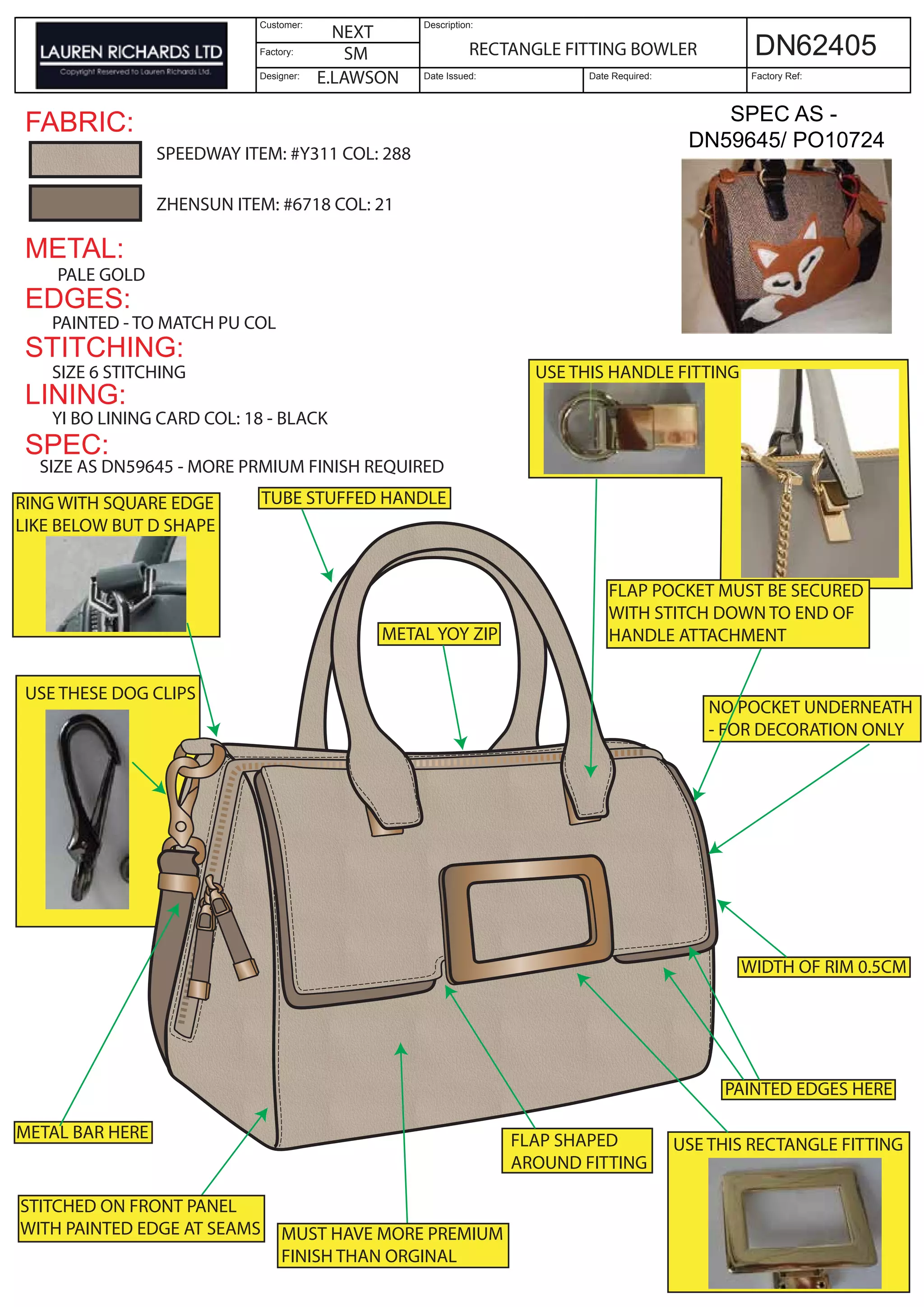

1. FABRIC:
METAL:
EDGES:
STITCHING:
LINING:
SPEC:
Customer:
Factory:
Designer:
Description:
Date Issued: Date Required: Factory Ref:
DN
SPEC AS -
DN59645/ PO10724
PAINTED EDGES HERE
USE THIS HANDLE FITTING
USE THIS RECTANGLE FITTING
USE THESE DOG CLIPS
METAL BAR HERE
METAL YOY ZIP
TUBE STUFFED HANDLERING WITH SQUARE EDGE
LIKE BELOW BUT D SHAPE
WIDTH OF RIM 0.5CM
STITCHED ON FRONT PANEL
WITH PAINTED EDGE AT SEAMS MUST HAVE MORE PREMIUM
FINISH THAN ORGINAL
SIZE AS DN59645 - MORE PRMIUM FINISH REQUIRED
YI BO LINING CARD COL: 18 - BLACK
SIZE 6 STITCHING
PAINTED - TO MATCH PU COL
PALE GOLD
NEXT
SM
E.LAWSON
RECTANGLE FITTING BOWLER 62405
SPEEDWAY ITEM: #Y311 COL: 288
ZHENSUN ITEM: #6718 COL: 21
NO POCKET UNDERNEATH
- FOR DECORATION ONLY
FLAP POCKET MUST BE SECURED
WITH STITCH DOWN TO END OF
HANDLE ATTACHMENT
FLAP SHAPED
AROUND FITTING

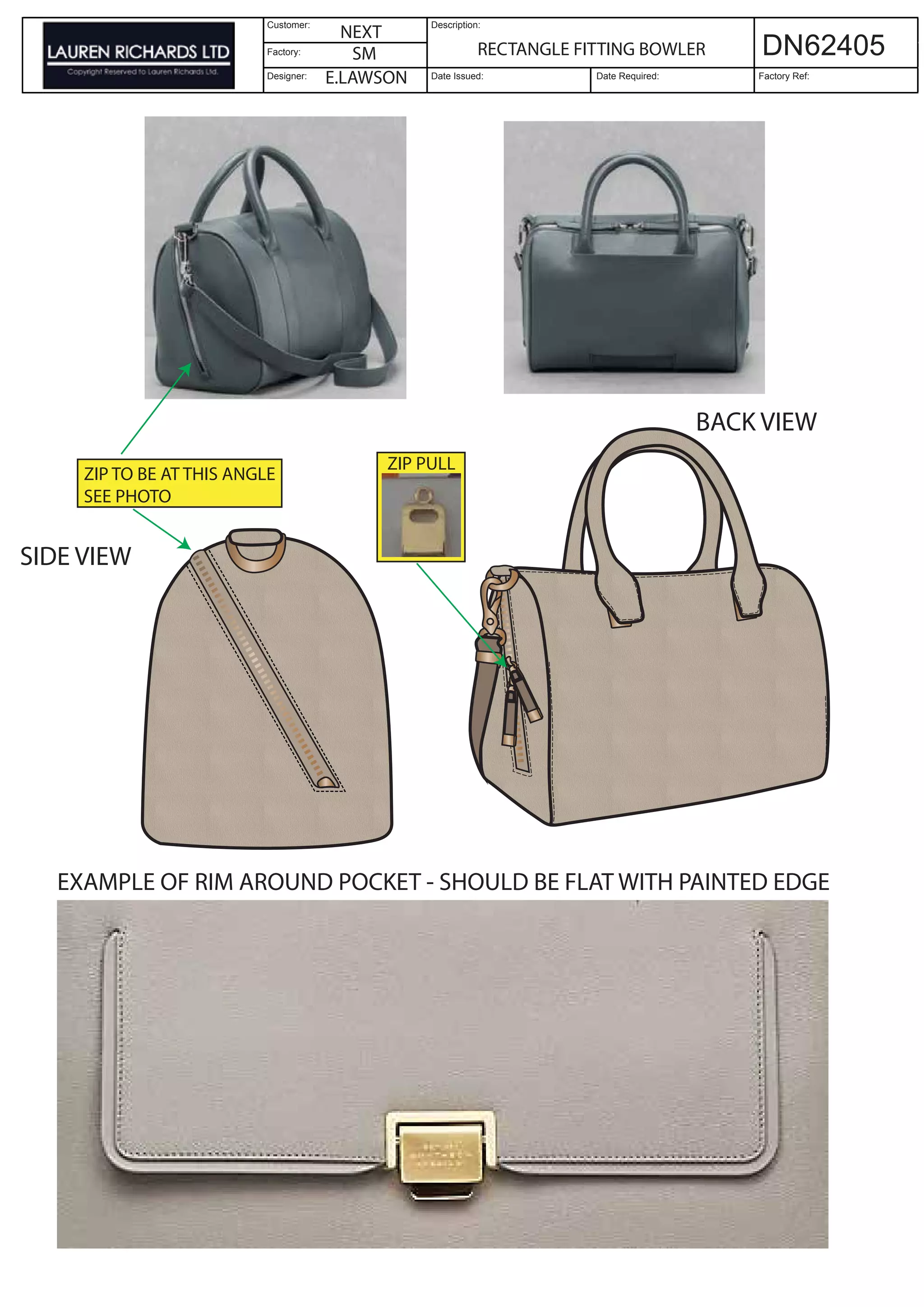

2. Customer:
Factory:
Designer:
Description:
Date Issued: Date Required: Factory Ref:
DN
ZIP TO BE AT THIS ANGLE
SEE PHOTO
EXAMPLE OF RIM AROUND POCKET - SHOULD BE FLAT WITH PAINTED EDGE
BACK VIEW
SIDE VIEW
ZIP PULL
NEXT
SM
E.LAWSON
RECTANGLE FITTING BOWLER 62405
4. FABRIC:
METAL:
EDGES:
STITCHING:
LINING:
SPEC:
Customer:
Factory:
Designer:
Description:
Date Issued: Date Required: Factory Ref:
DN
ROUND BUCKLE
WITH FLAT EDGES
ETCHED PATTERN
ON STRAP
ETCHED DESIGN
ON THE FRONT POCKET
ZIP AROUND FLAP EDGE
- NON FUCNTIONAL
TASSEL DETAIL
ON DOGCLIP
TWIN STITCH DETAIL
0.5CM DOME STUDS
ETCHED EFFECT LIKE PHOTO BELOW
WEI YI DA ITEM:#WA1828 COL: 8
BRUSHED BRASS
PAITED - TO MATCH BODY COL
CONTRAST - TO MATCH INSIDE ETCHING
LIANSHENG ITEM:#184 COL: 3
BASED ON DN61515
AS DN61515 - WITH CHANGES AS SHOWN
DOME STUD ON
BASE AS ORIGINAL
0.5CM PIPING
AROUND THE EDGE
ADD PADDING TO
SHOULDER STRAP
62445SM
E.LAWSON
ETCHED HOBO
