SMS Gateway Center API Document

SMS Gateway Center API Document
API Version 2.1
http://www.smsgatewaycenter.com

SMSGatewayCenter.com (A unit of Popular SoftTech and Marketing Pvt. Ltd.,) 2 | P a g e
SMS GATEWAY CENTER API DOCUMENT 2014
© 2014 SMSGatewayCenter.com. A unit of Popular SoftTech and Marketing Pvt. Ltd.,
All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher. Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners. The publisher and the author make no claim to these trademarks. While every precaution has been taken in the preparation of this document, the publisher and the author assume no responsibility for errors or omissions, or for damages resulting from the use of information contained in this document or from the use of programs and source code that may accompany it. In no event shall the publisher and the author be liable for any loss of profit or any other commercial damage caused or alleged to have been caused directly or indirectly by this document.

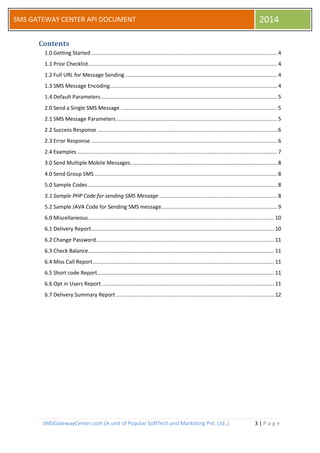

Contents
1.0 Getting Started ........................................................................................................................ 4
1.1 Prior Checklist .......................................................................................................................... 4
1.2 Full URL for Message Sending .................................................................................................. 4
1.3 SMS Message Encoding ............................................................................................................ 4
1.4 Default Parameters .................................................................................................................. 5
2.0 Send a Single SMS Message ..................................................................................................... 5
2.1 SMS Message Parameters ........................................................................................................ 5
2.2 Success Response .................................................................................................................... 6
2.3 Error Response ........................................................................................................................ 6
2.4 Examples ................................................................................................................................. 7
3.0 Send Multiple Mobile Messages. .............................................................................................. 8
4.0 Send Group SMS ...................................................................................................................... 8
5.0 Sample Codes .......................................................................................................................... 8
5.1 Sample PHP Code for sending SMS Message ............................................................................ 8
5.2 Sample JAVA Code for Sending SMS message........................................................................... 9
6.0 Miscellaneous ........................................................................................................................ 10
6.1 Delivery Report ...................................................................................................................... 10
6.2 Change Password ................................................................................................................... 11
6.3 Check Balance ........................................................................................................................ 11
6.4 Miss Call Report ..................................................................................................................... 11
6.5 Short code Report .................................................................................................................. 11
6.6 Opt in Users Report ............................................................................................................... 11
6.7 Delivery Summary Report ...................................................................................................... 12

1.0 Getting Started
Our API resides at http://www.smsgatewaycenter.com/library/send_sms_2.php
1.1 Prior Checklist
You will have to prior things before using our API:
1. User and Password. If you are not an existing client, you can sign up at http://www.smsgatewaycenter.com
2. URL encoding of certain parameters.
1.2 Full URL for Message Sending http://www.smsgatewaycenter.com/library/send_sms_2.php?UserName=username&Password=password&Type=Bulk&To=91xxxxxxxxxx&Mask=YourSenderid&Message= Hello%20Samir%2C%0APlease%20note%20our%20new%20number%0ARegards%0Ame%40me.com
Replace the parameters: Username = Your Registered Username Password = Your Registered Encoded Password 91xxxxxxxxxx = Your Recipient’s Mobile Number YourSenderid = Your Approved Sender Name
Message = Your URL Encoded Message as Hello%20Samir%2C%0APlease%20note%20our%20new%20number%0ARegards%0Ame%40me.com
1.3 SMS Message Encoding
The SMS Message needs to be URLENCODED which is also known as PERCENT ENCODING string of UTF-8 characters.
For more information on URL encoding, please see this: http://en.wikipedia.org/wiki/Percent- encoding
Above highlighted message in yellow is actually URLEncoded.
Actual Message content is (Original Message content)
Hello Samir,
Please note our new number
Regards
me@me.com

Encoded Text: Hello%20Samir%2C%0APlease%20note%20our%20new%20number%0ARegards%0Ame%40me.com

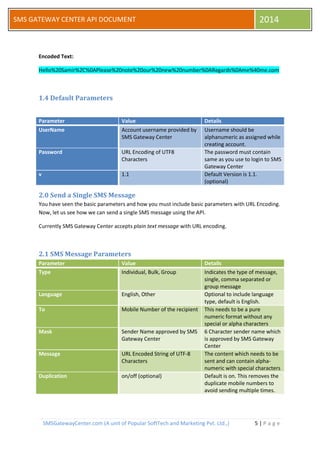

1.4 Default Parameters
Parameter Value Details UserName Account username provided by SMS Gateway Center Username should be alphanumeric as assigned while creating account. Password URL Encoding of UTF8 Characters The password must contain same as you use to login to SMS Gateway Center v 1.1 Default Version is 1.1. (optional)
2.0 Send a Single SMS Message
You have seen the basic parameters and how you must include basic parameters with URL Encoding. Now, let us see how we can send a single SMS message using the API.
Currently SMS Gateway Center accepts plain text message with URL encoding.
2.1 SMS Message Parameters Parameter Value Details Type Individual, Bulk, Group Indicates the type of message, single, comma separated or group message Language English, Other Optional to include language type, default is English. To Mobile Number of the recipient This needs to be a pure numeric format without any special or alpha characters Mask Sender Name approved by SMS Gateway Center 6 Character sender name which is approved by SMS Gateway Center Message URL Encoded String of UTF-8 Characters The content which needs to be sent and can contain alphanumeric with special characters Duplication on/off (optional) Default is on. This removes the duplicate mobile numbers to avoid sending multiple times.

2.2 Success Response
When Successful Request gets executed, then HTTP 200 Response will be generated. The response to any SMS request is a string of tokens separated by pipe symbol (|).
A success response is SUCCESS | Success (1) Fail (0) | Total Sms Cost (1) This indicates that your request has been successfully submitted to operator. Success (1) Fail (0) shows the number of mobiles included and Total Sms Cost (1) is basically SMS length message, if you include more than 160 characters then it will show Total Sms Cost (2)
2.3 Error Response
An error response is generated when it fails to validate the required parameter while sending SMS from API. It validates for all given parameters and some of them are listed below:
Username or password mismatch error | 2115 | USERNAME OR PASSWORD IS INVALID
Type mismatch error | 2116 | SMS SENDING TYPE IS UNKNOWN. PLEASE VERIFY.
Mobile Number mismatch error | 2110 | PLEASE TYPE MOBILE NUMBER
Sender Name mismatch error | 2107 | PLEASE ENTER THE SENDER ID
Empty Message content error | 2108 | PLEASE TYPE YOUR MESSAGE
Operator downtime/unavailable error | 2101 | SERVICE PROVIDER NOT AVAILABLE
Group Name mismatch error | 2111 | PLEASE SELECT A GROUP
SMS Balance is 0 error | 2106 | NOT HAVING ENOUGH BALANCE TO SEND SMS
SMS Length Exceeded than assigned error | 2119 | MAXIMUM SMS LENGTH EXCEEDED
User Account is blocked error | 2113 | USER ACCOUNT HAS BEEN BLOCKED
User Account is expired error | 2114 | USER ACCOUNT HAS BEEN EXPIRED
Gateway Closed error | 999 | Gateway Closed

error | 912 | Gateway Closed
If parameter is not supported via API error | 2220 | NOT SUPPORT VIA API
Multiple parameters mismatched error | 2116 | SMS SENDING TYPE IS UNKNOWN. PLEASE VERIFY.
Excel File Writing Error error | 2105 | UNKNOWN ERROR
Maximum SMS in Excel File error | 2121 | SYSTEM ONLY SUPPORT (5000 OR 30000 OR 100000) SMS AT A TIME
Schedule date mismatch error | 2104 | SCHEDULED DATE IS INVALID
Sender name or mobile number mismatch error | 2126 | MASK OR MOBILE NO OR SMS LENGTH IS NOT VALID
2.4 Examples
Find the below example with two sending SMS types. One is sending plain text message and other is Unicode or other language SMS using API.
a) Plain English Text http://www.smsgatewaycenter.com/library/send_sms_2.php?UserName=userxxxx&Password= passxxxx &Type=Individual&To=9930447726&Mask=DEMO&Message= Hello%20Neha%2C%0ACall%20me%20on%20my%20number.%20I%20am%20looking%20for%20SMS%20Gateway%20in%20India.%0ARegards%0ASamir
Success Response: SUCCESS | Success (1) Fail (0) | Total Sms Cost (1)
Message Text on Recipient’s Mobile:
Hello Neha, Call me on my number. I am looking for SMS Gateway in India. Regards Samir
b) Other Language
http://www.smsgatewaycenter.com/library/send_sms_2.php?UserName=userdemo&Password= userxxxx &Type=Individual&Language=Other&To=9930447726&Mask=DEMO&Message= %E0%A4%8F%E0%A4%B8%E0%A4%8F%E0%A4%AE%E0%A4%8F%E0%A4%B8%20%E0%A4%97%E0%A5%87%E0% A4%9F%E0%A4%B5%E0%A5%87%20%E0%A4%B8%E0%A5%87%E0%A4%82%E0%A4%9F%E0%A4%B0
Success Response: SUCCESS | Success (1) Fail (0) | Total Sms Cost (1)
Message Text on Recipient’s Mobile:
एसएमएस गेटवे सेंटर

3.0 Send Multiple Mobile Messages.
You can send SMS messages to multiple mobiles at once. Here is an example for sending Comma Separated Mobile Numbers. http://www.smsgatewaycenter.com/library/send_sms_2.php?UserName=userxxx&Password=passxxxx&Type=Bulk&To=9930447726,9619141191,9769818858&Mask=DEMOSG&Message= Hello%20World Response: SUCCESS | Success (3) Fail (0) | Total Sms Cost (3)
4.0 Send Group SMS
You can send SMS to your created group on our web SMS panel. For example, on www.smsgatewaycenter.com, you have created your group and added few contacts to that group then you can send SMS to that respective group. http://www.smsgatewaycenter.com/library/send_group_sms.php?UserName=userxxxx&Password= passxxxx&Type=Group&Group=GroupName&Mask=Senderid&Duplication=on&Message= Hello%20World Response: SUCCESS | Success (10) Fail (0) | Total Sms Cost (10)
5.0 Sample Codes
5.1 Sample PHP Code for sending SMS Message
<?php $sendsms =""; //initialise the sendsms variable $param[To] = "919xxxxxxxxx"; $param[Message] = "Hello World"; $param[UserName] = "userxxxx"; $param[Password] = "passxxxx"; $param[Mask] = "DEMOSG"; $param[v] = "1.1"; //optional $param[Type] = "Individual"; //Can be "Bulk/Group” //We need to URL encode the values foreach($param as $key=>$val) { $sendsms.= $key."=".urlencode($val); $sendsms.= "&"; //append the ampersand (&) sign after each parameter/value } $sendsms = substr($sendsms, 0, strlen($sendsms)-1);//remove last ampersand (&) sign from the sendsms $url = "http://www.smsgatewaycenter.com/library/send_sms_2.php?".$sendsms; $ch = curl_init($url); curl_setopt($ch, CURLOPT_RETURNTRANSFER, true); $curl_scraped_page = curl_exec($ch); curl_close($ch); echo $curl_scraped_page; ?>

5.2 Sample JAVA Code for Sending SMS message
import java.io.BufferedReader; import java.io.InputStreamReader; import java.io.OutputStreamWriter; import java.net.HttpURLConnection; import java.net.URL; import java.net.URLEncoder; import java.util.Date; public class SMSGatewayCenterAPI { public static void main(String[] args){ try { Date mydate = new Date(System.currentTimeMillis()); String data = ""; data += "Mask=DEMOSG"; data += "&UserName=userxxxx"; // your loginId data += "&Password=" + URLEncoder.encode("passxxxx", "UTF-8"); // your password data += "&Message=" + URLEncoder.encode("SMS Gateway Center message" + mydate.toString(), "UTF-8"); data += "&To=" + URLEncoder.encode("9930447726", "UTF-8"); // a valid 10 digit phone no. data += "&v=1.1" ; data += "&Type=Individual"; // Can be "Bulk" or "Group" URL url = new URL("http://www.smsgatewaycenter.com/library/send_sms_2.php?" + data); HttpURLConnection conn = (HttpURLConnection)url.openConnection(); conn.setRequestMethod("GET"); conn.setDoOutput(true); conn.setDoInput(true); conn.setUseCaches(false); conn.connect(); BufferedReader rd = new BufferedReader(new InputStreamReader(conn.getInputStream())); String line; StringBuffer buffer = new StringBuffer(); while ((line = rd.readLine()) != null){ buffer.append(line).append("n"); } System.out.println(buffer.toString()); rd.close(); conn.disconnect(); } catch(Exception e){ e.printStackTrace(); } } }

6.0 Miscellaneous
6.1 Delivery Report
http://www.smsgatewaycenter.com/library/deliveryreport.php?UserName=username&Password=password&DateFrom=2014-11-10&DateTo=2014-11-11
Date Format: yyyy-mm-dd
Delivery report is given with two parameters for status remarks.
1. Status
2. Cause
You will get status as SUCCESS OR FAIL and in Cause column, you will get all cause remarks whether delivered or failed cause as listed below.
List of Possible values for status and cause:
Status
Cause SUCCESS SUCCESS
FAIL
ABSENT SUBSCRIBER
UNKNOWN SUBSCRIBER
BLOCKED SENDERNAME
SYSTEM FAILURE
CALL BARRED
SERVICE DOWN
OTHER
DND FAIL
DND TIMEOUT
OUTSIDE WORKING HOUR SUBMITTED TIMEOUT
Cause Explanation:
 ABSENT SUBSCRIBER: Operator could not reach the recipient.
 UNKNOWN SUBSCRIBER: Unknown OR invalid number
 BLOCKED SENDERNAME: Sender Name is blocked by SMS Gateway Center
 SYSTEM FAILURE: Originating or Destination Operator system failure
 CALL BARRED: Either operator or subscriber has blocked the number for unknown reasons.
 SERVICE DOWN: Operator service is temporarily down.
 OTHER: Message that are sent but could not be delivered for reasons that do not fall under any mentioned category
 DND FAIL: Mobile number is DND database or does not want to receive messages being regular complaints.
 DND TIMEOUT: Latest DND status is not available for the maximum 1 day time.
 OUTSIDE WORKING HOUR: SMS Message sending is outside mentioned deliverable hours.
You can use the above URL and fetch the delivery report. Status gets updated every 2 hours for Promotional SMS route and every 30 minutes for Transactional SMS route.

6.2 Change Password
You can change password using API. URL is as follow: http://www.smsgatewaycenter.com/library/change_password.php?Username=userxxxx&OldPassword=passxxxx&NewPassword=newpassxxxx Success Response: SUCCESS | PASSWORD HAS BEEN CHANGED SUCCESSFULLY Failure Response: error | 2115 | USERNAME OR PASSWORD IS INVALID
6.3 Check Balance
You can check your SMS balance using our API, URL is as follow: http://www.smsgatewaycenter.com/library/checkbalance.php?Username=userxxxx&Password=passxxxx
Success Response: Balance : 2041 | Expire Date : 2016-09-30 Failure Response: error | 2115 | USERNAME OR PASSWORD IS INVALID
6.4 Miss Call Report
You can fetch all reports by using this API. http://www.smsgatewaycenter.com/library/miscall_report.php?UserName=userxxxx&Password=passxxxx&DateFrom=2014-11-10&DateTo=2014-11-11
Note: Date Format: yyyy-mm-dd
You will get timestamp, recipient’s mobile number, circle, operator values.
6.5 Short code Report
You can fetch all your short code report using our API. http://www.smsgatewaycenter.com/library/shortcode_report.php?UserName=userxxxx&Password=passxxxx&DateFrom=2014-11-10&DateTo=2014-11-11
6.6 Opt in Users Report
You can fetch the opted recipient’s users list using our API. http://www.smsgatewaycenter.com/library/optin_report.php?UserName=userxxxx&Password=passxxxx&DateFrom=2014-11-10&DateTo=2014-11-11

6.7 Delivery Summary Report
Fetch daily SMS consumption summary using our API http://www.smsgatewaycenter.com/library/delivery_summary_report.php?UserName=userxxxx&Password=passxxxx&DateFrom=2014-11-10&DateTo=2014-11-11
You will get date, SMS consumed values.
Popular SoftTech and Marketing Pvt. Ltd.,
#225 & 226, Ground Floor, Raghuleela Mega Mall, Boraspada Road, Kandivali West, Mumbai 4000067 Phone: +91-22-28657726 Mobile: +919930 447 726 Fax: +91-22-67105508 Email: contact@smsgatewaycenter.com Website: http://www.smsgatewaycenter.com
