Smart power renewable energy solution tamil nadu

SMART POWER SYSTEMS. 1107 Middle River Road #6, Baltimore MD 21220. Website: www.smartpowerusa.com Email:. pbhagwat@smartpowerusa.com
SMART POWER SOURCES INDIA (PVT) LTD. Pivla banglow, Bandra Sion link road, Dharavi, Mumbai 17, 022-65249212

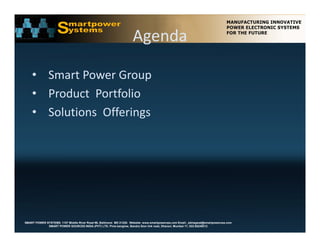

Agenda

• Smart Power Group

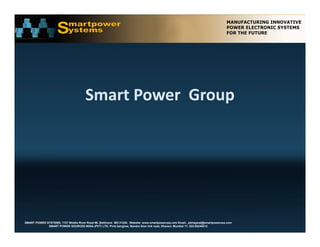

Smart Power Group
• Product Portfolio
• S l i Off i
Solutions Offerings


Smart Power Group

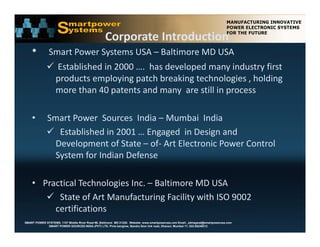

Corporate Introduction
• Smart Power Systems USA – Baltimore MD USA
 Established in 2000 ….  has developed many industry first
products employing patch breaking technologies , holding
d t l i t h b ki t h l i h ldi
more than 40 patents and many  are still in process

• Smart Power  Sources  India – Mumbai  India
 Established in 2001 … Engaged  in Design and
Development of State – of‐ Art Electronic Power Control
System for Indian Defense

• Practical Technologies Inc. – Baltimore MD USA
 State of Art Manufacturing Facility with ISO 9002
g y
certifications

Contd…
Accomplishments …
• Invented Multi Level Inverter
• Bi Directional Converter  for Wind Mill
• Grid Tie Inverter for Solar Power Plants with patented
t h l
technology
• First to develop 100 Kw 400 Hz  Static Transfer Switch with ¼
cycle detection and transfer time
y
• Solid  state 100 KW Electronic Breaker with 10 Micro Sec
clearing time
• VSCF Genset with integral Engine Starter
• Variable Speed Drives using induction and brushless motors
for industrial and automotive application
for industrial and automotive application

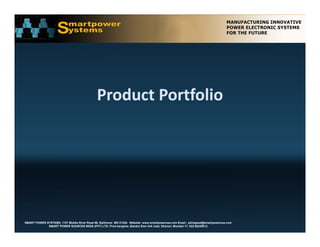

Product Portfolio

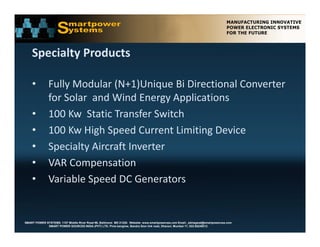

Specialty Products

• Fully Modular (N+1)Unique Bi Directional Converter
for Solar and Wind Energy Applications
• 100 Kw Static Transfer Switch
• 100 Kw High Speed Current Limiting Device
• Specialty Aircraft Inverter
• VAR Compensation
• Variable Speed DC Generators

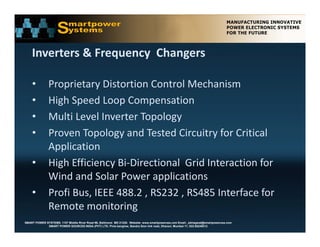

Inverters & Frequency Changers

• Proprietary Distortion Control Mechanism
• High Speed Loop Compensation
• Multi Level Inverter Topology
• Proven Topology and Tested Circuitry for Critical
Application
• High Efficiency Bi‐Directional Grid Interaction for
Wind and Solar Power applications
• Profi Bus, IEEE 488.2 , RS232 , RS485 Interface for
Remote monitoring

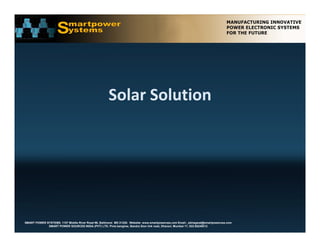

Solar Solution

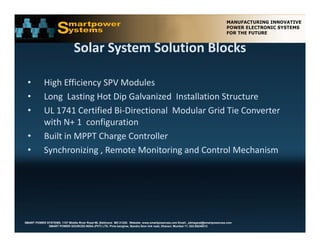

Solar System Solution Blocks
Solar System Solution Blocks

• High Efficiency SPV Modules
• Long  Lasting Hot Dip Galvanized  Installation Structure
• UL 1741 C tifi d Bi Di ti
UL 1741 Certified Bi‐Directional  Modular Grid Tie Converter
l M d l G id Ti C t
with N+ 1  configuration
• uilt in MPPT Charge Controller
Built in MPPT Charge Controller
• Synchronizing , Remote Monitoring and Control Mechanism

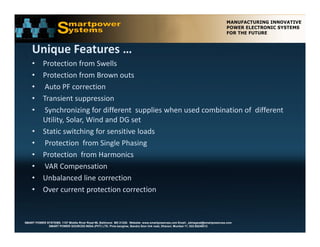

Unique Features …
U i F t
• Protection from Swells
• Protection from Brown outs
Protection from Brown outs
• Auto PF correction
• Transient suppression
• S h i i f diff t li h d bi ti f diff t
Synchronizing for different  supplies when used combination of  different
Utility, Solar, Wind and DG set
• Static switching for sensitive loads
• Protection  from Single Phasing
• Protection  from Harmonics
• VAR Compensation
• Unbalanced line correction
• Over current protection correction


Unique Advantages …
U i Ad t
• Improves yield for a given installed capacity
• Reduces cost on non standard switch gear, cables, combiner boxes  and
Reduces cost on non‐standard switch gear, cables, combiner boxes and
other accessories
• Reduces down time significantly
• If co located with load eliminates need of distribution transformer
If   co‐located with load , eliminates need  of distribution transformer
• Helps in increasing life spans of installed electrical equipments and
systems
• Helps in saving energy for a given load
H l i i f i l d
• Significant reduction in TCO

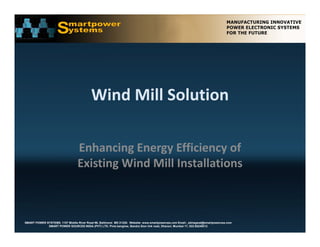

Wind Mill Solution

Enhancing Energy Efficiency of
Existing Wind Mill Installations

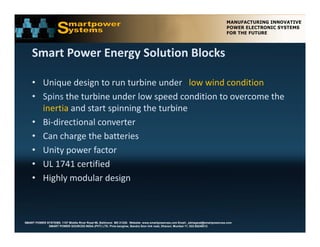

Smart Power Energy Solution Blocks

• Unique design to run turbine under low wind condition
• Spins the turbine under low speed condition to overcome the
inertia and start spinning the turbine
and start spinning the turbine
• Bi‐directional converter
• Can charge the batteries
Can charge the batteries
• Unity power factor
• UL 1741 certified
• Highly modular design

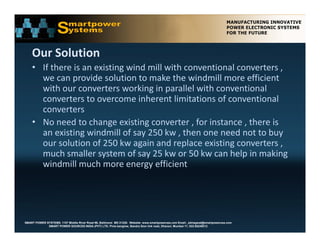

Our Solution
• If there is an existing wind mill with conventional converters ,
we can provide solution to make the windmill more efficient
we can provide solution to make the windmill more efficient
with our converters working in parallel with conventional
converters to overcome inherent limitations of conventional
converters
converters
• No need to change existing converter , for instance , there is
an existing windmill of say 250 kw , then one need not to buy
our solution of 250 kw again and replace existing converters ,
much smaller system of say 25 kw or 50 kw can help in making
windmill much more energy efficient

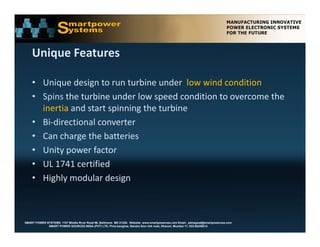

Unique Features

• Unique design to run turbine under low wind condition
• Spins the turbine under low speed condition to overcome the
inertia and start spinning the turbine
and start spinning the turbine
• Bi‐directional converter
• Can charge the batteries
Can charge the batteries
• Unity power factor
• UL 1741 certified
• Highly modular design

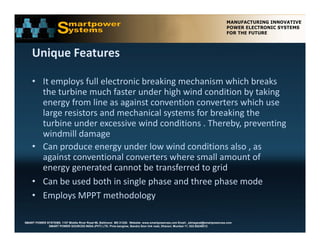

Unique Features

• It employs full electronic breaking mechanism which breaks
the turbine much faster under high wind condition by taking
energy from line as against convention converters which use
large resistors and mechanical systems for breaking the
turbine under excessive wind conditions . Thereby, preventing
windmill damage
• Can produce energy under low wind conditions also , as
against conventional converters where small amount of
energy generated cannot be transferred to grid
energy generated cannot be transferred to grid
• Can be used both in single phase and three phase mode
• Employs MPPT methodology

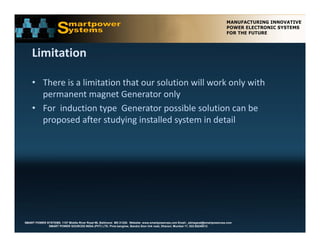

Limitation

• There is a limitation that our solution will work only with
permanent magnet Generator only
• For induction type Generator possible solution can be
For induction type Generator possible solution can be
proposed after studying installed system in detail


Value Proposition

• 30 + years of Rich experience across geographies ,in Power
Conversion and control technologies, which  are  core  to power
g p
generation
• Unique capability to offer  solution and services over entire
plant life cycle
plant life cycle
• Proven Design and products  for mission critical applications
• Proven sustained performance in worst environmental and
Proven sustained performance in worst environmental and
climatic conditions
• Seasoned Project Management  capabilities
