The Smart Mosquito Density System uses sensors to detect mosquito density levels in an area. The sensor data is sent over the internet through various connectivity options like 4G, GSM, and WiFi to a centralized data center. The data center then sends the mosquito density information to an integrated control command center.

1. Smart Mosquito Density System
Conceptual Diagram

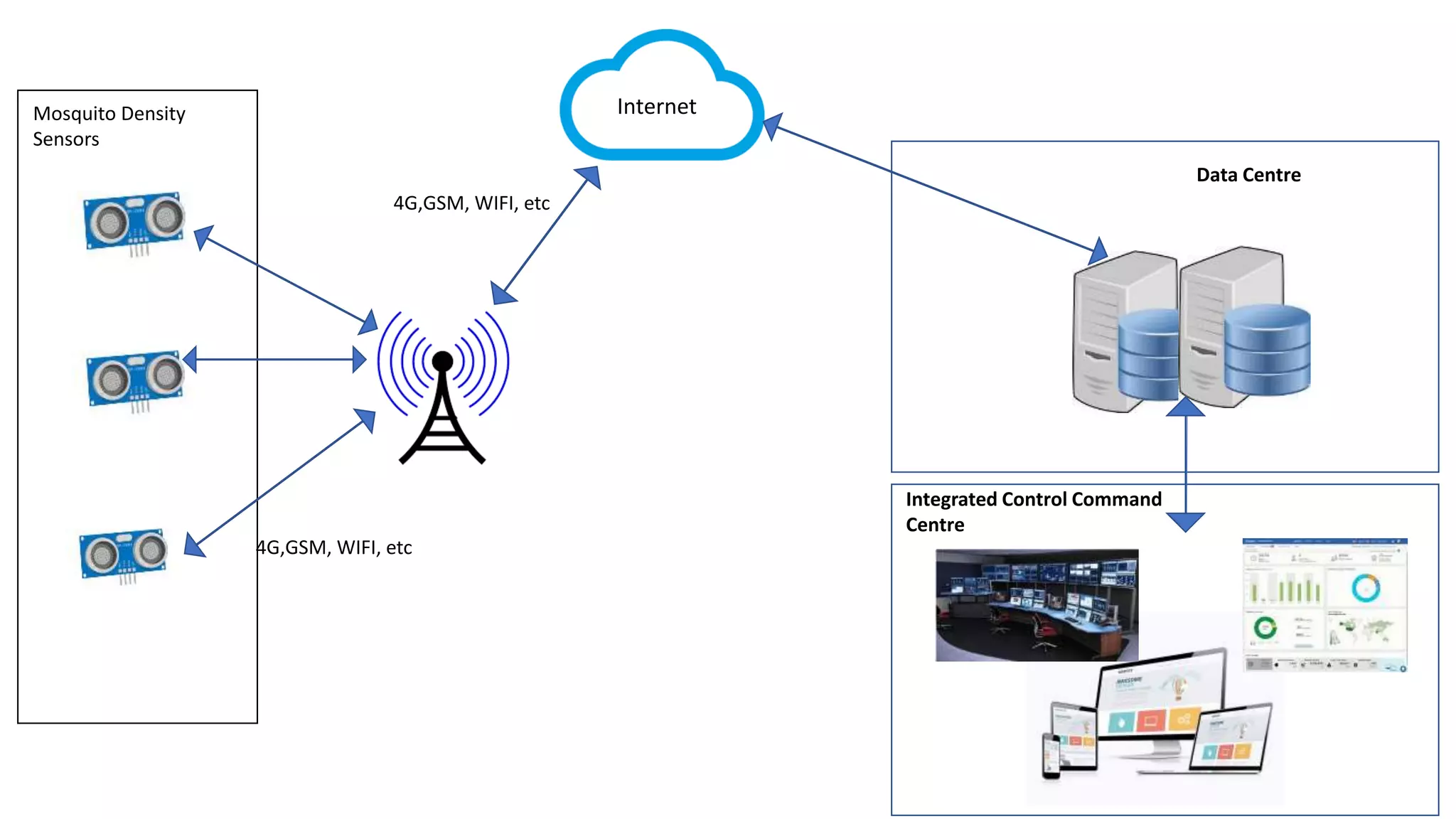

2. Mosquito Density
Sensors
Internet
4G,GSM, WIFI, etc
4G,GSM, WIFI, etc
Data Centre
Integrated Control Command
Centre
