SMACK Dev Experience

使用SMACK開發小型 Hybrid DB 系統
(踩過的坑)心得分享
許致軒 (Joe)
PilotTV / Data Engineer

● Chih-Hsuan Hsu (Joe)
● PilotTV Data Engineer
● Interestd in SMACK/ELK architecture
● 技術書籍譯者
○ Spark學習手冊
○ Cassandra技術手冊
● LinkIn:www.linkedin.com/in/joechh
● Mail:joechh731126@gmail.com
2
About Me

既有系統改造Story
● RDB負載與日俱增
● 單點失效
● 想將Batch Mode改造成Straming-based Data Flow
● 第一階段為了簡化只採用SMACK中的Spark、Kafka與Cassandra
○ 因為還不熟Mesos跟Akka…QQ
3

系統改造前/(預期)改造後
ETL
New ETL with
Kafka Producer
4

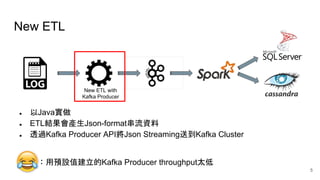

New ETL
● 以Java實做
● ETL結果會產生Json-format串流資料
● 透過Kafka Producer API將Json Streaming送到Kafka Cluster
︰用預設值建立的Kafka Producer throughput太低
New ETL with
Kafka Producer
5

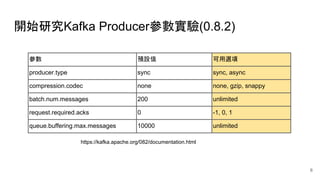

開始研究Kafka Producer參數實驗(0.8.2)
參數預設值可用選項
producer.type sync sync, async
compression.codec none none, gzip, snappy
batch.num.messages 200 unlimited
request.required.acks 0 -1, 0, 1
queue.buffering.max.messages 10000 unlimited
https://kafka.apache.org/082/documentation.html
6

Kafka Producer: producer.type
● 將producer.type設定async可開啟批次傳輸模式
● 批次模式有較佳的Throughput，但客戶端忽然當機時有Data Loss的可能
6.3X
7

Kafka Producer: batch.num.messages
● 使用async模式時，一個批次傳輸的資料量
● 批次就會送出時機
○ 資料量達到batch.num.messages
○ 超過queue.buffer.max.ms的等待時間
2.55X 2.53X
8

Kafka Producer: queue.buffering.max.messages
● Queue中允許暫存的訊息數量
1.05X
9

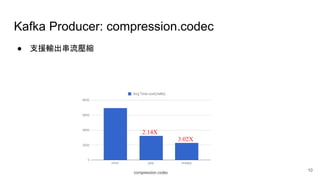

Kafka Producer: compression.codec
● 支援輸出串流壓縮
2.14X
3.02X
10

Kafka Producer: request.required.acks
● 0：無須與Kafka Cluster進行資料接收確認(ack)
● 1：僅與Repica Leader進行ack
● -1：與所有Repica都進行ack
6.3X
2.94X
11

● request.required.acks = 1 還是有可能掉資料
● sync with leader node不代表有容錯
Kafka Producer: request.required.acks(con)
1 2 3 4
1 2 3 4
1 2 3 4Replica
Follower 1
Replica
Leader
5 6
producer sent
Replica
Follower 2
12

1 2 3 4
1 2 3 4
1 2 3 4
5 6 ack return
Replica
Follower 1
Replica
Leader
Replica
Follower 2
13

1 2 3 4
1 2 3 4
1 2 3 4
5 6
Replica
Follower 1
Replica
Leader
Replica
Follower 2
14

● request.required.acks = -1
● 要容錯：replication.factor >= 2 && min.insync.replicas >= 2
1 2 3 4
1 2 3 4
1 2 3 4
5 6
producer sent
Replica
Follower 1
Replica
Leader
Replica
Follower 2
15

1 2 3 4
1 2 3 4
1 2 3 4
5 6
all replicas sync, ack return
5 6Replica
Follower 1
Replica
Leader
Replica
Follower 2
16
5 6

1 2 3 4
1 2 3 4
1 2 3 4
5 6
5 6Replica
Follower 1
Replica
Leader
Replica
Follower 2
17
5 6

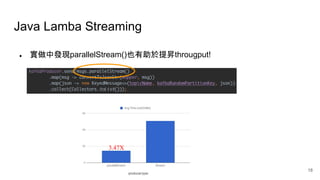

Java Lamba Streaming
● 實做中發現parallelStream()也有助於提昇througput!
3.47X
18

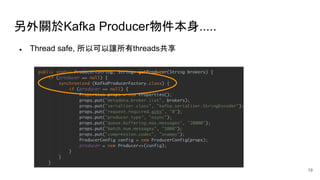

另外關於Kafka Producer物件本身.....
● Thread safe, 所以可以讓所有threads共享
19

Kafka Producer 實驗結論
參數最後採用值可用選項
producer.type async sync, async
compression.codec snappy none, gzip, snappy
batch.num.messages 1000 unlimited
request.required.acks 0 -1, 0, 1
queue.buffering.max.messages 20000 unlimited
● 還是必須根據需求實際測試以及對Data Loss的容忍度
● Latency v.s. Throughput
20

Spark streaming
● 以Scala實做
● 多個Kafka中的Streamings做Client-sideJoin
● 將Join結果寫入(upsert)SQL server以維護既有架構
New ETL with
Kafka Producer
upsert
streaming
join
21

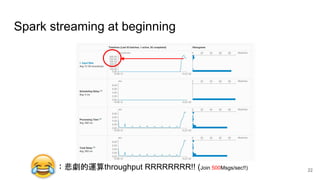

Spark streaming at beginning
︰悲劇的運算throughput RRRRRRRR!! (Join 500Msgs/sec!!) 22

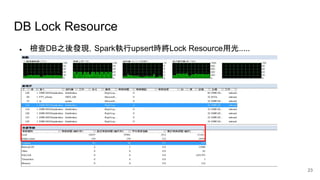

DB Lock Resource
● 檢查DB之後發現，Spark執行upsert時將Lock Resource用光.....
23

● 建立一張plain的base table(沒有任何index)
● 以insert取代upsert，再透過store-procedure進行二次Aggregation
Solution
append
aggregation
24

Throughput Improvement (Join 500 -> 13000 msgs/sec)
25

Spark with RDB的另一個(坑)注意事項
● SQL Server 最大允許同時連線數為32,767
● 不要問我為何知道............
● 無論是使用哪一套connection pool，要注意計算總連線數
● Total Connection = connection pool size * spark executor number
26

使用mapWithState()的Stateful API做Mapping時..
● 條件允許時可以設定timeout移除KV降低table的記憶體使用量
● 以最後一次KV被讀取的時間計算
27

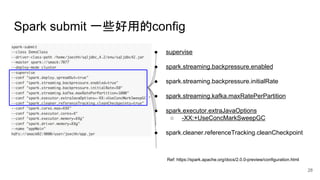

Spark submit 一些好用的config
Ref: https://spark.apache.org/docs/2.0.0-preview/configuration.html
● supervise
● spark.streaming.backpressure.enabled
● spark.streaming.backpressure.initialRate
● spark.streaming.kafka.maxRatePerPartition
● spark.executor.extraJavaOptions
○ -XX:+UseConcMarkSweepGC
● spark.cleaner.referenceTracking.cleanCheckpoint
28

NoSQL之Cassandra
● Query-First 的 Schema設計理念
● 設計表之前需要先盡可能列出所有使用的情境
Ref: https://www.datastax.com/
Step1. 畫 ER Digram
Step2. 考慮查詢情境
Step3. 建立滿足查詢的表
29

How ever......Cassandra Out! in this project
User: Joe..........我們想要建立一個Dash Board。需要Ad-hoc
Query，可以對任意欄位進行任意的操作。所以我們無法跟你討
論可能的Query呢～～
Joe:
30

Migrate NoSQL solution to ELK stacks!
New ETL with
Kafka Producer
31

Logstash ingestion from Kafka
︰Bulk Loading to ES 的Throughput很低(indexing 8000 docs / min)
32

Logstash啟動Flag參數研究
https://www.elastic.co/guide/en/logstash/2.4/command-line-flags.html 33

First Step Improvement
● 因為資源尚足夠，嘗試增加Workers數量與Batch Size
● workers -> 20; batch -> 500
7.5X
34

LogStash需要處理多個Kafka topics時....
● Ver >= 5.0時，有topics屬性可以一次接的多個topics
● Ver < 5.0 時...........需要在設定檔中逐一宣告
35

ES Side Turning for Bulk Loading
● Bulk Load時幾個Trade-off的選項
○ 不Care最新資料的Latency -> 降低index.refresh_interval
○ 不Care容錯與查詢速度 -> 將副本數設定為0
○ 不Care Merge Segment佔用的IO(越快越好) ->不掐Merge IO
36

Bulk Load Improvement
● 最終結果：40萬Docs/min, 50X Throughput
50X
37

當Bulk load的很爽時........
● Too many open files!
一坑還有一坑......
38

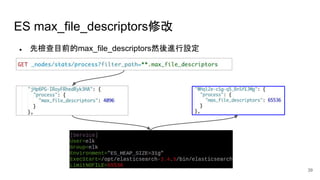

● 先檢查目前的max_file_descriptors然後進行設定
ES max_file_descriptors修改
39

ES search Query Turning
● Optimize (force merge) cold index，甚至合成單一segment
● 使用兩類Cache提昇查詢效能
○ Filter cache：將過濾的結果cache起來，以供未來其他查詢使用
○ Shard cache：將查詢結果整個cache起來，下次一樣的查詢直接回傳
● 別忘了移除為了Bulk Load模式所做的暫時性設定
40

Filter Query v.s. Normal Query
Ref: Elasticsearch in Action
41

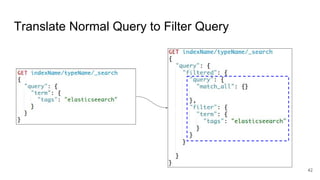

Translate Normal Query to Filter Query
42

關於ES欄位的新增修改
● 新增全新的欄位很容易(Flexible schema )
● 修改欄位的型別很麻煩！！需要reindex...
43

Kibana…..還沒踩到(時候未到？)
● Kibana 4.2版之後有Sense工具，下DSL很好用!!
● $./bin/kibana plugin --install elastic/sense
44

Summary
● Discussed components versions
○ Kafka: 0.8.2
○ Spark: 2.0.2
○ Cassandra: 3.10
○ Elasticsearch: 2.4.5
○ Logstash: 2.4.1
○ Kibana: 4.6.4
New ETL with
Kafka Producer
45
