TURBOOFFERS A COMPLETE LINE FORCATERPILLAR G.E.T. SYSTEM
CAT SIZE
J200 J220 J250 J300 J350 J400 J450 J460 J550 J600 J700 J800
LIGHT CONSTRUCTION CONSTRUCTION HEAVY CONSTRUCTION MINING
MACHINE SIZE
(TONS)
J200 J220 J250 J300 J350 J400 J450 J460 J550 J600 J700 J800
6 9 11 20 30 40 60 63 80 140 250 300
- For backhoe loaders, mini
excavatorsand other compact machines.
- Sizes J200, J220 and J250 offer
selection of adapters and point shapes
to fit all applications
- Both weld-on and bolt-on adapters
forwheel loaders.
- For mid range wheel loaders and
excavators.
- Sizes J300,J350 and J400 offer one
of the widest selections of points and
adapters to service applications from
general purpose toextreme service
- Both weld-on and bolt-on adapers for
most wheel loaders.
- For large wheel loaders, excavators
and face shovels.
- Sizes J450, J550 and J600 offer a
complete range of points and adapters.
- Designed and manufactured to
perform in the toughest conditions,
from pipeline work in rock to
demanding quarry applications.
- For wheel loaders, excavators, face
shovels and shovel dippers used in
mining applications.
- Sizes J700, J800 have a comprehensive
offe ring of points and adapters to cover
a wide ran ge of heavy duty to extreme
duty applications.
- All components are designed for
maximum strength, reliability and service
life to increase productivity and reduce
the overall cost of ownership.
PAGE-01

6. - Provides the largest offset for
the most aggressive digging.
- Thick bottom strap provides the
greatest protection of base edge.
- Promotes fast loading; permits
easy, complete dumping.
- Available for 910 through 992
Loaders.
- Provides best retention in high-
impact work.
- For general loading,where
adapter etention is a concern.
- Protects the base edge well.
- Available for 966, 980, 988, 990,
992 and 994 Loaders.
- Provides smooth bucket footprint,
leaving a clean,unrutted work
surface.
- Extends tire life.
- Available for 910 through 992
Loaders.
- Provides size-up tip option
without increasing thickness.
- Stronger, more protection.
- Available for 980, 988, 990, 992
and 994 Loaders.
- Thicker to provide increased
adap-ter strength.
- Weld-groove enlarged for easier
wel ding, which enhances
adapter retention.
- Bottom strap is thicker for longer
wear life and greater base-edge
protection.
- Shouldered to provide rear tip pro
tection and improved retention.
- Available for 966 through 992
Loaders.
CATERPILLAR BUCKET TIPADAPTERS
PROVIDE DIFFERENT PERFORMANCE FOR DIFFERENT JOBS
ROCK BUCKET ADAPTERS
BOTTOM-STRAP
WELD-ON ADAPTER
TWO-STRAP
WELD-ON ADAPTER
TWO-STRAP
WELD-ON
HEAVY DUTY
TWO-STRAP
WELD-ON ADAPTER
-
-
FLUSHMOUNT
WELD-ON ADAPTER
TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-02

7. PAGE-03
TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
- Puts wear material under the base edge and
on the front inside and outside of the corner.
- Easy to install,remove and replace.
- Available for 910 and 988 Wheel Loaders
and all Track Loaders
- Keeps adapter securely attached; won’t shift
in demanding applications
- Reduces stress,adding service life in
high-wear applications
- Easy to retrofit and convert your old buckets
to the two-bolt design with a simple welding
operation
- Available for 916 through 980 Wheel
Loaders
- Used in general loading work, where leaving
a smooth work surface isn’t needed
- Provides good base-edge protection
- Easy to install, remove and replace
- Available for 910 through 992 Loaders
All Cat excavator buckets come with two
strapweld-on adapters. (Ditch-cleaning
buckets come with bare base edge) The
adapters are designed especially for exca
vator work, but they accept the same tips
used on Caterpillar loader buckets.
CATERPILLAR BUCKET TIPADAPTERS
PROVIDE DIFFERENT PERFORMANCE FOR DIFFERENT JOBS
CATERPILLAR CORNER GUARD
ADAPTER SYSTEMS
CATERPILLAR
EXCAVATOR ADAPTERS
SINGLE-BOLT
CORNER ADAPTER
TWO-BOLT
CORNER ADAPTER
CENTER BOLT-ON
CORNER ADAPTER
CATERPILLAR
EXCAVATOR
ADAPTERS
LOADERS EXCAVATORS
PAGE-03

8. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
STRENGTH:
The ability to withstand digging and penetrating
shocks and high breakout forces
PENETRATION:
The ability to penetrate tough material, when it’s
tightly compacted,rocky or frozen
WEAR LIFE:
The ability to withstand wearing, scouring, and
abrasive action of the material being handled
P P P P P
TIPS COME IN SO MANY DIFFERENT SHAPES AND SIZES, YOU MIGHT
THINK IT TAKES AN EXPERT TO PICK THE RIGHT ONE.
NOT SO. IT CAN ALL BE REDUCED TO A FEW SIMPLE GUIDELINES.
ALL TURBO BUCKET TIPS ARE MADE FROM ONE OF TWO SPECIAL STEEL ALLOYS:
F2, which resists softening in applications that generate high heat.
F4, which is through-hardened to provide consistently low wear rates throughout the life of the tip.
TIP SELECTIONGUIDE
WHAT TO CONSIDER WHEN YOU’RE CHOOSING TIPS BUCKET
PENETRATION:
- Use in densely com
pacted material
such as clay.
- Gives maximum
penetration.
- Self-sharpening.
SHORT:
- Use inhigh-impact
and pry-out work
such as rock.
- Extremely strong.
LONG:
- Use in most general
applications where
breakage is not a
problem.
- Extremely strong.
HEAVY
DUTY LONG:
- se in general loading
and excavation work.
- Has extended wear
Has extended wear
strength.
HEAVY DUTY
ABRASION:
- Use when working in
sand, gravel and shot
rock.
- Maximum wear
material.
HEAVY DUTY
LONG LIFE:
- Use to increase wear
life and penetration.
As the Heavy Duty
- Long Life tip wears,
ease of penetration.
HEAVY DUTY
PENETRATION:
- Use in high-impact,
hard-to-penetrate
material.
- Extended wear life.
ROCK CHISEL:
- 3 to 5 times more
wear life than
standard.
PAGE-04

9. TIPS FOR SPECIAL APPLICATIONS
UNITOOTH: CENTER SHARP: WIDE: CORNER SHARP: TWIN SHARP:
- A one-piece tip and adapter that
bolts to the bucket.
- Use in light-to medium-duty work.
- Fitted to central part of the bucket
cutting edge.
- Provides maximum gouging and
pene-tration capabilities.
- Unlike competitive tips, it features
a single center rib that keeps tips
sharp for life.
- nstall on bucket corners.
- Provides maximum gouging and
pene-tration capabilities.
- Can be used on either side of
thebucket edge.
- Provides more wear material,
increased strength, enhanced
fracture capabilities.
- Opposite corner tips may be
exchanged to prolong wear.
- Use on excavators to increase
capacity in light materials.
- Reduces bucket spillage.
- Leaves a smoother floor
TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-05

10. QUICK REFERENCES
TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014

11. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
CATERPILLAR SIDE PIN TEETH CHART
EXCAVATOR
J200 1U3209 1U3202SYL 1U3202V 1U3202 1U3202RC 1U3202TL · 9W8209 220-3202 1U3201 1U3202R 1U3202WTL · 135-8208
J220 6Y3222SYL 6Y3222V 6Y3222 6Y3222RC 220-3202 1U3201 1U3202R 1U3202WTL · 135-8208
J250 9J4259 1U3252SYL 1U3252V 1U3252 1U3252RC 1U3252TL · 9W8259 220-3222
J300 9J4309 1U3302SYL 1U3302V · 183-5300 1U3302 1U3302RC 1U3302TL · 9W8309 220-3252 1U3251 1U3252R 1U3252WTL · 135-8258
J350 9J4359 1U3352SYL 1U3352V · 168-1359 1U3352 1U3352RC 1U3352TL · 9W8359 220-3302 1U3301 1U3302R 1U3302WTL · 135-9308
J400 7T3409 7T3402SYL 7T3402V · 168-1409 7T3402 7T3402RC 7T3402TL · 6Y5409 220-3352 1U3351 1U3352R 1U3352WTL · 135-9357
J450 9W8459 9W8452SYL 9W8452V · 159-0459 9W8452
9W8452RC
1U3452RC 9W8452TL · 7T8459 220-3402 7T3401 7T3402R 7T3402WTL · 135-9408
J550 9W8559 9W8552SYL 1U3552V · 159-0559 9W8552 9W8552TL · 9W6559 220-8452 9W8451 9W8452R 9W8452WTL · 138-6458
J600 7I7609 6I6602 6I6602TL · 107-8609 220-8552 9W8551 9W8552R 9W8552WTL · 138-6558
J700 4T4709 4T4702 220-6602 6I6601 6I6602R 6I6602WTL · 135-9608
J800
LOADER
J200 4T2203 · 9J4203 1U3202
J220
J250 9N4253 4T2253 · 9J4253 9N4252 1U3252
J300 9N4303 1U3302PT 4T2303 · 9J4303 135-9300 4T2303RP2 9N4302 1U3302
J350 9N4353 1U3352PT 4T2353 · 9J4353 144-1358 4T2353RP2 9N4352HD 1U3352
J400 7T3402PT 7T3403 · 9J4403 135-9400 7T3403RP2 8E4402 7T3402
J450 9N4453 9W8452PT 9W1453 · J4453 138-6451 9W1453RP2 9N4452HD 9W8452
J550 6Y2553 9W8552PT 9W1553 · 9J4553 138-6551
138-6552
9W1553RP2 9N4552 9W8552
J600 6I6603 6I6602PT 135-9600 6I6602RP2 7Y0602 6I6602
J700 4T4703 4T4702PT 135-9700 4T4702
J800 6I8803 6I8802PT
EXCAVATOR
LOADER
PAGE-06
6I8802RC

12. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
EXCAVATORG.E.T. CHART
EDGE
THICKNESS
EDGE
DEGREE
SIZE
MACHINE MOLDES
20 23° J200 8J7525 1U3202 8E6208 8E6209 * * 416 · 446
22 23° J220 6Y3224 6Y3222 6Y3228 8E6209 * * * 416 · 4426
25 23° J250 6Y3254 1U3252 8E6258 8E6259 HS1140-110 7Y0203 · 7Y0204 *
E200 · 205 · 214 · 206
213 · 311 · 312
30 23° J300 3G6304 1U3302 9J2308 8E6259 HS1175-140 HZ-50-150-23º 7Y0203 · 7Y0204 *
E180 · E200 · 215 · 219
311 · 312 · 320 · 325
30 23° J300 8E9490 1U3302 9J2308 8E6259 HS1175-140
HZ-50-150-23º 7Y0203 · 7Y0204
*
E180· E200 · 215 · 219
311 · 312 · 320 · 325
40 35° J350 3G8354HD 1U3352 8E6358 8E6359 ES6697-2-185 096-4747 · 096-4748 *
225 · 219 · 215 · 320
E200 · E240
40 23° J350 8J4310(6I6354) 1U3352 8E6358 8E6359 ES6697-2-185 HZ-50-150-23º 096-4747 · 096-4748 *
225 · 219 · 215 · 320
E200 · E240
45 23° J400 6I6404 7T3042 7T3408 8E8409 ES6697-2-185 HZ-50-150-23º 096-4747 · 096-4748 * 235FS · 231SD · 300 · 231D
50 23° J450 6I6464 9W8452 8E0468 8E0469 ES6697-2-185 HZ-70-250-23º
7Y0357 · 7Y0358
8J9825 · 8J9826
166-2877
225 · 235 · 245 · 320
325 · 330 · E30
60 23° J550 6I6554 9W8552 6Y8558 8E5559 ES6697-2-185 HZ-70-250-23º * 245 · 330
70 23° J600 6I6604 6I6602 6I6608 6I6609 ES6697-5-250 * 375 · 365 · 374
90 23° J700 4T4704 4T4708 4T4707 ES6697-5-250 * 375
WELD ON ADAPTERS TEETH PIN RETAINERS HEEL SHROUD CONNER LIPS SIDE CUTTER PROTECTOR
EXCAVATOR
PAGE-07

13. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
LOADERS G.E.T. CHART
EDGE THICKNESS EDGE DEGREE SIZE MACHINE MOLDES
20 23° J200 9J7525 4T2303 8E6208 8E6209
25 23° J250 3G0169 9N4253 8E6258 8E6259
30 23° J300 9J8929 9N4303 9J2308 8E6259
40 23° J350 135-9354 9N4353 8E6358 8E6359 135-9544/9545/9546 135-9544/45/46 966
45 23° J400 125-8404 7T3408 8E8409 113-3140/3141/3142 116-7460/7461/7462 980
50 23° J450 114-0464 9N4453 8E0468 8E0469 109-9080/9081/9082 116-7460/7461/7462
101-9435/9436/9437 983 988
60 23° J550 107-3554 6Y2553 6Y8558 8E5559 195-7190/7191/7192 4T6760/6761/6762 922C · 992B
245 · 990
70 23° J600 119-8604 6I6603 6I6608 6I6609 109-2675/2676/2677 4T6760/6761/6762 375 · 992
90 23° J700 133-0704 4T4703 4T4708 4T4707 109-9030/9031/9032 4T6760/6761/6762 992 · 994
100 23° J800 6I8804 6I8803 4T4708 4T4707 109-9033/9034/9035 994 · 998
EDGE
THICKNESS
EDGE
DEGREE
SIZE
MACHINE MOLDES
20 23° J200 8E2184 4T2303 5J4771 2J3506 6I9250 · 6I9251 1U2208 · 1U2209 910 · 914 · 931 · 933 · 935
IT12 · 416 · 426 · 428 · 436
25 23° J250 1U0257 9N4253 4F3656 4K0367 6I9250 · 6I9251 3G4258 · 3G4259
132-1037 · 4T6694
4T6692 · 4T6691
916 · 920 · 924 · 926 · 928 · 930 · 931
933 · 935 · 936 · 939941 · 943 · 953 · 95
30 23° J300 1U0307 9N4303 8J2928 8J2933 8E5308 · 8E5309 3G4308 · 3G4309 4T6693 · 4T6694 · 132-1037 950 · 955 · 960 · 963
40 23° J350 3G3357 9N4353 5P8361 5P8361 3G5358 · 3G5359 3G5358 · 3G5359 4T3015 · 4T9123 · 4T91234 960 · 963 · 966 · 966C · 966G
970 · 972G · 973 · 977
45 23° J400 6I9898 5P8361 5P8361 1U1358 · 1U1359
50 23° J450 8E2467 9N4453 5P8361 5P8361 8E3468 · 8E3469 6I8242 · 6I8243 980
60 23° J550 6I8242 · 6I8243
70 23° J600 8E3468 · 8E3469
90 23° J700
100 23° J800 *
WELD
ON ADAPTERS
WELD ON ADAPTERS TEETH PIN RETAINERS HALF ARROW SEGMENT
TEETH BOLT NUT
CONNER ADAPTER
2 HOLES CONNER ADAPTER SEGMENT
LOADERS
PAGE-08

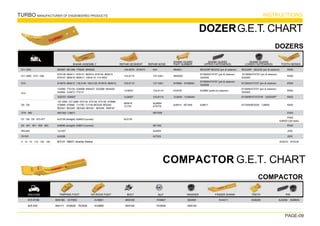

14. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
MACHINE
815 815B 8K9189 · 2V7053 4V3851 8K9183 7H3607 5S0581 5V4311 3G8250 9J2258 · 3G9609
825 835 8k9171 · 2V6628 · 7K2939 4V0668 8K9164 7H3609 4D6194
MACHINE
D11 (SS) 104-9279 · 6Y9473 N/A 9N4621 8E2229P 8E2230 (pin retainer) 8E2229P · 8E2230 (pin retainer) R550
D11 (MS) · D10 · D9L 103-8115 107-3361 9W8365
6Y3909/4T4707 (pin retainer)
3G0500
6Y3909/4T4707 (pin retainer)
3G0500
R500
D10 103-8115 107-3361 6Y8960 · 6Y8960H
6Y3909/4T4707 (pin retainer)
3G0500
6Y3909/4T4707 (pin retainer) R500
D10
1U3630* 103-8114 6Y9704 8J4889 (weld-on retainer)
6Y3909/4T4707 (pin retainer)
3G0500
R500
1U3630* 103-8114 1U3644 · 1U3644H 6Y3909P/4T4707W · 3G0500P* R500
D9 · D8
8E8418
7J1791
9U9694
4T9776
6J8814 · 8E1848 6J8811 6Y3394/8E5559 · 7J9600 R450
D7H · 983 9W7488 R350
D7 · D6 · D5 · 973 977 9J3139
R350
9J8920 (old style)
D4 · 941 · 951 · 955 · 963 8E7350 R300
953 943 9J4254 J250
D3 931 8J7525 J200
4 · 12 · 14 · 112 · 130 · 140
8E0467·8E1466·7T6020·9W0259
6Y6138·8E8411·6Y6141·8E8414·6Y6144·8E8415
6Y6147·8E8416·8E8417·109-9114·114-4503
6Y4679·8E8412·118-2140·109-3135·6Y5616·8E8413
1V4592·7T5130·3G8566·9W4427·3G2088·9W4426
9J5954·1U4873·7T5131
3G5707·3G6507
107-3485·107-3486·4T0134·4T0135·4T0136·4T8988
4T8989·4T8990 ·7J1792·7J1793 8E5339·8E5340
8E5341·8E5345 ·8E5346·8E5347 ·8E5348 ·9W6167
9W7382·7J6671
9J3139 (straight)·9J8923 (curved)
9J6586 (straight)·9J8913 (curved)
1U1257
8J5299
2D5572 · 6Y5230
DOZERG.E.T. CHART
COMPACTOR G.E.T. CHART
SHANK ASSEMBLY
TAMPING FOOT HD ROCK FOOT BOLT NUT WASHER FINGER SHANK TEETH PIN
REPAIR SEGMENT REPAIR NOSE
SHANK GUARD
PART NUMBER
SHANK GUARD
UPPER FASTENER(S)
SHANK GUARD
LOWER FASTENER(S) TOOTH SERIES
DOZERS
COMPACTOR
PAGE-09

15. CAT
TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014

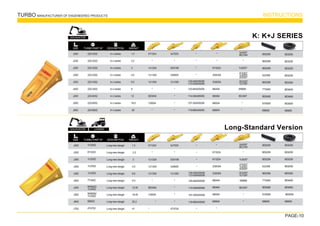

16. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J220
J250
J300
J350
J400
J450
J550
J600
220-3202
220-3222
220-3252
220-3302
220-3352
220-3402
220-8452
220-8552
220-6602
k+J series
k+J series
k+J series
k+J series
k+J series
k+J series
k+J series
k+J series
k+J series
1.3
2.2
3
4.5
6.5
9
12
18.5
29
4T1204
*
1U1254
1U1304
1U1354
*
8E0464
7J9554
*
8J7525
*
3G0169
9J8929
1U1350
*
*
*
*
*
*
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
8E6208
8E6258
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
6I6608
8E6209
8E6259
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559
6I6609
EXCAVATOR K: K+J SERIES
*
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
135-9354/55/56
113-0354/55/56
*
1U0257
6I9898
8E2467
*
*
9J4297
8E2184
4T4307
1U0307
3G9307
3G3357
1U1357
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J220
J250
J300
J350
J400
J450
J550
J600
J700
Long-new desgin
Long-new desgin
Long-new desgin
Long-new desgin
Long-new desgin
Long-new desgin
Long-new desgin
Long-new desgin
Long-new desgin
Long-new desgin
1.3
2.2
3
4.5
6.6
9.4
12.45
18.45
30.3
41
4T1204
*
1U1254
1U1304
1U1354
*
8E0464
7J9554
*
*
8J7525
*
3G0169
9J8929
1U1350
*
*
*
*
4T4704
*
6Y3224
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
*
8E6208
8E6258
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
6I6608
8E6209
8E6259
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559
6I6609
EXCAVATOR Long-Standard Version
*
1U0257
6I9898
8E2467
*
*
3G3357
1U1357
9J4297
8E2184
4T4307
1U0307
3G9307
LOADER
1U3202
6Y3222
1U3252
1U3302
1U3352
7T3402
6I6602
4T4702
9W8452
1U3452
9W8552
1U3552
*
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
*
135-9354/55/56
113-0354/55/56
PAGE-10

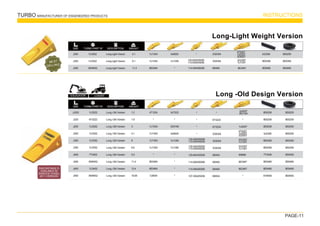

17. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J300
J350
J450
1U3302
1U3352
9W8452
Long-Light Verson
Long-Light Verson
Long-Light Verson
4,1
6.1
11.4
1U1304
1U1354
8E0464
9J8929
1U1350
*
3G6304
3G8354
6I6464
9J2308
8E6358
8E8468
8E6259
8E6359
8E8469
Long-Light Weight Version
*
114-0464/65/66
SIZE TURBO PART Nº DESCRIPTION WEIGHT
JJ200
J220
J250
J300
J350
J350
J400
J450
J450
J550
Long -Old Version
Long -Old Version
Long -Old Version
Long -Old Version
Long -Old Version
Long -Old Version
Long -Old Version
Long -Old Version
Long -Old Version
Long -Old Version
1.2
1.9
3
4.1
6
6.6
9.3
11.4
12.4
18.95
4T1204
*
1U1254
1U1304
1U1354
1U1354
*
8E0464
8E0464
7J9554
8J7525
*
3G0169
9J8929
1U1350
1U1350
*
*
*
*
8E6208
8E6258
8E6258
9J2308
8E6358
8E6358
7T3408
8E8468
8E8468
6Y8558
8E6209
8E6259
8E6259
8E6259
8E6359
8E6359
8E8409
8E8469
8E8469
8E8559
*
6Y3224
6Y3254
3G6304
3G8354
3G8354
6I6404
6I6464
6I6464
6I6554
EXCAVATOR Long -Old Design Version
*
1U0257
6I9898
8E2467
8E2467
*
LOADER
1U3202
6Y3222
1U3252
1U3302
1U3352
1U3352
7T3402
9W8452
1U3452
9W8552
*
*
*
*
125-8404/05/06
114-0464/65/66
114-0464/65/66
107-3554/55/56
135-9354/55/56
113-0354/55/56
4T4307
1U0307
3G9307
3G3357
1U1357
8E2467
135-9354/55/56
113-0354/55/56
135-9354/55/56
113-0354/55/56
9J4297
8E2184
3G3357
1U1357
3G3357
1U1357
4T4307
1U0307
3G9307
PAGE-11
DISCONTINUE D:
AVAILABLE IN
RC
-ROCK CHISEL
2011 VERSION
BEST
SELLING

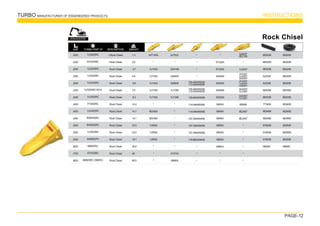

18. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J220
J250
J300
J300
J350
J350
J400
J450
J450
J550
J550
J550
J600
J700
J800
8E6208
8E6258
8E6258
9J2308
9J2308
8E6358
8E6358
7T3408
8E8468
8E8468
6Y8558
6Y8558
6Y8558
6I6608
8E6209
8E6259
8E6259
8E6259
8E6259
8E6359
8E6359
8E8409
8E8469
8E8469
8E8559
8E8559
8E8559
6I6609
LRock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
1.3
2.8
3.7
4.8
5.6
7.6
8.2
10.4
14.1
14.1
23.5
23.5
18.7
38.8
48
68.5
44T1204
*
1U1254
1U1304
1U1304
1U1354
1U1354
*
8E0464
8E0464
7J9554
7J9554
7J9554
*
*
*
8J7525
*
3G0169
9J8929
9J8929
1U1350
1U1350
*
*
*
*
*
*
*
4T4704
6I8804
*
6Y3224
6Y3254
3G6304
3G6304
3G8354
3G8354
6I6404
6I6464
6I6464
6I6554
6I6554
6I6554
6I6604
*
*
EXCAVATOR Rock Chisel
1U3202RC
6Y3222RC
1U3252RC
1U3302RC
1U3302RC
1U3352RC-2014
1U3352RC
7T3402RC
1U3452RC
9W8452RC
9W8552RC
1U3552RC
9W8552PV
6I6602RC
4T4702RC
6I8803RC (390RC)
*
*
*
*
125-8404/05/06
114-0464/65/66
114-0464/65/66
107-3554/55/56
107-3554/55/56
107-3554/55/56
119-8604/05/06
*
*
*
135-9354/55/56
113-0354/55/56
135-9354/55/56
113-0354/55/56
*
1U0257
6I9898
8E2467
8E2467
*
*
*
*
*
*
9J4297
8E2184
4T4307
1U0307
3G9307
4T4307
1U0307
3G9307
3G3357
1U1357
3G3357
1U1357
PAGE-12

19. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J220
J220
J250
J300
J350
J350
J350
J400
J450
J450
Rock Chisel- Sheel
Rock Chisel- Sheel
Rock Chisel- Sheel
Rock Chisel- Sheel
Rock Chisel- Sheel
Rock Chisel- Sheel
Rock Chisel- Sheel
Rock Chisel- Sheel
Rock Chisel- Sheel
Rock Chisel- Sheel
1.3
2.8
3.5
5.5
7.9
7.6
8.2
10.25
13.9
13.9
*
*
1U1254
1U1304
1U1354
1U1354
1U1354
*
8E0464
8E0464
*
*
3G0169
9J8929
1U1350
1U1350
1U1350
*
*
*
6Y3224
6Y3224
6Y3254
3G6304
3G8354
3G8354
3G8354
6I6404
6I6464
6I6464
8E6258
8E6258
9J2308
9J2308
8E6358
8E6358
7T3408
8E8468
8E8468
8E6259
8E6259
8E6259
8E6259
8E6359
8E6359
8E8409
8E8469
8E8469
EXCAVATOR Rock Chisel- Sheel
1U3202RC
6Y3222RC
1U3252RC-2013
1U3302RC
1U3352RC-3
1U3352RC-2014
1U3352RC
7T3402RC
1U3452RC
9W8452RC
*
*
*
*
125-8404/05/06
114-0464/65/66
114-0464/65/66
*
*
1U0257
6I9898
8E2467
8E2467
135-9354/55/56
113-0354/55/56
4T4307
1U0307
3G9307
3G3357
1U1357
3G3357
1U1357
3G3357
1U1357
135-9354/55/56
113-0354/55/56
135-9354/55/56
113-0354/55/56
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J300
J350
J400
J450
J550
Rock Chisel Heavy dute
Rock Chisel Heavy dute
Rock Chisel Heavy dute
Rock Chisel Heavy dute
Rock Chisel Heavy dute
6.5
9.8
12.5
15.3
25
1U1304
1U1354
*
8E0464
7J9554
*9J8929
1U1350
*
*
*
3G6304
3G8354
6I6404
6I6464
6I6554
9J2308
8E6358
7T3408
8E8468
8E6259
8E6359
8E8409
8E8469
EXCAVATOR Rock Chisel Heavy Dute
1U3302HD-2014
1U3352HD-2014
7T3402HD-2014
9W8452HD-2014
9W8552HD-2014
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
6I9898
8E2467
*
135-9354/55/56
113-0354/55/56
4T4307
1U0307
3G9307
3G3357
1U1357
PAGE-13

20. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-14
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J400
J450
J550
EXCAVATOR Rock Chisel-V Type/Light Dute
3G3357
1U1357
3G3357
1U1357
1U3202V
1U3252V
1U3302V
1835300
1U3352V
1681359
7T3402V
1681409
9W8452V
1590459
1U3552V
1590559
Rock Chisel-V type
/ Light dute
Rock Chisel-V type
/ Light dute
Rock Chisel-V type
/ Light dute
Rock Chisel-V type
/ Light dute
Rock Chisel-V type
/ Light dute
Rock Chisel-V type
/ Light dute
Rock Chisel-V type
/ Light dute
1.2
2.6
4.5
6.1
8.5
14.3
21.5
4T1204
1U1254
1U1304
1U1354
*
8E0464
7J9554
8J7525
3G0169
9J8929
1U1350
*
*
*
*
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
8E6208
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
8E6209
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559
1U0257
6I9898
8E2467
35-9354/55/56
113-0354/55/56
4T4307
1U0307
3G9307
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
9J4297
8E2184
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J400
J450
J550
J600
EXCAVATOR Twin Tiger
1U3202WTL
135-8208
1U3252WTL
135-8258
1U3302WTL
135-9308
1U3352WTL
135-9357
7T3402WTL
135-9408
9W8452WTL
138-6458
6I6602WTL
135-9608
9W8552WTL
138-6558
1U3552WTL
Twin Tiger
Twin Tiger
Twin Tiger
Twin Tiger
Twin Tiger
Twin Tiger
Twin Tiger
Twin Tiger
1.4
3.6
4.7
6.75
9.9
15.7
18.7
37
4T1204
1U1254
1U1304
1U1354
*
8E0464
7J9554
*
8J7525
3G0169
9J8929
1U1350
*
*
*
*
*
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
8E6208
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
6I6608
8E6209
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559
6I6609
135-9354/55/56
113-0354/55/56
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
3G3357
1U1357
1U0257
6I9898
8E2467
*
*
T4307
1U0307
3G9307
9J4297
8E2184

21. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-15
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J400
J450
J550
J600
EXCAVATOR Tiger-Central Sharp
3G3357
1U1357
1U3252TL
9W8259
1U3302TL
9W8309
1U3352TL
1U3352VIP
9W8359
7T3402TL
7T3402VIP
6Y5409
9W8452TL
1U3452VIP
7T8459
9W8552TL
1U3552TL
9W6559
1U3202L
9W8209
6I6602TL
107-8609
Tiger
Tiger
Tiger
Tiger
Tiger
Tiger
Tiger
Tiger
1.3
2.7
4.5
5.5
11.8
12.8
16.4
31.6
4T1204
1U1254
1U1304
1U1354
*
8E0464
7J9554
*
48E6208
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
6I6608
8E6209
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559
6I6609
8J7525
3G0169
9J8929
1U1350
*
*
*
*
*
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
1U0257
6I9898
8E2467
*
*
135-9354/55/56
113-0354/55/56
4T4307
1U0307
3G9307
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
9J4297
8E2184
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J250
J300
J350
J400
J450
J550
J600
EXCAVATOR Tiger
Tiger
Tiger
Tiger
Tiger
Tiger
Tiger
Tiger
HZ250TL
HZ300TL
HZ350TL
HZ400TL
HZ450TL
HZ550TL
HZ600TL
2.7
4.8
6.2
12.2
13.4
17.6
37
1U1254
1U1304
1U1354
*
8E0464
7J9554
*
3G0169
9J8929
1U1350
*
*
*
*
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
6I6608
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559
6I6609
135-9354/55/56
113-0354/55/56
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
3G3357
1U1357
1U0257
6I9898
8E2467
*
*
4T4307
1U0307
3G9307

22. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-16
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J450
J550
EXCAVATOR Short
3G3357
1U1357
Short
Short
Short
Short
Short
Short
1U3201
1U3251
1U3301
1U3351
9W8451
9W8551
1.2
2.7
4.1
5.5
10.4
16
4T1204
1U1254
1U1304
1U1354
*
8E0464
8J7525
3G0169
9J8929
1U1350
*
*
8E6208
8E6258
9J2308
8E6358
7T3408
8E8468
8E6209
8E6259
8E6259
8E6359
8E8409
8E8469
*
6Y3254
3G6304
3G8354
6I6404
6I6464
1U0257
6I9898
8E2467
135-9354/55/56
113-0354/55/56
4T4307
1U0307
3G9307
*
*
*
125-8404/05/06
114-0464/65/66
9J4297
8E2184
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J220
J250
J300
J350
J400
J450
J550
J600
J700
EXCAVATOR Peneration
Peneration
Peneration
Peneration
Peneration
Peneration
Peneration
Peneration
Peneration
Peneration
Peneration
1U3209
6Y8229
9J4259
9J4309
9J4359
6Y7409
9W8459
9W8559
7I7609
4T4709
1.2
1.7
2.6
3.5
5.8
8.6
10.4
14.8
29.6
38
4T1204
*
1U1254
1U1304
1U1354
*
8E0464
7J9554
*
*
8J7525
*
3G0169
9J8929
1U1350
*
*
*
*
4T4704
*
6Y3224
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
*
8E6208
8E6258
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
6I6608
8E6209
8E6259
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559
6I6609
135-9354/55/56
113-0354/55/56
*
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
*
3G3357
1U1357
*
1U0257
6I9898
8E2467
*
*
*
4T4307
1U0307
3G9307
9J4297
8E2184

23. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-17
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J400
J450
J550
J600
EXCAVATOR Symmetrical
3G3357
1U1357
Symmetrical
Symmetrical
Symmetrical
Symmetrical
Symmetrical
Symmetrical
Symmetrical
Symmetrical
1U3202SYL
1U3252SYL
1U3302SYL
1U3352SYL
7T3402SYL
9W8452SYL
9W8552SYL
6I6602SYL
1.3
3.1
5.5
7.6
11.2
13.5
22
33
4T1204
1U1254
1U1304
1U1354
*
8E0464
7J9554
*
8J7525
3G0169
9J8929
1U1350
*
*
*
*
*
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
8E6208
8E6258
9J2308
8E6358
8E6258
7T3408
8E8468
6Y8558
8E6209
8E6259
8E6259
8E6359
8E6259
8E8409
8E8469
8E8559
1U0257
6I9898
8E2467
*
*
135-9354/55/56
113-0354/55/56
4T4307
1U0307
3G9307
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
9J4297
8E2184
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J450
J550
J600
EXCAVATOR Heavy Dute Long New design
8E4222
9N4252
9N4302
9N4352
9N4452
9N4552
7Y0602
2.8
3.8
5.6
8.8
16
26
42
4T1204
1U1254
1U1304
1U1354
8E0464
7J9554
*
8J7525
3G0169
9J8929
1U1350
*
*
*
*
6Y3254
3G6304
3G8354
6I6464
6I6554
6I6604
8E6208
8E6258
9J2308
8E6358
8E8468
6Y8558
6I6608
8E6209
8E6259
8E6259
8E6359
8E8469
8E8559
6I6609
3G3357
1U1357
1U0257
8E2467
*
*
4T4307
1U0307
3G9307
9J4297
8E2184
Heavy Dute Long
New design
Heavy Dute Long
New design
Heavy Dute Long
New design
Heavy Dute Long
New design
Heavy Dute Long
New design
Heavy Dute Long
New design
Heavy Dute Long
New design
*
*
*
114-0464/65/66
107-3554/55/56
119-8604/05/06
135-9354/55/56
113-0354/55/56

24. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-18
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J400
J450
J450
Abrasion
Abrasion
Abrasion
Abrasion
Abrasion
Abrasion
Abrasion
Abrasion
1.4
3.6
5.2
7.1
13.45
15.9
22
4T1204
1U1254
1U1304
1U1354
*
8E0464
8E0464
*
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6464
1U0257
6I9898
8E2467
8E2467
135-9354/55/56
113-0354/55/56
4T2203
9J4203
4T2253
9J4253
4T2303
9J4303
4T2353
9J4353
7T3403
9J4403
9W1453
9J4453
9W1553
9J4553
4T4307
1U0307
3G9307
8J7525
3G0169
9J8929
1U1350
*
*
*
8E6208
8E6258
9J2308
8E6358
7T3408
8E8468
8E8468
8E6209
8E6259
8E6259
8E6359
8E8409
8E8469
8E8469
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J220
J250
J300
J350
J400
J450
J550
J600
Tip R
1U3202R
6Y3222R
1U3252R
1U3302R
1U3352R
7T3402R
9W8452R
9W8552R
6I6602R
Tip R
Tip R
Tip R
Tip R
Tip R
Tip R
Tip R
Tip R
Tip R
1.3
2.1
2.6
4
5.7
8.9
11.2
18.5
32
8J7525
*
3G0169
9J8929
1U1350
*
*
*
*
3G3357
1U1357
*
1U0257
6I9898
8E2467
*
*
4T4307
1U0307
3G9307
9J4297
8E2184
*
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
135-9354/55/56
113-0354/55/56
*
*
*
125-8404/05/06
114-0464/65/66
114-0464/65/66
*
6Y3224
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
8E6208
8E6258
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
6I6608
8E6209
8E6259
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559
6I6609
9J4297
8E2184
3G3357
1U1357
EXCAVATOR
4T1204
*
1U1254
1U1304
1U1354
*
8E0464
7J9554
*

25. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS

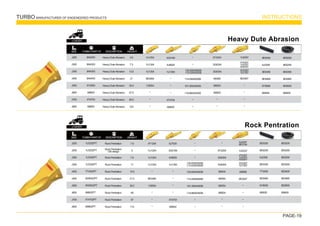

PAGE-19
LOADER
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J250
J300
J350
J450
J550
J600
J700
J800
Heavy Dute Abrasion
3G3357
1U1357
Heavy Dute Abrasion
Heavy Dute Abrasion
Heavy Dute Abrasion
Heavy Dute Abrasion
Heavy Dute Abrasion
Heavy Dute Abrasion
Heavy Dute Abrasion
Heavy Dute Abrasion
4.6
7.3
10.5
21
30.4
57.5
68.5
104
1U1254
1U1304
1U1354
8E0464
7J9554
*
*
*
6Y3254
3G6304
3G8354
6I6464
6I6554
6I6604
*
*
1U0257
8E2467
*
*
*
*
135-9354/55/56
113-0354/55/56
4T4307
1U0307
3G9307
3G0169
9J8929
1U1350
*
*
*
4T4704
6I8804
8E6258
9J2308
8E6358
8E8468
6Y8558
6I6608
8E6259
8E6259
8E6359
8E8469
8E8559
6I6609
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J400
J450
J550
J600
J700
J600
Rock Pentration
1U3202PT
1U3252PT
1U3302PT
1U3352PT
7T3402PT
9W8452PT
9W8552PT
6I6602PT
4T4702PT
6I8802PT
8E6208
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
6I6608
8E6209
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559
6I6609
1.9
5
7.6
11
15.5
21.2
29.2
48
67
110
Rock Pentration
Rock Pentration
Rock Pentration
Rock Pentration
Rock Pentration
Rock Pentration
Rock Pentration
Rock Pentration
Rock Pentration
8J7525
3G0169
9J8929
1U1350
*
*
*
*
4T4704
6I8804
3G3357
1U1357
1U0257
6I9898
8E2467
*
*
*
*
4T4307
1U0307
3G9307
9J4297
8E2184
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
*
*
135-9354/55/56
113-0354/55/56
9N4253
9N4303
9N4353
9N4453
6Y2553
6I6603
4T4703
6I8803
*
*
114-0464/65/66
107-3554/55/56
119-8604/05/06
*
*
Rock Pentration
Old design
4T1204
1U1254
1U1304
1U1354
*
8E0464
7J9554
*
*
*
*
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
*
*

26. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-20
LOADER
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J300
J350
J400
J450
J550
J600
J700
J700
Rock Pentration HD
3G3357
1U1357
Rock Pentration HD
Rock Pentration HD
Rock Pentration HD
Rock Pentration HD
Rock Pentration HD
Rock Pentration HD
Rock Pentration HD
Rock Pentration HD
8.3
12.7
16.9
21.95
30.2
52.2
72
100
1U1304
1U1354
*
8E0464
7J9554
*
*
*
3G6304
3G8354
6I6404
6I6464
6I6554
6I6604
*
*
6I9898
8E2467
*
*
*
*
135-9354/55/56
113-0354/55/56
4T4307
1U0307
3G9307
9J8929
1U1350
*
*
*
*
4T4704
6I8804
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J300
J350
J400
J450
J550
Rock Pentration
4T2303RP2
4T2353RP2
7T3403RP2
9W1453RP2
9W1553RP2
9J2308
8E6358
7T3408
8E8468
6Y8558
8E6259
8E6359
8E8409
8E8469
8E8559
8.6
11.9
17.8
23
27.6
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
Rock Pentration 2
4T4307
1U0307
3G9307
*
135-9354/55/56
113-0354/55/56
3G3357
1U1357
135-9300
144-1358
135-9400
138-6451
138-6552
135-9600
135-9700
135-9800
9J2308
8E6358
7T3408
8E8468
6Y8558
6I6608
8E6259
8E6359
8E8409
8E8469
8E8559
6I6609
3G6304
3G8354
6I6404
6I6464
6I6554
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
119-8604/05/06
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
6I9898
8E2467
*

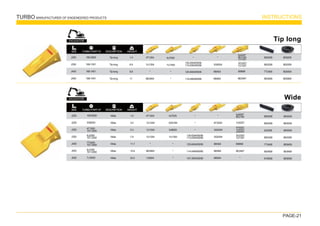

27. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-21
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J350
J400
J450
Tip long
Tip long
Tip long
Tip long
Tip long
1.4
6.9
8.8
11
8E6208
8E6358
7T3408
8E8468
8E6209
8E6359
8E8409
8E8469
4T1204
1U1354
*
8E0464
*
3G8354
6I6404
6I6464
135-9354/55/56
113-0354/55/56
3G3357
1U1357
8J7525
1U1350
*
*
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J400
J450
J550
Wide
109-9200
3G8250
7J-9550
1.5
3.4
5.3
7.9
11.7
15.9
23.2
Wide
Wide
Wide
Wide
Wide
Wide
Wide
8J7525
3G0169
9J8929
1U1350
*
*
*
3G3357
1U1357
1U0257
6I9898
8E2467
*
4T4307
1U0307
3G9307
9J4297
8E2184
*
*
*
125-8404/05/06
114-0464/65/66
107-3554/55/56
135-9354/55/56
113-0354/55/56
4T1300
107-3300
8J3350
107-3350
7T3400
107-3400
8J1450
107-3450
195-9209
168-1351
168-1401
168-1451
*
125-8404/05/06
114-0464/65/66
4T1204
1U1254
1U1304
1U1354
*
8E0464
7J9554
*
6Y3254
3G6304
3G8354
6I6404
6I6464
6I6554
9J4297
8E2184
1U1357
6I9898
8E2467
EXCAVATOR
EXCAVATOR
8E6208
8E6258
9J2308
8E6358
7T3408
8E8468
6Y8558
8E6209
8E6259
8E6259
8E6359
8E8409
8E8469
8E8559

28. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-22
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J910 920
J930 944
Top Pin Tip
Top Pin Tip
Top Pin Tip
1.4
2
P-23
P-18
8J2930
6K3125
8J2929
6K2563
5K8287
6K1965
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J10
J10
J10
J10
J10
J10
J15
J15
J30
J30
UniTip-Fork Tip
132-4720
6Y6335
6Y6335
9W1879
135-8203
8J6207
6Y0649
1U1857
1U1867
1U1877
1U1877HD
8J2936
1.9
3.4
3.5
3.4
3.4
4.6
28.5
9.9
16.2
12.5
17
18.25
*
19
19
19
19
20
38
25
32
25
25
32
*
4K0367
4K0367
4K0367
4K0367
2J3506
*
2J3507
8J2933
8J2933
8J2933
*
*
4F3656
4F3656
4F3656
4F3656
5J4771
*
8J2928
8J2928
8J2928
8J2928
*
UniTip
UniTip
UniTip
UniTip
UniTip
UniTip
Cat- fork tip
UniTip
UniTip
UniTip
UniTip
CAT(UniTip)
4K6936
4K0034
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
EXCAVATOR
LOADER
BLADE SIZE BOLT NUT

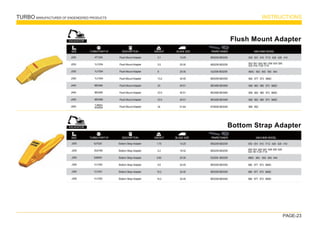

29. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-23
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J440
J450
J450
J550
Flush Mount Adapter
Flush Mount Adapter
Flush Mount Adapter
Flush Mount Adapter
Flush Mount Adapter
Flush Mount Adapter
Flush Mount Adapter
Flush Mount Adapter
Flush Mount Adapter
2.1
5.5
8
13.2
20
23.5
23.5
34
13-25
25-30
25-30
32-45
45-51
45-51
45-51
51-64
8E6208 8E6209
8E6258 8E6259
9J2308 8E6259
8E6358 8E6359
8E0468 8E0469
8E0468 8E0469
8E0468 8E0469
6Y8558 8E5559
935
·931
·910
·IT12
·428
·426
·416
966C
·963
·955
·950
·944
980
·977
·973
·966D
988
·983
·980
·973
·966D
988
·983
·980
·973
·966D
988
·983
·980
·973
·966D
988
·992
4T1204
1U1254
1U1304
1U1354
8E0464
8E0465
8E0466
EXCAVATOR
BLADE SIZE
7J9554
3G4554
MACHINE MODEL
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J350
J350
J350
Bottom Strap Adapter
Bottom Strap Adapter
Bottom Strap Adapter
Bottom Strap Adapter
Bottom Strap Adapter
Bottom Strap Adapter
Bottom Strap Adapter
1.75
4.2
6.82
9.5
10.2
10.2
13-25
19-32
25-30
32-45
32-45
32-45
8E6208 8E6209
8E6258 8E6259
9J2308 8E6259
8E6358 8E6359
8E6358 8E6359
8E6358 8E6359
935
·931
·910
·IT12
·428
·426
·416
966C
·963
·955
·950
·944
980
·977
·973
·966D
980
·977
·973
·966D
980
·977
·973
·966D
8J7525
3G0169
9J8929
1U1350
1U1351
1U1352
EXCAVATOR
BLADE SIZE MACHINE MODEL
953
· 951
· 943
· 941
· 936
· 930
· 926
920
· 96
· IT28
· IT18
953
· 951
· 943
· 941
· 936
· 930
· 926
920
· 916
· IT28
· IT18
PIN/RETAINER
PIN/RETAINER

30. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-24
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J300
J350
J350
J350
J350
J350
J350
J400
J400
J400
J400
J450
J450
J450
J550
J550
J550
J600
J600
J600
J700
J700
J700
J700
J800
Loder Adapter
8E9490
6I6354
6I6355
6I6356
135-9354
135-9355
135-9356
107-3404
125-8404
125-8405
125-8406
114-0464
114-0465
114-0466
107-3554
107-3555
107-3556
119-8604
119-8605
119-8606
4T4704
4T4705
4T4706
132-4704
6I8804
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
Loder Adapter
7.5
9.9
9.6
9.6
14
14.5
14.5
19.2
18.7
19.7
19.7
20.8
22.5
22.5
42.9
42.9
42.9
71
72
72
75
72
72
74
112
38
40
40
40
40
40
40
40
45
45
45
50
50
50
64
64
64
70
70
70
76
76
76
80
100
9J2308 8E6259
8E6358 8E6359
8E6358 8E6359
8E6358 8E6359
8E6358 8E6359
8E6358 8E6359
8E6358 8E6359
7T3408 8E8409
7T3408 8E8409
7T3408 8E8409
7T3408 8E8409
8E0468 8E0469
8E0468 8E0469
8E0468 8E0469
6Y8558 8E5559
6Y8558 8E5559
6Y8558 8E5559
6I6608 6I6609
6I6608 6I6609
6I6608 6I6609
4T4708 4T4707
4T4708 4T4707
4T4708 4T4707
4T4708 4T4707
1341808 1341809
E-180
·E-200
·215
320
·325
·225
·219
·215
·320
·E200
·E240
·B/C/S
320
·325
·225
·219
·215
·320
·E200
·E240
·B/C/S
225
·219
·215
·320
·E200
·E240
·B/C/S
966
966
966
980
980
980
980
983
·988
983
·988
983
·988
922C
·992B
·245 Frontal
·990
922C
·992B
·245 Frontal
·991
922C
·992B
·245 Frontal
·992
375
·992
375
·992
375
·992
992C
·994
992C
·995
992C
·996
994
·998
EXCAVATOR
MACHINE MODEL
BLADE SIZE PIN/RETAINER

31. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-25
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J250
J250
J250
J250
J300
J300
J300
J300
J350
J350
J400
J450
J450
J450
J550
J550
J550
J600
J600
J600
J700
J700
J800
Excavator Adapter
119-3204
119-3205
119-3253
6Y3254HD
6Y3254
6Y3254
3G6304
9W1304
3G6304
8E9490
6I6404
6I6464
159-0464
8E6464
1U1553
6I6554
6I6554
113-9604
6I6604
6I6604
222-7700
100-7416HD
357-6516-100
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
1.8
1.8
4.2
4.2
4.2
4.2
7.2
7.2
7.2
7.5
9.1
9
12.9
19.9
19.9
20.6
43
32
32
53
53
50.5
90
101
101
25
20
32
25
32
25
32
32
30
36
40
40
45
50
50
50
60
60
65
80
70
75
90
100
100
8E6208 8E6209
8E6258 8E6259
8E6258 8E6259
8E6258 8E6259
8E6258 8E6259
8E6258 8E6259
9J2308 8E6259
9J2308 8E6259
9J2308 8E6259
9J2308 8E6259
8E6358 8E6359
8E6358 8E6359
7T3408 8E8409
8E0468 8E0469
8E0468 8E0471
8E0468 8E0473
6Y8558 8E5559
6Y8558 8E5559
6Y8558 8E5559
6I6608 6I66089
6I6608 6I66089
6I6608 6I66089
4T4708 4T4707
4T4708 4T4707
1341808 1341809
416
·426
416
·446
E200
·205
·214
·206
·213
·311
·312
E200
·205
·214
·206
·213
·311
·312
E200
·205
·214
·206
·213
·311
·312
E200
·205
·214
·206
·213
·311
·313
E-180
·E-200
·215
·219
·311
·312
·315
·320
·325
E-180
·E-200
·215
·219
·311
·312
·315
·320
·325
E-180
·E-200
·215
·219
·311
·312
·315
·320
·325
E-180
·E-200
·215
·219
·311
·312
·315
·320
·325
225
·219
·215
·320
·E200
·E240
·B/C/S
225
·219
·215
·320
·E200
·E240
·B/C/S
235FS
·231SD
·Series
·300
·231D
·C/D/S
225
·235
·245
·320
·325
·330
·E30
·D/E/F
225
·235
·245
·320
·325
·330
·E32
·D/E/F
225
·235
·245
·320
·325
·330
·E34
·D/E/F
245
·E/F/G/H
·330
245
·E/F/G/H
·330
245
·E/F/G/H
·330
375H/J
375H/J
375H/J
EXCAVATOR
3G8354HD
3G8354HD-A Excavator Adapter
(35DegreeangelBlade)-Remmconeduse
MACHINE MODEL
BLADE SIZE PIN/RETAINER

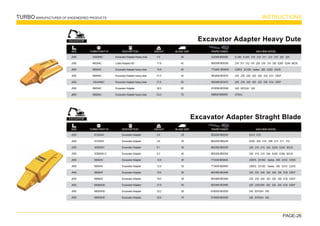

32. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-26
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J300
J350
J400
J450
J450
J550
J600
Excavator Adapter Heavy Dute
3G6304C
6I6354C
6I6404C
6I6464C
159-0464C
6I6554C
6I6604C
Excavator Adapter-Heavy dute
Loder Adapter HD
Excavator Adapter heavy dute
Excavator Adapter heavy dute
Excavator Adapter heavy dute
Excavator Adapter
Excavator Adapter heavy dute
7.5
11.8
15.8
21.5
21.5
36.5
54.5
30
40
45
50
50
65
75
9J2308 8E6259
8E6358 8E6359
7T3408 8E8409
8E0468 8E0470
8E0468 8E0472
6Y8558 8E5559
6I6608 6I66089
E-180
·E-200
·215
·219
·311
·312
·315
·320
·325
219
·
311
·
312
·
315
·
225
·
219·
215
·
320
·
E200
·E240
·B/C/S
235FS
·231SD
·Series
·300
·232D
·C/D/S
225
·235
·245
·320
·325
·330
·E31
·D/E/F
225
·235
·245
·320
·325
·330
·E33
·D/E/F
245
·E/F/G/H
·330
375H/J
EXCAVATOR
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J220
J250
J350
J350
J400
J400
J450
J450
J450
J550
J550
Excavator Adapter Straght Blade
6Y3224V
6Y3254V
3G8354V
3G8354V-2
6I6404V
6I6404V
6I6464V
6I6464V
6I6464HD
6I6554HD
6I6554HD
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
2.9
3.9
9.1
9.3
12.9
12.8
19.9
19.5
21.6
33.2
32.6
25
25
40
40
45
50
50
55
60
65
70
8E6258 8E6259
8E6258 8E6259
8E6358 8E6359
8E6358 8E6359
7T3408 8E8409
7T3408 8E8409
8E0468 8E0469
8E0468 8E0469
8E0468 8E0469
6Y8558 8E5559
6Y8558 8E5559
E312
·E70
E200
·205
·214·206
·213
·311
·312
225
·219
·215
·320
·E200
·E240
·B/C/S
225
·219
·215
·320
·E200
·E240
·B/C/S
235FS
·231SD
·Series
·300
·231D
·C/D/S
235FS
·231SD
·Series
·300
·231D
·C/D/S
225
·235
·245
·320
·325
·330
·E30
·D/E/F
225
·235
·245
·320
·325
·330
·E30
·D/E/F
225
·235V245
·320
·325
·330
·E30
·D/E/F
245
·E/F/G/H
·330
245
·E/F/G/H
·330
EXCAVATOR
MACHINE MODEL
BLADE SIZE PIN/RETAINER
MACHINE MODEL
BLADE SIZE PIN/RETAINER

33. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-27
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J300
J300
J350
J350
J450
J450
J400
J400
J550
J550
J600
J600
Excavator Adapter- Left/Right Hand
3G6305
3G6306
3G8355
3G8356
6I6405
6I6406
6I6555
6I6556
6I6605
6I6606
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
7.6
7.6
8.7
8.7
17.4
17.4
13.5
13.5
33.5
33.5
59.5
59.5
32
32
40
40
50
50
45
45
60
60
75
75
9J2308 8E6259
9J2308 8E6259
8E6358 8E6359
8E6358 8E6359
8E0468 8E0469
8E0468 8E0469
7T3408 8E8409
7T3408 8E8409
6Y8558 8E5559
6Y8558 8E5559
6I6608 6I6609
6I6608 6I6609
180
·200
·215
·219
·311
·312
·315
·320
180
·200
·215
·219
·311
·312
·315
·320
225
·219
·215
·320
·E200
·E240
225
·219
·215
·320
·E200
·E240
225
·235
·245
·320
·325
·330
·E300 D/E/F
225
·235
·245
·320
·325
·330
·E300 D/E/F
235FS
·231SD
·Series
·300
·231D
·C/D/S
235FS
·231SD
·Series
·300
·231D
·C/D/S
245
·E/F/G/H
·330
245
·E/F/G/H
·330
375H/J
375H/J
EXCAVATOR
BLADE SIZE
8E6465
6I6465
8E6466
6I6466
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J250
J300
J300
J300
J350
2 Holes Bolt Adapter
9J4207
8E2184
1U0257
1U0307
4T4307
3G9307
3G7357
2 Holes Bolt Adapter
2 Holes Bolt Adapter
2 Holes Bolt Adapter
2 Holes Bolt Adapter
2 Holes Bolt Adapter
2 Holes Bolt Adapter
2 Holes Bolt Adapter
3
2.6
8.9
10.3
13.2
14.7
20.9
20
20
25
25
32
32
32
5J4771 2J3506
4F3656 4K0367
8J2928 8J2933
8J2928 8J2933
8J2928 8J2933
5P8361 5P8362
5P8361 5P8362
910
·914
·931
·933
·935
·IT12
416
·426
·428
·436
955
·950
955
·950
·960
·963
966C
966C
·963B
LOADER
BOLT/NUT
916
·920
·924
·926
·928
·930
·931
·933
·
935
·936
·939
·941
·943
·951
·953
MACHINE MODEL
PIN/RETAINER
BLADE SIZE MACHINE MODEL

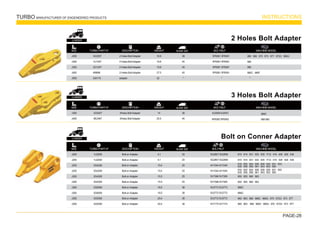

34. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-28
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J350
J350
J350
J450
J550
2 Holes Bolt Adapter
3G3357
1U1357
3G1357
6I9898
9J0174
2 Holes Bolt Adapter
2 Holes Bolt Adapter
2 Holes Bolt Adapter
2 Holes Bolt Adapter
adapter
16.9
19.8
19.8
27.5
32
38
45
45
45
*
5P8361 5P8361
5P8361 5P8361
5P8361 5P8361
5P8361 5P8361
*
960
·966
·970
·973
·977
·972G
·966G
980
980
980C
·980F
*
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J250
J250
J300
J300
J300
J300
J350
J350
Bolt on Conner Adapter
1U2208
1U2209
3G4258
3G4259
3G4308
3G4309
3G8308
3G8309
3G5358
3G5359
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
4.1
4.1
10.4
10.4
15.5
15.5
16.5
16.5
20.4
20.4
20
20
25
25
25
25
38
38
38
38
5G2807 5G2806
5G2807 5G2806
4V1544 4V1545
4V1544 4V1545
5V7396 5V7395
5V7396 5V7395
5V2772 5V2773
5V2772 5V2773
5V2772 5V2773
4V7175 4V7174
910
·914
·931
·933
·935
·IT12
·416
·426
·428
·436
910
·914
·931
·933
·935
·IT12
·416
·426
·428
·436
950
·955
·960
·963
950
·955
·960
·963
966C
966C
960
·963
·966
·966C
·966G
·970
·972G
·973
·977
960
·963，966
·966C
·966G
·970
·972G
·973
·977
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J300
J450
3 Holes Bolt Adapter
3G5307
8E2467
3Holes Bolt Adapter
3Holes Bolt Adapter
14
25.5
38
45
8J2928 8J2933
5P8362 5P8362
966C
988 980
LOADER
916
·920
·924
·926
·928
·930
·931
·933
935
·936
·939
·941
·943
·953
·950
916
·920
·924
·926
·928
·930
·931
·933
935
·936
·939
·941
·943
·953
·950
BOLT/NUT
BLADE SIZE MACHINE MODEL
BOLT/NUT
BLADE SIZE MACHINE MODEL
BOLT/NUT
BLADE SIZE MACHINE MODEL

35. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-29
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J350
J350
J300
J300
J300
J300
J350
J350
Bolt on Fork Adapter
1U1358
1U1359
1U1858
1U1859
1U1878
1U1879
1u1888
1u1889
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
26
26
14.2
14.2
24.3
24.3
38
38
35
35
25
25
30
30
38
38
5V2772 5V2773
4V7175 4V7174
5V7396 5V7395
5V7396 5V7395
5V2772 5V2773
5V2772 5V2773
5V2772 5V2773
4V7175 4V7174
950
·955
·960
·963
950
·955
·960
·963
966C
966C
960
·963
·966
·966C
·966G
·970
·972G
·973
·977
960
·963
·966
·966C
·966G
·970
·972G
·973
·978
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Top Pin Adapter
P-23
P-18
Cat Top Pin Adapter
Cat Top Pin Adapter
2.4
3.3
13-20
25
4k0043 4k0041
4k0043 4k0041
910
·920
·922·931
·933
930
·944
·950·951
·955
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
J200
J250
J300
J300
J350
J350
Bolt on 2 holes Conner Adapter
6I9250
6I9251
8E5308
8E5309
8E5358
8E5359
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
Bolt on Adapter
12.7
12.7
18.4
18.4
26.3
26.3
25
25
32
32
35
35
6I8319 618311
6I8319 618311
8E5302 8E5303
8E5300 8E5301
8E5320 8E5321
8E5310 8E5311
910
·914
·931
·933
·935
·IT12
·416
·426
·428
·436
950
·955
·960
·963
·966C
950
·955
·960
·963
·966C
960
·963B
·966
·966C
·966G
·970
·972G
·973
·977
·980
960
·963B
·966
·966C
·966G
·970
·972G
·973
·977
·980
LOADER
916
·920
·924
·926
·928
·930
·931
·
933
·935
·936
·939
·941
·943
·951
·953
BOLT/NUT
BLADE SIZE MACHINE MODEL
BOLT/NUT
BLADE SIZE MACHINE MODEL
BOLT/NUT
BLADE SIZE MACHINE MODEL

36. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE30
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Scarifier Shanks
9F5124
5B6251
9F5124-101
H31280
Cat Scarifier Shanks-3holes
Cat Scarifier Shanks-3holes
Cat Scarifier Shanks-Universal 5 holes
Cat Scarifier Shanks
5.4
4.3
5.4
5.9
6Y5230
6Y5230
6Y5230
H31281
5K1458 5K1459
5K1458 5K1459
5K1458 5K1459
112
·130
·140
112
·130
·140
112
·130
·140
SCARIFIER TIP
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Scarifier Tips
2D5572
6Y5230
2D5572
6Y5230
H31281
Cat Scarifier Tips
Cat Scarifier Tips
Cat Scarifier Tips
Cat Scarifier Tips
Cat Scarifier Tips
1.5
1.5
1.5
1.5
1.4
9F5124 5B6251
9F5124 5B6251
9F5124 5B6251
9F5124 5B6251
H31280
5K1458 5K1459
5K1458 5K1459
5K1458 5K1459
5K1458 5K1459
112
·130
·140
112
·130
·140
112
·130
·140
112
·130
·140
SCARIFIER TIP
LOADER
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Shanks
9J6586
9J8923
9J3139
8J5299
CAT-Shanks
CAT-Shanks
CAT-Shanks
CAT-Shanks
22.9
60.5
55
8
8E7300
8E7350
8E7350
*
*
6J8814
6J8814
*
9J6583 1U2405
8E6358 1U2405
8E6358 1U2405
8E6208 8E6209
D4·941
·951
·955
·963
D7
·D6
·D5
·973
·977
16
·973
·977
·D5
·D6
6Y0309
6Y0359
4T4352 6Y0359
1U3209 1U3201 9W8209 1U3202
MACHINE
PROTECTOR MACHINE MODEL
PIN/RETAINER
RIPPER TEETH
REPAIRE NOSE
D3
·931
·933
·939
D4C
·135-H
·120-H
BOLT/NUT MACHINE MODEL
BOLT/NUT MACHINE MODEL

37. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-31
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Shanks Nose
8E7350
8E7300
8E8418
9U9694
9J4354WN
3G4454WN
107-3361
103-8114
103-8115
Welding nose-J350-CAT
Welding nose-J300-CAT
CAT-Shanks Nose
CAT-Shanks Nose
CAT-Shanks Nose
CAT-Shanks Nose
CAT-Shanks Nose
CAT-Shanks Nose
CAT-Shanks Nose
2.5
5.6
14.5
19.11
4.8
9
45
50
81
9J6586
9J9139
7J1795
*
4T4352 6Y0359
4T4302 9W7309 6Y0309
9W2451 9W2452
6J8814
6J8814
8E1848
8E6358 1U2405
9J6583 1U2405
6Y3394/8E4743
6Y3394 8E4743
6Y3909 4T4707
6Y3909 4T4707
6Y3909 4T4707
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
16
·973
·977
·D5
·D6
·D7
·983
D8K
·D8L
·D8N
·D9H
·D9N
D8N
·D8K
·D8L
·D9H
·D9N
MACHINE
PROTECTOR MACHINE MODEL
PIN/RETAINER
RIPPER TEETH
SHANK
6Y6138
·6Y6144
·6Y6141
8E8414
·8E8415
·8E8416
6Y4679
·6Y5616
·8E8412
8E8413
·9W8366
·6Y6147
8E8411
·8E8417
3G2088
·3G6507
·9W4427
1V4592
·9J5954
·1U4873
3G5707
·6Y6138
6Y6138
·6Y6144
·6Y6141
8E8414
·8E8415
·8E8416
6Y4679
·6Y5616
·8E8412
8E8413
·9W8366
·6Y6147
8E8411
·8E8417
4T4501
·4T4502
·4T4502ST
4T4503
·4T5501
·4T5502
4T5503
·8E5572
4T4501
·4T4502
·4T4502ST
4T4503
·4T5501
·4T5502
4T5503
·8E5572
4T4501
·4T4502
·4T4502ST
4T4503
·4T5501
·4T5502
4T5503
·8E5572
D4
·941
·951
·955
·963
·12
14
·130
·140
·143H
·160H
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Ripper Tip
4T4302
7K0037
6Y0309
6Y0352
6Y0359
6Y0359
R300
R300
R300
R350
R350
R350
Ripper Tip
Ripper Tip
Ripper Tip new design
Ripper Tip
Ripper Tip new design
Ripper Tip Old Design
5.5
5.5
5.4
10.4
11.5
11.3
8J1433
·9J6583
·1U2405
4K0043
·5K1426
8J1433
·9J6583
·1U2405
7J9600
·8E6358
·1U2405
8E6358
·1U2405
8E6358
·1U2405
D4
·963
·14
·12
D4
·963
·14
·12
D4
·963
·14
·12
D5
·D6
·D7
·16
·973
·977
D5
·D6
·16
·973
·977
·983
·D7
D5
·D6
·16
·973
·977
·983
·D7
MACHINE
PROTECTOR MACHINE MODEL
PIN/RETAINER
SHANK
6Y0865
·9J8913
9J6586
·8E7300
6Y0865
·9J8913
9J6586
·8E7300
9J8923
·9J3139
·8J8215
9W7382
·7J6671
·8E7350
9J8923
·9J3139
·8J8215
9W7382
·7J6671
·8E7350
9J8923
·9J3139
·8J8215
9W7382
·7J6671
·8E7350
5K1428

38. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-32
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Ripper Tip
7J3309
7J3310
7J3312
R350
R350
R350
Ripper Tip
Ripper Tip
Ripper Tip
11.6
11.68
14.5
7J9600
·6Y3394
·1U2405
7J9600
·6Y3394·1U2405
7J9600
·6Y3394
·1U2405
D7
·D8
·D9
D7
·D8
·D9
D7
·D8
·D9
MACHINE
PROTECTOR MACHINE MODEL
PIN/RETAINER
SHANK
7J2514
·7J2515
7J2459·7J2587
7J2514
·7J2515
7J2459
·7J2587
7J2514
·7J2515
7J2459
·7J2587
7J1792
·7J1793
·7J1795
107-3485
·107-3486
·8E5346
4T0134
·4T0135
·4T0136
4T8989
·4T8990
·8E5340
8E5346
·8E5347
·7J1794
8E5345
·9W6167
·4T8988
8E5339
·8E5348
·7J1791
7J1792
·7J1793
·7J1795
107-3485
·107-3486
·8E5346
4T0134
·4T0135
·4T0136
4T8989
·4T8990
·8E5340
8E5346
·8E5347
·7J1794
8E5345
·9W6167
·4T8988
8E5339
·8E5348
·7J1791
7J1792
·7J1793
·7J1795
107-3485
·107-3486
·8E5346
4T0134
·4T0135
·4T0136
4T8989
·4T8990
·8E5340
8E5346
·8E5347
·7J1794
8E5345
·9W6167
·4T8988
8E5339
·8E5348
·7J1791
7J1792
·7J1793
·7J1795
107-3485
·107-3486
·8E5346
4T0134
·4T0135
·4T0136
4T8989
·4T8990
·8E5340
8E5346
·8E5347
·7J1794
8E5345
·9W6167
·4T8988
8E5339
·8E5348
·7J1791
7J1791
·7J1792
·7J1793
7J1795
·107-3845
·4T9776
107-3846
·8E5346
·4T1304
4T1305
·4T1306
·8E5340
8E5341
·8E5342
·4T8989
4T0134
·4T8990
·8E5347
8E5340
·7J1794
·8E5345
9W6167
·4T8988
·4T8990
7J1791
·7J1792
·7J1793
7J1795
·107-3845
·4T9776
107-3846
·8E5346
·4T1304
4T1305
·4T1306
·8E5340
8E5341
·8E5342
·4T8989
4T0134
·4T8990
·8E5347
8E5340
·7J1794
·8E5345
9W6167
·4T8988
·4T8990
6J8814
6J8814
6J8814
6J8814
6J8814
6J8814
7J9600
·6Y3394
·8E4743
7J9600
·6Y3394
·8E4743
7J9600
·6Y3394
·8E4743
7J9600
·6Y3394
·8E4743
7J9600
·6Y3394
·8E4743
7J9600
·6Y3394
·8E4743
15.4
17.9
17.5
20.5
14.7
19.2
R450
R450
R450
R450
R450
R450
9W2451A
9W2452A
9W2452ST
114-0453
4T5451
4T4453
Ripper Tip new design
Ripper Tip new design
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
D8
·D8L
·D8N
·D9H
D9N
·D8K
·D8C
D8
·D8L
·D8N
·D9H
D9N
·D8K
·D8C
D8
·D8L
·D8N
·D9H
D9N
·D8K
·D8C
D8
·D8L
·D8N
·D9H
D9N
·D8K
·D8C
D8K
·D8L
·D8N
D9N
·D9H
D8
·D8L
·D9
·D8N
D9H
·D9N
·D8K
·D8C

39. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-33
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Ripper Tip
R450
R500
R500
R500
R500
4T5452
4T4501
4T4502
4T4502ST
4T4503
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
17
27.2
29
30.5
32
6J8814
6J8814
6J8814
6J8814
6J8814
7J9600
·6J8811
·6Y3394
·8E4743
3G0500
·6Y3909
·4T4707
3G0500
·6Y3909
·4T4707
3G0500
·6Y3909
·4T4707
3G0500
·6Y3909
·4T4707
D8K
·D8L
·D8N
·D9N
·D9H
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
MACHINE
PROTECTOR MACHINE MODEL
PIN/RETAINER
SHANK
7J1791
·7J1792
·7J1793
7J1795
·107-3845
·4T9776
107-3846
·8E5346
·4T1304
4T1305
·4T1306
·8E5340
8E5341
·8E5342
·4T8989
4T0134
·4T8990
·8E5347
8E5340
·7J1794
·8E5345
9W6167
·4T8988
·4T8990
3G6507
·9J5954
·6Y6138
6Y6144
·6Y6141
·8E8414
8E8415
·8E8416
·3G6707
3G5707
·1V4592
·1U4873
6Y4679
·6Y5616
·8E8412
8E8413
·6Y6138
·9W4427
9J5954
·9W8366
·6Y6147
6Y5616
·6Y6141
·8E8411
8E8415
·8E8417
3G6507
·9J5954
·6Y6138
6Y6144
·6Y6141
·8E8414
8E8415
·8E8416
·3G6707
3G5707
·1V4592
·1U4873
6Y4679
·6Y5616
·8E8412
8E8413
·6Y6138
·9W4427
9J5954
·9W8366
·6Y6147
6Y5616
·6Y6141
·8E8411
8E8415
·8E8417
3G6507
·9J5954
·6Y6138
6Y6144
·6Y6141
·8E8414
8E8415
·8E8416
·3G6707
3G5707
·1V4592
·1U4873
6Y4679
·6Y5616
·8E8412
8E8413
·6Y6138
·9W4427
9J5954
·9W8366
·6Y6147
6Y5616
·6Y6141
·8E8411
8E8415
·8E8417
3G6507
·9J5954
·6Y6138
6Y6144
·6Y6141
·8E8414
8E8415
·8E8416
·3G6707
3G5707
·1V4592
·1U4873
6Y4679
·6Y5616
·8E8412
8E8413
·6Y6138
·9W4427
9J5954
·9W8366
·6Y6147
6Y5616
·6Y6141
·8E8411
8E8415
·8E8417

40. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-34
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Ripper Tip
R500
R500
R500
R550
4T5501
4T5502A
4T5502
4T5502VIP
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip Tiger
26.5
29
32
27.5
6J8814
6J8814
6J8814
6J8814
3G0500
·6Y3909
·4T4707
3G0500
·6Y3909
·4T4707
3G0500
·6Y3909
·4T4707
3G0500
·6Y3909
·4T4707
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
MACHINE
PROTECTOR MACHINE MODEL
PIN/RETAINER
SHANK
3G6507
·9J5954
·6Y6138
6Y6144
·6Y6141
·8E8414
8E8415
·8E8416
·3G6707
3G5707
·1V4592
·1U4873
6Y4679
·6Y5616
·8E8412
8E8413
·6Y6138
·9W4427
9J5954
·9W8366
·6Y6147
6Y5616
·6Y6141
·8E8411
8E8415
·8E8417
3G6507
·9J5954
·6Y6138
6Y6144
·6Y6141
·8E8414
8E8415
·8E8416
·3G6707
3G5707
·1V4592
·1U4873
6Y4679
·6Y5616
·8E8412
8E8413
·6Y6138
·9W4427
9J5954
·9W8366
·6Y6147
6Y5616
·6Y6141
·8E8411
8E8415
·8E8417
3G6507
·9J5954
·6Y6138
6Y6144
·6Y6141
·8E8414
8E8415
·8E8416
·3G6707
3G5707
·1V4592
·1U4873
6Y4679
·6Y5616
·8E8412
8E8413
·6Y6138
·9W4427
9J5954
·9W8366
·6Y6147
6Y5616
·6Y6141
·8E8411
8E8415
·8E8417
3G6507
·9J5954
·6Y6138
6Y6144
·6Y6141
·8E8414
8E8415
·8E8416
·3G6707
3G5707
·1V4592
·1U4873
6Y4679
·6Y5616
·8E8412
8E8413
·6Y6138
·9W4427
9J5954
·9W8366
·6Y6147
6Y5616
·6Y6141
·8E8411
8E8415
·8E8417

41. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-35
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Ripper Tip
MACHINE
PROTECTOR MACHINE MODEL
PIN/RETAINER
SHANK
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Ripper Protector
MACHINE
RIPPER TEETH MACHINE MODEL
PIN/RETAINER
SHANK
3G6507
·9J5954
·6Y6138
6Y6144
·6Y6141
·8E8414
8E8415
·8E8416
·3G6707
3G5707
·1V4592
·1U4873
6Y4679
·6Y5616
·8E8412
8E8413
·6Y6138
·9W4427
9J5954
·9W8366
·6Y6147
6Y5616
·6Y6141
·8E8411
8E8415
·8E8417
7T6020
·9W0259
·8E0467
8E1466
·6Y9473
·6Y9473EXT
104-9279
·104-9279EXT
7T6020
·9W0259
·8E0467
8E1466
·6Y9473
·6Y9473EXT
104-9279
·104-9279EXT
7T6020
·9W0259
·8E0467
8E1466
·6Y9473
·6Y9473EXT
104-9279
·104-9279EXT
7T6020
·9W0259
·8E0467
8E1466
·6Y9473
·6Y9473EXT
104-9279
·104-9279EXT
4T5503
R500
R550
R550
R550
R550
9W4551
9W4552
6Y3552
6Y3552A
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip Heavy Dute
46.5
47.5
50
52
9N4621
9N4621
9N4621
9N4621
9W1821
·8E2229
·8E2230
9W1821
·8E2229
·8E2230
9W1821
·8E2229
·8E2230
9W1821
·8E2229
·8E2230
D10N
·D11
·D11N
D10N
·D11
·D11N
D10N
·D11
·D11N
D10N
·D11
·D11N
34.2 6J8814 3G0500
·6Y3909
·4T4707
D9L
·D10
·D10N
D11
·D11N
Ripper Tip
6J8814
132-4716
8E1848
3G9594
9W8365
13.9
23.5
23.7
*
41.5
75
75
75
90
90
7J1792
7J1792
9W6167
3G5707
6Y6138
9w2451
9w2451
9w2451
4T4502
4T4502
7J9600
·6J8811
·6Y3394
·8E4743
7J9600
·6J8811
·6Y3394
·8E4743
7J9600
·6J8811
·6Y3394
·8E4743
3G0500
·1U3630
3G0500
·6Y3909
·4T4707
D8K
·D8L
·D8N
·D9N
·D9H
D8K
·D8L
·D8N
·D9N
·D9H
D8K
·D8L
·D9N
·D9H
D10
·D11
·D11N
D9L
·D10N
CAT-Ripper Proctor
CAT-Ripper Proctor
CAT-Ripper Proctor
CAT-Ripper Proctor
CAT-Ripper Proctor-standard
BLADE SIZE

42. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-36
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Ripper Protector
MACHINE
RIPPER TEETH MACHINE MODEL
PIN/RETAINER
SHANK
9W8365EXT
6Y8960
6Y8960EXT
9N4621
1U3644
6Y-9704
47.5
38.7
56.8
80.3
40.5
55.1
90
100
100
110
90
90
6Y6138
118-2140
118-2140
7T6020
1U3630
1U4873
4T4502
4T4502
4T4502
6Y3552
4T4502
4T4502
3G0500
·6Y3909
·4T4707
3G0500
·6Y3909
·4T4707
3G0500
·6Y3909
·4T4707
9W1821
·8E2229
·8E2230
3G0500
·1U3630
3G0500
·8J4889
D9L
·D10N
D9L
·D10N
D9L
·D10N
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
D9L
·D10
·D10N
·D11
·D11N
CAT-Ripper Proctor-long version
CAT-Ripper Proctor-standard
CAT-Ripper Proctor-long version
CAT-Ripper Proctor
CAT-Ripper Proctor
CAT-Ripper Proctor
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Segment-Casted
MACHINE
MACHINE MODEL
BOLT NUT
4T6694
4T6695
4T6696
4T6699
10.6
12.7
13.8
21
4F4042
·2J3507
4F4042
·2J3507
5P8823
·3K9770
5P8823
·3K9770
950 936
977
970 966
CAT-Segment
CAT-Segment
CAT-Segment
CAT-Segment
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Bucket Protector
MACHINE
MACHINE MODEL
PIN/RETAINER
9J9600
1U0740
8J4143
125-0800
135-8246
166-2877
112-2489
18
22.4
20.2
62
10.2
18.8
18.8
35
52
35
65
25.5
36
32
135-9350
·152-0027
133-0738·107-8559
9J8441
·8E5559
8E4708
·4T4707
135-9292
·114-0359
132-0988
·132-0999
112-2490
·132-0999
980
·988
988
·990
·992
620
·630
·650
·992B
·992C
994
620
·630
·650
·992
330
330
CAT-Protector
CAT-Protector
CAT-Protector
CAT-Protector
CAT-PROTECTOR
CAT-ExcavatorProtectorBlade36mm
CAT-ExcavatorProtectorBlade32mm
963
· 953
· 951
· 941
930
· 926
· 920
BLADE SIZE
BLADE SIZE

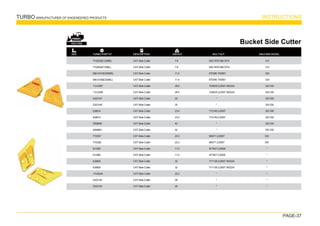

43. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-37
SIZE TURBO PART Nº DESCRIPTION WEIGHT
Bucket Side Cutter
MACHINE
MACHINE MODEL
BOLT NUT
7Y0203(E120BR)
7Y0204(E120BL)
096-4747(E200BR)
096-4748(E200BL)
112-2487
112-2488
2322147
2322148
8J9614
8J9615
2568690
2568691
7Y0357
7Y0358
9J1855
9J1866
8J9825
8J9826
174-8044
2322140
2322140
7.8
7.8
11.4
11.4
26.5
26.5
25
25
23.4
23.4
42
42
20.3
20.3
11.5
11.5
32
32
25.2
26
25
093-7676 096-7074
093-7676 096-7074
8T0380 7X0851
8T0380 7X0851
1D4635 2J3507 3K5234
1D4635 2J3507 3K5234
*
*
7Y2146 2J3507
7Y2146 2J3507
*
*
6I6371 2J3507
6I6371 2J3507
4F7827 2J3506
4F7827 2J3506
7Y1136 2J3507 3K5234
7Y1136 2J3507 3K5234
*
*
*
312
312
320
320
320 330
320 330
320 330
320 330
320 330
320 330
320 330
320 330
330
330
*
*
*
*
*
*
*
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter
CAT-Side Cutter

44. CAT
CAT BUCKET PROTECTION SYSTEM

45. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-38
E
D
C
A
R Kg
TURBO PART Nº TYPE
Hell Shroud
Straight
Curved
Straight
Curved
Curved
Curved
Curved
Curved
Curved
Curved
Curved
Curved
Curved
Curved
R800
R600
R1000
R1000
R1000
R1000
R940
R850
R800
R800
R850
R850
250
250
175
200
110
140
190
240
150
188
188
188
250
250
50
50
40
51
30
40
45
50
50
50
38
32
50
100
270
270
205
222
140
175
230
290
210
250
200
175
300
350
200
200
150
186
110
115
165
220
130
200
150
135
235
235
157-1019
157-1027
138-6529
HS138-6551
HS140-110
HS175-140
HS230-190
HS290-240
ES6697
ES6697-2
ES6697-3
ES6697-4
ES6697-5
ES6697-7
PDE6250
29.8
29.2
13.2
18
4.6
10.6
19.8
40.2
14
22.5
13.8
10.2
40.3
83

46. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-39
E
D
C
A Kg
TYPE
Lip Conner
Centre
Centre
Centre
Left
Right
Centre
Left
Right
Centre
Left
Right
Centre
Left
Right
Centre
Left
Right
40-50
40-50
60-75
60-75
60-75
60-75
60-75
60-75
80-100
80-100
80-100
80-100
80-100
80-100
100-120
100-120
100-120
45
45
66
66
66
73.5
73.5
73.5
95
95
95
95
95
95
115
115
115
95
80
112
112
112
132
132
132
145
145
145
165
165
165
180
180
180
190
205
250
250
250
230
230
230
254
254
254
254
254
254
280
280
280
150
150
250
250
250
250
240
240
360
360
360
360
360
360
320
320
320
TURBO PART Nº
HZ-50-150-23º
HZ-50-150-30º
HZ-70-250-30º
HZ-70-250-30º-L
HZ-70-250-30º-R
HZ-70-250-23º
HZ-70-250L-23º
HZ-70-250R-23º
HZ-90-360-30º
HZ-90-360-30º-L
HZ-90-360-30º-R
HZ-90-360-35º
HZ-90-360-35º-L
HZ-90-360-35º-R
HZ-120-320-30º
HZ-120-320-30º-L
HZ-120-320-30º-R
7.7
7.7
22
23
23
21.5
22.6
22.6
36
37.5
37.5
35
37
37
40
42
42
BLADE SIZE

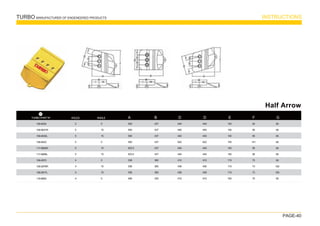

47. ·
TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-40
TURBO PART Nº
Half Arrow
5
5
5
5
5
5
4
4
4
4
0
15
15
0
15
15
0
15
15
0
437
437
437
437
437
437
360
360
360
330
440
440
440
622
440
440
410
436
436
410
140
140
140
140
140
140
115
115
115
100
50
56
56
141
56
56
70
73
73
70
85
85
85
85
85
85
90
100
100
90
109-9030
109-9031R
109-9032L
109-9033
117-6805R
117-6806L
109-2675
109-2676R
109-2677L
119-9600
HOLES ANGLE B
593
593
593
593
633.5
633.5
536
536
536
495
A D
440
440
440
622
440
440
410
436
436
410
D E F G

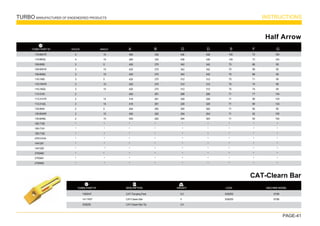

48. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-41
TURBO PART Nº
Half Arrow
4
4
3
3
3
3
3
3
2
2
2
2
2
2
*
*
*
*
*
*
*
*
*
15
15
0
15
15
0
15
15
14
14
0
15
15
*
*
*
*
*
*
*
*
*
330
330
275
275
275
275
275
275
261
261
261
262
262
262
*
*
*
*
*
*
*
*
*
436
436
342
342
342
312
312
312
288
328
328
300
304
304
*
*
*
*
*
*
*
*
*
100
100
75
75
75
75
75
75
71
71
71
71
71
71
*
*
*
*
*
*
*
*
*
73
73
86
89
89
71
74
74
77
99
99
90
55
55
*
*
*
*
*
*
*
*
*
100
100
85
85
85
85
85
85
134
134
134
60
100
100
*
*
*
*
*
*
*
*
*
119-9601R
119-9602L
109-9080
109-9081R
109-9082L
116-7460
116-7461R
116-7462L
113-3140
113-3141R
113-3142L
135-9544
135-9545R
135-9546L
195-7190
195-7191
195-7192
4T8101HA
1441281
1441282
2755460
2755461
2755462
HOLES ANGLE B D E F G
480
480
420
420
420
420
420
420
400
416
416
400
400
400
*
*
*
*
*
*
*
*
*
A
436
436
342
342
342
312
312
312
288
328
328
300
304
304
*
*
*
*
*
*
*
*
*
D
TURBO PART Nº
CAT-Clearn Bar
CAT-Tamping Feet
CAT-Clearn Bar
CAT-Clearn Bar Tip
9.3
5
3.4
3G8250
3G8250
815B
815B
1062047
141-7407
3G8250
DESCRIPTION WEIGHT LOCK MACHINE MODEL

49. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-42
TURBO PART Nº
Bucket Conner Shroud
CAT-Shroud
CAT-Shroud
CAT-Shroud
CAT-Shroud
CAT-Shroud
CAT-Shroud
CAT-Shroud
CAT-Shroud
CAT-Shroud
CAT-Shroud
6.2
6.2
8.7
8.7
9
9
5.2
5.2
7
7
938
938
938
938
977
977
953
953
950
950
105-2345
105-2345
110-4712
110-4712
6W2983
6W2983
9V6570
9V6570
9V6573
9V6573
1U0257
·3G4259/8
1U0257
·3G4259/8
1U0257
·3G4259/8
1U0257
·3G4259/8
3G3357
·3G5359/8
3G3357
·3G5359/8
1U0257
·3G4259/8
1U0257
·3G4259/8
4T4307
·8E5309/8
4T4307
·8E5309/8
618310
618311
8J7210
8J7211
4V7174
4V7175
4V1544
4V1545
8E5300
8E5301
DESCRIPTION WEIGHT MACHINE MODEL BASE EDGE ADAPTERS
TURBO PART Nº
Bucket Side Bar Proection
CAT-Side Bar Proection
CAT-Side Bar Proection
CAT-Side Bar Proection
CAT-Side Bar Adapter
CAT-Side Bar Adapter
CAT-Side Bar Adapter
20.8
31
40
5.4
5.7
5.8
VS450
VS500
VS550
VSM100WN
VSM200WN
VSM150WN
DESCRIPTION WEIGHT MACHINE MODEL

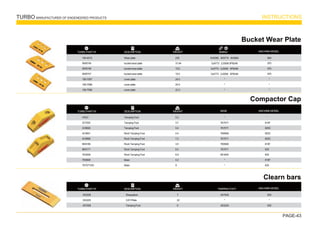

50. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-43
TURBO PART Nº
Bucket Wear Plate
100-4015
9W6749
9W6748
9W6747
195-7097
195-7098
195-7096
Wear plate
bucket wear plate
bucket wear plate
bucket wear plate
cover plate
cover plate
cover plate
235
31.64
19.2
19.2
24.5
24.5
22.3
6V8360
·3K9770
·4K0684
5J4773
·2J3506 5P8248
5J4773
·2J3506
·5P8248
5J4773
·2J3506
·5P8248
*
*
*
994
970
970
970
*
*
*
DESCRIPTION WEIGHT Bolt/Nut MACHINE MODEL
TURBO PART Nº
Clearn bars
3S3228
3S3225
4S7928
Sheepsfoot
CAT-Plate
Tamping Foot
7
22
6
4S7928
*
3S3228
835
*
835
DESCRIPTION WEIGHT TAMPING FOOT MACHINE MODEL
TURBO PART Nº
Compactor Cap
47021
2V7053
2V6628
4V3851
4V0668
8K9189
8K9171
7K2939
7K6908
7K7071HD
Tamping Foot
Tamping Foot
Tamping Foot
Rock Tamping Foot
Rock Tamping Foot
Rock Tamping Foot
Rock Tamping Foot
Rock Tamping Foot
Base
Base
5.3
3.7
5.4
4.4
7.2
3.5
6.4
6.9
4.2
9
*
7K7071
7K7071
7K6908
7K7071
7K6908
7K7071
9S1645
*
*
*
815F
825C
825C
825C
815F
835
835
815F
835
DESCRIPTION WEIGHT MACHINE MODEL
BASE

51. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-44
TURBO PART Nº
Router Bits
4J8665
7J3023
4T0668
15002210
15002211
220-9150
8F7232
9F1831
1J3599
4T4336
Router Bits-Standard
Router Bits-Heavy duty
Router Bits
Router Bits
Router Bits
Router Bits
Router Bits
Router Bits
Router Bits
Router Bits
25
35.8
40.2
34
34
58
*
*
*
*
4F4042 2J3507
4F4042 2J3507
5P8823 3K9770 4K0684
5J4773 2J3506
4F3654 4K0367
5J4771 5J4771 2J3506
8S9092 4K0367 5P8247
80
60
491 470
613
666 651
666 651
657
DESCRIPTION WEIGHT Bolt/Nut MACHINE MODEL
TURBO PART Nº
End bit-Casted
6Y4410
6Y4411
4T3051
4T3052
3G8319
3G8320
3G8301
3G8302
4J8261
4J8262
4J8443
4J8844
8E4193
8E4194
8E4196
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
27
27
9
9
19
19
34.5
34.5
16
16
25.2
25
60.2
60.2
75.8
DESCRIPTION WEIGHT MACHINE MODEL

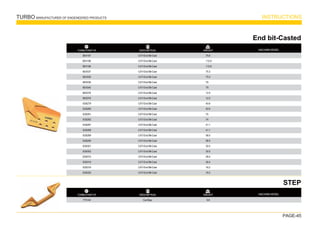

52. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-45
TURBO PART Nº
End bit-Casted
8E4197
8E4198
8E4199
8E4537
8E4538
8E4539
8E4540
8E9378
8E9379
3G8279
3G8280
3G8281
3G8282
3G8287
3G8288
3G8289
3G8290
3G8301
3G8302
3G8315
3G8316
3G8319
3G8320
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
CAT-End Bit-Cast
75.8
112.8
112.8
75.3
75.3
79
79
12.5
12.5
40.6
40.6
74
74
41.1
41.1
58.5
58.5
30.5
30.5
26.4
26.4
16.2
16.2
DESCRIPTION WEIGHT MACHINE MODEL
TURBO PART Nº
STEP
7T5140 Cat-Step 9.6
DESCRIPTION WEIGHT MACHINE MODEL

53. KOMATSU
TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014

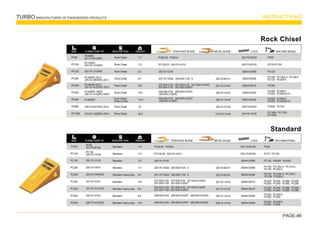

54. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-46
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC60
PC100
PC120
PC200
PC300
PC400
PC400
PC650
PC1250
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
1.7
2.5
5.3
5.5
8.8
13.6
14.9
32
54.5
PC60-20
·PC60-A
PC100-25
·20X-70-14151
202-70-12140
20Y-70-14520
·205-939-7120
（A） 205-70-68141
207-70-14142
208-70-14143
208-70-14143
209-70-74140
21N-70-14140
20X-70-00150
20X-70-00100
09244-02489
09244-02496
09244-02516
09244-03036
09244-03036
209-70-54240
21N-72-14330
PC60
PC70 PC100
PC120
STRATGHIT BLADE BEVEL BLADE LOCK MACHINE MODEL
PC60RC
201-70-24140RC
PC100RC
20X-70-14160RC
PC200RC-2013
205-70-19570RC-2013
PC300RC-2013
207-70-14151RC -2013
PC400RC -NEW
208-70-14152RC-NEW
PC450RC
209-70-54210RC-2014
21N-72-14290RC-2014
202-70-12130RC
Rock Chisel－
(Heavy Dute)
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120
·207-939-3120ST
208-939-3120
·208-939-3120ST
208-939-3120HD
208-939-3120
·208-939-3120ST
208-939-3120HD
PC100
·PC100L-5
·PC120-5
PC130
·PC200-5
PC1000
·PC1100
PC1200
PC300
PC400
·PC400-5
PC450
·PC450(ᯠⅮ
PC400
·PC400-5
PC450
·PC450(ᯠⅮ)
PC650
·PC750
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC60
PC100
PC120
PC200
PC200
PC300
PC300
PC400
PC400
Standard
Standard
Standard
Standard
Standard
Standard -heavy duty
Standard
Standard -heavy duty
Standard
Standard -heavy duty
1.8
2.3
4.2
4.1
4.5
6.6
6.8
9.5
10.2
PC60-20
·PC60-A
PC100-25
·20X-70-14151
202-70-12140
20Y-70-14520
·205-939-7120
（A）
20Y-70-14520
·205-939-7120
（A）
205-70-68141
205-70-68141
207-70-14142
207-70-14142
208-70-14143
208-70-14143
20X-70-00150
20X-70-00100
09244-02489
09244-02496
09244-02496
09244-02516
09244-02516
09244-03036
09244-03036
PC60
PC70
·PC100
PC120
·WA300
·WA320
MACHINE MODEL
PC60
201-70-24140
PC100
20X-70-14160
202-70-12130
205-70-19570
205-70-19570HD
207-70-14151
207-70-14151HD
208-70-14152
208-70-14152HD
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120
·207-939-3120ST
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120
·207-939-3120ST
208-939-3120
·208-939-3120ST
·208-939-3120HD
208-939-3120
·208-939-3120ST
·208-939-3120HD
PC100
·PC100L-5
·PC120-5,
PC130
·PC200-5
PC100
·PC100L-5
·PC120-5,
PC130
·PC200-5
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
PC450
·PC450
PC400
·PC400-5
PC450
·PC450
STRATGHIT BLADE BEVEL BLADE LOCK

55. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-47
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC650
PC1250
Standard
Standard
Standard
28
43
209-70-74140
21N-70-14140
209-70-54240
21N-72-14330
PC650
·PC750
PC1000
·PC1100
·PC1200
MACHINE MODEL
209-70-54210
21N-72-14290
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC200
PC300
PC400
Short Rock Chisel
Short Rock Chisel
Short Rock Chisel
Short Rock Chisel
4.9
8
12.5
205-70-68141
207-70-14142
208-70-14143
09244-02496
09244-02516
09244-03036
MACHINE MODEL
205-70-19570TR
207-70-14151TR
208-70-14152TR
20Y-70-14520
·205-939-7120
（A）
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120
·207-939-3120ST
208-939-3120
·208-939-3120ST
208-939-3120HD
PC100
·PC100L-5
·PC120-5,
PC130
·PC200-5
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
PC450
·PC450
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC200
PC300
PC400
Rock Chisel Heavy
Rock Chisel Heavy
Rock Chisel Heavy
Rock Chisel Heavy
6.6
10.5
16
205-70-68141
207-70-14142
208-70-14143
09244-02496
09244-02516
09244-03036
MACHINE MODEL
205-70-19570RCHD
207-70-14151RCHD
208-70-14152RCHD
PC100
·PC100L-5
·PC120-5,
PC130
·PC200-5
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
PC450
·PC450
20Y-70-14520
·205-939-7120
（A）
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120
·207-939-3120ST
208-939-3120
·208-939-3120ST
208-939-3120HD
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC200
PC300
PC300
PC400
Heavy Dute Standard
Heavy dute standard
Heavy dute standard
Heavy dute standard
Heavy dute standard
6.2
8.7
9.3
14
205-70-68141
207-70-14142
207-70-14142
208-70-14143
09244-02496
09244-02516
09244-02516
09244-03036
MACHINE MODEL
205-70-68260
207-70-14280
207-70-14280HD
208-70-14270
PC400
·PC400-5
PC450
·PC450
20Y-70-14520
·205-939-7120
（A）
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120
·207-939-3120ST
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120
·207-939-3120ST
208-939-3120
·208-939-3120ST
·2208-939-3120HD
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC100
·PC100L-5
·PC120-5,
PC130
·PC200-5
STRATGHIT BLADE BEVEL BLADE
BEVEL BLADE
LOCK
STRATGHIT BLADE LOCK
BEVEL BLADE
STRATGHIT BLADE LOCK
BEVEL BLADE
STRATGHIT BLADE LOCK

56. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-48
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC200
PC300
PC400
PC400
PC650
PC1250
PC200TL
PC300TL
PC400TL
PC400TL
PC650TL
PC1200TL
Tiger Long
Tiger Long
Tiger Long
Tiger Long
Tiger Long-light dute
Tiger Long
Tiger Long
5
8.4
12.4
11.4
27.3
44
205-70-68141
207-70-14142
208-70-14143
208-70-14143
209-70-74140
21N-70-14140
09244-02496
09244-02516
09244-03036
09244-03036
209-70-54240
21N-72-14330
MACHINE MODEL
20Y-70-14520
·205-939-7120
（A）
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120 207-939-3120ST
208-939-3120
·208-939-3120ST
208-939-3120HD
208-939-3120
·208-939-3120ST
208-939-3120HD
PC100
·PC100L-5
·PC120-5
PC130
·PC200-5
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
PC450
·PC450
PC400
·PC400-5
PC450
·PC450
PC650
·PC750
PC1000
·PC1100
·PC1200
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC200
PC300
PC400
PC650
Tiger Long-Central sharp
Tiger Long
Tiger Long
Tiger Long
Tiger Long
5
8
13.1
28
205-70-68141
207-70-14142
208-70-14143
209-70-74140
09244-02496
09244-02516
09244-03036
209-70-54240
MACHINE MODEL
20Y-70-14520
·205-939-7120
（A）
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120
·207-939-3120ST
208-939-3120
·208-939-3120ST
208-939-3120HD
PC100
·PC100L-5
·PC120-5
PC130
·PC200-5
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
PC450
·PC450-LC
PC650
·PC750
PC200VIP
205-70-19570VIP
PC300VIP
207-70-14151VIP
PC400VIP
208-70-14152VIP
PC650VIP
209-70-54210VIP
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC200
PC300
PC400
Symmetrical
Symmetrica
Symmetrical
Symmetrical
205-70-19570SYL
207-70-14151SYL
208-70-14152SYL
4.15
7.8
11.6
205-70-68141
207-70-14142
208-70-14143
09244-02496
09244-02516
09244-03036
MACHINE MODEL
20Y-70-14520
·205-939--7120
（A）
207-939-3120
·207-939-5120
·207-939-3120HD
207-934-7120
·207-939-3120ST
208-939-3120
·208-939-3120ST
208-939-3120HD
PC100
·PC100L-5
·PC120-5
PC130,PC200-5
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
PC450
·PC450
BEVEL BLADE
STRATGHIT BLADE LOCK
BEVEL BLADE
STRATGHIT BLADE LOCK
BEVEL BLADE
STRATGHIT BLADE LOCK

57. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-49
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC60
PC100
PC200
PC300
PC400
20X-70-23161(25S)
203-70-43150(30S)
205-70-74272(35S)
206-70-54221(40S)
208-70-34211(45S)
ESCO standard Komatsu
ESCO standard
ESCO standard
ESCO standard
ESCO standard
ESCO standard
2.3
2.5
4.3
7.5
10.1
25-30PN
·25-30LK
25-30PN
·25-30LK
35-PN
·35-LK
40-PN
·40-LK
45-PN·45-LK
PC60
PC70 PC100
MACHINE MODEL
20X-70-23150-25
855-30
3807-35
3809-40
208-70-34220
PC100
·PC100L-5
·PC120-5
PC130
·PC200-5
PC220
·PC240
·PC280
·PC290
PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
PC450
·PC450LC
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
WA300
WA380
WA500
WA700
WA800
202-70-12130
423-847-1140
426-847-1110
427-70-13731
427-70-13780
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
4.2
8.6
12.5
31
50
09244-02496
09244-02516
09244-03036
427-70-13790
427-70-13790
WA300
·WA320
WA380
·WA400
·WA420
·WA450
WA500
·WA600
WA700
·WA800
·WA900
WA700
·WA800
·WA900
MACHINE MODEL
419-847-1111
423-847-1111
426-847-1121
427-70-13743
427-70-13743
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
WA130
WA130
417-70-13261
417-70-13271
417-70-13251
418-70-13160
Fork Loader
komatsu- fork teeth
komatsu- fork teeth
komatsu- fork teeth
Fork Tip Loader
Fork Tip Loader
7
10.9
30
30
423-70-13180
·02290-11422
423-70-13180
·02290-11422
WA120
WA120
WA120
WA180
·WA200
·WA250
WA180
·WA200
·WA250
Machine Model
BLADE SIZE
418-70-13150
（417-70-B1390)
BEVEL BLADE
STRATGHIT BLADE LOCK
BEVEL BLADE
STRATGHIT BLADE LOCK
LOCK

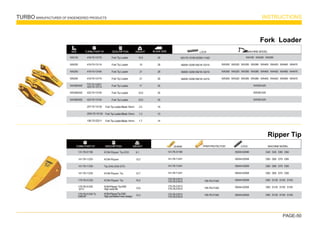

58. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-50
WEIGHT
TURBO PART Nº DESCRIPTION
131-78-31190
141-78-11253
141-78-11330
141-78-11254
175-78-31230
Ripper Tip
KOM-Ripper Tip-D30
KOM-Ripper
Tip-D40-D50-D70
KOM-Ripper Tip
KOM-Ripper Tip
09244-02496
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
D40
·D45
·D50
·D60
D60
·D65
·D75
·D85
D60
·D65
·D75
·D85
D60
·D65
·D75
·D85
D85
·D135
·D150
·D155
D85
·D135
·D150
·D155
D85
·D135
·D150
·D155
RIPPER PROTECTOR LOCK MACHINE MODEL
131-78-31180
141-78-11241
141-78-11241
141-78-11241
195-78-21320
195-78-21320
195-78-21320
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
WA130
WA250
WA250
WA250
WA380/420
WA380/420
WA380/420
418-70-13170
419-70-13114
419-70-13164
419-70-13174
423-70-13154
423-70-13144
20T-70-13130
20W-70-15130
10E-70-22211
Fork Loader
Fork Tip Loader
Fork Tip Loader
Fork Tip Loader
Fork Tip Loader
Fork Tip Loader
Fork Tip Loader
Fork Tip Loader
ForkTipLoader-Blade16mm
ForkTipLoader-Blade10mm
ForkTipLoader-Blade14mm
10.9
15
21
21
17
23.5
23.5
2.5
1.3
1.7
30
28
28
28
35
35
35
16
10
14
423-70-13180 02290-11422
09208-12290 09218-12219
09208-12290 09218-12219
09208-12290 09218-12219
WA180
·WA200
·WA250
WA300
·WA320
·WA350
·WA380
·WA400
·WA420
·WA460
·WA470
WA300
·WA320
·WA350
·WA380
·WA400
·WA420
·WA460
·WA470
WA300
·WA320
·WA350
·WA380
·WA400
·WA420
·WA460
·WA470
WA350.420
WA350.420
WA350.420
MACHINE MODEL
BLADE SIZE
77Z-70-10201
423-70-13114
SHANK
175-78-31230
2013
KOM-Ripper Tip-D85
High wear life
175-78-21613
175-78-21614
175-78-21613
175-78-21614
175-78-21613
175-78-21614
KOM-RipperTip-D85
High pentration-new design
175-78-31230 TL
D85VIP
9.1
12.2
＊
12.7
15.2
13.9
13.3
LOCK

59. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-51
WEIGHT
TURBO PART Nº DESCRIPTION
175-78-34131
175-78-61660
175-78-31293
175-78-34141
175-78-61670
175-78-31231
195-78-21331
195-78-29130
195-78-71440
195-78-29140
195-78-71450
195-78-21333
195-78-71140
195-78-71240
195-78-71250
195-78-71260
195-78-71420
195-78-71320
195-78-71370
195-78-71340
195-78-71350
195-78-71300
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip-D155-D255
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip-D350
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
Ripper Tip
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
D85
·D135
·D150
·D155
D85
·D135
·D150
·D155
D85
·D135
·D150
·D155
D85
·D135
·D150
·D155
D85
·D135
·D150
·D155
D85
·D135
·D150
·D155
D275
·D355
·D455
D275
·D355
·D455
D275
·D355
·D455
D275
·D355
·D455
D275
·D355
·D455
D275
·D355
·D455
D375-A
D375-A
D375-A
D375-A
D375-A
D375-A
RIPPER PROTECTOR LOCK MACHINE MODEL
SHANK
＊
＊
15.4
＊
＊
＊
16
＊
＊
21.8
＊
＊
＊
＊
＊
＊
＊
26
＊
＊
＊
＊
175-78-21613
175-78-21614
175-78-21613
175-78-21614
175-78-21613
175-78-21614
175-78-21613
175-78-21614
175-78-21613
175-78-21614
175-78-21613
175-78-21614
195-79-31140
195-79-41190
195-79-31140
195-79-41190
195-79-31140
195-79-41190
195-79-31140
195-79-41190
195-79-31140
195-79-41190
195-79-31140
195-79-41190
195-78-21320
195-78-21580
195-78-21320
195-78-21580
195-78-21320
195-78-21580
195-78-21320
195-78-21580
195-78-21320
195-78-21580
195-78-21320
195-78-21580
195-78-71120
195-78-71120
195-78-71120
195-78-71120
195-78-71120
195-79-51110
195-79-51110
195-79-51110
195-79-51110
195-79-51110
195-78-21320
195-78-21320
195-78-21320
195-78-21320
195-78-21320
195-78-21320
195-78-71111
195-78-71111
195-78-71111
195-78-71111
195-78-71111
195-78-72410
195-78-72410
195-78-72410
195-78-72410
195-78-72410

60. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-52
WEIGHT
TURBO PART Nº DESCRIPTION
198-79-11560
198-79-11551
198-78-21420
198-78-21340RPL
198-78-21350
198-78-21380
KOM-Ripper Tip
KOM-Ripper Tip
KOM-Ripper Tip
KOM- Ripper Tip-D470
KOM- Ripper Tip
KOM- Ripper Tip
198-79-11630
198-79-11630
198-78-21340
198-78-21340
198-78-21340
198-78-21340
Ripper Tip
09244-03036
09244-03036
09244-03036
09244-03036
09244-03036
09244-03036
D455
D455
D475-A
D475-A
D475-A
D475-A
RIPPER PROTECTOR LOCK MACHINE MODEL
SHANK
＊
＊
＊
44
＊
＊
198-79-11640
198-79-11640
198-78-21330
198-78-21330
198-78-21330
198-78-21330
WEIGHT
TURBO PART Nº DESCRIPTION
195-78-21320
195-78-21580
195-78-21580HD
195-78-71111-B
195-78-72410
198-78-21330
KOM-Dozer Protector
KOM- Dozer Protector
KOM- Dozer Protector-Long version
KOM-Dozer Protector
KOM- Dozer Protector
KOM-Dozer Protector
Dozer Protector
09244-02508
09244-02508
09244-02508
09244-02508
09244-02508
09244-03036
D85
·D135
·D150
·D155
·D275
·D355
·D455
D275
·D355
·D455
D275
·D355
·D455
D375-A(NEW)
D375-A
D475-A
LOCK MACHINE MODEL
15.4
23.6
30
21.3
52.8
42
75
75
75
75
80
85
BLADE SIZE
WEIGHT
TURBO PART Nº DESCRIPTION
209-70-54610(4006)
208-934-7131
KOM-Excavator Protector
KOM-Excavator Protector
Excavator Protector
PC300
PC400 PC400-5 PC450
MACHINE MODEL
28
14
*
40
BLADE SIZE

61. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-53
WEIGHT
TURBO PART Nº DESCRIPTION
201-70-74170 L
201-70-74171 R
21K-70-14180
21K-70-14190
PC100L
PC100R
202-70-63160L
202-70-63171R
205-70-74180 L
205-70-74190 R
207-70-34160 L
207-70-34170 R
208-70-34160 L
208-70-34170 R
KOM- Side Cutter-PC60
KOM-Side Cutter-PC60
Side cutter
Side cutter
KOM-Side Cutter-PC100
KOM-Side Cutter-PC100
KOM-Side Cutter-PC120
KOM-Side Cutter-PC120
KOM- Side Cutter-PC200
KOM- Side Cutter-PC200
KOM- Side Cutter-PC300
KOM-Side Cutter-PC300
KOM-Side Cutter-PC400
KOM-Side Cutter-PC400
Bucket Side Cutter
PC70
·PC100
·PC60
PC70
·PC100
·PC60
PC100
·PC120
PC100
·PC120
PC120
·WA300
·WA320
PC120
·WA300
·WA320
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC400
·PC400-5PC450
·PC450LC
PC400
·PC400-5PC450
·PC450LC
MACHINE MODEL
5.7
5.7
11.3
11.3
7.3
7.3
7.5
7.5
14.8
14.8
15.7
15.7
22.7
22.7
WEIGHT
TURBO PART Nº DESCRIPTION
208-934-Z170
209-939-5170
KOM-Blade Protector
KOM-Blade Protector
Bucket Protector
MACHINE MODEL
2.8
4

62. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-54
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC60
PC60
PC100
PC100
PC120
PC200
PC200
PC200
PC200
PC200
PC300
PC300
PC300
PC300
PC400
PC400
PC400
PC60 Adapter
PC60 Adapter
PC100-25
20X-70-14151
202-70-12140
20Y-70-14520
205-939-7120
205-939-7120
205-939-7120
205-939-7120
206-939-5120
207-939-3120
207-939-3120ST
207-939-3120ST
208-939-3120ST
208-939-3120ST
208-939-3120ST
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
2.4
2.3
2.8
2.8
6.8
7.25
6.6
7.5
7.6
7.8
10.2
14.3
13.4
13.2
23.7
23.2
22.8
16
20
25
18
25
35
32
40
35
32
40
40
40
45
50
55
60
PC60
PC60
PC100
PC100
202-70-12130
202-70-12130
202-70-12130
202-70-12130
202-70-12130
202-70-12130
207-70-14151
207-70-14151
207-70-14151
207-70-14151
207-70-14152
207-70-14152
207-70-14152
20X-70-00150
20X-70-00150
20X-70-00100
20X-70-00100
09244-02489
09244-02496
09244-02496
09244-02496
09244-02496
09244-02496
09244-02516
09244-02516
09244-02516
09244-02516
09244-03036
09244-03036
09244-03036
PC60
PC60
PC70
·PC100
PC70
·PC100
PC120
·WA300
·WA320
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5
PC100
·PC100L-5 PC120-5, PC130,PC200-5
PC100
·PC100L-5 PC120-5, PC130,PC200-5
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
·PC450
·PC450-LC
PC400
·PC400-5
·PC450
·PC450-LC
PC400
·PC400-5
·PC450
·PC450-LC
PIN MACHINE MODEL
BLADE SIZE TEETH

63. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-55
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC200
PC200
PC200
PC300
PC300
PC300
PC400
PC400
20Y-939-1180
20Y-939-1180
20Y-939-1180
207-934-7120
207-934-7120
207-939-3120HD
208-939-3120HD
208-939-3120HD
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
9.2
9
9.1
18.8
18.8
14.3
26.1
26.1
32
35
40
55
60
50
55
60
202-70-12130
202-70-12130
202-70-12130
207-70-14151
207-70-14151
207-70-14151
207-70-14152
207-70-14152
09244-02496
09244-02496
09244-02496
09244-02516
09244-02516
09244-02516
09244-03036
09244-03036
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
·PC450
·PC450-LC
PC400
·PC400-5
·PC450
·PC450-LC
PIN MACHINE MODEL
BLADE SIZE TEETH
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC200
PC300
PC400
PC600
PC1000
205-70-68141
207-70-14142
208-70-14143
209-70-74140
21N-70-14140
Excavator Adapter- Belvel
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
Excavator Adapter Heavy
7.5
14.8
21.3
44.5
76.8
40
50
65
80
90
205-70-19570
207-70-14151
207-70-14151
209-70-54210
21N-70-14520
09244-02496
09244-02516
09244-03036
209-70-54240
21N-72-14330
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC650
·PC750
PC1000
·PC1100
·PC1200
PIN MACHINE MODEL
BLADE SIZE TEETH

64. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-56
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC60
PC100
PC200
PC300
PC400
20X-70-23150(3806-25)
203-70-43150(3807-30)
20Y-70-14180(3808-35)
206-70-54221(3809-40)
208-70-34211(3810-45)
Excavator Adapter- ESCO
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
5.5
7.5
6.6
11.4
25
30
35
40
45
20X-70-23161(25S)
203-70-43150(30S)
205-70-74272(35S)
206-70-54221(40S)
208-70-34211(45S)
25-30PN 25-30LK
25-30PN 25-30LK
35-PN 35-LK
40-PN 40-LK
45-PN 45-LK
PC60
PC70
·PC100
PC100
·PC100L-5
·PC120-5
·PC130
·PC200-5 ᯠⅮ$
PC220
·PC240
·PC280
·PC290
·PC300
·PC340
·PC360
·PC380
PC400
·PC400-5
·PC450
·PC450LC
PIN MACHINE MODEL
TEETH
BLADE SIZE
SIZE WEIGHT
TURBO PART Nº DESCRIPTION
PC200
PC250
WA300
WA300
WA300
WA420
WA420
WA420
WA500
WA500
WA250
WA500
WA500
417-847-1140
418-847-1120
419-847-1111
419-847-1121
419-847-1131
423-847-1111
423-847-1121
423-847-1131
426-847-1121
427-70-13743
202-70-12140
423-847-1110
426-847-1121
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
Loader Adapter
*
*
10.5
9.75
9.75
15.9
15.9
15.9
25.2
44
6.8
18
23.8
20
20
25
25
25
35
35
35
35
70
35
35
60
201-70-24140
20X-70-14160
202-70-12130
202-70-12130
202-70-12130
423-847-1140
423-847-1140
423-847-1140
426-847-1110
427-70-13780
202-70-12130
423-847-1140
426-847-1110
25-30PN
25-30LK
25-30PN
25-30LK
35-PN 35-LK
40-PN 40-LK
45-PN 45-LK
WA100
·WA120
·WA150
WA180
·WA200
·WA250
WA300
·WA320
WA300
·WA320
WA300
·WA320
WA380
·WA400
·WA420
·WA450
WA380
·WA400
·WA420
·WA450
WA380
·WA400
·WA420
·WA450
WA500
·WA600
WA500
·WA600
WA500
·WA600
WA380
·WA400
·WA420
·WA450
WA500
·WA600
PIN MACHINE MODEL
TEETH
BLADE SIZE

65. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-57
SUPER V SYSTEM
SUPER Vzahnsystem
Light Construction
β β
STD HD
Tonne
XHD
Tonne
STD HD
Tonne
XHD
Tonne
Breakout force 3.6 2.9 5.9
Machine Weight 3.4 5.9 4.5
Breakout force 5.3 4.2 8.7
Machine Weight 5.4 8.7 6.8
Breakout force 7 5.6 11.5
Machine Weight 10 7.6 11.5
Construction
STD HD
Tonne
XHD
Tonne
STD HD
Tonne
XHD
Tonne
Breakout force 10.1 8.1 16.7
Machine Weight 15.7 12 16.7
Breakout force 13.2 10.5 25
Machine Weight 21.7 16.3 25
Breakout force 17 13.5 32.6 25
Machine Weight 29.4 22.1 33.8
Breakout force 21.8 17.4 39.9
Machine Weight 39.9 30.2 46.9
LIGHT
CONSTRUCTION
V13
V17
V19
V29
V23
V33
CONSTRUCTION
V39

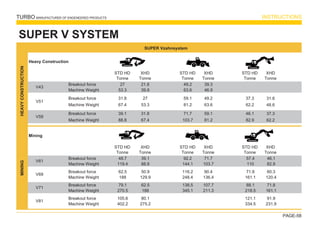

66. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-58
SUPER Vzahnsystem
Heavy Construction
STD HD
Tonne
XHD
Tonne
STD HD
Tonne
XHD
Tonne
STD HD
Tonne
XHD
Tonne
Breakout force 27 21.8 49.2 39.3
Machine Weight 53.3 39.9 63.6 46.9
Breakout force 31.8 27 59.1 49.2 37.3 31.6
Machine Weight 67.4 53.3 81.2 63.6 62.2 48.6
Breakout force 39.1 31.8 71.7 59.1 46.1 37.3
Machine Weight 88.8 67.4 103.7 81.2 82.9 62.2
Mining
STD HD
Tonne
XHD
Tonne
STD HD
Tonne
XHD
Tonne
STD HD
Tonne
XHD
Tonne
Breakout force 48.7 39.1 92.2 71.7 57.4 46.1
Machine Weight 119.4 88.8 144.1 103.7 110 82.9
Breakout force 62.5 50.9 116.2 90.4 71.8 60.3
Machine Weight 188 129.9 248.4 136.4 161.1 120.4
Breakout force 79.1 62.5 138.5 107.7 88.1 71.8
Machine Weight 270.5 188 345.1 211.3 218.5 161.1
Breakout force 105.6 80.1 121.1 91.9
Machine Weight 402.2 275.2 334.5 231.9
HEAVY
CONSTRUCTION
V43
V51
V59
V69
V71
V81
MINING
V61
SUPER V SYSTEM

67. ESCO-SUPER-V
TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014

68. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-59
SUPER V Teeth for excavators
SYL RYL SDX
SHV VY (VYH) TVY (TVYH)
SYL means a standard tooth with a long Y-
shaped rib for excavator buckets. Its
symmetrical design allows us to keep the
profile always sharp for best penetration. The
Y-shaped rib makes it a very robust product,
with plenty of wear metal. It is the best
choice for general applications.
RYL is a tooth with Y-shaped rib for rocky
grounds. This short tooth is most suitable for
high-impact rock applications or any
application where violent thrusts cause
longer teeth to break.
SHV stands for Sharp, Heavy, V-shaped rib.
It is suitable for extreme or abrasive
applications, where more wear metal is
required.
VY is V-shaped tooth with a non-symmetrical
Y-shaped rib. It is used when maximum
penetration is needed, such as in frozen
ground or argillite. It has a longer lifespan
than teeth of other shapes and stays sharp
for longer. The model VYH offers higher
robustness than the VY one.
TVY is a Twin, V-shaped tooth, with non-
symmetrical Y-shaped rib and excellent
penetration capacity. It has been conceived
to be used in angular position with VY teeth,
with a view to making clearance for the
bucket. The TVYH is the most robust
version.
SDX is a sharp Delta-shaped tooth. The
chisel tip allows better penetration, while
offering a more robust product and more
wear metal than the VY shape.
SUPER
V
ZAHNFORMEN
FÜR
BAGGER

69. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-60
SUPER V Teeth for excavators
FLARED TYLCE
Sunk and tapered tooth for cleaning jobs.
Excellent for ditches and foundation work.
CE means Continuous Edge. The cavity of
the tooth does not have a screw shape, so
that it can be mounted without being rotated
over the nose and so that a blade can be
welded on to it resulting in a continuous edge
bucket suitable to clear-up open spaces,
flatten the ground and dig evenly.
6
UPER
V
ZAHNFORMEN
FÜR
BAGGERR

70. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-61
Teeth for loaders
TYL AD ADH
AR-ARL AG ARH
TYL is a two-way tooth, with Y-shaped rib
and a long tip. It is used for adherence to
level ground (without furrows) in standard
applications. The upper part can be rotated
downwards for a more energetic digging.
The non-symmetrical shape is ideal to
replace the long CAT tooth.
AD is a Delta-shaped FEL tooth for
extremely abrasive applications requiring the
maximum penetration. It is an optimum
choice for quarry work.
Robust shape, specifically designed to be
used on a quarry Loadmaster. The wide
wear shoe guarantees an even quarry floor
and long wear (only available in size V43).
AR is a FEL tooth for Rocky and highly
Abrasive applications. It offers added wear
metal for a longer life and better cost-
effectiveness. The ARL version is available
in various sizes.
AG is a General Abrasion tooth, with a wide
base to guarantee maximum strength in
heavy-duty applications. Its slender contours
offer very good penetration.
ARH has been specifically developed for
abrasive applications such as the handling
of Hot Slag. ARH has a sturdy base, thicker
ear flaps and a thicker cavity wall for better
adherence to the nose even in the most
demanding applications. It can be used in a
range of applications, apart from the
handling of hot slag, requiring a higher
amount of wear metal.
6
UPER
V
ZAHNFORMEN
FÜR
BAGGERR

71. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-62
Teeth for loaders
TYLCE
CE means Continuous Edge. The cavity of
the tooth does not have a screw shape, so
that it can be mounted without being rotated
over the nose and so that a blade can be
welded on to it resulting in a continuous edge
bucket suitable to clear-up open spaces,
flatten the ground and dig evenly.
6
UPER
V
ZAHNFORMEN
FÜR
BAGGERR

72. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-63
WEIGHT
TURBO PART Nº DESCRIPTION
V13SYL
V17SYL
V18SYL
V19SYL
V23SYL
V29SYL
V33SYL
V39SYL
V43SYL
V51SYL
V61SYL
Super V-General Purpose Long CL
Super V-General Purpose Long CL
Super V--General Purpose Long CL
Super V-General Purpose Long CL
Super V-General Purpose Long CL
Super V-General Purpose Long CL
Super VL-General Purpose Long CL
Super V-General Purpose Long CL
Super V-General Purpose Long CL
Super V-General Purpose Long CL
Super V-General Purpose Long CL
General Purpose Long CL
V13
V17
V18
V19
V23
V29
V33
V39
V43
V51
V61
Machine Model
0.8
1.2
1.7
2.3
3.1
4.4
6.8
9.6
13
16.8
24
833-V13
833-V17
833-V19
3870-V23
8833-V29
3872A-V33
3892-V39
8837-V43
8814-V51
3811-V61
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V29RYL
V33RYL
V39RYL
V43RYL
V51RYL
V59RYL
V61RYL
V69RYL
V71RYL
V81RYL
Super V-Standard Rock CL
Super V-Standard Rock CL
Super V-Standard Rock CL
Super V-Standard Rock CL
Super V-Standard Rock CL
Super V-Standard Rock CL
Super V-Standard Rock CL
Super V-Standard Rock CL
Super V-Standard Rock CL
Super V-Standard Rock CL
Standard Rock CL
V29
V33
V39
V43
V51
V59
V61
V69
V71
V81
Machine Model
4.5
6.3
9
12
15
20
22
37.5
44
70
8833-V29
3872A-V33
3892-V39
8837-V43
8814-V51
8811-V59
3811-V61
6803-V69
5897-V71
6806-V81
ADAPTER PIN

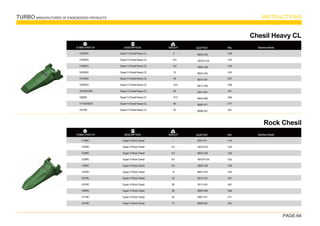

73. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-64
WEIGHT
TURBO PART Nº DESCRIPTION
V29SDX
V33SDX
V39SDX
V43SDX
V51SDX
V59SDX
V61SDX/SD
V69SD
V71SD/SDX
V81SD
Super V-Chesil Heavy CL
Super V-Chesil Heavy CL
Super V-Chesil Heavy CL
Super V-Chesil Heavy CL
Super V-Chesil Heavy CL
Super V-Chesil Heavy CL
Super V-Chesil Heavy CL
Super V-Chesil Heavy CL
Super V-Chesil Heavy CL
Super V-Chesil Heavy CL
Chesil Heavy CL
V29
V33
V39
V43
V51
V59
V61
V69
V71
V81
Machine Model
5
6.9
9.6
15
18
23.5
29
37.5
46
75
8833-V29
3872A-V33
3892-V39
8837-V43
8814-V51
8811-V59
3811-V61
6803-V69
5897-V71
6806-V81
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V19RC
V23RC
V29RC
V33RC
V39RC
V43RC
V51RC
V61RC
V69RC
V71RC
V81RC
Super V-Rock Chesil
Super V-Rock Chesil
Super V-Rock Chesil
Super V-Rock Chesil
Super V-Rock Chesil
Super V-Rock Chesil
Super V-Rock Chesil
Super V-Rock Chesil
Super V-Rock Chesil
Super V-Rock Chesil
Super V-Rock Chesil
Rock Chesil
V19
V23
V29
V33
V39
V43
V51
V61
V69
V71
V81
Machine Model
3.5
4.5
6.5
8.8
13
18
28
36
45
73
833-V19
3870-V23
8833-V29
3872A-V33
3892-V39
8837-V43
8814-V51
3811-V61
6803-V69
5897-V71
6806-V81
ADAPTER PIN

74. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-65
WEIGHT
TURBO PART Nº DESCRIPTION
V23SHV
V29SHV
V33SHV
V39SHV
V43SHV
V51SHV
V59SHV
V61SHV
Super V-Petration Abrasion CL
Super V-Petration Abrasion CL
Super V-Petration Abrasion CL
Super V-Petration Abrasion CL
Super V-Petration Abrasion CL
Super V-Petration Abrasion CL
Super V-Petration Abrasion CL
Super V-Petration Abrasion CL
Petration Abrasion CL
V23
V29
V33
V39
V43
V51
V59
V61
Machine Model
5.5
8
9
16
22
31.3
3870-V23
8833-V29
3872A-V33
3892-V39
8837-V43
8814-V51
8811-V59
3811-V61
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V17VY
V19VY
V23VY
V29VY/VYH
V33VY/VYH
V39VY/VYH
V43VY/VYH
V51VY
V59VY/VYH
Super V-Pick NCL
Super V-Pick NCL
Super V-Pick NCL
Super V-Pick NCL
Super V-Pick NCL
Super V-Pick NCL
Super V-Pick NCL
Super V-Pick NCL
Super V-Pick NCL
Pick NCL
V17
V19
V23
V29
V33
V39
V43
V51
V59
Machine Model
1.1
2
2.8
3.8
5.4
8
11
14.3
19.1
833-V17
833-V19
3870-V23
8833-V29
3872A-V33
3892-V39
8837-V43
8814-V51
8811-V59
ADAPTER PIN

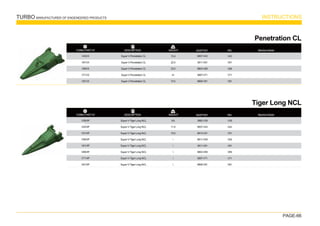

75. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-66
WEIGHT
TURBO PART Nº DESCRIPTION
V43VX
V61VX
V69VX
V71VX
V81VX
Super V-Penetration CL
Super V-Penetration CL
Super V-Penetration CL
Super V-Penetration CL
Super V-Penetration CL
Penetration CL
V43
V61
V69
V71
V81
Machine Model
15.4
22.5
33.5
41
73.5
8837-V43
3811-V61
6803-V69
5897-V71
6806-V81
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V39VIP
V43VIP
V51VIP
V59VIP
V61VIP
V69VIP
V71VIP
V81VIP
Super V-Tiger Long NCL
Super V-Tiger Long NCL
Super V-Tiger Long NCL
Super V-Tiger Long NCL
Super V-Tiger Long NCL
Super V-Tiger Long NCL
Super V-Tiger Long NCL
Super V-Tiger Long NCL
Tiger Long NCL
V39
V43
V51
V59
V61
V69
V71
V81
Machine Model
8.8
11.8
15.5
3892-V39
8837-V43
8814-V51
8811-V59
3811-V61
6803-V69
5897-V71
6806-V81
ADAPTER PIN

76. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-67
WEIGHT
TURBO PART Nº DESCRIPTION
V17TVY
V23TVY
V29TVYH
V33TVYH
V39TVYH
V43TVYH
V51TVYH
V59TVYH
V61TVP
Super V-Twin Pick NCL
Super V-Twin Pick NCL
Super V-Twin Pick NCL
Super V-Twin Pick NCL
Super V-Twin Pick NCL
Super V-Twin Pick NCL
Super V-Twin Pick NCL
Super V-Twin Pick NCL
Super V-Twin Pick NCL
Twin Pick NCL
V17
V23
V29
V33
V39
V43
V51
V59
V61
Machine Model
1.2
3.3
4.3
6
9.3
12
17
21.5
833-V17
3870-V23
8833-V29
3872A-V33
3892-V39
8837-V43
8814-V51
8811-V59
3811-V61
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V19AD
V23AD
V29AD
V33AD
V39AD
V43AD
V51AD
V59AD
V61AD
V69ADB
V69ADHL
V71ADB
V71ADHL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Super V-Abrasion Petration NCL
Abrasion Petration NCL
V19
V23
V29
V33
V39
V43
V51
V59
V61
V69
V69
V71
V71
Machine Model
3
4.7
6.2
9
12.8
18
22
28
33.5
57
67.5
70
91
833-V19
3870-V23
8833-V29
3872A-V33
3892-V39
8837-V43
8814-V51
8811-V59
3811-V61
6803-V69
6803-V69
5897-V71
5897-V71
ADAPTER PIN

77. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-68
WEIGHT
TURBO PART Nº DESCRIPTION
V51AG
V59AG
V61AG
V69AG
V71AG
Super V-Abrasion Heavy NCL
Super V-Abrasion Heavy NCL
Super V-Abrasion Heavy NCL
Super V-Abrasion Heavy NCL
Super V-Abrasion Heavy NCL
Abrasion Heavy NCL
V51
V59
V61
V69
V71
Machine Model
23
29
35
49
55
8814-V51
8811-V59
3811-V61
6803-V69
5897-V71
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V23AR
V29AR
V33AR
V39AR
V43AR
V51AR
V59AR
Super V-Abrasion Rock NCL
Super V-Abrasion Rock NCL
Super V-Abrasion Rock NCL
Super V-Abrasion Rock NCL
Super V-Abrasion Rock NCL
Super V-Abrasion Rock NCL
Super V-Abrasion Rock NCL
Abrasion Rock NCL
V23
V29
V33
V39
V43
V51
V59
Machine Model
5.6
7.7
11
16
22
3870-V23
8833-V29
3872A-V33
3892-V39
8837-V43
8814-V51
8811-V59
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V43ARH
V51ARH
V59ARH
Super V-Abrasion Rock Heavy NCL
Super V-Abrasion Rock Heavy NCL
Super V-Abrasion Rock Heavy NCL
Abrasion Rock Heavy NCL
V43
V51
V59
Machine Model
34
44
8837-V43
8814-V51
8811-V59
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V61ARL
V69ARL
V71ARL
Super V-Abrasion Rock Long NCL
Super V-Abrasion Rock Long NCL
Super V-Abrasion Rock Long NCL
Abrasion Rock Long NCL
V61
V69
V71
Machine Model
37
53
62
3811-V61
6803-V69
5897-V71
ADAPTER PIN

78. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-69
WEIGHT
TURBO PART Nº DESCRIPTION
V19TF
V23S5F
V29S6F
V29S7F
V39S8F
V43S9F
V51S10F
Super V-Flare CL
Super V-Flare CL
Super V-Flare CL
Super V-Flare CL
Super V-Flare CL
Super V-Flare CL
Super V-Flare CL
Flare CL
V19
V23
V29
V29
V39
V43
V51
Machine Model
2.7
3.9
6.2
9
13
17.5
23.5
833-V19
3870-V23
8833-V29
8833-V29
3892-V39
8837-V43
8814-V51
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V19TYCE
V23TYCE
V29TYCE
V33TYCE
V39TYCE
V43TYCE
Super V-Non-Twist Long GP NCL
Super V-Non-Twist Long GP NCL
Super V-Non-Twist Long GP NCL
Super V-Non-Twist Long GP NCL
Super V-Non-Twist Long GP NCL
Super V-Non-Twist Long GP NCL
Twist Long GP NCL
V19
V23
V29
V29
V39
V43
Machine Model
833-V19
3870-V23
8833-V29
8833-V29
3892-V39
8837-V43
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
V17TYL
V18TY
V19TY
V23TY
V29TYL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
General Purpose NCL
V17
V19
V23
V29
Machine Model
833-V17
833-V19
3870-V23
8833-V29
1.2
2.2
3.4
4.8
ADAPTER PIN

79. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-70
WEIGHT
TURBO PART Nº DESCRIPTION
T33TYL
V39TYL
V43TYL
V51TYL
V71RXL
V81RXL
V71RMX
V81RMX
V71RMHL
V81RXXL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
Super V-General Purpose NCL
General Purpose NCL
V33
V39
V43
V51
V71
V81
V71
V81
V71
V81
Machine Model
3872A-V3
3
3892-V39
8837-V43
8814-V51
5897-V71
6806-V81
5897-V71
6806-V81
5897-V71
6806-V81
7.2
10
14
18
56
81
65
94
76
93
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
833-V13
833-V17
833-v18
833-V19
8872-V19
8873-V19
3870-V23
3871-V29
3872A-V33
Super V Adapter-Bottom Leg Blade 15mm
Super V Adapter-Bottom Leg Blade 20mm
Super V Adapter-Bottom Leg Blade 20mm
Super V Adapter-Bottom Leg Blade 25mm
Super V Adapter-Bottom Leg Blade 25-38mm
Super V Adapter-Bottom Leg Blade 25-38mm
Super V Adapter-Bottom Leg Blade 30-32mm
Super V Adapter-Bottom Leg Blade 30-35mm
Super V Adapter-Bottom Leg Blade 35-40mm
Bottom Leg
V13
V17
V19
V19
V19
V23
V29
V33
Machine Model
15
20
25
25-38
25-38
30-32
30-35
35-40
30
30
30
45
45
30
30
30
1
1.7
1.8
3
6
6
4.5
6.4
12.5
ADAPTER PIN

80. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-71
WEIGHT
TURBO PART Nº DESCRIPTION
8843-V13
8806-V17
3891-V17
8806-V19
8802-V19
8830-V23
8803-V23
3829A-V29
8831-V29
4882-V33
8831-V33
3892-V33
3892-V39
1836-V39
8837-V43
1852-V43
4883-V43
1836-V43
3892-V43
1852-V51
Super V Adapter-Fushmount Blade 15mm
Super V Adapter-Fushmount Blade 20mm
Super V Adapter-Fushmount Blade 20mm
Super V Adapter-Fushmount Blade 20mm
Super V Adapter-Fushmount Blade 25mm
Super V Adapter-Fushmount Blade 35mm
Super V Adapter-Fushmount Blade 25-35mm
Super V Adapter-Fushmount Blade 40mm
Super V Adapter-Fushmount Blade 40-45mm
Super V Adapter-Fushmount Blade 38-40mm
Super V Adapter-Fushmount Blade 50mm
Super V Adapter-Fushmount Blade 45-50mm
Super V Adapter-Fushmount Blade 45-50mm
Super V Adapter-Fushmount Blade 51mm
Super V Adapter-Fushmount Blade 65mm
Super V Adapter-Fushmount Blade 60-65mm
Super V Adapter-Fushmount Blade 60mm
Super V Adapter-Fushmount Blade 50mm
Super V Adapter-Fushmount Blade 51mm
Super V Adapter-Fushmount Blade 60-65mm
Fushmount
V13
V17
V17
V19
V19
V23
V23
V29
V29
V33
V33
V33
V39
V39
V43
V43
V43
V43
V43
V51
Machine Model
15
20
20
20
25
35
25-35
40
40-45
38-40
50
45-50
45-50
51
65
60-65
60
50
51
60-65
30
25
25
25
25
25
25
22-25
22-25
30
22-25
22-25
22-25
30
30
25-30
25-30
25-30
22-25
30
1.1
2
2.2
4.1
4.1
6.4
6.4
9
9.3
11
13
13
16
16
21
23
25
24
23
30
ADAPTER PIN

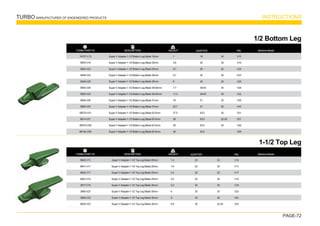

81. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-72
WEIGHT
TURBO PART Nº DESCRIPTION
1610T-V13
5854-V19
5854-V23
5849-V23
5849-V29
5850-V29
5855-V33
5856-V39
5856-V43
5857A-V51
8814-V51
5857A-V59
8814A-V59
Super V Adapter-1-1/2 Bottom Leg Blade 16mm
Super V Adapter-1-1/2 Bottom Leg Blade 25mm
Super V Adapter-1-1/2 Bottom Leg Blade 25mm
Super V Adapter-1-1/2 Bottom Leg Blade 30mm
Super V Adapter-1-1/2 Bottom Leg Blade 30mm
Super V Adapter-1-1/2 Bottom Leg Blade 38-40mm
Super V Adapter-1-1/2 Bottom Leg Blade 38-40mm
Super V Adapter-1-1/2 Bottom Leg Blade 51mm
Super V Adapter-1-1/2 Bottom Leg Blade 51mm
Super V Adapter-1-1/2 Bottom Leg Blade 63.5mm
Super V Adapter-1-1/2 Bottom Leg Blade 63.5mm
Super V Adapter-1-1/2 Bottom Leg Blade 63.5mm
Super V Adapter-1-1/2 Bottom Leg Blade 63.5mm
1/2 Bottom Leg
V13
V19
V23
V23
V29
V29
V33
V39
V43
V51
V51
V59
V59
Machine Model
16
25
25
30
30
38-40
38-40
51
51
63.5
63.5
63.5
63.5
30
30
30
30
30
30
30
30
30
30
22-25
30
1
3.8
5.7
5.7
8
7.7
11.3
16
22.7
27.5
28
36
36
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
8842-V13
8841-V17
8842-V17
8822-V19
3877-V19
3880-V23
3808-V23
8835-V23
Super V Adapter-1-1/2 Top Leg Blade 25mm
Super V Adapter-1-1/2 Top Leg Blade 20mm
Super V Adapter-1-1/2 Top Leg Blade 25mm
Super V Adapter-1-1/2 Top Leg Blade 25mm
Super V Adapter-1-1/2 Top Leg Blade 30mm
Super V Adapter-1-1/2 Top Leg Blade 30mm
Super V Adapter-1-1/2 Top Leg Blade 35mm
Super V Adapter-1-1/2 Top Leg Blade 30mm
1-1/2 Top Leg
V13
V17
V17
V19
V19
V23
V23
V23
Machine Model
25
20
25
25
30
30
35
30
23
30
23
30
30
30
30
22-25
1.4
1.8
2.4
4.5
4.2
6
6
6.9
ADAPTER PIN

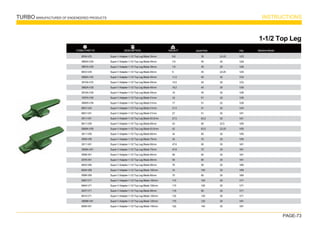

82. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-73
WEIGHT
TURBO PART Nº DESCRIPTION
8834-V23
3882A-V29
3881A-V29
8833-V29
3882A-V33
3810A-V33
3882A-V39
3810A-V39
1837A-V39
3892A-V39
8801-V43
8801-V51
3811-V51
8811-V59
5869A-V59
3811-V59
3858-V59
3811-V61
3858A-V61
5898-V61
2878-V61
6803-V69
6804-V69
5898-V69
5897-V71
6804-V71
2837-V71
6810-V71
3869B-V81
6806-V81
Super V Adapter-1-1/2 Top Leg Blade 35mm
Super V Adapter-1-1/2 Top Leg Blade 40mm
Super V Adapter-1-1/2 Top Leg Blade 35mm
Super V Adapter-1-1/2 Top Leg Blade 40mm
Super V Adapter-1-1/2 Top Leg Blade 40mm
Super V Adapter-1-1/2 Top Leg Blade 45mm
Super V Adapter-1-1/2 Top Leg Blade 40mm
Super V Adapter-1-1/2 Top Leg Blade 45mm
Super V Adapter-1-1/2 Top Leg Blade 51mm
Super V Adapter-1-1/2 Top Leg Blade 51mm
Super V Adapter-1-1/2 Top Leg Blade 51mm
Super V Adapter-1-1/2 Top Leg Blade 51mm
Super V Adapter-1-1/2 Top Leg Blade 63.5mm
Super V Adapter-1-1/2 Top Leg Blade 60mm
Super V Adapter-1-1/2 Top Leg Blade 63.5mm
Super V Adapter-1-1/2 Top Leg Blade 60mm
Super V Adapter-1-1/2 Top Leg Blade 70mm
Super V Adapter-1-1/2 Top Leg Blade 60mm
Super V Adapter-1-1/2 Top Leg Blade 70mm
Super V Adapter-1-1/2 Top Leg Blade 80mm
Super V Adapter-1-1/2 Top Leg Blade 90mm
Super V Adapter-1-1/2 Top Leg Blade 90mm
Super V Adapter-1-1/2 Top Leg Blade 100mm
Super V Adapter-1-1/2 Top Leg Blade 80mm
Super V Adapter-1-1/2 Top Leg Blade 100mm
Super V Adapter-1-1/2 Top Leg Blade 100mm
Super V Adapter-1-1/2 Top Leg Blade 90mm
Super V Adapter-1-1/2 Top Leg Blade 120mm
Super V Adapter-1-1/2 Top Leg Blade 120mm
Super V Adapter-1-1/2 Top Leg Blade 140mm
1-1/2 Top Leg
V23
V29
V29
V29
V33
V33
V39
V39
V39
V39
V43
V51
V51
V59
V59
V59
V59
V61
V61
V61
V61
V69
V69
V69
V71
V71
V71
V71
V81
V81
Machine Model
35
40
35
40
40
45
40
45
51
51
51
51
63.5
60
63.5
60
70
60
70
80
90
90
100
80
100
100
90
120
120
140
22-25
30
30
22-25
30
30
30
30
30
22
30
30
30
22.5
22-25
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
6.6
7.6
7.6
9
11.5
14.5
16.2
16
18
17
21.5
27
27.5
43
42
34
34
47.6
47.6
56
59
76
74
70
115
115
118
132
175
183
ADAPTER PIN

83. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-74
WEIGHT
TURBO PART Nº DESCRIPTION
5870A-V51
5870A-V59
5870A-V61
6831-V69
5893L-V69
5899-V71
5893-V71
5895-V81
6808-V81
Super V Adapter-1-1/2 Cornr Straddle Leg Blade 63.5mm
Super V Adapter-1-1/2 Cornr Straddle Leg Blade 63.5mm
Super V Adapter-1-1/2 Cornr Straddle Leg Blade 63.5mm
Super V Adapter-1-1/2 Cornr Straddle Leg Blade 76mm
Super V Adapter-1-1/2 Cornr Straddle Leg Blade 102mm
Super V Adapter-1-1/2 Cornr Straddle Leg Blade 102mm
Super V Adapter-1-1/2 Cornr Straddle Leg Blade 102mm
Super V Adapter-1-1/2 Cornr Straddle Leg Blade 121mm
Super V Adapter-1-1/2 Cornr Straddle Leg Blade 140mm
1/2 Cornr Straddle Leg
V51
V59
V61
V69
V69
V71
V71
V81
V81
Machine Model
63.5
63.5
63.5
76
102
102
102
121
140
25
25
25
30
30
30
30
30
30
35
47
50
93
87
120
120
183
195
ADAPTER PIN
WEIGHT
TURBO PART Nº DESCRIPTION
8716-V19
5775-V19
5776-V19
5733A-V23
5734A-V23
8719-V29
8719-V33
5774A-V23
5773A-V29
5773-V33
Super V Adapter-2 Leg 2 Bolt Blade 30mm
Super V Adapter-2 Leg 2 Bolt Blade 20mm
Super V Adapter-2 Leg 2 Bolt Blade 25mm
Super V Adapter-2 Leg 2 Bolt Blade 30mm
Super V Adapter-2 Leg 2 Bolt Blade 35mm
Super V Adapter-2 Leg 2 Bolt Blade 38-40mm
Super V Adapter-2 Leg 2 Bolt Blade 40mm
Super V Adapter-2 Leg 2 Bolt Blade 35-38mm
Super V Adapter-2 Leg 2 Bolt Blade 38mm
Super V Adapter-2 Leg 2 Bolt Blade 38mm
2 Leg 2 Bolt
V19
V19
V19
V23
V23
V29
V33
V23
V29
V33
Machine Model
30
20
25
30
35
38-40
40
35-38
38
38
27.6
25
25
25
25
25
25
25
25
25
6
5
5.1
6.6
8.2
11.2
12
6.6
15
17
ADAPTER PIN

84. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-75
WEIGHT
TURBO PART Nº DESCRIPTION
V13
V17
V19
V23
V29
V33
V39
V43
V51
V59
V61
V69
V71
V81
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Super V -Pin
Machine Model
0.04
0.04
0.05
0.05
0.12
0.13
0.17
0.23
0.43
0.43
0.46
0.93
1.05
1.24
ADAPTER PIN

85. DOOSAN
TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014

86. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-76
WEIGHT
TURBO PART Nº DESCRIPTION
2713-9050
2713-1221
2713-1272
2713-1217
2713-1269
2713-1219
2713-1270
713-00054
713-00032
2713-1234
2713-1271
2713-1236
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
2705-1022
·2114-1859
2705-1022
·2114-1859
2705-1020
·2114-1848A
2705-1020
·2114-1848A
2705-1021
·2114-1849
2705-1021
·2114-1849
2705-1021
·2114-1849
705-00006
·114-00246
705-00006
·114-00246
2705-1034
·2114-1931
2705-1034
·2114-1931
DH55
·DH60
DH130
·DH150
DH130
·DH150
DH210
·DH220
·DH225
DH210
·DH220
·DH225
DH300
DH300
DH300
DH370
DH370
DH420
DH420
MACHINE MODEL
1.1
3.5
3.5
5.5
5.5
6.7
6.7
7.8
9.2
9.2
17.2
17.2
2713-9051
2713-1222
2713-1222
2713-1218
2713-1218
2713-1218
2713-1218
713-00033
713-00033
2713-1273
2713-1237
STRATGHIT BLADE LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
18S
2713-9061
2713-9041
2713-9038(E262-3046)
2713-9038(E262-3046)
2173-9044
Standard
Standard
Standard
Standard
Standard
Standard
Standard-Old Machine
18PN 18LK
2705-1020
·2114-1848A
E262-5004
·61E5-11150
E262-5004
·61E5-11150
61E5-11150
DH55
·DH60
DH55
·DH60
DH210
·DH220
·DH225
DH300
DH300
DH320
MACHINE MODEL
1.1
1.5
6.6
7.2
6.8
9.1
1619-18
2713-9062
2713-9042
2713-9037
2713-9037
2713-9043
STRATGHIT BLADE LOCK

87. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-77
WEIGHT
TURBO PART Nº DESCRIPTION
18RC
2713-1221RC
2713-1217RC-2013
2713-1219RC(PV)-2013
713Y00032RC-2013
2713-1236RC
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
18PN
·18LK
2705-1022
·2114-1859
2705-1020
·2114-1848A
2705-1021
·2114-1849
705-00006
·114-00246
2705-1034
·2114-1931
DH55
·DH60
DH130
·DH150
DH210
·DH220
·DH225
DH300
DH370
DH420
MACHINE MODEL
1.2
3.8
5.5
7.6
9.3
13.9
1619-18
2713-1222
2713-1218
2713-1220
713-00033
2713-1237
STRATGHIT BLADE LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
2713-1217RC
2713-1219RC
713-00032RC
2713-1236RC
Rock Chisel Heavy dute
Rock Chisel Heavy dute
Rock Chisel Heavy dute
Rock Chisel Heavy dute
Rock Chisel Heavy Dute
2705-1020
·2114-1848A
2705-1021
·2114-1849
705-00006·114-00246
2705-1034
·2114-1931
DH210
·DH220
·DH225
DH300
DH370
DH420
MACHINE MODEL
6.6
8.9
11
17.2
2713-1218
2713-1220
713-00033
2713-1237
STRATGHIT BLADE LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
2713-9041RC
2713-9041RC
2713-9038RC
2173-9044RC
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel-Old Machine
2705-1020
·2114-1848A
2705-1020
·2114-1848A
E262-5004
·61E5-11150
61E5-11150
DH210
·DH220
·DH225
DH210
·DH220
·DH225
DH300
DH320
MACHINE MODEL
7.6
7.6
7.6
9.2
2713-9042
2713-9042
2713-9037
2713-9043
STRATGHIT BLADE LOCK

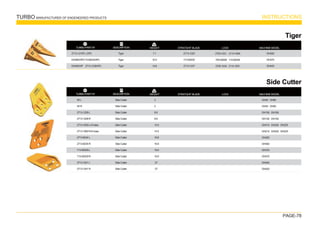

88. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-78
WEIGHT
TURBO PART Nº DESCRIPTION
2713-1219TL (VIP)
DH360VIP(713-00032VIP)
DH450VIP（2713-1236VIP)
Tiger
Tiger
Tiger
Tiger
2705-1021·2114-1849
705-00006
·114-00246
2705-1034
·2114-1931
DH300
DH370
DH420
MACHINE MODEL
7.1
10.5
14.8
2713-1220
713-00033
2713-1237
STRATGHIT BLADE LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
55 L
55 R
2713-1228 L
2713-1228 R
2713-1059 L-6 holes
2713-1060 R-6 holes
2713-6034 L
2713-6035 R
713-00028 L
713-00029 R
2713-1241 L
2713-1241 R
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
DH55
·DH60
DH55
·DH60
DH130
·DH150
DH130
·DH150
DH210
·DH220
·DH225
DH210
·DH220
·DH225
DH300
DH300
DH370
DH370
DH420
DH420
MACHINE MODEL
2
2
8.9
8.9
14.5
14.5
16.8
16.8
18.9
18.9
27
27
STRATGHIT BLADE LOCK

89. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-79
WEIGHT
TURBO PART Nº DESCRIPTION
2713-1222
2713-1218
2713-1218
2713-1220
2713-1220
2713-1220
713-00033
713-00033
713-00033-A
2713-1273 (2713-1237)
2713-1273 (2713-1237)
2713-9062
2713-9042
2713-9037
2713-9043
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Excavator Adapter
Standard
2705-1022
·2114-1859
2705-1020
·2114-1848A
2705-1020
·2114-1848A
2705-1021
·2114-1849
2705-1021
·2114-1849
2705-1021
·2114-1849
705-00006
·114-00246
705-00006
·114-00246
705-00006
·114-00246
2705-1034
·2114-1931
2705-1034
·2114-1931
S130
S220
S220
S280
S280
S280
S360
S360
S360
S420
S420
S55
S220
S280
S360
MACHINE MODEL
5.5
8.6
8.5
10.9
10.7
12
17.6
17.3
19.2
24
23
2.3
10.3
12.4
17.2
2713-1221
2713-1217
2713-1217
2713-1219
2713-1219
2713-1219
713-00032
713-00032
713-00032
2713-1236
2713-1236
2713-9051
2713-9041
2713-9038
2713-9044
32
35
40
40
45
50
50
55
60
55
60
*
40
40
40
PIN
TEETH
BLADE SIZE

90. DOOSAN- 2014 NEW SYSTEM
MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014

91. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-80
WEIGHT
TURBO PART Nº DESCRIPTION
23011-00089
23011-00090
230111-00092
230111-00093
230111-00094
Standard
Standard
Standard
Standard
Standard
Standard
2705-1022 2114-1859
2705-1021 2114-1849A
705-00006 114-00246
2705-1034 2114-1931
K1052231 K1052892
DX140
DX170/180 DX225/255/DX300
DX340 DX420
DX480/520
DX700
MACHINE MODEL
4.2
7.5
12.3
20
25.5
430203-00022
430203-00024
430203-00036
430203-00037-60
430203-00038
STRATGHIT BLADE LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
430203-00022
430203-00024
430203-00036
430203-00037-60
430203-00038
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
2705-1022 2114-1859
2705-1021 2114-1849A
705-00006 114-00246
2705-1034 2114-1931
K1052231 K1052892
DX140
DX170/180 DX225/255/DX300
DX340 DX420
DX480/520
DX700
MACHINE MODEL
12.5
30
51
32
40
50
60
70
LOCK
BLADE SIZE

92. ESCO
MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014

93. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-81
WEIGHT
TURBO PART Nº DESCRIPTION
18S
22S
25S(20X-70-23160)
30S(203-70-43180)
35S(205-70-74272)
40S
40S
45S
ESCO-18( Conical Standard) Tip
ESCO-22(Conical Standard) Tip
ESCO-25(Conical Standard) Tip
ESCO-30(Conical Standard) Tip
ESCO-35(Conical Standard) Tip
ESCO-40(Conical Standard) ESCO origional Tip
ESCO-40(Conical Standard) Tip
ESCO-45(Conical Standard) Tip
ESCO
18PN·18LK
22PN
·22LK
25-30PN
·25-30LK
25-30PN
·25-30LK
35PN
·35LK
40PN
·40Lk
40PN
·40Lk
40PN
·40Lk
DH55
EX70
EX100
EX200
EX300
EX300
EX300
EX400
MACHINE MODEL
1.1
1.4
2.4
2.5
4.3
5.7
6.8
10.2
18-800
22SA
3806-25
3808-30
·3807-30
3808-35
3809-40
3809-40
3809-40
833-18
22SA
855-25
855-30
3803-35
3803-40
3803-40
3803-40
ADAPTER
ADAPTER LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
30VIP
25VIP
35VIP
40VIP
45VIP
Conical Tiger VIP
Conical Tiger VIP
Conical Tiger VIP
Conical Tiger VIP
Conical Tiger VIP
Conical Tiger VIP
25-30PN·25-30LK
25-30PN
·25-30LK
35PN
·35LK
40PN
·40Lk
40PN
·40Lk
EX200
EX100
EX300
EX300
EX300
MACHINE MODEL
3.3
3
4.1
7.1
7.8
3806-25
3808-35
3809-40
3809-40
855-30
855-25
3803-35
3803-40
3803-40
ADAPTER
ADAPTER LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
18TL
18VIP
Conical TL Tip
Conical TL Tip
Conical TL Tip
18PN
·18LK
18PN
·18LK
DH55
DH55
MACHINE MODEL
1.1
1.1
18-800
18-800
833-18
833-18
ADAPTER
ADAPTER LOCK
3808-30
3807-30

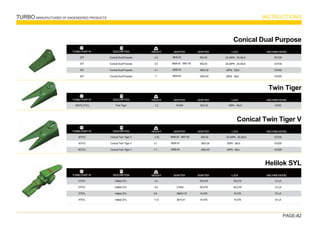

94. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-82
WEIGHT
TURBO PART Nº DESCRIPTION
25T
30T
35T
40T
Conical Dual Purpose
Conical Dual Purpose
Conical Dual Purpose
Conical Dual Purpose
Conical Dual Purpose
25-30PN
·25-30LK
25-30PN
·25-30LK
35PN
·35LK
40PN
·40Lk
EX100
EX100
EX200
EX300
MACHINE MODEL
2.2
3.5
4.1
7
3806-25
3808-30
·3807-30
3808-35
3809-40
855-25
855-30
3803-35
3803-40
ADAPTER
ADAPTER LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
30TVC
35TVC
40TVC
Conical Twin Tiger V
Conical Twin Tiger V
Conical Twin Tiger V
Conical Twin Tiger V
25-30PN
·25-30LK
35PN
·35LK
40PN
·40Lk
EX100
EX200
EX300
MACHINE MODEL
3.35
5.1
7.1
3808-30
·3807-30
3808-35
3809-40
855-30
3803-35
3803-40
ADAPTER
ADAPTER LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
21SYL
27SYL
37SYL
47SYL
Helilok SYL
Helilok SYL
Helilok SYL
Helilok SYL
Helilok SYL
RC21R
RC27R
R-37R
R-47R
21-LK
27-LK
37-LK
47-LK
MACHINE MODEL
3.2
4.6
6.6
11.8
27WN
3882V-37
3810-47
RC21R
RC27R
R-37R
R-47R
ADAPTER
ADAPTER LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
18WTL(TVC) Twin Tiger
Twin Tiger
18PN
·18LK DH55
MACHINE MODEL
1.2 18-800 833-18
ADAPTER
ADAPTER LOCK

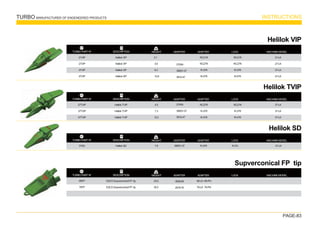

95. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-83
WEIGHT
TURBO PART Nº DESCRIPTION
21VIP
27VIP
37VIP
47VIP
Helilok VIP
Helilok VIP
Helilok VIP
Helilok VIP
Helilok VIP
RC21R
RC27R
R-37R
R-47R
21-LK
27-LK
37-LK
47-LK
MACHINE MODEL
3.1
3.6
6.3
10.8
27WN
3882V-37
3810-47
RC21R
RC27R
R-37R
R-47R
ADAPTER
ADAPTER LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
27TVIP
37TVIP
47TVIP
Helilok TVIP
Helilok TVIP
Helilok TVIP
Helilok TVIP
RC27R
R-37R
R-47R
27-LK
37-LK
47-LK
MACHINE MODEL
4.5
7.3
12.2
27WN
3882V-37
3810-47
RC27R
R-37R
R-47R
ADAPTER
ADAPTER LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
66FP
76FP
ESCO-Supverconical FP tip
ESCO-Supverconical FP tip
Supverconical FP tip
MACHINE MODEL
25.8
35.5
3858-66
2878-76
66-LK 66-PN
76-LK 76-PN
ADAPTER
ADAPTER LOCK
WEIGHT
TURBO PART Nº DESCRIPTION
37SD Helilok SD
Helilok SD
R-37L 37-LK
MACHINE MODEL
7.6 3882V-37 R-37R
ADAPTER
ADAPTER LOCK

96. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-84
WEIGHT
TURBO PART Nº DESCRIPTION
22R10
25R10
25R11
25R12
25RC12HD
25RC10
25RC10
35R14
35R14B
35R15
39R16A
39R17E
39RH16A
39RH17E
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
Ripper Tip
22RPG
·22RBG
25RPG
·25RBG
25RPG
·25RBG
25RPG
·25RBG
25RPG
·25RBG
25RPG
·25RBG
35RPG
·25RBG
35RPG
·25RBG
35RPG
·25RBG
39RPG
·39RBG
39RPG
·39RBG
39RPG
·39RBG
39RPG
·39RBG
MACHINE MODEL
4.1
5.7
4.9
5.6
6.5
5
6.5
13.6
14.2
14.2
19.5
19.5
19.5
19.5
22RNSEF
25RNSPF
25RNSPF
25RNSPF
25RNSPF
25RNSPF
35RNSEF
35RNSEF
35RNSEF
39RWNS1A
39RWNS1A
39RWNS1A
39RWNS1A
WELDING NOSE PIN
WEIGHT
TURBO PART Nº DESCRIPTION
S9114T-76 (2878-76) ESCO-Supverconical 76FP adapter
Supverconical FP Adapter
76-LK 76-PN
MACHINE MODEL
76 75 76FP
TEETH PIN
BLADE SIZE
WEIGHT
TURBO PART Nº DESCRIPTION
833-18
855-25
855-30
Bottom Strap Adapter
Bottom Strap Adapter
Bottom Strap Adapter
Two Strap Adapter
18PN 18LK
25PN 25LK
30PN 30LK
DH55
EX100
EX100
MACHINE MODEL
1.6
3.5
3.7
18
25
30
18S
25S
30S
TEETH PIN
BLADE SIZE

97. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-85
WEIGHT
TURBO PART Nº DESCRIPTION
22RN
25RN
2849-25R
3806-25RC
35RWN
39RNSEF
39RWNS1A
Ripper Nose
Ripper Nose
Ripper Nose
Ripper Nose
Ripper Nose
Ripper Nose
Ripper Nose
Ripper Nose
22RPG
·22RBG
25RPG
·25RBG
25RPG
·25RBG
25RPG
·25RBG
35RPG
·35RBG
39RPG
·39RBG
39RPG
·39RBG
MACHINE MODEL
5.8
8.8
11.6
13
15.2
22.8
22R10
25R10
25R10
25R10
35R
39R
39R
Adapter Lock
WEIGHT
TURBO PART Nº DESCRIPTION
18SA (1617-18)
22SA
3806-25
1306-25
3807-30
1899-35
3808-35
3840-35
3809-40
3809-40
3810-45
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
Two Strap Adapter
18PN 18LK
25PN 25LK
25PN 25LK
25PN 25LK
30PN 30LK
35PN 35LK
35PN 35LK
35PN 35LK
40PN 40LK
45PN 45LK
45PN 45LK
EX70
EX70
EX100
EX100
EX100
EX200
EX200
EX200
EX300
EX400
EX400
MACHINE MODEL
2.3
2.8
6.6
3.8
6.5
10
6.7
11
11.5
11.6
19
18
20
25
25
30
35
35
35
40
45
45
18S
22S
25S
25S
30S
35S
35S
35S
40S
45S
45S
TEETH PIN
BLADE SIZE

98. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
VOLVO

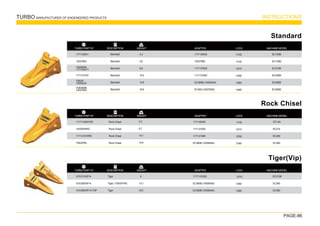

99. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-86
TURBO PART Nº WEIGHT
DESCRIPTION
Standard
Standard
Standard
Standard
Standard
Standard
Standard
1171-00041
14527863
1171-01910
4.3
3.8
6.6
10.4
14.8
18.9
1171-00042
14527865
1171-01620
1171-01900
EC360B (14556404)
EC460 (14537826)
EC140B
EC140B
EC210B
EC290B
EC360B
EC460B
14530544
1171-00371
T55GP
14553243
VOE460B
14537843
V140
V140
V210
V290
V360
V460
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
11171-00041RC
14530544RC
1171-01910RC
T55GPRC
5.3
6.7
14.1
14.6
1171-00042
1171-01620
1171-01900
EC360B (14556404)
EC140
EC210
EC290
EC360
V140
V210
V290
V360
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Tiger(Vip)
Tiger
Tiger ( T55GPVIP)
Tiger
VOV210VIP-A
VOV360VIP-A
VOV360VIP-A-TOP
6
13.1
12.5
11171-01620
EC360B (14556404)
EC360B (14556404)
EC210B
EC360
EC360
V210
V360
V360
ADAPTER LOCK MACHINE MODEL

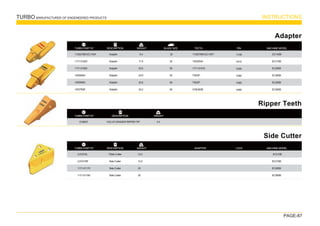

100. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-87
TURBO PART Nº WEIGHT
DESCRIPTION
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
114527865-EC140A
1171-01620
1171-01900
14556464
14556464
14537826
5.4
11.9
20.6
24.8
24.8
24.2
32
30
50
50
60
60
114527863-EC140T
14530544
1171-01910
T55GP
T55GP
VOE460B
EC140B
EC210B
EC290B
EC360B
EC360B
EC460B
V140
V210
V290
V360
V360
V460
TEETH PIN MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Ripper Teeth
VOLVO GRADER RIPPER TIP
CH9937 3.4
TURBO PART Nº WEIGHT
DESCRIPTION
Side Cutter
TSide Cutter
Side Cutter
Side Cutter
Side Cutter
LOV210L
LOV210R
1171-01170
1171-01180
12.2
12.2
20
20
EC210B
EC210B
EC260B
EC260B
ADAPTER LOCK MACHINE MODEL
BLADE SIZE

101. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
KOBLECO

102. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-88
TURBO PART Nº WEIGHT
DESCRIPTION
Standard Tip
Standard Tip
Standard Tip
SK200-2014
AF02L
5
7.6
BF01L
AF01L
SK200
SK230
SK200
SK230
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Rock Chisel Tip
Rock Chisel Tip
Rock Chisel Tip
SK200RC
AF02RC
5.5
7.9
1 BF01L
AF01L
SK200
SK230
SK200
SK230
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Tiger Tip
Tiger Tip
SK200TL (VIP) 6.3 BF01L SK200
SK200
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
BF01L
SK200YS35
SK200YS35
SK200YS35
AF01L
AF01L
9.6
8.8
8.8
8.8
12.4
12.7
32
32
35
40
40
35
SK200-2014 SK200RC SK200TL (VIP)
SK200-2014 SK200RC SK200TL (VIP)
SK200-2014 SK200RC SK200TL (VIP)
SK200-2014 SK200RC SK200TL (VIP)
AF02L AF02RC
AF02L AF02RC
SK200
SK200
SK200
SK200
SK230
SK230
SK210
SK210
SK210
SK210
SK230
SK230
TEETH PIN MACHINE MODEL
BLADE SIZE

103. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
TURBO PART Nº WEIGHT
DESCRIPTION
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter
Side Cutter/ Side Protector 3 holes
2412N278D1
2412N278D2
2412N289D1
2412N289D2
14538012
8.9
8.9
15.6
15.6
10.9
SK200-8
SK200-8
SK230
SK230
SK260
ADAPTER LOCK MACHINE MODEL
PAGE-89

104. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
HYUNDAI

105. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-90
TURBO PART Nº WEIGHT
DESCRIPTION
STANDARD
Tip
Tip
Tip
Tip
E161-3027
E262-3046(2713-9038)
E262-3046(2713-9038)
61E70101
4.4
7.2
6.8
11
1 E161-3017
E262-3027
E262-3027
61E70100
R215 R225
R305
R305
ADAPTER LOCK MACHINE MODEL
S411-180002
TURBO PART Nº WEIGHT
DESCRIPTION
Rock Chisel
Rock Chisel
Rock Chisel
E161-3027RC
E262-3046RC
5.2
7.5
E161-3017
E262-3027
R215 R225
R305
ADAPTER LOCK MACHINE MODELL
S411-180002
R460 R420
R450 R360
TURBO PART Nº WEIGHT
DESCRIPTION
Standard Heavy Duty-New Type
TStandard Heavy Duty
Standard Heavy Duty
Standard Heavy Duty
Standard Tip
Standard Heavy Duty
Standard Heavy Duty
Standard Heavy Duty
Standard Heavy Duty
Standard Heavy Duty
Standard Heavy Duty
61N4-31210
61N6-31310
61Q6-31310
61N6DA0020
61N8-31310
61NA-31310
61QA-31310
61NB-31310
66NB-31310
61EQ-30030
4.５
6.8
7.2
4.6
9.4
13.5
13.8
21.5
18.5
28.5
61N4-31320
61N6-31320
61Q6-31320
61N8-31320
61NA-31320
61QA-31320
61NB-31320
62NB-31320
61EQ-30040
R210-7
R210-7
R210-9
R290-7
R360-7
R 360LC-9
R450
R500
R6500
ADAPTER LOCK MACHINE MODEL
66N4-30350
66N4-11150
S411-180002
S411-180002
61EH-70105
61EH-11150
61E7-04620
61E7-04630
66NB-31340
66NB-31350
61EQ-30460
61EQ-30510

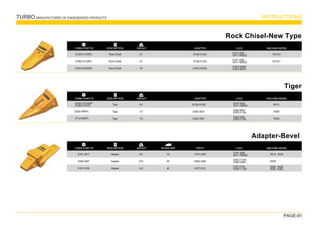

106. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-91
TURBO PART Nº WEIGHT
DESCRIPTION
Rock Chisel-New Type
Rock Chisel
Rock Chisel
Rock Chisel
61Q6-31310RC
67N6-31310RC
61EQ-30030RC
5.7
5.7
32
61Q6-31320
61Q6-31320
61EQ-30030
R210-9
R210-7
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Tiger
Tiger
Tiger
Tiger
E262-3046TL
2713-9038TL
5.2
7.5
7.5
61Q6-31320
E262-3027
E262-3027
R215
R305
R305
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Adapter-Bevel
Adapter
Adapter
Adapter
E161-3017
E262-3027
61E7-0100
6.8
12.5
14.2
32
40
40
E161-3027
E262-3046
61E7-0101
R215 R225
R305
TEETH LOCK MACHINE MODEL
R460 R420
R450 R360
S411-180002
61Q6-31310VIP
61Q6-31310TL
S411-180002
61EQ-30460
61EQ-30510
S411-180002
S411-180002
BLADE SIZE

107. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-92
TURBO PART Nº WEIGHT
DESCRIPTION
Adapter-Stratight Blade
Adapter
Adapter
Adapter
Adapter
E161-3017-32mm
E161-3017-35mm
E161-3017-40mm
E262-3027
6.5
6.5
6.7
10.8
32
35
40
40
E161-3027
E161-3027
E161-3027
E262-3046
R215 R225
R215 R225
R215
R305
TEETH PIN MACHINE MODEL
BLADE SIZE
S411-180002
S411-180002
S411-180002
TURBO PART Nº WEIGHT
DESCRIPTION
Adapter-New Type Stratight Blade
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
61N4-31200
61N6-31320
61Q6-31320
61Q6-31320
61N8-31320
61NA-31320
61QA-31320
62NB-31320
6
9.7
10.4
10.4
15.3
19.7
19
30
32
35
35
40
40
45
50
50
61N6-31310
61N6-31310
61Q6-31310
61Q6-31310
61N8-31310
61NA-31310
61QA-31310
61NB-31310
R210-7
R210-7
R210LC
R211LC
R290-7
R360-7
R360LC-9
R450
TEETH PIN MACHINE MODEL
BLADE SIZE
66N4-30350
66N4-11150
S411-180002
S411-180002
S411-180002
61EH-70105
61EH-11150
*
61E7-04620
61E7-04630
TURBO PART Nº WEIGHT
DESCRIPTION
Adapter-New Type Bevel
Adapter
Adapter
Adapter
Adapter
61Q6-31320
67N6-31320
66NB-31320
61EQ-30040
10.3
10.4
32.5
56.5
40
40
70
80
61Q6-31310
61Q6-31310
66NB-31310
61EQ-30030
R210-9
R210LC
R500
R6500
TEETH PIN MACHINE MODEL
BLADE SIZE
S411-180002
S411-180002
66NB-31340
66NB-31350
61EQ-30460
61EQ-30510

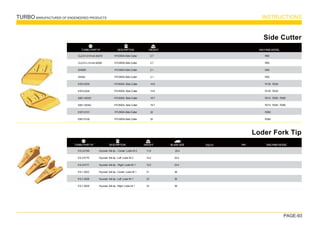

108. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-93
WEIGHT
TURBO PART Nº DESCRIPTION
Side Cutter
HYUNDA-Side Cutter
HYUNDA-Side Cutter
HYUNDA-Side Cutter
HYUNDA-Side Cutter
HYUNDA- Side Cutter
HYUNDA- Side Cutter
HYUNDA- Side Cutter
HYUNDA- Side Cutter
HYUNDA-Side Cutter
HYUNDA-Side Cutter
CLZ-01-D （
61m5-30270）
CLZ-01-L （
61m5-30280）
DH55R
DH55L
61E3-3033
61E3-3034
63E1-3533C
63E1-3534C
61E7-0101
63E7-0102
2.7
2.7
2.1
2.1
14.8
14.8
18.7
18.7
32
32
R60
R60
R50
R50
R130 R220
R130 R220
R210 R200 R280
R210 R200 R280
R360
R360
MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Loder Fork Tip
Hyundai fork tip - Center Loder Nr 2
Hyundai fork tip - Left Loder Nr 2
Hyundai fork tip - Right Loder Nr 1
Hyundai fork tip - Center Loder Nr 1
Hyundai fork tip - Left Loder Nr 1
Hyundai fork tip - Right Loder Nr 1
61L3-0169
61L3-0170
61L3-0171
61L1-3022
61L1-3028
61L1-3029
11.6
15.2
15.2
21
23
23
25.4
25.4
25.4
36
36
36
TEETH PIN MACHINE MODEL
BLADE SIZE

109. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
BOFOR

110. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-94
TURBO PART Nº WEIGHT
DESCRIPTION
Loader Tip
ALoader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
Loader Tip
4047166 -30101
4047167 -31102
4047168- 31106
3031537 32101
3031538- 32104
3031539 -33102
3031542 -34102
3031386 -35102
4038279
4038208
3027580
3000FN
4000FN
5000-FN
7500-FN
8000-FN
10000-FN
2.7
4.8
4.57
8.4
12.6
22
38
2.2
3.5
6.1
2.27
3.9
4
7.15
8.1
10.5
4046816
4046797
4046797
4046819
4046819
4046862
4044339
3031387
4038219
4038223
4038210
H-300
H-400
H-500
H-750
G-800
H-1000
V 6254673
6254675
6254675
6254677
6254677
6254682
6254682
6254697
M-10090
M-10090
M-10090
5-ST
10-ST
15-ST
20-ST
ADAPTER LOCK MACHINE MODEL

111. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-95
TURBO PART Nº WEIGHT
DESCRIPTION
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
Excavator Tip
4.9
8.95
14
18.7
27
2
3.3
2.3
3.7
5.8
7.5
11.2
3031434
3031394
3031395
3031396
3031397
H-300
H-400
H-750
4046816
4046797
4046797
4046819
4046862
6254675
6254677
6254682
6254682
6254679
5-ST
10-ST
15-ST
6254673
6254675
6254675
6254677
6254682
4044336 31101
4044428 32102
3031334 33101
3031335 34101
3031336 35101
3000BT
4000BT
7500BT
4046818 30104
4046799 31104
4046961 31105
3032682 32105
3031354 33104
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
Chamsheel Tip
Chamsheel Tip
Chamsheel Tip
Chamsheel Tip
Chamsheel Tip
Chamsheel Tip
Chamsheel Tip
Chamsheel Tip
Chamsheel Tip
Chamsheel Tip
2
3.7
6
5
7.2
10
12
14.5
21.6
4046816
4046797
4046819
4043608
130-02
3031112
3031112
3031113
3031265
6254673
6254675
6254677
200-14-OL
200-14-OL
200-18-OL
200-18-OL
200-18-OL
200-18-OL
4044291 30103
4044388 31103
3031362
4037988
4046729*
4046663
4038207
3027689 38104
3027512 38101
ADAPTER LOCK MACHINE MODEL

112. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-96
TURBO PART Nº WEIGHT
DESCRIPTION
Excavator Tip
Excavator Tip
Excavator Tip
3027538
3027524
26
32
3031113
3031265
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
B-Clock Adapter
B-Clock adapter
B-Clock adapter
B-Clock adapter
B-Clock adapter
B-Clock adapter
B-Clock adapter
34046816 31006
4046797 31004
4046819 32004
4046862 33004
4044339 -34004
3031387 -35003
1
1.9
3.5
5
8.7
16
4047166
4047167
3031537
3031539
3031542
3031386
6254673
6254675
6254677
6254682
6254682
6254679
ADAPTER LOCK MACHINE MODEL
TURBO PART Nº WEIGHT
DESCRIPTION
B-Clock Adapter
Side Pin adapter
Side Pin adapter
Side Pin adapter
4038219
4038223
4038210
1.5
4.6
4038279
4038208
3027580
TM-010
TM-010
TM-010
ADAPTER LOCK MACHINE MODEL

113. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-97
TURBO PART Nº WEIGHT
DESCRIPTION
B-Clock Adapter
Clamshell Adapter
Clamshell Adapter
Clamshell Adapter
Clamshell Adapter
Clamshell Adapter
Clamshell Adapter
Clamshell Adapter
Clamshell Adapter
Clamshell Adapter
5.2
11
15.4
19.6
7
9.5
12.5
18
27
4037988
4038261
4038207
4038257
4044336
4044428
3031334
3031335
3031336
6254675
6254677
6254682
6254682
6254679
ADAPTER LOCK MACHINE MODEL
4043608
3031112
3031113
3031265
3031434
3031394
3031395
3031396
3031397
TURBO PART Nº WEIGHT
DESCRIPTION
Rear Clock Adapter
Rear Clock adapter
Rear Clock adapter
Rear Clock adapter
Rear Clock adapter
1.25
2.3
*
*
3000-BT
4000-BT
5000 BT
7500-BT
5-ST
10-ST
10-ST
15-ST
ADAPTER LOCK MACHINE MODEL
300-H
400-H
500-H
750-H

114. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
JCB

115. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-98
TURBO PART Nº WEIGHT
DESCRIPTION
Adapter
53103205
53103205HD
53103205
53103208
53103209
53103208
53103209
53103209HD
53103208HD
53103206
53103207
5Center Tip
Center Tip-Heavy dute
Center Tip-standard
Side Cutter Tip-Light dute
Side Cutter Tip-Light dute
Side Cutter Tip
Side Cutter Tip
Side Cutter Tip-Heavy dute
Side Cutter Tip-Heavy dute
Side Cutter Tip
Side Cutter Tip
2.5
2.9
2.3
4.6
4.6
4.8
4.8
5.2
5.2
4.5
4.5
22
22
22
22
22
22
22
22
22
22
22
5J4773 (826/00303)
5J4773 (826/00303)
5J4773 (826/00303)
1305/0714
1305/0714
1305/0714
1305/0714
1305/0714
1305/0714
1305/0714
1305/0714
6V774 (21340/0701Z)
6V774 (21340/0701Z)
6V774 (21340/0701Z)
1340/0701
1340/0701
1340/0701
1340/0701
1340/0701
1340/0701
1340/0701
1340/0701
JCB-3CX
JCB-3CX
JCB-3CX
JCB-3CX
JCB-3CX
JCB-3CX
JCB-3CX
JCB-3CX
JCB-3CX
JCB-3CX
JCB-3CX
BOLT NUT MACHINE MODEL
BLADE SIZE
TURBO PART Nº WEIGHT
DESCRIPTION
Shark-JCB
332-C4388
332-C4389
332-C4390
Center Tip-Shark
Side Cutter Tip-Shark
Side Cutter Tip-Shark
2.65
5.45
5.45
22
22
22
1305/0714
1305/0714
1305/0714
1340/0701
1340/0701
1340/0701
JCB-3CX
JCB-3CX
JCB-3CX
BOLT NUT MACHINE MODEL
BLADE SIZE
TURBO PART Nº WEIGHT
DESCRIPTION
Side Cutter Welding
150LS
151LS
153LS
154LS
155LS
JCB-Side cutter welding
JCB-Side cutter welding
JCB-Side cutter welding
JCB-Side cutter welding
JCB-Side cutter welding
1.7
3.9
5
9.6
10.6
BOLT NUT MACHINE MODEL
BLADE SIZE

116. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
MINI Fork Tip

117. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-99
TURBO PART Nº WEIGHT
DESCRIPTION
MINI Fork Tip
Mini-00
Mini-01
Mini-02
112-12
7--17
1462201M1
1462201M2
1462201M3
468049
467334
HM054
IMP113-14BT
IMP113-14
IMP113-14LH
IMP113-14RH
IMP122/14
IMP123/14LH
IMP123/14RH
M20.4
M20.7
M20.LOC
M30.3
MINI- Fork Tip
MINI- Fork Tip
MINI- Fork Tip
MINI- Fork Tip
MINI- Fork Tip
MINI- Fork Tip
MINI- Fork Tip
MINI- Fork Tip
MINI- Fork Tip
MINI- Fork Tip
MINI- Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
1.1
1.2
1.6
1.3
1.3
2.8
2.5
2.5
1.2
1.6
1.5
2.8
2.5
5.5
5.5
1.7
2.9
2.9
1.8
1.8
1.8
3
16
16
16
16
16
21
21
21
16
16
22
*
*
*
*
*
*
*
*
*
*
*
BOLT NUT MACHINE MODEL
BLADE SIZE

118. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
FIAT KOMATSU
PAGE-100
TURBO PART Nº WEIGHT
DESCRIPTION
FIAT KOMATSU
BOLT NUT MACHINE MODEL
BLADE SIZE
SYNTH-TER 90-P6
SYNTH-ESIS 555-692-698
SYNTH-LOAD 555-556-692-698
SYNTH-TER 90-P6
SYNTH-ESIS 555-692-698
SYNTH-LOAD 555-556-692-698
SYNTH-TER 90-P6
SYNTH-ESIS 555-692-698
SYNTH-LOAD 555-556-692-698
312204052
312204053
312204054
6.4
6.4
4
20
20
20
3F5108
3F5108
3F5108
4K0367
4K0367
4K0367
FIAT KOMATSU- Fork Tip
FIAT KOMATSU- Fork Tip
FIAT KOMATSU- Fork Tip

119. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
FIAT HITACHI
PAGE-101
TURBO PART Nº WEIGHT
DESCRIPTION
FIAT HITACHI
BOLT NUT MACHINE MODEL
BLADE SIZE
85801109
85801377
85801376
3.8
4.9
4.9
20
20
20
3F5108
3F5108
3F5108
4K0367
4K0367
4K0367
FIAT HITACHI-Fork Tip
FIAT HITACHI-Fork Tip
FIAT HITACHI-Fork Tip
TERNE·BACK-Hoe·LOADERS
BAGGERLADER·TRANTO-PELES
FB-90 FB-100
TERNE·BACK-Hoe·LOADERS
BAGGERLADER·TRANTO-PELES
FB-90 FB-100
TERNE·BACK-Hoe·LOADERS
BAGGERLADER·TRANTO-PELES
FB-90 FB-100

120. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
HL

121. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-102
TURBO PART Nº WEIGHT
DESCRIPTION
HXL tip
230ST HL-23-HXL tip 1.2 834-23 2740-23 23-PN
PIN LOCK MACHINE MODEL
ADAPTER
TURBO PART Nº WEIGHT
DESCRIPTION
Light Tip
230SP
240SP
HL- Light Tip
HL- Light Tip
1.2
1.7
834-23
3000-24
2740-23
2740-24
23-PN
24-PN
PIN LOCK MACHINE MODEL
ADAPTER
TURBO PART Nº WEIGHT
DESCRIPTION
Tiger Long tip
23TL
24TL
HL-Tiger Long tip
HL-Tiger Long tip
1.1
1.3
834-23
3000-24
2740-23
2740-24
23-PN
24-PN
PIN LOCK MACHINE MODEL
ADAPTER
TURBO PART Nº WEIGHT
DESCRIPTION
Twin Tiger tip
23WTL
24WTL
HL- Twin Tiger tip
HL- Twin Tiger tip
1.２
1.５
834-23
3000-24
2740-23
2740-24
23-PN
24-PN
PIN LOCK MACHINE MODEL
ADAPTER
TURBO PART Nº WEIGHT
DESCRIPTION
Excavator Adapter
2740-23
2740-24
U43792
834-23
3000-24
HL-Excavator Adapter
Blade 16/22/25mm
HL-Excavator Adapter
Blade 16/22/25mm
HL-Excavator Adapter
Blade 16/22/25mm
HL-Excavator Adapter
Blade 16/22/25mm
HL-Excavator Adapter
Blade 16/22/25mm
1.9
2.2
1.76
1.6
16 22 25
16 22 25
16 22 25
16 22 25
16 22 25
230-S
240-S
230-S
240-S
23-PN
24-PN
23-PN
23-PN
24-PN
PIN LOCK MACHINE MODEL
ADAPTER

122. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
LIEBHERR

123. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-103
TURBO PART Nº WEIGHT
DESCRIPTION
Standard Tip
LIEBHERR-Standard Tip R904
LIEBHERR-Standard Tip R914
LIEBHERR-Standard Tip R924
LIEBHERR- Standard Tip R944
LIEBHERR- Standard Tip R974
3001127
3001288
3001318
3001319
3001130
5.8
7
10.2
15.6
23
R904 (3001250)
R914(3001248 ,3001249)
R924 (3001255)
R944 (3001255)
R974(3001150)
3001286
3001286
3001286
3001289
3001289
3001157
3001157
3001114
3001158
3001159
R924
R944
R974
PIN LOCK MACHINE MODEL
ADAPTER
TURBO PART Nº WEIGHT
DESCRIPTION
Excavator adapter
LIEBHERR- excavator adapter R904
LIEBHERR- excavator adapter R914
LIEBHERR- excavator adapter R924
LIEBHERR excavator adapter R944
LIEBHERR- excavator adapter R944
3001250
3001248 ·3001249
3001255
3001255
3001150
8
8
19.2
28.1
41
R924
R944
R974
BOLT NUT MACHINE MODEL
BLADE SIZE

124. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014

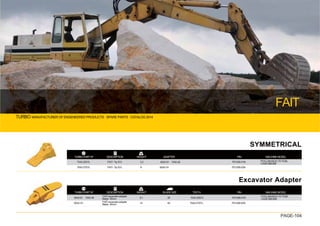

FAIT
PAGE-104
TURBO PART Nº WEIGHT
DESCRIPTION
SYMMETRICAL
Excavator Adapter
7042-25SYL
7042-27SYL
FAIT- Tip SYL
FAIT- Tip SYL
3.2
6
6042-91（7042-36）
6042-74
P01206-01N
P01206-02N
POCLAIN:60,61,70 75,85,
CASE:688,888
PIN MACHINE MODEL
ADAPTER
TURBO PART Nº WEIGHT
DESCRIPTION
6042-91（7042-36）
6042-74
FAIT-excavator adapter
Blade 35mm
FAIT-excavator adapter
Blade 40mm
35
40
6.1
14
7042-25SYL
7042-27SYL
P01206-01N
P01206-02N
POCLAIN:60,61,70 75,85
CASE:688,888
TEETH PIN MACHINE MODEL
BLADE SIZE

125. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
UNI-Z

126. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-105
TURBO PART Nº WEIGHT
DESCRIPTION
Standard
UNI-Z-Standard Tip
UNI-Z-Standard Tip
UNI-Z-Standard Tip
UNI-Z-Standard Tip
UNI-Z-Standard Tip
UNI-ZȺ
UNI-ZȻ
UNI-Z ȼ
UNI-ZȽ
UNI-Z Ⱦ
UNI-ZȺ
UNI-ZȻ
UNI-Z ȼ
UNI-ZȽ
UNI-Z Ⱦ
1.2
1.8
3.2
4.7
10.4
62380
26334
62379
62378
63684
PIN MACHINE MODEL
ADAPTER
TURBO PART Nº WEIGHT
DESCRIPTION
Excavator adapter
UNI-Z-excavator adapter
UNI-Z-excavator adapter
UNI-Z-excavator adapter
UNI-Z-excavator adapter
UNI-Z-excavator adapter
UNI-ZȺ
UNI-ZȻ
UNI-Z ȼ
UNI-ZȽ
UNI-Z Ⱦ
UNI-ZȺ
UNI-ZȻ
UNI-Z ȼ
UNI-ZȽ
UNI-Z Ⱦ
1.7
2.9
4
7.7
14.4
TEETH PIN MACHINE MODEL
BLADE SIZE

127. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
LEHNOFF
PAGE-106
TURBO PART Nº WEIGHT
DESCRIPTION
LEHNOFF
LEHNOFF- excavator Tip
LEHNOFF- excavator Tip
LEHNOFF- excavator Tip
LEHNOFF- excavator adapter
LEHNOFF- excavator adapter
400 F
411 F
301 B
001 HS
011 HS
001 HS
011 HS
400 F
411 F
1.5
2.4
1.8
1.6
1.3
62380
26334
62379
62378
63684
PIN MACHINE MODEL
ADAPTER

128. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
Hensley

129. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-107
TURBO PART Nº WEIGHT
DESCRIPTION
Standard
X156
X220
X290
X310
X330
X370
X400
X410
X335
X385
X435
X475
X485
0.9
3.1
4.2
4.6
6.2
9
7.5
11.7
5.7
10
13.5
18
23.6
155X156-28
103X220-25
127X290-32
158X310-35
158X330-38
937X370-45
802X400-50
940X410-50
*
*
*
*
*
K156S
K220S
K290S
K310S
K330S
K370S
K400S
K410S
K335S
K385S
K435S
K475
K485
PIN MACHINE MODEL
ADAPTER
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
TURBO PART Nº WEIGHT
DESCRIPTION
Extra Longer
X156L
X156LP
0.9
1.8
155X156-28
155X156-28
K156S
K156S
PIN MACHINE MODEL
ADAPTER
Extra Longer
Extra Longer

130. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-108
TURBO PART Nº WEIGHT
DESCRIPTION
Twin Tiger Long
X156WTL
X220WTL
X290WTL
X310WTL
X330WTL
X370WTL
X400WTL
X410WTL
1.7
3.8
4.8
6
6,5
9.6
11.2
12.8
155X156-28
103X220-25
127X290-32
158X310-35
158X330-38
937X370-45
802X400-50
940X410-50
K156S
K220S
K290S
K310S
K330S
K370S
K400S
K410S
PIN MACHINE MODEL
ADAPTER
Twin Tiger Long
Twin Tiger Long
Twin Tiger Long
Twin Tiger Long
Twin Tiger Long
Twin Tiger Long
Twin Tiger Long
Twin Tiger Long
TURBO PART Nº WEIGHT
DESCRIPTION
Tiger
X156T
X220T
X290T
X310T
X330T
X370T
X400T
X410T
1.0
2.9
3.9
4.5
5.7
8.2
7.6
10.3
155X156-28
103X220-25
127X290-32
158X310-35
158X330-38
937X370-45
802X400-50
940X410-50
K156S
K220S
K290S
K310S
K330S
K370S
K400S
K410S
PIN MACHINE MODEL
ADAPTER
Tiger
Tiger
Tiger
Tiger
Tiger
Tiger
Tiger
Tiger

131. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-109
TURBO PART Nº WEIGHT
DESCRIPTION
Rock Chisel
X290RC
X330RC
X370RC
X410RC
5.2
7.6
9.7
13.9
127X290-32
158X330-38
937X370-45
802X400-50
K290S
K310S
K330S
K400S
PIN MACHINE MODEL
ADAPTER
Rock Chisel
Rock Chisel
Rock Chisel
Rock Chisel
TURBO PART Nº WEIGHT
DESCRIPTION
Welding Adapter
X156WN
155X156
230X156
552X156
103X220
109X220
127X290
158X290
158X330
937X330
937X370
940X370
802X400
940X410
MACHINE MODEL
X156 Hensley welding nose
welding Adapte
welding Adapte
welding Adapte
welding Adapte
welding Adapte
welding Adapte
welding Adapte
welding Adapte
welding Adapte
welding Adapte
welding Adapte
welding Adapte
welding Adapte
1
2.3
1.7
2.1
7.2
6.4
10
10
16
15.1
18.6
15.2
23.2
21.6
*
28
16
20
25
32
32
38
38
45
45
52
50
50
X156
X156
X156
X156
X220
X220
X290
X290
X330
X330
X370
X370
X440
X410
K156S
K156S
K156S
K156S
K220S
K220S
K290S
K290S
K330S
K330S
K370S
K370S
K400S
K410S
TEETH PIN
BLADE SIZE

132. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
TATA HITACHI Indian

133. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-110
TURBO PART Nº WEIGHT
DESCRIPTION
Standard
TATA HITACHI EX60
Standard Tip (PC100 Tip)
Standard-Heavy dute Tip
Standard-light dute Tip
Standard Tip
excavator teeth
EX60
TB00395
TB00705HD
TB00705
TB00822
TD08460
1.7
2.2
8.9
7.4
11.5
20
EX60
PC100-25
TB00704
TB00704
TB00821
TD08459
EX600
EX70
EX200
EX200
EX300
EX600
Indian-TATA HITACHI EX60
Indian-TATA HITACHI EX70
Indian-TATA HITACHI EX200
Indian-TATA HITACHI EX200
Indian-TATA HITACHI EX300
Indian-TATA HITACHI EX600
PIN MACHINE MODEL
ADAPTER
TURBO PART Nº WEIGHT
DESCRIPTION
Excavator adapter
excavator adapter (PC100-25 Adapter)
excavator adapter
excavator adapter- back side Blade type
excavator adapter
excavator adapter
TB070205
TB00704
TB00821
TD08459
2.8
12.3
12.3
25.2
40.2
TB00395
TB00705
TB00705
TB00822
TD08460
EX70
EX200
EX200
EX300
EX600
25
40
40
60
65
TATA HITACHI EX70
TATA HITACHI EX200
TATA HITACHI EX200
TATA HITACHI EX300
TATA HITACHI EX600
TEETH MACHINE MODEL
BLADE SIZE
TURBO PART Nº WEIGHT
DESCRIPTION
Rock Chisel
Rock Chisel Tip
TB00705RC 7.5 TB00704 EX200 Indian-TATA HITACHI EX200
PIN
PIN
MACHINE MODEL
ADAPTER
TC00593
PC100-25

134. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
JOHN DEER INDIAN
PAGE-111
TURBO PART Nº WEIGHT
DESCRIPTION
JOHN DEER Indian
Indian Market (JOHN DEER)-Tip
TF23 U43792
1.85 23PN
PIN MACHINE MODEL
ADAPTER
TURBO PART Nº WEIGHT
DESCRIPTION
ADAPTER
Indian Market (JOHN DEER)-t
excavator adapter
U43792 25
1..7 23PN
TF23
PIN
TEETH MACHINE MODEL
BLADE SIZE

135. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
INDIAN FORK TEETH
PAGE-112
TURBO PART Nº WEIGHT
DESCRIPTION
Indian Fork Teeth
Indian Market case fork Tip
HC00002 20
4..4
PIN
TEETH MACHINE MODEL
BLADE SIZE

136. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
INDIAN CASE
PAGE-113
TURBO PART Nº WEIGHT
DESCRIPTION
Indian Case
Indian Market case fork Tip
Indian Market case fork Tip
Indian Market case fork Tip
BU0420001
BU0630302
BU0630302
22
22
22
2.7
5.3
5.3
PIN
TEETH MACHINE MODEL
BLADE SIZE

137. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
INDIAN CAT
PAGE-114
TURBO PART Nº WEIGHT
DESCRIPTION
Indian Cat
Center
Side cutter
Side cutter
6Y6335
277-8664
277-8665
22
22
22
3.5
5.5
5.5
PIN
TEETH MACHINE MODEL
BLADE SIZE
TURBO PART Nº WEIGHT
DESCRIPTION
Indian Fork Teeth
Indian Market case fork Tip
Indian Market case fork Tip
Indian Market case fork Tip
WD00010
WD00011
WD00012
13.8
12.8
1 3.6
PIN
TEETH MACHINE MODEL
BLADE SIZE

138. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
KOBLECO-NEW MACHINE

139. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-115
TURBO PART Nº WEIGHT
DESCRIPTION
Kobleco-New Machine
SK60RC
2412U16S1
B12P0015E12
B12P0015E3-L
YN69S001L
YN69B00008S002-L
YN69B00008S003-L
LC6901S1L
LC69B00001S2-L
LC69B00001S3-1
*
PIN MACHINE MODEL
ADAPTER
Tip Kobleco SK 60- OEM-LE100-8
Tip Kobleco SK 140/SK135
Pin Kobleco SK 140/SK135
Retainer Kobleco SK 140/SK135
Tip Kobleco SK 210
Kobleco SK 210
IRetainer Kobleco SK 210
Tip Kobleco SK 350A
Pin Kobleco SK 350A
Kobleco SK 350A
1.6
4.5
0.25
0.04
7.8
0.25
0.04
12.7
0.25
0.04
SK 60
SK 140/SK135
SK 140/SK135
SK 140/SK135
SK 210
SK 210
SK 210
SK 350A
SK 350A
SK 350A
SK60-20
2412U47
YN61B01020PIL-SK210A
LC61B01001PIL-SK350A
B12P0015E12
B12P0015E3-L
YN69B00008S002-L
YN69B00008S003-L
LC69B00001S2-L
LC69B00001S3-1
B12P0015E12
B12P0015E3-L
TURBO PART Nº WEIGHT
DESCRIPTION
Kobleco-New Machine
Adapter Kobleco SK 60 blade 20mm
Adpater Kobleco SK 140/SK135
Adapter Kobleco SK 210
Adapter Kobleco SK 350A
SK60-20
2412U47
YN61B01020PIL-SK210A
LC61B01001PIL-SK350A
20mm
32mm
40
51
SK 60
SK 140/SK135
SK 210
SK 350A
2.8
13.7
17.6
PIN MACHINE MODEL
BLADE SIZE
*
YN69B00008S002-L
YN69B00008S003-L
LC69B00001S2-L
LC69B00001S3-1

140. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
FIAT KOBELCO

141. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-116
TURBO PART Nº WEIGHT
DESCRIPTION
FIAT KOBELCO
76028588
76052987
8290419
79069603
79069594
79069595
ADAPTER RH MACHINE MODEL
ADAPTER ADAPTER LH
3.60
2.20
8.00
18.60
8
8
79069599
76052985
*
79069601
76052985
76052985
79069597
76052986
*
79070396
76052986
76052986
79069598
76052984
*
76052984
76052984
Tip-FR 160 - 2 / W 190-FIAT
ALLIS - FIAT KOBELCO
FR 160 - 2 / W 190-FIAT ALLIS -
FIAT KOBELCO
W130-FIAT ALLIS - FIAT
KOBELCO
FL 10 -FIAT ALLIS - FIAT
KOBELCO
FR 220 -FIAT ALLIS - FIAT
KOBELCO
FR 130 FIAT ALLIS - FIAT
KOBELCO
FR 130 FIAT ALLIS - FIAT
KOBELCO
Tip- W130-FIAT
ALLIS - FIAT KOBELCO
Tip FL 10 -FIAT
ALLIS - FIAT KOBELCO
Tip FR 220 -FIAT
ALLIS - FIAT KOBELCO
Tip - RH FR 130
FIAT ALLIS - FIAT KOBELCO
Tip - LF FR 130 FIAT
ALLIS - FIAT KOBELCO
TURBO PART Nº WEIGHT
DESCRIPTION
FIAT KOBELCO
79069599
79069597
79069598
76052985
76052986
76052984
79069601
79070396
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
12.40
14.2
14.2
7.7
8.5
8.5
25.90
25.90
76028588
76028588
76028588
76052987
76052987
76052987
79069603
79069603
PIN
TEETH MACHINE MODEL
BLADE SIZE
Adapter-FR 160 - 2 / W 190
Adapter- RH FR 160 FIAT ALLIS
- FIAT KOBELCO
Adapter- LH FR 160 FIAT ALLIS
- FIAT KOBELCO
Adapter- W130-FIAT ALLIS
- FIAT KOBELCO
Adapter Right- W130-FIAT ALLIS
- FIAT KOBELCO
Adapter Left- W130-FIAT ALLIS
- FIAT KOBELCO
Adapter FR 220 -FIAT ALLIS
- FIAT KOBELCO
Adapter FR 220 -FIAT ALLIS
- FIAT KOBELCO
FR 160 - 2 / W 190-FIAT ALLIS
FR 160 FIAT ALLIS - FIAT
KOBELCO
FR 160 FIAT ALLIS - FIAT
KOBELCO
W130-FIAT ALLIS - FIAT
KOBELCO
W130-FIAT ALLIS - FIAT
KOBELCO
W130-FIAT ALLIS - FIAT
KOBELCO
FR 220 -FIAT ALLIS - FIAT
KOBELCO
FR 220 -FIAT ALLIS - FIAT
KOBELCO

142. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
FAIT HITACHI

143. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-117
TURBO PART Nº WEIGHT
DESCRIPTION
Fait Hitachi
71467241
71417992
71465120
71421565
71464186
71468101
71432195
Tip-Fait Hitachi FH120/FH150
Tip--Fait Hitachi FH200-2
Tip-Fait Hitachi FH200-3
Tip-Fait Hitachi FH270-330
Tip-Fait Hitachi FH220-270-300
Tip -Fait Hitachi FH 400-3 / 450-3
Tip -Fait Hitachi FH 400LCH-2
ADAPTER RH MACHINE MODEL
ADAPTER ADAPTER LH
2.80
4.70
5.90
8.4
6.40
11.60
13.4
*
*
*
71421566
71421566
71468102
71432196
*
*
*
71421567
71421567
71468103
*
*
*
*
71421568
71421568
71468104
*
Fait Hitachi FH120/FH150
Fait Hitachi FH200-2
Fait Hitachi FH200-3
Fait Hitachi FH270-330
Fait Hitachi FH220-270-300
Fait Hitachi FH 400-3 / 450-3
Fait Hitachi FH 400LCH-2
TURBO PART Nº WEIGHT
DESCRIPTION
Fait Hitachi
71421566
71421567
71421568
71464187
71468102
71468103
71468104
71432196
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
16.5
23.8
23.8
13.9
20.7
42.5
42.5
21.5
71421565
71421565
71421565
71464186
71464186
71468101
71468101
71432195
PIN
TEETH MACHINE MODEL
BLADE SIZE
Adapter-Fait Hitachi FH270-330
Right Adapter-Fait Hitachi FH270-330
Left Adapter-Fait Hitachi FH270-330
ADAPTER Fait Hitachi
FH220-270-300
CENTER ADAPTER -Fait Hitachi
FH 400-3 / 45
Right ADAPTER -Fait Hitachi FH
400-3 / 450-3
Left ADAPTER -Fait Hitachi FH
400-3 / 450-3
Adapter Fait Hitachi FH
400LCH-2
Fait Hitachi FH270-330
Fait Hitachi FH270-330
Fait Hitachi FH270-330
Fait Hitachi FH220-270-300
Fait Hitachi FH220-270-300
Fait Hitachi FH 400-3 / 450-3
Fait Hitachi FH 400-3 / 450-3
Fait Hitachi FH 400-3 / 450-3

144. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
HIDROMEK

145. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-118
TURBO PART Nº WEIGHT
DESCRIPTION
Fork Tip
81010600
81010630
81010640
20
20
20
3.4
6.7
6.7
PIN MACHINE MODEL
BLADE SIZE
HIDROMEK-CENTER Tip HMK
FB190-100T
HIDROMEK-SIDE CUTTER-RIGHT
HMK FB190-100T
HIDROMEK-SIDE CUTTER-LEFT
HMK FB190-100T
HMK FB190-100T
HMK FB190-100T
HMK FB190-100T
TURBO PART Nº WEIGHT
DESCRIPTION
HIDROMEK
345302601
35
35
40
45
H345302801
345302800
H255302801
375302800
11
10.6
10.6
17.7
HIDROMEK Adapter
HIDROMEK Adapter
HIDROMEK Adapter
HIDROMEK Adapter
PIN
TEETH MACHINE MODEL
BLADE SIZE
Adapter HMK200
Adapter HMK220
Adapter HMK300
Adapter HMK370A
TURBO PART Nº WEIGHT
DESCRIPTION
Standrd Teeth and Adpater
345302800 345302601
H345302602
H255302601
375302600
6.2
4.9
7.5
9.9
HIDROMEK Tip
HIDROMEK Tip
HIDROMEK Tip
HIDROMEK Tip
PIN MACHINE MODEL
ADAPTER
H345302801
HMK220T2
H255302801
HMK300T
375302800
HMK370T
H345302602
HMK220A
H255302601
HMK300A
375302600
HMK370A
HIDROMEK HMK220
HIDROMEK HMK200
HIDROMEK HMK300
HIDROMEK HMK370A

146. MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
KAWASAKI

147. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-119
TURBO PART Nº WEIGHT
DESCRIPTION
Kawasaki
03C1160L001
03C1170L001
03C1180L001
03C1190L001
36815-20040
36815-20030
03C3660L001
03C3650L001
03C3661L001
03C3651L001
03C3700L001
03C3690L001
25.4
32
38
45
32
32
32
32
38
38
40
40
*
*
*
*
*
*
*
*
11.00
14.5
23.50
25.40
19.20
19.20
20.00
20.00
26.70
26.70
31
31
Tip - right kawasaki 80Z4
Tip - left kawasaki 80Z4
Tip -right kawasaki 90Z3
Tip -left kawasaki 90Z3
Tip - right kawasaki 95Z
Tip - left kawasaki 95Z
76028588
76028588
76028588
76052987
76052987
76052987
79069603
79069603
PIN
TEETH MACHINE MODEL
BLADE SIZE
Tip - CENTER kawasaki
60Z2 70Z2 80Z3
Tip - CENTER kawasaki 80Z4
Tip - CENTER kawasaki 90Z3
Tip - CENTER kawasaki 95Z
Tip Right - CENTER kawasaki
60Z2 70Z2 80Z3
Tip Left - CENTER kawasaki
60Z2 70Z2 80Z3
60 Z2,70 Z2 ,3,5 80 Z3,5
70B,D,Z3,85 Z3 CO,80 ZS,80 Z4
KSS 85Z- 90Z - 95Z
KSS 95Z-II,4
60 Z2, 70 Z2,3,5 80 Z3,5
60 Z2, 70 Z2,3,5 80 Z3,5
70B,D,Z3,85 Z3 CO,80 ZS,80 Z4
70B,D,Z3,85 Z3 CO,80 ZS,80 Z4
KSS 85Z- 90Z - 95Z
KSS 85Z- 90Z - 95Z
KSS 95Z-II,4
KSS 95Z-II,4

148. MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
ADCO

149. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-120
TURBO PART Nº WEIGHT
DESCRIPTION
ADCO
100
200
100 RH
100 LH
200 RH
200 LH
*
PIN MACHINE MODEL
ADAPTER
ADCO Center Tip
ADCO Center Tip
ADCO RH/LH Tip
ADCO RH/LH Tip
ADCO RH/LH Tip
ADCO RH/LH Tip
1.4
2.6
1.5
1.5
3
3
110
210
110
110
210
210
TURBO PART Nº WEIGHT
DESCRIPTION
ADCO
ADCO Center Adapter
ADCO Center Adapter
ADCO RH/LH Adapter
ADCO RH/LH Adapter
Ateco-Center Tip
110
210
210 RH
210 LH
*
*
*
*
*
3.08
3.96
4.8
4.8
3.6
PIN
TEETH MACHINE MODEL
BLADE SIZE
*
3-868(Ateco)
9937(Champion,Volvo)

150. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
BOBCAT
PAGE-121
TURBO PART Nº WEIGHT
DESCRIPTION
Bobcat
6737325
6737324
Bobcat Tip
Bobcat adapter
1
1.9
6737324
6737325
PIN MACHINE MODEL
ADAPTER

151. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
KAWASAK
PAGE-122
TURBO PART Nº WEIGHT
DESCRIPTION
KAWASAK
KAWASAK-Fork Tip Blade 20mm
KAWASAK-Fork Tip Blade 20mm
KAWASAK-Fork Tip Blade 20mm
5421114
5421115
5420402
20
20
20
8.6
8.6
4.2
PIN
TEETH MACHINE MODEL
BLADE SIZE

152. MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
NON-KNOW BRAND- FORK TIP
PAGE-123
TURBO PART Nº WEIGHT
DESCRIPTION
Non-know brand- Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
Fork Tip
11000SX-L
1000SX-R
2900402
2901114
2901115
2.1
2.1
4.2
8.5
8.5
PIN
TEETH MACHINE MODEL
BLADE SIZE

153. MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
HIATICHI -FORK TIP
PAGE-124
TURBO PART Nº WEIGHT
DESCRIPTION
Hiatichi -Fork Tip
205-70-T4272
207-70-T4212
56600-51382
56600-51482
56600-51492
56700-50372
56700-50382
56700-50392
16
15.7
17.5
23.5
23.5
24
40
40
ZW 180 / 220
ZW 180 / 220
ZW 180 / 220
ZW 250 / 310
ZW 250 / 310
ZW 250 / 310
38
40
36
36
36
45
45
45
PIN
TEETH MACHINE MODEL
BLADE SIZE
Komatsu fork Tip--Turkey
market-Blade 38mm
Komatsu fork Tip--Turkey
market-Blade 38mm
Tip - CENTER Hiatichi
ZW180 / 220
Tip - RIGHT SIDE Hiatichi
ZW 180 / 220
Tip - LEFT SIDE Hiatichi
ZW 180 / 220
Tip - CENTER Hiatichi
ZW 250 / 310
Tip - RIGHT SIDE Hiatichi
ZW 250 / 310
Tip - LEFT SIDE Hiatichi
ZW 250 / 310

154. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
BRASIL -G.E.T SYSTEM

155. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-125
TURBO PART Nº WEIGHT
DESCRIPTION
Brasil -G.E.T System
846602
862740
3201071
3302877
234-785-1121
D027748
E157559
75216654
TBM-01
D39093
E61652-1
E61652-5/8
75238350
232-70-13130
3.3
2.8
10.2
9.3
5.7
1
10.4
6
10.3
1.1
10.4
10.4
2.6
6.6
PIN MACHINE MODEL
ADAPTER
Tip Maxion
Tip Maxion
Tip
Tip
Tip
Tip
Tip
tooth Fiat
tooth Fiat
Tip Maxion
W18/20B 1
Tip
RETRO 5/8 2F
komatsu-Shank
BLADE SIZE

156. MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
NON-KNOW BRANDS SIDE CUTTER
PAGE-126
TURBO PART Nº WEIGHT
DESCRIPTION
Non-Know Brands Side Cutter
E72958L
E72958R
E72959
ES124-L
ES125-R
1010517
1010518
CE 17748L3
CE 17748R3
CA05
side cutter
side cutter
side cutter center
Side cutter
Side cutter
Hitachi 400 side cutter
Hitachi 400 side cutter
Esco-side cutter
Esco-side cutter
Tip
10.2
10.2
5.1
3.8
3.8
20.2
20.2
20.3
20.3
0.6
38
40
36
36
36
45
45
45
PIN MACHINE MODEL
ADAPTER

157. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
SANYYI

158. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-127
TURBO PART Nº WEIGHT
DESCRIPTION
Standard tip
12076675
12076809
60154445
12076847
12164234
11912709
60116436
60142870
PIN MACHINE MODEL
ADAPTER
standard tip
standard tip
standard tip
standard tip
standard tip
standard tip
standard tip
standard tip
1.7
2.4
3
/
/
5.7
9.2
17.2
SY55/60
SY65/75/95
SY115
SY135
SY155
SY205/215
SY285/335 SY365
SY465
12076693
12076804
60154444
12076838
12076838
11902150
60116435
60142870
12076709 12076732
12076815 12076820
60154443 60154446
12077349 12077355
12077349 12077355
2705-1020 2114-1848A
705-0000 114-00246
2705-1034 2114-1931
TURBO PART Nº WEIGHT
DESCRIPTION
Side Cutter
A229900002159
A229900007313
2713-1228 L
2713-1228 R
11280631
60040991
60040992
A820403000889
PIN MACHINE MODEL
ADAPTER
Side cutter
Side cutter
Side cutter
Side cutter
Side cutter
6.4
6.4
8.6
8.6
16
22
22
27.7
12076693
12076804
60154444
12076838
12076838
11902150
60116435
60142870
SY55/60
65/75
SY95/115
135/155
SY235
SY285
SY335

159. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-128
TURBO PART Nº WEIGHT
DESCRIPTION
Adapter
12076693
12076804
60154444
12076838
12076838
11902150
60116435
60142870
PIN MACHINE MODEL
ADAPTER
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
2.4
3.6
4.8
/
/
8.6
17.7
24
12076675
12076809
60154445
12076847
12164234
11902148
60116437
60142873
SY55/60
SY65/75/95
SY115
SY135
SY155
SY195/215/235
SY285/335S Y365
SY465
12076709/12076732
12076815/12076820
60154443/60154446
12077349/12077355
12077349/12077355
2705-1020
2114-1848A
705-0000
114-00246
2705-1034
2114-1931
TURBO PART Nº WEIGHT
DESCRIPTION
Rock Chisel
11902148
60116437
60142873
PIN MACHINE MODEL
ADAPTER
Rock Chisel
Rock Chisel
Rock Chisel
6.8
11
14.2
SSY195/215/235
SY285/335 SY365
SY465
111902150
60116435
60142870
2705-1020
2114-1848A
705-0000
114-00246
SY215/23
5285/335
2705-1034
2114-1931
TURBO PART Nº WEIGHT
DESCRIPTION
Lip Conner
60154446
A820403000698
A820403000893
PIN MACHINE MODEL
ADAPTER
Lip conner
Lip conner
Lip conner
61.2
1.4
2.8
SY95
SY335

160. MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
CASE

161. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-129
TURBO PART Nº WEIGHT
DESCRIPTION
Case
87430710
87344351
87430711
87430711
87344354
87344353
87344356
87430854
233792A1
P3882188U
372138A1
254823A1
127555A1
233792A1
127558A1
241813A1
241814A1
254814A1
254816A1
241812A1
233799A1
233798A1
PIN MACHINE MODEL
ADAPTER
SYL Teeth
VY Twin Pick
Pin
Pin
TVY Twin Pick
AR/ARH Penetration Abrasion
VY Pick
TY/TYL General Purpose
Pin
SYL General Purpose Long
TVY Twin Pick
VY Pick
TY/TYL General Purpose
PN Pin
SYL General Purpose Long
TVY Twin Pick
VY Pick
TY/TYL General Purpose
AD Abrasion Penetration
Flare
PN Pin
SYL General Purpose Long
0.8
1
0.2
0.2
1.2
*
1.1
1
0.2
2.3
2
2
2.2
0.2
3.1
3.3
2.8
3.4
4.7
3.9
0.2
6.8

162. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-130
TURBO PART Nº WEIGHT
DESCRIPTION
Case
241818A1
233796A1
241819A1
372150A1
378944A1
372149A1
372152A1
254098A1
254093A1
254096A1
254094A1
254097A1
372155A1
378945A1
372154A1
372156A1
254104A1
254100A1
254102A1
254101A1
254103A1
372157A1
PIN MACHINE MODEL
ADAPTER
TVY Twin Pick
VY Pick
Flare
SHV Penetration Abrasion
RYL Standard Rock
SDX Chisel Heavy
TYLCE Non-Twist Long GP
Pin
SYL General Purpose Long
TVY Twin Pick
VY Pick
Flare
SHV Penetration Abrasion
RYL Standard Rock
SDX Chisel Heavy
TYLCE Non-Twist Long GP
PN Pin
SYL General Purpose Long
TVY Twin Pick
VY Pick
Flare
SDX Chisel Heavy
6
5.4
*
8
6.3
6.9
*
0.1
9.6
9.3
8.8
13
9
9
9.6
*
0.2
13
12
11.8
17.5
15

163. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-131
TURBO PART Nº WEIGHT
DESCRIPTION
Case
372159A1
372044A1
372042A1
372161A1
372160A1
372164A1
378965A1
372163A1
378959A1
372162A1
378961A1
233795A1
233794A1
241816A1
241817A1
254807A1
254811A1
254810A1
241815A1
372147A1
378943A1
372145A1
372148A1
PIN MACHINE MODEL
ADAPTER
TYLCE Non-Twist Long GP
Pin
SYL General Purpose Long
TVY Twin Pick
VY Pick
TY/TYL General Purpose
Flare
SHV Penetration Abrasion
RYL Standard Rock
SDX Chisel Heavy
SDX Chisel Heavy
Pin
SYL General Purpose Long
TVY Twin Pick
VY Pick
TY/TYL General Purpose
AD Abrasion Penetration
AR Abrasion Rock
Flare
SHV Penetration Abrasion
RYL Standard Rock
SDX Chisel Heavy
TYLCE Non-Twist Long GP
*
0.2
16.8
17
15.5
18
23.5
22
15
16.8
23.5
0.1
6
4.3
3.8
4.8
6.2
7.7
9
5.5
4.5
5
*

164. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
CHINA MACHINE( XGMA, XCMG, LIUGONG,SDLG)
ＸＧ５０

165. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-132
TURBO PART Nº WEIGHT
DESCRIPTION
ChengGong
CQ30
PIN MACHINE MODEL
ADAPTER
ۨٗ30 4.5 CQ30C
TURBO PART Nº WEIGHT
DESCRIPTION
ShangGong
YSW30T
YSW50T
YSW30A
YSW50A
PIN MACHINE MODEL
ADAPTER
ٌٗ30
ٌٗ30
ٌٗ30
ٌٗ30
3.1
6.9
SG30
SG50
SG30
SG50
YSW30A
YSW50A
30
40
YSW30T
YSW50T
TURBO PART Nº WEIGHT
DESCRIPTION
XGMA
XIA50
XB50 L
XB50 R
PIN MACHINE MODEL
ADAPTER
‫ٗח‬50XGMA
‫ٗח‬50XGMA
‫ٗח‬50XGMA
8.5
17.5
17.5
XG50
TURBO PART Nº WEIGHT
DESCRIPTION
ChangLin
CL50
CLB50 L
CLB50 R
PIN MACHINE MODEL
ADAPTER
‫ߥٯ‬50
‫ߥٯ‬50
‫ߥٯ‬50
10.1
11
11
XG50

166. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-133
TURBO PART Nº WEIGHT
DESCRIPTION
XCMG
XU30
XUB30
XU50
XUB50
PIN MACHINE MODEL
ADAPTER
‫ٗڰ‬30XCMG
‫ٗڰ‬30XCMG
‫ٗڰ‬30XCMG
‫ٗڰ‬30XCMG
5.4
5.6
8.5
13
XG30
XG50
TURBO PART Nº WEIGHT
DESCRIPTION
LongKing
2713-9061
2713-9062
PIN MACHINE MODEL
ADAPTER
क़ँ௺ٗ 60
क़ँ௺ٗ 60
1.5
1.5
2713-9062
20
क़ँ௺ٗ60
௺ٗ60
2713-9061
ZL40B/LG50C
TURBO PART Nº WEIGHT
DESCRIPTION
Liugong
LG40-B
LG50C
LG40-T
LUM40
LUB40 L
LUB40 R
LU50
LU50H
PIN MACHINE MODEL
ADAPTER
㮳ٗ40/50Liugong
㮳ٗ40/50Liugong
㮳ٗ40/50Liugong
㮳ٗ40/50Liugong
㮳ٗ40/50Liugong
㮳ٗ40/50Liugong
㮳ٗ40/50Liugong
㮳ٗ40/50Liugong
4.5
5.1
6.3
10.5
12.5
12.5
7.4
1.5
1LUM40
LUM40
LUM40

167. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
ZL40B/LG30C
TURBO PART Nº WEIGHT
DESCRIPTION
SDLG
SDLG50
SDLG50R
SDLG50L
291700 36961
291700 36981
291700 36971
XG932
PIN MACHINE MODEL
ADAPTER
SDLG- Loder 50 conner tip
SDLG- Loder 50 conner tip- Right
SDLG- Loder 50 conner tip-LIGHT
SDLG 30 Б‫ސ‬঱ߑ֘-FORK TIP
SDLG 30 Б‫ސ‬঱ߑ֘-FORK TIP
SDLG 30 Б‫ސ‬঱ߑ֘-FORK TIP
XCMG-For teeth- Loder 932
9.2
13.2
13.2
5
6.2
6.2
8
ZL40B/LG50C
PAGE-134

168. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
TURBO BUCKET TEETH
CUTTING EDGES

169. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-135
WEIGHT
TURBO PART Nº DESCRIPTION
CUTTING EDGES
Cutting Edges
Cutting Edges
Cutting Edges
Cutting Edges
Cutting Edges
Cutting Edges
19*203*1060
19*203*756
19*203*809
19*203*756
30*480*687
30*380*1818
75*380*1190
45*265*556
40*200*556
45*330*1162
30*253*360
30*293*359
30*360*1399.5
30*360*1403.4
30*360*845
25*280*820
36.8
78
118
38.7
89.3
88.4
30
21.3
22.8
21.3
74
155
272
48.6
33.1
127.8
18.9
23.4
112.2
110
66.5
40
3G6289
4T6386
8K8162
9J9606
9W6608
9W6615
8294269
8294669
8294271
8294669
11082664-11
11082666-6
100-4015
100-4043
100-4044
100-6356
100-6664
100-6666
100-6668
10120745
10120752
10120757
CUTTING EDGES
WEIGHT
TURBO PART Nº DESCRIPTION
35*254*806
38*346*482
38*354*482
38*354*482
19*254*1380
35*227*510
30*360*1240
75*545*556
45*254*910
45*254*1520
45*254*1034
45*254*1095
45*312*482
45*354*482
45*354*482
45*354*482
25*280*1179
30*315*360
35*406*1450
35*254*627
45*406*1451
16*160*273
45.6
47.5
50
50
48.5
28.5
93.2
182
75.65
127.74
86.81
92.12
50
56.3
56.3
56.3
59
22.3
153.7
41.3
190.2
5.45
10127292
101-9435
101-9436
101-9437
106-0956
106-9290
107-3381
107-3383
107-3474
107-3477
107-3479
107-3483
107-3490
107-3528
107-3537
107-3538
107-3746
109-9019
109-9212
109-9215
109-9230
111-80-00016

170. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-136
WEIGHT
TURBO PART Nº DESCRIPTION
CUTTING EDGES
16*160*1114.8
45*330*803
45*330*1353
16*160*758.6
16*160*437.4
16*160*758.4
16*160*474.8
16*152*370
19*203*1199
25*254*894
19*203*323
19*203*265
16*160*380
16*160*762
16*160*914
16*160*1219.2
19*203*1430
322.4
88.37
149
12
6.65
12
7.4
6.2
33.8
42
7
14.1
16.9
22.5
40
111-80-00017
112-2471
112-2472
112-80-00016
112-83-00017
112-83-00018
112-83-00019
112-946-1510
118-7110
122-80-00002
122-80-00013
122-80-00017
122-80-00019
122-9227
122-946-1510
128-2872
128-2873
11G-71-31170
12F-70-31251
12F-70-31261
12F-70-31281
13F-Z27-1510
CUTTING EDGES
WEIGHT
TURBO PART Nº DESCRIPTION
19*203*1350
19*203*1535
19*203*1199
19*203*1255
35*170*496
35*225*280
35*265*280
35*278*305
19*203*1350
19*203*1255
25*280*1108
40*300*330
40*315*330
40*315*330
30*265*360
30*210*360
30*265*360
40*344*482
40*354*482
40*354*482
35*312*482
35*323*482
38.2
43.4
33.5
35
20.65
15
17.5
20.5
37.6
35
58.4
30.8
32.3
32.3
18.8
14.9
18.8
130-70-41130
130-70-61170
130-920-2180
130-Z20-1510
132-1033
132-1035
132-1037
132-4715
134-72-61410
134-72-61420
135-6537
135-9294
135-9295
135-9296
135-9647
135-9648
135-9649
138-0865
138-0866
138-0867
138-6470
138-6471

171. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-137
WEIGHT
TURBO PART Nº DESCRIPTION
CUTTING EDGES
35*323*482
30*360*1280
16*203*914
16*165*1008
35*256*360
35*265*360
35*265*360
35*210*360
35*240*360
35*270*360
35*253*360
35*293*360
30*360*292
19*203*730
19*203*773
19*203*1660
20*254*1594
19*203*1382
19*203*1383
25*254*1156
25*254*1156
101
21
18.5
25
21.6
20.4
30
47
57.4
38.6
40
54.5
54.5
138-6472
139-9230
140-0983
140-2187
140-6862
140-6863
140-6864
140-6865
140-6866
140-6867
140-6868
140-6869
140-6870
140-7601
140-80-00001
140-80-00006
144-70-11131
144-871-5130
144-920-1120
14X-71-11310
154-70-11313
154-70-11314
CUTTING EDGES
WEIGHT
TURBO PART Nº DESCRIPTION
25*254*850
25*254*910
25*254*838
25*254*838
25*254*844
25*254*1397
25*254*1062
35*330*764 POINT
30*330*764 POINT
32*330*761
32*330*1064
35*330*530
40*330*530
30*330*1090
35*330*1090
38*330*1091
30*330*781
30*330*1327
30*330*1064
35*330*1064
40*406*887
40*406*1192
39.2
44
39.5
39.5
40
65.7
50
55.9
54
54
80.8
33
33
78.3
90.5
98.3
55.5
99.7
79.9
90.5
108.4
145.8
154-71-43190
154-72-11151
154-81-11190
154-81-11191
156-82-00001
175-70-21115
175-70-26310
17A-71-11654
17A-71-45210
17A-71-45220
17A-71-45230
17M-72-21160
195-70-12492
195-71-61550
198-71-11181
17A-71-11351
17M-71-21550
17M-71-21550

172. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-138
WEIGHT
TURBO PART Nº DESCRIPTION
CUTTING EDGES
146.63
108
157
102.2
58
185
192.1
46.5
50.4
177
118.2
22.6
111.2
32.77
142.86
107
56.8
45.5
156.5
136
56.4
49.4
198-71-21830
198-71-31540
198-71-31550
198-72-11181
419-904-1121
421-70-12122
421-70-12430
421-815-1121
421-815-1221
421-815-2110
421-815-2211
421-815-2220
421-825-3210
421-825-3220
423-815-1111
423-815-2210
423-904-1131
424-70-H2D60
1U0292
1U0295
CUTTING EDGES
WEIGHT
TURBO PART Nº DESCRIPTION
30*360*1319
30*360*1210
40*556*265
35*406*1406
19*254*913
30*360*1260
19*203*1396
30*360*1230.5
35*254*856
32*254*1095
19*203*1152
19*203*425
35*200*510
16*203*884
25*203*2438
19*203*1558
22*406*1530
30*406*1528.6
19*254*1063
19*254*758
19*254*1029
19*254*708
98.6
91.5
43
148.6
31.8
94.1
39
94.1
55.6
65.5
32.2
12
25.6
22
90
43.5
96.5
131
36.99
26.38
35.78
25
1U0593
1U0601
1U0761
1U0762
1U1192
1U1909
1U2211
1U2406
1U4930
1U4931
3G4282
3G4285
3G6395
3G9306
4T2236
4T2315
4T2887
4T2895
4T2921
4T2922
4T2923
4T2945
40*406*1190
45*406*861
45*406*1192
40*406*862
25*254*1255.8
35*225*3050
35*225*3170
35*330*546
35*330*592
35*330*2070
30*330*1382
30*196*445
35*330*1302
35*278*455
35*330*1617
30*330*1249
25*254*1217.6
30*330*650
35*330*1860
30*330*1861
25*280*1162
25*280*1025
424-815-1211

173. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-140
WEIGHT
TURBO PART Nº DESCRIPTION
CUTTING EDGES
25*254*1558
25*254*1773
25*254*1520
25*254*910
25*406*1429
35*406*858
35*406*1542
20*330*1100
25*330*748
30*305*1520
19*203*1052
25*195*280
25*210*280
25*225*280
25*265*280
30*210*360
30*240*360
30*270*360
71.4
83.3
69
44.5
90.3
92
164.1
52.4
44.3
99
29.4
9.1
9.8
10.6
12.5
15
17
19.7
4T6513
4T6514
4T6515
4T6531
4T6532
4T6568
4T6592
4T6594
4T6611
4T6612
4T6613
4T6614
4T6648
4T6659
4T6692
4T-6693,132-1036
4T6694
4T6695
4T6696
4T6697
4T6698
4T6699
CUTTING EDGES
WEIGHT
TURBO PART Nº DESCRIPTION
30*290*360
16*203*2382
25*160*342
30*170*496
35*254*2438
19*254*1238
25*254*998.4
16*203*1193.8
30*330*803
30*330*1695
30*330*802
35*330*1695
19*200*2080
19*254*802
19*254*1063
25*254*1063
25*245*2408
21.5
69
76
76
54.75
9.5
18
160.4
43.4
45.4
27.33
57
122.2
57
144
57.8
43.3
28.2
50
38.2
49.3
106
4T-6700
4T6760
4T6761
4T6762
4T8077
4T8091
4T8101
4T8317
4T8796
4T8799
4T8940
4T9585/6Y5540
4T9586
4T9587/6Y5540
4T9836
5G2809
5J6832
5J6839
5J6849
5V4661
5J6888

174. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-141
WEIGHT
TURBO PART Nº DESCRIPTION
CUTTING EDGES
32*282*2736
25*245*2616
25*245*2471
25*245*2439
25*254*1533
25*245*2639
25*245*2615
32*282*2840
30*282*2856
25*254*1225.6
30*330*1787
30*330*802
40*330*900
40*330*1040
25*203*2438.4
35*330*1787.4
25*280*1095
25*280*894
174
123.3
121.2
106.9
42.5
72.1
114.3
113.2
185
175.1
58
130
57
90
110.9
47
91.6
151.5
58.3
47.6
5V4696
5V7276
5V7410
5V7423
6J1406
6J7116
6W2985
6W2987
6W2989
6W2990
6Y3840
6Y5539
6Y5540/4T9587
7J2959
7J2980
7J3025
7T3495
7T5701
7T5702
7T6589
7T6592
7T6678
CUTTING EDGES
WEIGHT
TURBO PART Nº DESCRIPTION
125*280*908
35*330*803
30*330*803
35*330*1353.2
35*330*824.1 POINT
25*203*1019
25*203*658
40*300*3033
40*300*2914
19*203*912
60*406*992
60*406*859
60*406*848
25*280*1102
25*247*280
25*254*1034
25*254*1215
43.12
68.2
58.5
114.8
40
38.3
24.8
246
260.2
26.1
180
155.5
153.5
53.2
12.5
22.3
18.8
24
20
48.4
56.2
7T6936
7T9126
7T9127
7T9976
7T9977
7T9978
7V1490
7V6844
8294271
8E2085
8E2086
8E2087
8E4567
8E4569
8J8118
8J9668
7T9125
8J1489
8J1490

175. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-142
WEIGHT
TURBO PART Nº DESCRIPTION
CUTTING EDGES
45*305*3270
35*406*1580
40*406*1580
20*150*2262
20*150*2406
19*203*627
35*607*2870
40*580*3085
30*282*2735
45*305*3314
35*406*1524
19*254*1227.3
45*330*800
35*330*2164
35*330*800
60*406*1024
60*406*1020
60*406*1098
35*330*1040
8K8161
8K9754
9K1619
9J4369
9J5899
9R4672
9R5313
9U8057
9V0169
9V0170
9V6573
9V6574
9V6575
9W1375
9W1878
9W3927
9W4397
9W4398
9W4493
9W4494
9W4495
9W4500
CUTTING EDGES
WEIGHT
TURBO PART Nº DESCRIPTION
35*330*1223
40*330*1354
40*330*1223
35*406*908
30*330*825
30*330*1241
35*312*483
35*323*483
35*330*900
35*406*859
35*406*992
45*406*995
45*402*859
45*330*1787
19*203*1130
35*330*1240
45*406*908
104
135.18
131.4
92.9
60
85.5
41
40
41
76.5
89.3
103
133.9
115.7
196.4
31.9
105.2
120.4
9W4502
9W4507
9W4508
9W4902
9W5232
9W5432
9W5730
9W5734
9W5737
9W6092
9W6608
9W6609
9W6656
9W6657
9W7043
9W8215
9W9098
9W9702
U17519
U18064
U18400
U18197
U17689
113
181.3
345
162
190.8
50.6
58
17.5
437
158
361
271
161.5
43.2
88
184
68
182.3
182
192.9
88.5

176. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
TURBO BUCKET TEETH
BULLDOZER END BITS

177. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-143
WEIGHT
TURBO PART Nº DESCRIPTION
BULLDOZER END BITS
25MM THICKNESS
25MM THICKNESS
25MM THICKNESS
End Bit
End Bit
End Bit
End Bit
End Bit
End Bit
End Bit
End Bit
End Bit
16MM THICKNESS FLAT
16MM THICKNESS FLAT
16MM THICKNESS FLAT
16MM THICKNESS FLAT
20MM THICKNESS
20MM THICKNESS
16MM THICKNESS FLAT
25MM THICKNESS FLAT
25MM THICKNESS FLAT
20MM THICKNESS
16.2
19.9
112.8
112.8
76.2
76.2
20
20
23.7
12.5
67.6
6.5
6.9
7.2
7.1
10.3
9.8
5.8
14.4
12.6
9.6
73117713/14
8294274
8294681/82
8E4198
8E4199
17A-71-45712
17A-71-45722
9W8874
9W8875
3G8294
8E9379
1U1546
112-70-31120/30
112-817-1110
112-946-1510
11G-71-31170
120-Y46-5162/72
124-70-21330/40
12F-929-2170(2)
13F-Z27-1581/71
13F-Z27-1582/72
140-70-11130/40
BULLDOZER END BITS
WEIGHT
TURBO PART Nº DESCRIPTION
25MM THICKNESS
25MM THICKNESS
30MM THICKNESS FLAT
25MM THICKNESS
25MM THICKNESS
30MM THICKNESS
25MM THICKNESS
30MM THICKNESS
30MM THICKNESS
30MM THICKNESS
30MM THICKNESS
30MM THICKNESS
30MM THICKNESS FLAT
38MM THICKNESS
38MM THICKNESS
35MM THICKNESS
38MM THICKNESS
38MM THICKNESS
38MM THICKNESS
38MM THICKNESS
30MM THICKNESS
38MM THICKNESS
15.7
15
18.2
12.6
15.5
17.8
14.5
17.86
25
25
25
25
25
27.5
27.5
33
40.5
45
45
45
30
40.1
140-70-11131/41
140-70-11170/80
140-70-11170/80RF
144-70-11180/90
144-70-11250/60
144-70-11251/61
144-952-1120/30
14X-71-11330/40
150-70-21343/53
150-70-21344/54
150-70-21345/55
150-70-21346/56
154-926-1120/30
175-70-21123/33
175-70-21125/35
175-71-11170/80
175-71-11172/82
175-71-22271/81
175-71-22272/82
175-70-21126/36

178. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-144
WEIGHT
TURBO PART Nº DESCRIPTION
BULLDOZER END BITS
38MM THICKNESS
40MM THICKNESS
40MM THICKNESS
40MM THICKNESS
40MM THICKNESS
50MM THICKNESS
60MM THICKNESS
60MM THICKNESS
40MM THICKNESS
51MM THICKNESS
19MM THICKNESS FLAT
40MM THICKNESS
40MM THICKNESS
40MM THICKNESS
40MM THICKNESS
40MM THICKNESS
40MM THICKNESS
35MM THICKNESS
35MM THICKNESS
25MM THICKNESS
45
71.6
64.2
73.4
67
117.4
130
130
37.65
37.65
67.6
106.5
11.5
40.6
40.6
74
53.4
41.1
41.1
64.5
48.4
23.7
175-71-22241/51
17M-71-21930/40
195-70-12610/20
195-71-11173/83
195-71-21350/60
195-71-61930/40
198-71-31520
198-71-31530
1T14036
1T14033
1U1545/46
1U4925/26
3G4285(2)
3G8277/78 7J3459/60
3G8279/80 9J1473/72
3G8281/82 7J3461/62
3G8283/84 7J3463/64
3G8285/86 7J3457/58
3G8287/88 9J1475/74
3G8289/90 7J6713/14
3G8291/92 7J67711/12
3G8293/94
BULLDOZER END BITS
WEIGHT
TURBO PART Nº DESCRIPTION
125MM THICKNESS
25MM THICKNESS
30MM THICKNESS
30MM THICKNESS
30MM THICKNESS
30MM THICKNESS
25MM THICKNESS
25MM THICKNESS
35MM THICKNESS
19MM THICKNESS FLAT
20MM THICKNESS FLAT
19MM THICKNESS FLAT
19MM THICKNESS FLAT
19MM THICKNESS FLAT
25MM THICKNESS FLAT
25MM THICKNESS FLAT
30MM THICKNESS
16MM THICKNESS FLAT
25MM THICKNESS FLAT
25MM THICKNESS FLAT
25MM THICKNESS FLAT
17.4
16.4
30
30
26.4
30.8
18
17.4
50.8
10.1
8.3
10.7
10
9.5
12.5
13.3
22.8
24.5
6.5
21.5
22.5
21.5
3G8295/96 6J0893/94
3G8297/98
3G8299/300 5J8769/70
3G8301/02 9J1479/80
3G8315/16
3G8317/18 8J8105/20
3G8319/20 6J0275/76
3G-8321/22
4J8723/24 1J9055/56
4T3041/42
4T3043/44
4T3045/46 8J7162/63
4T4435/36
4T4454/55
4T5407/08
4T6229(2) 8J6412(2)
4T6239/40 9J1539/40
4T6505/06
4T6667/68 5J6921/22
4T3051/52 5J6923/24

179. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-145
WEIGHT
TURBO PART Nº DESCRIPTION
BULLDOZER END BITS
14T8090
5A4565/66
5J1279/80 1J1985/86
5J8767/68
6J0275/76
6Y4278
6Y-5839
6Y-5840
7T4092/93
7T4688/89
8E4193/94 7T9089/90
8E4196/97 9W6193/92
8E4537/38
BULLDOZER END BITS
WEIGHT
TURBO PART Nº DESCRIPTION
145MM THICKNESS
45MM THICKNESS
60MM THICKNESS
19*203*451 FLAT
25*203*476 FLAT
19*203*476 FLAT
38MM THICKNESS
30MM THICKNESS
35MM THICKNESS
38MM THICKNESS
25MM THICKNESS FLAT
25MM THICKNESS
25MM THICKNESS
79
108.3
157
12
18
12.5
36.8
27
46.5
50.5
20
20
21.5
8E4539/40 9W6195/94
8E4541/42 7T4097/96
8E4543/44
8E7078/79
9J1479/80
9W1875/76
9W-8874/75
9W9010/11
9W9014/15 5J1419/20
30MM THICKNESS FLAT
20MM THICKNESS FLAT
35MM THICKNESS
30MM THICKNESS
25MM THICKNESS
40MM THICKNESS
16*165*350(310) FLAT
16*165*350(310) FLAT
55MM THICKNESS
60MM THICKNESS
35MM THICKNESS
50MM THICKNESS
50MM THICKNESS
24.5
8.8
50
32
17.4
52.5
6.5
6.5
70
99
60.2
75.8
75.3
8E9378/79
9W-6198/99

180. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
TURBO BUCKET TEETH
GRADER BLADES

181. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-146
WEIGHT
TURBO PART Nº DESCRIPTION
GRADER BLADES
GRADER END BIT
G/BLADE 3/4*8*8'
35*254*2438.4
9
55.5
30
20
31
34
66
24.5
31.1
70
79
90
79
68.8
68
60.4
51.1
116.6
160
97.4
111.4
30.3
040100020
040100050
232-70-12143
233-70-12141
234-70-12193
235-70-12140
238-70-12220
3G7966
4T2231
4T2233
4T2236
4T2242
4T2243
4T2244
4T3036/5J6973
4T3007/5J6970
4T6511
4T8317
4Z8055
4Z8056
5B5564
GRADER BLADES
WEIGHT
TURBO PART Nº DESCRIPTION
30
35
37
42
50
59
42.3
66
51
59.6
48.5
50
59
66
25
60
51.5
24
27.6
56.5
30
5D9553
5D9554
5D9556
5D9557
5D9558
5D9559
5D9562
5D9732
5J6970
5J6973
7D1158
7D1576
7D1577
7D1949
7D4508
7T1623
7T1634
8D2786
8D2787
8J4043
8J9821
9J3657

182. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-147
WEIGHT
TURBO PART Nº DESCRIPTION
GRADER BLADES
Grader Blades
Grader Blades
Grader Blades
Grader Blades
35
42.3
50
48.5
91
33.6
29.4
9J3658
9J7701
HK 19*203*1790
234-70-12710
4T2237
9W2301
9W2299
GRADER BLADES
WEIGHT
TURBO PART Nº DESCRIPTION
Grader Blades
Grader Blades
Grader Blades
Grader Blades
Grader Blades
Grader Blades
34.5
17
66.7
35.3
35.3
30.3
7D4509
6G8623
7T1627
5B5562
7T1645
7T1633

183. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-148
WEIGHT
TURBO PART Nº DESCRIPTION
GRADER END BITS
232-70-52180
232-70-52190
232-70-12150
232-70-12160
234-70-32230
234-70-32240
6D1904
GRADER END BITS
WEIGHT
TURBO PART Nº DESCRIPTION
13*230*600
16*152*474
12mm THICKNESS
12mm THICKNESS
16mm THICKNESS
13.7
7.6
8.1
8.3
8.2
8.2
11.7
11.7
14.4
7D9999
7D2052
8E5531
8E5529
9J4405
9J4406
9W1767
13MM THICKNESS
13MM THICKNESS
13MM THICKNESS
16MM THICKNESS
13*230*470
16MM THICKNESS
12MM THICKNESS
13MM THICKNESS
16MM THICKNESS
7.7
11.5
9
9
11.5
20
9.5
14.5
10.5
12.1
6D1948
6Y2805
9W1768

184. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-149
WEIGHT
TURBO PART Nº DESCRIPTION
LOADER END BITS
48.6
111
59
153.3
33.8
101
45.5
23.4
45.3
46.1
46.1
28.5
56.3
56.3
100-4043
100-6668
107-3746
109-9212
118-7110
139-9230
424-70-H2D60
100-6664
100-6666
101-9435
101-9436
101-9437
106-9290
107-3490
107-3528
107-3537
109-9019
128-2872
128-2873
132-1035
132-1037
132-4715
LOADER END BITS
WEIGHT
TURBO PART Nº DESCRIPTION
G40*300*330
40*315*330
40*315*330
30*265*360
30*360*355
30*360*210
30*210*360
30*265*360
40*344*482
40*354*482
40*354*482
35*312*482
35*323*482
35*323*482
35*256*360
35*265*360
35*265*360
35*210*360
35*240*360
35*270*360
35*253*360
30.8
32.3
135-9294
135-9295
135-9296
135-9647
135-9647/49
135-9648
135-9648
135-9649
138-0865
138-0866
138-0867
138-6470
138-6471
138-6472
140-6862
140-6863
140-6864
140-6865
140-6866
140-6867
140-6868
140-6869
45*265*556
30*360*1399.5
25*280*1179
35*406*1450
19*203*1199
30*360*1280
30*330*650
30*253*360
30*293*359
38*346*482
38*354*482
38*354*482
35*227*510
45*312*482
45*354*482
45*354*482
30*315*360
19*203*323
19*203*265
35*225*280
35*265*280

185. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-150
WEIGHT
TURBO PART Nº DESCRIPTION
LOADER END BITS
140-6870
140-7601
4T-3015
4T-6691
4T-6692
4T-6693,132-1036
4T-6694
4T-6694,132-1035
4T-6695
4T-6696
4T-6697
4T-6698
4T-6699
4T-6700
4T-7139
4T-7139
4T-7140
4T-8091
4T-8101
4T-9123,132-1039
4T-9124,132-1040
9W-5730
LOADER END BITS
WEIGHT
TURBO PART Nº DESCRIPTION
G35*312*483
35*323*483
35*367*483
35*367*483
25*280*265
30*360*300
30*360*1400
340
41
14.5
25.5
118.7
9W-5734
9W-5737
9W-8367
9W-8368
SEG-25
SEG-30
SUB-30
35*293*360
30*360*292
30*360*256
25*175*280
25*195*280
25*210*280
25*225*280
25*225*280
25*265*280
30*190*360
30*210*360
30*240*360
30*270*360
30*290*360
30*305*360
30*305*360
30*305*360
25*160*342
30*170*496
30*265*360
30*265*360
35*323*483
21.6
8.2
9.5
9.8
10.9
11.7
12.9
14.1
15.7
19.2
19.7
21.5
10
17.5
41

186. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-151
WEIGHT
TURBO PART Nº DESCRIPTION
BULLDOZER SEGMENT GROUP
131-27-61710
10Y-18-00013
141-27-32411
14X-27-15112
154-27-12273
154-27-12283
155-27-00151
175-27-22325
BULLDOZER SEGMENT GROUP
WEIGHT
TURBO PART Nº DESCRIPTION
3 Teeth
5 Teeth
5 Teeth
5 Teeth
5 Teeth
5 Teeth
3 Teeth
16.8
33
11.85
11.8
14.6
12.1
195-27-12467
195-27-33110
1171616
6T4179
6Y2931
8E4675
6T6782
RIPPER SHANK
WEIGHT
TURBO PART Nº DESCRIPTION
Gadaptor
SD13 3 TEETH SHANK
D60 3 TEETH SHANK
D85 SOLE TEETH SHANK
96
97
56
57.3
105.8
211.5
1U3630
175-78-21693
195-78-71380
10Y-84-50000
16Y-84-30000
23Y-89-00100
RIPPER SHANK
WEIGHT
TURBO PART Nº DESCRIPTION
D85 3 TEETH SHANK
D155 SOLE TEETH SHANK
D155 3 TEETH SHANK
D355
D375
96162.7
465.78
288.6
586
576
154-78-14348
15A-79-11120
175-78-21615
195-79-31141
195-79-51151
3 Teeth
5 Teeth
3 Teeth
3 Teeth
3 Teeth
2 Teeth
5 Teeth
3 Teeth
6
10.2
8.1
8.2
7.4
10.8
15.6
11.85

187. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
TURBO BUCKET TEETH
GRADER BLADES

188. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-152
WEIGHT
TURBO PART Nº DESCRIPTION
SINGLE BEVEL CUTTING EDGE
16*150*1900
16*203*2200
20*200*1100
20*150*2200
25*250*1600
SB25*250*3000
SB25*250*3150
SB30*300*3000
SB30*300*3150
SB30*300*3500
SB40*300*3150
SB40*300*3300
SINGLE BEVEL CUTTING EDGE
WEIGHT
TURBO PART Nº DESCRIPTION
16*150*1800
16*150*2500
16*150*3000
20*150*1800
20*150*2500
20*150*3000
20*200*2400
20*200*2500
20*200*3000
3
31.2
43.33
52
39
54.17
65
69.33
72.22
86.66
SB40*300*3500
SB40*300*3750
P45161501800
P45161502500
P45161503000
P45201501800
P45201502500
P45201503000
P45202002400
P45202002500
P45202003000
34.0
55.1
47.9
32.5
72.4
138.2
173.8
199
208.5
232
291

189. MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
CHOCKY BARS

190. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-153
WEIGHT
TURBO PART Nº
Chocky Bars
CB 25
CB 40
CB 50
CB 65
CB 90
CB 100
CB 130
240
240
240
240
240
240
240
17
17
17
17
17
17
17
8
8
8
8
8
8
8
25
25
25
25
25
25
25
1.1
1.7
2.2
2.8
4.2
4.4
5.6
A C D E
These prodcuts were developed
with the customer in mind to combat
wear in any applicationapplication
The size selection and ease of use
allows them to be used in any area
that sees excessive wear
Turbo Chocky bars and buttons
are a cost effective solution to
wear area in all application
They perform best in high
abrasion to lower impact
application
Product is easy to install and provides protection to
your base structure thus lengthening it's life
cycle.has a hardness of 725 BHN
725BHN Wear and abrasion
resistant material
3/8 mild steel backing plate
for increased weld penetration
and impact abrasion resistant
!#$% ==?@ %[$] [$^ _[`^ { |}~@ [%$[]|^ =$_^ €|^
iron materialthat
!^ _|~` ]^^~ %[=?|‚} ƒ~[^ |] |=? €|= ƒ$|`^ _$^
weldable surface allowing for thougher impact and gouging
abrasion applciaton
!^ %$[] =[‚ %^ ][ƒ^`  {| =‚^„[‚` =‚=[^ ]#${[=^]

191. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-154
WEIGHT
TURBO PART Nº
Wear Buttons
WB60
WB75
WB90
WB115
WB150
60
75
90
115
150
120
20
20
20
25
10
10
10
12
16
30
30
30
32
41
0.7
1
1.5
2.5
5.7
A C D E
WEIGHT
TURBO PART Nº
Wear Buttons
DLP1920
DLP1921
DLP1994
DLP2196
75
100
100
130
17
17
24
15
8
8
8
8
25
25
32
23
0.7
1
1
1.3
A C D E
A
B
C
D
E
A
B
C
D
E

192. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-155
WEIGHT
TURBO PART Nº
Standard Wear Plates
DLP995
DLP1213
DLP352
DLP727
DLP1(MOD)
DLP2
DLP692
DLP667
DLP1935
DLP2002
3
3
3
3
3
3
3
3
1
2
150
200
203
294
300
372
294
445
212.5
290.5
18
18
38
20
20
20
20
19
17
22
6
10
20
8
10
8
8
6
8
8
24
28
58
28
30
28
28
25
25
30
8.7
13.3
19
19
21.2
30.4
28.8
38.9
10
19.5
A
TYPE C D E
C
C
B
B
B
A
A
D
C
B
D
C
B
D A
B

193. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-156
WEIGHT
TURBO PART Nº
Standard Wear Bars
DLP919
DLP1191
DLP515
DLP200
DLP295
DLP4
DLP271
DLP270
DLP508
DLP2265
DLP337
DLP1101
DLP343
DLP369
DLP125
DLP453
DLP2017
DLP201A
DLP2230
DLP965
DLP184
DLP528
DLP619
DLP451
DLP450
DLP392/20
1200
300
195
102
153
300
203
254
190
115
127
150
190
210
230
294
300
432
600
250
150
150
150
194
294
241
15
15
20
25
25
25
12
12
20
38
38
40
40
38
38
40
40
38
38
12
29
40
50
38
38
38
610
10
10
8
8
8
8
8
10
12
10
10
10
12
12
10
10
12
12
8
10
10
10
12
12
20
25
25
30
33
33
33
20
20
30
50
48
50
50
50
50
50
50
50
50
20
39
50
60
50
50
58
1
1.5
1.1
0.9
1.51
3
1.6
2
2.2
2.3
2.4
2.9
3.7
4.1
4.5
5.8
5.9
8.5
11.8
2.4
3.4
4.4
5.3
6.1
9.2
11
A C D E
A
B
E
D

194. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-157
WEIGHT
RETANGULAR TYPE
Skid Edge
SB403
SB406
SB409
SB205
101
101
101
75
1
1
1
1
122
22
22
22
112
12
12
12
34
34
34
34
5.1
7.3
3.7
6.1
B C D E
WEIGHT
RETANGULAR TYPE
Herringbone
B C D E
SB404L
SB405R
SB407L
SB408R
SB410L
SB411R
1101
101
101
101
101
101
2
2
2
2
2
2
22
22
22
22
22
22
112
12
12
12
12
12
34
34
34
34
34
34
5.9
5.9
8.4
8.4
4.2
4.2
WEIGHT
RETANGULAR TYPE
Domed Edge
B C D E
SB412
SB413
SB414
150
150
250
3
3
3
20
20
20
25
25
25
45
45
45
13.1
10.5
21.9
B
A
A
C
E
D
R10
TYP
Type 3
17
TYP
12
TYP
D
D
D
C
C
E
E
B
A
45°
60°

195. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-158
Knife Edges
WEIGHT
TYPE
DLP 1065A-16
DLP 1065A-25
DLP 1265A-25
16
25
25
2
2
2
138
50
40
12
12
16
50
62
56
1
1.7
2.5
B C D E
HALF ARROWHEAD
WEIGHT
BLUNT TYPE B C D E
DLP 1301-19
DLP 1301-25
DLP 1301-28
119
25
28
3
3
3
38
38
38
12
12
12
50
50
50
1.6
2.1
2.3
WEIGHT
TYPE B C D E
DLP 1065-16
DLP 1065-19
DLP 1065-22
DLP 1065-25
DLP 1265-16
DLP 1265-19
DLP 1265-22
DLP 1265-25
16
19
22
25
16
19
22
25
1
1
1
1
1
1
1
1
238
38
38
38
38
38
38
38
12
12
12
12
12
12
12
12
50
50
50
50
50
50
50
50
0.9
1.1
1.3
1.5
1.4
1.6
1.9
2.2
ARROWHEAD
Type 1
Type 2
Type 3
C
D
B

196. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-159
WEIGHT
Grizzly Bars
DLP 2067
DLP 2068
DLP 2069
DLP 2070
DLP 2071
DLP 2072
DLP 2073
DLP 2074
305
305
305
305
305
305
305
305
137.5
125
112.5
100
87.5
75
62.5
50
38
38
38
38
38
38
38
38
12
12
12
12
12
12
12
12
50
50
50
50
50
50
50
50
13.6
12.5
11.2
10
8.8
7.5
6.3
5.1
B C D E
WEIGHT
TURBO PART Nº
Shredder/Grinder Tips
PLAIN
DLP 653
DLP 920
DLP 996
DLP 1052
DLP 1115
DLP 1208
DLP 1340
1
1
1
1
1
1
1
190
50
50
80
100
64
56
25
25
20
25
25
20
25
20
20
18
20
20
20
20
45
45
38
45
45
40
45
2.9
1.6
0.7
2.4
3.6
1.2
1.6
TYPE
B C D E
TYPE
ARROWHEAD
F
D
E
A
C
B
C
A
B
E
F
G
D
C C
Type 1
Type 2 Type 3

197. TURBO MANUFACTURER OF ENGENEERED PRODUCTS · SPARE PARTS · CATALOG 2014
TURBO BUCKET TEETH
BOLT AND NUT

198. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-160
WEIGHT
TURBO PART Nº DESCRIPTION
Bolt And Nut Bolt And Nut
WEIGHT
TURBO PART Nº DESCRIPTION
821002
178-32-11220
195-32-61210
198-71-21720
1F7958
1J0962
1J3527
1J4948
1J5607
1J6762
1M1408
1S1859
1S1860
208-32-11220
2A3223
2J2548
2J3505
2J3506
2J3507
2J5458
2M5656
2P9670
0.13
0.110
0.25
0.210
0.130
0.20
0.10
0.125
0.130
0.140
0.160
0.14
0.150
0.360
0.380
0.030
0.09
0.095
0.180
0.230
0.27
0.180
5/8 PLOW BOLT 3/4 HEAD 2 3/4 LENGTH
24MM SQUARE TRACK NUT 1.50 PITCH
TRACK SHOE BOLT, M30 x 2, L = 96MM
1-1/4 UNC-7X5-3/4 PLOW BOLT
NUT HEX GRADE 8 1/2 NC X 7/16
PLOW BOLT 3/4 NC x 4 1/4
1 UNC-8X4-1/2 PLOW BOLT
1 UNC-8X3-3/4 PLOW BOLT
PLOW BOLT 1 NC x 2 3/4
PLOW BOLT 3/4 NC X 3 1/8
5/8 SQUARE TRACK NUT
3/4 X 2 5/32 TRACK BOLT
3/4 SQUARE TRACK NUT
22MM SQUARE TRACK NUT 1.50 PITCH
1/2 X 1 7/8 TRACK BOLT
7/8 UNC-9X4-1/4 PLOW BOLT
HEX NUT 7/8 NC
NUT HEX 3/4 NC X 41/64
NUT PLOW 1 UNC
7/8 UNC-9X4-1/4 PLOW BOLT LONG
TRACK NUT 1 X 1
3/4 X 4 3/8 SML BOLT
0.135
0.154
0.850
1.01
0.018
0.240
0.51
0.43
0.320
0.200
0.062
0.200
0.090
0.120
0.070
0.35
0.008
0.050
0.125
0.350
0.160
0.350
2S2140
3F5108
3K9770
3S0336
3S8182
4F0138
4F3654
4F3656
4F3657
4F3658
4F3665
4F3672
4F7827
4J9058
4J9208
4K0367
4K0684
4K7038
5A4104
5F8933
5J2409
5J4771
nut 7/8-14unf
PLOW BOLT 5/8 NC X 2 1/4
SEGMENT BOLT 3/4 2 3/8
SEGMENT BOLT 5/8 NF X 1 7/8
3/4 UNC-10X3 PLOW BOLT
PLOW BOLT 5/8 NC x 2 1/2
PLOW BOLT 5/8 X 2 3/4 USE 4F3658
PLOW BOLT 5/8 NC X 3
PLOW BOLT 5/8 NC x 3 1/2
PLOW BOLT 3/4 NC X 2 1/4
PLOW BOLT 1 NC X 3 1/4
PLOW BOLT 1 x 3 1/2
NUT-FULL 5/8 UNCHEX
†! ‡ˆ‰Š‹
9/16 X 1 5/8 TRACK BOLT
5/8 X 3 3/8 TRACK BOLT
PLOW BOLT 3/4NC x 3 3/4
PLOW BOLT 3/4NC X 2 3/4

199. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-161
WEIGHT
TURBO PART Nº DESCRIPTION
Bolt And Nut
5J4772
5J4773
5P4130
5P4684
5P5422
5P8136
5P8221
5P8248
5P8249
5P8250
5P8361
5P8362
5P8823
6F0196
6T1140
6T8853
6V0937
6V1724
6V1725
6V1726
6V1728
6V1792
9W9058
8U2703
1M1408/5W9828
205-32-51120
CR6388
HT530
Bolt And Nut
WEIGHT
TURBO PART Nº DESCRIPTION
0.260
0.820
0.250
0.320
0.140
0.24
0.363
0.044
0.070
1.160
0.95
0.300
0.330
0.070
0.430
0.125
0.140
0.320
0.070
0.100
0.240
0.120
0.170
0.072
0.35
0.46
0.16
PLOW BOLT 7/8 NC x 2 1/2
PLOW BOLT 3/4 NC x 2 1/2
SEGMENT BOLT 3/4 NF 2 5/8 CHAMFER TYPE
9/16 X 2 7/8 SML BOLT
BOLT SPROCKET SEGMENT
PLOW BOLT 1 NC X 4
1 1/8 SQUARE TRACK NUT
WASHER
WASHER
WASHER
PLOW BOLT 1 1/4 x 4 15/16
PLOW BOLT 1 1/4 NC x 4 1/8
ROLLER BOLT
BOLT-TRACK (1-3/8) D11N/R
SEGMENT BOLT 5/8 NF X 2 7/64
7/8 X 3 25/32 SML BOLT
7/8 X 5 5/64 SML BOLT
1 X 3 13/16 TRACK BOLT
1 X 5 21/64 SML BOLT
3/4 X 2 13/32 TRACK BOLT
7/8 X 4 1/2 MASTER PAD BOLT
5/8'' 18UNF x 51 12.9
5/8
M16X1,5X46
M16X1,5X16
M22x1,5x24
0.230
0.165
0.240
0.130
0.550
0.430
0.320
0.035
0.055
0.083
0.890
0.25
0.750
0.25
0.390
1.300
0.130
0.420
0.530
0.590
0.820
0.230
0.490
0.129
0.062
0.130
0.062
0.130
6V1793
6V8360
6Y0846
6Y9024
7H3597
7H3598
7H3599
7H3607
7H3608
7T0998
7T0999
7X2565
7X2575
8H7504
8J2928
8J2933
9G3110
9S1838
9S8752
9W3361
9W3619
9W4381
79039443
79039445
4F4042
1D4637
8T9079
4F0391
3/4 X 3 9/64 SML BOLT D6H
PLOW BOLT 1 1/4 NC x 4 1/2
20MM X 64.5MM TRACK BOLT 1.50 PITCH
5/8 X 2 3/32 TRACK BOLT
bolt3/4x-16unfx61
bolt 7/8-14unfx67
TRACK NUT HEX 5/8 NF
TRACK NUT HEX 3/4 UNF
1 1/8 X 6 15/32 SML BOLT
1 1/8 X 5 1/4 SML BOLT
BOLT M20 X 100MM
BOLT M24 X 60MM
TRACK BOLT 1/2 x 1 1/2
PLOW BOLT 1 NC X 3 3/4
NUT 1 NC
5/8 X 2 3/32 TRACK BOLT
3/4 X 4 1/8 SML BOLT
NUT HEX 3/8 NC X 21/64- FULL
NUT TRACK M20 X 1.50 PITCH
20MM X 55MM TRACK BOLT 1.50 PITCH
TRACK NUT SQ M22 x 1.50 x 22MM
M18X1,5X55
M18X1,5X19
1 UNC-8X3 刀角螺栓
1UNC-8X3-1/4 六角螺栓
1-1/4 UNC-7X3-3/8 PLOW BOLT
TRACK BOLT 22.5MM GRIP
O.D.M22MMX1.50X66MM

200. TURBO MANUFACTURER OF ENGENEERED PROD TS · CATALOG 2014
PIN AND LOCKS

201. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-162
WEIGHT
TURBO PART Nº DESCRIPTION
PinLockRetianer CAT
8E6208
8E6209
132-4762
149-5733
8E6258
8E6259
132-4763
133-0699
9J2308
132-4763
149-5733
8E6358
8E6359
114-0358
114-0359
7T3408
8E8409
116-7408
116-7409
9W8296
8E0468
8E8469
PinLockRetianer CAT
WEIGHT
TURBO PART Nº DESCRIPTION
0.46
0.03
0.64
0.23
0.64
0.05
1.1
0.08
1.1
0.08
1.1
0.05
1.25
0.3
1.25
0.1
1.25
0.26
1.25
0.1
0.25
0.23
CAT-J200 Lock 1U4208/9W7112
CAT-J200 Retainer 4T0001
CAT-J225 Lock 6Y3228 (Heavy Duty Style)
CAT-J225 Retainer (Heavy Duty Style)
CAT-J250 Lock 9J2258
CAT-J225/250/300 Retainer 3G9609
CAT-J250 Lock (Heavy Duty Style)
CAT-J250 Retainer (Heavy Duty Style)
CAT-J300 Lock 107-3308/132-4766
CAT-J300 Lock (Heavy Duty Style)
CAT-J300 Retainer (Heavy Duty Style)
CAT-J350 Lock 9J2358
CAT-J350 Retainer 3G9549
CAT-J350 Lock (Heavy Duty Style)
CAT-J350 Retainer (Heavy Duty Style)
CAT-J400 Lock
CAT-J400 Retainer 7T3409
CAT-J400 Lock (Heavy Duty Style)
CAT-J400 Retainer (Heavy Duty Style)
CAT-J450 Lock 4T1458/6Y2527/1U1458
CAT-J460 Lock
CAT-J460 Retainer 8E0469
0.045
0.015
0.1
0.03
0.12
0.03
0.03
0.02
0.12
0.03
0.03
0.23
0.05
0.23
0.05
0.37
0.03
0.32
0.05
0.5
0.48
0.05
114-0468
107-3469
6Y8558
8E5559
107-3378
107-8559
6I6608
6I6609
6I6608(42CrMo)
6I6609(60Si2Mn)
113-9608
113-9609
4T4708
4T4707
113-4708
113-4709
113-4708(42CrMo)
113-4709(60Si2Mn)
134-1808
134-1809
8J1433
9W2668
CAT-J460 Lock(HeavyDutyStyle)
CAT-J460 Retainer(HeavyDutyStyle)
CAT-J550 Lock1U1558/9W9026
CAT-J550 Retainer3G9559
CAT-J550 Lock(HeavyDutyStyle)
CAT-J550 Retainer(HeavyDutyStyle)
CAT-J600 Lock
CAT-J600 Retainer
CAT-J600 Lock-Highstrength
CAT-J600 Retainer-Highstrength
CAT-J600 Lock(HeavyDutyStyle)
CAT-J600 Retainer(HeavyDutyStyle)
CAT-J700 Lock 9U9616
CAT-J700 Retainer
CAT-J700 Lock(HeavyDutyStyle)
CAT-J700 Retainer(HeavyDutyStyle)
CAT-J700 Lock(HeavyDutyStyle)-Highstrength
CAT-J700 Retainer(HeavyDutyStyle)-Highstrength
CAT-J800 Lock102-0101(HeavyDutyStyle)
CAT-J800 Retainer101-2874(HeavyDutyStyle)
CAT-R300 RipperTeethPinP295/6Y0309中卡
CAT-R300 RipperTeethlock1368308/9J6583

202. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-163
WEIGHT
TURBO PART Nº DESCRIPTION
PinLockRetianer CAT PinLockRetianer CAT
WEIGHT
TURBO PART Nº DESCRIPTION
1U2405
4K0043
4K0041
5K1426
7J9600
9W2678
1U2405
8E6358
1U2405
4K0032
4K0008
5K1425
4K0033
4K0006
8E4708H
4T4707
6J8811
4T2479
6Y3394
8E4743
3G0500
6Y3909
7K9535
112195
112196
CAT-R300 Ripper Teeth Retainer 3G9459
CAT-R300 Ripper tooth Vertical Pin 4K6936
CAT-R300 Loader tooth Rubber 4K6936/40034
CAT-R300 Ripper tooth Rubber
CAT-R350/400/450 Ripper Teeth Pin P385 D85 ИԪ
CAT-R350 Ripper Teeth lock
CAT-R350 Ripper Teeth Retainer 3G9459
CAT-R350/400 Ripper Teeth Lock
CAT-R350/400 Ripper Teeth Retainer 3G9459
CAT-R350 Ripper tooth Vertical Pin
CAT-R350 Loader tooth Rubber
CAT-R350 Ripper tooth Rubber
CAT-966 Loader tooth Vertical Pin
CAT-966 Loader tooth Rubber
CAT-994 Loader Sidebar Protector 125-0800/8E3814 Lock
CAT-994 Loader Sidebar Protector 125-0800/8E3814 Retainer
CAT-R350/400/450 Ripper Teeth Pin Assembly(Lower Protector)
CAT-R450 Ripper Teeth Pin Assembly(Tip Upper Protector) P385 D85 ИԪ
CAT-R450 Ripper TeethProtector Lock (Bucket Style) D85 ଆԪ
CAT-R450 Ripper TeethProtector Retainer (Bucket Style)
CAT-R500 Ripper Teeth Pin Assembly (102-9062 Pin Assembly) D9 ИԪ
CAT-R500 Ripper Teeth Lock (Bucket Style) D9边卡
CAT Tamping Feet 7K-2939 Fastener Pin
Pin
Retainer
0.05
0.1
0.05
0.2
0.45
0.24
0.05
0.23
0.05
0.12
0.07
0.08
0.15
0.08
0.8
0.3
0.73
0.54
0.52
0.3
1.1
1.2
0.23
0.09
0.025
4T4707
6Y1204
6Y1202
138-6508
113-4709
9W1821
6Y2443
8E2229
8E2230
9N4245
6Y1205
159-0558
134-1809
133-0738
107-8559
9J8442
8E6359
135-9350
114-0359
2011238
2011239
2K6413
EM1003
EM1004
CAT-R500 RipperTeethRetainer(BucketStyle)
CAT-R500 RipperTeethProtectorLock(ImpactRipperStyle)
CAT-R500 RipperTeethProtectorRetainerAssembly(ImpactRipperStyle)
CAT-R500 RipperTeethLock(HeavyDutyStyle)=Canuse6Y3909Lock
CAT-R500 RipperTeethRetainerAssembly(HeavyDutyStyle)
CAT-R550 RipperTeethPinAssembly
CAT-R550 RipperTeethPinAssembly
CAT-R550 RipperTeethLock(BucketStyle)
CAT-R550 RipperTeethRetainer(BucketStyle)
CAT-R550 RipperTeethProtectorLock(ImpactRipperStyle)
CAT-R550 RipperTeethProtectorRetainerAssembly(ImpactRipperStyle)
CAT-R550 RipperTeethLock(HeavyDutyStyle)
CAT-R550 RipperTeethRetainerAssembly(HeavyDutyStyle)
SidebarProtector1U0740/112-8996Pin
SidebarProtector1U0740/112-8996RetainerAssembly
SidebarProtector8J6399lock
SidebarProtector8J6399RetainerAssembly
SidebarProtector9J9600Lock
SidebarProtector9J9600RetainerAssembly
CATDRS230Pin
CATDRS230Retainer
CATRipperShank9J6586Pin
Pin
Retainer
0.3
1.1
0.2
0.3
0.1
1.66
1.3
0.36
1.5
0.4
0.1
0.67
0.05
0.21
0.05
0.23
0.05
0.05
0.02
2.2
0.19
0.08

203. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-164
WEIGHT
TURBO PART Nº DESCRIPTION
Cat Motor Grader Components
5K1458
5K1459
Hensley
WEIGHT
TURBO PART Nº DESCRIPTION
0.14
0.19
0.48
0.52
0.59
0.65
0.88
1.4
0.01
0.02
0.05
0.2
0.38
0.42
0.22
0.36
0.52
0.56
0.77
0.2
0.35
0.18
0.21
0.24
0.39
Cat Motor Grader 6Y5230/2D5572 Rubber
Cat Motor Grader 6Y5230/2D5572 Pin
0.01
0.31
WEIGHT
TURBO PART Nº DESCRIPTION
Komatsu Pin
201-70-00150
20X-70-00100
09244-02489
09244-02496
09244-02508
09244-02516
09244-03036
209-70-54240
21N-72-14330
21T-72-74320
427-70-13770
427-70-13790
195-78-71360
198-78-21410
19N-78-11371
Komatsu-PC60 Pin 201-70-24150
Komatsu-PC100/20X-70-14160 Pin 20X-70-14170
Komatsu-PC120 Pin
Komatsu-PC200 Pin 205-70-19610/205-70-69130
Komatsu-PC220 Pin 175-78-21740
Komatsu-PC300 Pin 175-78-21810
Komatsu-PC400 Pin 198-79-11320/A03-78-11730/426-847-1130
Komatsu-PC650 Pin
Komatsu-PC1200 Pin 21N-70-00060
Komatsu-PC1600 Pin
Komatsu-WA700 Pin
Komatsu-WA800 Pin
Komatsu-D375 Pin
Komatsu-D475 Pin 198-78-21340
Komatsu-D575 Pin 19M-78-11370 D11中卡
0.15
0.2
0.35
0.38
0.43
0.48
0.8
1.35
1.7
3
1.8
2.5
0.95
0.9
1.4
K290S
K330S
K370S
K400S
K410K
K450S
K500S
K550S
P156
P160
X220
P290
P330
P370
P400HD
P410
P450
P475P
P500
P290STP
P330STP
P370STP
P400STP
P410STP
P450STP
Hensley-290 size Steel Keeper Standard Pin
Hensley-330 size Steel Keeper Standard Pin
Hensley-370 size Steel Keeper Standard Pin
Hensley-400 size Steel Keeper Standard Pin
Hensley-410 size Steel Keeper Standard Pin
Hensley-450 size Steel Keeper Standard Pin
Hensley-500 size Steel Keeper Standard Pin
Hensley-550 size Steel Keeper Standard Pin
Hensley 156 Roll Pin ￠10*51
Hensley 160 Roll Pin ￠13*76
Hensley 220 Roll Pin ￠13*76
Hensley 290 Flex Pin(Optional)
Hensley 330 Flex Pin(Optional)
Hensley 370 Flex Pin(Optional)
Hensley 400 Flex Pin(Optional)
Hensley 410 Flex Pin(Optional)
Hensley 450 Flex Pin(Optional)
Hensley 475 Flex Pin(Optional)
Hensley 500 Flex Pin(Optional)
Hensley 290 Salid Rubber Pin
Hensley 330 Salid Rubber Pin
Hensley 370 Salid Rubber Pin
Hensley 400 Salid Rubber Pin
Hensley 410 Salid Rubber Pin
Hensley 450 Salid Rubber Pin

204. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-165
WEIGHT
TURBO PART Nº DESCRIPTION
DOSSAN-DH
2705-1022
2114-1859
2705-1020
2114-1848A
2705-9010
2705-9008
2705-1021
2114-1849
2705-1022(DH360)
2114-1859(DH360)
705-00006
114-00246
2705-1034
2114-1931
HYUNDAI
WEIGHT
TURBO PART Nº DESCRIPTION
0.24
0.04
0.24
0.04
0.32
0.08
0.28
0.08
0.5
0.08
0.5
0.08
0.5
0.08
0.72
0.12
DH130/DX140 Pin 2705-9014, 2713-1221
DH130/DX140 Retainer 2709-9015, 2713-1221
DH220/DX225/S180 Pin 2713-1217/2713-9041
DH220/DX225/S180 Retainer 2705-9008, 2713-1217/2713-9041
DH280 Pin 2713-9044
DH280 Retainer 2713-9044
DH300/DX300 Pin 2705-9012, 2713-1219
DH300/DX300 Retainer 2713-1219
DH360/DX340 Pin 713-00032
DH360/DX340 Retainer 713-00032
DH420/S500 Pin 2713-1236
DH420/S500 Retainer 2713-1236
0.2
0.08
0.23
0.03
0.28
0.04
0.28
0.05
0.51
0.12
0.51
0.12
0.69
0.14
66N4-30350
66N4-11150
E161-3035
61E5-11150
E161-3035
61E5-11150
E262-5004
61E5-11150
61EH-70105
61EH-11150
61E7-0105
61EH-11150
61E7-04620
61E7-04630
66NB-31340 R500
66NB-31350 R500
HYUNDAI140LC-7(61N4-31310)
HYUNDAI140LC-7(61N4-31310)
HYUNDAI210-(E161-3027)61N6-31310
HYUNDAI210-(E161-3027)S411-180002
HYUNDAI225-9(E161-3027)67N6-31310/61Q6-31310
HYUNDAI225-9(E161-3027)67N6-31310/61Q6-31310
HYUNDAI290-(E262-3046) HYUNDAI-290-7(61N8-31310)
HYUNDAI290-(E262-3046) HYUNDAI-290-7(61N8-31310)
HYUNDAI360-7(61NA-31310)
HYUNDAI360-7(61NA-31310)
HYUNDAI450(61E7-0101)
HYUNDAI450(61E7-0101)
HYUNDAI450-7/500(61NB-31310)
HYUNDAI450-7/500(61NB-31310)
HYUNDAI500(66NB-31310)
HYUNDAI500(66NB-31310)

205. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-166
WEIGHT
TURBO PART Nº DESCRIPTION
Esco Conical Teeth Pin
18PN
18LK
22PN
22LK
25-30PN
25-30LK
35PN
40PN
35-40LK
45PN
45LK
50PN
50LK
55PN
55LK
77PN
77LK
18PNR
18LKR
25-30PNR
25-30LKR
35PNR
35-40LKR
40PNR
35-40LKR
45PNR
45LKR
50PNR
50LKR
55PNR
55LKR
77PNR
77LKR
Esco Superconcial Teeth Pin
WEIGHT
TURBO PART Nº DESCRIPTION
Esco Dragline Pick Teeth
WEIGHT
TURBO PART Nº DESCRIPTION
0.42
0.12
0.5
0.14
0.55
0.2
0.6
0.23
0.7
0.28
0.92
0.4
Esco 18S/TL/VIP/WTL Standard Lock
Esco 18S/TL/VIP/WTL Standard Rubber
Esco 22S Standard Lock
Esco 22S Standard Rubber
Esco 25-30S/STD/VIP/R/RDX/T Standard Lock
Esco 25-30S/STD/VIP/R/RDX/T Standard Rubber
Esco 35S/P/AP/VIP/R/TVIP/T Standard Rubber
Esco 40S/STD/VIP/R/RDX/T Standard Lock
Esco 40S/STD/VIP/R/RDX/T Standard Rubber
Esco 45S/VIP/R/RDX Standard Lock
Esco 45S/VIP/R/RDX Standard Rubber
Esco 50S/VIP/R/RDX Standard Lock
Esco 50S/VIPL/R/RDX Standard Rubber
Esco 55VIPL/R/RDX Standard Lock
Esco 55VIPL/R/RDX Standard Rubber
Esco 77-HBP Standard Lock
Esco 77-HBP Standard Rubber
Esco 18S/TL/VIP/WTL Reinforced Lock
Esco 18S/TL/VIP/WTL Reinforced Rubber
Esco 25-30S/STD/VIP/R/RDX/T Reinforced Lock
Esco 25-30S/STD/VIP/R/RDX/T Reinforced Rubber
Esco 35S/STD/VIP/R/T Reinforced Lock
Esco 35S/STD/VIP/R/T Reinforced Rubber
Esco 40S/STD/VIP/R/RDX/T Reinforced Lock
Esco 40S/STD/VIP/R/RDX/T Reinforced Rubber
Esco 45S/VIP/R/RDX Reinforced Lock
Esco 45S/VIP/R/RDX Reinforced Rubber
Esco 50S/VIP/R/RDX Reinforced Lock
Esco 50S/VIPL/R/RDX Reinforced Rubber
Esco 55VIPL/R/RDX Reinforced Lock
Esco 55VIPL/R/RDX Reinforced Rubber
Esco 77-HBP/CLP/CRMHL/CRXX Reinforced Lock
Esco 77-HBP/CLP/CRMHL/CRXX Reinforced Rubber
0.03
0.03
0.035
0.05
0.1
0.03
0.13
0.22
0.03
0.38
0.22
0.5
0.22
0.65
0.26
0.8
0.55
0.042
0.03
0.13
0.03
0.2
0.05
0.22
0.05
0.38
0.03
0.45
0.33
0.48
0.33
0.62
0.46
36PN
36LK
46PN
46LK
56PN
56LK
66PN
66LK
76PN
76LK
86PN
86LK
44DPN
44DLK
54DPN
54DLK
0.7
0.26
0.89
0.48
Esco Dragline Pick Teeth 44-D14 Lock
Esco Dragline Pick Teeth 44-D14 Rubber
Esco Dragline Pick Teeth 54-D16 Lock
Esco Dragline Pick Teeth 54-D16 Rubber
Esco Superconical Teeth 36-FP/VIP Lock R2PN
Esco Superconical Teeth 36-FP/VIP Rubber R2LK
Esco Superconical Teeth 46-FP/VIP Lock
Esco Superconical Teeth 46-FP/VIPRubber
Esco Superconical Teeth 56-FP/RDX/VIP Lock
Esco Superconical Teeth 56-FP/RDX/VIP Rubber
Esco Superconical Teeth 66-FP/LP/R/RDX/VIP Lock
Esco Superconical Teeth 66-FP/LP/R/RDX/VIP Rubber
Esco Superconical Teeth 76-FP/LP/R/RDX/VIP Lock
Esco Superconical Teeth 76-FP/LP/R/RDX/VIP Rubber
Esco Superconical Teeth 86-FP/LP/RDX/VIP/SD Lock
Esco Superconical Teeth 86-FP/LP/RDX/VIP/SD Rubber

206. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-167
WEIGHT
TURBO PART Nº DESCRIPTION
Esco Ripper Pin
22RPG
22RBG
25RPG
25RBG
25RC-PN
25RC-LKSR
35RPG
35RBG
35RPH
49SR
35RSP
39RPG
39RBG
39-49RPH
49SR
39SPH
39SRH
39RSP
49RSP
Bofor
WEIGHT
TURBO PART Nº DESCRIPTION
0.12
0.2
0.25
0.3
0.38
0.45
0.05
0.18
0.22
0.24
0.33
0.2
0.42
0.53
22R Pin
22R Bushing/Rubber
25R Pin
25R Bushing/Rubber
25RC Pin
25RC Bushing/Rubber
35R Pin
35R Bushing/Rubber
35R Pin
35R Washer
35R Uni-Lock Pin
39R Pin
39R Bushing/Rubber
39R Pin 49RP
39R Washer
39R Pin
39R Washer
39R Uni-Lock Pin
49R Uni-Lock Pin
0.12
0.05
0.13
0.02
0.23
0.05
0.2
0.025
0.22
0.02
0.62
0.4
0.03
0.4
0.02
0.46
0.08
0.12
0.95
6254673/30201
6257675/31201
6254677/32201
6254682/33201
6254679/35201
6220086/36203
6737326
5-ST
10-ST
15-ST
20-ST
BF-2073
BF-2886
BF-3097
Bofor 4047166/31006 Fastener Pin
Bofor 4047167/4047168-31102/31106 Fastener Pin
Bofor 3031537/3031538-32101/32104 Fastener Pin
Bofor 3031539/3031542-33102/34102 Fastener Pin
Bofor 3031386/35102 Fastener Pin
Bofor 2019245/36101 Fastener Pin
Bobcat Pin =FLEX-PIN 23FP
Bofor 3000FN/BT Fastener Pin
Bofor 4000FN/BT-5000FN Fastener Pin
Bofor 7500FN/BT-8000FN Fastener Pin
Bofor 10000FN Fastener Pin
Bofor 4044336/4044428-31101/32102 OK Vertical Pin
Bofor 3031334/3031335-33101/34101 OK Vertical Pin
Bofor 3031336/35101 OK Vertical Pin

207. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-168
WEIGHT
TURBO PART Nº DESCRIPTION
FIAT
2MF-22P
2MF-21/22R
2MF24P
2MF24R
2MF26P
2MF28P
2MF26/28R
76028389
79073185
76028388
ESCO-Super V
WEIGHT
TURBO PART Nº DESCRIPTION
0.04
0.05
0.13
0.16
0.24
0.32
0.36
0.43
0.46
0.73
0.8
1.4
Fiat-Hitachi Old System Teeth 71407828 Pin
Fiat-Hitachi Old System Teeth 71407828 Washer
Fiat-Hitachi Old System Teeth 71417992 Pin
Fiat-Hitachi Old System Teeth 71417992 Washer
Fiat-Hitachi Old System Teeth 71421565 Pin
Fiat-Hitachi Old System Teeth 71432195 Pin
Fiat-Hitachi Old System Teeth 71421565/71432195 Washer
FIAT Teeth 240S/76026615 Pin
FIAT Teeth 252S/76026619 Pin
FIAT Teeth 272S/76026621 Pin
0.1
0.04
0.18
0.05
0.23
0.3
0.06
0.1
0.04
0.24
WEIGHT
TURBO PART Nº DESCRIPTION
Esco Vertalok Pins and Plugs
27VPN27VPL
37VPN27VPL
47VPN27VPL
57VPN27VPL
Esco 27 Series Vertalok
Esco 37 Series Vertalok
Esco 47 Series Vertalok
Esco 57 Series Vertalok
0.12
0.16
0.23
0.3
WEIGHT
TURBO PART Nº DESCRIPTION
Esco Helilok Teeth Pin
21LK
27LK
37LK
47LK
57LK
21 Series Lock
27 Series Lock
37 Series Lock
47 Series Lock
57 Series Lock
0.37
0.11
0.14
0.22
0.29
V13-V17PN
V18-V23PN
V29PN
V33PN
V39PN
V43PN
V51PN
V59PN
V61PN
V69PN
V71PN
V81PN
Super V13-17 Pin
Super V18-23 Pin
Super V29 Pin
Super V33 Pin
Super V39 Pin
Super V43 Pin
Super V51 Pin
Super V59 Pin
Super V61 Pin
Super V69 Pin
Super V71 Pin
Super V81 Pin
WEIGHT
TURBO PART Nº DESCRIPTION
Lehnoff Pin
11S 0.08
Lehnoff Teeth 411 F Pin

208. TURBO MANUFACTURER OF ENGENEERED PRODUCTS INSTRUCTIONS
PAGE-169
WEIGHT
TURBO PART Nº DESCRIPTION
VOLVO
V210(1070-13030/40)
V290(1171-01920/30)
V360(14550967/68)
V460
HL
WEIGHT
TURBO PART Nº DESCRIPTION
0.05
0.07
0.06
0.19
0.24
0.25
0.36
0.14
0.25
VOL 210
VOL 290 1070-61320/9213-18000 ৕਩৚՚Љेઍ
VOL 360
VOL 460
0.28
0.48
0.9
1.35
WEIGHT
TURBO PART Nº DESCRIPTION
Case Poclain Teeth Pin
P01206-01N
P01206-02N
T1236129/30
P1236125
Case Poclain Teeth 7042 Pin
Case Poclain Teeth 7042 Pin
Case Poclain Teeth 16040 Pin
Case Poclain Teeth 15040 Pin
0.16
0.31
0.43
0.62
WEIGHT
TURBO PART Nº DESCRIPTION
Tata Hitachi
EX200
EX200
EX300
EX300
EX460
Hitachi-200 Pin TB00705 ￠19*118,￠32*8
China Hitachi-200 ‫࠮ޏ‬ Pin EX200RC ￠20*118,￠32*8 DH280 ৯࠮▲߽
Hitachi-300 Pin TB00822 ￠20*148
China Hitachi-300‫࠮ޏ‬Pin EX300RC ￠23*132 与DH360▲߽
Hitachi-460 Pin
0.3
0.3
0.5
0.5
0.7
WEIGHT
TURBO PART Nº DESCRIPTION
LIEBHRE Pin
3001288
3001319
3001359
Liebhre 914 Pin
Liebhre 944 Pin
Liebhre 954 Pin
0.14
0.29
0.65
WEIGHT
TURBO PART Nº DESCRIPTION
Kobleco Pin
SK200
SK230
SK200 Pin
SK230 Pin
0.36
0.43
WEIGHT
TURBO PART Nº DESCRIPTION
UNI-Z Pin
UNI-ZⅠ
UNI-Z Ⅱ
UNI-Z Ⅲ
UNI-Z Ⅳ
UNI-ZⅠ/4317-1460 Pin-Type1(￠15*53)
UNI-Z Ⅱ Pin-Type2(￠15*65)
23PN
TF23(F/P)
24PN
25PN
27PN
4EP
5EB
C3/13306
C4/14306
HL 230S/ST/HXL/TL/WTL Teeth Pin 23FP
TATA HITACHI Pin TF23/U43792
HL 240S Teeth Pin 24FP/FLEX-PIN 24
HL 252S Teeth Pin
HL 272S Teeth Pin 27FP/FLEX-PIN 27
Pin
Pin
Combi Part Fastener Pin
Combi Part Fastener Pin
