Shimano 2012 003

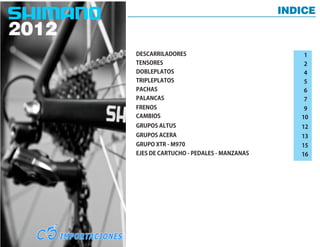

- 2. INDICE DESCARRILADORES 1 TENSORES 2 DOBLEPLATOS 4 TRIPLEPLATOS 5 PACHAS 6 PALANCAS 7 FRENOS 9 CAMBIOS 10 GRUPOS ALTUS 12 GRUPOS ACERA 13 GRUPO XTR - M970 15 EJES DE CARTUCHO - PEDALES - MANZANAS 16

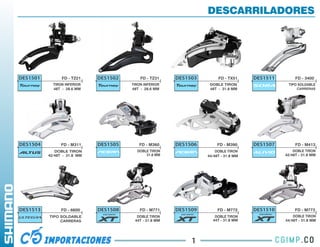

- 3. DESCARRILADORES DES1501 FD - TZ21 DES1502 FD - TZ31 DES1503 FD - TX51 DES1511 FD - 3400 TIRON INFERIOR TIRON INFERIOR DOBLE TIRON TIPO SOLDABLE 48T - 28.6 MM 48T - 28.6 MM 48T - 31.8 MM CARRERAS DES1504 FD - M311 DES1505 FD - M360 DES1506 FD - M390 DES1507 FD - M413 DOBLE TIRON DOBLE TIRON DOBLE TIRON DOBLE TIRON 42/48T - 31.8 MM 31.8 MM 44/48T - 31.8 MM 42/48T - 31.8 MM DES1513 FD - 6600 DES1508 FD - M771 DES1509 FD - M772 DES1510 FD - M773 TIPO SOLDABLE DOBLE TIRON DOBLE TIRON DOBLE TIRON CARRERAS 44T - 31.8 MM 44T - 31.8 MM 44/48T - 31.8 MM 1

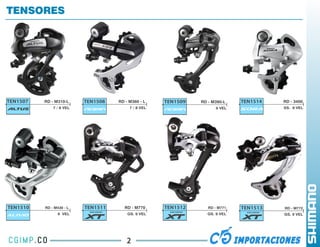

- 4. TENSORES TEN1507 RD - M310-L TEN1508 RD - M360 - L TEN1509 RD - M390-L TEN1514 RD - 3400 7 / 8 VEL 7 / 8 VEL 9 VEL SS. 9 VEL TEN1510 RD - M430 - L TEN1511 RD - M770 TEN1512 RD - M771 TEN1513 RD - M772 9 VEL GS. 9 VEL GS. 9 VEL GS. 9 VEL 2

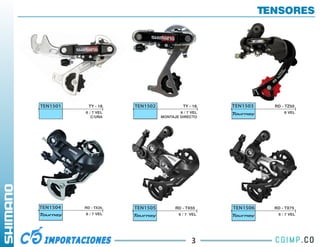

- 5. TENSORES TEN1501 TY - 18 TEN1502 TY - 18 TEN1503 RD - TZ50 6 / 7 VEL 6 / 7 VEL 6 VEL C/UÑA MONTAJE DIRECTO TEN1504 RD - TX35 TEN1505 RD - TX55 TEN1506 RD - TX75 6 / 7 VEL 6 / 7 VEL 6 / 7 VEL 3

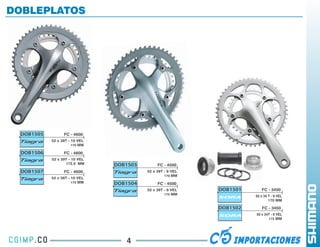

- 6. DOBLEPLATOS DOB1505 FC - 4600 52 x 39T - 10 VEL 170 MM DOB1506 FC - 4600 52 x 39T - 10 VEL 172.5 MM DOB1503 FC - 4500 DOB1507 FC - 4600 52 x 39T - 9 VEL 170 MM 52 x 39T - 10 VEL 175 MM DOB1504 FC - 4500 52 x 39T - 9 VEL DOB1501 FC - 3450 175 MM 50 x 34 T - 9 VEL 170 MM DOB1502 FC - 3450 50 x 34T - 9 VEL 175 MM 4

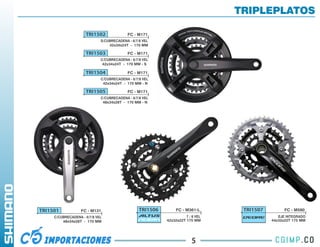

- 7. TRIPLEPLATOS TRI1502 FC - M171 S/CUBRECADENA - 6/7/8 VEL 42x34x24T - 170 MM TRI1503 FC - M171 C/CUBRECADENA - 6/7/8 VEL 42x34x24T - 170 MM - S TRI1504 FC - M171 C/CUBRECADENA - 6/7/8 VEL 42x34x24T - 170 MM - N TRI1505 FC - M171 C/CUBRECADENA - 6/7/8 VEL 48x34x28T - 170 MM - N TRI1501 FC - M131 TRI1506 FC - M361-L TRI1507 FC - M590 C/CUBRECADENA - 6/7/8 VEL 7 / 8 VEL EJE INTEGRADO 48x34x28T - 170 MM 42x32x22T 175 MM 44x32x22T 175 MM 5
- 8. PACHAS PCH1501 MF - TZ20 PCH1503 MF - TZ21 PCH1504 MF - TZ21 - CP PCH1505 MF - TZ37 14 / 28 - 6 VEL 14 / 28 - 7 VEL 14 / 28 - 7 VEL 14 / 34 - 7 VEL PCH1506 MF - HG40 PCH1507 CS - HG30 PCH1502 MF - TZ20 - CP PCH1509 CS - HG41 14 / 34 - 7 VEL 12 / 28 - 7 VEL 14 / 28 - 6 VEL 11 / 32 - 8 VEL ROSCA T/ CASSETTE T/CASSETTE PCH1508 CS - HG40 11 / 32 - 8 VEL PCH1511 CS - HG50 PCH1512 CS - HG20 PCH1513 CS - HG20 PCH1510 CS - HG40 11 / 34 - 8 VEL 11 / 32 - 8 VEL 12 / 32 - 7 VEL 11 / 32 - 9 VEL T/ CASSETTE T/ CASSETTE T/ CASSETTE 6
- 9. PALANCAS PAL1501 SL - TZ20 MNL1501 BL - M770 MNL1502 BL - M421 6 VEL / CON FUNDAS V - BRAKE / ALUMINIO V - BRAKE / ALUMINIO PAL1502 SL - TZ20 7 VEL / CON FUNDAS PAL1504 SL - TX50 PAL1503 SL - TX30 6 VEL / CON FUNDAS 7 VEL / CON FUNDAS PAL1505 SL - TX50 PAL1506 RS - 35 / GRIPSHIFT 7 VEL / CON FUNDAS 7 VEL / CON FUNDAS PAL1507 SL - M310 PAL1508 SL - M360 PAL1509 SL - M390 7 VEL 8 VEL 9 VEL MTB - CON FUNDAS MTB - CON FUNDAS MTB - CON FUNDAS 7

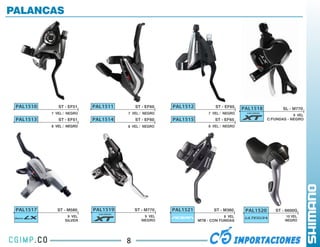

- 10. PALANCAS PAL1510 ST - EF51 PAL1511 ST - EF60 PAL1512 ST - EF65 PAL1518 SL - M770 7 VEL / NEGRO 7 VEL / NEGRO 7 VEL / NEGRO 9 VEL PAL1513 ST - EF51 PAL1514 ST - EF60 PAL1515 ST - EF65 C/FUNDAS - NEGRO 8 VEL / NEGRO 8 VEL / NEGRO 8 VEL / NEGRO PAL1517 ST - M580 PAL1519 ST - M770 PAL1521 ST - M360 PAL1520 ST - 6600G 9 VEL 9 VEL 8 VEL 10 VEL SILVER NEGRO MTB - CON FUNDAS NEGRO 8
- 11. FRENOS FRE1501 BR - M375 FRE1502 BR - M416 MANZANA - RM35 MANZANA - RM65 FRE1503 BR/BL - M595 FRE1504 BR - 3400 FRE1505 BR - 4600 DELANTERO DELANTERO DELANTERO SIN DISCOS TRASERO TRASERO 9
- 12. CAMBIOS TZ-21 TZ-31 TZ-50 TZ-50 TZ-20 TZ-20 TZ-31 CAM1502 TZ - 20 TZ-20 CAM1501 TZ - 20 6 VEL 6 VEL TZ-21 TZ-31 TY-18 TY-18 TX-35 CAM1506 TZ - 20 7 VEL TZ-20 TZ-20 CAM1503 TZ - 20 CAM1504 TZ - 20 6 VEL 6 VEL 10

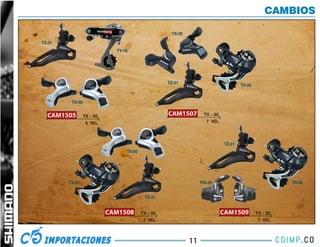

- 13. CAMBIOS TX-30 TZ-31 TY-18 TZ-31 TX-35 TX-50 CAM1505 TX - 50 CAM1507 TX - 30 6 VEL 7 VEL TZ-31 TX-50 TX-35 RS-35 TX-35 TZ-31 CAM1508 TX - 30 CAM1509 TX - 30 7 VEL 7 VEL 11

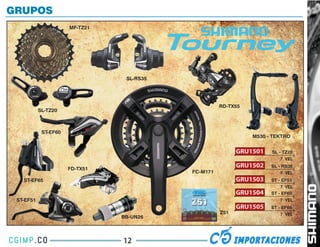

- 14. GRUPOS MF-TZ21 SL-RS35 RD-TX55 SL-TZ20 ST-EF60 M530 - TEKTRO GRU1501 SL - TZ20 7 VEL GRU1502 SL - RS35 FD-TX51 FC-M171 7 VEL ST-EF65 GRU1503 ST - EF51 7 VEL GRU1504 ST - EF60 ST-EF51 7 VEL GRU1505 ST - EF65 Z51 7 VEL BB-UN26 12

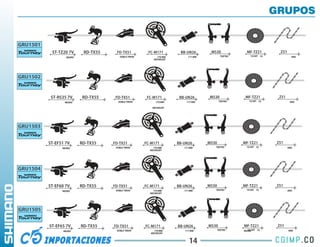

- 15. GRUPOS GRU1501 ST-TZ20 7V RD-TX55 FD-TX51 FC-M171 BB-UN26 M530 MF-TZ21 Z51 DOBLE TIRON 170 MM 117 MM TEKTRO 14/28T 7V KMC NEGRO 48X38X28T GRU1502 ST-RS35 7V RD-TX55 FD-TX51 FC-M171 BB-UN26 M530 MF-TZ21 Z51 DOBLE TIRON 170 MM 117 MM TEKTRO 14/28T 7V KMC NEGRO 48X38X28T GRU1503 ST-EF51 7V RD-TX55 FD-TX51 FC-M171 BB-UN26 M530 MF-TZ21 Z51 DOBLE TIRON 170 MM 117 MM TEKTRO 14/28T 7V KMC NEGRO 48X38X28T GRU1504 ST-EF60 7V RD-TX55 FD-TX51 FC-M171 BB-UN26 M530 MF-TZ21 Z51 DOBLE TIRON 170 MM 117 MM TEKTRO 14/28T 7V KMC NEGRO 48X38X28T GRU1505 ST-EF65 7V RD-TX55 FD-TX51 FC-M171 BB-UN26 M530 MF-TZ21 Z51 DOBLE TIRON 170 MM 117 MM TEKTRO 14/28T 7V NEGRA KMC NEGRO 48X38X28T 14
- 16. CAMBIOS GRU1510 ST-M970 9 VEL SL-M970 RD-M970GS FD-M970 FC-M970 BR-M970 FH / RH-M970 CS-M970 15

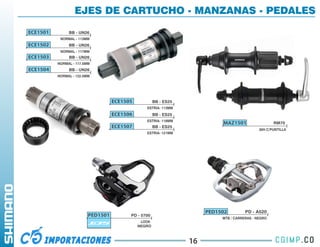

- 17. EJES DE CARTUCHO- MANZANAS - PEDALES ECE1501 BB - UN26 NORMAL - 113MM ECE1502 BB - UN26 NORMAL - 117MM ECE1503 BB - UN26 NORMAL - 117.5MM ECE1504 BB - UN26 NORMAL - 122.5MM ECE1505 BB - ES25 ESTRIA- 113MM ECE1506 BB - ES25 ESTRIA- 118MM MAZ1501 RM70 ECE1507 BB - ES25 36H C/PUNTILLA ESTRIA- 121MM PED1502 PD - A520 PED1501 PD - 5700 MTB / CARRERAS - NEGRO LOOK NEGRO 16
