The document introduces a new fastener, the Top Hat to Deck Fastener SL3/2-5-S-SV16-6x27, designed to meet new thermal regulations requiring thicker roof insulation. The fastener is self-drilling, requires only one tool for installation, and has a flexible thickness range from 1.9 to 3.8 mm for steel and 4.8 mm for aluminum. It provides high torque and pull-out strength with no risk of loosening or stripping threads during installation or under dynamic loads.

1. The new Top Hat to Deck Fastener SL3/2-5-S-SV16-6x27

2. Why a new fastener ? new thermal regulations  thicker insulation thickness "new" roof concept self drilling fastener with high setting security and high setting speed NEW !

3. state of the art 2 operations 2 tools required Bulb Tite SD SD / pre punched gap high risk of over torque loosening possible pre punching part1 pre drill on the job response time <0.01s loosening possible save?

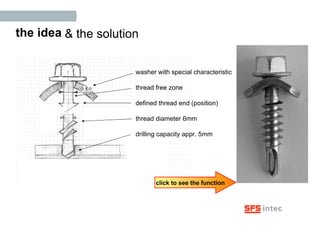

4. the idea washer with special characteristic thread free zone defined thread end (position) thread diameter 6mm drilling capacity appr. 5mm & the solution click to see the function

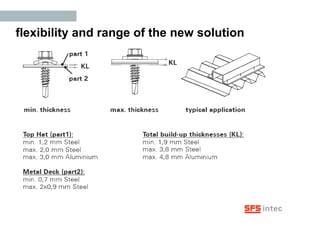

5. flexibility and range of the new solution

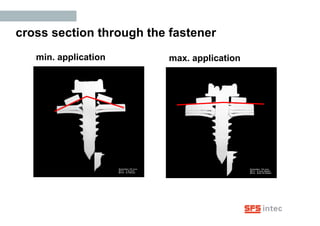

6. cross section through the fastener min. application max. application

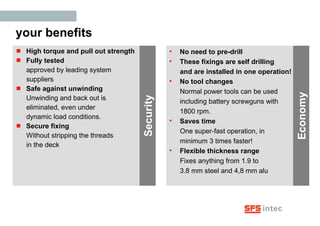

7. your benefits High torque and pull out strength Fully tested approved by leading system suppliers Safe against unwinding Unwinding and back out is eliminated, even under dynamic load conditions. Secure fixing Without stripping the threads in the deck No need to pre-drill These fixings are self drilling and are installed in one operation! No tool changes Normal power tools can be used including battery screwguns with 1800 rpm. Saves time One super-fast operation, in minimum 3 times faster! Flexible thickness range Fixes anything from 1.9 to 3.8 mm steel and 4,8 mm alu Security Economy

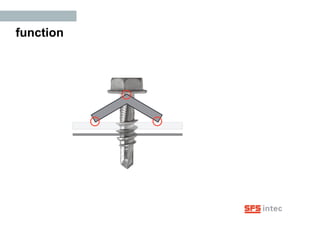

8. function

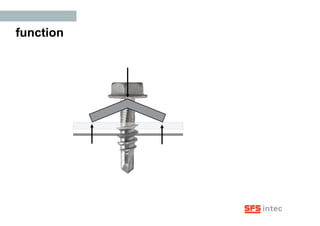

9. function

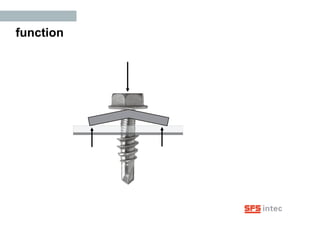

10. function
