Security and unit testing

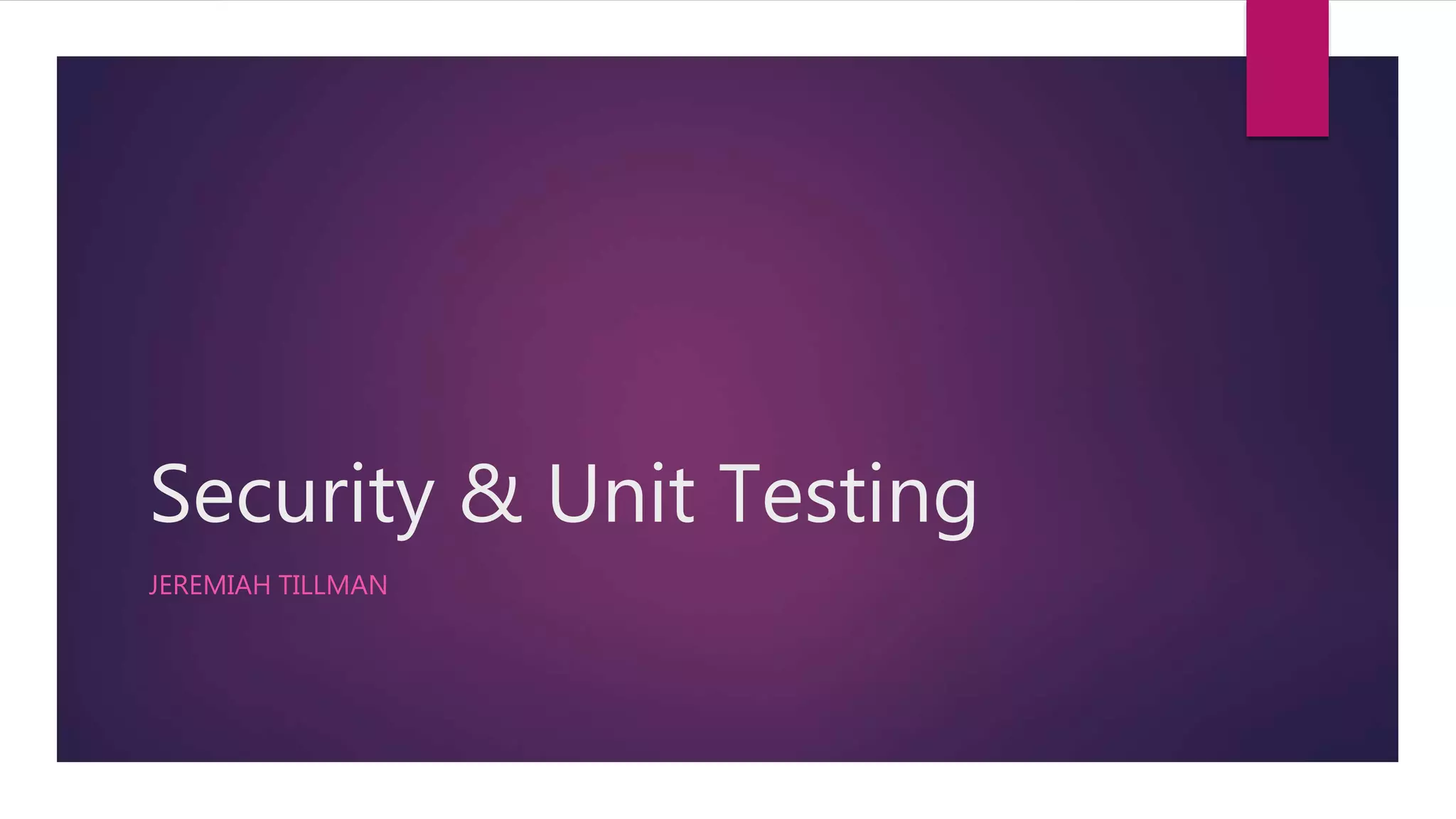

1. Security & Unit Testing
JEREMIAH TILLMAN

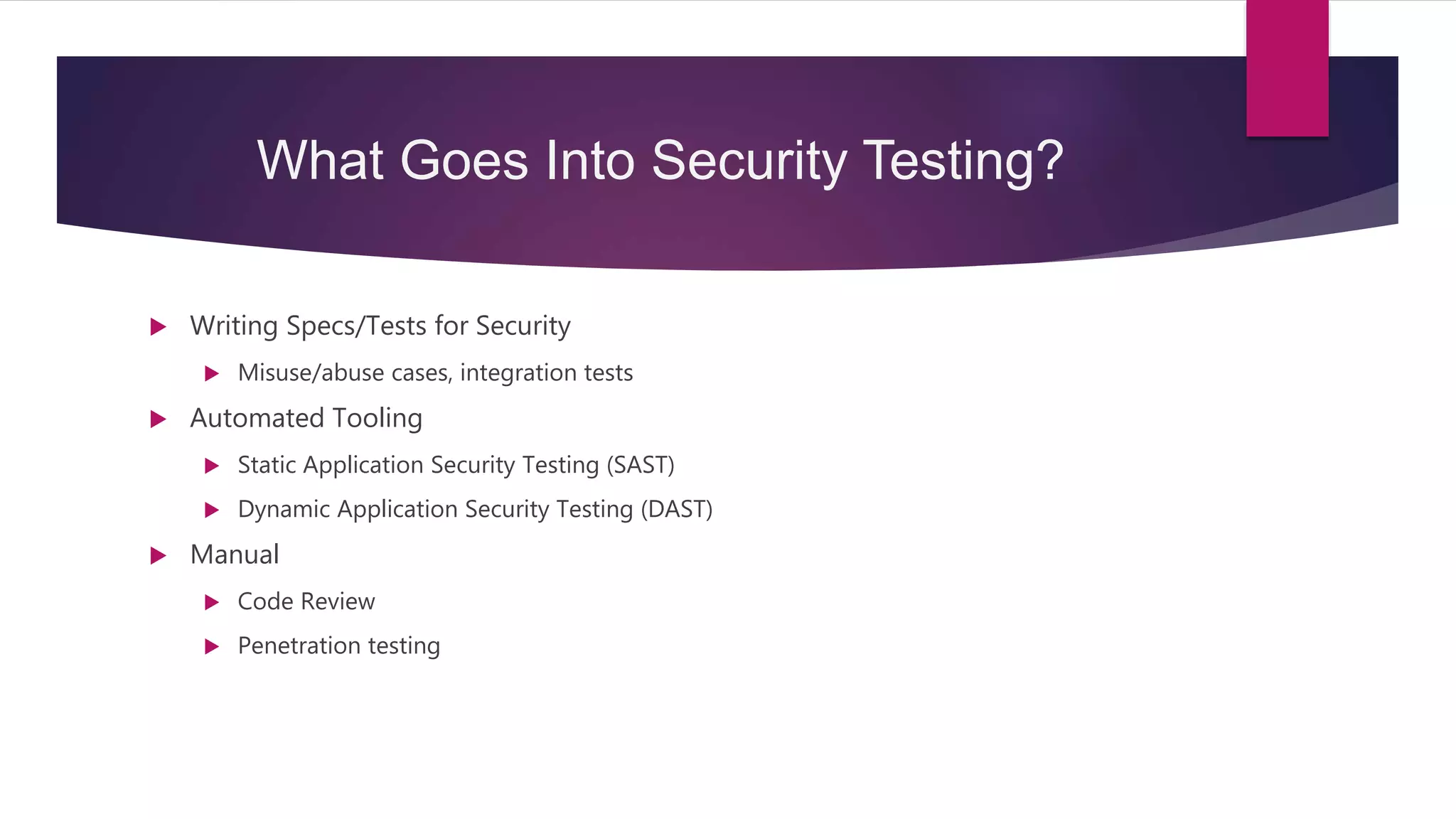

2. What Goes Into Security Testing?
 Writing Specs/Tests for Security
 Misuse/abuse cases, integration tests
 Automated Tooling
 Static Application Security Testing (SAST)
 Dynamic Application Security Testing (DAST)
 Manual
 Code Review
 Penetration testing

3. Why Are We Writing Tests?
 Use cases for expected behavior, normal input, functional requirements
 E.g. password must contain required validations
 Abuse cases for unexpected behavior, invalid input, malicious input
 E.g. user Alice tries to access user Bob’s account

4. Unit Test with JUnit
public void testAddTwoItems()
{ Cart instance = new Cart(); boolean isInStock = true;
//First add an item Item item = new Item();
item.setItemId("item01"); instance.addItem(item, isInStock);
//Test adding a second item Item item2 = new Item();
item2.setItemId("item02");
instance.addItem(item2, isInStock);
//Check whether item01 is in the cart
boolean result = instance.containsItemId("item01"); assertTrue("First item is
in cart", result);
//Check whether item02 is in the cart result =
instance.containsItemId("item02");
assertTrue("Second item is in cart", result);
//Check that there are 2 items in the cart
assertEquals("2 items in cart", instance.getNumberOfItems(), 2);}
 Here we have a basic test that could be
used in the internal evaluation of an e-
commerce store.
 The purpose of this test is to first check
inventory for an Item requested by a
customer, then add item requested by
customer to their cart and so forth

5. Abuse Case with JUnit
public void testAddNullItem() {
Cart instance = new Cart();
boolean isInStock = true;
try {
instance.addItem(null, isInStock);
fail("Adding a null item did not throw an exception");
}
catch (RuntimeException expected) { assertTrue("null Item caught",true);
assertEquals("Null not in cart", instance.getNumberOfItems(), 0);
}
}

6. Security Testing with Unit Tests
Valid Input Invalid Input
public void testValidPhoneNumbers() {
//Test valid input
String number = "232321"; acc.setPhone(number);
validator.validate(acc, errors); assertFalse(number+"
caused a validation error.",
errors.hasFieldErrors("phone"));
number = "+23 232321"; acc.setPhone(number);
validator.validate(acc, errors); assertFalse(number+"
caused a validation error.", errors.hasFieldErrors("phone"));
//etc...
}
public void testIllegalCharactersInPhoneNumber() { String number
= "+(23)';[]232 - 321"; acc.setPhone(number);
validator.validate(acc, errors);
assertTrue(number+" did not cause a validation error.",
errors.hasFieldErrors("phone"));
}
public void testAlphabeticInPhoneNumber() { String number =
"12a12121"; acc.setPhone(number); validator.validate(acc,
errors);
assertTrue(number+" did not cause a validation error.",
errors.hasFieldErrors("phone"));
}

7. Benefits and Disadvantages
Benefits
 Tests are run very frequently (issues are
identified quickly)
 Many security vulnerabilities can be tested
(authentication, authorization)
 Can use tools to script vulnerabilities
 Clearly demonstrate/ document
vulnerabilities
Disadvantages
 May not be run as often (depending on CI
env)
 Some vulnerabilities hard to test (XSS)
 Developers have limited involvement
 Limited security vulnerabilities can be
tested with low test Coverage

8. Automated Tooling
SAST
 Analyze application source
code, byte code and binaries
 Ideally should integrate with CI
DAST
 Test for security vulnerabilities
in an application’s running
state
 Very good at detecting
injection and XSS

9. Penetration Testing
 Manually testing uncovers flaws in
 Business Logic
 Design
 Compound Flaw Risks
 Testing Schedule
 Internal
 Always and often stemming from vulnerability scanning and analysis
 Third Party
 External applications/network perimeter - at least once per year
 Before major releases of new systems or significant architecture changes to critical systems

10. Penetration Testing
 Penetration testing (pen-testing) attempts to exploit the vulnerabilities to
determine whether unauthorized access or other malicious activity is
possible.
 A comprehensive pen-test will include human expertise on top of
professional penetration testing software, tools, and scripts.
