The document provides an overview of Software-Defined Networking (SDN), including its history, benefits, use cases, ecosystem, and guidance on getting started in 2013. It highlights the role of various vendors and open-source projects in the SDN landscape, as well as the importance of defining clear business objectives and collaborating with trusted vendors. Additionally, it emphasizes the need for enterprises to educate themselves and design proofs of concept before fully deploying SDN solutions.

1. SDN University™ 101
What You Need to Know About SDN
Copyright 2013. All Rights Reserved.

2. Meet our speakers
Matthew Palmer
SDNCentral
Roy Chua
SDNCentral
Copyright 2013. All Rights Reserved.
Matt Griffiths
COMPUTERLINKS
2

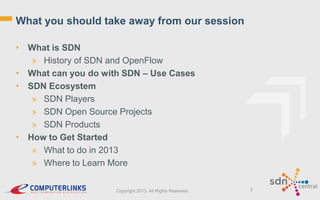

3. What you should take away from our session
• What is SDN
» History of SDN and OpenFlow
• What can you do with SDN – Use Cases
• SDN Ecosystem
» SDN Players
» SDN Open Source Projects
» SDN Products
• How to Get Started
» What to do in 2013
» Where to Learn More
Copyright 2013. All Rights Reserved.
3

4. About COMPUTERLINKS
The COMPUTERLINKS Group is a global market leader with over 20 years experience in the
distribution of IT security and Internet Technology solutions and services.
• Founded 1984 Munich Germany
• Focus on key vendors and
technologies
•
•
•
•
•
True value added distributer
Global and local market access
Enterprise Security focused
600+ employees world wide
Global 24/7 support center
Copyright 2013. All Rights Reserved.
4

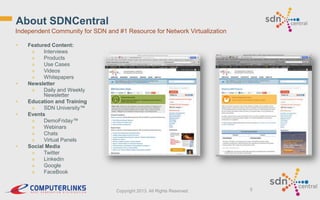

5. About SDNCentral
Independent Community for SDN and #1 Resource for Network Virtualization
•
•
•
•
•
Featured Content:
»
Interviews
»
Products
»
Use Cases
»
Videos
»
Whitepapers
Newsletter
»
Daily and Weekly
Newsletter
Education and Training
»
SDN University™
Events
»
DemoFriday™
»
Webinars
»
Chats
»
Virtual Panels
Social Media
»
Twitter
»
Linkedin
»
Google
»
FaceBook
Copyright 2013. All Rights Reserved.
5

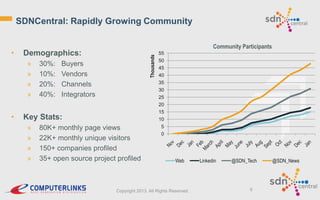

6. SDNCentral: Rapidly Growing Community
Demographics:
»
»
»
»
•
30%:
10%:
20%:
40%:
Thousands
•
Community Participants
Buyers
Vendors
Channels
Integrators
Key Stats:
»
»
»
»
80K+ monthly page views
22K+ monthly unique visitors
150+ companies profiled
35+ open source project profiled
55
50
45
40
35
30
25
20
15
10
5
0
Web
Copyright 2013. All Rights Reserved.
Linkedin
@SDN_Tech
6
@SDN_News

7. What is SDN?
sdncentral.com I computerlinks.com

8. First, Why SDN?
Networks are an order of magnitude larger; automation has lagged
SDN solves inflexibilities and inefficiencies that inhibit scale & automation
Copyright 2013. All Rights Reserved.
8

9. What is SDN and What are Its Benefits?
SDN Definition
SDN Benefits
Centralization of control of the
network via the
Efficiency: optimize existing
applications, services, and
infrastructure
Separation of control logic to offdevice compute, that
Scale: rapidly grow existing
applications and services
Enables automation and
orchestration of network services via
Open programmatic interfaces
Innovation: create and deliver new
types of applications and services and
business models
Copyright 2013. All Rights Reserved.
9

10. History of SDN: Before OpenFlow (BO)
The Distributed Control Plane is not new…..
Separated Control &
Data Planes
Early ‘90’s
Distributed Control
Plane w/in Switch
Mid- ‘90’s
All Data w/in Control
Plane Early ‘00’s
Separated Control &
Data Planes Late ‘00’s
MPLS & 3GPP Vendors…
Copyright 2013. All Rights Reserved.
10

11. Past Experience to Draw On
Controller-based wireless
• Focused on centralized management & wireless
control-plane
• Lack of northbound APIs
Copyright 2013. All Rights Reserved.
DC Chassis-based switches & routers
Telco Equipment (MPLS, etc)
• Control-plane/Data-plane Separation
• Proprietary communications channel
11

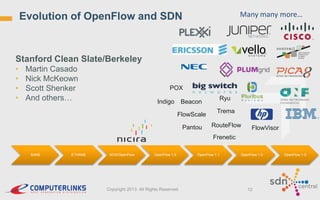

12. Many many more…
Evolution of OpenFlow and SDN
Stanford Clean Slate/Berkeley
•
•
•
•
Martin Casado
Nick McKeown
Scott Shenker
And others…
POX
Indigo
Beacon
FlowScale
Pantou
Ryu
Trema
RouteFlow
FlowVisor
Frenetic
SANE
ETHANE
NOX/OpenFlow
OpenFlow 1.0
Copyright 2013. All Rights Reserved.
OpenFlow 1.1
OpenFlow 1.2
12
OpenFlow 1.3

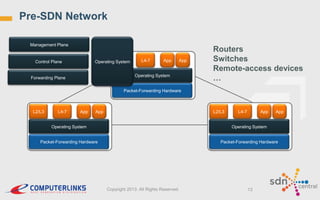

13. Pre-SDN Network
Management Plane
L2/L3
Operating System
Control Plane
L4-7
App
App
Operating System
Forwarding Plane
Routers
Switches
Remote-access devices
…
Packet-Forwarding Hardware
L2/L3
L4-7
App
App
L2/L3
L4-7
App
App
Operating System
Operating System
Packet-Forwarding Hardware
Packet-Forwarding Hardware
Copyright 2013. All Rights Reserved.
13

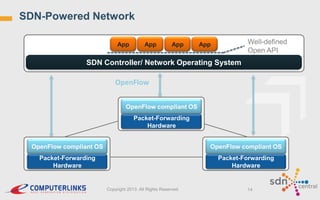

14. SDN-Powered Network
App
App
App
Well-defined
Open API
App
SDN Controller/ Network Operating System
OpenFlow
OpenFlow compliant OS
Packet-Forwarding
Hardware
OpenFlow compliant OS
OpenFlow compliant OS
Packet-Forwarding
Hardware
Packet-Forwarding
Hardware
Copyright 2013. All Rights Reserved.
14

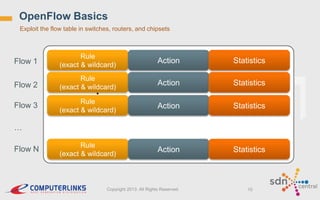

15. OpenFlow Basics
Exploit the flow table in switches, routers, and chipsets
Flow 1
Rule
(exact & wildcard)
Flow 2
Rule
(exact & wildcard)
Flow 3
Rule
(exact & wildcard)
Statistics
Action
OpenFlow Basics Statistics
…
Flow N
Action
Action
Statistics
…
Rule
(exact & wildcard)
Action
Copyright 2013. All Rights Reserved.
Statistics
15

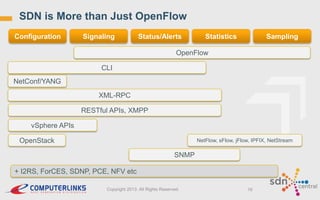

16. SDN is More than Just OpenFlow
Configuration
Signaling
Status/Alerts
Statistics
Sampling
OpenFlow
CLI
NetConf/YANG
XML-RPC
RESTful APIs, XMPP
vSphere APIs
OpenStack
NetFlow, sFlow, jFlow, IPFIX, NetStream
SNMP
+ I2RS, ForCES, SDNP, PCE, NFV etc
Copyright 2013. All Rights Reserved.
16

17. SDN Use Cases
sdncentral.com I computerlinks.com

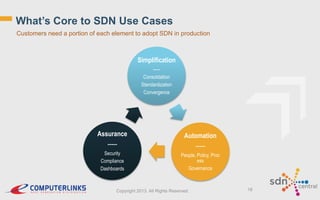

18. What’s Core to SDN Use Cases
Customers need a portion of each element to adopt SDN in production
Simplification
----Consolidation
Standardization
Convergence
Assurance
-----
Automation
-----
Security
Compliance
Dashboards
People, Policy, Proc
ess
Governance
Copyright 2013. All Rights Reserved.
18

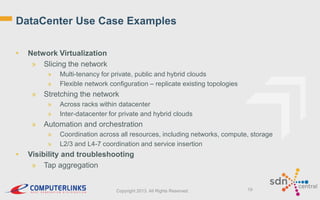

19. DataCenter Use Case Examples
•
Network Virtualization
» Slicing the network
»
»
»
Stretching the network
»
»
»
Across racks within datacenter
Inter-datacenter for private and hybrid clouds
Automation and orchestration
»
»
•
Multi-tenancy for private, public and hybrid clouds
Flexible network configuration – replicate existing topologies
Coordination across all resources, including networks, compute, storage
L2/3 and L4-7 coordination and service insertion
Visibility and troubleshooting
» Tap aggregation
Copyright 2013. All Rights Reserved.
19

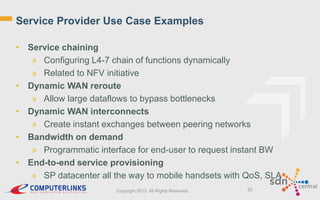

20. Service Provider Use Case Examples
• Service chaining
» Configuring L4-7 chain of functions dynamically
» Related to NFV initiative
• Dynamic WAN reroute
» Allow large dataflows to bypass bottlenecks
• Dynamic WAN interconnects
» Create instant exchanges between peering networks
• Bandwidth on demand
» Programmatic interface for end-user to request instant BW
• End-to-end service provisioning
» SP datacenter all the way to mobile handsets with QoS, SLA
Copyright 2013. All Rights Reserved.
20

21. SDN Ecosystem
sdncentral.com I computerlinks.com

22. All Networking Vendors are now SDN Vendors
150+ companies at SDNCentral.com
Silicon
Switches
Routers
L3/4-7
Orchestration and Automation
Management and Analytics
Virtualization
Controllers
•Broadcom, Centec, EZChip, Intel/Fulcrum, Netronome, Marvell
•Arista, Brocade, Cisco, Dell, Extreme, HP, IBM, Juniper, Mellanox, NEC, Pica8,
…
•Cisco, Juniper, Huawei
•6WIND, Embrane, LineRate/F5, Vyatta/Brocade, QOSMOS
•Anuta Networks, Lyattis
•Cyan, Guavas
•Contextream, VMware, Midokura, vCider/Cisco
•Big Switch Networks, Cisco, HP, IBM, Juniper, NEC
Copyright 2013. All Rights Reserved.
22

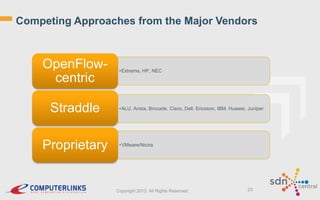

23. Competing Approaches from the Major Vendors
OpenFlowcentric
Straddle
Proprietary
•Extreme, HP, NEC
•ALU, Arista, Brocade, Cisco, Dell, Ericsson, IBM, Huawei, Juniper
•VMware/Nicira
Copyright 2013. All Rights Reserved.
23

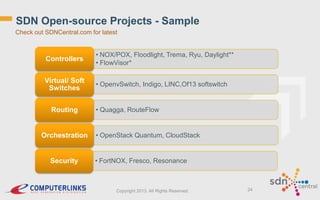

24. SDN Open-source Projects - Sample
Check out SDNCentral.com for latest
Controllers
• NOX/POX, Floodlight, Trema, Ryu, Daylight**
• FlowVisor*
Virtual/ Soft
Switches
• OpenvSwitch, Indigo, LINC,Of13 softswitch
Routing
Orchestration
Security
• Quagga, RouteFlow
• OpenStack Quantum, CloudStack
• FortNOX, Fresco, Resonance
Copyright 2013. All Rights Reserved.
24

25. Getting Started
sdncentral.com I computerlinks.com

26. Is SDN Ready to Deploy in 2013?
Maybe, since SDN early stage in typical enterprise software market evolution
SDN Today
Custom
Solutions
Tailored
Solutions
Packaged
Software
Early Market
Mature Market
Copyright 2013. All Rights Reserved.
26

27. SDN Perspectives in 2013
Our learnings from client engagements & operating SDNCentral
Open Source
• Limited developer communities / concentrated at few companies
• Usually controlled by single commercial entity. Potentially risky
• Lack of reference implementation slowing down OpenFlow
Established
Vendors
• Scrambling to claim everything new is ‘SDN’
• Spotty and inconsistent support for SDN
• Not one vendor / product fits all customers or specific problems.
Start Ups
Customers
• Attempt to sell packaged products at a stage where value is created by custom
solutions
• Few or no production customers
• Early adopters looking to reap competitive advantage via SDN
• Financials, Web 2.0, Service Providers
• Most revenue is professional services driven
Copyright 2013. All Rights Reserved.
27

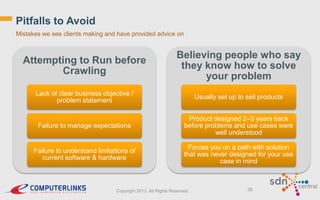

28. Pitfalls to Avoid
Mistakes we see clients making and have provided advice on
Attempting to Run before
Crawling
Believing people who say
they know how to solve
your problem
Lack of clear business objective /
problem statement
Usually set up to sell products
Failure to manage expectations
Product designed 2–3 years back
before problems and use cases were
well understood
Failure to understand limitations of
current software & hardware
Forces you on a path with solution
that was never designed for your use
case in mind
Copyright 2013. All Rights Reserved.
28

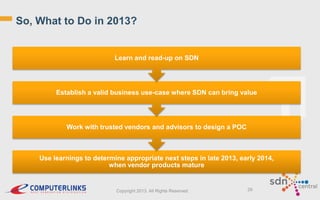

29. So, What to Do in 2013?
Learn and read-up on SDN
Establish a valid business use-case where SDN can bring value
Work with trusted vendors and advisors to design a POC
Use learnings to determine appropriate next steps in late 2013, early 2014,
when vendor products mature
Copyright 2013. All Rights Reserved.
29

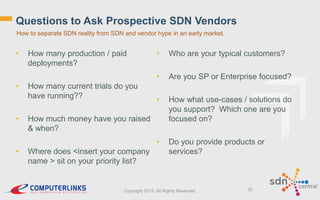

30. Questions to Ask Prospective SDN Vendors
How to separate SDN reality from SDN and vendor hype in an early market.
•
•
•
How many current trials do you
have running??
Who are your typical customers?
Are you SP or Enterprise focused?
•
How what use-cases / solutions do
you support? Which one are you
focused on?
•
•
•
•
How many production / paid
deployments?
Do you provide products or
services?
How much money have you raised
& when?
Where does <insert your company
name > sit on your priority list?
Copyright 2013. All Rights Reserved.
30

31. SDN: Real World Perspectives
from a Real World
Networking Practitioner
sdncentral.com I computerlinks.com

32. Questions and Answers
sdncentral.com I computerlinks.com

33. Please Visit:
SDNCentral.com
The Independent Community for
SDN and Network Virtualization
Copyright 2013. All Rights Reserved.
February 2, 2012
