This document provides information on various quick disconnect couplings and fittings produced by Adel Wiggins Group. It describes their applications in areas like defense, space, aviation, and other industrial uses. Specific product lines mentioned include the 200, 20, 6000, VS100, and POL series. It also provides contact information for Mario Pantuso to obtain more details on selection and application of Adel Wiggins quick disconnect components.

2. For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
Defense Bioengineer Commercial Transport
Space Nuclear Ground Based Radar

3. Radar Cooling Applications
200 Series 20 Series
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information

4. General Purpose
Electronic Cooling
Hydrocarbon Fuels
Hydraulic Fluids
Flush Valving (Dry Break)
Very Low Air Inclusion
Very Low Spillage of fluid
Rod Latch
Push-to connect/pull to disconnect
No twist, turn or torquing
NO BALL BEARINGS
Sizes: ¼” to 2”
Burst Pressure: 2,000 psig(coupled)
Pressure Drop - 0.18 psig @ 2.9 GPM (1” size)
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
200 Series Quick Disconnect

5. Special Coupling for use with electronic equipment
Very Small Size - Light Weight (0.64lbs - connected)
Dog Latch connection • Push-Pull operation
¼” ID available with ¼, 1/8 and 3/8 inch tube ends
Burst Pressure: 13,000 psig
Very low Pressure Drop: 0.9psig @ 0.5 GPM
Very low spillage (0.22 CC) on disconnect
Very Low Air Inclusion (0.21 CC) on disconnect
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
20 Series Quick Disconnect

6. Umbilical
Couplings (Cryo)
6000 Series
(Hydraulic)
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
Space Products

7. Sizes: 3/8”-2” Gaseous, 3/8”, 1” and 2” Cryo
Fluids: Hydrogen (LH2/GH2) per MIL-P-27201
Nitrogen (GN2/LN2) per MIL-P-27401
Oxygen (LO2/GO2) per MIL-P-25508
Helium (Ghe) per MIL-P-27407
Temperatures: -425°F to +150°F
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
Umbilical Connectors

8. Robust Construction - 4 X’s safety factor
Designed for Field Maintainability
Rated for Max Leakage of 20 scim GHe
Very Low Pressure Drop
1,500 Cycle Life - cryo ground couplings
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
Umbilical Connectors

9. Frangible Connectors
VS/VN 100 Series
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
Commercial Aircraft

10. Special Coupling for Instrumentation Pressure Testing/Data Recorders
Self Sealing “Poppet” Valve
Very small profile
Dog Latch connector
Size: ¼” line size available with 1/8”, 1/4”,or 3/8” ends (90° elbow
available)
Burst Pressure:
3,750 psig with Valve
17,000 psig without valve
Push / Pull operation - one motion
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
VS100 & VS110 Series Couplings

11. Ratchet Positive Lock
Flush Seals minimize leakage, air inclusion
Temperature Range -40°F to +275°F
Operating Pressures up to 250 psig
Proof Pressures up to 500 psig
Burst Pressures up to 750 psig
Patented Break: 80 to 450 lbs. - load or torque based
on application and mounting
Fluids: JP-4/5, Hydraulic oils
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
Frangible

12. 6000 Series
WF Series
200 Series
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
Military Support

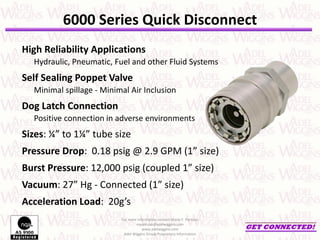

13. High Reliability Applications
Hydraulic, Pneumatic, Fuel and other Fluid Systems
Self Sealing Poppet Valve
Minimal spillage - Minimal Air Inclusion
Dog Latch Connection
Positive connection in adverse environments
Sizes: ¼” to 1¼” tube size
Pressure Drop: 0.18 psig @ 2.9 GPM (1” size)
Burst Pressure: 12,000 psig (coupled 1” size)
Vacuum: 27” Hg - Connected (1” size)
Acceleration Load: 20g’s
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
6000 Series Quick Disconnect

14. Specifically designed for Pressure Servicing
(pressure re-oil)
Designed to MIL-STD-24476
Dog Latch Connection
Push/Pull operation
Available in ¼” and ¾” sizes
Adapters to Standard Wiggins connectors
available
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
“WF” Series Coupling

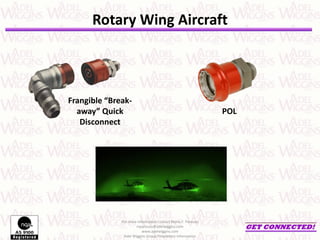

15. Frangible “Break-
away” Quick
Disconnect
POL
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
Rotary Wing Aircraft

16. General Purpose Coupling
Flush Valving (Dry Break)
Very little Spillage
Very low air inclusion
Burst Pressure: 1,250 psig
Pressure Drop: 2.3psig @ 50 GPM
Sizes: 1” to 1½” tube ends
Connector/nipple size 2”
International aircraft fueling standard
Wiggins Dog Latch connection
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
“POL” Series Quick Disconnect

17. 200 Series30 Series
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
Non Aero Applications

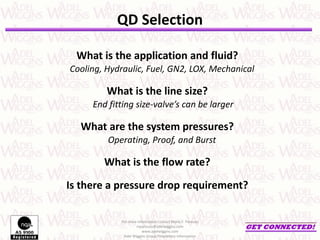

18. What is the application and fluid?
Cooling, Hydraulic, Fuel, GN2, LOX, Mechanical
What is the line size?
End fitting size-valve’s can be larger
What are the system pressures?
Operating, Proof, and Burst
What is the flow rate?
Is there a pressure drop requirement?
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
QD Selection

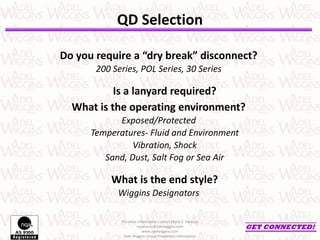

19. Do you require a “dry break” disconnect?
200 Series, POL Series, 30 Series
Is a lanyard required?
What is the operating environment?
Exposed/Protected
Temperatures- Fluid and Environment
Vibration, Shock
Sand, Dust, Salt Fog or Sea Air
What is the end style?
Wiggins Designators
For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
QD Selection

20. For more information contact Mario F. Pantuso
mpantuso@adelwiggins.com
www.adelwiggins.com
Adel Wiggins Group Proprietary Information
QD Selection

21. Adel Wiggins Group Proprietary Information
