This document provides information on the installation and usage flows for Cloud Distribution Point (CDP) and Cloud Management Gateway (CMG) in Azure. It discusses the certificate requirements, roles of different site server components, importing certificates to Azure, installing CDP and CMG from the console, log files stored in Azure storage, registry keys added during installation, and client-side usage flows for resolving content from CDP and switching to CMG. The document also contains questions and answers regarding CDP, CMG, and their connection points.

2. Requirements
For CDP and
CMG
Installation Flow
for Cloud DP
Package
Distribution Flow
to CDP
Client Side CDP
Usage Flow
Installation Flow
CMG
Connection Point
Installation Flow
Client Side CMG
Switch Flow
Q & A

3. Azure
Subscription
Certificate
Requirement
Management
Certificate
(.pfx and .cer)
Service
Certificate
.pfx
Site Server
Certificates
.pfx
Client
Certificates
.pfx
Root & Sub CA
Certificates
.cer
3

4. Site Server
Roles in HTTPS
Management Point
SUP
4

5. Import Management Certificate to Azure Management Portal
Install Cloud Distribution Point From Console (Cloud Services Cloud Distribution Point)
5

6. Cloudmgr.log
6

7. Cloudmgr.log
7

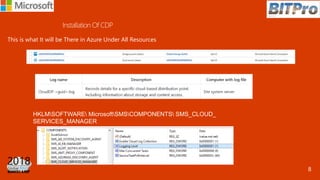

8. This is what It will be There in Azure Under All Resources
HKLMSOFTWARE MicrosoftSMSCOMPONENTS SMS_CLOUD_
SERVICES_MANAGER
8

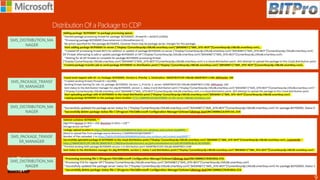

9. SMS_DISTRIBUTION_MA
NAGER
SMS_PACKAGE_TRANSF
ER_MANAGER
SMS_DISTRIBUTION_MA
NAGER
SMS_PACKAGE_TRANSF
ER_MANAGER
SMS_DISTRIBUTION_MA
NAGER
9

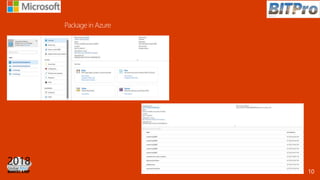

10. 10

11. A client must be able to resolve the name of the cloud service, which requires a Domain
Name System (DNS) alias and a CNAME record in your DNS namespace.
Client Settings
Clients that use cloud-based distribution points use the following sequence for content location requests:
1. Content from a preferred distribution point first.
2. Remote distribution point, if the deployment supports this option and if a remote distribution point is available.
3. Then it will fallback to obtain the content from a cloud-based distribution point.
11

12. Execmgr
CAS
CTS
Location Services
CTS
CAS
12

13. DTS
CTS
Execmgr
CAS
13

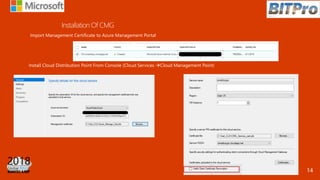

14. Import Management Certificate to Azure Management Portal
Install Cloud Distribution Point From Console (Cloud Services Cloud Management Point)
14

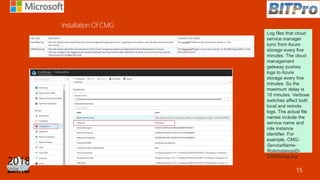

15. Log files that cloud
service manager
sync from Azure
storage every five
minutes. The cloud
management
gateway pushes
logs to Azure
storage every five
minutes. So the
maximum delay is
10 minutes. Verbose
switches affect both
local and remote
logs. The actual file
names include the
service name and
role instance
identifier. For
example, CMG-
ServiceName-
RoleInstanceID-
CMGSetup.log
15

16. Cloudmgr.log
16

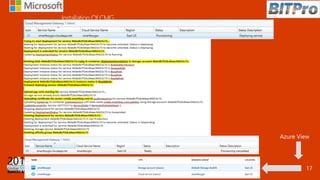

17. Azure View
17

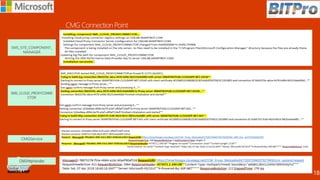

18. SMS_SITE_COMPONENT_
MANAGER
SMS_CLOUD_PROXYCONNE
CTOR
CMGHttpHandler
CMGService
18

19. Console
In SQL
In Azure
In Registry
19

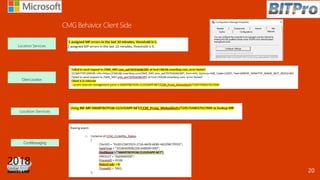

20. Location Services
Client Location
CcmMessaging
Location Services
20
