The document describes an inflatable humidity controlled tent that can be used as a portable paint booth. The tent allows painting to be done exactly where needed and then moved to the next task, reducing downtime. It is ideal for short-term production needs and testing paints. The tent provides a controlled environment for painting large turbine blades onsite or during transport. It offers portability, customization based on blade size, and is cheaper than regular paint cabins.

1. Inflatable Humidity Controlled Tent
Worldwide surface treatment plant
Patend by Skagen Blade Technology

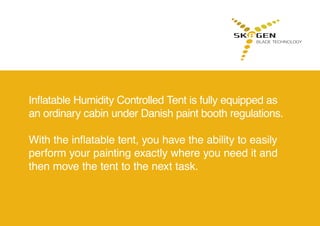

2. Inflatable Humidity Controlled Tent is fully equipped as
an ordinary cabin under Danish paint booth regulations.
With the inflatable tent, you have the ability to easily
perform your painting exactly where you need it and
then move the tent to the next task.

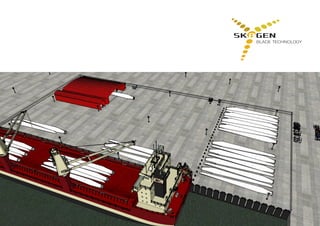

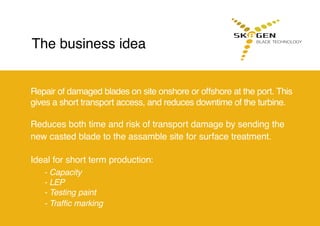

3. Repair of damaged blades on site onshore or offshore at the port. This
gives a short transport access, and reduces downtime of the turbine.
Reduces both time and risk of transport damage by sending the
new casted blade to the assamble site for surface treatment.
Ideal for short term production:
- Capacity
- LEP
- Testing paint
- Traffic marking
The business idea

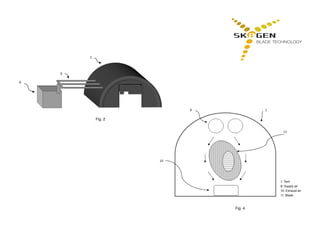

4. Fig. 4
1: Tent
8: Supply air
10: Exhaust air
11: Blade
Fig. 2

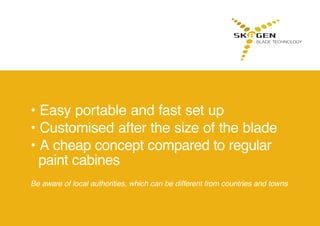

7. • Easy portable and fast set up
• Customised after the size of the blade
• A cheap concept compared to regular
paint cabines
Be aware of local authorities, which can be different from countries and towns

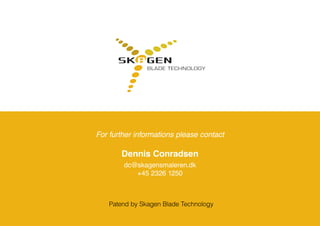

8. For further informations please contact
Dennis Conradsen
dc@skagensmaleren.dk
+45 2326 1250
Patend by Skagen Blade Technology
