This document contains information about ballistic resistant products certified by the Department of State/Diplomatic Security including steel enclosures and doors with certification dates. It also includes tables with ratings and testing standards for different levels of ballistic resistance against specified ammunition based on UL 752 and NIJ Standard 0801.01. The tables provide details such as ammunition type, nominal bullet mass, required barrel length, velocity ranges, and required number of hits/shots for each armor level.

1. Department of State/ Diplomatic Security Certified Products

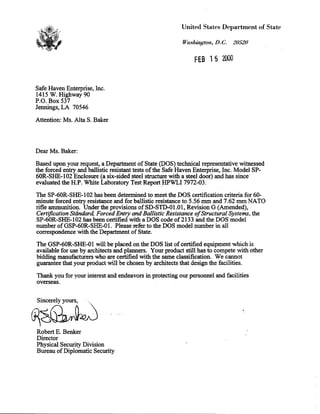

GSP-15R-SHE-01 Six Sided Steel Enclosure 2000.02.15

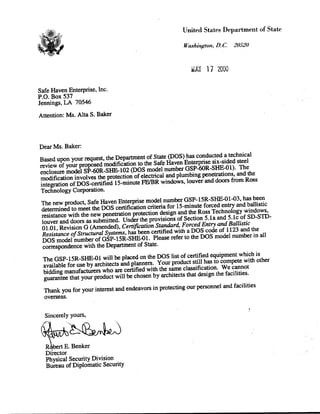

GSP-15R-SHE-01-03 Six Sided Steel Enclosure with Penetrations 2000.05.17
GSP-15R-SHE-01 Interconnecting & Stacking Modules 2000.06.19

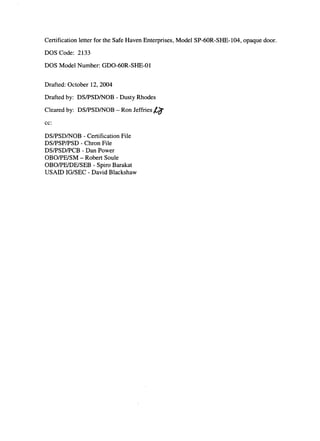

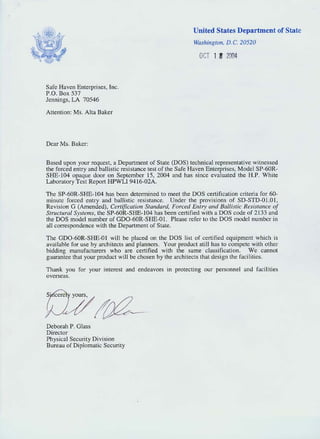

GDO-60R-SHE-01 60 Minute Opaque Door 2004.10.18

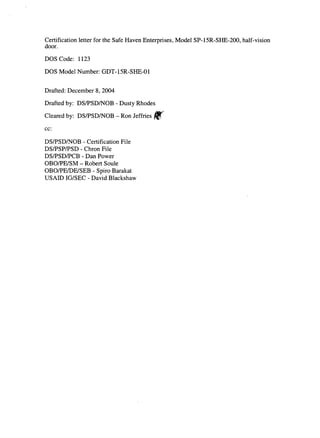

GDT-15R-SHE-01 15 Minute Half-Vision Door 2004.12.13

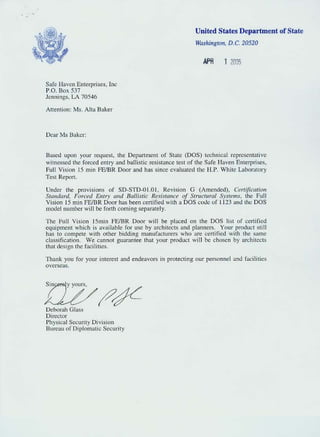

15 Minute Full-Vision Door 2005.04.01

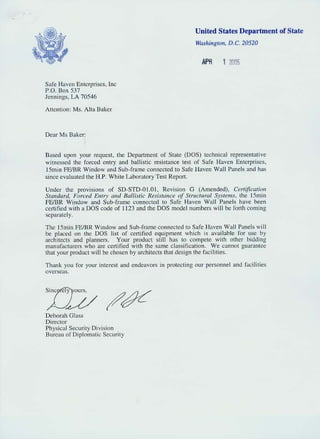

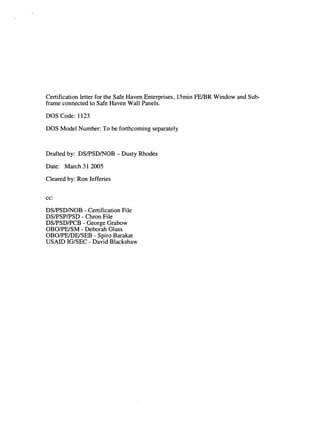

15 Minute Window & Subframe 2005.04.01

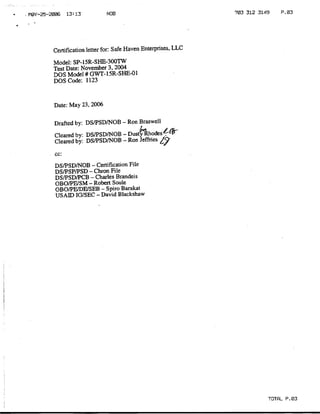

GWT-15R-SHE-01 15 Minute Teller Window

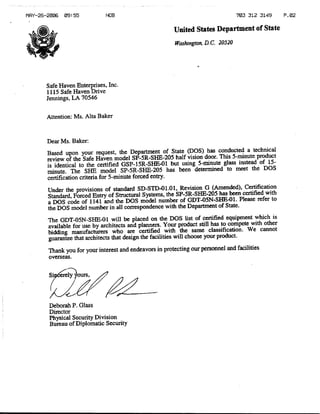

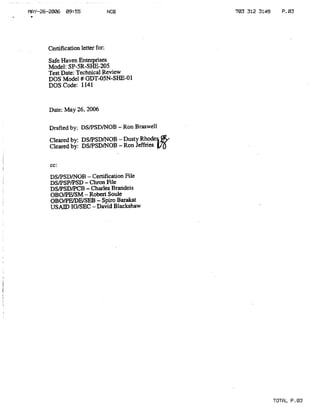

GDT-05N-SHE-01 5 Minute Half-Vision Door 2006.05.26

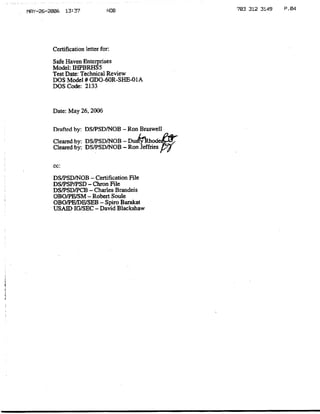

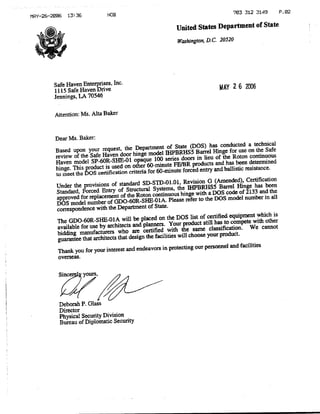

GDO-60R-SHE-01A 60 Minute Barrel Door Hinge 2006.05.26

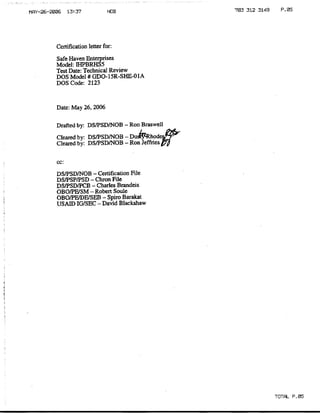

GDO-15R-SHE-01A 15 Minute Barrel Door Hinge 2006.05.26

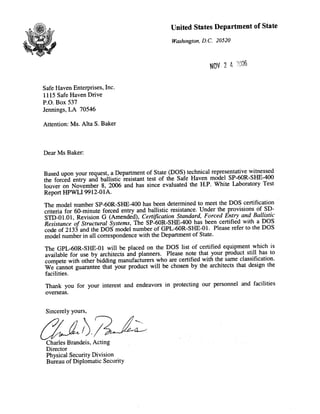

GPL-60R-SHE-01 60 Minute Louver 2006.11.24
GDT-15R-SHE-01B 15 Min Modified Deal Tray 2008.10.22

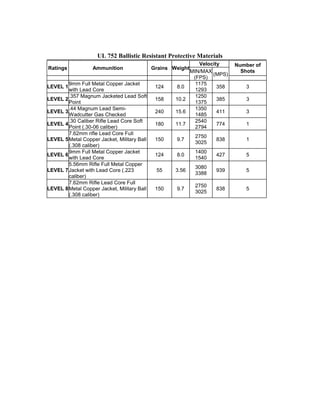

2. UL 752 Ballistic Resistant Protective Materials
Ratings Ammunition Grains Weight
Velocity Number of
ShotsMIN/MAX
(FPS)
(MPS)
LEVEL 1
9mm Full Metal Copper Jacket
with Lead Core
124 8.0
1175
1293
358 3
LEVEL 2
.357 Magnum Jacketed Lead Soft
Point
158 10.2
1250
1375
385 3
LEVEL 3
.44 Magnum Lead Semi-
Wadcutter Gas Checked
240 15.6
1350
1485
411 3
LEVEL 4
.30 Caliber Rifle Lead Core Soft
Point (.30-06 caliber)
180 11.7
2540
2794
774 1
LEVEL 5
7.62mm rifle Lead Core Full
Metal Copper Jacket, Military Ball
(.308 caliber)
150 9.7
2750
3025
838 1
LEVEL 6
9mm Full Metal Copper Jacket
with Lead Core
124 8.0
1400
1540
427 5
LEVEL 7
5.56mm Rifle Full Metal Copper
Jacket with Lead Core (.223
caliber)
55 3.56
3080
3388
939 5
LEVEL 8
7.62mm Rifle Lead Core Full
Metal Copper Jacket, Military Ball
(.308 caliber)
150 9.7
2750
3025
838 5

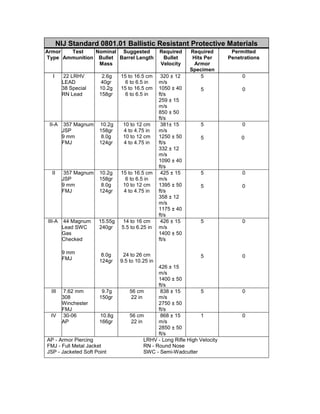

3. NIJ Standard 0801.01 Ballistic Resistant Protective Materials
Armor
Type
Test
Ammunition
Nominal
Bullet
Mass
Suggested
Barrel Length
Required
Bullet
Velocity
Required
Hits Per
Armor
Specimen
Permitted
Penetrations
I 22 LRHV
LEAD
38 Special
RN Lead
2.6g
40gr
10.2g
158gr
15 to 16.5 cm
6 to 6.5 in
15 to 16.5 cm
6 to 6.5 in
320 ± 12
m/s
1050 ± 40
ft/s
259 ± 15
m/s
850 ± 50
ft/s
5
5
0
0
II-A 357 Magnum
JSP
9 mm
FMJ
10.2g
158gr
8.0g
124gr
10 to 12 cm
4 to 4.75 in
10 to 12 cm
4 to 4.75 in
381± 15
m/s
1250 ± 50
ft/s
332 ± 12
m/s
1090 ± 40
ft/s
5
5
0
0
II 357 Magnum
JSP
9 mm
FMJ
10.2g
158gr
8.0g
124gr
15 to 16.5 cm
6 to 6.5 in
10 to 12 cm
4 to 4.75 in
425 ± 15
m/s
1395 ± 50
ft/s
358 ± 12
m/s
1175 ± 40
ft/s
5
5
0
0
III-A 44 Magnum
Lead SWC
Gas
Checked
9 mm
FMJ
15.55g
240gr
8.0g
124gr
14 to 16 cm
5.5 to 6.25 in
24 to 26 cm
9.5 to 10.25 in
426 ± 15
m/s
1400 ± 50
ft/s
426 ± 15
m/s
1400 ± 50
ft/s
5
5
0
0
III 7.62 mm
308
Winchester
FMJ
9.7g
150gr
56 cm
22 in
838 ± 15
m/s
2750 ± 50
ft/s
5 0
IV 30-06
AP
10.8g
166gr
56 cm
22 in
868 ± 15
m/s
2850 ± 50
ft/s
1 0
AP - Armor Piercing
FMJ - Full Metal Jacket
JSP - Jacketed Soft Point
LRHV - Long Rifle High Velocity
RN - Round Nose
SWC - Semi-Wadcutter
