1. Ruby
for devops
Adam Klein

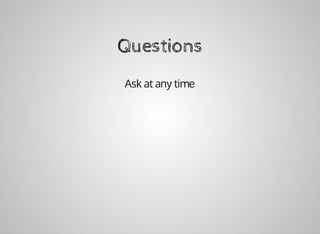

2. Questions
Ask at any time

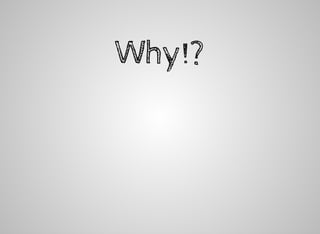

3. Why!?

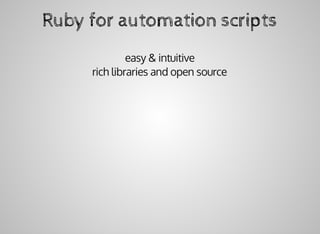

4. Ruby for automation scripts
easy & intuitive
rich libraries and open source

5. DevOps tools
Chef
Capistrano
Server Spec
Vagrant
God

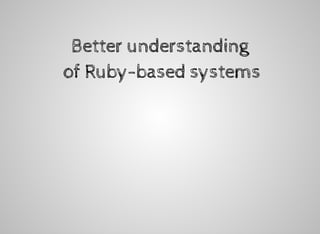

6. Better understanding
of Ruby-based systems

7. About me
Adam Klein
Co-Founder of 500Tech.com
@500TechIL

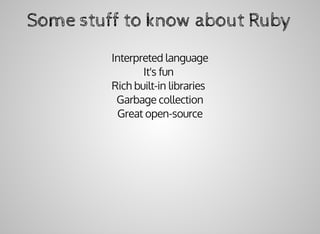

8. Some stuff to know about Ruby
Interpreted language
It's fun
Rich built-in libraries
Garbage collection
Great open-source

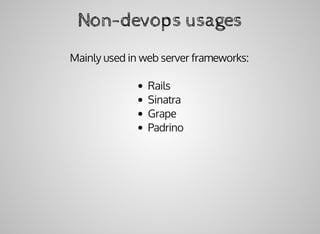

9. Non-devops usages
Mainly used in web server frameworks:
Rails
Sinatra
Grape
Padrino

10. Supports
Mac
Linux
"Windows"

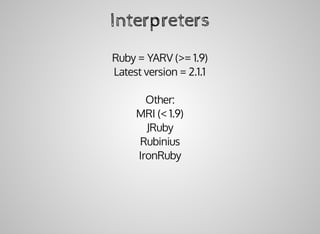

11. Interpreters
Ruby = YARV (>= 1.9)
Latest version = 2.1.1
Other:
MRI (< 1.9)
JRuby
Rubinius
IronRuby

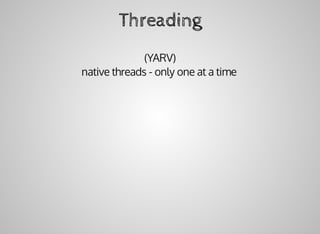

12. Threading
(YARV)
native threads - only one at a time

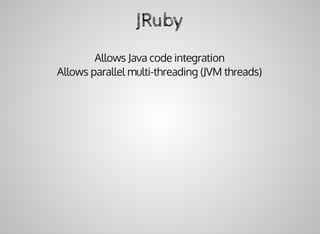

13. JRuby
Allows Java code integration
Allows parallel multi-threading (JVM threads)

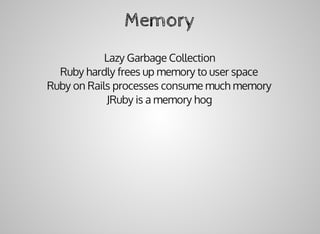

14. Memory
Lazy Garbage Collection
Ruby hardly frees up memory to user space
Ruby on Rails processes consume much memory
JRuby is a memory hog

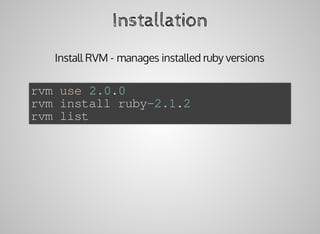

15. Installation
Install RVM - manages installed ruby versions
rvm use 2.0.0
rvm install ruby-2.1.2
rvm list

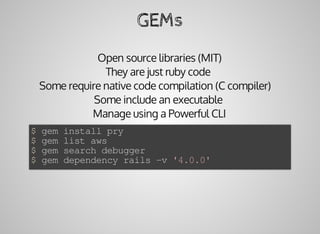

16. GEMs
Open source libraries (MIT)
They are just ruby code
Some require native code compilation (C compiler)
Some include an executable
Manage using a Powerful CLI
$ gem install pry
$ gem list aws
$ gem search debugger
$ gem dependency rails -v '4.0.0'

17. Running code
ruby test.rb (run code from file)
irb (interactive)
pry (irb with color)

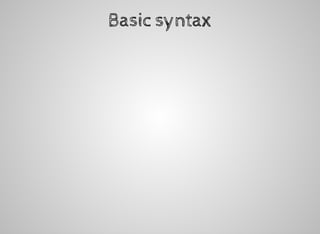

18. Basic syntax

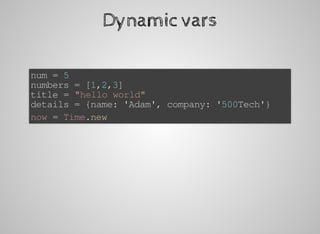

19. Dynamic vars
num = 5
numbers = [1,2,3]
title = "hello world"
details = {name: 'Adam', company: '500Tech'}
now = Time.new

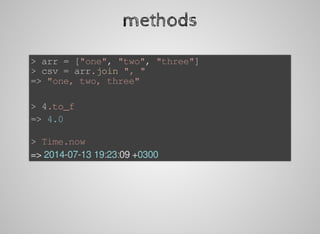

20. methods
> arr = ["one", "two", "three"]
> csv = arr.join ", "
=> "one, two, three"
> 4.to_f
=> 4.0
> Time.now
=> 2014-07-13 19:23:09 +0300

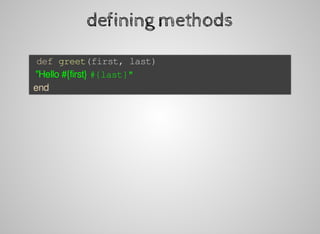

21. defining methods
def greet(first, last)
"Hello #{first} #{last}"
end

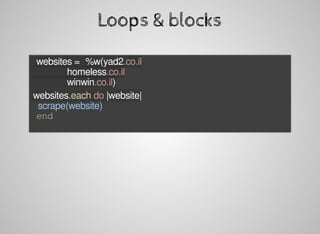

22. Loops & blocks
websites = %w(yad2.co.il
homeless.co.il
winwin.co.il)
websites.each do |website|
scrape(website)
end

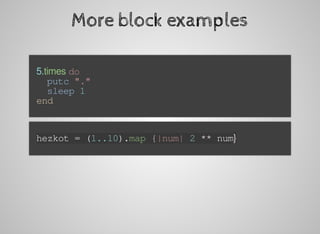

23. More block examples
5.times do
putc "."
sleep 1
end
hezkot = (1..10).map {|num| 2 ** num}

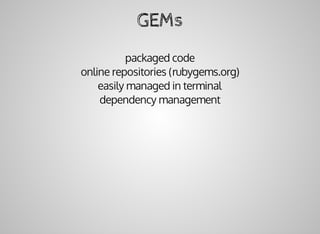

24. GEMs
packaged code
online repositories (rubygems.org)
easily managed in terminal
dependency management

25. GEMs
$ gem install nokogiri
> require 'nokogiri'
> path = 'www.google.co.il/search?q=ruby'
> doc = Nokogiri.HTML(open(path))
> doc.css('#ires a').first.text
=> "Ruby Programming Language"

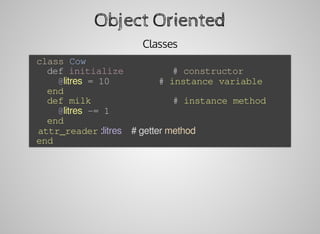

26. Object Oriented
Classes
class Cow
def initialize # constructor
@litres = 10 # instance variable
end
def milk # instance method
@litres -= 1
end
attr_reader :litres # getter method
end

27. Object Oriented
Instances
daisy = Cow.new
daisy.milk
daisy.milk
daisy.litres
=> 8
betty = Cow.new
betty.litres
=> 10

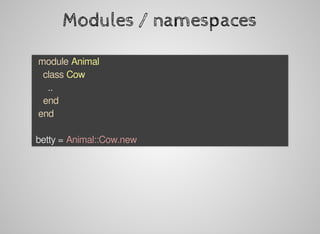

28. Modules / namespaces
module Animal
class Cow
..
end
end
betty = Animal::Cow.new

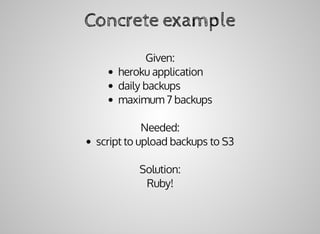

29. Concrete example
Given:
heroku application
daily backups
maximum 7 backups
Needed:
script to upload backups to S3
Solution:
Ruby!

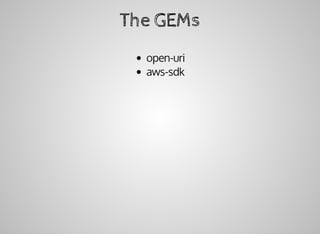

30. The GEMs
open-uri
aws-sdk

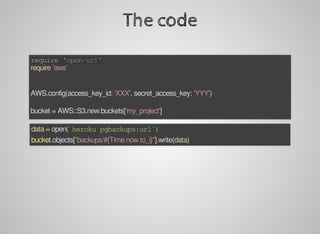

31. The code
require 'open-uri'
require 'aws'
AWS.config(access_key_id: 'XXX', secret_access_key: 'YYY')
bucket = AWS::S3.new.buckets['my_project']
data = open(`heroku pgbackups:url`)
bucket.objects["backups/#{Time.now.to_i}"].write(data)

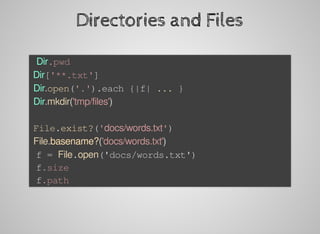

32. Directories and Files
Dir.pwd
Dir['**.txt']
Dir.open('.').each {|f| ... }
Dir.mkdir('tmp/files')
File.exist?('docs/words.txt')
File.basename?('docs/words.txt')
f = File.open('docs/words.txt')
f.size
f.path

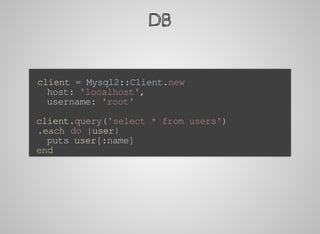

33. DB
client = Mysql2::Client.new
host: 'localhost',
username: 'root'
client.query('select * from users')
.each do |user|
puts user[:name]
end

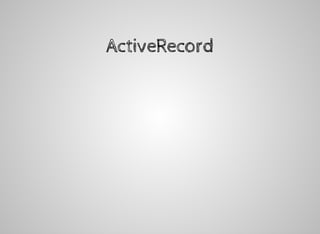

34. ActiveRecord

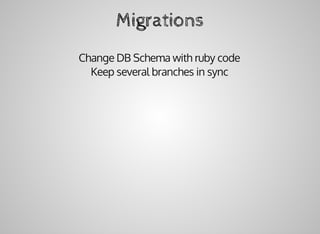

35. Migrations
Change DB Schema with ruby code
Keep several branches in sync

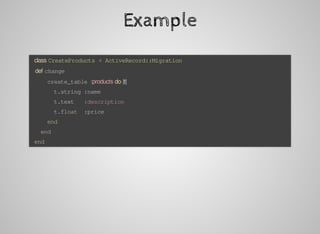

36. Example
class CreateProducts < ActiveRecord::Migration
def change
create_table :products do |t|
t.string :name
t.text :description
t.float :price
end
end
end

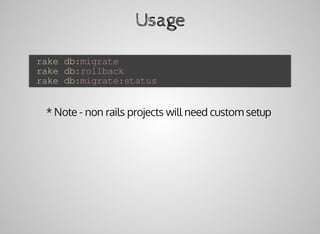

37. Usage
rake db:migrate
rake db:rollback
rake db:migrate:status
* Note - non rails projects will need custom setup

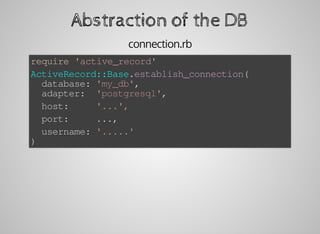

38. Abstraction of the DB
connection.rb
require 'active_record'
ActiveRecord::Base.establish_connection(
database: 'my_db',
adapter: 'postgresql',
host: '...',
port: ...,
username: '.....'
)

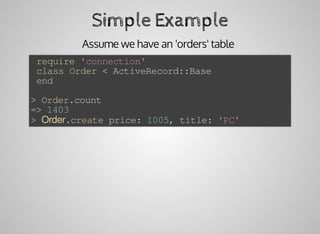

39. Simple Example
Assume we have an 'orders' table
require 'connection'
class Order < ActiveRecord::Base
end
> Order.count
=> 1403
> Order.create price: 1005, title: 'PC'

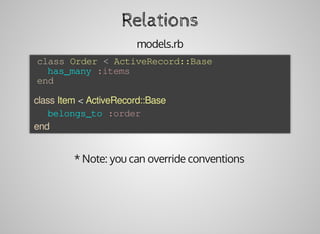

40. * Note: you can override conventions
Relations
models.rb
class Order < ActiveRecord::Base
has_many :items
end
class Item < ActiveRecord::Base
belongs_to :order
end

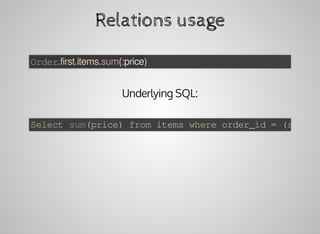

41. Relations usage
Order.first.items.sum(:price)
Underlying SQL:
Select sum(price) from items where order_id = (select

42. God
monitoring framework
config files in ruby

43. Simple config file
God.watch do |w|
w.name = "simple"
w.start = "ruby /full/path/to/simple.rb"
w.keepalive
end

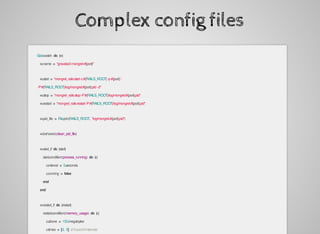

44. Complex config files
God.watch do |w|
w.name = "gravatar2-mongrel-#{port}"
w.start = "mongrel_rails start -c #{RAILS_ROOT} -p #{port}
-P #{RAILS_ROOT}/log/mongrel.#{port}.pid -d"
w.stop = "mongrel_rails stop -P #{RAILS_ROOT}/log/mongrel.#{port}.pid"
w.restart = "mongrel_rails restart -P #{RAILS_ROOT}/log/mongrel.#{port}.pid"
w.pid_file = File.join(RAILS_ROOT, "log/mongrel.#{port}.pid")
w.behavior(:clean_pid_file)
w.start_if do |start|
start.condition(:process_running) do |c|
c.interval = 5.seconds
c.running = false
end
end
w.restart_if do |restart|
restart.condition(:memory_usage) do |c|
c.above = 150.megabytes
c.times = [3, 5] # 3 out of 5 intervals

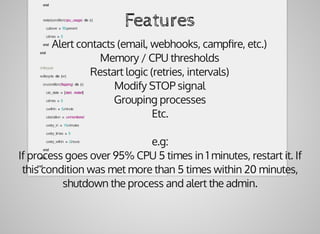

45. end
restart.condition(:cpu_usage) do |c|
c.above = 50.percent
c.times = 5
end
end
# lifecycle
w.lifecycle do |on|
on.condition(:flapping) do |c|
c.to_state = [:start, :restart]
c.times = 5
c.within = 5.minute
c.transition = :unmonitored
c.retry_in = 10.minutes
c.retry_times = 5
c.retry_within = 2.hours
end
end
end
Features
Alert contacts (email, webhooks, campfire, etc.)
Memory / CPU thresholds
Restart logic (retries, intervals)
Modify STOP signal
Grouping processes
Etc.
e.g:
If process goes over 95% CPU 5 times in 1 minutes, restart it. If
this condition was met more than 5 times within 20 minutes,
shutdown the process and alert the admin.

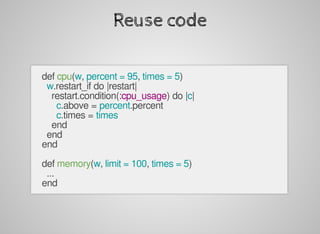

46. Reuse code
def cpu(w, percent = 95, times = 5)
w.restart_if do |restart|
restart.condition(:cpu_usage) do |c|
c.above = percent.percent
c.times = times
end
end
end
def memory(w, limit = 100, times = 5)
...
end

47. Reuse code
God.load('common.god')
God.watch do |w|
w.name = "simple"
w.start = "ruby /full/path/to/simple.rb"
w.keepalive
cpu(w)
memory(w, 150, 3)
flapping
end

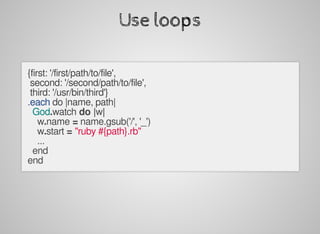

48. Use loops
{first: '/first/path/to/file',
second: '/second/path/to/file',
third: '/usr/bin/third'}
.each do |name, path|
God.watch do |w|
w.name = name.gsub('/', '_')
w.start = "ruby #{path}.rb"
...
end
end

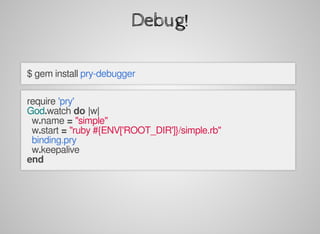

49. Debug!
$ gem install pry-debugger
require 'pry'
God.watch do |w|
w.name = "simple"
w.start = "ruby #{ENV['ROOT_DIR']}/simple.rb"
binding.pry
w.keepalive
end

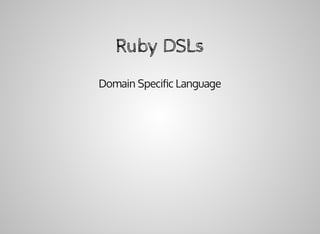

50. Ruby DSLs
Domain Specific Language

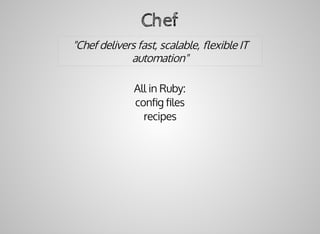

51. Chef
"Chef delivers fast, scalable, flexible IT
automation"
All in Ruby:
config files
recipes

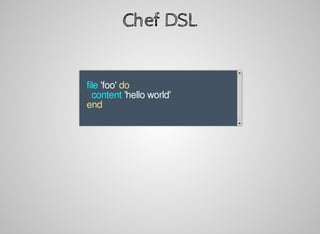

52. Chef DSL
file 'foo' do
content 'hello world'
end

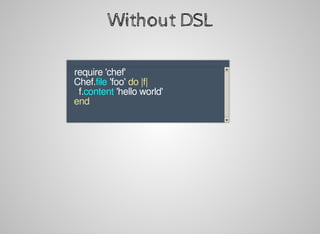

53. Without DSL
require 'chef'
Chef.file 'foo' do |f|
f.content 'hello world'
end

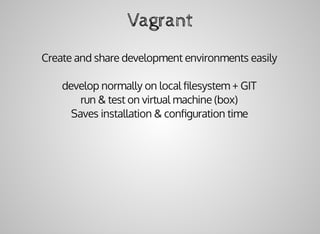

54. Vagrant
Create and share development environments easily
develop normally on local filesystem + GIT
run & test on virtual machine (box)
Saves installation & configuration time

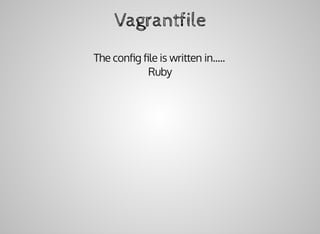

55. Vagrantfile
The config file is written in.....
Ruby

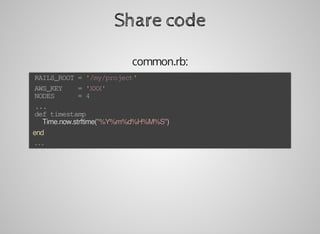

56. Share code
common.rb:
RAILS_ROOT = '/my/project'
AWS_KEY = 'XXX'
NODES = 4
...
def timestamp
Time.now.strftime("%Y%m%d%H%M%S")
end
...

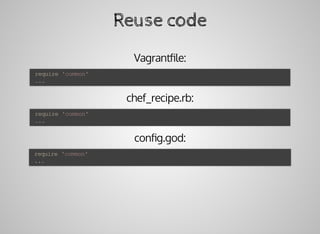

57. Reuse code
Vagrantfile:
chef_recipe.rb:
config.god:
require 'common'
...
require 'common'
...
require 'common'
...

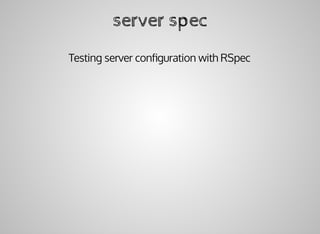

58. server spec
Testing server configuration with RSpec

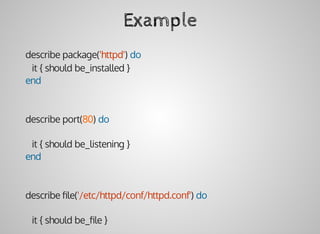

59. Example
describe package('httpd') do
it { should be_installed }
end
describe port(80) do
it { should be_listening }
end
describe file('/etc/httpd/conf/httpd.conf') do
it { should be_file }

60. its(:content) { should match /ServerName www.example.jp/ }
end
Output
package httpd
is installed
service httpd
is enabled
is running (FAILED - 1)
port 80
is listening
file httpd.conf
is a file
has content '...'

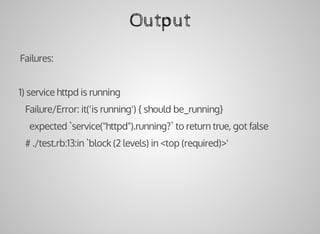

61. Output
Failures:
1) service httpd is running
Failure/Error: it('is running') { should be_running}
expected `service("httpd").running?` to return true, got false
# ./test.rb:13:in `block (2 levels) in <top (required)>'

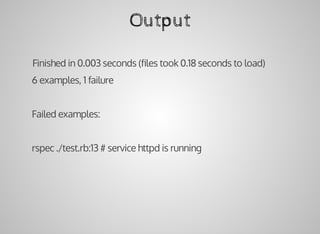

62. Output
Finished in 0.003 seconds (files took 0.18 seconds to load)
6 examples, 1 failure
Failed examples:
rspec ./test.rb:13 # service httpd is running

63. RSpec DSL
describe file('/etc/httpd/conf/httpd.conf') do
before(:each) do ... end
it { should be_file }
its(:content) { should match /ServerName www.example.jp/ }
end

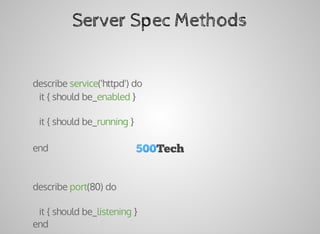

64. Server Spec Methods
describe service('httpd') do
it { should be_enabled }
it { should be_running }
end
describe port(80) do
it { should be_listening }
end

65. describe file('/etc/httpd/conf/httpd.conf') do
it { should be_file }
its(:content) { should match /ServerName www.example.jp/ }
end
Ruby goodness
services = %w(httpd stunnel mysql redis)
services.each do |name|
describe service(name) do
it { should be_enabled }
it { should be_running }
end
end

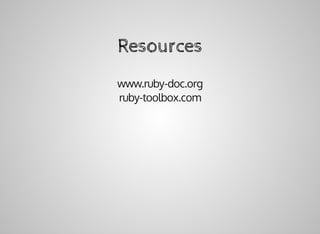

66. Resources
www.ruby-doc.org
ruby-toolbox.com

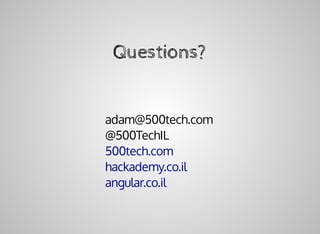

67. Questions?
adam@500tech.com
@500TechIL
500tech.com
hackademy.co.il
angular.co.il
