This document summarizes the specifications and features of a 1995 Roadtrek 190 Versatile Class B motorhome. It details the original factory specifications including the Chevrolet G30 van platform, engine, and other components. It also lists many custom modifications and additional items that were added by the owner, including fabricated storage solutions, a toaster oven installation, and other comfort and convenience upgrades. Photos are referenced showing some of the custom storage and organizational systems added to the interior of the vehicle.

1. Roadtrek and Modifications 1995 Roadtrek 190 Versatile Class B Van Motorhome Chevrolet Model G30 Exterior Views

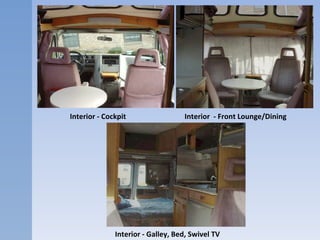

2. Interior - Cockpit Interior - Front Lounge/Dining Interior - Galley, Bed, Swivel TV

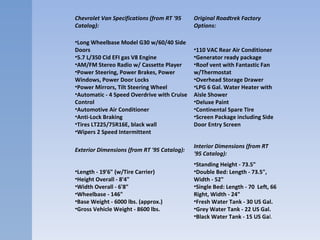

3. Chevrolet Van Specifications (from RT '95 Catalog): Original Roadtrek Factory Options: Long Wheelbase Model G30 w/60/40 Side Doors 5.7 L/350 Cid EFI gas V8 Engine AM/FM Stereo Radio w/ Cassette Player Power Steering, Power Brakes, Power Windows, Power Door Locks Power Mirrors, Tilt Steering Wheel Automatic - 4 Speed Overdrive with Cruise Control Automotive Air Conditioner Anti-Lock Braking Tires LT225/75R16E, black wall Wipers 2 Speed Intermittent 110 VAC Rear Air Conditioner Generator ready package Roof vent with Fantastic Fan w/Thermostat Overhead Storage Drawer LPG 6 Gal. Water Heater with Aisle Shower Deluxe Paint Continental Spare Tire Screen Package including Side Door Entry Screen Exterior Dimensions (from RT '95 Catalog): Interior Dimensions (from RT '95 Catalog): Length - 19'6" (w/Tire Carrier) Height Overall - 8'4" Width Overall - 6'8" Wheelbase - 146" Base Weight - 6000 lbs. (approx.) Gross Vehicle Weight - 8600 lbs. Standing Height - 73.5" Double Bed: Length - 73.5", Width - 52" Single Bed: Length - 70 Left, 66 Right, Width - 24" Fresh Water Tank - 30 US Gal. Grey Water Tank - 22 US Gal. Black Water Tank - 15 US Ga l.

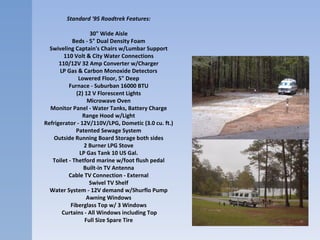

4. Standard '95 Roadtrek Features: 30" Wide Aisle Beds - 5" Dual Density Foam Swiveling Captain's Chairs w/Lumbar Support 110 Volt & City Water Connections 110/12V 32 Amp Converter w/Charger LP Gas & Carbon Monoxide Detectors Lowered Floor, 5" Deep Furnace - Suburban 16000 BTU (2) 12 V Florescent Lights Microwave Oven Monitor Panel - Water Tanks, Battery Charge Range Hood w/Light Refrigerator - 12V/110V/LPG, Dometic (3.0 cu. ft.) Patented Sewage System Outside Running Board Storage both sides 2 Burner LPG Stove LP Gas Tank 10 US Gal. Toilet - Thetford marine w/foot flush pedal Built-in TV Antenna Cable TV Connection - External Swivel TV Shelf Water System - 12V demand w/Shurflo Pump Awning Windows Fiberglass Top w/ 3 Windows Curtains - All Windows including Top Full Size Spare Tire

5. Custom Added Items: Silverware Drawer Divider - Fabricated thin divider for use in rear galley drawer. Console and Caddy - Fabricated wood table with CB mount installed on underside on front console. Clothesline Rack - Fabricated front bumper hook-over rack with 3 lines. Nests flat for storage. Seat Drawers - Fabricated rear facing pull-out wood drawers, installed under driver and passenger front seat. Toaster Oven Broiler - Commercial Black and Decker with under cabinet mount, fabricated bracket with shelf, mounted over driver side rear seat. (Photo Next Pg.) Under Bed Drawers - Fabricated wood frame with two cross supports and longitudinal rails each side on underside for hanging wood sliding drawers, one accessible from inside front and other accessible from outside rear. Takes the place of table top as permanent bed support; air gaps left on sides and bottom for heater output.(Photo) Trash Bin Holder - Fabricated wire coat hanger shaped to go around plastic trash can with hooks in rear to hang on hanging locker towel bar; installed high enough to clear bed when door opens. (Photo Nest Pg.) Towel Bar/Privacy Panel - Fabricated 4 rod wood unit with masonite panel for storing bath towels in hanging locker and as separator between toilet and hanging locker. (Photos Next Pg.) Modified Items: Sink Cover - Modified cover supplied with a cross dado on underside for use in locking cover over rear galley drawer when open for use as counter. Hardwood Cutting Board - Commercial item, installed underside cleats for locking use, storage on cook top grill and lock over rear galley drawer when open for use. (Photo Next Pg.)

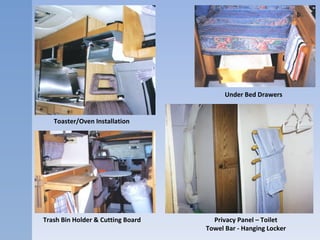

6. Toaster/Oven Installation Privacy Panel – Toilet Towel Bar - Hanging Locker Under Bed Drawers Trash Bin Holder & Cutting Board

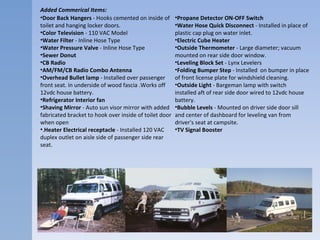

7. Added Commerical Items: Door Back Hangers - Hooks cemented on inside of toilet and hanging locker doors. Color Television - 110 VAC Model Water Filter - Inline Hose Type Water Pressure Valve - Inline Hose Type Sewer Donut CB Radio AM/FM/CB Radio Combo Antenna Overhead Bullet lamp - Installed over passenger front seat. in underside of wood fascia .Works off 12vdc house battery. Refrigerator Interior fan Shaving Mirror - Auto sun visor mirror with added fabricated bracket to hook over inside of toilet door when open . Heater Electrical receptacle - Installed 120 VAC duplex outlet on aisle side of passenger side rear seat. Propane Detector ON-OFF Switch Water Hose Quick Disconnect - Installed in place of plastic cap plug on water inlet. Electric Cube Heater Outside Thermometer - Large diameter; vacuum mounted on rear side door window. Leveling Block Set - Lynx Levelers Folding Bumper Step - Installed on bumper in place of front license plate for windshield cleaning. Outside Light - Bargeman lamp with switch installed aft of rear side door wired to 12vdc house battery. Bubble Levels - Mounted on driver side door sill and center of dashboard for leveling van from driver's seat at campsite. TV Signal Booster

8. Produced by Gregg Graphics Gradyville, Pa.
