This document provides product information for an RFS FTL8R5002/1C-3L triplexer, including its technical specifications, features, benefits, and ordering details. It is a wideband triplexer that enables frequency sharing between 698-787 MHz, 824-894 MHz, and 1710-2170 MHz bands. It has a low insertion loss of 0.2 dB, high isolation of 50 dB between ports, and IP67 environmental protection rating, making it suitable for outdoor use. Contact information is provided to purchase or get additional documentation for this product.

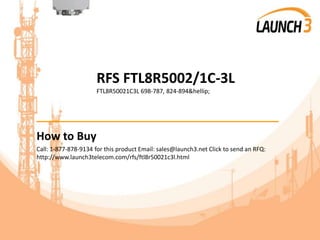

2. RFS FTL8R5002/1C-3L
FTL8R50021C3L 698-787, 824-894…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/rfs/ftl8r50021c3l.html

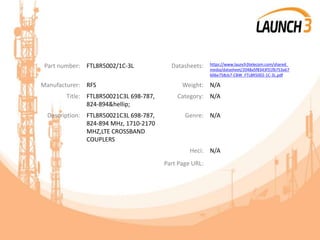

3. Part number: FTL8R5002/1C-3L Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/2048a5f8343f31fb753a67
606e758cb7-CBW_FTL8R5002-1C-3L.pdf
Manufacturer: RFS Weight: N/A
Title: FTL8R50021C3L 698-787,
824-894…
Category: N/A
Description: FTL8R50021C3L 698-787,
824-894 MHz, 1710-2170
MHZ,LTE CROSSBAND
COUPLERS
Genre: N/A
Heci: N/A
Part Page URL:

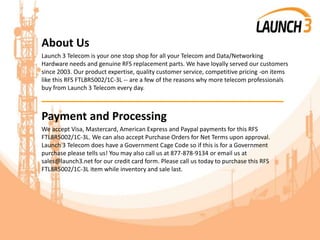

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine RFS replacement parts. We have loyally served our customers
since 2003. Our product expertise, quality customer service, competitive pricing -on items
like this RFS FTL8R5002/1C-3L -- are a few of the reasons why more telecom professionals
buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this RFS
FTL8R5002/1C-3L. We can also accept Purchase Orders for Net Terms upon approval.
Launch 3 Telecom does have a Government Cage Code so if this is for a Government
purchase please tells us! You may also call us at 877-878-9134 or email us at
sales@launch3.net for our credit card form. Please call us today to purchase this RFS
FTL8R5002/1C-3L item while inventory and sale last.

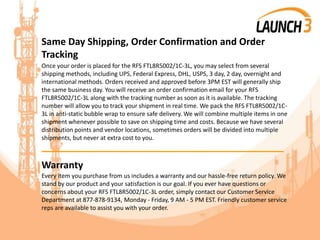

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the RFS FTL8R5002/1C-3L, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your RFS
FTL8R5002/1C-3L along with the tracking number as soon as it is available. The tracking
number will allow you to track your shipment in real time. We pack the RFS FTL8R5002/1C-
3L in anti-static bubble wrap to ensure safe delivery. We will combine multiple items in one
shipment whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your RFS FTL8R5002/1C-3L order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

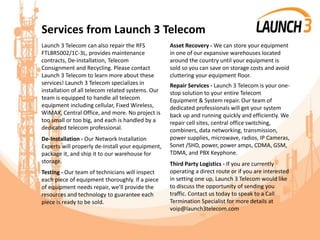

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the RFS
FTL8R5002/1C-3L, provides maintenance
contracts, De-installation, Telecom
Consignment and Recycling. Please contact
Launch 3 Telecom to learn more about these
services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

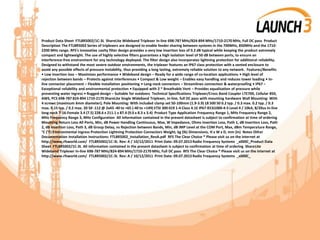

7. Product Data Sheet FTL8R5002/1C-3L ShareLite Wideband Triplexer In-line 698-787 MHz/824-894 MHz/1710-2170 MHz, Full DC pass Product
Description The FTL8R5002 Series of triplexers are designed to enable feeder sharing between systems in the 700MHz, 850MHz and the 1710-
2200 MHz range. RFS's innovative cavity filter design provides a very low insertion loss of 0.2 dB typical while keeping the product extremely
compact and lightweight. The use of highly selective filters guarantees a high isolation level of 50 dB between ports, to ensure an
interference-free environment for any technology deployed. The filter design also incorporates lightning protection for additional reliability.
Designed to withstand the most severe outdoor environments, the triplexer features an IP67 class protection with a vented enclosure to
avoid any possible effects of pressure instability, thus providing a long lasting, extremely reliable solution to any network. Features/Benefits
• Low insertion loss – Maximizes performance • Wideband design – Ready for a wide range of co-location applications • High level of
rejection between bands – Protects against interferences • Compact & Low weight – Enables easy handling and reduces tower loading • In-
line connector placement – Flexible installation positioning • Long-neck connectors – Streamlines connection & waterproofing • IP67 –
Exceptional reliability and environmental protection • Equipped with 2 * Breathable Vent – Provides equalization of pressure while
preventing water ingress • Rugged design – Suitable for outdoors Technical Specifications Triplexer/Cross Band Coupler LTE700, Cellular 850,
AWS, PCS 698-787 824-894 1710-2170 ShareLite Single Wideband Triplexer, in-line, full DC pass with mounting hardware Wall Mounting: With
4 screws (maximum 6mm diameter); Pole Mounting: With included clamp set 50-100mm (1.9-3.9) 18 500 50 0.2 typ. / 0.3 max. 0.2 typ. / 0.3
max. 0.15 typ. / 0.2 max. 20 50 -112 @ 2x43 -40 to +65 (-40 to +149) ETSI 300 019 1-4 Class 4.1E IP67 IEC61000-4-5 Level 4 / 10kA, 8/20us In-line
long-neck 7-16-Female 3.4 (7.5) 228.6 x 211.1 x 87.4 (9.0 x 8.3 x 3.4) Product Type Application Frequency Range 1, MHz Frequency Range 2,
MHz Frequency Range 3, MHz Configuration All information contained in the present datasheet is subject to confirmation at time of ordering
Mounting Return Loss All Ports, Min, dB Power Handling Continuous, Max, W Impedance, Ohms Insertion Loss, Path 1, dB Insertion Loss, Path
2, dB Insertion Loss, Path 3, dB Group Delay, ns Rejection between Bands, Min, dB IMP Level at the COM Port, Max, dBm Temperature Range,
°C (°F) Environmental Ingress Protection Lightning Protection Connectors Weight, kg (lb) Dimensions, H x W x D, mm (in) Notes Other
Documentation Installation Instructions: FTL8R5002_Installation_RevA.pdf RFS The Clear Choice ® Please visit us on the internet at
http://www.rfsworld.com/ FTL8R5002/1C-3L Rev: A / 10/12/2011 Print Date: 09.07.2013 Radio Frequency Systems _x000C_Product Data
Sheet FTL8R5002/1C-3L All information contained in the present datasheet is subject to confirmation at time of ordering ShareLite
Wideband Triplexer In-line 698-787 MHz/824-894 MHz/1710-2170 MHz, Full DC pass RFS The Clear Choice ® Please visit us on the internet at
http://www.rfsworld.com/ FTL8R5002/1C-3L Rev: A / 10/12/2011 Print Date: 09.07.2013 Radio Frequency Systems _x000C_
