RFID consists of tags that transmit data to readers and have various applications. A survey found that respondents thought logistics/supply chain management and library management were the top industries for RFID. Further development is needed in medical and library uses. RFID provides benefits like contactless reading and storing more data than barcodes but costs remain higher than barcodes and standards are still being developed.

1. RFID Application
Lee Po Ling 15225852
2/26/2016

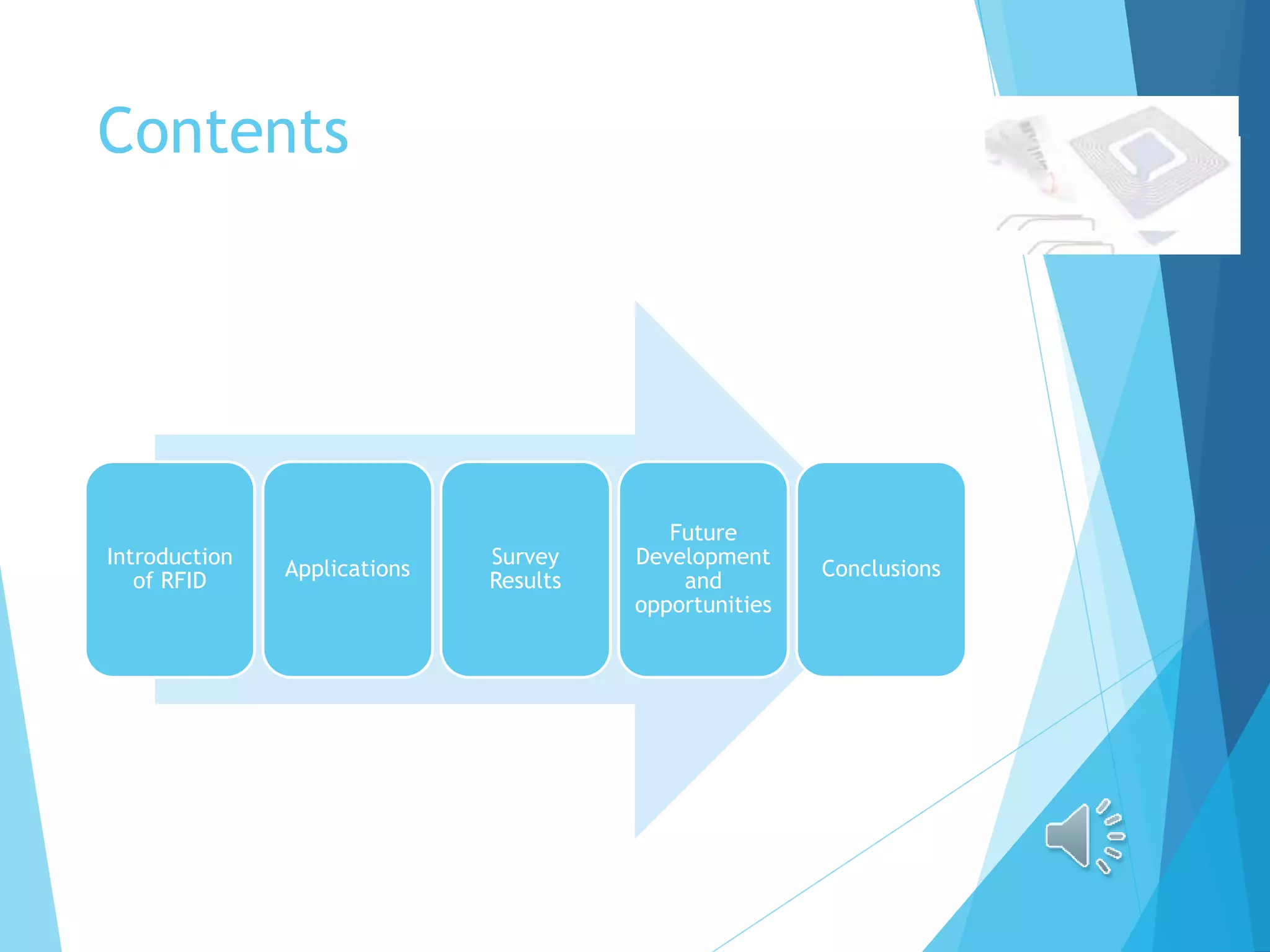

2. Contents
Introduction
of RFID
Applications
Survey
Results
Future
Development
and
opportunities
Conclusions

3. RFID
 RFID = Radio Frequency Identification
 Electronic labeling and wireless identification of objects
using radio frequency
 Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
 When these tags pass through a field generated by a
compatible reader, they transmit this information back
to the reader, thereby identifying the object

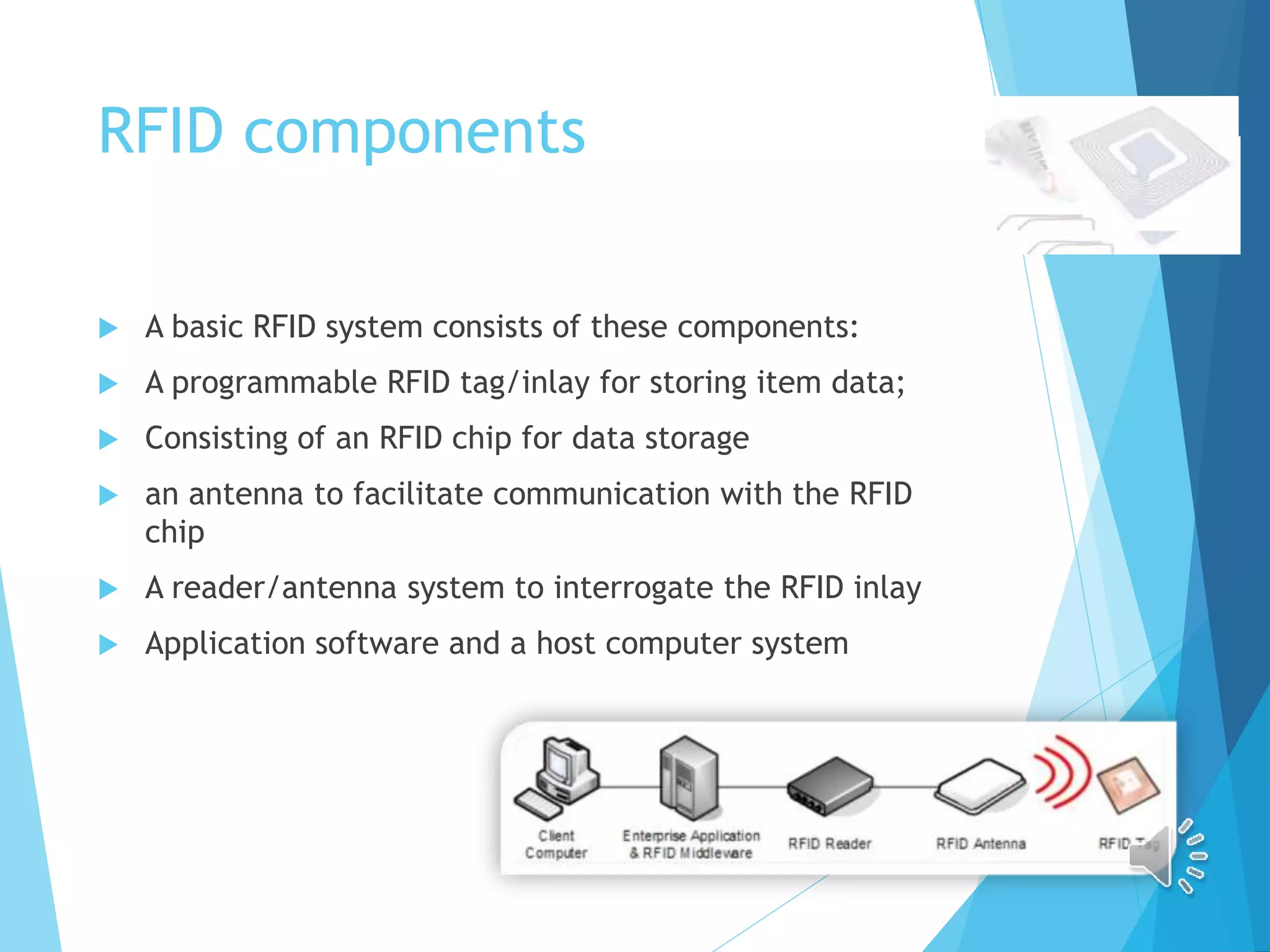

4. RFID components
 A basic RFID system consists of these components:
 A programmable RFID tag/inlay for storing item data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with the RFID
chip
 A reader/antenna system to interrogate the RFID inlay
 Application software and a host computer system

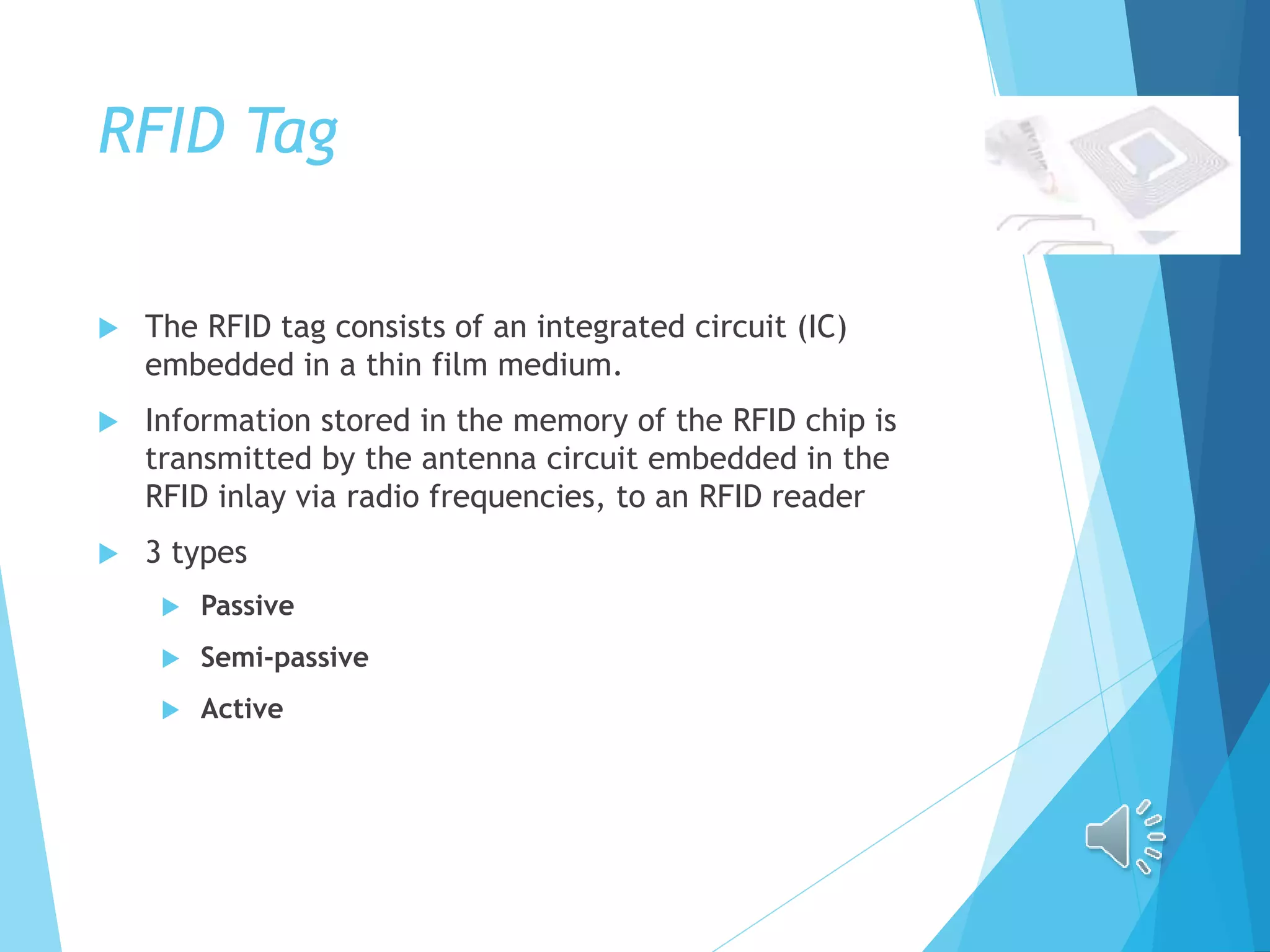

5. RFID Tag
 The RFID tag consists of an integrated circuit (IC)
embedded in a thin film medium.
 Information stored in the memory of the RFID chip is
transmitted by the antenna circuit embedded in the
RFID inlay via radio frequencies, to an RFID reader
 3 types
 Passive
 Semi-passive
 Active

6. Types of RFID Tags
Active Tags
•Use a battery
•communicate over
distances of several
meters
Semi-passive Tags
•Contain built-in
batteries to power
the chip’s circuitry,
resist interference
and circumvent a
lack of power from
the reader signal
due to long
distance.
•They are different
from active tags in
that they only
transmit data at the
time a response is
received
Passive Tags
•Derive their power
from the field
generated by the
reader
•without having an
active transmitter
to transfer the
information stored

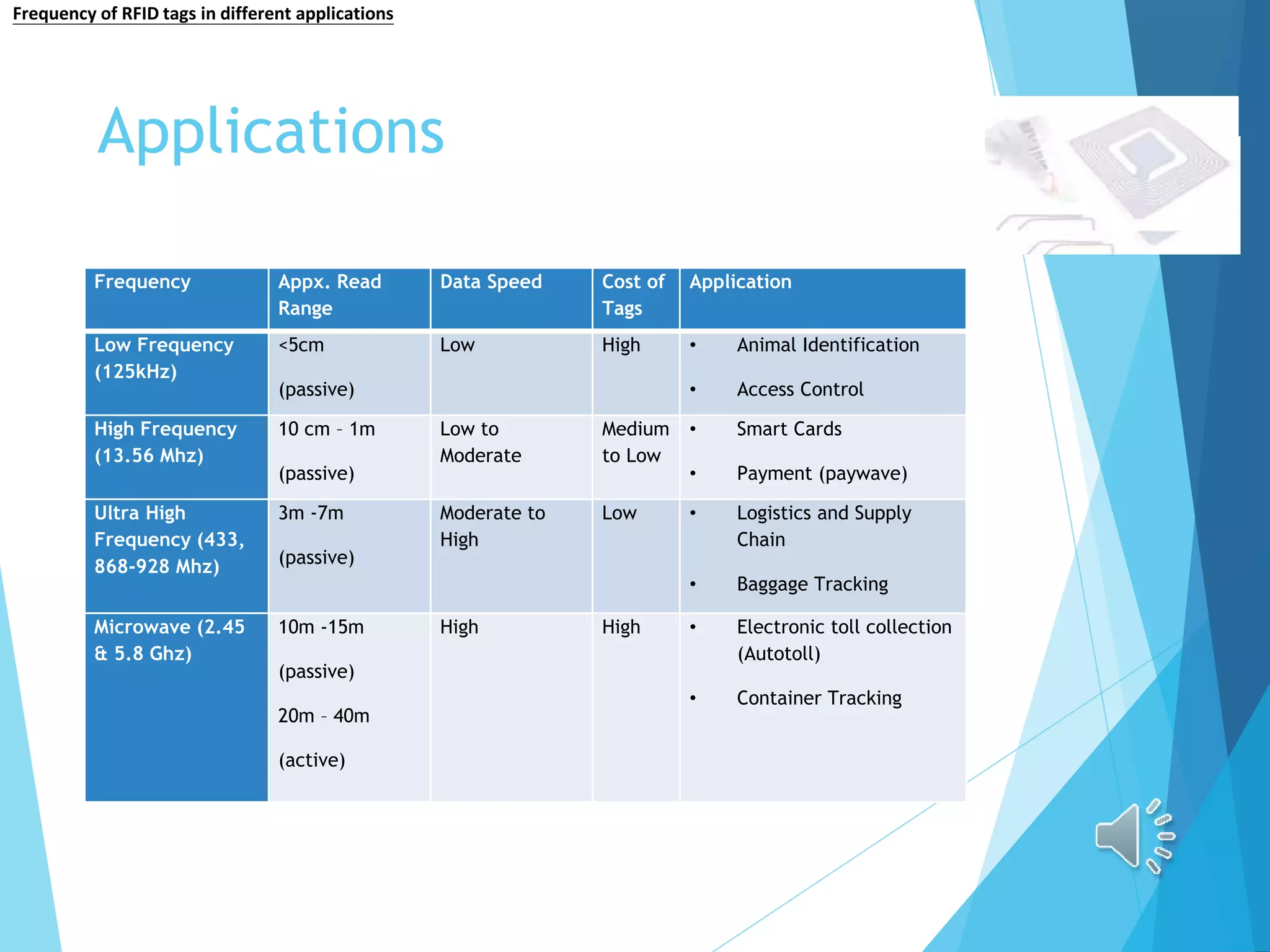

7. Applications
Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to
Moderate
Medium
to Low
• Smart Cards
• Payment (paywave)
Ultra High
Frequency (433,
868-928 Mhz)
3m -7m
(passive)
Moderate to
High
Low • Logistics and Supply
Chain
• Baggage Tracking
Microwave (2.45
& 5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking
Frequency of RFID tags in different applications

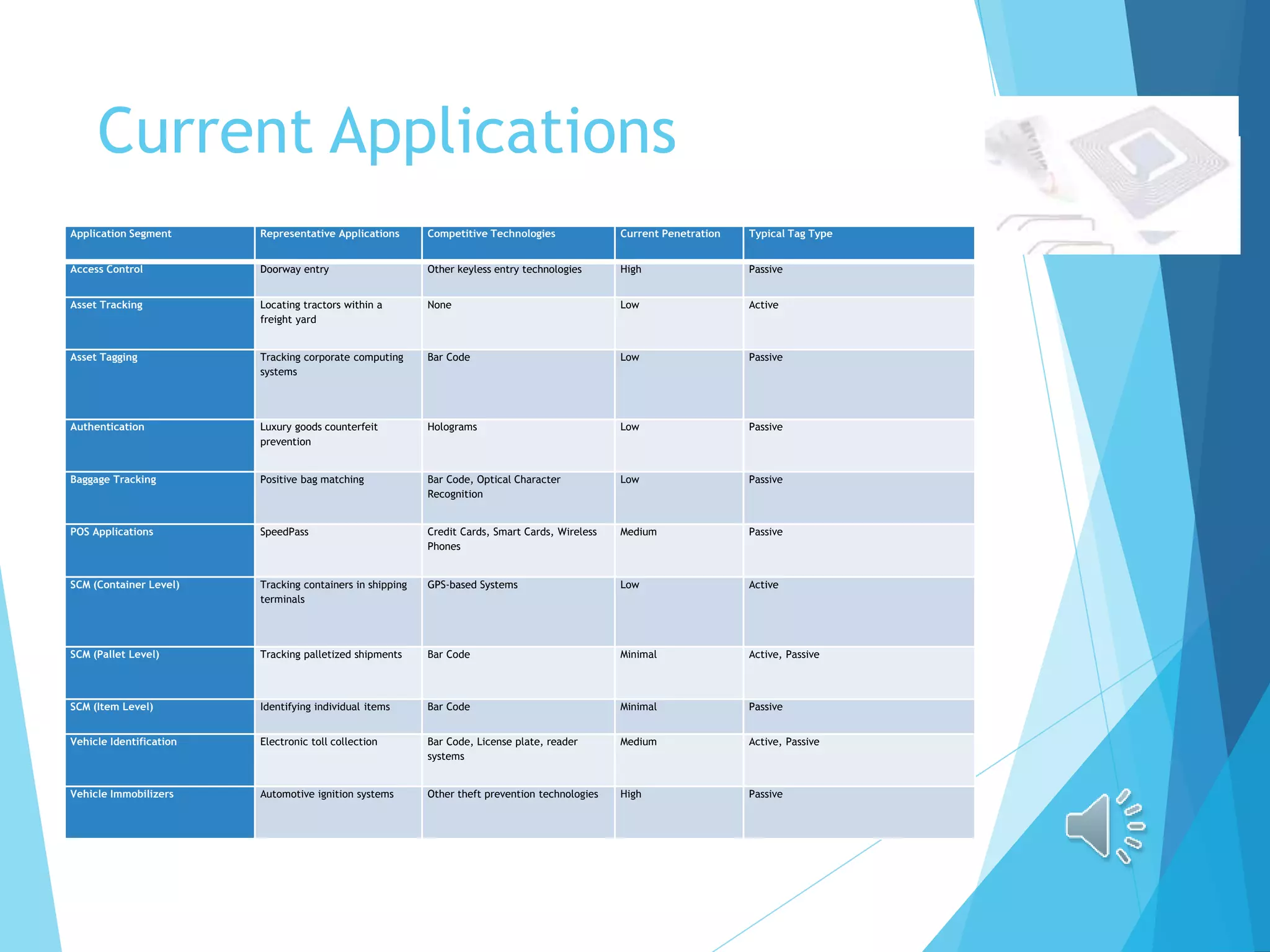

8. Current Applications
Application Segment Representative Applications Competitive Technologies Current Penetration Typical Tag Type
Access Control Doorway entry Other keyless entry technologies High Passive
Asset Tracking Locating tractors within a
freight yard
None Low Active
Asset Tagging Tracking corporate computing
systems
Bar Code Low Passive
Authentication Luxury goods counterfeit
prevention
Holograms Low Passive
Baggage Tracking Positive bag matching Bar Code, Optical Character
Recognition
Low Passive
POS Applications SpeedPass Credit Cards, Smart Cards, Wireless
Phones
Medium Passive
SCM (Container Level) Tracking containers in shipping
terminals
GPS-based Systems Low Active
SCM (Pallet Level) Tracking palletized shipments Bar Code Minimal Active, Passive
SCM (Item Level) Identifying individual items Bar Code Minimal Passive
Vehicle Identification Electronic toll collection Bar Code, License plate, reader
systems
Medium Active, Passive
Vehicle Immobilizers Automotive ignition systems Other theft prevention technologies High Passive

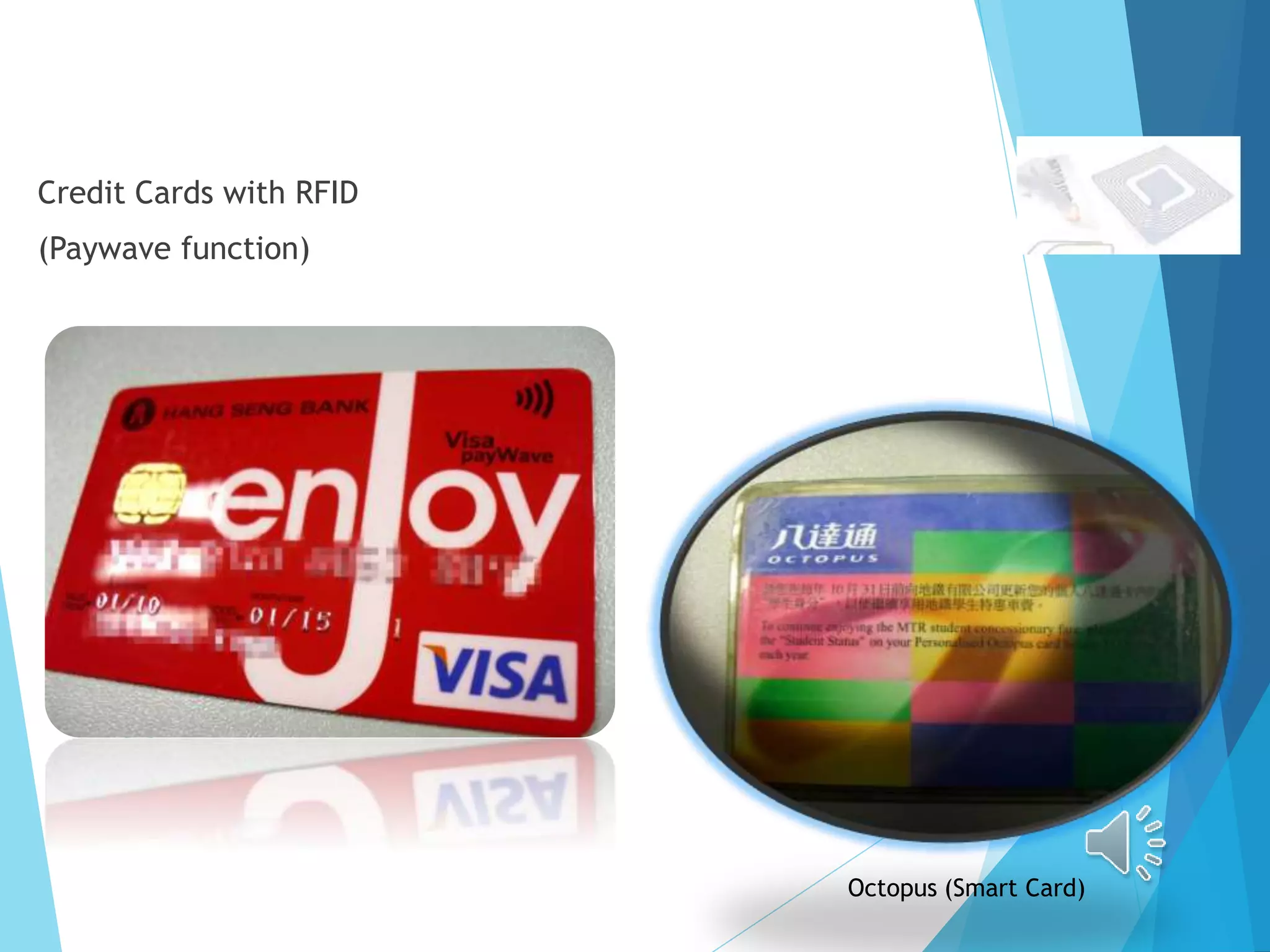

9. Applications
Credit Cards with RFID
(Paywave function)
Octopus (Smart Card)

10. Applications
Autotoll (Electronic toll collection)
Access Control

11. Online Survey
 Target: SME
 Information: Opinion on RFID and its applications
 Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

12. Survey Result
Logistics and Supply Chain
Management
20%
Pharmaceutic manufacturing
industries
15%
Library Management
21%
Inventory Control
10%
Document
Management
8%
Security
8% Customer Services
5%
Hotel Management
5%
Banking and Finance
5%
Social Services
3%
Other
18%
Types of industries that respondentsthink
it is possible to apply RFID technology

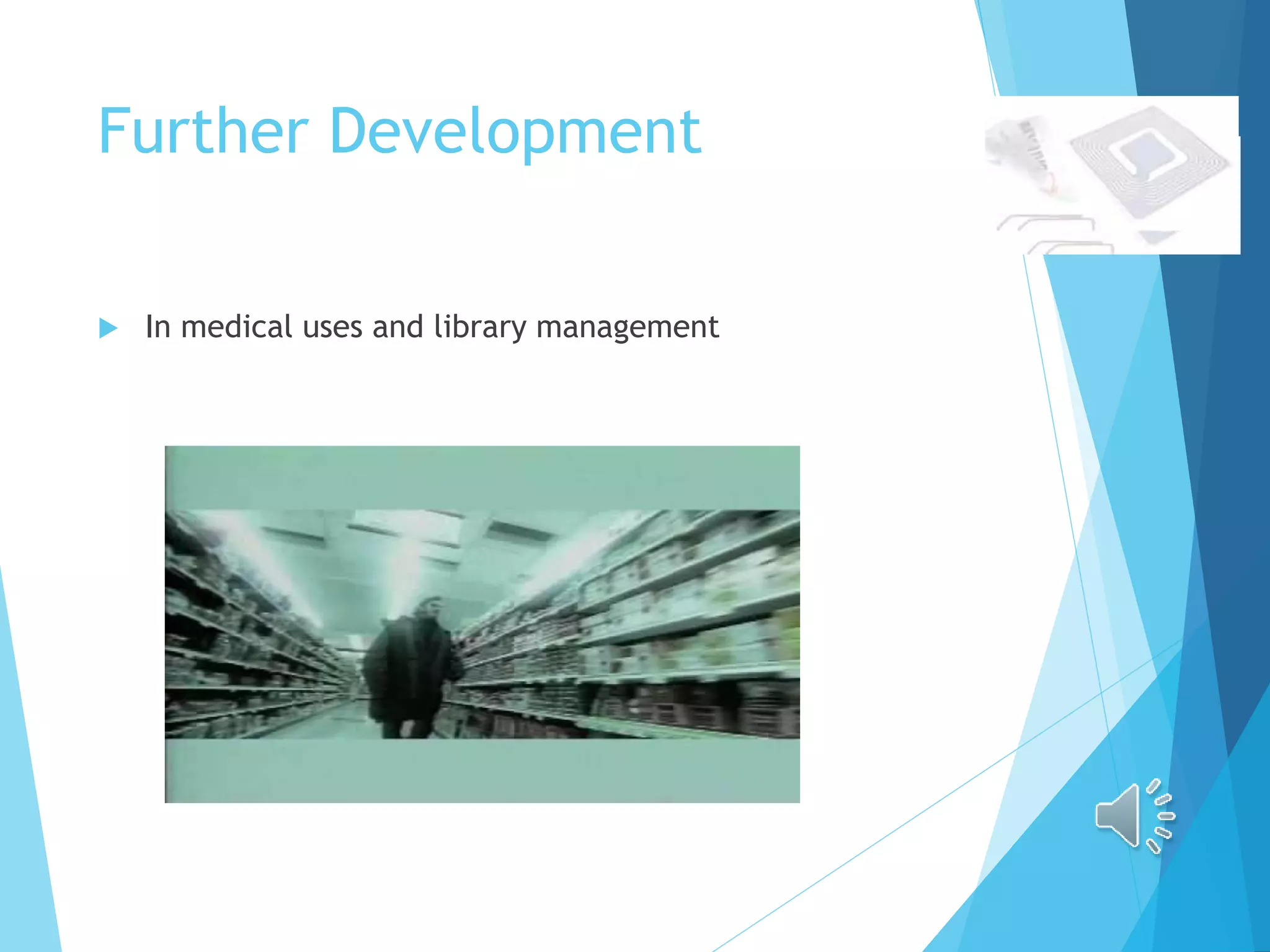

13. Further Development
 In medical uses and library management

14. Video

15. Conclusion
 Positive
 RFID is a contactless reading technology and can read through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
 Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed
