Relevant Content Detection in Cataract Surgery Videos (Invited Talk 1 at IPTA 2022)

This document summarizes research on detecting relevant content in cataract surgery videos using computer vision techniques. It discusses segmenting videos into phases like incision and phacoemulsification. Instrument segmentation using Mask R-CNN is described, achieving over 90% accuracy. Relevance detection can enable compressed storage by encoding relevant segments at high quality and irrelevant segments at low quality. The goal is enabling efficient search, retrieval and analysis of cataract surgery videos for teaching, training and research.

Embed presentation

Download as PDF, PPTX
Relevant Content Detection in Cataract Surgery Videos Assoc.Prof. Dr. Klaus Schöffmann Institute of Information Technology Alpen-Adria-Universität Klagenfurt, Austria IPTA 2022, Salzburg, Austria 19.04.2022

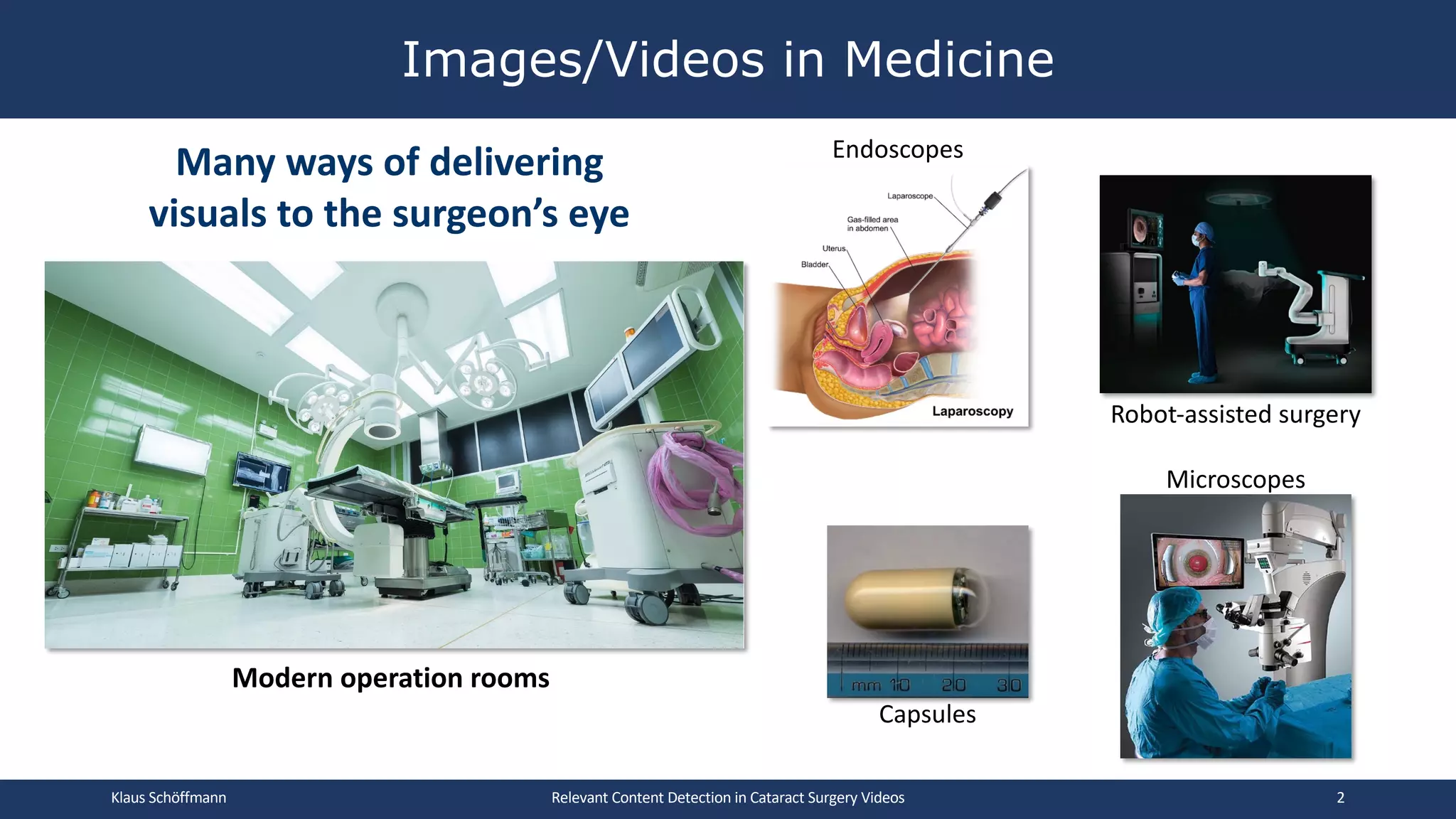

Images/Videos in Medicine Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 2 Modern operation rooms Many ways of delivering visuals to the surgeon’s eye Capsules Endoscopes Robot-assisted surgery Microscopes

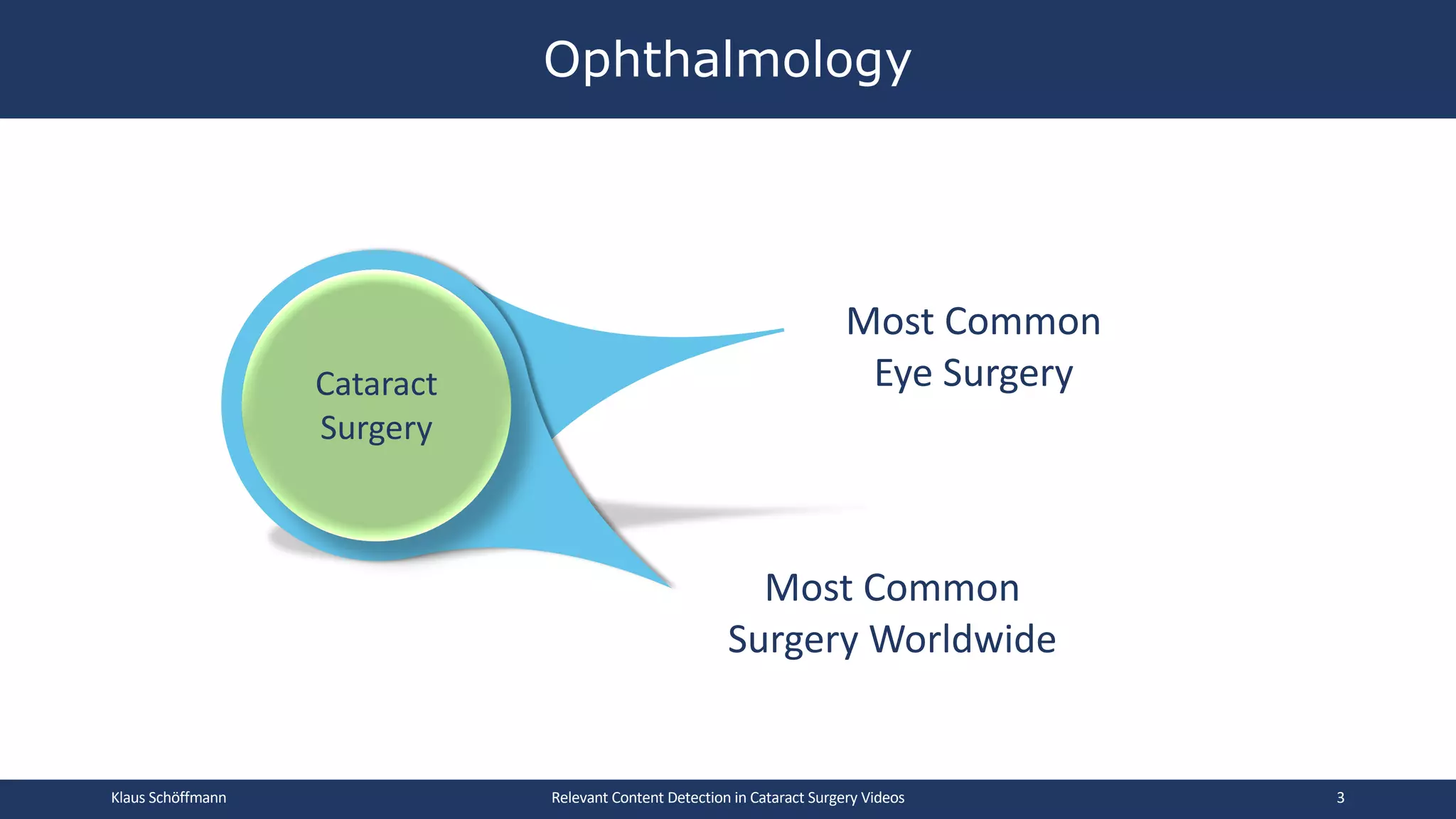

Ophthalmology Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 3 Cataract Surgery Most Common Eye Surgery Most Common Surgery Worldwide

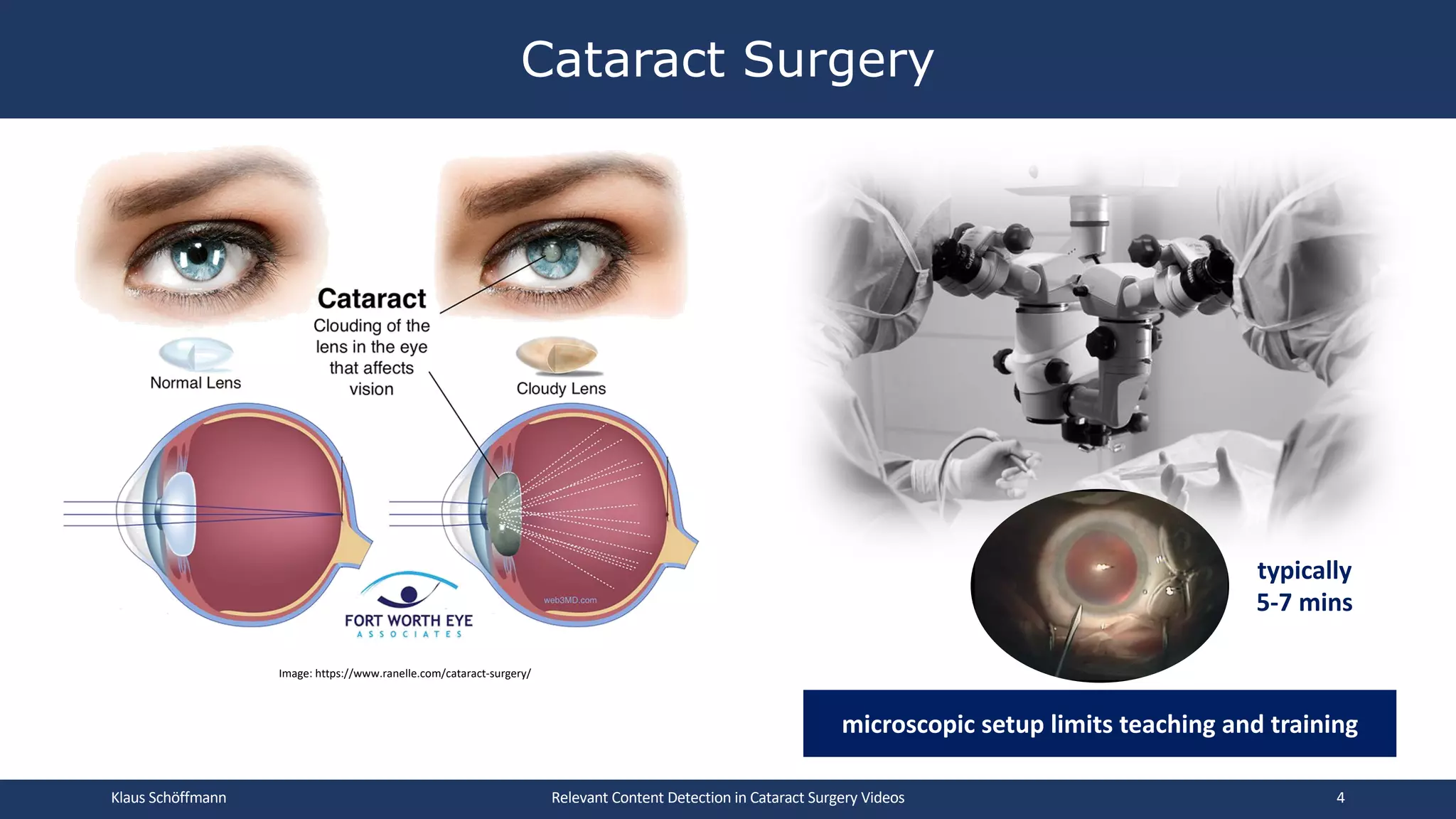

Cataract Surgery Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 4 microscopic setup limits teaching and training Image: https://www.ranelle.com/cataract-surgery/ typically 5-7 mins

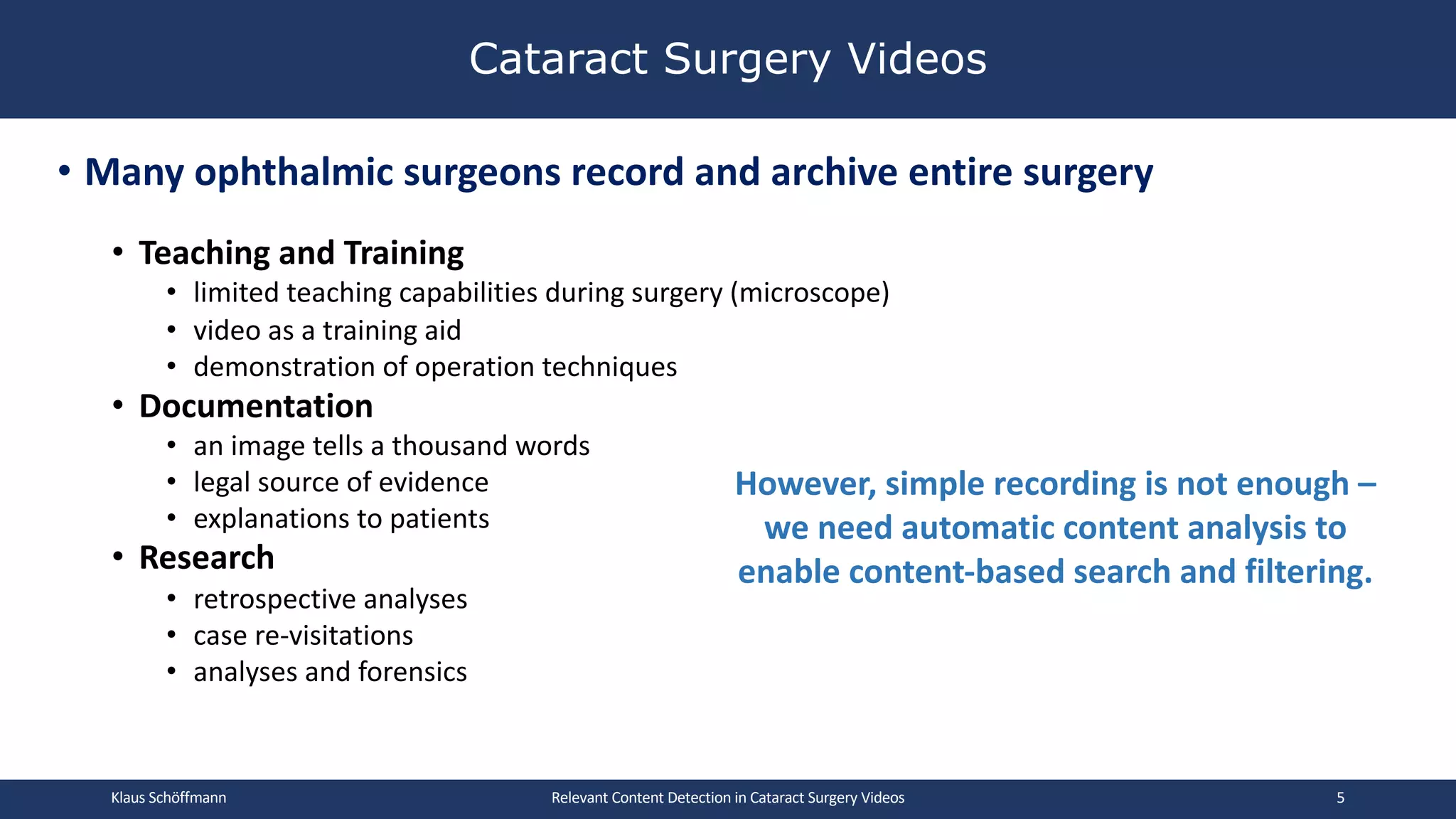

• Many ophthalmic surgeons record and archive entire surgery • Teaching and Training • limited teaching capabilities during surgery (microscope) • video as a training aid • demonstration of operation techniques • Documentation • an image tells a thousand words • legal source of evidence • explanations to patients • Research • retrospective analyses • case re-visitations • analyses and forensics Cataract Surgery Videos Relevant Content Detection in Cataract Surgery Videos However, simple recording is not enough – we need automatic content analysis to enable content-based search and filtering. Klaus Schöffmann 5

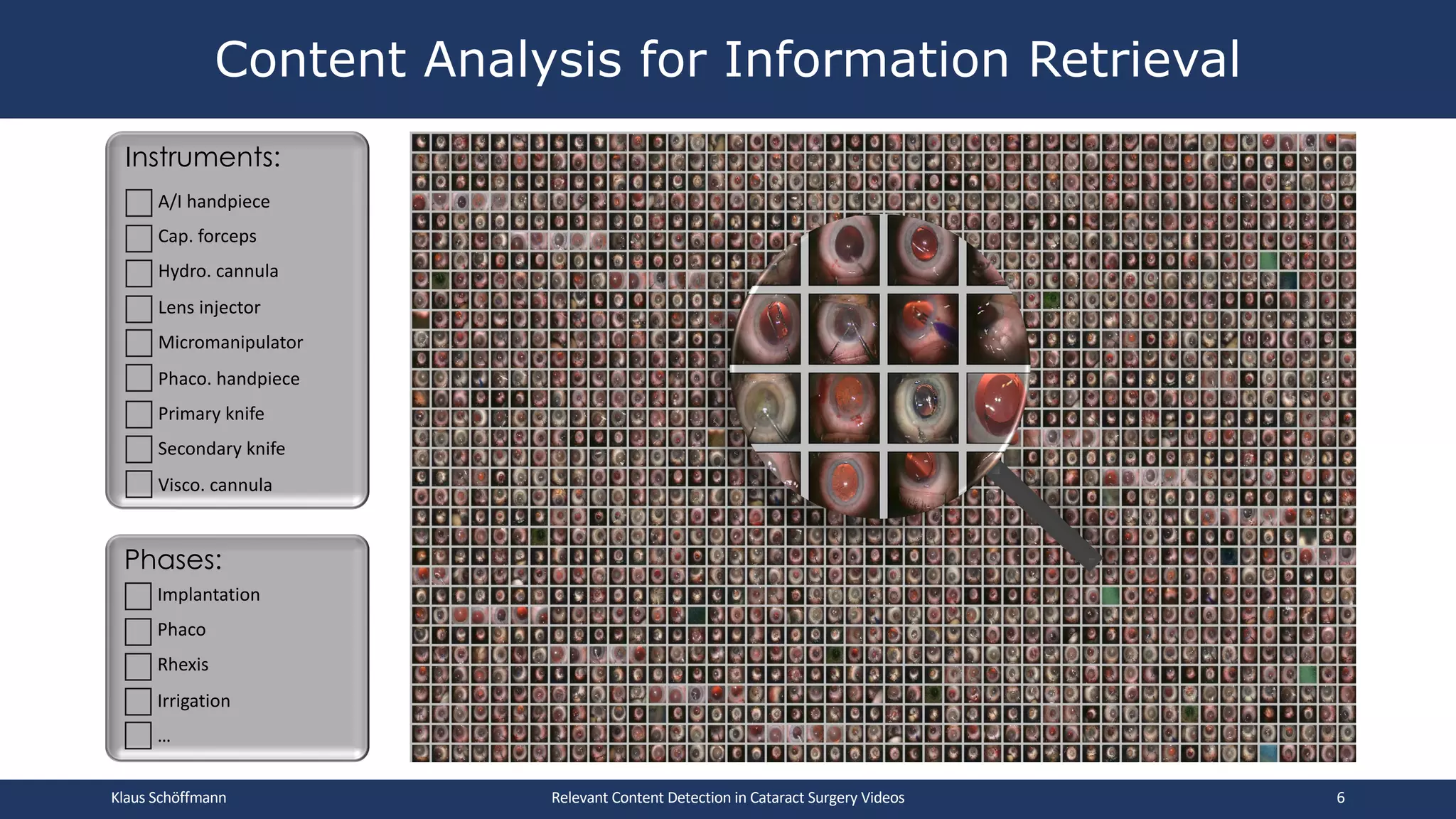

Content Analysis for Information Retrieval Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 6 A/I handpiece Cap. forceps Hydro. cannula Lens injector Micromanipulator Phaco. handpiece Primary knife Secondary knife Visco. cannula Instruments: Implantation Phaco Rhexis Irrigation … Phases:

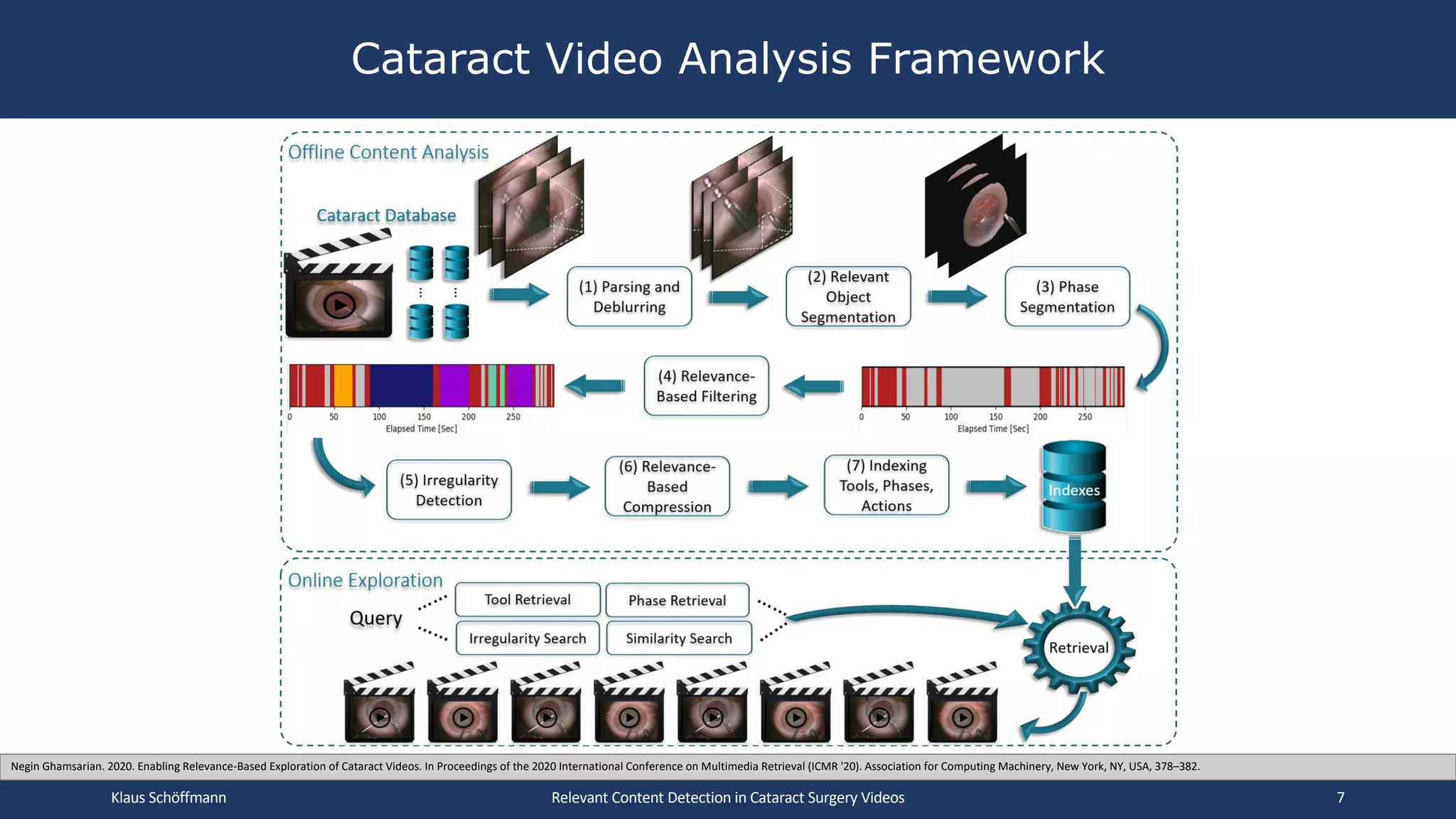

Cataract Video Analysis Framework Relevant Content Detection in Cataract Surgery Videos Negin Ghamsarian. 2020. Enabling Relevance-Based Exploration of Cataract Videos. In Proceedings of the 2020 International Conference on Multimedia Retrieval (ICMR '20). Association for Computing Machinery, New York, NY, USA, 378–382. Klaus Schöffmann 7
Phase Segmentation

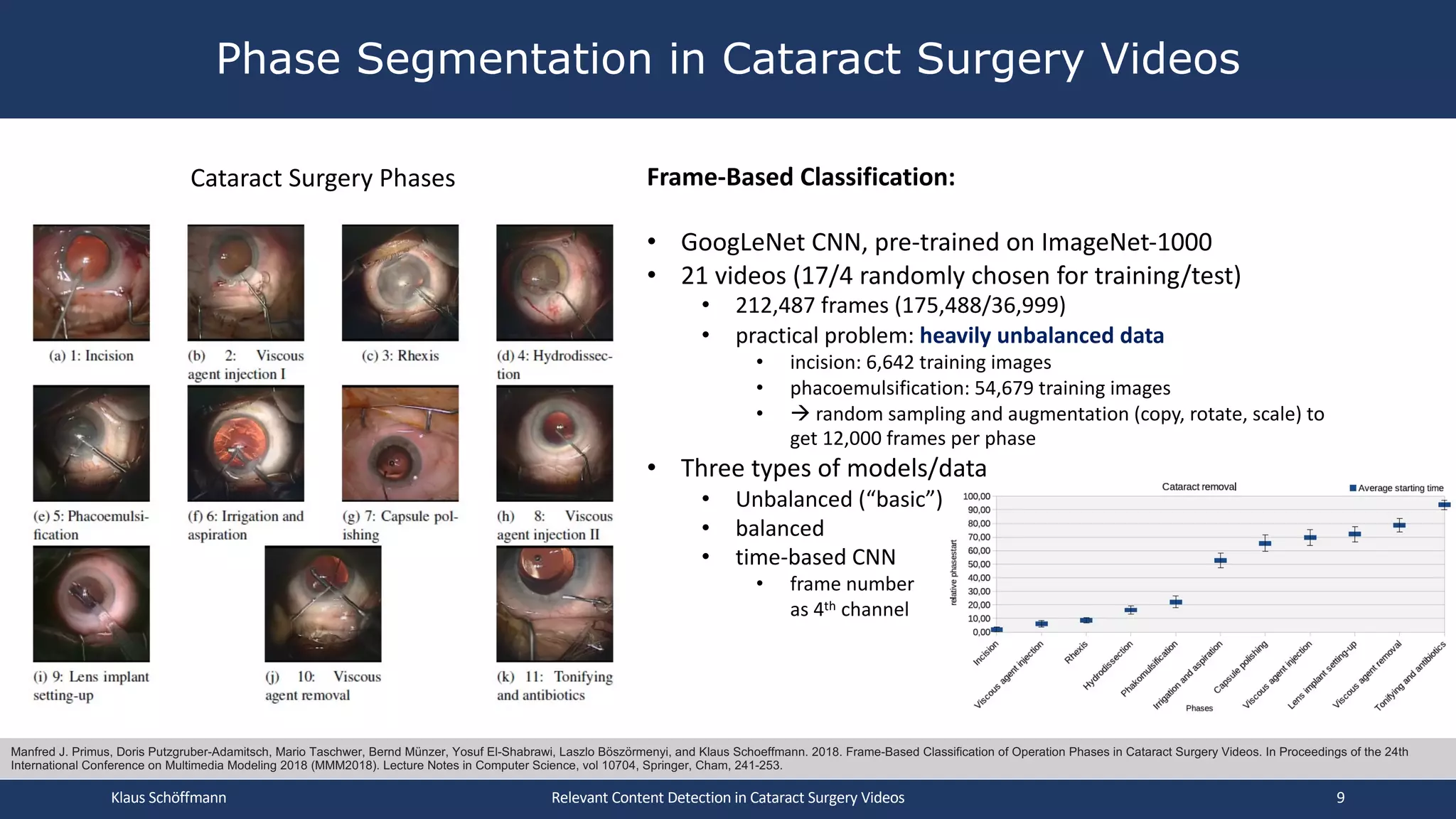

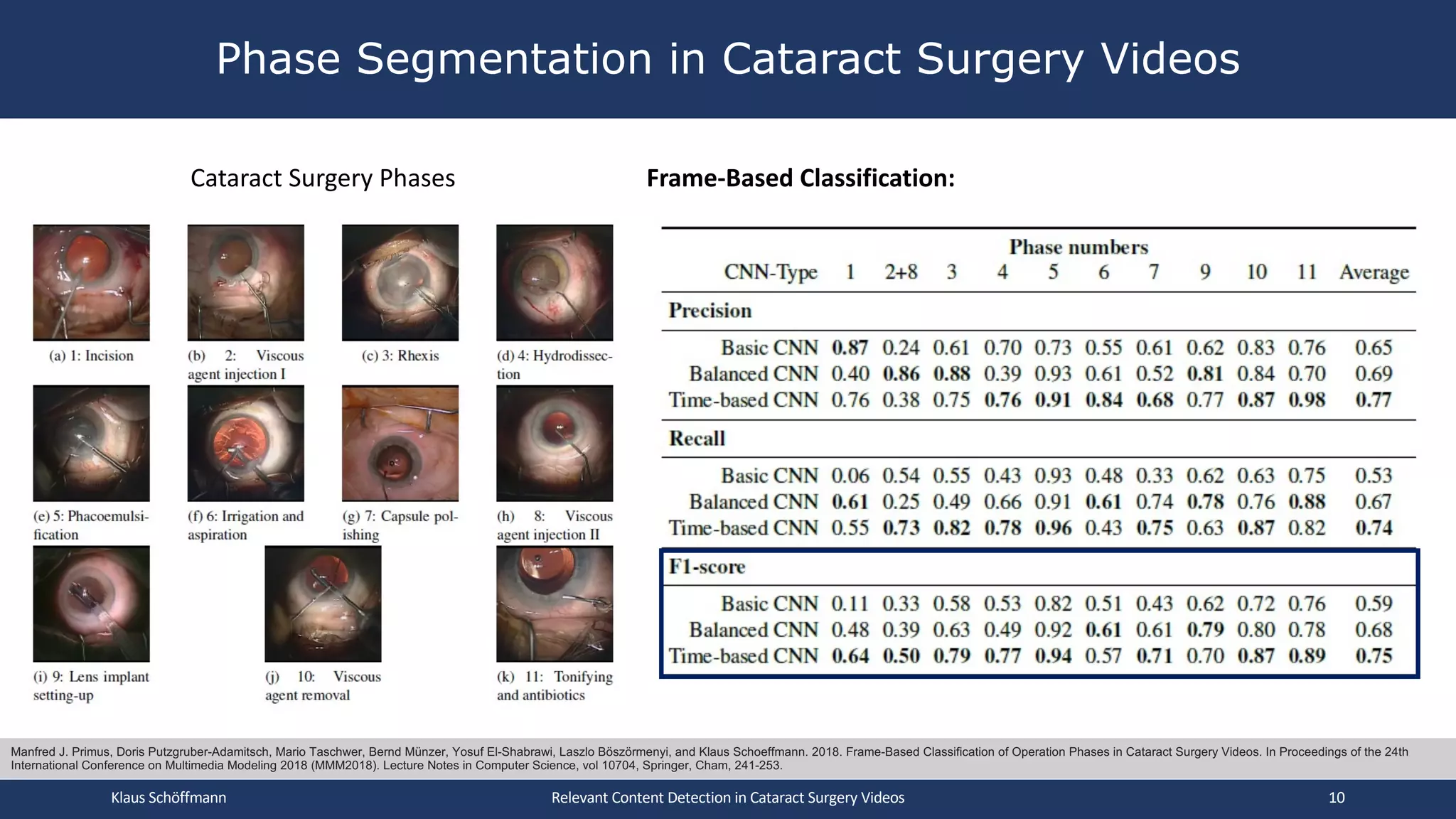

Phase Segmentation in Cataract Surgery Videos Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 9 Manfred J. Primus, Doris Putzgruber-Adamitsch, Mario Taschwer, Bernd Münzer, Yosuf El-Shabrawi, Laszlo Böszörmenyi, and Klaus Schoeffmann. 2018. Frame-Based Classification of Operation Phases in Cataract Surgery Videos. In Proceedings of the 24th International Conference on Multimedia Modeling 2018 (MMM2018). Lecture Notes in Computer Science, vol 10704, Springer, Cham, 241-253. Frame-Based Classification: • GoogLeNet CNN, pre-trained on ImageNet-1000 • 21 videos (17/4 randomly chosen for training/test) • 212,487 frames (175,488/36,999) • practical problem: heavily unbalanced data • incision: 6,642 training images • phacoemulsification: 54,679 training images • à random sampling and augmentation (copy, rotate, scale) to get 12,000 frames per phase • Three types of models/data • Unbalanced (“basic”) • balanced • time-based CNN • frame number as 4th channel Cataract Surgery Phases
Phase Segmentation in Cataract Surgery Videos Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 10 Manfred J. Primus, Doris Putzgruber-Adamitsch, Mario Taschwer, Bernd Münzer, Yosuf El-Shabrawi, Laszlo Böszörmenyi, and Klaus Schoeffmann. 2018. Frame-Based Classification of Operation Phases in Cataract Surgery Videos. In Proceedings of the 24th International Conference on Multimedia Modeling 2018 (MMM2018). Lecture Notes in Computer Science, vol 10704, Springer, Cham, 241-253. Cataract Surgery Phases Frame-Based Classification:
Relevant Phase Segmentation
• Only a few phases are medically relevant • and they are separated by idle phases Relevant Phase Segmentation in Cataract Videos Relevant Content Detection in Cataract Surgery Videos Klaus Schöffmann 12

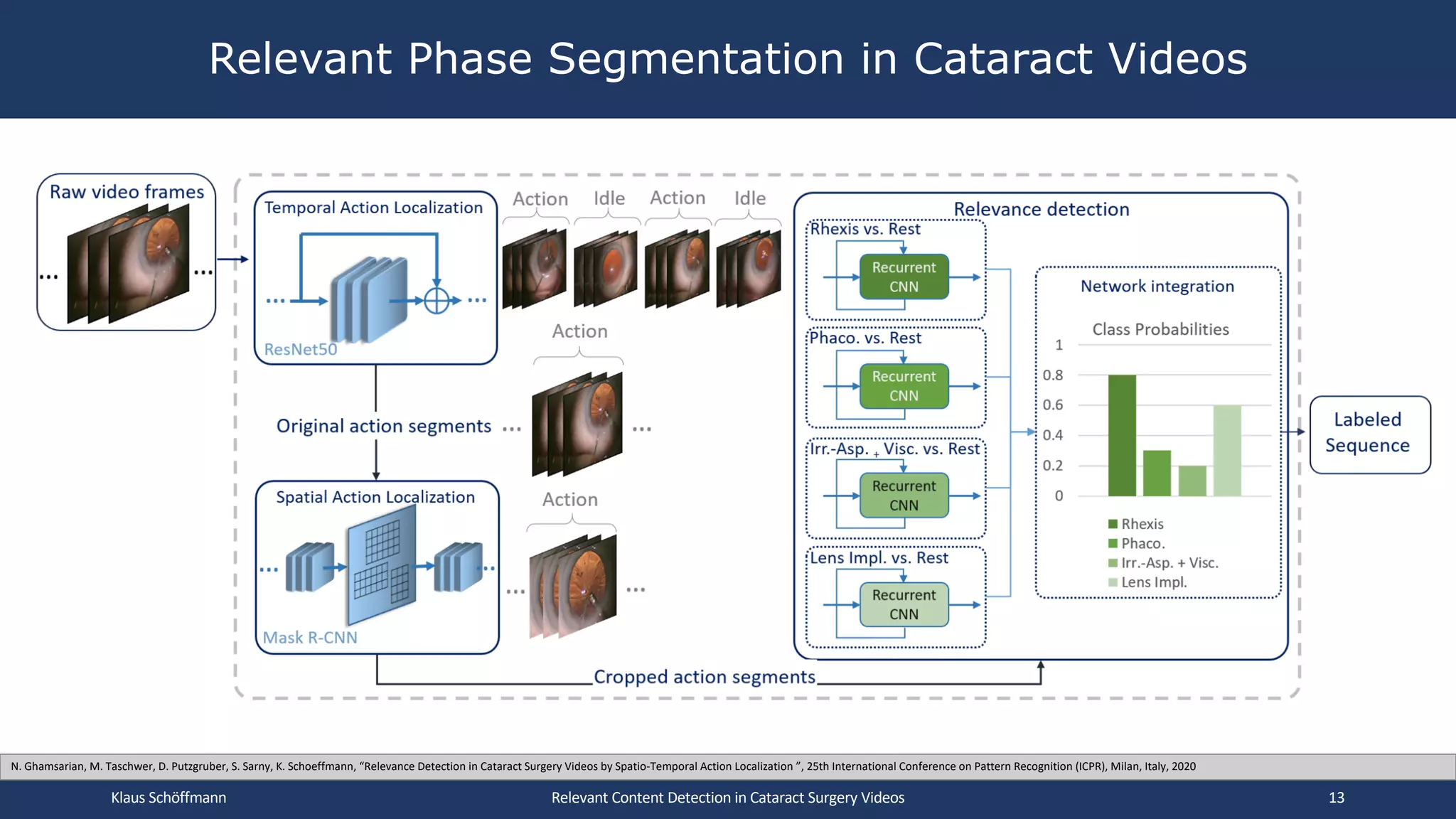

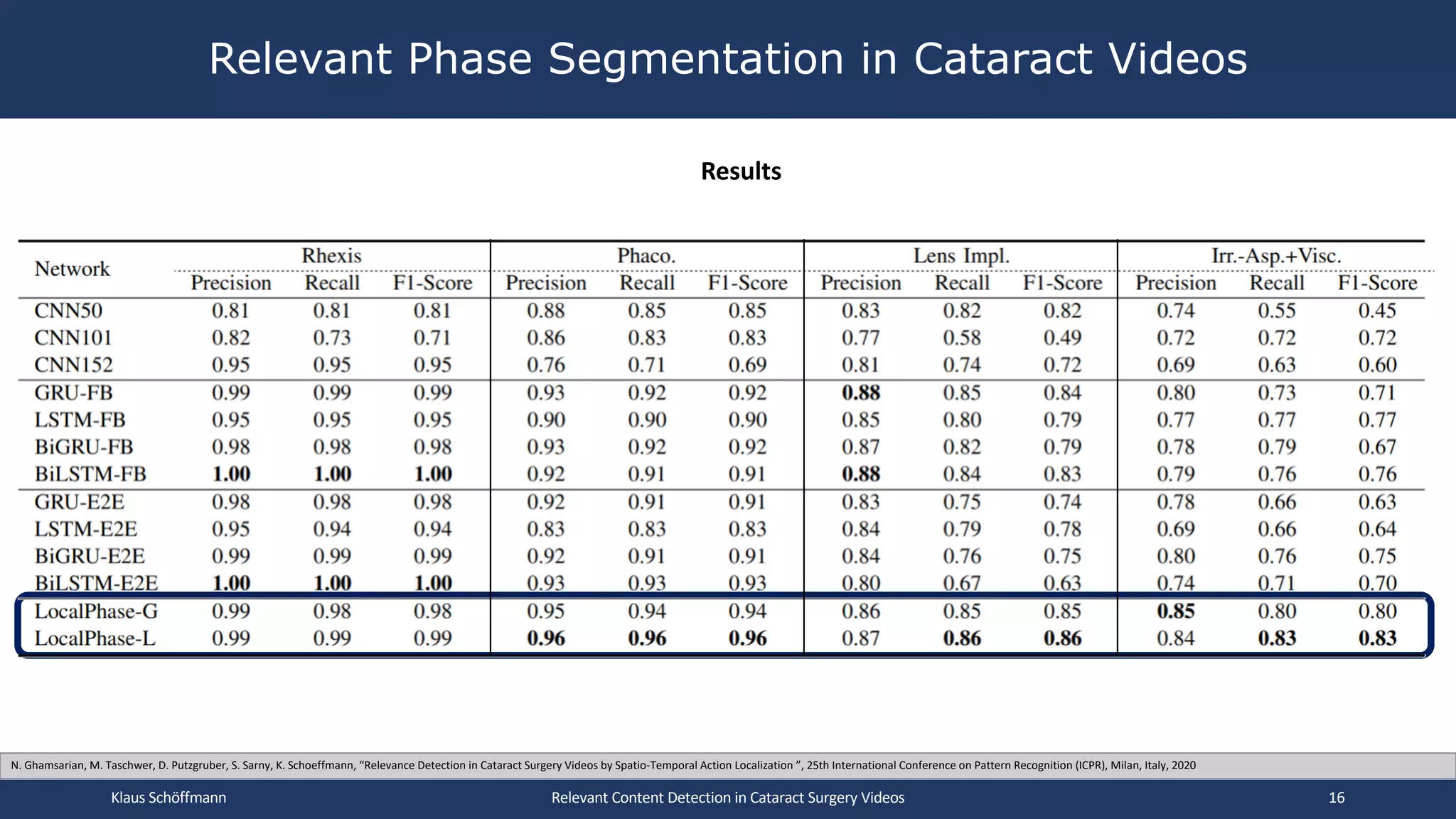

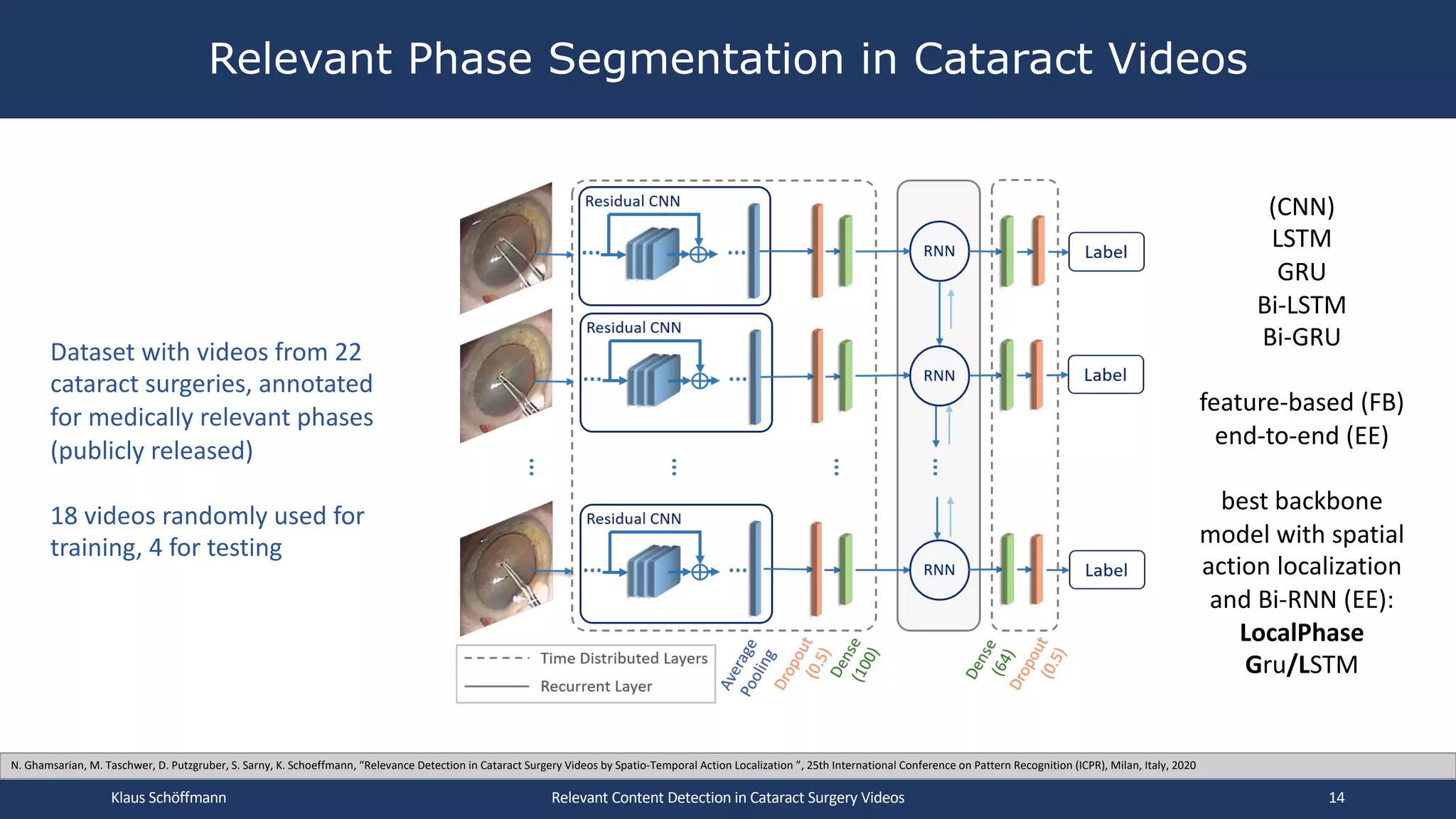

Relevant Phase Segmentation in Cataract Videos Relevant Content Detection in Cataract Surgery Videos N. Ghamsarian, M. Taschwer, D. Putzgruber, S. Sarny, K. Schoeffmann, “Relevance Detection in Cataract Surgery Videos by Spatio-Temporal Action Localization ”, 25th International Conference on Pattern Recognition (ICPR), Milan, Italy, 2020 Klaus Schöffmann 13

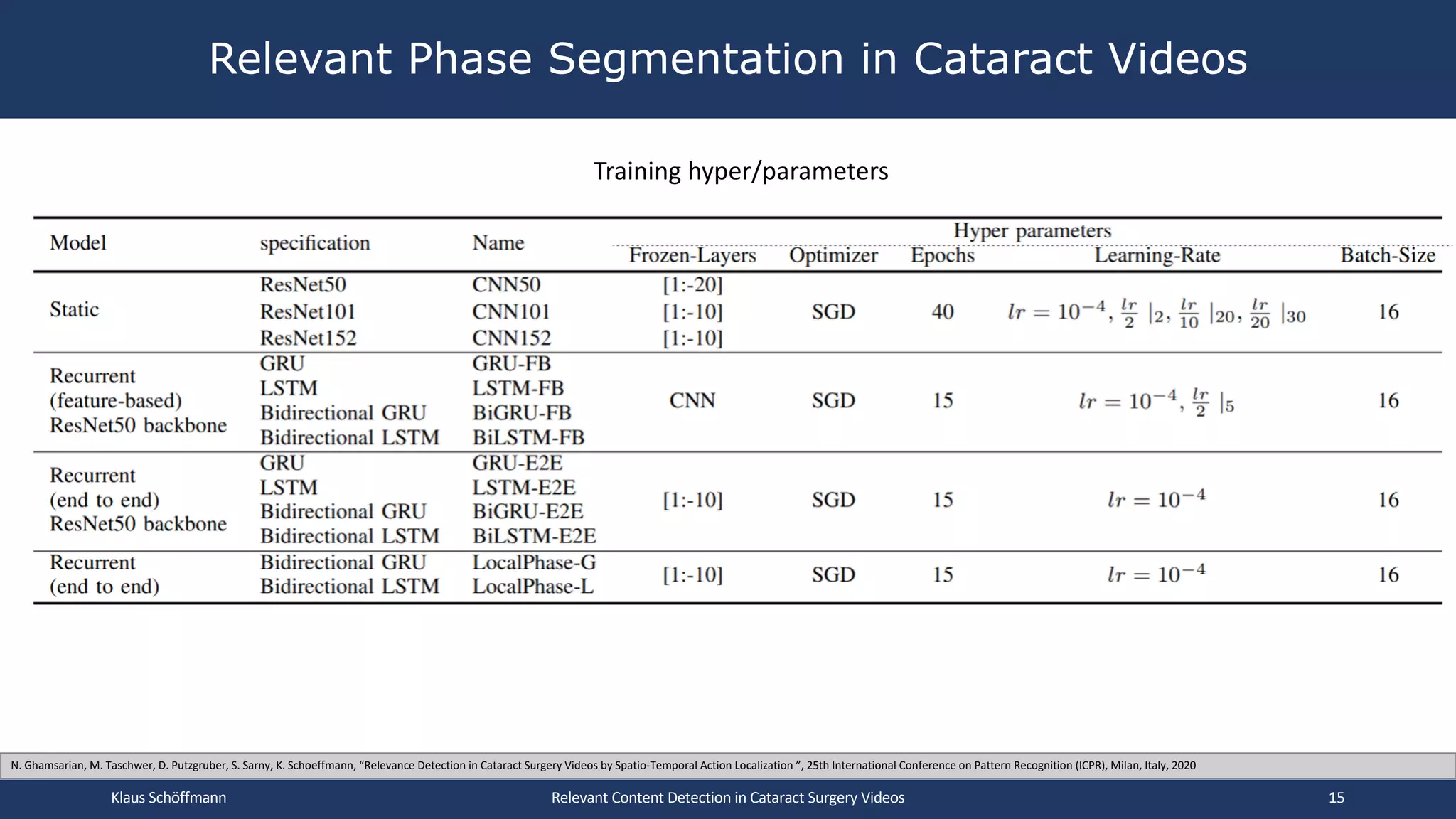

Relevant Phase Segmentation in Cataract Videos Relevant Content Detection in Cataract Surgery Videos N. Ghamsarian, M. Taschwer, D. Putzgruber, S. Sarny, K. Schoeffmann, “Relevance Detection in Cataract Surgery Videos by Spatio-Temporal Action Localization ”, 25th International Conference on Pattern Recognition (ICPR), Milan, Italy, 2020 (CNN) LSTM GRU Bi-LSTM Bi-GRU feature-based (FB) end-to-end (EE) best backbone model with spatial action localization and Bi-RNN (EE): LocalPhase Gru/LSTM Dataset with videos from 22 cataract surgeries, annotated for medically relevant phases (publicly released) 18 videos randomly used for training, 4 for testing Klaus Schöffmann 14
Relevant Phase Segmentation in Cataract Videos Relevant Content Detection in Cataract Surgery Videos Training hyper/parameters N. Ghamsarian, M. Taschwer, D. Putzgruber, S. Sarny, K. Schoeffmann, “Relevance Detection in Cataract Surgery Videos by Spatio-Temporal Action Localization ”, 25th International Conference on Pattern Recognition (ICPR), Milan, Italy, 2020 Klaus Schöffmann 15
Relevant Phase Segmentation in Cataract Videos Relevant Content Detection in Cataract Surgery Videos Results N. Ghamsarian, M. Taschwer, D. Putzgruber, S. Sarny, K. Schoeffmann, “Relevance Detection in Cataract Surgery Videos by Spatio-Temporal Action Localization ”, 25th International Conference on Pattern Recognition (ICPR), Milan, Italy, 2020 Klaus Schöffmann 16
Instrument Segmentation

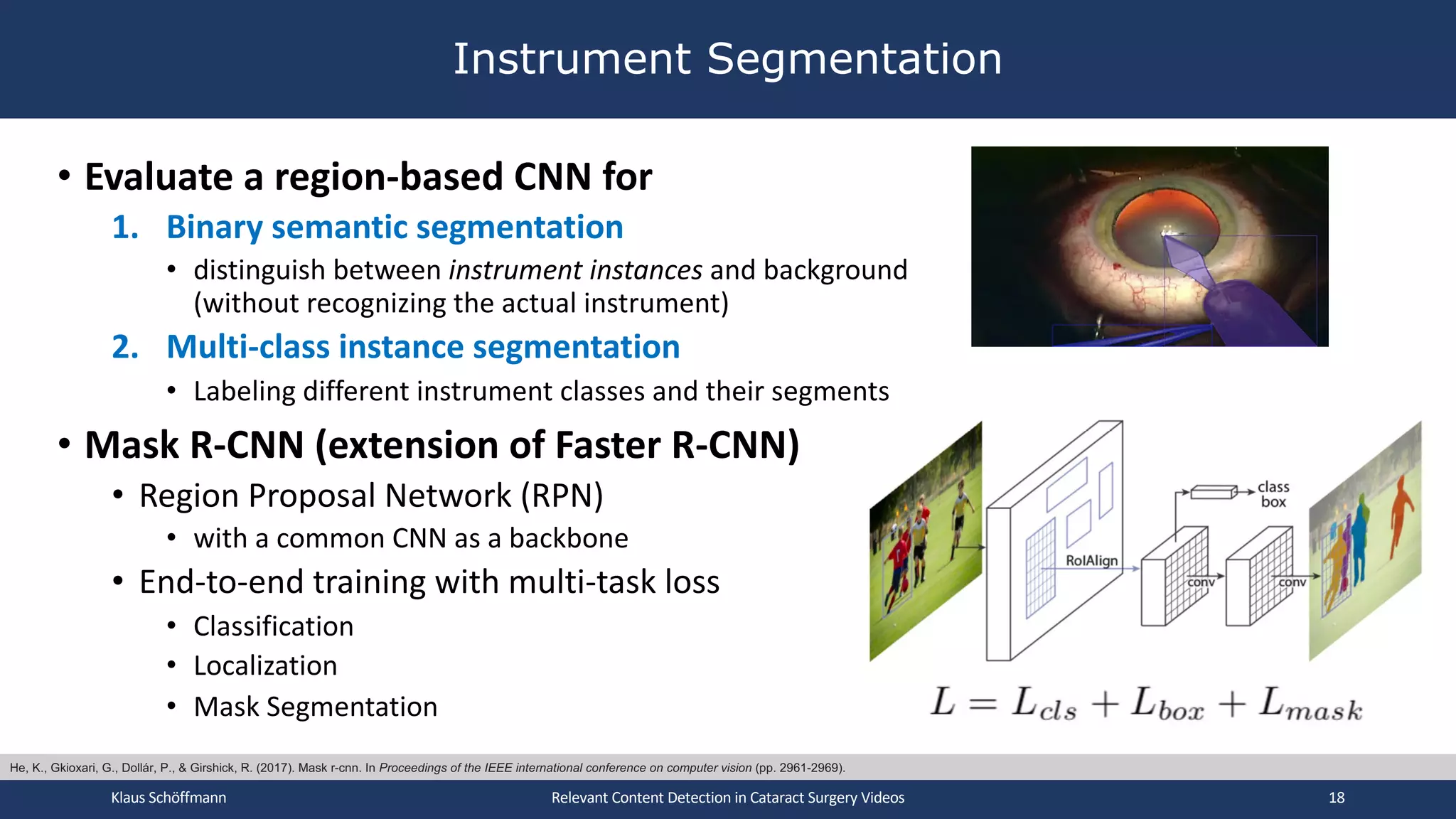

• Evaluate a region-based CNN for 1. Binary semantic segmentation • distinguish between instrument instances and background (without recognizing the actual instrument) 2. Multi-class instance segmentation • Labeling different instrument classes and their segments • Mask R-CNN (extension of Faster R-CNN) • Region Proposal Network (RPN) • with a common CNN as a backbone • End-to-end training with multi-task loss • Classification • Localization • Mask Segmentation Instrument Segmentation Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 18 He, K., Gkioxari, G., Dollár, P., & Girshick, R. (2017). Mask r-cnn. In Proceedings of the IEEE international conference on computer vision (pp. 2961-2969).

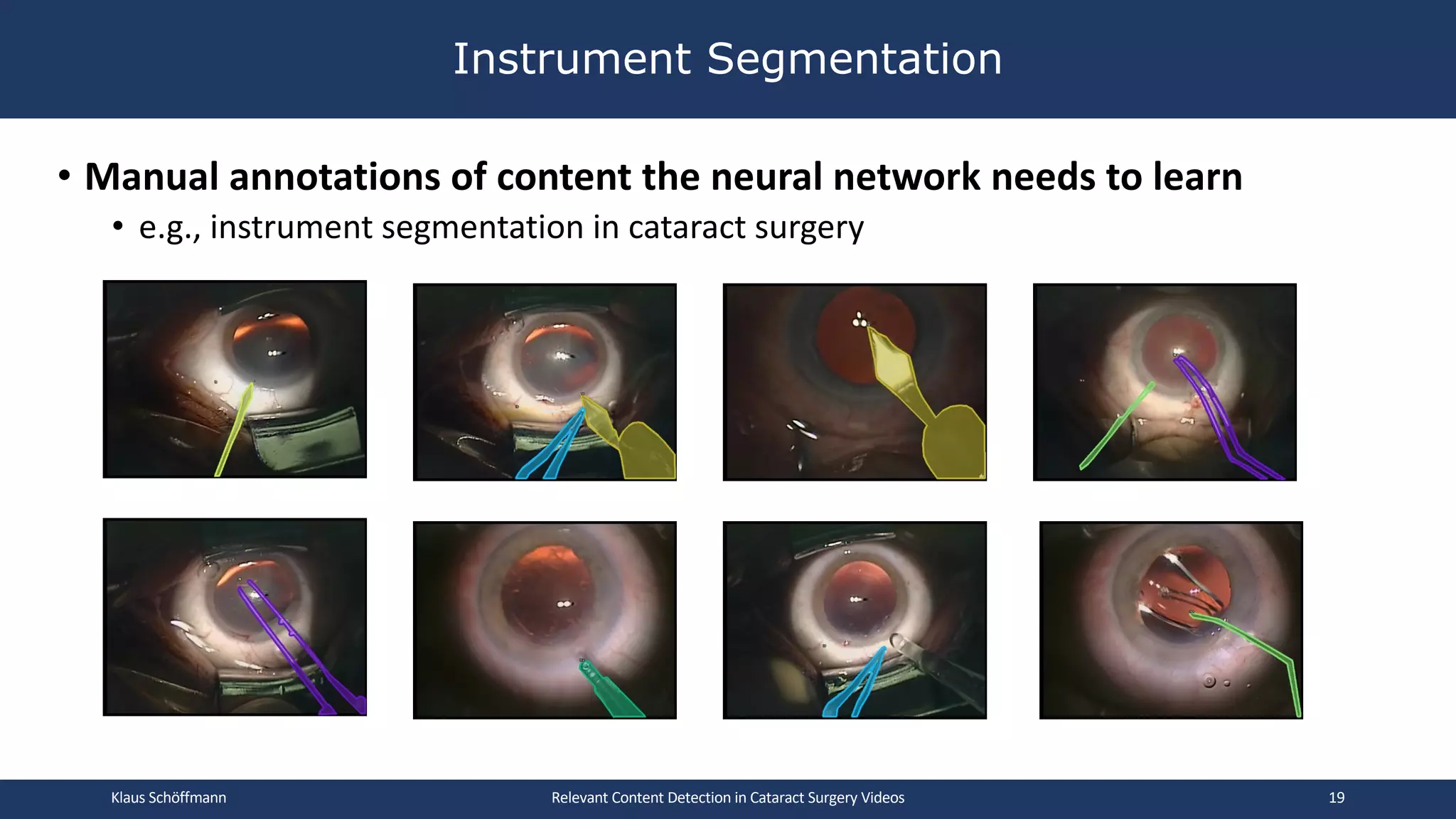

• Manual annotations of content the neural network needs to learn • e.g., instrument segmentation in cataract surgery Instrument Segmentation Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 19

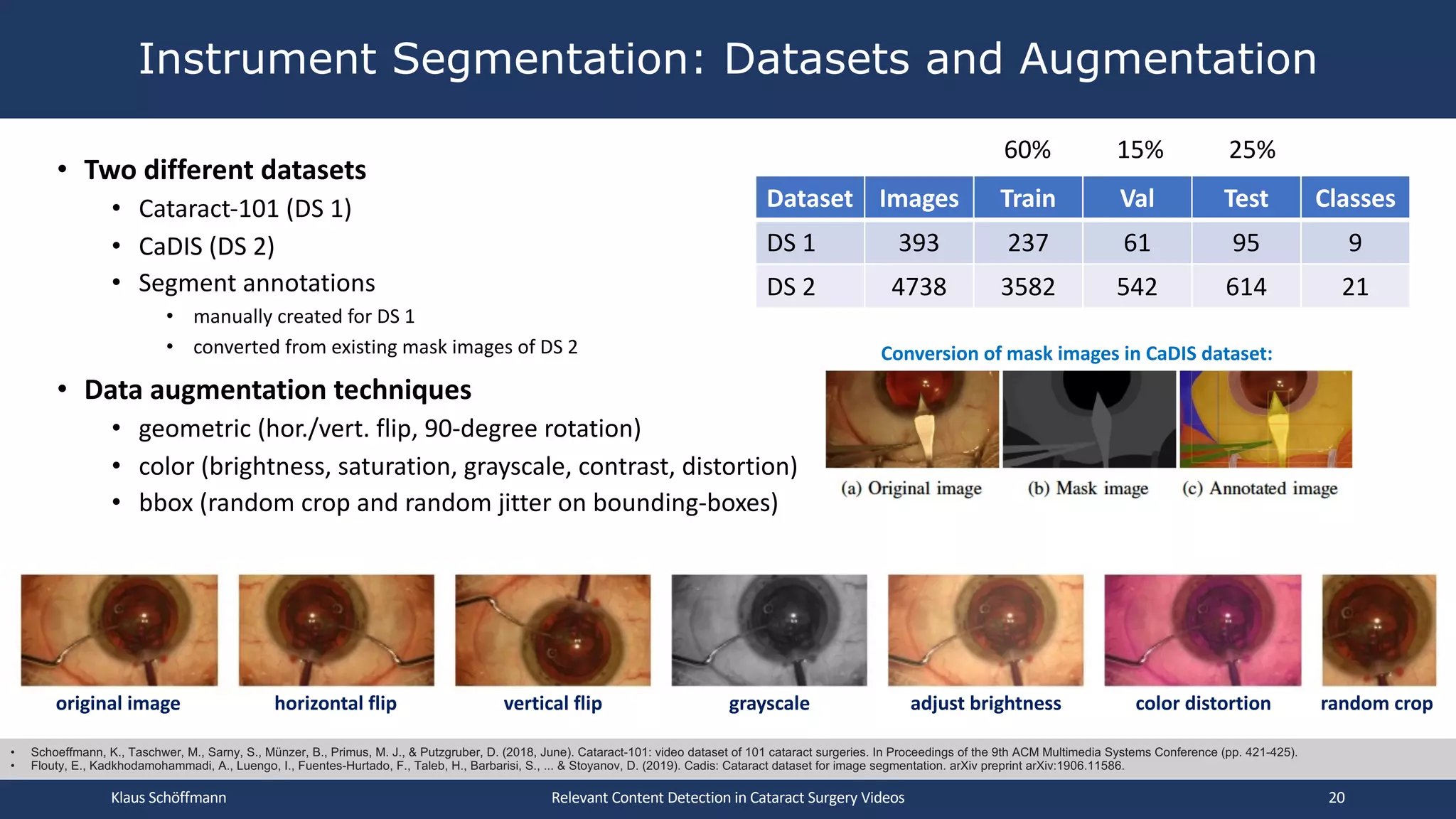

• Two different datasets • Cataract-101 (DS 1) • CaDIS (DS 2) • Segment annotations • manually created for DS 1 • converted from existing mask images of DS 2 • Data augmentation techniques • geometric (hor./vert. flip, 90-degree rotation) • color (brightness, saturation, grayscale, contrast, distortion) • bbox (random crop and random jitter on bounding-boxes) Instrument Segmentation: Datasets and Augmentation Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 20 Dataset Images Train Val Test Classes DS 1 393 237 61 95 9 DS 2 4738 3582 542 614 21 • Schoeffmann, K., Taschwer, M., Sarny, S., Münzer, B., Primus, M. J., & Putzgruber, D. (2018, June). Cataract-101: video dataset of 101 cataract surgeries. In Proceedings of the 9th ACM Multimedia Systems Conference (pp. 421-425). • Flouty, E., Kadkhodamohammadi, A., Luengo, I., Fuentes-Hurtado, F., Taleb, H., Barbarisi, S., ... & Stoyanov, D. (2019). Cadis: Cataract dataset for image segmentation. arXiv preprint arXiv:1906.11586. Conversion of mask images in CaDIS dataset: original image horizontal flip vertical flip grayscale adjust brightness color distortion random crop 60% 15% 25%

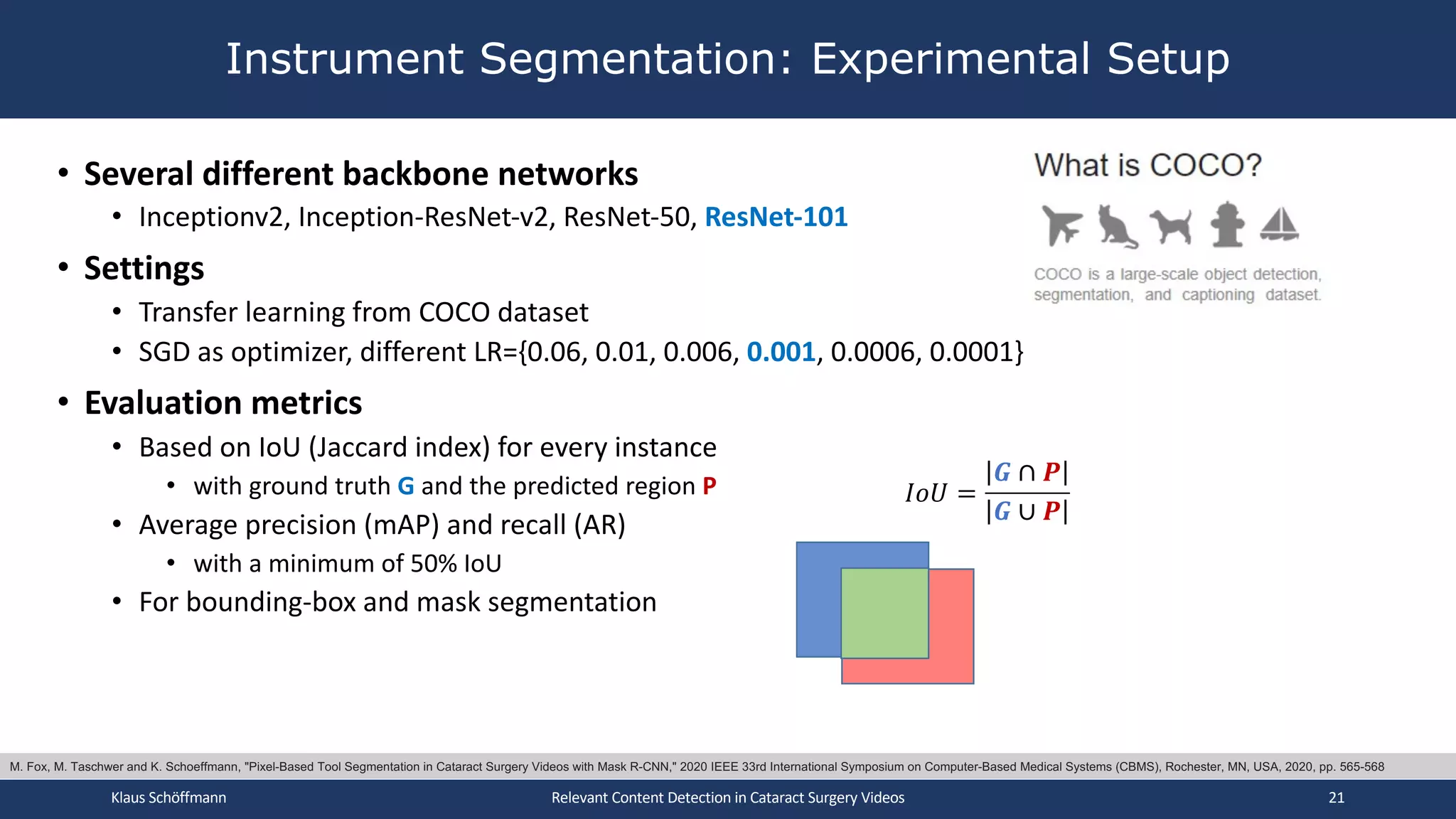

• Several different backbone networks • Inceptionv2, Inception-ResNet-v2, ResNet-50, ResNet-101 • Settings • Transfer learning from COCO dataset • SGD as optimizer, different LR={0.06, 0.01, 0.006, 0.001, 0.0006, 0.0001} • Evaluation metrics • Based on IoU (Jaccard index) for every instance • with ground truth G and the predicted region P • Average precision (mAP) and recall (AR) • with a minimum of 50% IoU • For bounding-box and mask segmentation Instrument Segmentation: Experimental Setup Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 21 𝐼𝑜𝑈 = 𝑮 ∩ 𝑷 𝑮 ∪ 𝑷 M. Fox, M. Taschwer and K. Schoeffmann, "Pixel-Based Tool Segmentation in Cataract Surgery Videos with Mask R-CNN," 2020 IEEE 33rd International Symposium on Computer-Based Medical Systems (CBMS), Rochester, MN, USA, 2020, pp. 565-568

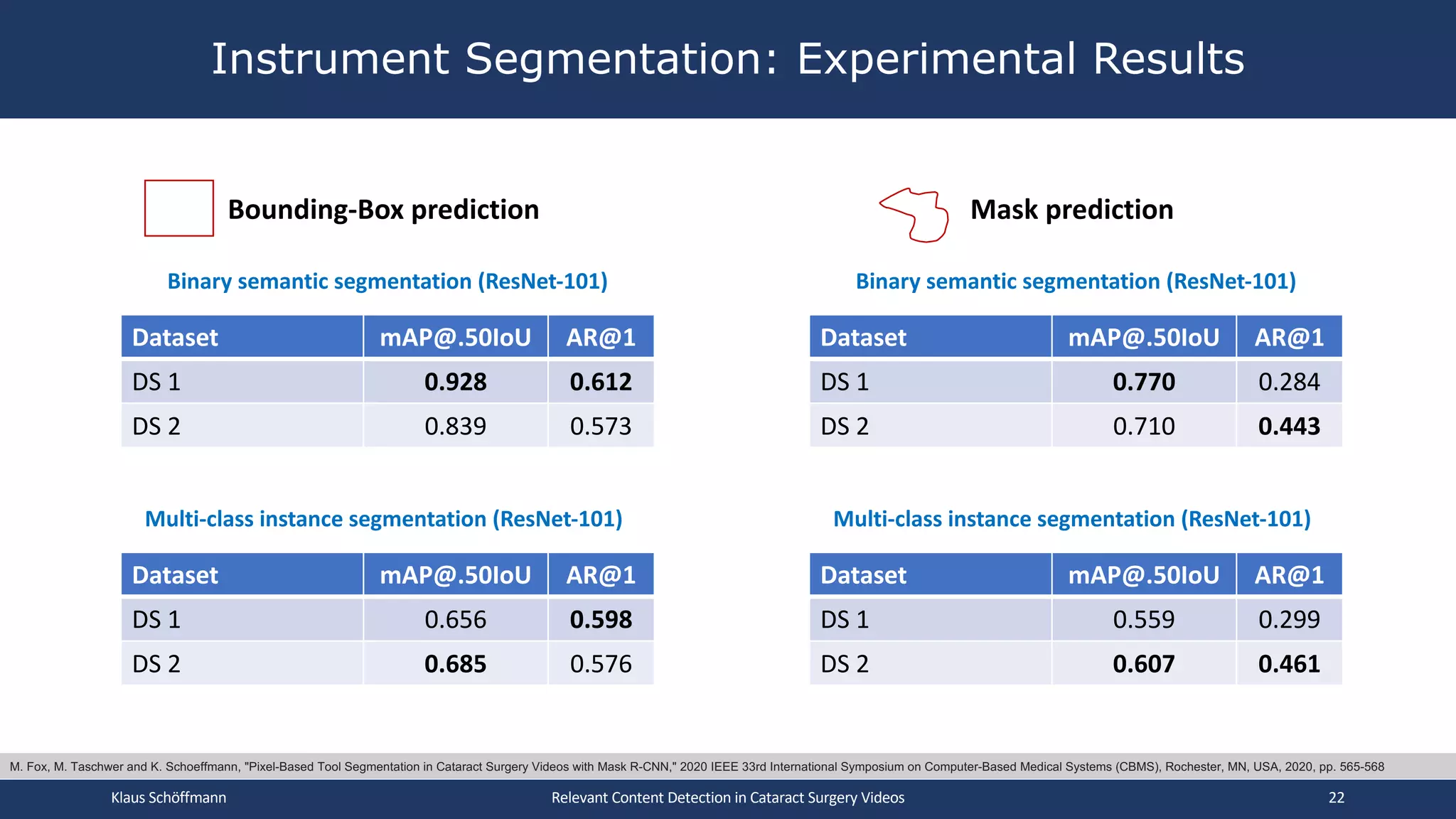

Instrument Segmentation: Experimental Results Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 22 Dataset mAP@.50IoU AR@1 DS 1 0.770 0.284 DS 2 0.710 0.443 Binary semantic segmentation (ResNet-101) Dataset mAP@.50IoU AR@1 DS 1 0.559 0.299 DS 2 0.607 0.461 Multi-class instance segmentation (ResNet-101) Dataset mAP@.50IoU AR@1 DS 1 0.928 0.612 DS 2 0.839 0.573 Binary semantic segmentation (ResNet-101) Dataset mAP@.50IoU AR@1 DS 1 0.656 0.598 DS 2 0.685 0.576 Multi-class instance segmentation (ResNet-101) Bounding-Box prediction M. Fox, M. Taschwer and K. Schoeffmann, "Pixel-Based Tool Segmentation in Cataract Surgery Videos with Mask R-CNN," 2020 IEEE 33rd International Symposium on Computer-Based Medical Systems (CBMS), Rochester, MN, USA, 2020, pp. 565-568 Mask prediction

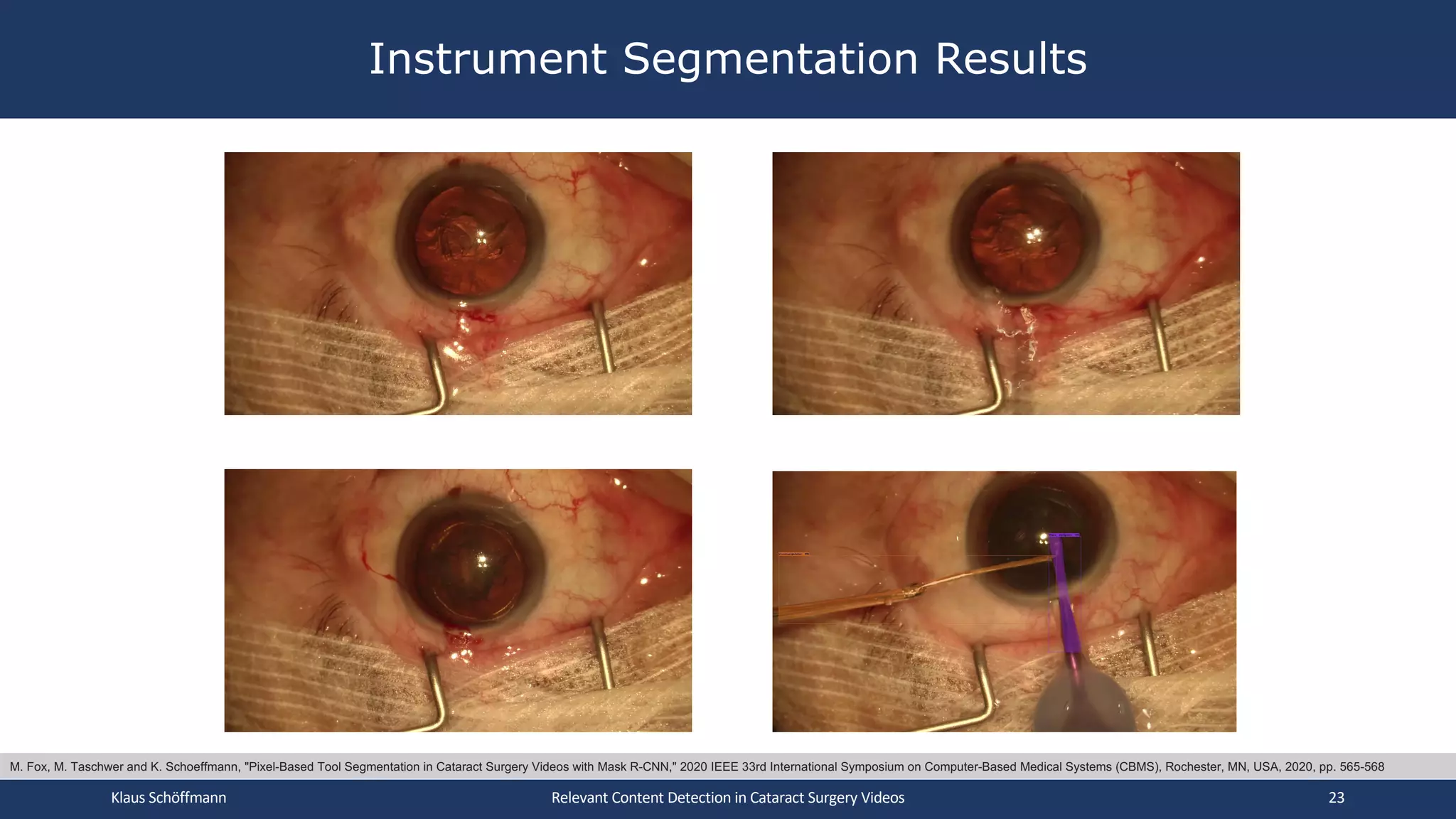

Instrument Segmentation Results Klaus Schöffmann Relevant Content Detection in Cataract Surgery Videos 23 M. Fox, M. Taschwer and K. Schoeffmann, "Pixel-Based Tool Segmentation in Cataract Surgery Videos with Mask R-CNN," 2020 IEEE 33rd International Symposium on Computer-Based Medical Systems (CBMS), Rochester, MN, USA, 2020, pp. 565-568
Relevance-Based Compression

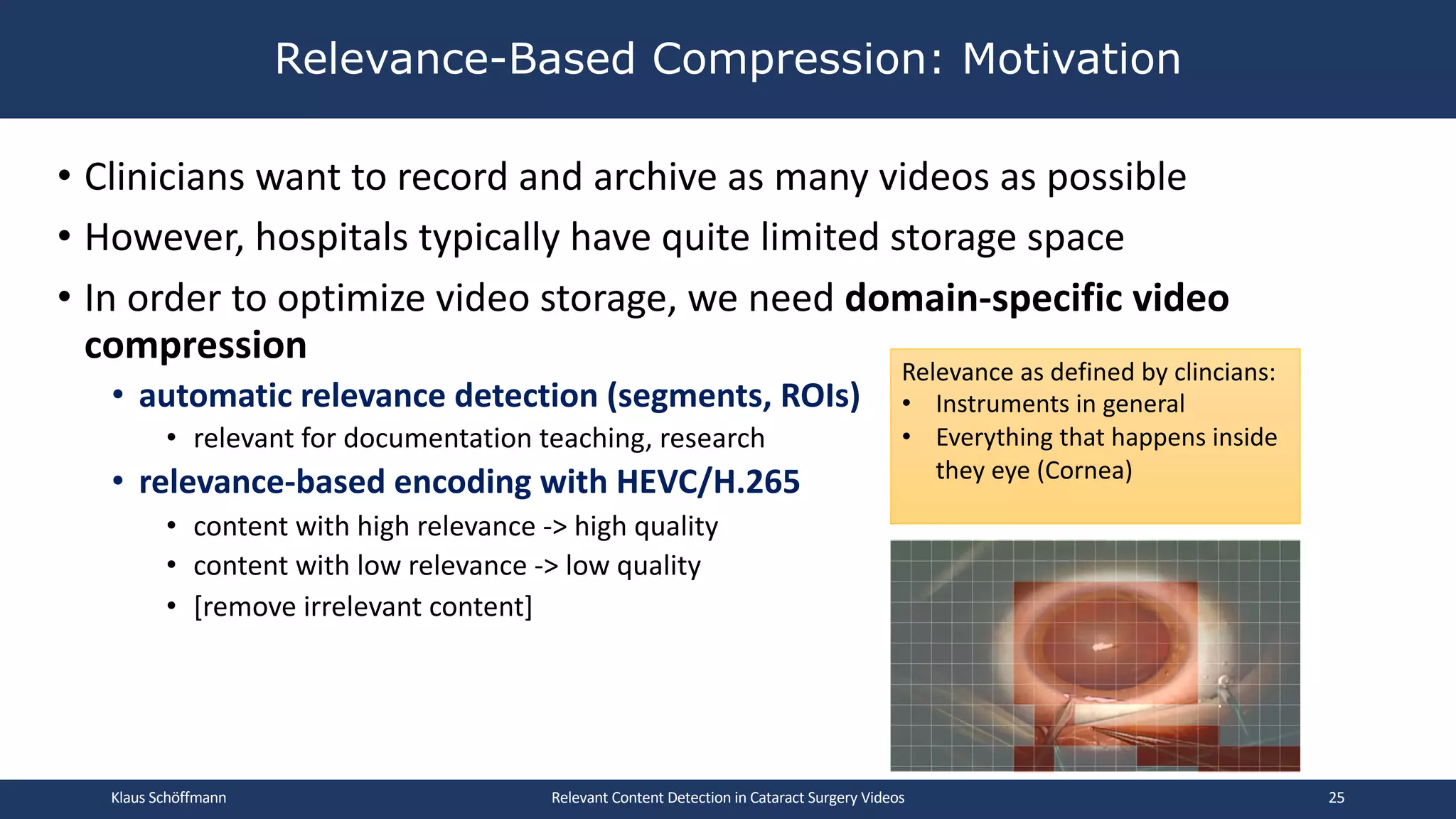

• Clinicians want to record and archive as many videos as possible • However, hospitals typically have quite limited storage space • In order to optimize video storage, we need domain-specific video compression • automatic relevance detection (segments, ROIs) • relevant for documentation teaching, research • relevance-based encoding with HEVC/H.265 • content with high relevance -> high quality • content with low relevance -> low quality • [remove irrelevant content] Relevance-Based Compression: Motivation Relevant Content Detection in Cataract Surgery Videos Relevance as defined by clincians: • Instruments in general • Everything that happens inside they eye (Cornea) Klaus Schöffmann 25

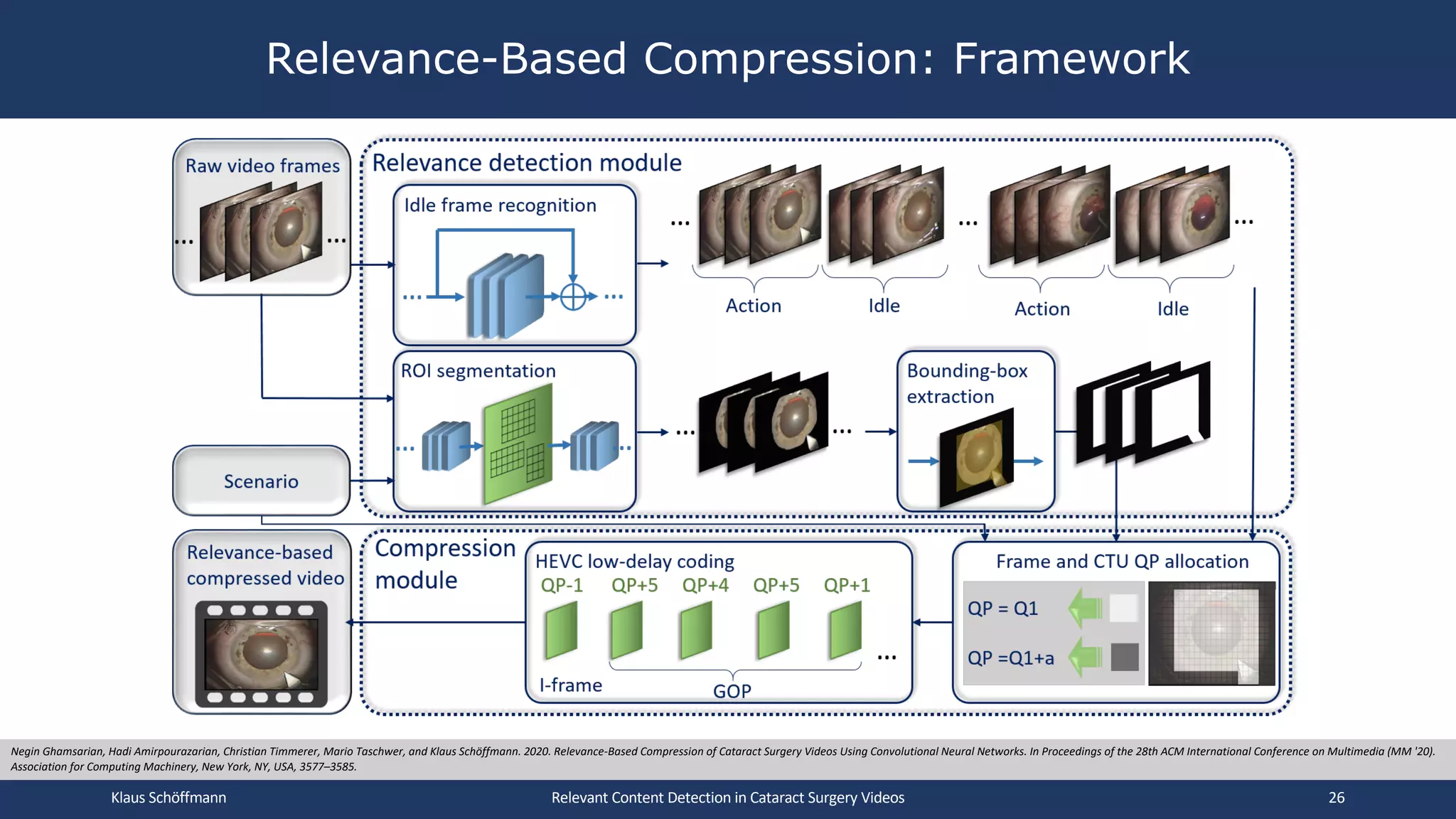

Relevance-Based Compression: Framework Relevant Content Detection in Cataract Surgery Videos Negin Ghamsarian, Hadi Amirpourazarian, Christian Timmerer, Mario Taschwer, and Klaus Schöffmann. 2020. Relevance-Based Compression of Cataract Surgery Videos Using Convolutional Neural Networks. In Proceedings of the 28th ACM International Conference on Multimedia (MM '20). Association for Computing Machinery, New York, NY, USA, 3577–3585. Klaus Schöffmann 26

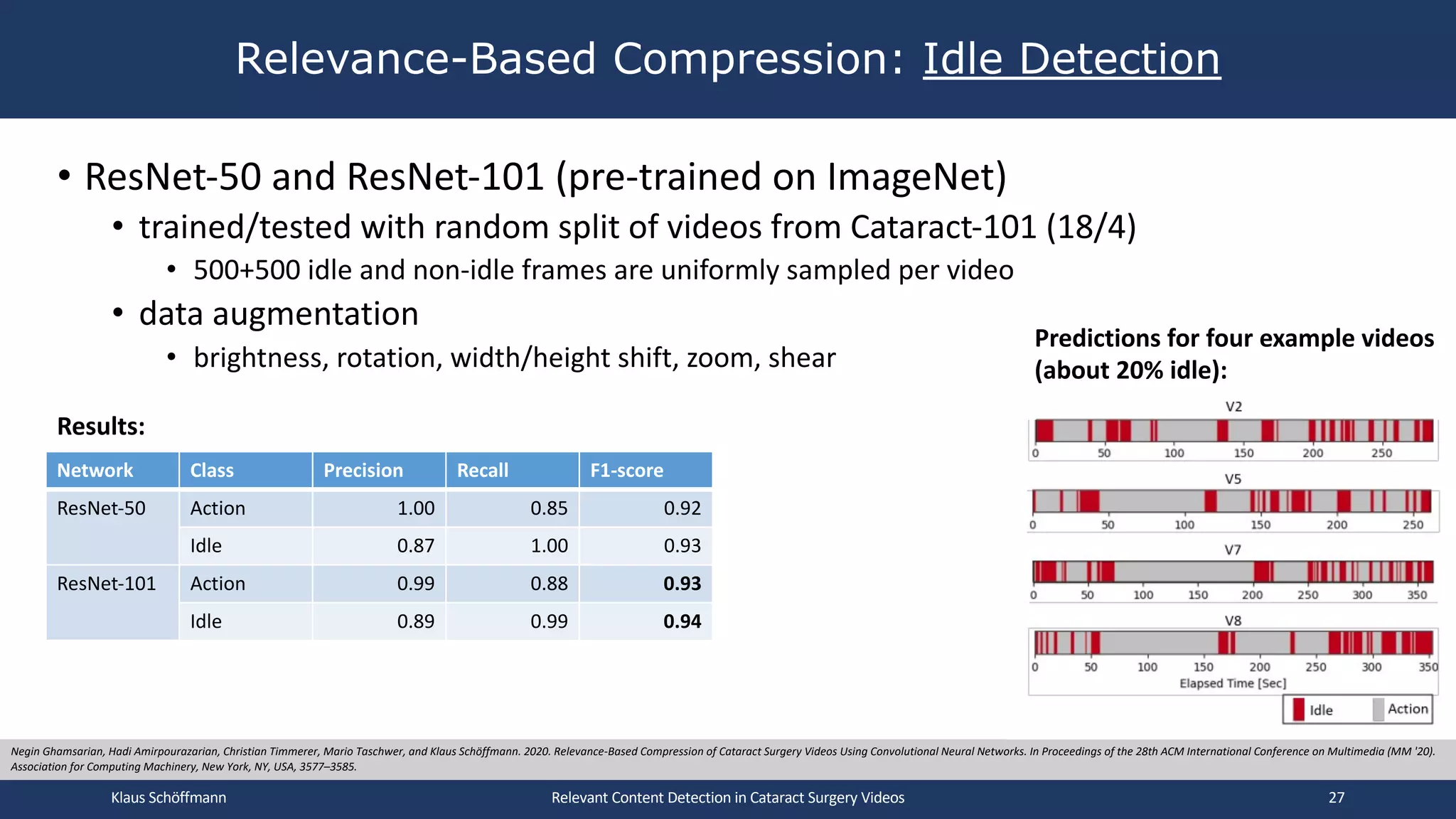

• ResNet-50 and ResNet-101 (pre-trained on ImageNet) • trained/tested with random split of videos from Cataract-101 (18/4) • 500+500 idle and non-idle frames are uniformly sampled per video • data augmentation • brightness, rotation, width/height shift, zoom, shear Relevance-Based Compression: Idle Detection Relevant Content Detection in Cataract Surgery Videos Negin Ghamsarian, Hadi Amirpourazarian, Christian Timmerer, Mario Taschwer, and Klaus Schöffmann. 2020. Relevance-Based Compression of Cataract Surgery Videos Using Convolutional Neural Networks. In Proceedings of the 28th ACM International Conference on Multimedia (MM '20). Association for Computing Machinery, New York, NY, USA, 3577–3585. Network Class Precision Recall F1-score ResNet-50 Action 1.00 0.85 0.92 Idle 0.87 1.00 0.93 ResNet-101 Action 0.99 0.88 0.93 Idle 0.89 0.99 0.94 Results: Predictions for four example videos (about 20% idle): Klaus Schöffmann 27

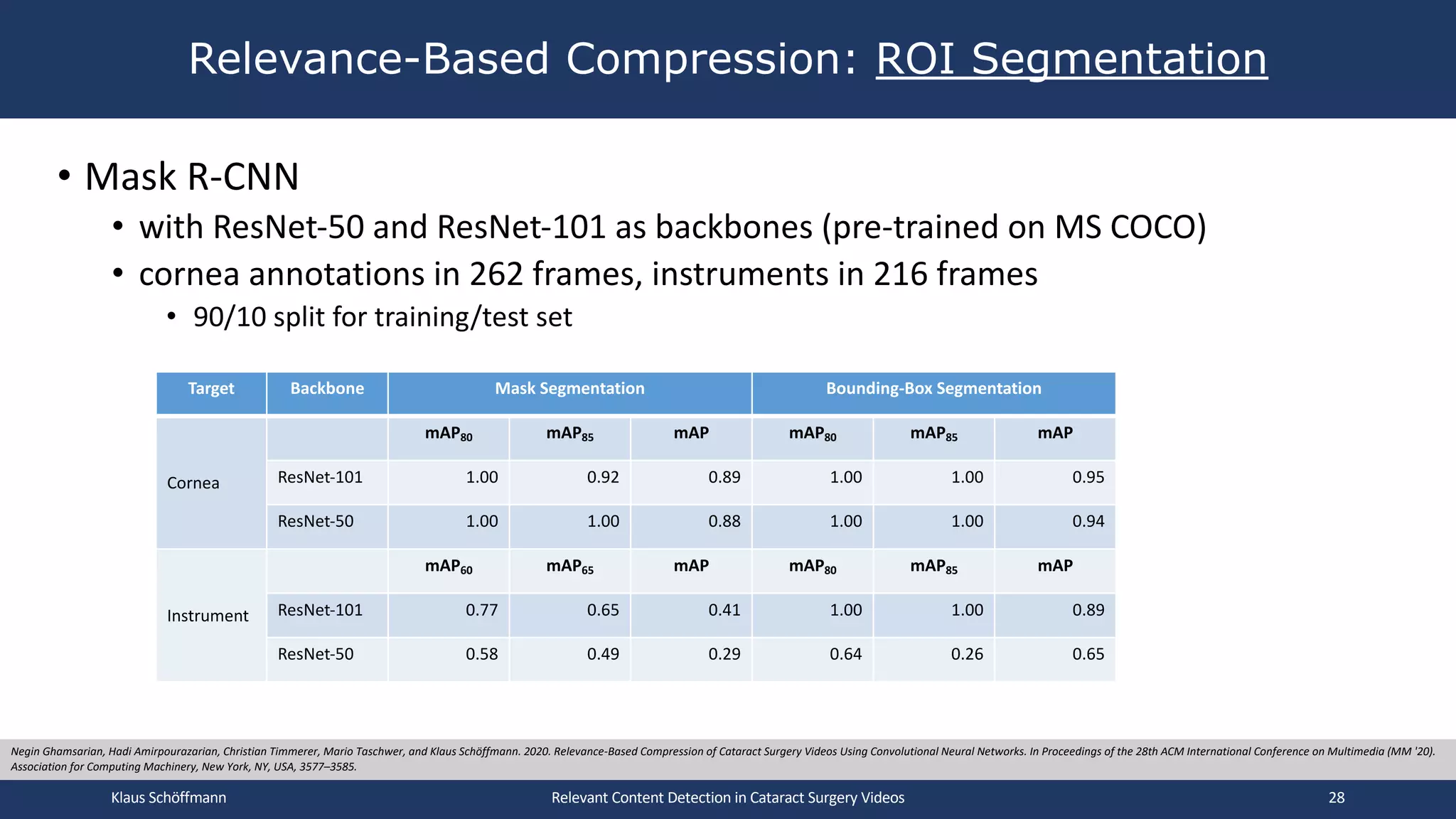

• Mask R-CNN • with ResNet-50 and ResNet-101 as backbones (pre-trained on MS COCO) • cornea annotations in 262 frames, instruments in 216 frames • 90/10 split for training/test set Relevance-Based Compression: ROI Segmentation Relevant Content Detection in Cataract Surgery Videos Negin Ghamsarian, Hadi Amirpourazarian, Christian Timmerer, Mario Taschwer, and Klaus Schöffmann. 2020. Relevance-Based Compression of Cataract Surgery Videos Using Convolutional Neural Networks. In Proceedings of the 28th ACM International Conference on Multimedia (MM '20). Association for Computing Machinery, New York, NY, USA, 3577–3585. Target Backbone Mask Segmentation Bounding-Box Segmentation Cornea mAP80 mAP85 mAP mAP80 mAP85 mAP ResNet-101 1.00 0.92 0.89 1.00 1.00 0.95 ResNet-50 1.00 1.00 0.88 1.00 1.00 0.94 Instrument mAP60 mAP65 mAP mAP80 mAP85 mAP ResNet-101 0.77 0.65 0.41 1.00 1.00 0.89 ResNet-50 0.58 0.49 0.29 0.64 0.26 0.65 Klaus Schöffmann 28

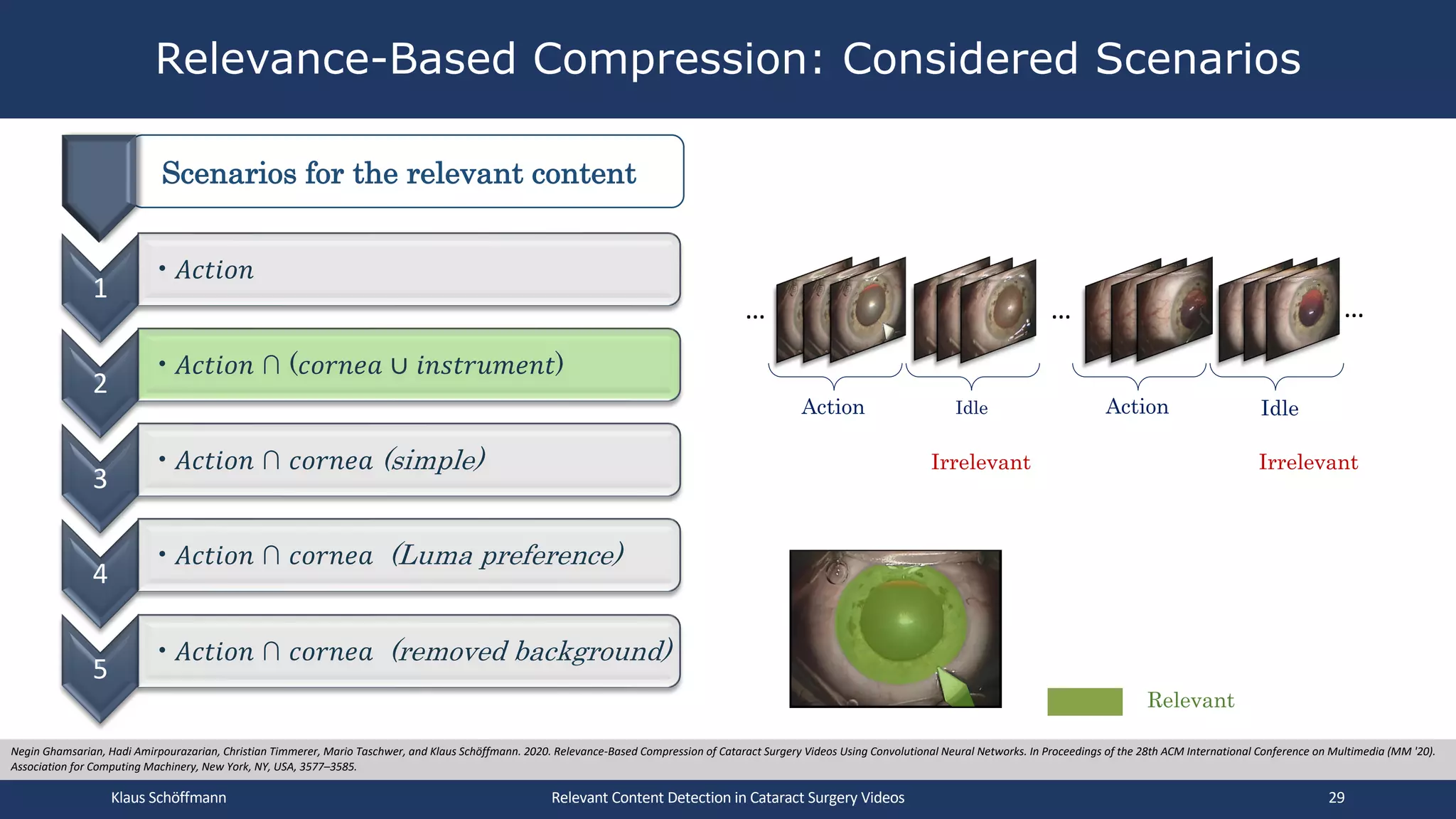

Relevance-Based Compression: Considered Scenarios Relevant Content Detection in Cataract Surgery Videos Negin Ghamsarian, Hadi Amirpourazarian, Christian Timmerer, Mario Taschwer, and Klaus Schöffmann. 2020. Relevance-Based Compression of Cataract Surgery Videos Using Convolutional Neural Networks. In Proceedings of the 28th ACM International Conference on Multimedia (MM '20). Association for Computing Machinery, New York, NY, USA, 3577–3585. 1 •𝐴𝑐𝑡𝑖𝑜𝑛 2 •𝐴𝑐𝑡𝑖𝑜𝑛 ∩ (𝑐𝑜𝑟𝑛𝑒𝑎 ∪ 𝑖𝑛𝑠𝑡𝑟𝑢𝑚𝑒𝑛𝑡) 3 •𝐴𝑐𝑡𝑖𝑜𝑛 ∩ 𝑐𝑜𝑟𝑛𝑒𝑎 (simple) 4 •𝐴𝑐𝑡𝑖𝑜𝑛 ∩ 𝑐𝑜𝑟𝑛𝑒𝑎 (Luma preference) 5 •𝐴𝑐𝑡𝑖𝑜𝑛 ∩ 𝑐𝑜𝑟𝑛𝑒𝑎 (removed background) Scenarios for the relevant content … … … Action Idle Action Idle Irrelevant Irrelevant Relevant Klaus Schöffmann 29

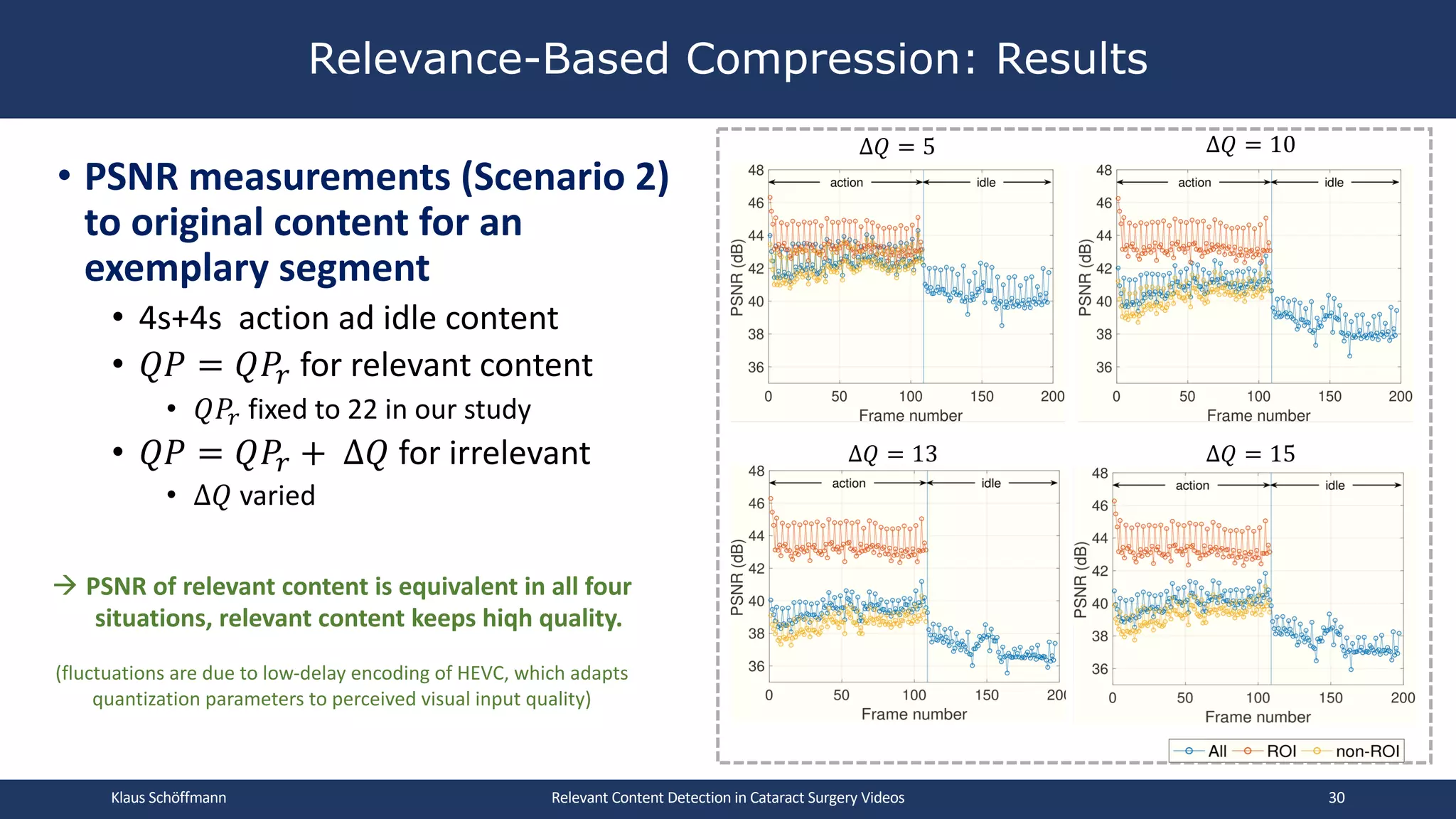

• PSNR measurements (Scenario 2) to original content for an exemplary segment • 4s+4s action ad idle content • 𝑄𝑃 = 𝑄𝑃4 for relevant content • 𝑄𝑃! fixed to 22 in our study • 𝑄𝑃 = 𝑄𝑃4 + ∆𝑄 for irrelevant • ∆𝑄 varied Relevance-Based Compression: Results Relevant Content Detection in Cataract Surgery Videos ∆𝑄 = 5 ∆𝑄 = 10 ∆𝑄 = 13 ∆𝑄 = 15 à PSNR of relevant content is equivalent in all four situations, relevant content keeps hiqh quality. (fluctuations are due to low-delay encoding of HEVC, which adapts quantization parameters to perceived visual input quality) Klaus Schöffmann 30

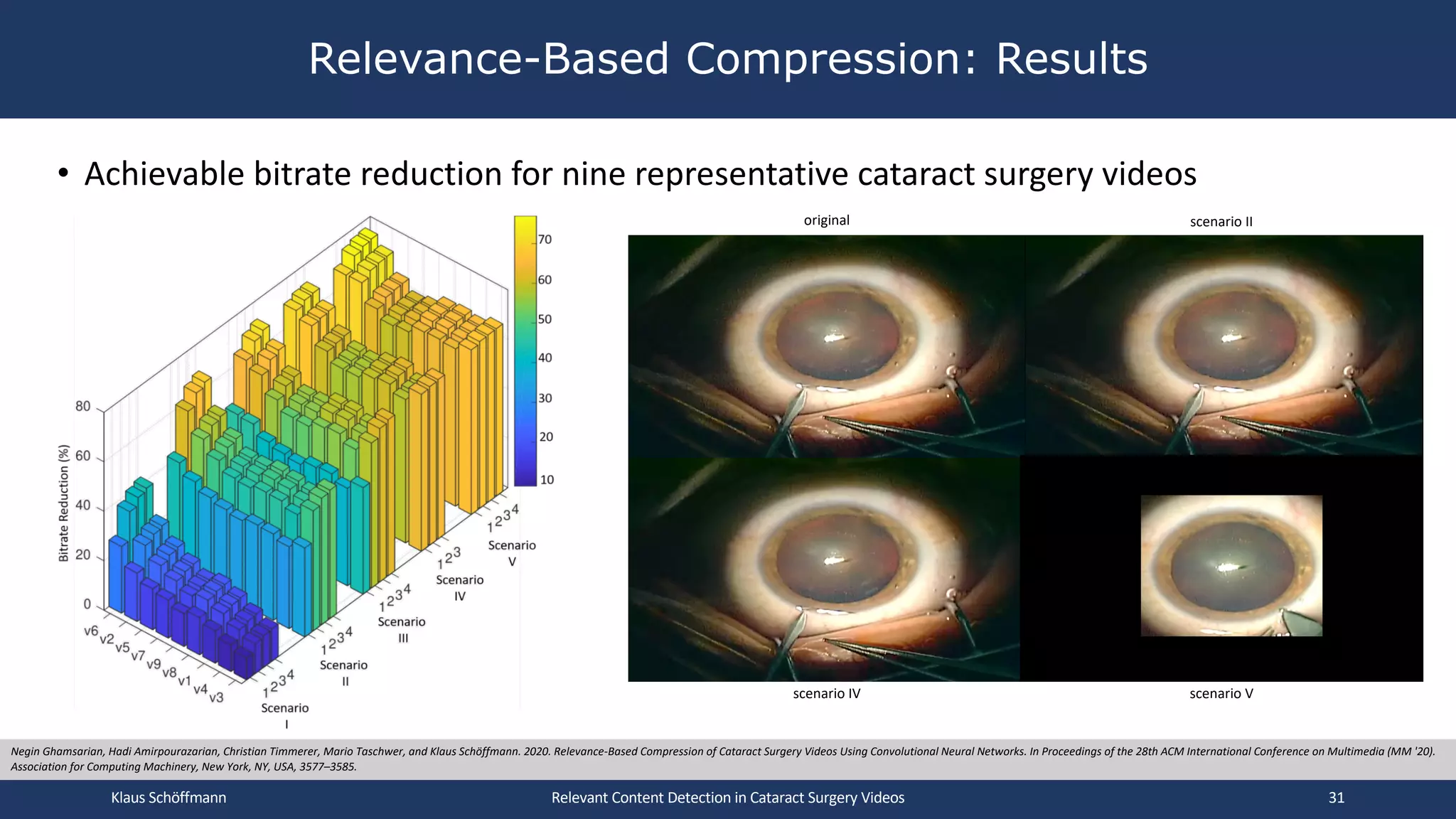

• Achievable bitrate reduction for nine representative cataract surgery videos Relevance-Based Compression: Results Relevant Content Detection in Cataract Surgery Videos Negin Ghamsarian, Hadi Amirpourazarian, Christian Timmerer, Mario Taschwer, and Klaus Schöffmann. 2020. Relevance-Based Compression of Cataract Surgery Videos Using Convolutional Neural Networks. In Proceedings of the 28th ACM International Conference on Multimedia (MM '20). Association for Computing Machinery, New York, NY, USA, 3577–3585. original scenario II scenario IV scenario V Klaus Schöffmann 31
Irregularity Detection: Pupil Reactions

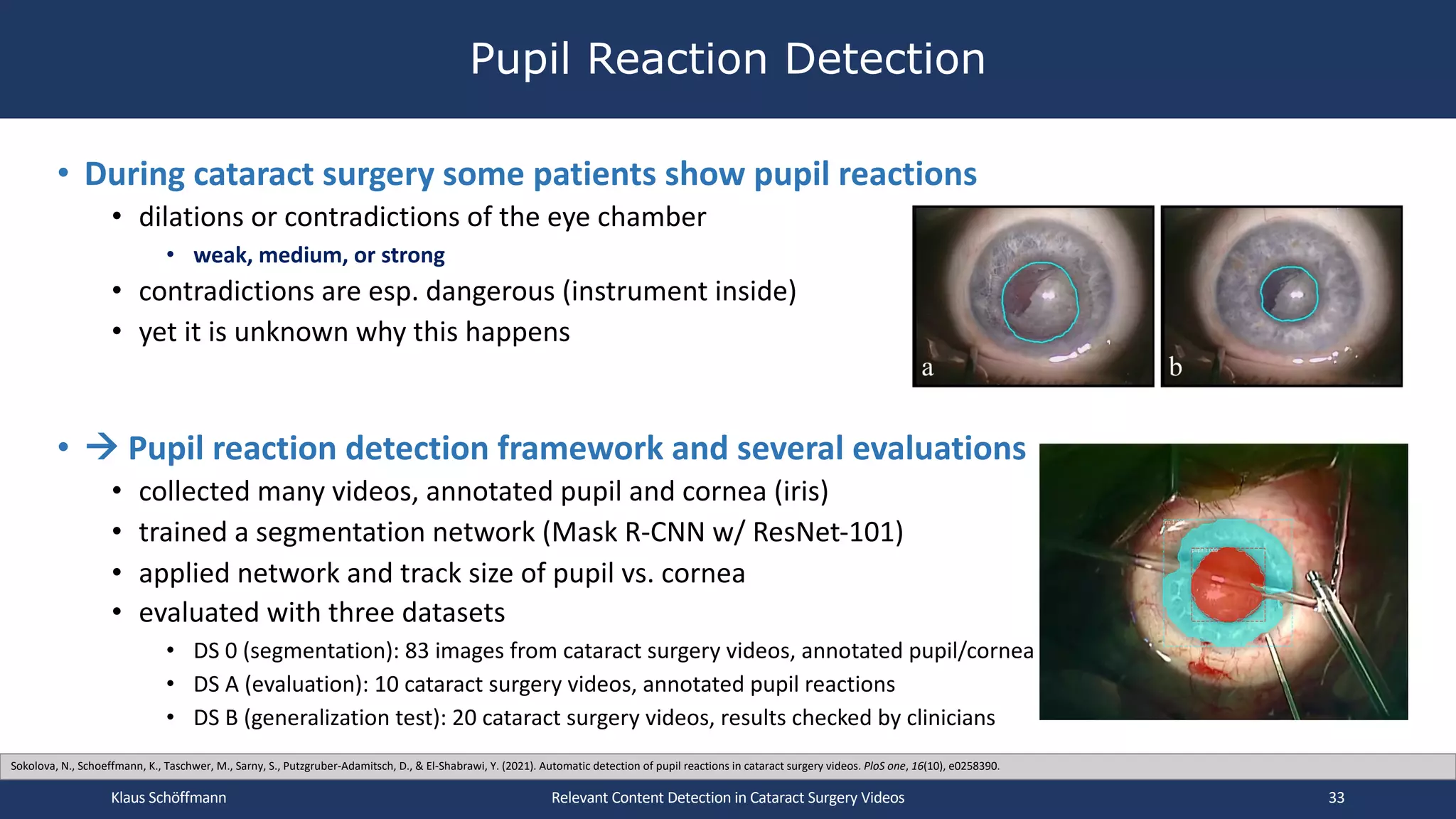

• During cataract surgery some patients show pupil reactions • dilations or contradictions of the eye chamber • weak, medium, or strong • contradictions are esp. dangerous (instrument inside) • yet it is unknown why this happens • à Pupil reaction detection framework and several evaluations • collected many videos, annotated pupil and cornea (iris) • trained a segmentation network (Mask R-CNN w/ ResNet-101) • applied network and track size of pupil vs. cornea • evaluated with three datasets • DS 0 (segmentation): 83 images from cataract surgery videos, annotated pupil/cornea • DS A (evaluation): 10 cataract surgery videos, annotated pupil reactions • DS B (generalization test): 20 cataract surgery videos, results checked by clinicians Pupil Reaction Detection Relevant Content Detection in Cataract Surgery Videos Sokolova, N., Schoeffmann, K., Taschwer, M., Sarny, S., Putzgruber-Adamitsch, D., & El-Shabrawi, Y. (2021). Automatic detection of pupil reactions in cataract surgery videos. PloS one, 16(10), e0258390. Klaus Schöffmann 33

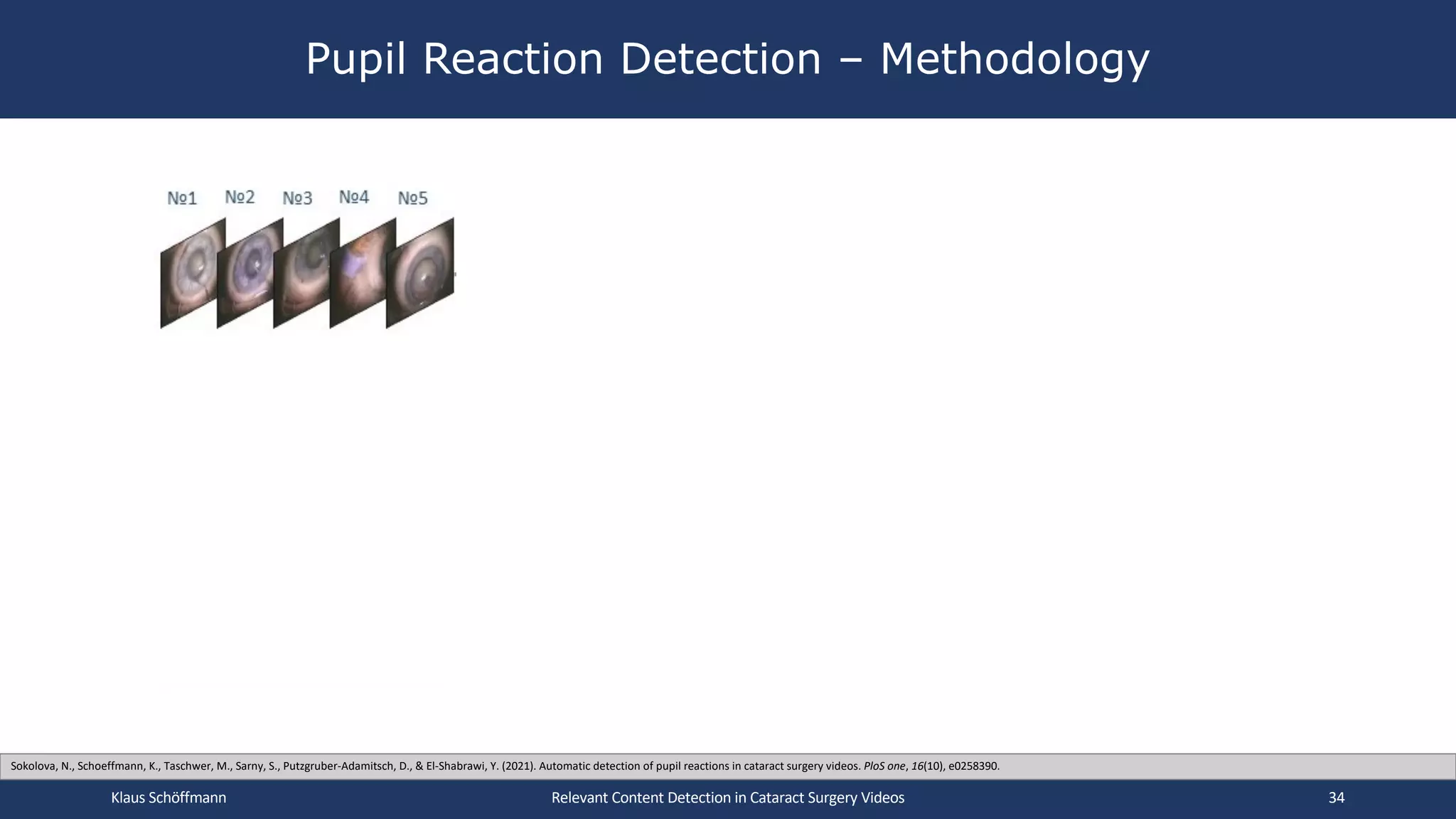

Pupil Reaction Detection – Methodology Relevant Content Detection in Cataract Surgery Videos ✓ ✗ ✓ ✗ ✓ ✓ ✓ ✓ ✓ ✓ Klaus Schöffmann 34 Sokolova, N., Schoeffmann, K., Taschwer, M., Sarny, S., Putzgruber-Adamitsch, D., & El-Shabrawi, Y. (2021). Automatic detection of pupil reactions in cataract surgery videos. PloS one, 16(10), e0258390.
Pupil Reaction Detection – Methodology Relevant Content Detection in Cataract Surgery Videos Manual annotation Mask R-CNN segmentation Backbone CNNs • ResNet-50 • ResNet-101 83 frames 25 videos various conditions published online Klaus Schöffmann 35 Sokolova, N., Schoeffmann, K., Taschwer, M., Sarny, S., Putzgruber-Adamitsch, D., & El-Shabrawi, Y. (2021). Automatic detection of pupil reactions in cataract surgery videos. PloS one, 16(10), e0258390.

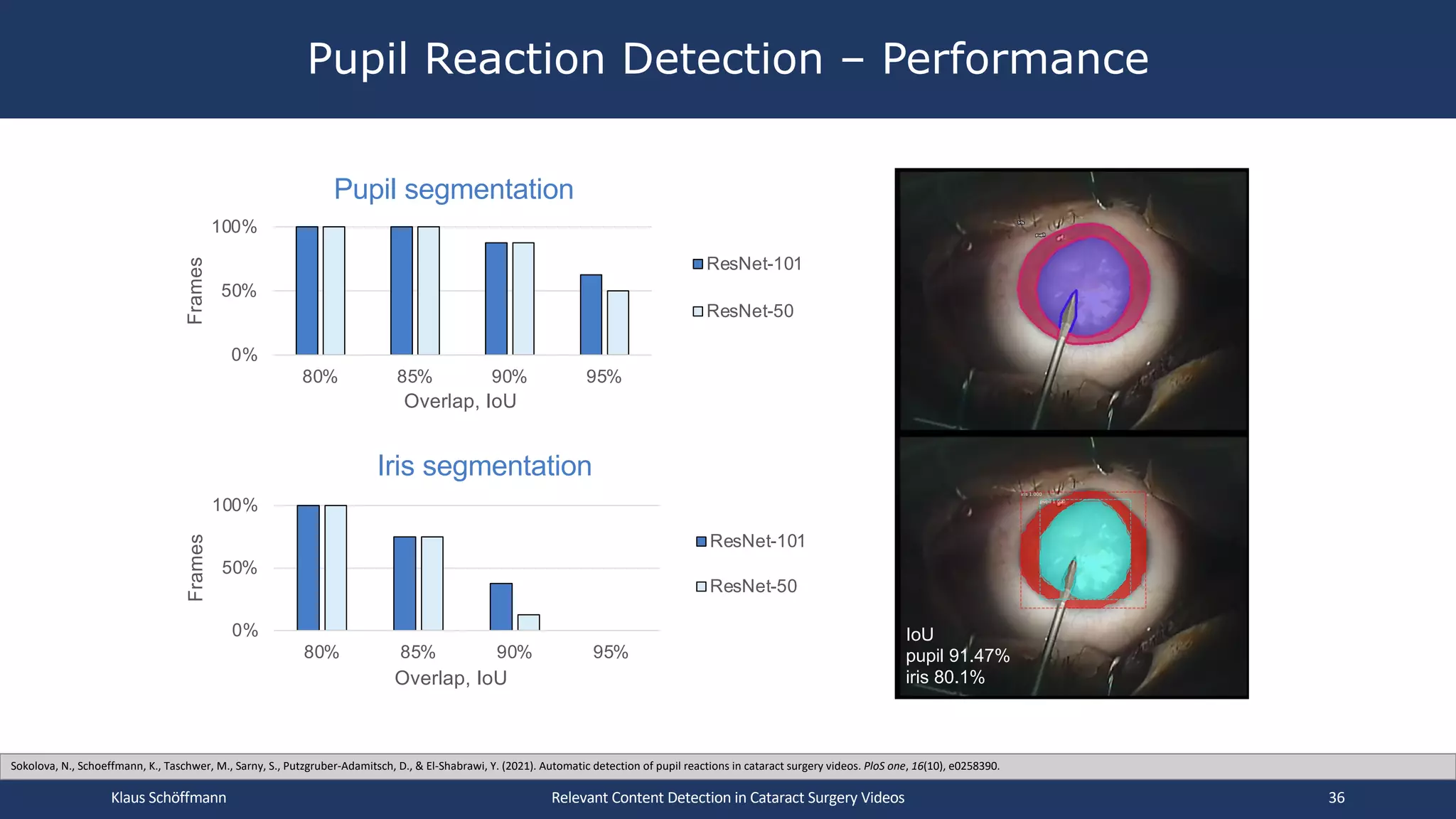

Pupil Reaction Detection – Performance Relevant Content Detection in Cataract Surgery Videos IoU pupil 91.47% iris 80.1% 0% 50% 100% 80% 85% 90% 95% Frames Overlap, IoU Iris segmentation ResNet-101 ResNet-50 0% 50% 100% 80% 85% 90% 95% Frames Overlap, IoU Pupil segmentation ResNet-101 ResNet-50 Klaus Schöffmann 36 Sokolova, N., Schoeffmann, K., Taschwer, M., Sarny, S., Putzgruber-Adamitsch, D., & El-Shabrawi, Y. (2021). Automatic detection of pupil reactions in cataract surgery videos. PloS one, 16(10), e0258390.

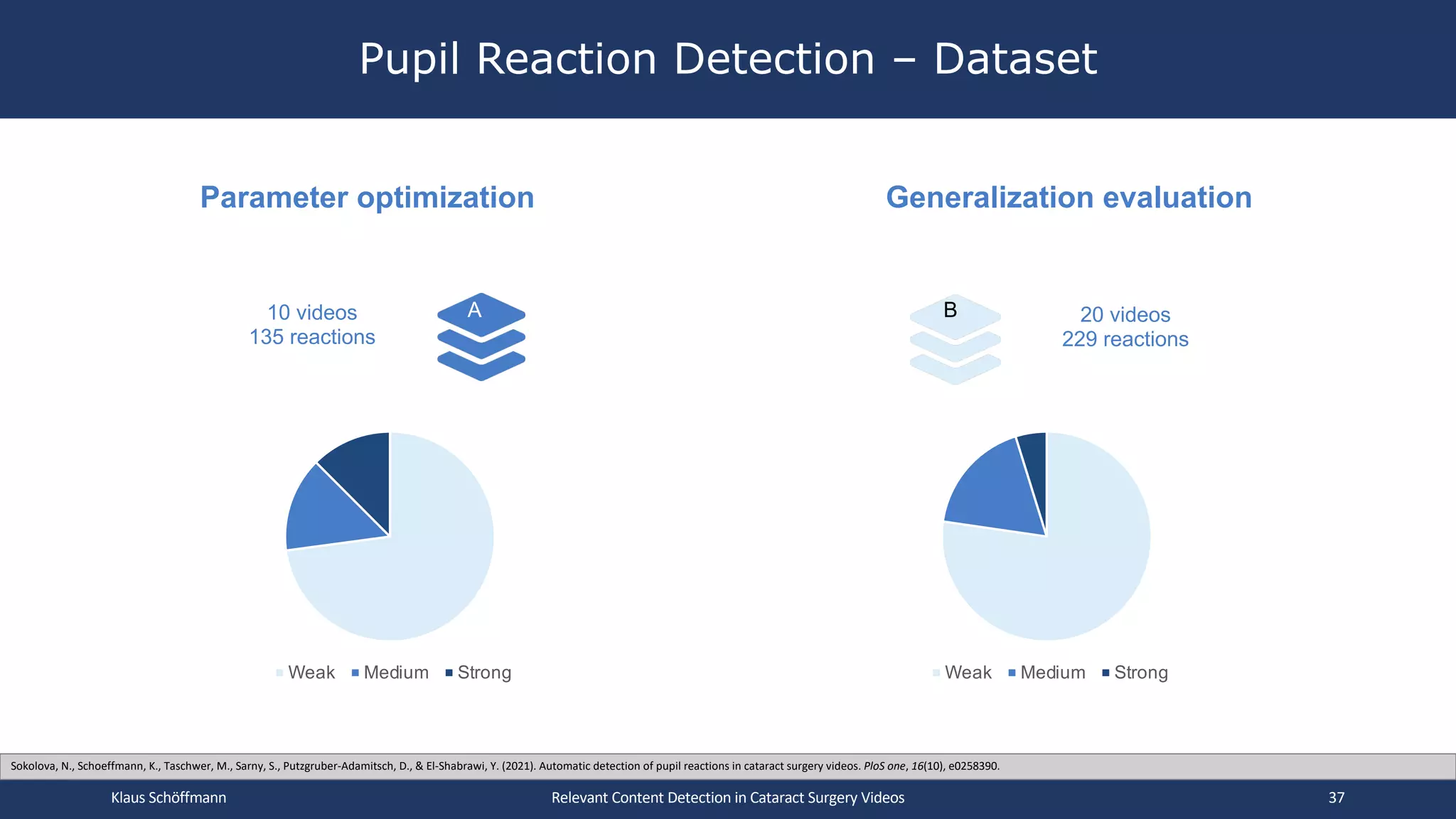

Pupil Reaction Detection – Dataset Relevant Content Detection in Cataract Surgery Videos A 10 videos 135 reactions B 20 videos 229 reactions Weak Medium Strong Weak Medium Strong Parameter optimization Generalization evaluation Klaus Schöffmann 37 Sokolova, N., Schoeffmann, K., Taschwer, M., Sarny, S., Putzgruber-Adamitsch, D., & El-Shabrawi, Y. (2021). Automatic detection of pupil reactions in cataract surgery videos. PloS one, 16(10), e0258390.

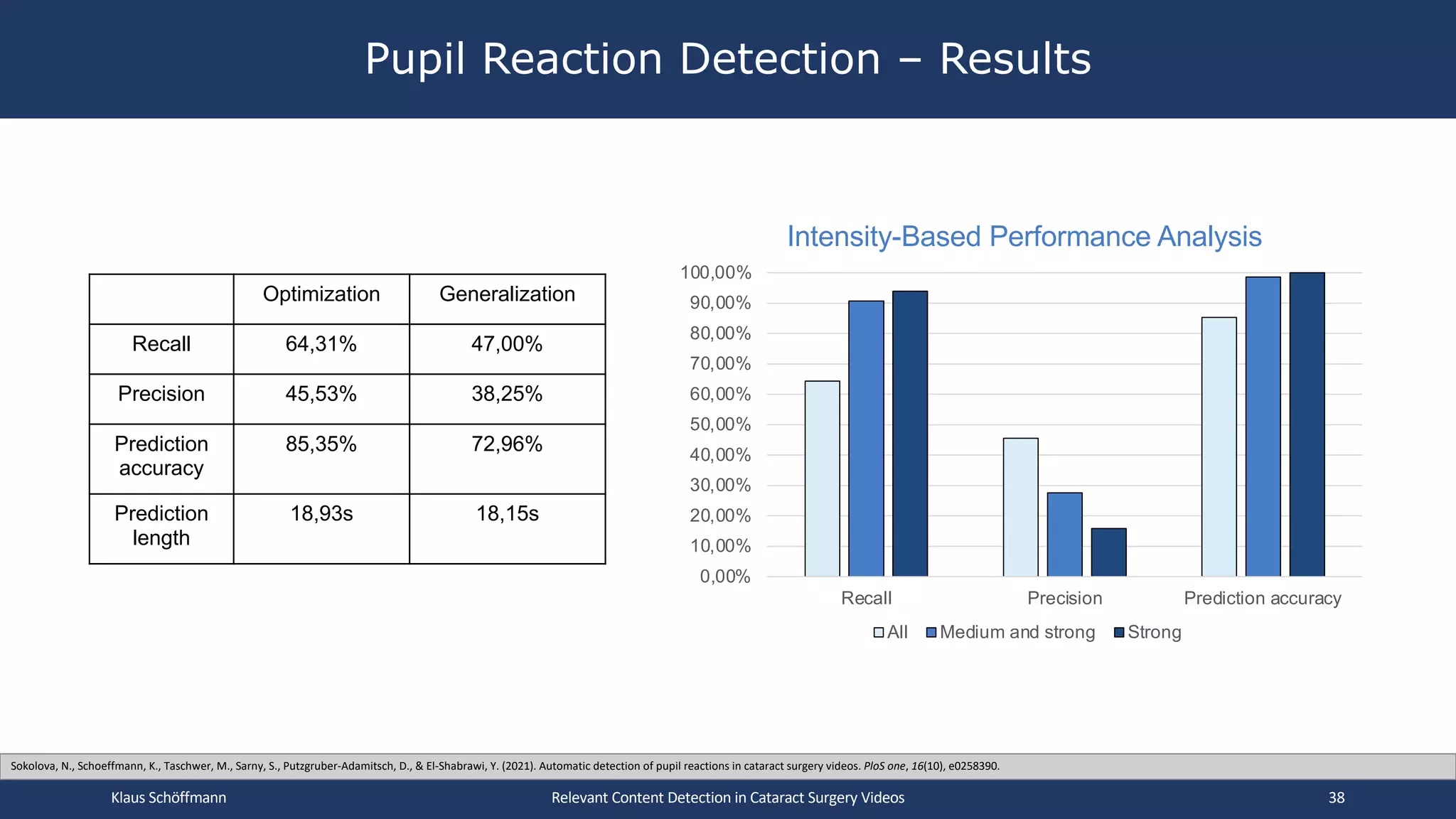

Pupil Reaction Detection – Results Relevant Content Detection in Cataract Surgery Videos 0,00% 10,00% 20,00% 30,00% 40,00% 50,00% 60,00% 70,00% 80,00% 90,00% 100,00% Recall Precision Prediction accuracy Intensity-Based Performance Analysis All Medium and strong Strong Optimization Generalization Recall 64,31% 47,00% Precision 45,53% 38,25% Prediction accuracy 85,35% 72,96% Prediction length 18,93s 18,15s Klaus Schöffmann 38 Sokolova, N., Schoeffmann, K., Taschwer, M., Sarny, S., Putzgruber-Adamitsch, D., & El-Shabrawi, Y. (2021). Automatic detection of pupil reactions in cataract surgery videos. PloS one, 16(10), e0258390.

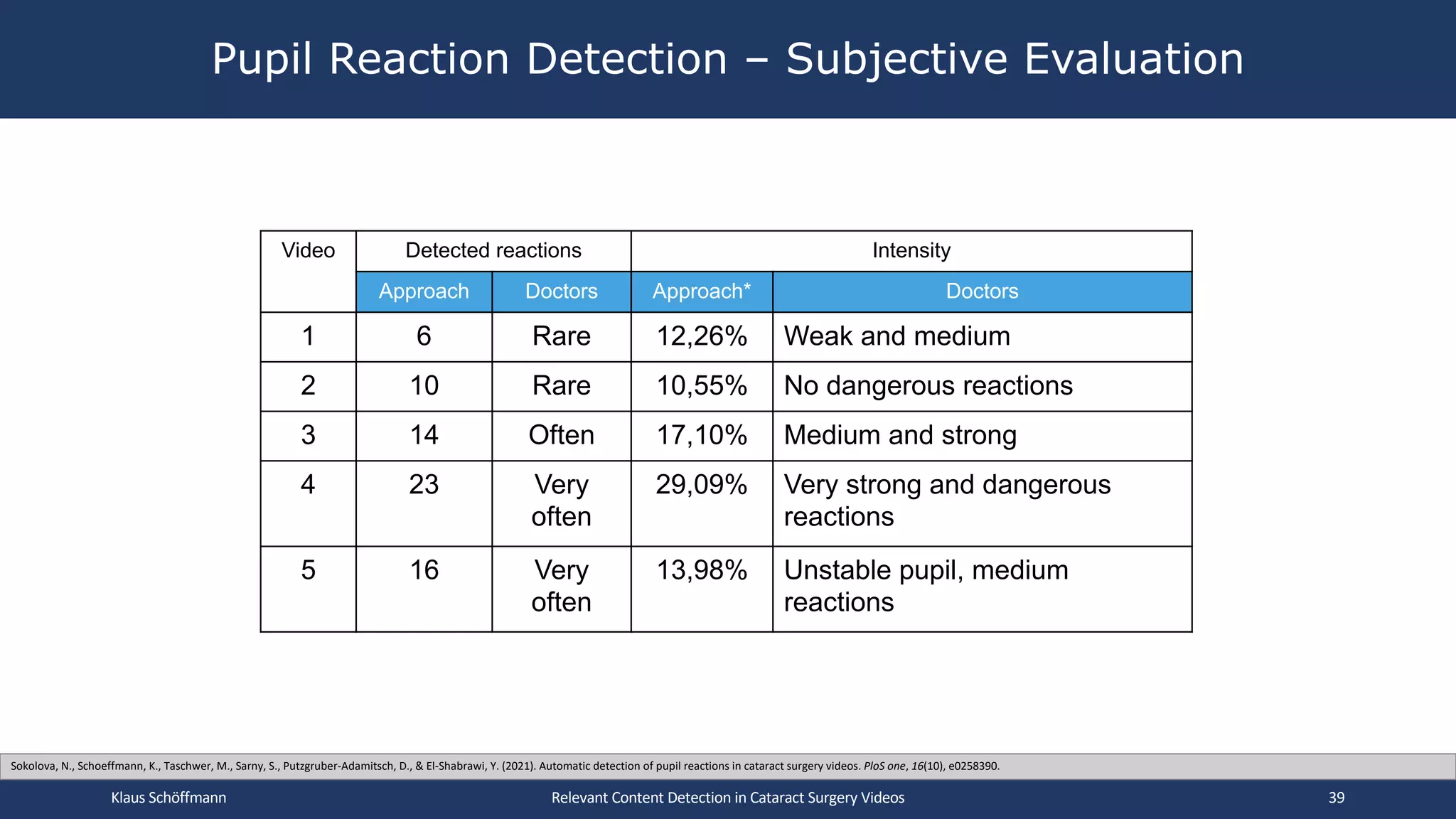

Pupil Reaction Detection – Subjective Evaluation Relevant Content Detection in Cataract Surgery Videos Video Detected reactions Intensity Approach Doctors Approach* Doctors 1 6 Rare 12,26% Weak and medium 2 10 Rare 10,55% No dangerous reactions 3 14 Often 17,10% Medium and strong 4 23 Very often 29,09% Very strong and dangerous reactions 5 16 Very often 13,98% Unstable pupil, medium reactions Klaus Schöffmann 39 Sokolova, N., Schoeffmann, K., Taschwer, M., Sarny, S., Putzgruber-Adamitsch, D., & El-Shabrawi, Y. (2021). Automatic detection of pupil reactions in cataract surgery videos. PloS one, 16(10), e0258390.
Conclusions

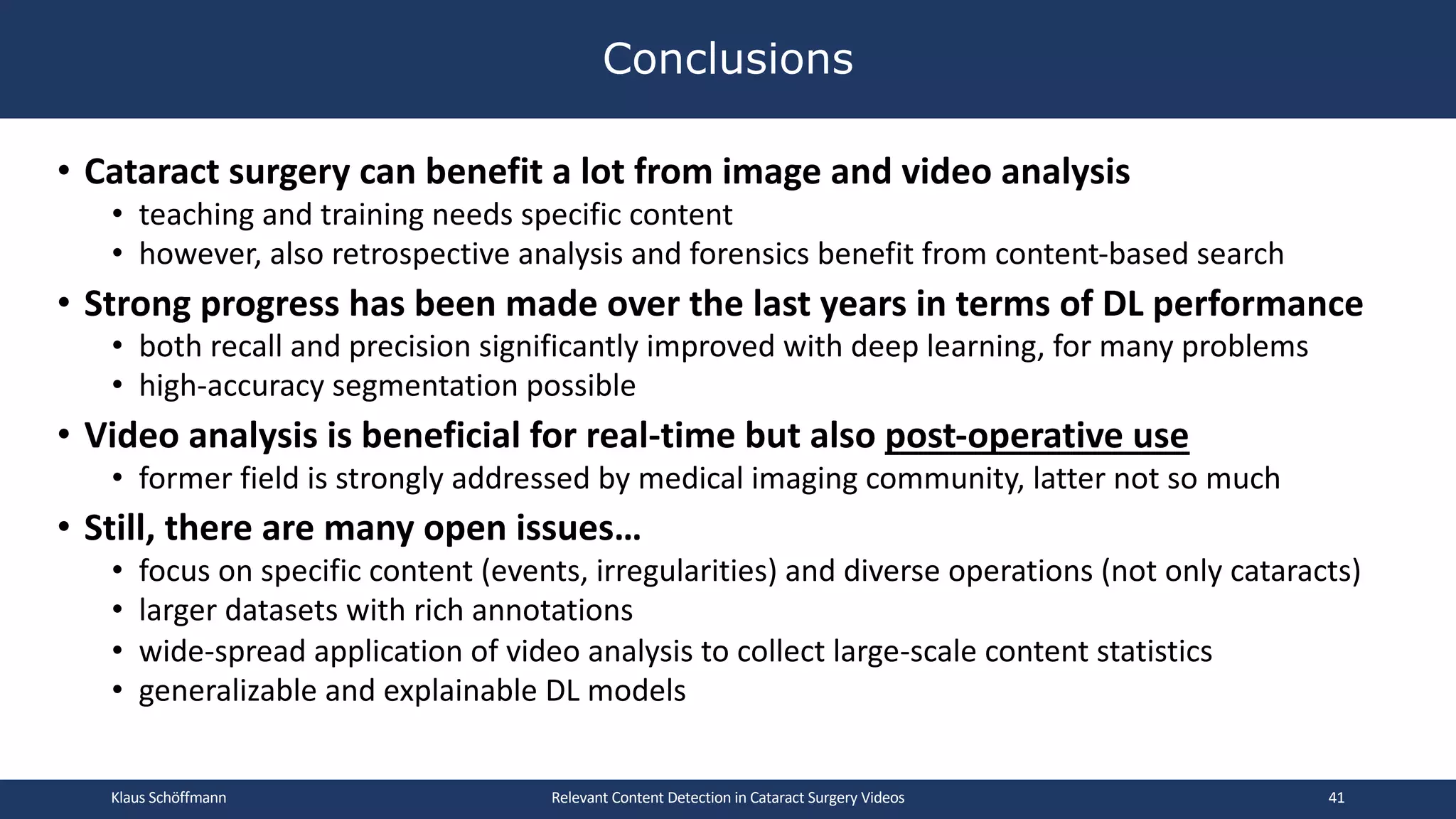

• Cataract surgery can benefit a lot from image and video analysis • teaching and training needs specific content • however, also retrospective analysis and forensics benefit from content-based search • Strong progress has been made over the last years in terms of DL performance • both recall and precision significantly improved with deep learning, for many problems • high-accuracy segmentation possible • Video analysis is beneficial for real-time but also post-operative use • former field is strongly addressed by medical imaging community, latter not so much • Still, there are many open issues… • focus on specific content (events, irregularities) and diverse operations (not only cataracts) • larger datasets with rich annotations • wide-spread application of video analysis to collect large-scale content statistics • generalizable and explainable DL models Conclusions Relevant Content Detection in Cataract Surgery Videos Klaus Schöffmann 41
Thank You! Assoc.Prof. Dr. Klaus Schoeffmann, Associate Professor at Universität Klagenfurt, Austria ks@itec.aau.at | EndoscopicVideo.com
