- 2. 2 Trunk support Lateral trunksupport, slide system, type I Comfortable slide system for fixing the thoracic pads on back Infinitely and easily movable thanks to clamp screw and elongated hole Sturdy angled aluminum holder Robust aluminum fixing plate with threads Extra robust connector for receiving the pad With multiple holes for longitudinal adjustment 1 clamping screw and 4 mounting screws are included! Article number: 05-SSPE1201X Lateral trunk support, slide system, type II Comfortable slide system for fixing the thoracic pads on back Infinitely and easily movable thanks to clamp screw and elongated hole Sturdy angled aluminum holder Robust aluminum fixing plate with threads Extra robust connector for receiving the pad With multiple holes for longitudinal adjustment 1 clamping screw and 4 mounting screws are included! Article number: 05-SSPE1202X Lateral trunk support Additional aluminum mechanism for swing over the pads at your fingertips Easy, comfortable handling Adjustment without tools Robust construction 1 Universal plate for universal mounting is included! Article number: 05-SSPE1311X (left) and 05-SSPE1321X (right)
- 3. 3 Lateral trunk support,type II - anodised Additional aluminum mechanism for swing over the pads at your fingertips Easy, comfortable handling Adjustment without tools Robust construction 1 Universal plate for universal mounting is included! Article number: 05-SSPE1312X (left) and 05-SSPE1322X (right) Trunk pads Article numbers: - size 1, left - hight 100mm, lenght 100mm - art. 05-SSPE0111X - size 1, right - hight 100mm, lenght 100mm - art. 05-SSPE0121X - size 2, left - hight 130mm, lenght 130mm - art. 05-SSPE0112X - size 2, right - hight 130mm, lenght 130mm - art. 05-SSPE0122X - size 3, left - hight 150mm, lenght 170mm - art. 05-SSPE0113X - size 3, right - hight 150mm, lenght 170mm - art. 05-SSPE0123X

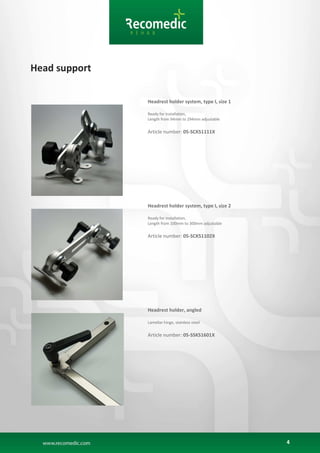

- 4. 4 Head support Headrest holdersystem, type I, size 1 Ready for installation, Length from 94mm to 294mm adjustable Article number: 05-SCKS1111X Headrest holder system, type I, size 2 Ready for installation, Length from 100mm to 300mm adjustable Article number: 05-SCKS1102X Headrest holder, angled Lamellar hinge, stainless steel Article number: 05-SSKS1601X
- 5. 5 Headrest holder, gooseneck,stainless steel lenght 466mm, width 90mm Article number: 05-SSKS1602X Headrest holder, straight Lenght 460mm, width 50mm Article number: 05-SSKS1603X Headrest, comfortable Sizes: - size 1: width1: 200mm, width2:100mm, height: 80mm, depth: 120mm - size 2: width1: 240mm, width2:140mm, height:120mm, depth: 120mm Article number: 05-SSKS0201X (size 1), 05-SSKS0202X (size 2)
- 6. 6 Headrest, flexible Sizes: - size1: width1: 200mm, width2:120mm, height:120mm, depth: 100mm - size 2: width1: 240mm, width2:140mm, height:150mm, depth: 120mm - size 3: width1: 280mm, width2:160mm, height:180mm, depth: 140mm Article number: 05-SSKS0101X (size 1), 05-SSKS0102X (size 2), 05- SSKS0103X (size 3) Headrest tube, stainless steel Lenght 200mm Article number: 05-SSKS0801X Hinge plate, stainless steel Holes distance: width=50mm, hight 40mm Article number: 05-SSKS1701X
- 7. 7 Armrest support Armrest padswith side guide Article numbers: - size 1 - lenght 190mm, width 70mm, height 50mm - art. 05-SSAL0501X - size 2 - lenght 280mm, width 85mm. height 60mm - art. 05-SSAL0502X - size 3 - lenght 370mm, width 100mm, height 70mm - art. 05-SSAL0503X Armrest pads Article numbers: - size 1 - lenght 190mm, width 80mm - art. 05-SSAL0301X - size 2 - lenght 280mm, width 90mm - art. 05-SSAL0302X - size 3 - lenght 370mm, width 100mm - art. 05-SSAL0303X Armrest support system, size 1 Angle short, ready for installation, Width 160mm, height 201mm Article number 05-SCAL1111X

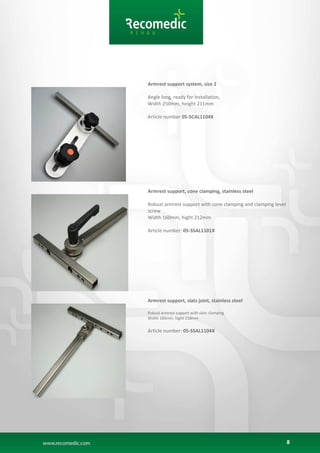

- 8. 8 Armrest support system,size 2 Angle long, ready for installation, Width 250mm, height 211mm Article number 05-SCAL1104X Armrest support, cone clamping, stainless steel Robust armrest support with cone clamping and clamping lever screw Width 160mm, hight 212mm Article number: 05-SSAL1101X Armrest support, slats joint, stainless steel Robust armrest support with slats clamping Width 160mm, hight 218mm Article number: 05-SSAL1104X

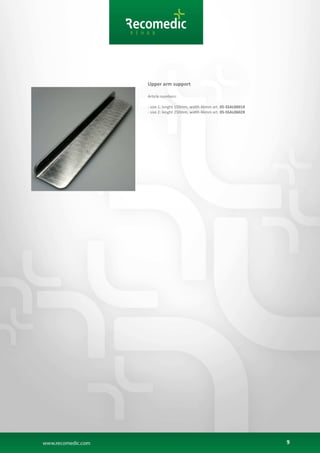

- 9. 9 Upper arm support Articlenumbers: - size 1: lenght 150mm, width 46mm art. 05-SSAL0601X - size 2: lenght 250mm, width 46mm art. 05-SSAL0602X
- 10. 10 Foot support Footboard holderwith adjustable angle, stainless steel lenght: 326mm Article numbers: left 05-SSFS1711X, right 05-SSFS1721X Footboard holder, long, stainless steel lenght: 300mm Article numbers: left 05-SSFS1811X, right 05-SSFS1821X Footboard holder, short, stainless steel lenght: 140mm Article numbers: left 05-SSFS1812X, right 05-SSFS1822X
- 11. 11 Robust footrest withside bumpers powder-coated metal multi-slotted for easy and individual fitting of foot rests and belts color: Black Article numbers: - size 1 - width: 300mm, depth: 170mm, hight: 50mm - art. 05-SSFS1101B - size 2 - width: 350mm, depth: 200mm, hight: 50mm - art. 05-SSFS1102B - size 3 - width: 440mm, depth: 240mm, hight: 50mm - art. 05-SSFS1103B Knee angle inflexible, stainless steel lenght: 503mm (long arm), lenght: 353 (short arm) Article number: 05-SSFS1602X Stepless adjustable knee angle with cone hinge, stainless steel lenght: 494mm (long arm), lenght: 346 (short arm) Article number: 05-SSFS1605X

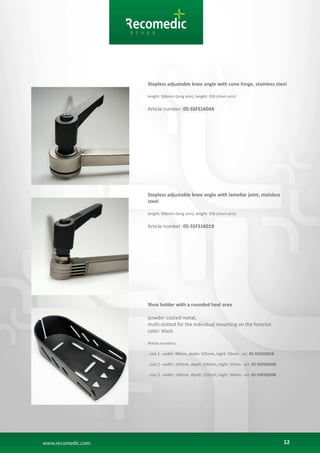

- 12. 12 Stepless adjustable kneeangle with cone hinge, stainless steel lenght: 506mm (long arm), lenght: 350 (short arm) Article number: 05-SSFS1604X Stepless adjustable knee angle with lamellar joint, stainless steel lenght: 506mm (long arm), lenght: 356 (short arm) Article number: 05-SSFS1601X Shoe holder with a rounded heel area powder-coated metal, multi-slotted for the individual mounting on the footrest color: black Article numbers: - size 1 - width: 90mm, depth: 165mm, hight: 50mm - art. 05-SSFS0201B - size 2 - width: 100mm, depth: 200mm, hight: 50mm - art. 05-SSFS0202B - size 3 - width: 130mm, depth: 235mm, hight: 50mm - art. 05-SSFS0203B
- 13. 13 Knee / hipsupport Complete knee adductor wedge system with foam pad, flexible, type I, stainless steel Article number: 05-SSAK1101X
- 14. 14 Complete knee adductorwedge system with foam pad, flexible, type II, stainless steel Article number: 05-SSAK1103X
- 15. 3 Lateral trunk support,type II - anodised Additional aluminum mechanism for swing over the pads at your fingertips Easy, comfortable handling Adjustment without tools Robust construction 1 Universal plate for universal mounting is included! Article number: 05-SSPE1312X (left) and 05-SSPE1322X (right) Trunk pads Article numbers: - size 1, left - hight 100mm, lenght 100mm - art. 05-SSPE0111X - size 1, right - hight 100mm, lenght 100mm - art. 05-SSPE0121X - size 2, left - hight 130mm, lenght 130mm - art. 05-SSPE0112X - size 2, right - hight 130mm, lenght 130mm - art. 05-SSPE0122X - size 3, left - hight 150mm, lenght 170mm - art. 05-SSPE0113X - size 3, right - hight 150mm, lenght 170mm - art. 05-SSPE0123X
- 16. 16 Knee adductor wedgesystem, type I, hinged, ready for installation Article number 05-SCAK1101X
- 17. 17 Accessories Belt guide, stainlesssteel Article number: 05-SSBG0301X Clamping lever screws M8, zinc die casting, black Article numbers: - 10mm - 05-SSKT0110B - 15mm - 05-SSKT0115B - 20mm - 05-SSKT0120B - 25mm - 05-SSKT0125B - 30mm - 05-SSKT0130B Lever clamping bucke, plastic Article numbers: - for belt width max. 25mm - 05-SSBG0701X - for belt width max. 40mm - 05-SSBG0702X
- 18. 18 Rubber stopper, black Articlenumber 05-SSKT0201B Universal holder with clamping lever screw, stainless steel Article number: 05-SSUH1201X Universal holder with clamping screw, bent, stainless steel Article number: 05-SSUH0102X
- 19. 19 Universal holder withclamping screw, stainless steel Article number: 05-SSUH0101X More informations: http://www.recomedic.com/rehab/en/cat_206.html
