This site plan document outlines the layout of multiple clusters (A-G) within a larger plot area of 138664.99 square feet. It specifies an allowable floor area ratio (FAR) of 1.75, which allows for a maximum built-up area of 242663.7325 square feet across the clusters. The clusters are arranged around a central club house with access provided via the main site entry points.

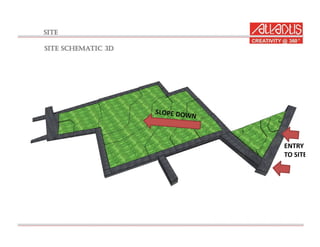

1. ENTRY
TO SITE

2. ENTRY
TO SITE
CLUB HOUSE
CLUSTER E
CLUSTER F
CLUSTER G
CLUSTER A
CLUSTER B
CLUSTER D
CLUSTER C

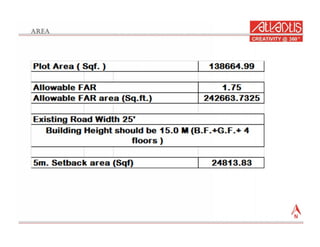

Plot Area ( Sqf. ) 138664.99
Allowable FAR 1.75
Allowable FAR area (Sq.ft.) 242663.7325

7. SW SW SW
SW
SW
SW
