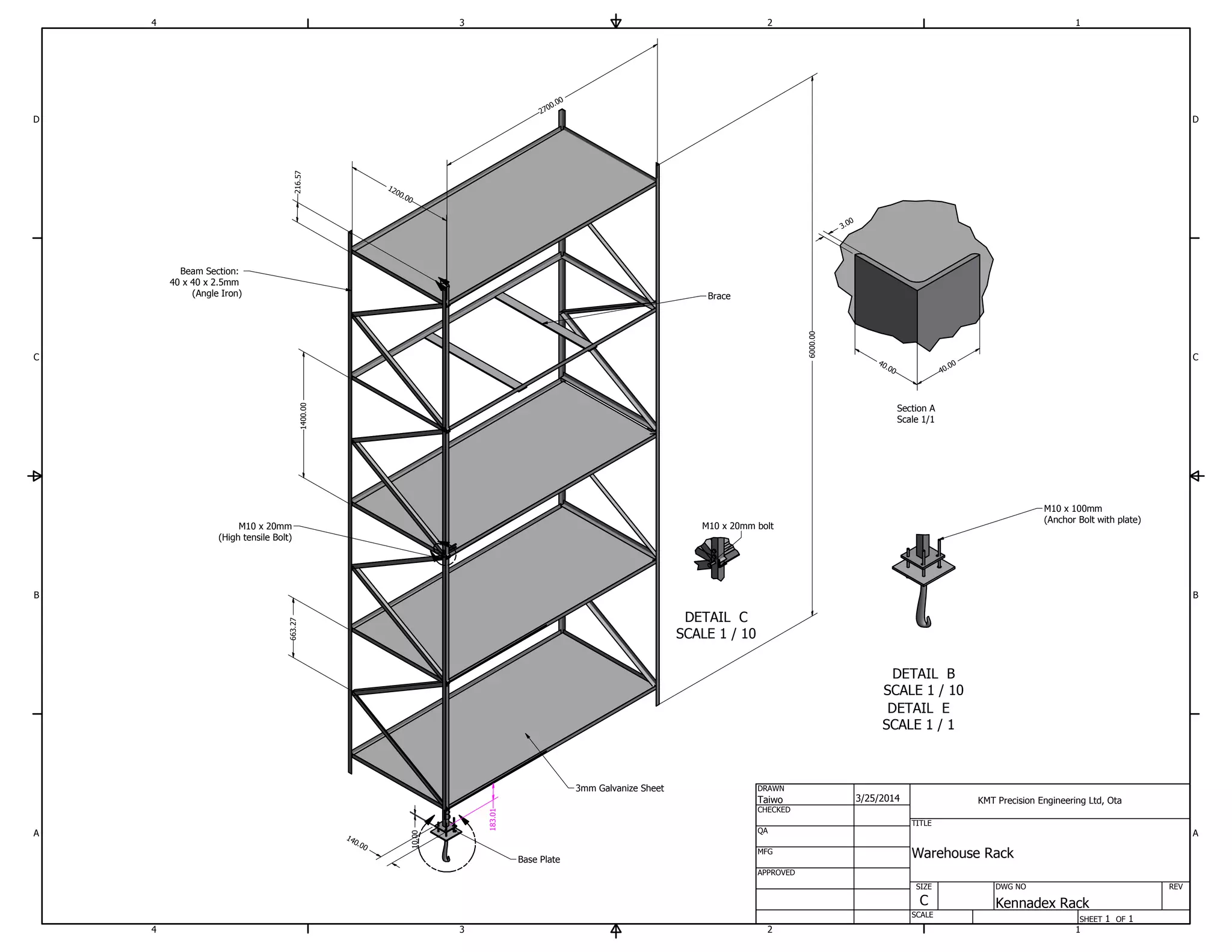

This engineering drawing shows details for a warehouse rack, including three labeled details at scales of 1/10 and 1/1. The rack is made of galvanized sheet and angle iron beams, with base plates and bracing held together with bolts. Key dimensions and materials are listed.

1. DETAIL B
SCALE 1 / 10
DETAIL C
SCALE 1 / 10
DETAIL E
SCALE 1 / 1
B
C
E
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Taiwo 3/25/2014
DWG NO
Kennadex Rack
TITLE
Warehouse Rack
SIZE
C
SCALE
KMT Precision Engineering Ltd, Ota
REV
1200.00
2700.00
1400.00
216.57
663.27
3mm Galvanize Sheet
Beam Section:
40 x 40 x 2.5mm
(Angle Iron)
10.00
183.01
140.00
Base Plate
M10 x 20mm
(High tensile Bolt)
6000.00
Section A
Scale 1/1
Brace
40.00 40.00
3.00
M10 x 100mm
(Anchor Bolt with plate)
M10 x 20mm bolt
