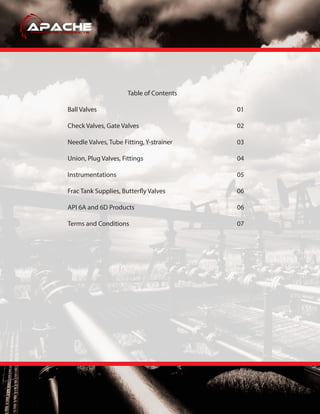

2. Table of Contents
Ball Valves 01
Check Valves, Gate Valves 02
Needle Valves, Tube Fitting, Y-strainer 03
Union, Plug Valves, Fittings 04
Instrumentations 05
Frac Tank Supplies, Butterfly Valves 06
API 6A and 6D Products 06
Terms and Conditions 07

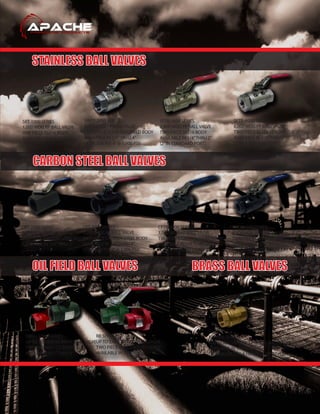

3. STAINLESS BALL VALVES
CARBON STEEL BALL VALVES
OIL FIELD BALL VALVES BRASS BALL VALVES
DIBV / CSBV SERIES
UP TO 5,000 WOG RP/FP BALL VALVE
TWO PIECE DI / CS BODY
AVAILABLE IN 1”THRU 4“
RB SERIES
UP TO 5,000 WOG RP BALL VALVE
TWO PIECE DI / CS BOLTED BODY
AVAILABLE IN 1”THRU 2“
BFT-600 SERIES
600 WOG / 150 SWP FP BRASS BALL VALVE
AVAILABLE IN 1/4”THRU 4”
(2”AVAILABLE IN A HEAVY DUTY STYLE)
CRT-2000 SERIES
2,000 WOG RP BALL VALVE
ONE PIECE CARBON STEEL BODY
AVAILABLE IN 1/4”THRU 2“
CFT-2000 SERIES
2,000 WOG FP BALL VALVE
TWO PIECE CARBON STEEL BODY
AVAILABLE IN 1/4”THRU 4”
(3”@1,500 PSI, 4”@ 1,000 PSI)
CFTB-3000 SERIES
3,000 WOG FP BALL VALVE
TWO PIECE CARBON STEEL BODY
AVAILABLE IN 1/4”THRU 2“
(2”IN STANDARD PORT)
CFTB-6000 SERIES
6,000 WOG FP BALL VALVE
TWO PIECE CARBON STEEL SEALWELD BODY
AVAILABLE IN 1/4”THRU 2“
(2”IN STANDARD PORT)
SRT-1000 SERIES
1,000 WOG RP BALL VALVE
ONE PIECE SS316 BODY
AVAILABLE IN 1/4”THRU 2“
SWFT-2000 SERIES
2,000 WOG FP BALL VALVE
TWO PIECE SS316 SEALWELD BODY
AVAILABLE IN 1/4”THRU 4”
(3”@1,500 PSI, 4”@ 1,000 PSI)
SFTB-3600 SERIES
3,600 WOG FP BALL VALVE
TWO PIECE SS316 BODY
AVAILABLE IN 1/4”THRU 2”
(2”IN STANDARD PORT)
SFTB-6000 SERIES
6,000 WOG FP BALL VALVE
TWO PIECE SS316 SEALWELD BODY
AVAILABLE IN 1/4”THRU 2”
(2”IN STANDARD PORT)

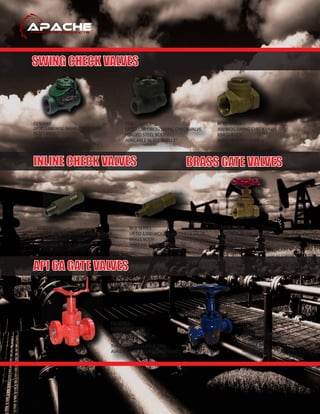

4. SWING CHECK VALVES
API 6A GATE VALVES
INLINE CHECK VALVES BRASS GATE VALVES
CV SERIES
UP TO 5,000 WOG SWING CHECK VALVE
DI / CS BODY
AVAILABLE IN 1”THRU 4”
(LONG BODY PATTERN AVAILABLE IN 2”)
FSSCT SERIES
UP TO 1,975 WOG SWING CHECK VALVE
FORGED STEEL BODY
AVAILABLE IN 1/2”THRU 2”
SCV SERIES
UP TO 6,000 WOG INLINE CHECK VALVE
SS316 BODY
AVAILABLE IN 1/8”THRU 1/2”
BCV SERIES
UP TO 3,000 WOG INLINE CHECK VALVE
BRASS BODY
AVAILABLE IN 1/8”THRU 1/4”
BFTC SERIES
300 WOG SWING CHECK VALVE
BRASS BODY
AVAILABLE IN 1”THRU 4”
BFTG SERIES
200 WOG FP GATE VALVE
BRASS BODY
AVAILABLE IN 1”THRU 4”
EG SERIES
EXPANDING TYPE
API 6A GATE VALVE
DD TRIM
THREADED OR FLANGE END
AVAILABLE IN 2-1/16”THRU 7 1/16”
SG SERIES
SLAB TYPE
API 6A GATE VALVE
EE TRIM
FLANGE END
AVAILABLE IN 1-13/16”THRU 7 1/16”

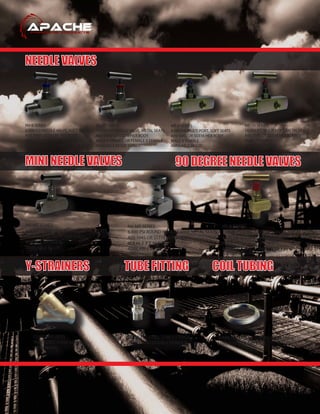

5. NEEDLE VALVES
MINI NEEDLE VALVES 90 DEGREE NEEDLE VALVES
NV-6 SERIES
6,000 PSI NEEDLE VALVE, SOFT SEATS
AISI 1045 OR SS316 HEX BODY
MALE X FEMALE OR FEMALE X FEMALE
AVAILABLE IN 1/4”THRU 1“
NV-10 SERIES
10,000 PSI NEEDLE VALVE, METAL SEATS
AISI 1045 OR SS316 HEX BODY
MALE X FEMALE OR FEMALE X FEMALE
AVAILABLE IN 1/4”THRU 1“
MP-6 SERIES
6,000 PSI MULTI PORT, SOFT SEATS
AISI 1045 OR SS316 HEX BODY
MALE X FEMALE
AVAILABLE IN 1/2“
MP-10 SERIES
10,000 PSI MULTI PORT, METAL SEATS
AISI 1045 OR SS316 HEX BODY
MALE X FEMALE
AVAILABLE IN 1/2“
NV-MT SERIES
6,000 PSI TEE HANDLE MINI, METAL SEATS
AISI 1045 OR SS316 HEX BODY
M X M, F X F, M X F
AVAILABLE IN 1/4”
NV-MR SERIES
6,000 PSI ROUND HANDLE MINI, METAL SEATS
AISI 1045 OR SS316 HEX BODY
M X M, F X F, M X F
AVAILABLE IN 1/4”
NV-A SERIES
10,000 PSI ANGLE NEEDLE VALVE, METAL SEATS
A105 OR SS316 HEX BODY
M X F
AVAILABLE IN 1/4”THRU 1/2“
SEAMLESS COILED TUBING A 269 TP
316L, 0.375 X 0.035 WALL
CLASS 800 WOG
THREADED 316SS 60 MESH
Y-STRAINERS
STAINLESS STEEL TUBE FITTINGS
SINGLE AND DOUBLE FERRULE
COIL TUBINGY-STRAINERS TUBE FITTING

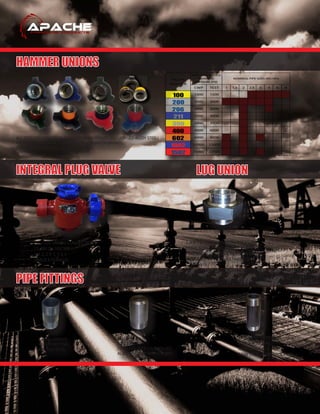

6. FIG 1502 UNION CONNECTIONS
15,000 PSI NSCWP
2 X 2, 2 X 1, 3 X 3
(MALE X FEMALE)
HAMMER UNIONS
LUG UNION
2,000 PSI COLD WORKING PRESSURE
SS316 SUBS, CARBON STEEL HEX NUT
FLAT FACE CONNECTION, VITON O’RING
AVAILABLE IN 1”, 2”NPT THREADED
SEAMLESS NIPPLES
2”LP X 4”, 6”OAL
XXH, SEAMLESS
A108 STEEL CONSTRUCTION
CASING NIPPLES
4.5, 5.5 OR 7”OAL
AISI 1020 STEEL
XXH, BULL PLUG
2”LP X 4”OAL
SEAMLESS, 1018 COLD ROLLED
ALSO AVAILABLE WITH 1/2”NPT
CWP TEST 1 1.5 2 2.5 3 4 6 8
100 1000 1500
200 2000 3000
206 2000 3000
211 2000 3000
300 2000 3000
400 4000 6000
602 6000 9000
1002 10000 15000
1502 15000 22500
FIGURE
NUMBER
NON-SHOCK COLD
WORKING
PRESSURE (PSI)
NOMINAL PIPE SIZES (INCHES)
ALL STEEL CONSTRUCTION (HIGH PRESSURE UNIONS USES FORGED ALLOY STEEL)
FULLY INTERCHAGEABLE WITH MOST OTHER MAJOR BRANDS
AVAILABLE IN THREADED AND BUTTWELD
INTEGRAL PLUG VALVE
PIPE FITTINGS

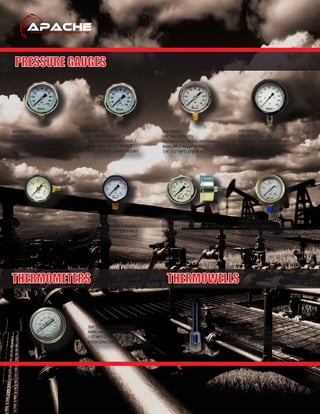

7. PRESSURE GAUGES
THERMOMETERS THERMOWELLS
300 SERIES
VAC 30 - 15,000 PSI
SS CRIMPT CASE, SS INTERNALS
AVAILABLE IN 2.5”, 4”FACE
1/4”, 1/2”NPT LOWER MOUNT
310 SERIES
VAC 30 - 15,000 PSI
SS DEN CASE, SS INTERNALS
AVAILABLE IN 2.5”, 4”FACE
1/4”, 1/2”NPT LOWER MOUNT
210 SERIES
VAC 30 - 6,000 PSI
SS DEN CASE, BRASS INTERNALS
AVAILABLE IN 2.5”, 4”FACE
1/4”, 1/2”NPT LOWER MOUNT
450 SERIES
VAC 30 - 15,000 PSI
PHEOLIC CASE, SS INTERNALS
AVAILABLE IN A 4.5”FACE
1/2”NPT LOWER MOUNT
106D/107D SERIES
0 - 30 PSI
STEEL CASE, POLYCARBON LENSE
AVAILABLE IN A 1.5”FACE
1/8”NPT 3 OR 9 O’CLOCK MOUNT
202/302 SERIES
VAC 30 - 10,000 PSI
SS CRIMPT CASE, SS/BRASS INTERNALS
AVAILABLE IN A 2.5”FACE
1/4”NPT CENTER BACK MOUNT
101D SERIES
VAC 30 - 6,000 PSI
STEEL CASE, BRASS INTERNALS
AVAILABLE IN 1.5”, 2, 2.5 FACE
1/8”, 1/4”NPT LOWER MOUNT
601LSERIES
VAC 30 - 5,000 PSI
BRASS CASE, BRASS INTERNALS
AVAILABLE IN A 2.5 FACE
1/8”NPT LOWER MOUNT
304 SS CASE, SS INTERNALS
AVAILABLE IN 3”FIXED DIAL
1/2”NPT CONNECTIONS
STEM LENGTH 2.5”, 4”, 6”, 9”, AND 12”
304 SS CASE, SS INTERNALS
STEPPED OR STRAIGHT SHANK
1/2”OR 3/4”NPT CONNECTIONS
STEM LENGTH 2.5“, 4”, 6”, AND 9”

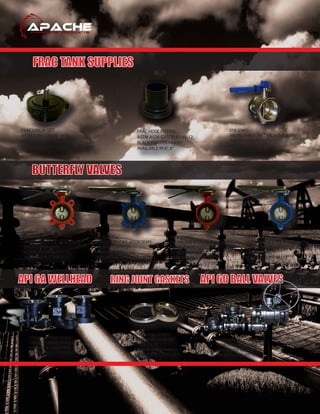

8. BUTTERFLY VALVES
DLB SERIES
200 PSI, LUG STYLE, BUNA SEATS
DUCTILE IRON BODY
DI, ALB, OR STAINLESS DISC
AVAILABLE IN 2”THRU 12“
DLV SERIES
200 PSI, LUG STYLE, VITON SEATS
DUCTILE IRON BODY
STAINLESS DISC
AVAILABLE IN 2”THRU 12“
DWB SERIES
200 PSI, WAFER STYLE, BUNA SEATS
DUCTILE IRON BODY
DI, ALB, OR STAINLESS DISC
AVAILABLE IN 2”THRU 12“
DWV SERIES
200 PSI, WAFER STYLE, VITON SEATS
DUCTILE IRON BODY
STAINLESS DISC
AVAILABLE IN 2”THRU 12“
FRAC UNION SET
ASTM A216 GRADE WCB
BLACK ENAMEL FINISH
AVAILABLE IN 8”SUB, NUT AND BLIND
FRAC HOSE FITTING
ASTM A536 GRADE 65-45-12
BLACK ENAMEL FINISH
AVAILABLE IN 6”, 8”
RING JOINT GASKETS
CARBON OR STAINLESS
TYPE R, RX, BX
API 6A MONOGRAMMED
AVAILABLE IN 1/2”TO 36”
CASING / TUBING HEADS
CASING / TUBING SPOOLS
FLANGES, B1 ADAPTERS,
PE/HPE SEALS, GATE VALVES
TRUNNION BALL VALVES
FLOATING BALL VALVES
CLASSES 150 TO 2500
UNI-BODY, 2PC, 3PC
FRAC TANK SUPPLIES
API 6A WELLHEAD API 6D BALL VALVESRING JOINT GASKETS
DTB SERIES
200 PSI, THREADED TYPE, BUNA SEATS
DUCTILE IRON BODY
ALB DISC
AVAILABLE IN 2”THRU 4“

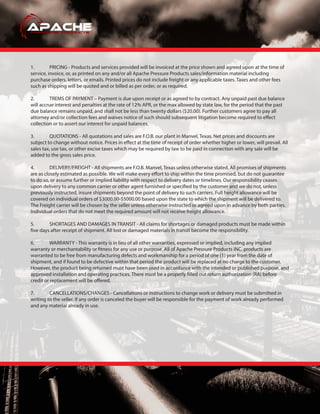

9. 1. PRICING - Products and services provided will be invoiced at the price shown and agreed upon at the time of
service, invoice, or, as printed on any and/or all Apache Pressure Products sales/information material including
purchase orders, letters, or emails. Printed prices do not include freight or any applicable taxes. Taxes and other fees
such as shipping will be quoted and or billed as per order, or as required.
2. TREMS OF PAYMENT – Payment is due upon receipt or as agreed to by contract. Any unpaid past due balance
will accrue interest and penalties at the rate of 12% APR, or the max allowed by state law, for the period that the past
due balance remains unpaid, and shall not be less than twenty dollars ($20.00). Further customers agree to pay all
attorney and/or collection fees and waives notice of such should subsequent litigation become required to effect
collection or to assert our interest for unpaid balances.
3. QUOTATIONS - All quotations and sales are F.O.B. our plant in Manvel, Texas. Net prices and discounts are
subject to change without notice. Prices in effect at the time of receipt of order whether higher or lower, will prevail. All
sales tax, use tax, or other excise taxes which may be required by law to be paid in connection with any sale will be
added to the gross sales price.
4. DELIVERY/FREIGHT - All shipments are F.O.B. Manvel, Texas unless otherwise stated. All promises of shipments
are as closely estimated as possible. We will make every effort to ship within the time promised, but do not guarantee
to do so, or assume further or implied liability with respect to delivery dates or timelines. Our responsibility ceases
upon delivery to any common carrier or other agent furnished or specified by the customer and we do not, unless
previously instructed, insure shipments beyond the point of delivery to such carriers. Full freight allowance will be
covered on individual orders of $3000.00-$5000.00 based upon the state to which the shipment will be delivered to.
The Freight carrier will be chosen by the seller unless otherwise instructed or agreed upon in advance by both parties.
Individual orders that do not meet the required amount will not receive freight allowance.
5. SHORTAGES AND DAMAGES IN TRANSIT - All claims for shortages or damaged products must be made within
five days after receipt of shipment. All lost or damaged materials in transit become the responsibility.
6. WARRANTY - This warranty is in lieu of all other warranties, expressed or implied, including any implied
warranty or merchantability or fitness for any use or purpose. All of Apache Pressure Products INC. products are
warranted to be free from manufacturing defects and workmanship for a period of one (1) year from the date of
shipment, and if found to be defective within that period the product will be replaced at no charge to the customer.
However, the product being returned must have been used in accordance with the intended or published purpose, and
approved installation and operating practices. There must be a properly filled out return authorization (RA) before
credit or replacement will be offered.
7. CANCELLATIONS/CHANGES - Cancellations or instructions to change work or delivery must be submitted in
writing to the seller. If any order is canceled the buyer will be responsible for the payment of work already performed
and any material already in use.
