This document discusses Quectel's CAT M1, NB-IoT, and CAT 1 module roadmaps. It provides details on the Quectel BG96, BG95, and BG600L modules and their specifications. It also examines Quectel's CAT 1 modules, including the EC21, EG21-G, and EC91 models, listing their supported LTE, 3G, and 2G bands and regional variants. Dimension sizes are given for each module.

1. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
Quectel CAT M1, NBIOT &
CAT1 Roadmap Evaluation
Evergreen Lee 2020.5.20

2. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw

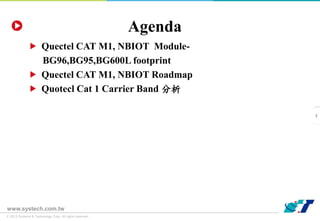

Agenda
Quectel CAT M1, NBIOT Module-
BG96,BG95,BG600L footprint
Quectel CAT M1, NBIOT Roadmap
Quotecl Cat 1 Carrier Band 分析
1

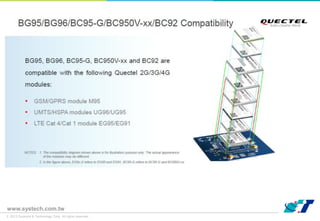

3. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
2

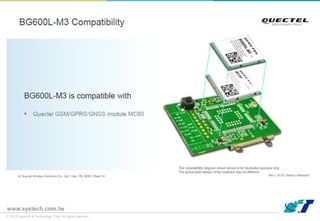

4. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
3

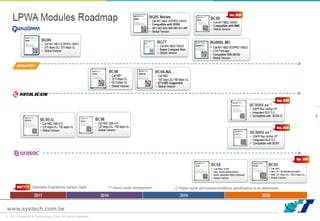

5. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
4

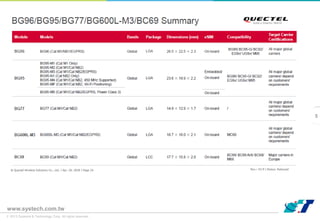

6. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
5

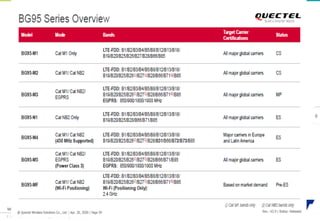

7. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
6

8. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
EC21 EG21-G EC91
Modem
Band
EC21 Cat 1 Fallback 3G&2G
LTE -FDD: Max 10Mbps (DL), Max 5Mbps (UL)
LTE-TDD: Max 8.96Mbps (DL), Max 3.1Mbps (UL)
LTE Bands : 16 Bands 組合
B1,B2,B3,B4,B5,B7,B8,B12,B13,B18,B19,B20,B28,B
28A,B26,B40
3G Bands : WCDMA B1,B2,B5,B8
2G Bands : 850,900,1800,1900 Mhz
10種Band Sku
EC21-A 北美, Fallback 3G
North America: AT&T/T-Mobile/
U.S. Cellular
Canada: Rogers/Telus
LTE Bands : B2,B4,B12
3G Bands : WCDMA B2,B4,B5
EC21-V Verizon
LTE Bands : B4,B13
EC21-J Japan , NTT DOCOMO/KDDI
LTE Bands : B1,B3 ,B8,B18,B19,B26
EC21-EU EMEA,Thailand
LTE Bands : B1,B3,B7,B8,B20,B28A
3G Bands : WCDMA B1,B8
2G Bands : B3,B8
EC21-AU , North America:,Canada:,Brazil
Taiwan,Japan, Australia/New Zealand
LTE Bands : B1,B2,B3,B4
,B5,B7,B8,B28
3G Bands : WCDMA B1,B2,B5,B8
2G Bands : B2,B3,B5,B8
EG-21G Cat 1 Fallback 3G&2G
LTE -FDD: Max 10Mbps (DL), Max 5Mbps (UL)
LTE-TDD: Max 8.96Mbps (DL), Max 3.1Mbps (UL)
UMTS:DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)
GSM: GPRS Max 107Kbps (DL), Max 85.6Kbps (UL)
EDGE Max 296Kbps (DL), Max 236.8Kbps (UL)
Bands:
LTE-FDD Bands:15 Bands
B1,B2,B3,B4,B5,B7,B8,B12,B13,B18,B19,B20,B25,B26,B28
LTE-TDD Bands:14 Bands
B38,B39,B40,B41
3G Bands : WCDMA B1,B2,B4,B5,B6,B8,B19
2G Bands : 850,900,1800,1900 Mhz
EC-91 Cat 1 Fallback 3G&2G
LTE -FDD: Max 10Mbps (DL), Max 5Mbps (UL)
LTE-TDD: Max 8.96Mbps (DL), Max 3.1Mbps (UL)
UMTS:DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)
GSM: GPRS Max 107Kbps (DL), Max 85.6Kbps (UL)
EDGE Max 296Kbps (DL), Max 236.8Kbps (UL)
LTE Bands : 15 Bands 組合 , 7種Band Sku
B1,B2,B3,B4,B5,B7,B8,B12,B13,B18,B20,B25,B26,B28,B28A
B66
EG91-E EMEA
LTE Bamds:B1,B3,B7,B8,B20,B28A
3G Bands : WCDMA B1,B8
2G Bands : B3,B8
EG91-EX EMEA
LTE Bamds:B1,B3,B7,B8,B20,B28
3G Bands : WCDMA B1,B8
2G Bands : B3,B8
EG91-NA North America
LTE Bamds:B2,B4,B5,B12,B13
3G Bands : WCDMA B2,B2,B5
EG91-NAX North America
LTE Bamds:B2,B4,B5,B12,B13,B25,B26
3G Bands : WCDMA B2,B2,B5
EG91-NS North America
LTE Bamds:B2,B4,B5,B12,B13,B25,B26
3G Bands : WCDMA B2,B2,B5
EG91-NAX North America
LTE Bamds:B4,B13
EG91-AUX Latin America,Australia,New Zealand
LTE Bamds:B1,B2,B3,B4,B5,B7,B8,B28,B66
3G Bands : WCDMA B1,B2,B5,B8
2G Bands : B2,B3,B5,B8
Dimension 32.0mm × 29.0mm × 2.4mm,
144-pin LGA
29.0mm × 32.0mm × 2.4mm,
144-pin LGA
29.0mm × 25.0mm × 2.3mm,
144-pin LGA

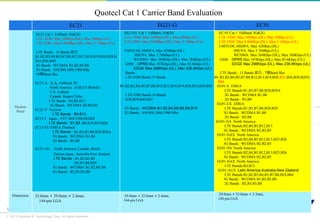

Quotecl Cat 1 Carrier Band Evaluation

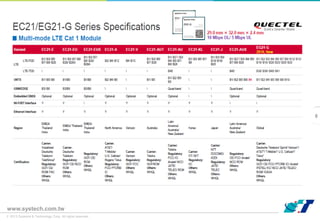

9. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
8

10. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
9

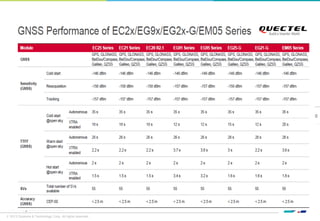

11. © 2013 Systems & Technology Corp. All rights reserved.
www.systech.com.tw
10
